#include "univ.i"
#include "data0data.h"
#include "dict0types.h"
#include "trx0types.h"
#include "que0types.h"
#include "mtr0mtr.h"
#include "rem0types.h"
#include "rem0rec.h"
#include "read0types.h"
#include "btr0types.h"
#include "row0mysql.h"
#include "lock0types.h"
#include "srv0srv.h"

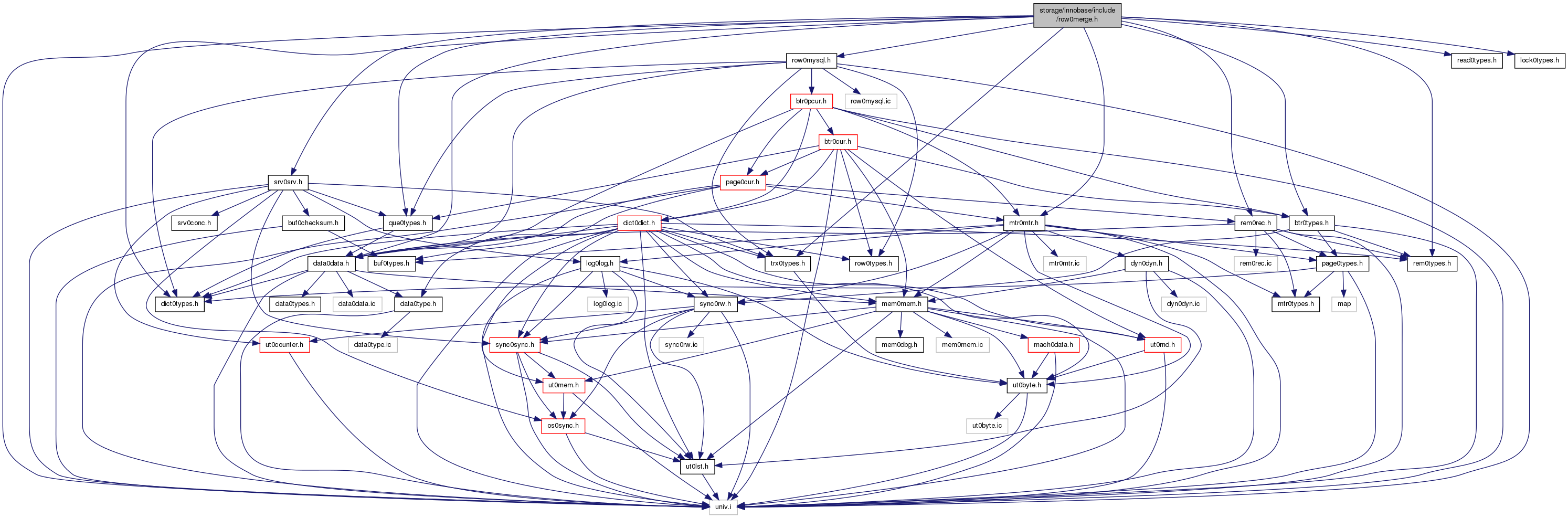

Include dependency graph for row0merge.h:

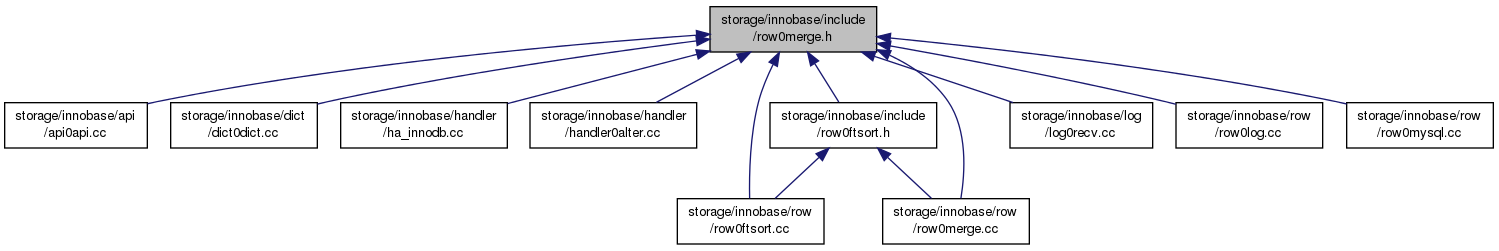

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mtuple_t
struct	row_merge_buf_t
struct	merge_file_t
struct	index_field_t
struct	index_def_t
struct	row_merge_dup_t

Typedefs
typedef byte	row_merge_block_t
	Block size for I/O operations in merge sort.
typedef byte	mrec_buf_t [UNIV_PAGE_SIZE_MAX]
	Secondary buffer for I/O operations of merge records.
typedef byte	mrec_t
	Merge record in row_merge_block_t.

Functions
UNIV_INTERN void	row_merge_dup_report (row_merge_dup_t dup, const dfield_t entry) __attribute__((nonnull))
UNIV_INTERN dberr_t	row_merge_lock_table (trx_t trx, dict_table_t table, enum lock_mode mode) __attribute__((nonnull
UNIV_INTERN void	row_merge_drop_indexes_dict (trx_t *trx, table_id_t table_id) __attribute__((nonnull))
UNIV_INTERN void	row_merge_drop_indexes (trx_t trx, dict_table_t table, ibool locked) __attribute__((nonnull))
UNIV_INTERN void	row_merge_drop_temp_indexes (void)
UNIV_INTERN int	row_merge_file_create_low (void) __attribute__((warn_unused_result))
UNIV_INTERN void	row_merge_file_destroy_low (int fd)
UNIV_INTERN char *	row_make_new_pathname (dict_table_t table, const char new_name)
UNIV_INTERN dberr_t	row_merge_rename_tables_dict (dict_table_t old_table, dict_table_t new_table, const char tmp_name, trx_t trx) __attribute__((nonnull
UNIV_INTERN dberr_t	row_merge_rename_index_to_add (trx_t *trx, table_id_t table_id, index_id_t index_id) __attribute__((nonnull))
UNIV_INTERN dberr_t	row_merge_rename_index_to_drop (trx_t *trx, table_id_t table_id, index_id_t index_id) __attribute__((nonnull))
UNIV_INTERN dict_index_t *	row_merge_create_index (trx_t trx, dict_table_t table, const index_def_t *index_def)
UNIV_INTERN ibool	row_merge_is_index_usable (const trx_t trx, const dict_index_t index)
UNIV_INTERN dberr_t	row_merge_drop_table (trx_t trx, dict_table_t table) __attribute__((nonnull))
UNIV_INTERN dberr_t	row_merge_build_indexes (trx_t trx, dict_table_t old_table, dict_table_t new_table, bool online, dict_index_t indexes, const ulint key_numbers, ulint n_indexes, struct TABLE table, const dtuple_t add_cols, const ulint *col_map, ulint add_autoinc, ib_sequence_t &sequence) __attribute__((nonnull(1
UNIV_INTERN void	row_merge_buf_write (const row_merge_buf_t buf, const merge_file_t of, row_merge_block_t *block) __attribute__((nonnull))
UNIV_INTERN void	row_merge_buf_sort (row_merge_buf_t buf, row_merge_dup_t dup) __attribute__((nonnull(1)))
UNIV_INTERN ibool	row_merge_write (int fd, ulint offset, const void *buf)
UNIV_INTERN row_merge_buf_t *	row_merge_buf_empty (row_merge_buf_t *buf) __attribute__((warn_unused_result
UNIV_INTERN int	row_merge_file_create (merge_file_t *merge_file) __attribute__((nonnull))
UNIV_INTERN dberr_t	row_merge_sort (trx_t trx, const row_merge_dup_t dup, merge_file_t file, row_merge_block_t block, int *tmpfd) __attribute__((nonnull))
UNIV_INTERN row_merge_buf_t *	row_merge_buf_create (dict_index_t *index) __attribute__((warn_unused_result
UNIV_INTERN void	row_merge_buf_free (row_merge_buf_t *buf) __attribute__((nonnull))
UNIV_INTERN void	row_merge_file_destroy (merge_file_t *merge_file) __attribute__((nonnull))
UNIV_INTERN ibool	row_merge_read (int fd, ulint offset, row_merge_block_t *buf)
UNIV_INTERN const byte *	row_merge_read_rec (row_merge_block_t block, mrec_buf_t buf, const byte b, const dict_index_t index, int fd, ulint foffs, const mrec_t mrec, ulint offsets) __attribute__((nonnull

Variables
UNIV_INTERN dberr_t	warn_unused_result
UNIV_INTERN row_merge_buf_t	nonnull
UNIV_INTERN row_merge_buf_t	malloc

Detailed Description

Index build routines using a merge sort

Created 13/06/2005 Jan Lindstrom

Definition in file row0merge.h.

Typedef Documentation

typedef byte mrec_buf_t[UNIV_PAGE_SIZE_MAX]

Secondary buffer for I/O operations of merge records.

This buffer is used for writing or reading a record that spans two row_merge_block_t. Thus, it must be able to hold one merge record, whose maximum size is the same as the minimum size of row_merge_block_t.

Definition at line 61 of file row0merge.h.

typedef byte mrec_t

Merge record in row_merge_block_t.

The format is the same as a record in ROW_FORMAT=COMPACT with the exception that the REC_N_NEW_EXTRA_BYTES are omitted.

Definition at line 67 of file row0merge.h.

typedef byte row_merge_block_t

Block size for I/O operations in merge sort.

The minimum is UNIV_PAGE_SIZE, or page_get_free_space_of_empty() rounded to a power of 2.

When not creating a PRIMARY KEY that contains column prefixes, this can be set as small as UNIV_PAGE_SIZE / 2.

Definition at line 44 of file row0merge.h.

Function Documentation

UNIV_INTERN char* row_make_new_pathname	(	dict_table_t *	table,
		const char *	new_name
	)

Provide a new pathname for a table that is being renamed if it belongs to a file-per-table tablespace. The caller is responsible for freeing the memory allocated for the return value.

Returns: new pathname of tablespace file, or NULL if space = 0 in: new name

Parameters

table in: table to be renamed

UNIV_INTERN row_merge_buf_t* row_merge_buf_create ( dict_index_t * index )

Allocate a sort buffer.

Returns: own: sort buffer

Parameters

index in: secondary index

Here is the caller graph for this function:

UNIV_INTERN row_merge_buf_t* row_merge_buf_empty ( row_merge_buf_t * buf )

Empty a sort buffer.

Returns: sort buffer

Parameters

buf	in,own: sort buffer

Here is the caller graph for this function:

UNIV_INTERN void row_merge_buf_free ( row_merge_buf_t * buf )

Deallocate a sort buffer.

Parameters

buf	in,own: sort buffer to be freed

Here is the caller graph for this function:

UNIV_INTERN void row_merge_buf_sort	(	row_merge_buf_t *	buf,
		row_merge_dup_t *	dup
	)

Sort a buffer.

Parameters

buf	in/out: sort buffer
dup	in/out: reporter of duplicates (NULL if non-unique index)

Here is the caller graph for this function:

UNIV_INTERN void row_merge_buf_write	(	const row_merge_buf_t *	buf,
		const merge_file_t *	of,
		row_merge_block_t *	block
	)

Write a buffer to a block.

Parameters

buf	in: sorted buffer
of	in: output file
block	out: buffer for writing to file

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_merge_build_indexes	(	trx_t *	trx,
		dict_table_t *	old_table,
		dict_table_t *	new_table,
		bool	online,
		dict_index_t **	indexes,
		const ulint *	key_numbers,
		ulint	n_indexes,
		struct TABLE *	table,
		const dtuple_t *	add_cols,
		const ulint *	col_map,
		ulint	add_autoinc,
		ib_sequence_t &	sequence
	)

Build indexes on a table by reading a clustered index, creating a temporary file containing index entries, merge sorting these index entries and inserting sorted index entries to indexes.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
old_table	in: table where rows are read from
new_table	in: table where indexes are created; identical to old_table unless creating a PRIMARY KEY
online	in: true if creating indexes online
indexes	in: indexes to be created
key_numbers	in: MySQL key numbers
n_indexes	in: size of indexes[]
table	in/out: MySQL table, for reporting erroneous key value if applicable
add_cols	in: default values of added columns, or NULL
col_map	in: mapping of old column numbers to new ones, or NULL if old_table == new_table
add_autoinc	in: number of added AUTO_INCREMENT column, or ULINT_UNDEFINED if none is added
sequence	in/out: autoinc sequence

UNIV_INTERN dict_index_t* row_merge_create_index	(	trx_t *	trx,
		dict_table_t *	table,
		const index_def_t *	index_def
	)

Create the index and load in to the dictionary.

Returns: index, or NULL on error in: the index definition

Parameters

trx	in/out: trx (sets error_state)
table	in: the index is on this table

UNIV_INTERN void row_merge_drop_indexes	(	trx_t *	trx,
		dict_table_t *	table,
		ibool	locked
	)

Drop those indexes which were created before an error occurred. The data dictionary must have been locked exclusively by the caller, because the transaction will not be committed.

Parameters

trx	in/out: transaction
table	in/out: table containing the indexes
locked	in: TRUE=table locked, FALSE=may need to do a lazy drop

UNIV_INTERN void row_merge_drop_indexes_dict	(	trx_t *	trx,
		table_id_t	table_id
	)

Drop indexes that were created before an error occurred. The data dictionary must have been locked exclusively by the caller, because the transaction will not be committed.

Parameters

trx	in/out: dictionary transaction
table_id	in: table identifier

UNIV_INTERN dberr_t row_merge_drop_table	(	trx_t *	trx,
		dict_table_t *	table
	)

Drop a table. The caller must have ensured that the background stats thread is not processing the table. This can be done by calling dict_stats_wait_bg_to_stop_using_table() after locking the dictionary and before calling this function.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
table	in: table instance to drop

UNIV_INTERN void row_merge_drop_temp_indexes ( void )

Drop all partially created indexes during crash recovery.

Here is the caller graph for this function:

UNIV_INTERN void row_merge_dup_report	(	row_merge_dup_t *	dup,
		const dfield_t *	entry
	)

Report a duplicate key.

Parameters

dup	in/out: for reporting duplicates
entry	in: duplicate index entry

UNIV_INTERN int row_merge_file_create ( merge_file_t * merge_file )

Create a merge file.

Returns: file descriptor, or -1 on failure

Parameters

merge_file out: merge file structure

Here is the caller graph for this function:

UNIV_INTERN int row_merge_file_create_low ( void )

Creates temporary merge files, and if UNIV_PFS_IO defined, register the file descriptor with Performance Schema.

Returns: File descriptor

Here is the caller graph for this function:

UNIV_INTERN void row_merge_file_destroy ( merge_file_t * merge_file )

Destroy a merge file.

Parameters

merge_file in/out: merge file structure

Here is the caller graph for this function:

UNIV_INTERN void row_merge_file_destroy_low ( int fd )

Destroy a merge file. And de-register the file from Performance Schema if UNIV_PFS_IO is defined. in: merge file descriptor

UNIV_INTERN ibool row_merge_is_index_usable	(	const trx_t *	trx,
		const dict_index_t *	index
	)

Check if a transaction can use an index.

Returns: TRUE if index can be used by the transaction else FALSE in: index to check

Parameters

trx	in: transaction

UNIV_INTERN dberr_t row_merge_lock_table	(	trx_t *	trx,
		dict_table_t *	table,
		enum lock_mode	mode
	)

Sets an exclusive lock on a table, for the duration of creating indexes.

Returns: error code or DB_SUCCESS

Parameters

trx	in/out: transaction
table	in: table to lock
mode	in: LOCK_X or LOCK_S

UNIV_INTERN ibool row_merge_read	(	int	fd,
		ulint	offset,
		row_merge_block_t *	buf
	)

Read a merge block from the file system.

Returns: TRUE if request was successful, FALSE if fail out: data

Parameters

fd	in: file descriptor
offset	in: offset where to read in number of row_merge_block_t elements

UNIV_INTERN const byte* row_merge_read_rec	(	row_merge_block_t *	block,
		mrec_buf_t *	buf,
		const byte *	b,
		const dict_index_t *	index,
		int	fd,
		ulint *	foffs,
		const mrec_t **	mrec,
		ulint *	offsets
	)

Read a merge record.

Returns: pointer to next record, or NULL on I/O error or end of list

Parameters

block	in/out: file buffer
buf	in/out: secondary buffer
b	in: pointer to record
index	in: index of the record
fd	in: file descriptor
foffs	in/out: file offset
mrec	out: pointer to merge record, or NULL on end of list (non-NULL on I/O error)
offsets	out: offsets of mrec

UNIV_INTERN dberr_t row_merge_rename_index_to_add	(	trx_t *	trx,
		table_id_t	table_id,
		index_id_t	index_id
	)

Rename an index in the dictionary that was created. The data dictionary must have been locked exclusively by the caller, because the transaction will not be committed.

Returns: DB_SUCCESS if all OK

Parameters

trx	in/out: transaction
table_id	in: table identifier
index_id	in: index identifier

UNIV_INTERN dberr_t row_merge_rename_index_to_drop	(	trx_t *	trx,
		table_id_t	table_id,
		index_id_t	index_id
	)

Rename an index in the dictionary that is to be dropped. The data dictionary must have been locked exclusively by the caller, because the transaction will not be committed.

Returns: DB_SUCCESS if all OK

Parameters

trx	in/out: transaction
table_id	in: table identifier
index_id	in: index identifier

UNIV_INTERN dberr_t row_merge_rename_tables_dict	(	dict_table_t *	old_table,
		dict_table_t *	new_table,
		const char *	tmp_name,
		trx_t *	trx
	)

Rename the tables in the data dictionary. The data dictionary must have been locked exclusively by the caller, because the transaction will not be committed.

Returns: error code or DB_SUCCESS

Parameters

old_table	in/out: old table, renamed to tmp_name
new_table	in/out: new table, renamed to old_table->name
tmp_name	in: new name for old_table
trx	in/out: dictionary transaction

UNIV_INTERN dberr_t row_merge_sort	(	trx_t *	trx,
		const row_merge_dup_t *	dup,
		merge_file_t *	file,
		row_merge_block_t *	block,
		int *	tmpfd
	)

Merge disk files.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
dup	in: descriptor of index being created
file	in/out: file containing index entries
block	in/out: 3 buffers
tmpfd	in/out: temporary file handle

Here is the caller graph for this function:

UNIV_INTERN ibool row_merge_write	(	int	fd,
		ulint	offset,
		const void *	buf
	)

Write a merge block to the file system.

Returns: TRUE if request was successful, FALSE if fail in: data

Parameters

fd	in: file descriptor
offset	in: offset where to write, in number of row_merge_block_t elements

Here is the caller graph for this function:

Classes

Typedefs

Functions

Variables

Detailed Description

Typedef Documentation

Function Documentation
