#include "univ.i"
#include "page0types.h"
#include "fil0fil.h"
#include "buf0buf.h"
#include "data0data.h"
#include "dict0dict.h"
#include "rem0rec.h"
#include "fsp0fsp.h"
#include "mtr0mtr.h"
#include "page0page.ic"

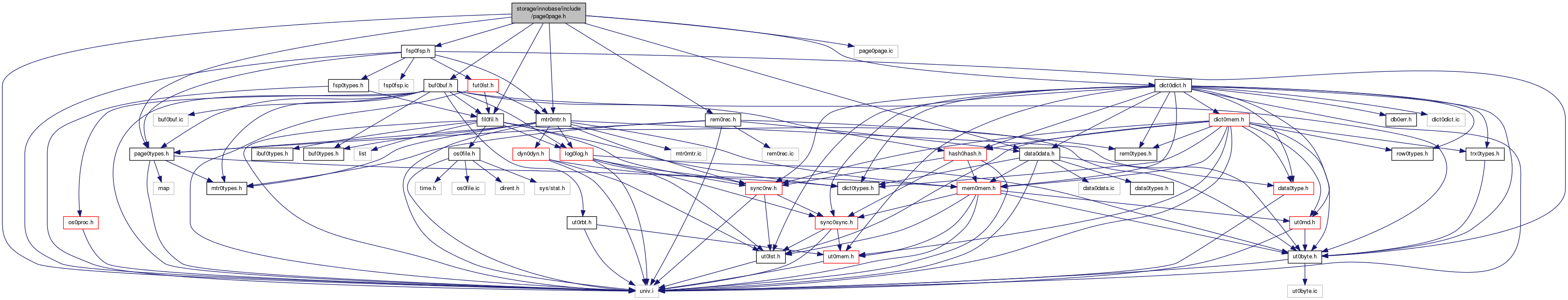

Include dependency graph for page0page.h:

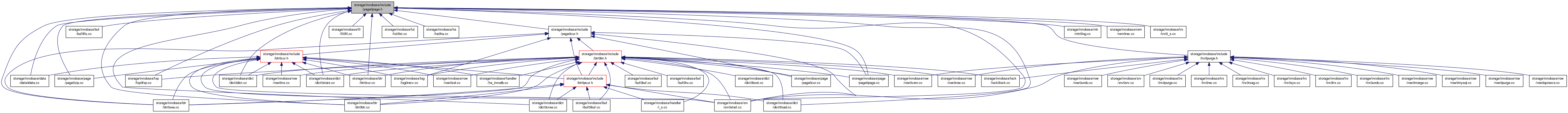

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PAGE_HEADER
#define	PAGE_N_DIR_SLOTS 0 /* number of slots in page directory */
#define	PAGE_HEAP_TOP 2 /* pointer to record heap top */
#define	PAGE_N_HEAP
#define	PAGE_FREE 6 /* pointer to start of page free record list */
#define	PAGE_GARBAGE 8 /* number of bytes in deleted records */
#define	PAGE_LAST_INSERT
#define	PAGE_DIRECTION 12 /* last insert direction: PAGE_LEFT, ... */
#define	PAGE_N_DIRECTION
#define	PAGE_N_RECS 16 /* number of user records on the page */
#define	PAGE_MAX_TRX_ID
#define	PAGE_HEADER_PRIV_END
#define	PAGE_LEVEL
#define	PAGE_INDEX_ID
#define	PAGE_BTR_SEG_LEAF
#define	PAGE_BTR_IBUF_FREE_LIST PAGE_BTR_SEG_LEAF
#define	PAGE_BTR_IBUF_FREE_LIST_NODE PAGE_BTR_SEG_LEAF
#define	PAGE_BTR_SEG_TOP (36 + FSEG_HEADER_SIZE)
#define	PAGE_DATA (PAGE_HEADER + 36 + 2 * FSEG_HEADER_SIZE)
#define	PAGE_OLD_INFIMUM (PAGE_DATA + 1 + REC_N_OLD_EXTRA_BYTES)
#define	PAGE_OLD_SUPREMUM (PAGE_DATA + 2 + 2 * REC_N_OLD_EXTRA_BYTES + 8)
#define	PAGE_OLD_SUPREMUM_END (PAGE_OLD_SUPREMUM + 9)
#define	PAGE_NEW_INFIMUM (PAGE_DATA + REC_N_NEW_EXTRA_BYTES)
#define	PAGE_NEW_SUPREMUM (PAGE_DATA + 2 * REC_N_NEW_EXTRA_BYTES + 8)
#define	PAGE_NEW_SUPREMUM_END (PAGE_NEW_SUPREMUM + 8)
#define	PAGE_HEAP_NO_INFIMUM 0 /* page infimum */
#define	PAGE_HEAP_NO_SUPREMUM 1 /* page supremum */
#define	PAGE_HEAP_NO_USER_LOW
#define	PAGE_LEFT 1
#define	PAGE_RIGHT 2
#define	PAGE_SAME_REC 3
#define	PAGE_SAME_PAGE 4
#define	PAGE_NO_DIRECTION 5
#define	PAGE_DIR FIL_PAGE_DATA_END
#define	PAGE_DIR_SLOT_SIZE 2
#define	PAGE_EMPTY_DIR_START (PAGE_DIR + 2 * PAGE_DIR_SLOT_SIZE)
#define	PAGE_DIR_SLOT_MAX_N_OWNED 8
#define	PAGE_DIR_SLOT_MIN_N_OWNED 4
#define	page_header_get_ptr(page, field)
#define	page_get_infimum_rec(page) ((page) + page_get_infimum_offset(page))
#define	page_get_supremum_rec(page) ((page) + page_get_supremum_offset(page))
#define	page_dir_get_nth_slot(page, n)

Typedefs
typedef byte	page_header_t
typedef byte	page_dir_slot_t
typedef page_dir_slot_t	page_dir_t

Functions
UNIV_INLINE page_t *	page_align (const void *ptr) __attribute__((const ))
UNIV_INLINE ulint	page_offset (const void *ptr) __attribute__((const ))
UNIV_INLINE trx_id_t	page_get_max_trx_id (const page_t *page)
UNIV_INTERN void	page_set_max_trx_id (buf_block_t block, page_zip_des_t page_zip, trx_id_t trx_id, mtr_t *mtr)
UNIV_INLINE void	page_update_max_trx_id (buf_block_t block, page_zip_des_t page_zip, trx_id_t trx_id, mtr_t *mtr)

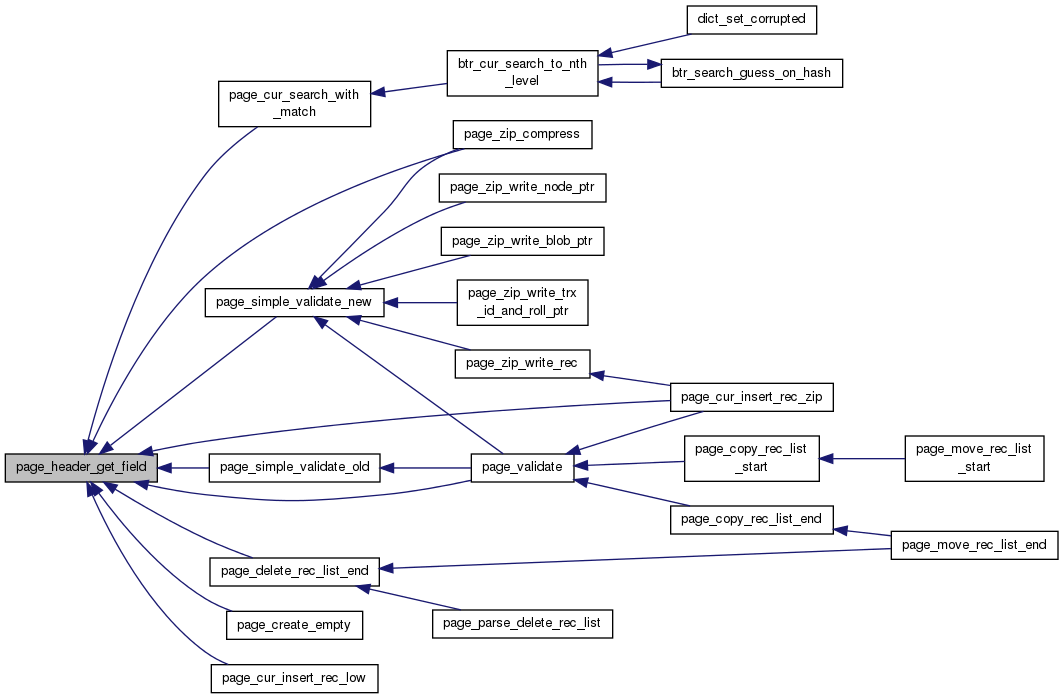

UNIV_INLINE ulint	page_header_get_field (const page_t *page, ulint field)
UNIV_INLINE void	page_header_set_field (page_t page, page_zip_des_t page_zip, ulint field, ulint val)
UNIV_INLINE ulint	page_header_get_offs (const page_t *page, ulint field) __attribute__((nonnull
UNIV_INLINE void	page_header_set_ptr (page_t page, page_zip_des_t page_zip, ulint field, const byte *ptr)
UNIV_INLINE void	page_header_reset_last_insert (page_t page, page_zip_des_t page_zip, mtr_t *mtr)
UNIV_INLINE ulint	page_get_infimum_offset (const page_t *page)
UNIV_INLINE ulint	page_get_supremum_offset (const page_t *page)
UNIV_INTERN const rec_t *	page_rec_get_nth_const (const page_t *page, ulint nth) __attribute__((nonnull
UNIV_INLINE rec_t *	page_rec_get_nth (page_t *page, ulint nth) __attribute__((nonnull
UNIV_INLINE rec_t *	page_get_middle_rec (page_t *page) __attribute__((nonnull
UNIV_INLINE int	page_cmp_dtuple_rec_with_match (const dtuple_t dtuple, const rec_t rec, const ulint offsets, ulint matched_fields, ulint *matched_bytes)
UNIV_INLINE ulint	page_get_page_no (const page_t *page)
UNIV_INLINE ulint	page_get_space_id (const page_t *page)
UNIV_INLINE ulint	page_get_n_recs (const page_t *page)
UNIV_INTERN ulint	page_rec_get_n_recs_before (const rec_t *rec)
UNIV_INLINE ulint	page_dir_get_n_heap (const page_t *page)
UNIV_INLINE void	page_dir_set_n_heap (page_t page, page_zip_des_t page_zip, ulint n_heap)
UNIV_INLINE ulint	page_dir_get_n_slots (const page_t *page)
UNIV_INLINE void	page_dir_set_n_slots (page_t page, page_zip_des_t page_zip, ulint n_slots)
UNIV_INLINE ibool	page_rec_check (const rec_t *rec)
UNIV_INLINE const rec_t *	page_dir_slot_get_rec (const page_dir_slot_t *slot)
UNIV_INLINE void	page_dir_slot_set_rec (page_dir_slot_t slot, rec_t rec)
UNIV_INLINE ulint	page_dir_slot_get_n_owned (const page_dir_slot_t *slot)
UNIV_INLINE void	page_dir_slot_set_n_owned (page_dir_slot_t slot, page_zip_des_t page_zip, ulint n)
UNIV_INLINE ulint	page_dir_calc_reserved_space (ulint n_recs)
UNIV_INTERN ulint	page_dir_find_owner_slot (const rec_t *rec)
UNIV_INLINE ulint	page_is_comp (const page_t *page)
UNIV_INLINE ulint	page_rec_is_comp (const rec_t *rec)
UNIV_INLINE ulint	page_rec_get_heap_no (const rec_t *rec)
UNIV_INLINE bool	page_is_leaf (const page_t *page) __attribute__((nonnull
UNIV_INLINE bool	page_is_empty (const page_t *page) __attribute__((nonnull
UNIV_INLINE bool	page_has_garbage (const page_t *page) __attribute__((nonnull
UNIV_INLINE const rec_t *	page_rec_get_next_low (const rec_t *rec, ulint comp)
UNIV_INLINE rec_t *	page_rec_get_next (rec_t *rec)
UNIV_INLINE const rec_t *	page_rec_get_next_const (const rec_t *rec)
UNIV_INLINE const rec_t *	page_rec_get_next_non_del_marked (const rec_t *rec)
UNIV_INLINE void	page_rec_set_next (rec_t rec, const rec_t next)
UNIV_INLINE const rec_t *	page_rec_get_prev_const (const rec_t *rec)
UNIV_INLINE rec_t *	page_rec_get_prev (rec_t *rec)
UNIV_INLINE ibool	page_rec_is_user_rec_low (ulint offset) __attribute__((const ))
UNIV_INLINE ibool	page_rec_is_supremum_low (ulint offset) __attribute__((const ))
UNIV_INLINE ibool	page_rec_is_infimum_low (ulint offset) __attribute__((const ))
UNIV_INLINE ibool	page_rec_is_user_rec (const rec_t *rec) __attribute__((const ))
UNIV_INLINE ibool	page_rec_is_supremum (const rec_t *rec) __attribute__((const ))
UNIV_INLINE ibool	page_rec_is_infimum (const rec_t *rec) __attribute__((const ))
UNIV_INLINE rec_t *	page_rec_find_owner_rec (rec_t *rec)
UNIV_INLINE void	page_rec_write_field (rec_t rec, ulint i, ulint val, mtr_t mtr) __attribute__((nonnull))
UNIV_INLINE ulint	page_get_max_insert_size (const page_t *page, ulint n_recs)
UNIV_INLINE ulint	page_get_max_insert_size_after_reorganize (const page_t *page, ulint n_recs)
UNIV_INLINE ulint	page_get_free_space_of_empty (ulint comp) __attribute__((const ))
UNIV_INLINE ulint	page_rec_get_base_extra_size (const rec_t *rec)
UNIV_INLINE ulint	page_get_data_size (const page_t *page)
UNIV_INLINE void	page_mem_alloc_free (page_t page, page_zip_des_t page_zip, rec_t *next_rec, ulint need)
UNIV_INTERN byte *	page_mem_alloc_heap (page_t page, page_zip_des_t page_zip, ulint need, ulint *heap_no)
UNIV_INLINE void	page_mem_free (page_t page, page_zip_des_t page_zip, rec_t rec, const dict_index_t index, const ulint *offsets)
UNIV_INTERN page_t *	page_create (buf_block_t block, mtr_t mtr, ulint comp)

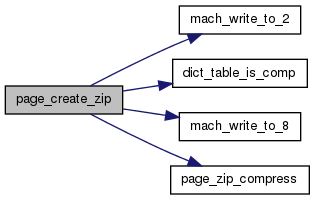

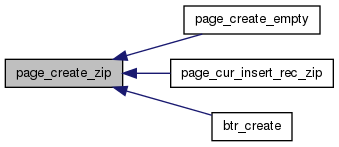

UNIV_INTERN page_t *	page_create_zip (buf_block_t block, dict_index_t index, ulint level, trx_id_t max_trx_id, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	page_create_empty (buf_block_t block, dict_index_t index, mtr_t *mtr) __attribute__((nonnull(1

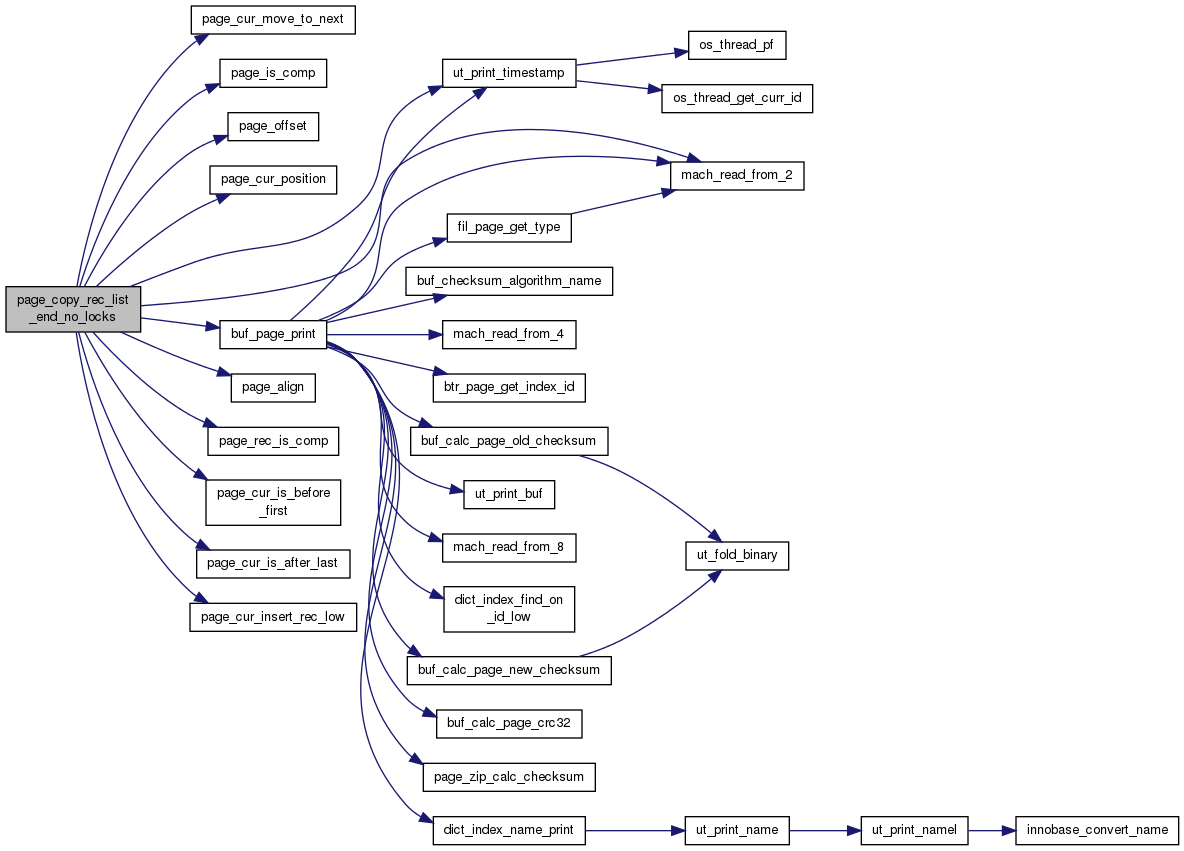

UNIV_INTERN void UNIV_INTERN void	page_copy_rec_list_end_no_locks (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr)
UNIV_INTERN rec_t *	page_copy_rec_list_end (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN rec_t *	page_copy_rec_list_start (buf_block_t new_block, buf_block_t block, rec_t rec, dict_index_t index, mtr_t *mtr) __attribute__((nonnull))
UNIV_INTERN void	page_delete_rec_list_end (rec_t rec, buf_block_t block, dict_index_t index, ulint n_recs, ulint size, mtr_t mtr) __attribute__((nonnull))

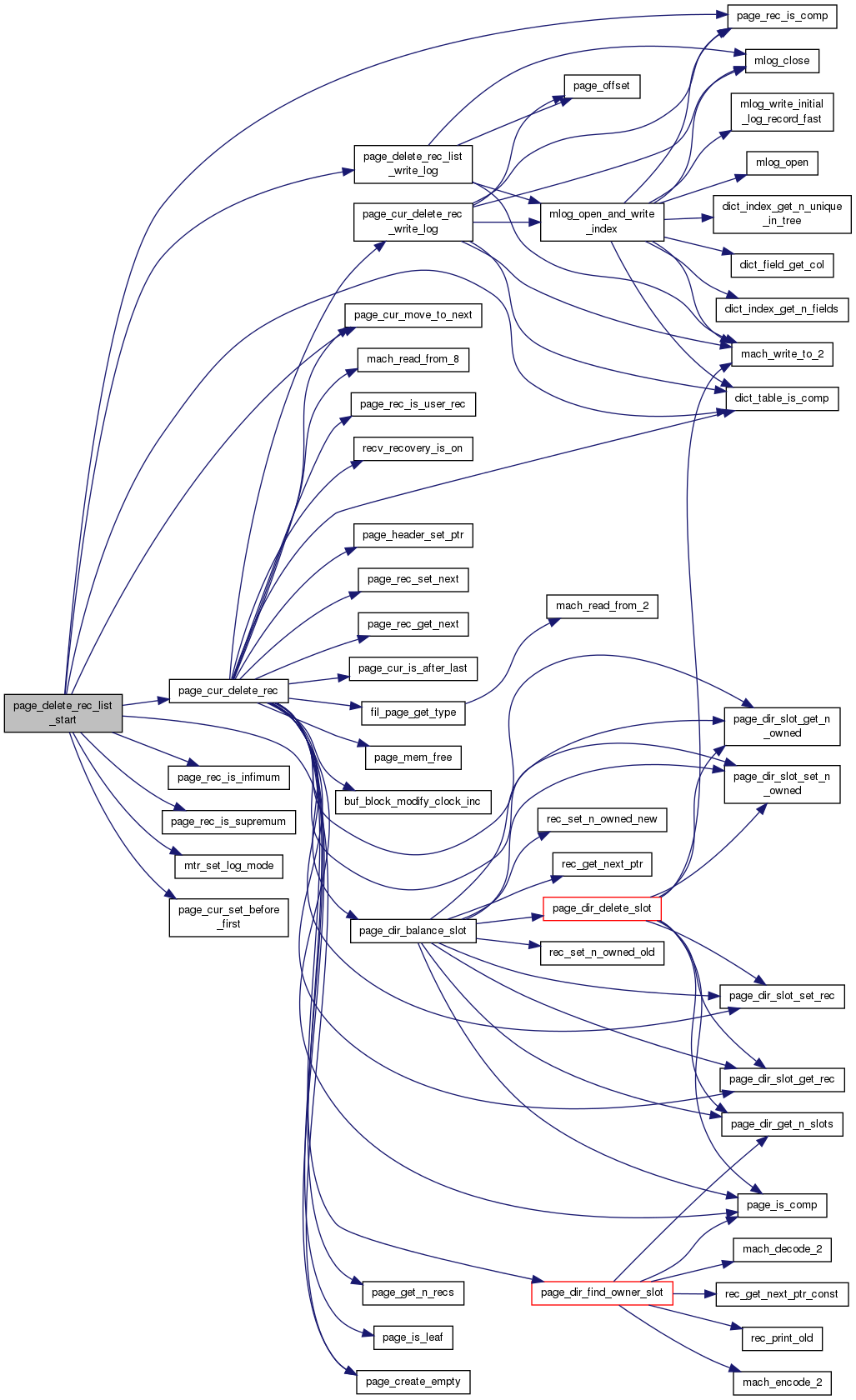

UNIV_INTERN void	page_delete_rec_list_start (rec_t rec, buf_block_t block, dict_index_t index, mtr_t mtr) __attribute__((nonnull))
UNIV_INTERN ibool	page_move_rec_list_end (buf_block_t new_block, buf_block_t block, rec_t split_rec, dict_index_t index, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN ibool UNIV_INTERN ibool	page_move_rec_list_start (buf_block_t new_block, buf_block_t block, rec_t split_rec, dict_index_t index, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN ibool UNIV_INTERN ibool UNIV_INTERN void	page_dir_split_slot (page_t page, page_zip_des_t page_zip, ulint slot_no) __attribute__((nonnull(1)))
UNIV_INTERN void	page_dir_balance_slot (page_t page, page_zip_des_t page_zip, ulint slot_no) __attribute__((nonnull(1)))
UNIV_INTERN byte *	page_parse_delete_rec_list (byte type, byte ptr, byte end_ptr, buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN byte *	page_parse_create (byte ptr, byte end_ptr, ulint comp, buf_block_t block, mtr_t mtr)

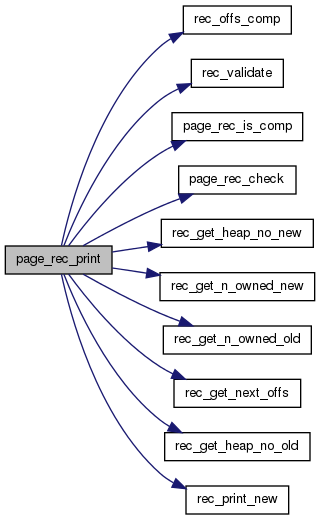

UNIV_INTERN void	page_rec_print (const rec_t rec, const ulint offsets)
UNIV_INTERN ibool	page_rec_validate (const rec_t rec, const ulint offsets)
UNIV_INTERN void	page_check_dir (const page_t *page)
UNIV_INTERN ibool	page_simple_validate_old (const page_t *page)
UNIV_INTERN ibool	page_simple_validate_new (const page_t *page)
UNIV_INTERN ibool	page_validate (const page_t page, dict_index_t index)

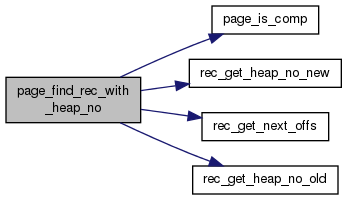

const rec_t *	page_find_rec_with_heap_no (const page_t *page, ulint heap_no)

Variables
UNIV_INLINE ulint	pure
UNIV_INTERN const rec_t	warn_unused_result

Detailed Description

Index page routines

Created 2/2/1994 Heikki Tuuri

Definition in file page0page.h.

Macro Definition Documentation

#define PAGE_BTR_SEG_LEAF

Value:

36      /* file segment header for the leaf pages in
                                a B-tree: defined only on the root page of a
                                B-tree, but not in the root of an ibuf tree */

Definition at line 68 of file page0page.h.

#define page_dir_get_nth_slot	(	page,
		n
	)

Value:

((page) + UNIV_PAGE_SIZE - PAGE_DIR \

- (n + 1) * PAGE_DIR_SLOT_SIZE)

Definition at line 413 of file page0page.h.

#define PAGE_HEADER

Value:

FSEG_PAGE_DATA /* index page header starts at this

offset */

Definition at line 52 of file page0page.h.

#define page_header_get_ptr	(	page,
		field
	)

Value:

(page_header_get_offs(page, field) \

? page + page_header_get_offs(page, field) : NULL)

Returns the pointer stored in the given header field, or NULL.

Definition at line 221 of file page0page.h.

#define PAGE_HEADER_PRIV_END

Value:

26 /* end of private data structure of the page

header which are set in a page create */

Definition at line 64 of file page0page.h.

#define PAGE_HEAP_NO_USER_LOW

Value:

2       /* first user record in
                                        creation (insertion) order,
                                        not necessarily collation order;
                                        this record may have been deleted */

Definition at line 108 of file page0page.h.

#define PAGE_INDEX_ID

Value:

28      /* index id where the page belongs.
                                This field should not be written to after
                                page creation. */

Definition at line 67 of file page0page.h.

#define PAGE_LAST_INSERT

Value:

10      /* pointer to the last inserted record, or
                                NULL if this info has been reset by a delete,
                                for example */

Definition at line 59 of file page0page.h.

#define PAGE_LEVEL

Value:

26      /* level of the node in an index tree; the
                                leaf level is the level 0.  This field should
                                not be written to after page creation. */

Definition at line 66 of file page0page.h.

#define PAGE_MAX_TRX_ID

Value:

18      /* highest id of a trx which may have modified
                                a record on the page; trx_id_t; defined only
                                in secondary indexes and in the insert buffer
                                tree */

Definition at line 63 of file page0page.h.

#define PAGE_N_DIRECTION

Value:

14 /* number of consecutive inserts to the same

direction */

Definition at line 61 of file page0page.h.

#define PAGE_N_HEAP

Value:

4 /* number of records in the heap,

bit 15=flag: new-style compact page format */

Definition at line 56 of file page0page.h.

Function Documentation

UNIV_INLINE page_t* page_align ( const void * ptr ) const

Gets the start of a page.

Returns: start of the page

Parameters

ptr	in: pointer to page frame

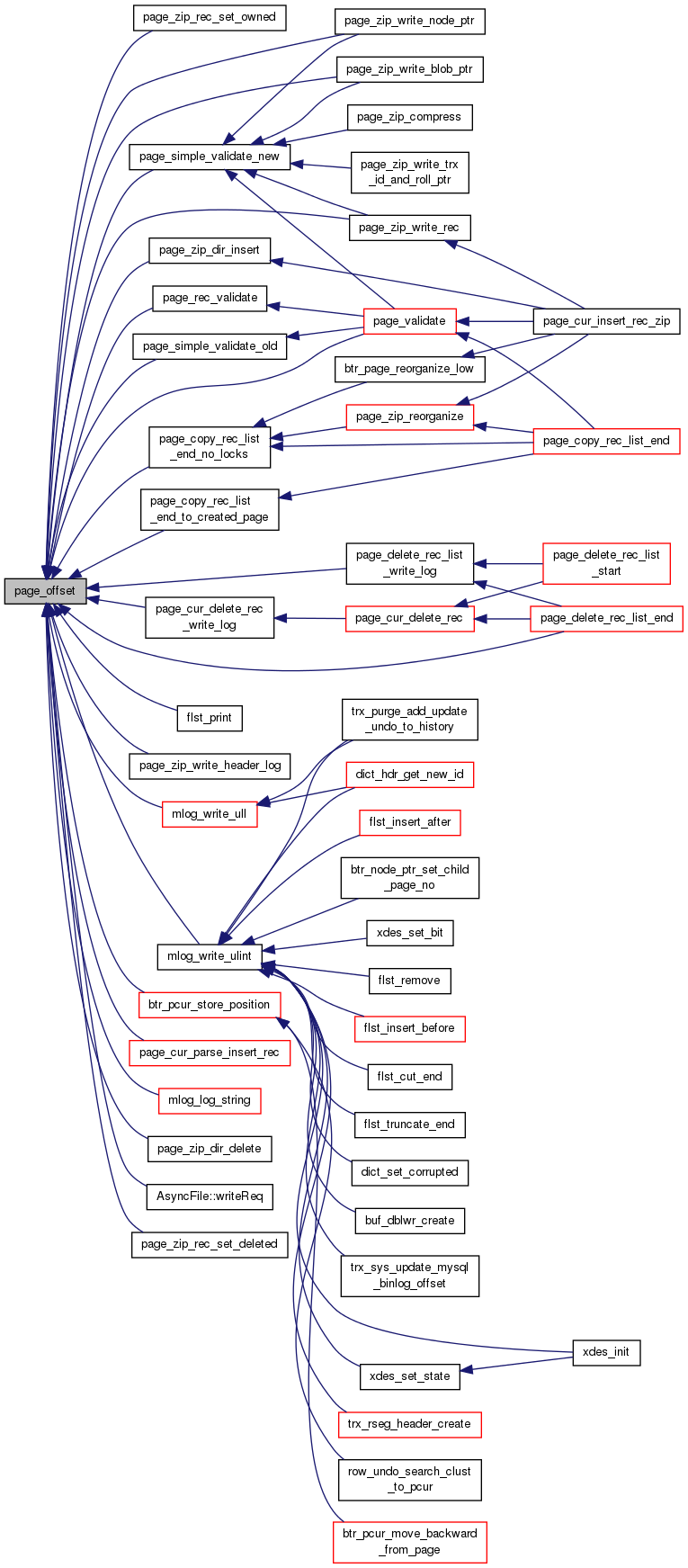

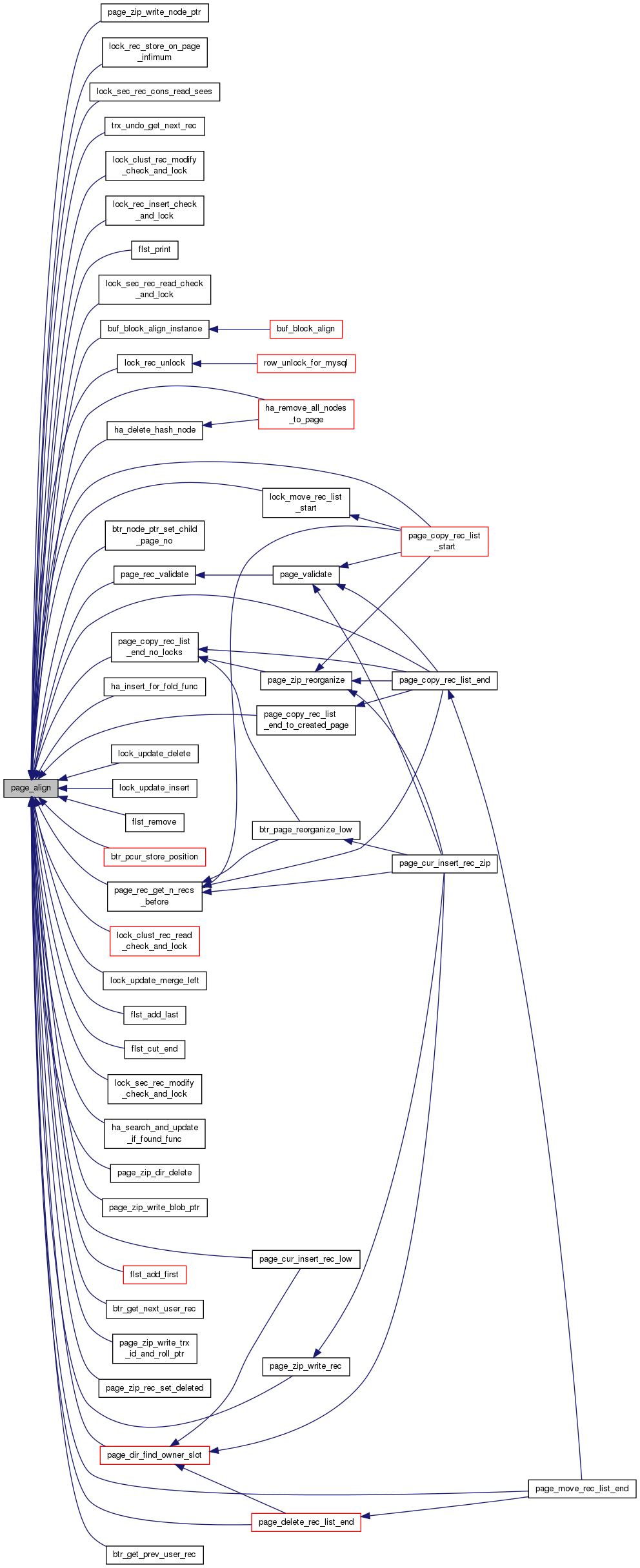

Here is the caller graph for this function:

UNIV_INTERN void page_check_dir ( const page_t * page )

Checks that the first directory slot points to the infimum record and the last to the supremum. This function is intended to track if the bug fixed in 4.0.14 has caused corruption to users' databases. in: index page

Checks that the first directory slot points to the infimum record and the last to the supremum. This function is intended to track if the bug fixed in 4.0.14 has caused corruption to users' databases.

Parameters

page	in: index page

Definition at line 1927 of file page0page.cc.

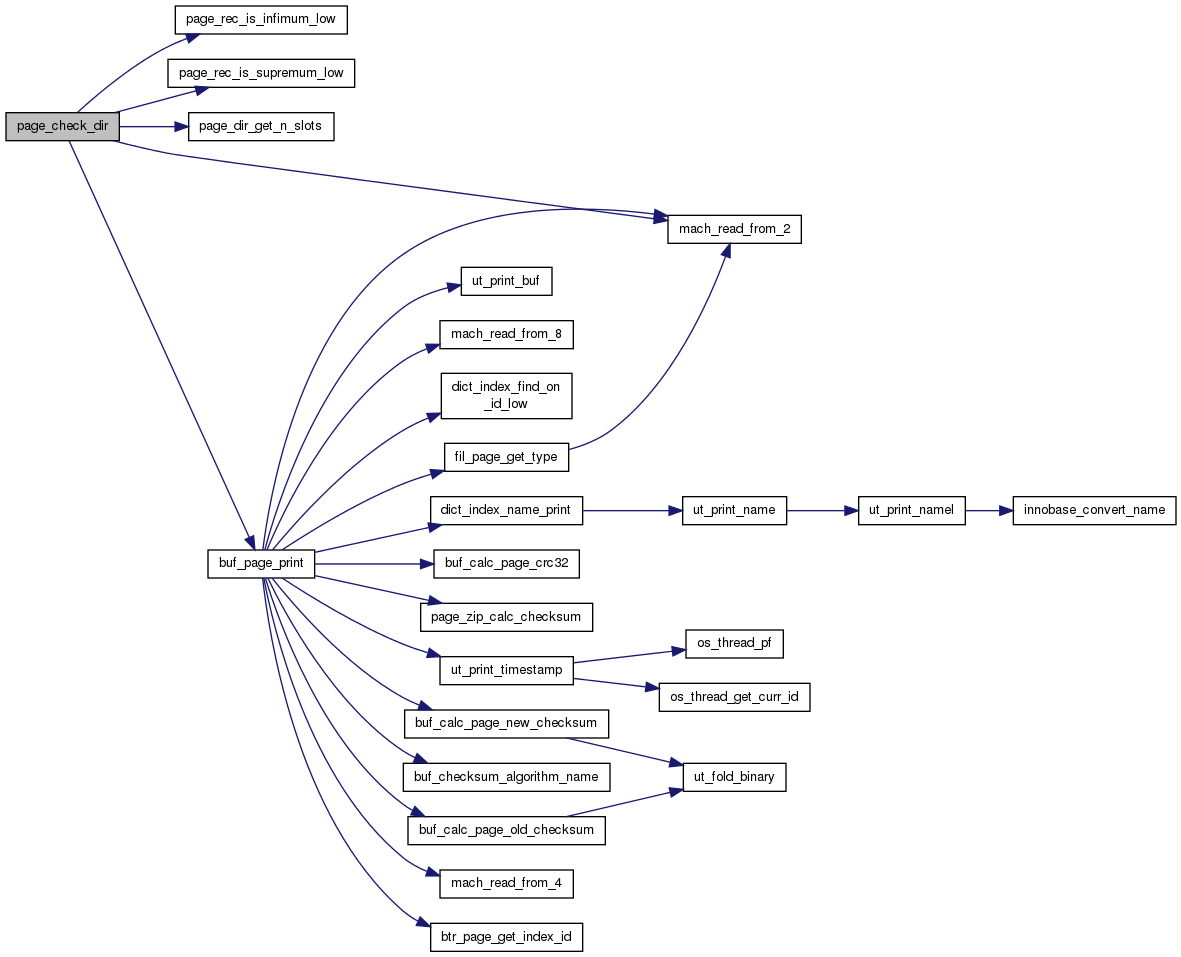

Here is the call graph for this function:

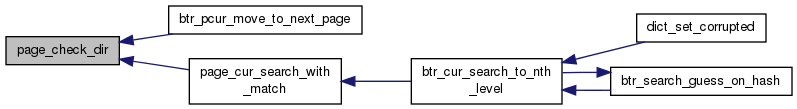

Here is the caller graph for this function:

UNIV_INLINE int page_cmp_dtuple_rec_with_match	(	const dtuple_t *	dtuple,
		const rec_t *	rec,
		const ulint *	offsets,
		ulint *	matched_fields,
		ulint *	matched_bytes
	)

Compares a data tuple to a physical record. Differs from the function cmp_dtuple_rec_with_match in the way that the record must reside on an index page, and also page infimum and supremum records can be given in the parameter rec. These are considered as the negative infinity and the positive infinity in the alphabetical order.

Returns: 1, 0, -1, if dtuple is greater, equal, less than rec, respectively, when only the common first fields are compared in/out: number of already matched bytes within the first field not completely matched; when function returns contains the value for current comparison

Parameters

dtuple	in: data tuple
rec	in: physical record on a page; may also be page infimum or supremum, in which case matched-parameter values below are not affected
offsets	in: array returned by rec_get_offsets()
matched_fields	in/out: number of already completely matched fields; when function returns contains the value for current comparison

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_copy_rec_list_end	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copies records from page to new_page, from the given record onward, including that record. Infimum and supremum records are not copied. The records are copied to the start of the record list on new_page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to the original successor of the infimum record on new_page, or NULL on zip overflow (new_block will be decompressed)

Copies records from page to new_page, from a given record onward, including that record. Infimum and supremum records are not copied. The records are copied to the start of the record list on new_page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to the original successor of the infimum record on new_page, or NULL on zip overflow (new_block will be decompressed)

Parameters

new_block	in/out: index page to copy to
block	in: index page containing rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 655 of file page0page.cc.

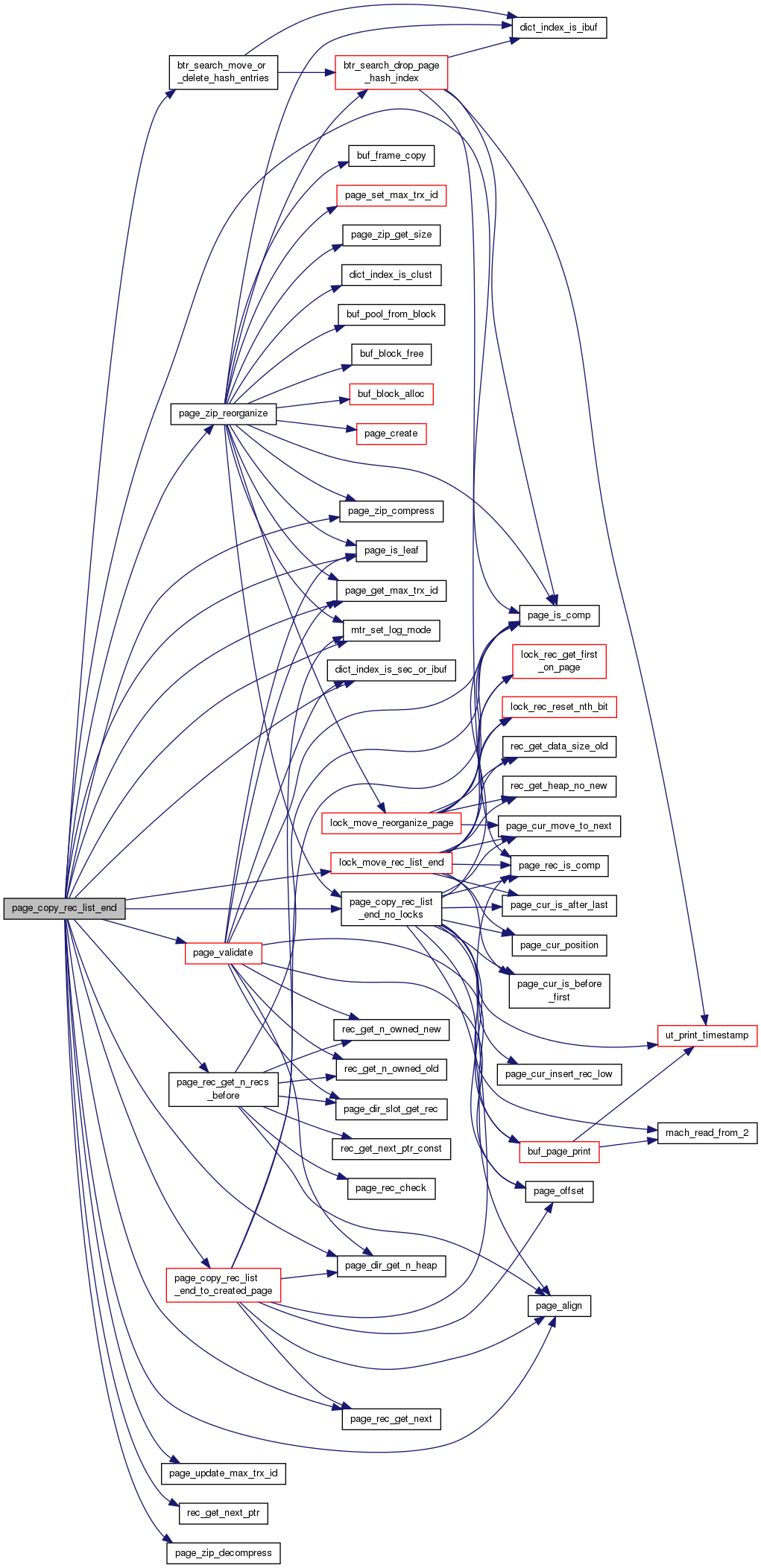

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void UNIV_INTERN void page_copy_rec_list_end_no_locks	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Differs from page_copy_rec_list_end, because this function does not touch the lock table and max trx id on page or compress the page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit(). in: mtr

Differs from page_copy_rec_list_end, because this function does not touch the lock table and max trx id on page or compress the page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Parameters

new_block	in: index page to copy to
block	in: index page of rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 573 of file page0page.cc.

Here is the call graph for this function:

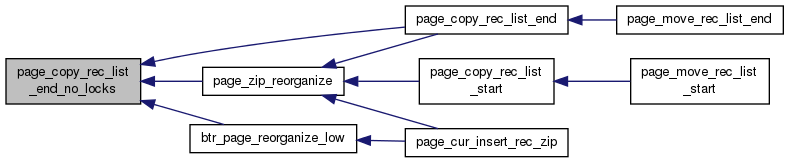

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_copy_rec_list_start	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copies records from page to new_page, up to the given record, NOT including that record. Infimum and supremum records are not copied. The records are copied to the end of the record list on new_page.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to the original predecessor of the supremum record on new_page, or NULL on zip overflow (new_block will be decompressed)

Parameters

new_block	in/out: index page to copy to
block	in: index page containing rec
rec	in: record on page
index	in: record descriptor
mtr	in: mtr

Definition at line 771 of file page0page.cc.

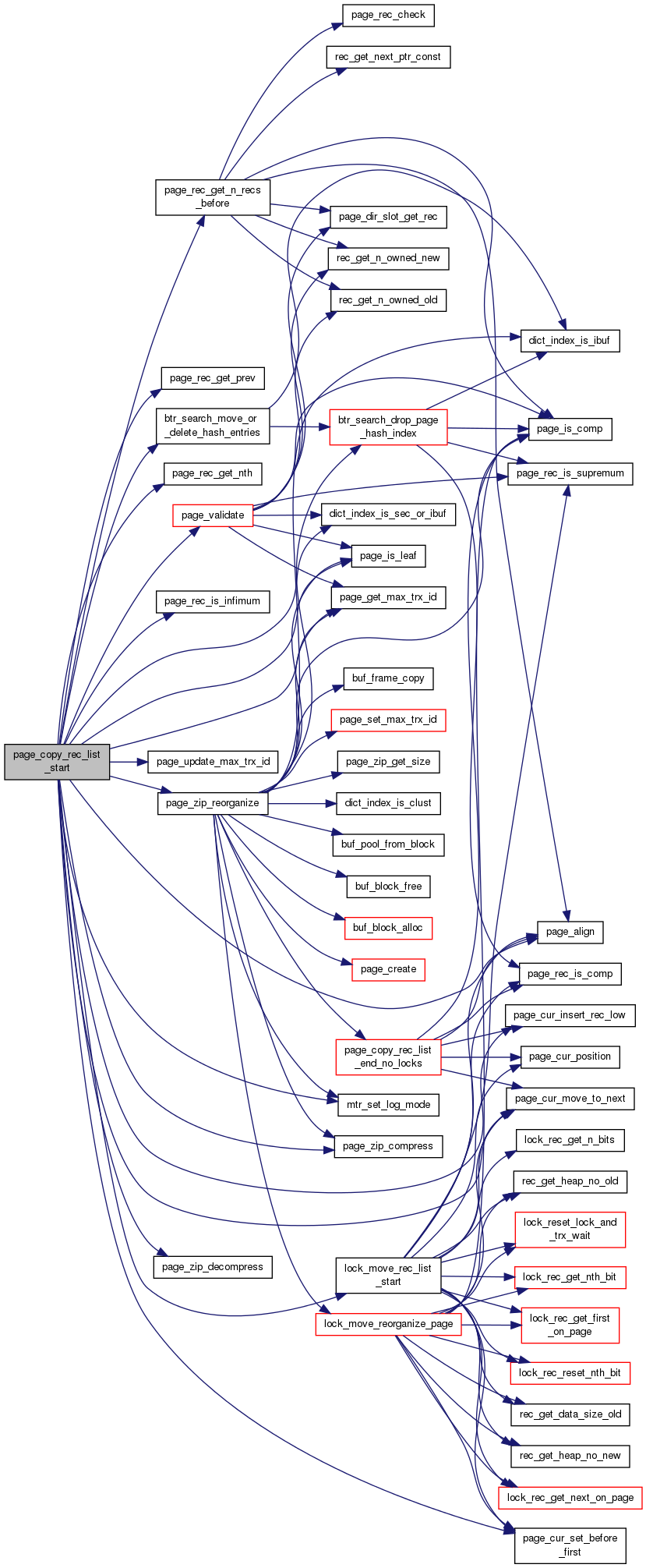

Here is the call graph for this function:

Here is the caller graph for this function:

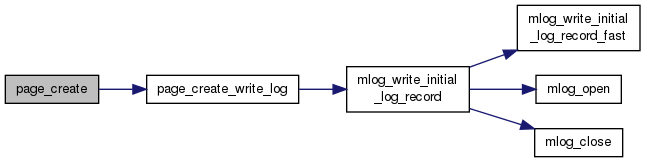

UNIV_INTERN page_t* page_create	(	buf_block_t *	block,
		mtr_t *	mtr,
		ulint	comp
	)

Create an uncompressed B-tree index page.

Returns: pointer to the page in: nonzero=compact page format

Create an uncompressed B-tree index page.

Returns: pointer to the page

Parameters

block	in: a buffer block where the page is created
mtr	in: mini-transaction handle
comp	in: nonzero=compact page format

Definition at line 481 of file page0page.cc.

Here is the call graph for this function:

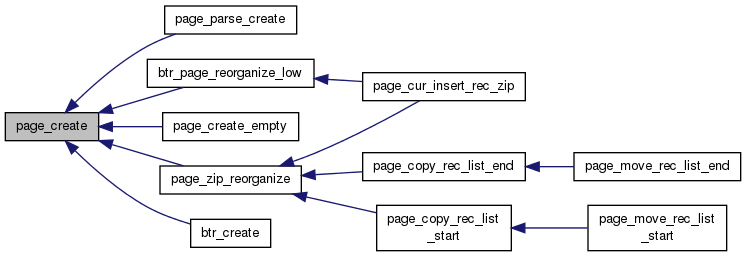

Here is the caller graph for this function:

UNIV_INTERN void page_create_empty	(	buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Empty a previously created B-tree index page.

Parameters

block	in/out: B-tree block
index	in: the index of the page
mtr	in/out: mini-transaction

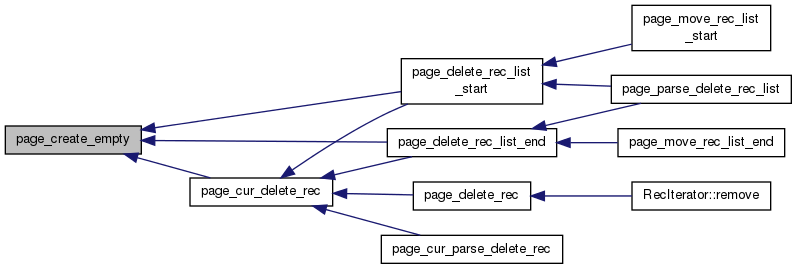

Here is the caller graph for this function:

UNIV_INTERN page_t* page_create_zip	(	buf_block_t *	block,
		dict_index_t *	index,
		ulint	level,
		trx_id_t	max_trx_id,
		mtr_t *	mtr
	)

Create a compressed B-tree index page.

Returns: pointer to the page

Parameters

block	in/out: a buffer frame where the page is created
index	in: the index of the page
level	in: the B-tree level of the page
max_trx_id	in: PAGE_MAX_TRX_ID
mtr	in/out: mini-transaction

Definition at line 497 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void page_delete_rec_list_end	(	rec_t *	rec,
		buf_block_t *	block,
		dict_index_t *	index,
		ulint	n_recs,
		ulint	size,
		mtr_t *	mtr
	)

Deletes records from a page from a given record onward, including that record. The infimum and supremum records are not deleted.

Parameters

rec	in: pointer to record on page
block	in: buffer block of the page
index	in: record descriptor
n_recs	in: number of records to delete, or ULINT_UNDEFINED if not known
size	in: the sum of the sizes of the records in the end of the chain to delete, or ULINT_UNDEFINED if not known
mtr	in: mtr

Definition at line 977 of file page0page.cc.

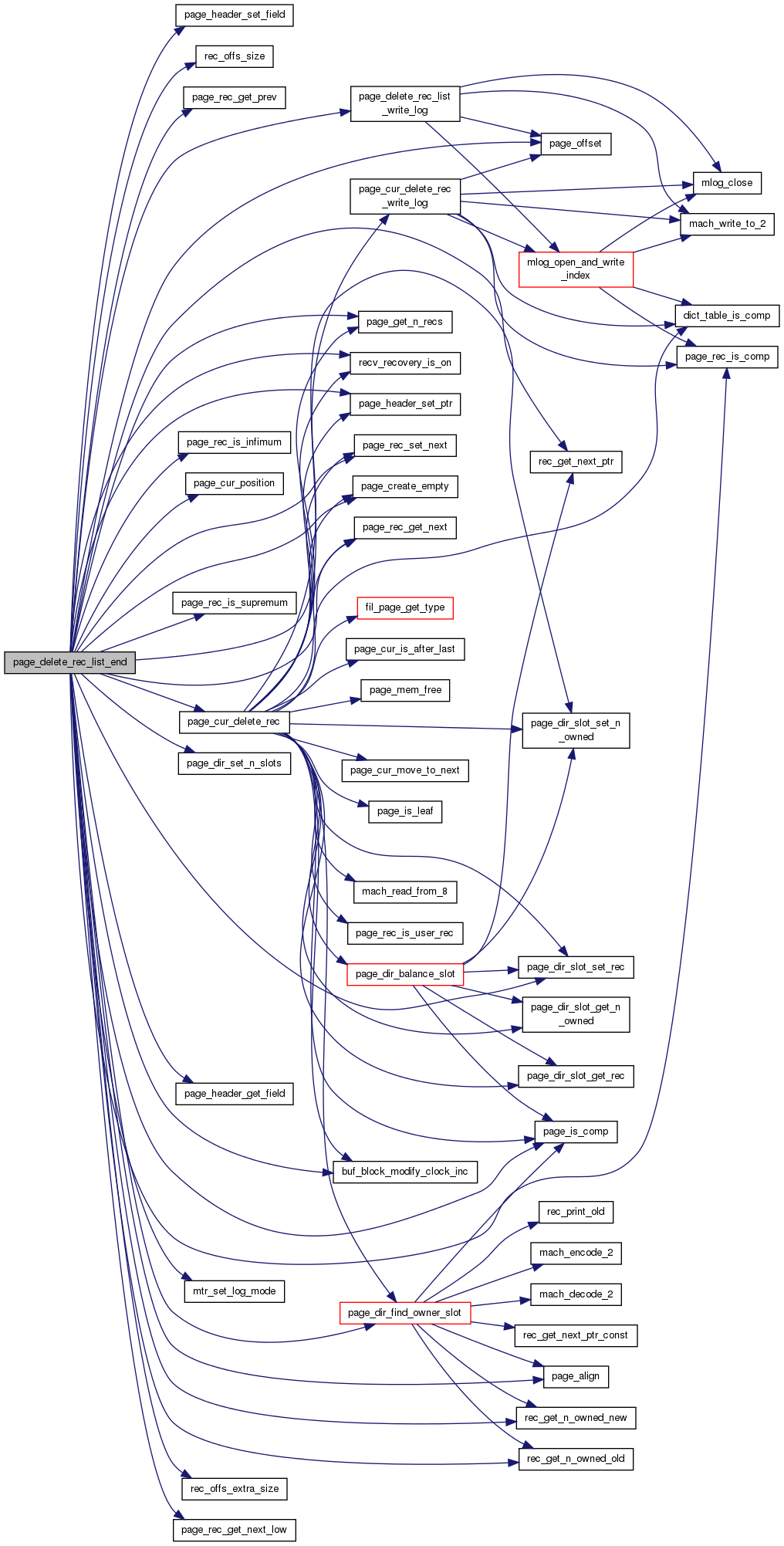

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void page_delete_rec_list_start	(	rec_t *	rec,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Deletes records from page, up to the given record, NOT including that record. Infimum and supremum records are not deleted.

Parameters

rec	in: record on page
block	in: buffer block of the page
index	in: record descriptor
mtr	in: mtr

Definition at line 1183 of file page0page.cc.

Here is the call graph for this function:

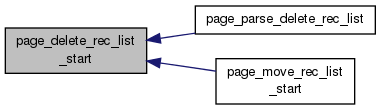

Here is the caller graph for this function:

UNIV_INTERN void page_dir_balance_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	slot_no
	)

Tries to balance the given directory slot with too few records with the upper neighbor, so that there are at least the minimum number of records owned by the slot; this may result in the merging of two slots.

Parameters

page	in/out: index page
page_zip	in/out: compressed page, or NULL
slot_no	in: the directory slot

Definition at line 1494 of file page0page.cc.

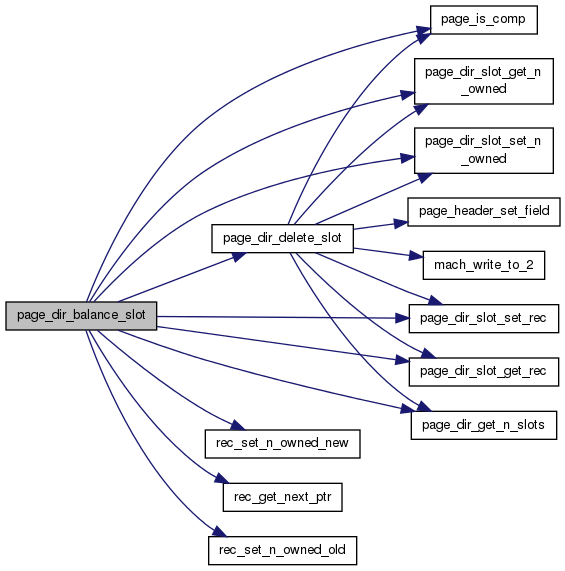

Here is the call graph for this function:

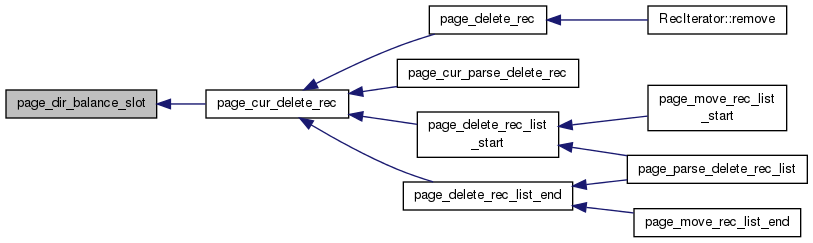

Here is the caller graph for this function:

UNIV_INLINE ulint page_dir_calc_reserved_space ( ulint n_recs )

Calculates the space reserved for directory slots of a given number of records. The exact value is a fraction number n * PAGE_DIR_SLOT_SIZE / PAGE_DIR_SLOT_MIN_N_OWNED, and it is rounded upwards to an integer. in: number of records

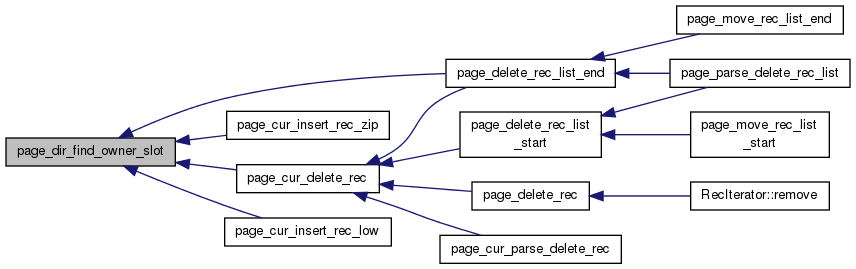

UNIV_INTERN ulint page_dir_find_owner_slot ( const rec_t * rec )

Looks for the directory slot which owns the given record.

Returns: the directory slot number in: the physical record

Looks for the directory slot which owns the given record.

Returns: the directory slot number

Parameters

rec	in: the physical record

Definition at line 92 of file page0page.cc.

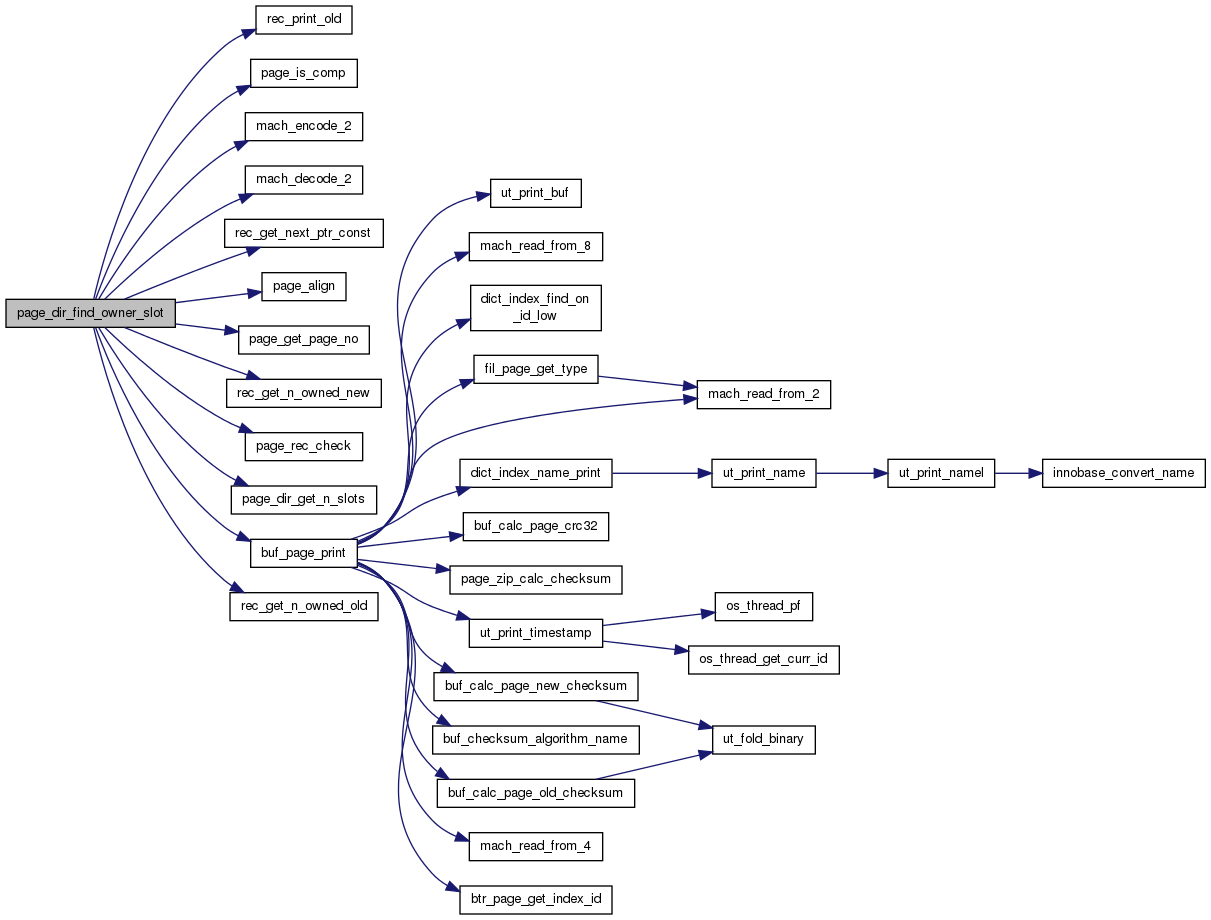

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE ulint page_dir_get_n_heap ( const page_t * page )

Gets the number of records in the heap.

Returns: number of user records in: index page

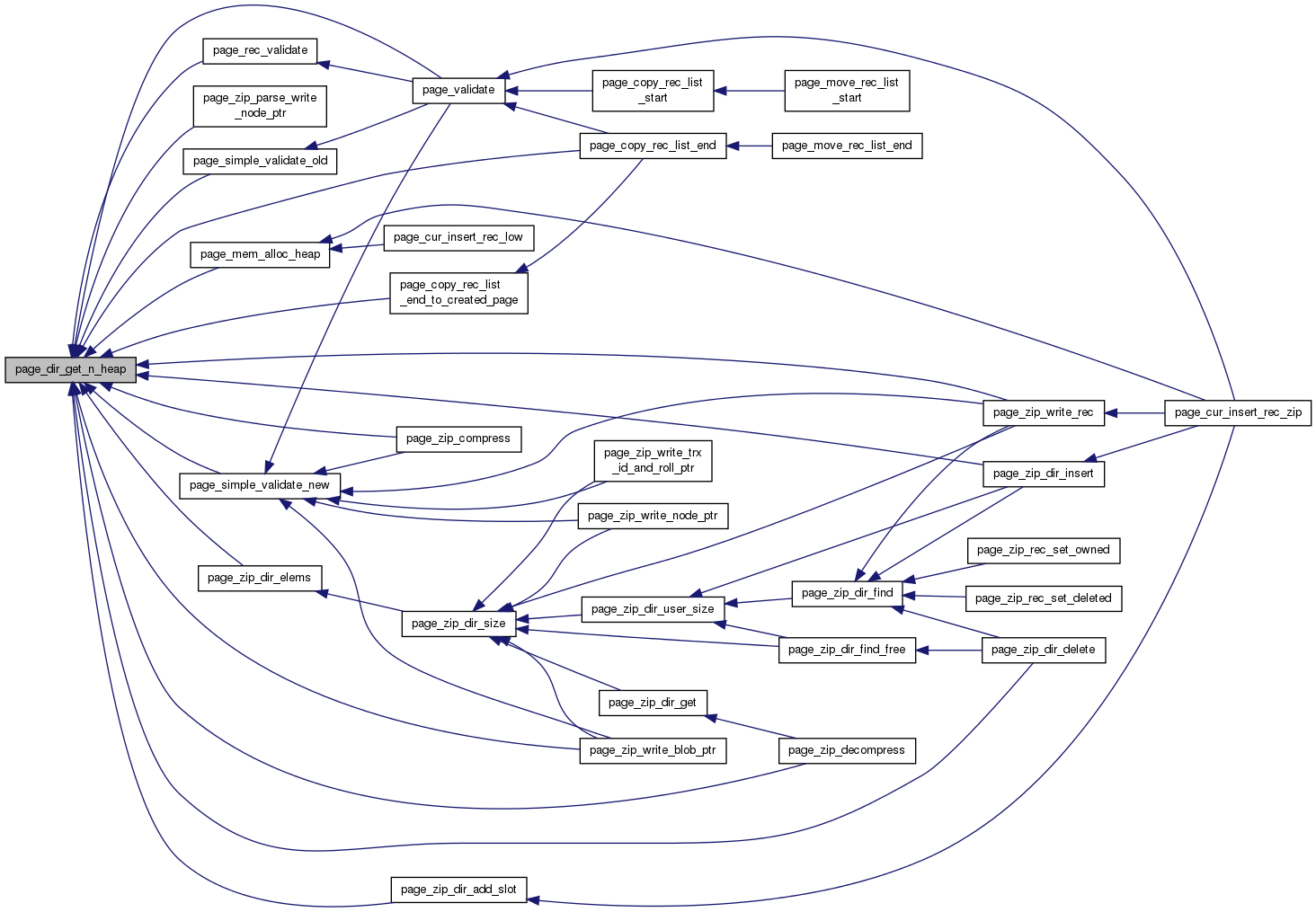

Here is the caller graph for this function:

UNIV_INLINE ulint page_dir_get_n_slots ( const page_t * page )

Gets the number of dir slots in directory.

Returns: number of slots in: index page

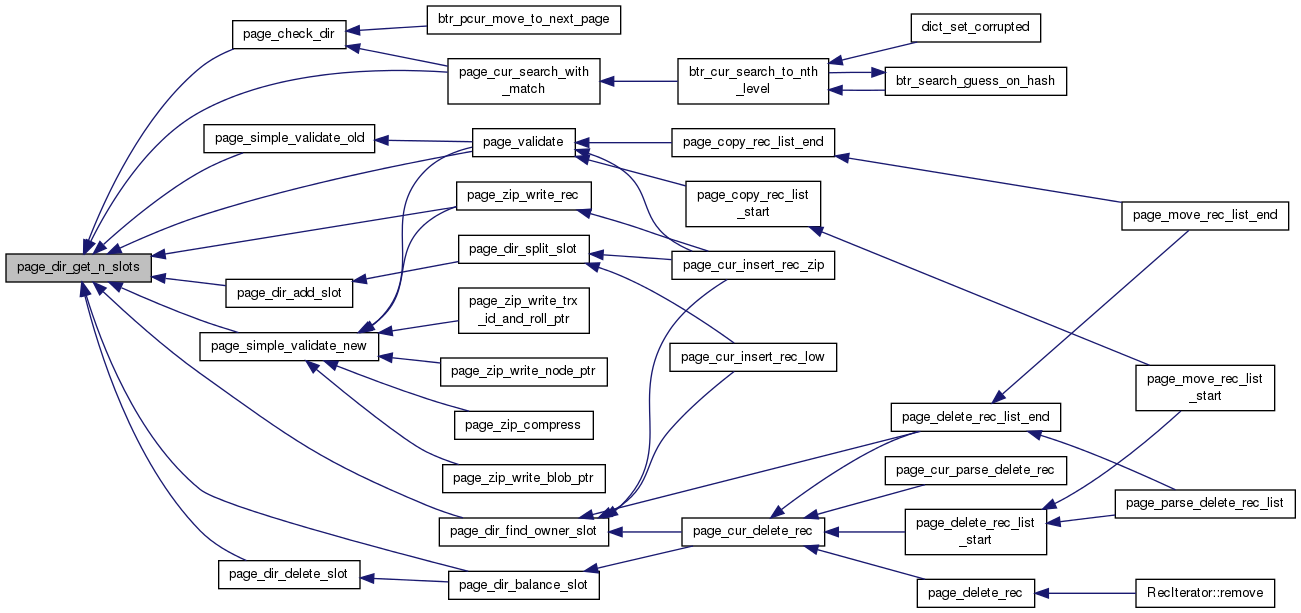

Here is the caller graph for this function:

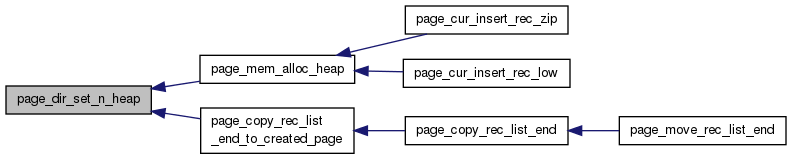

UNIV_INLINE void page_dir_set_n_heap	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	n_heap
	)

Sets the number of records in the heap. in: number of records

Parameters

page	in/out: index page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL. Note that the size of the dense page directory in the compressed page trailer is n_heap * PAGE_ZIP_DIR_SLOT_SIZE.

Here is the caller graph for this function:

UNIV_INLINE void page_dir_set_n_slots	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	n_slots
	)

Sets the number of dir slots in directory. in: number of slots

Parameters

page	in/out: page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL

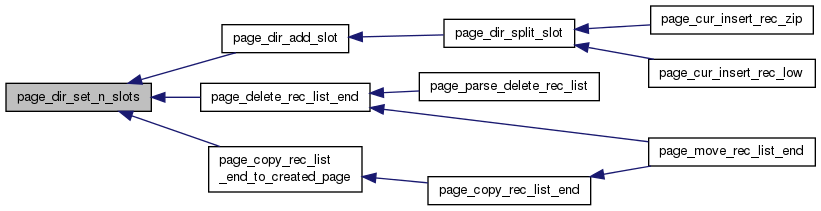

Here is the caller graph for this function:

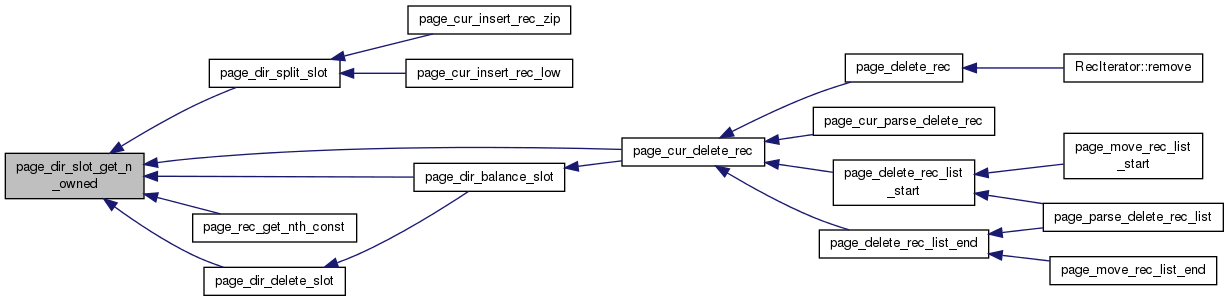

UNIV_INLINE ulint page_dir_slot_get_n_owned ( const page_dir_slot_t * slot )

Gets the number of records owned by a directory slot.

Returns: number of records in: page directory slot

Here is the caller graph for this function:

UNIV_INLINE const rec_t* page_dir_slot_get_rec ( const page_dir_slot_t * slot )

Gets the record pointed to by a directory slot.

Returns: pointer to record in: directory slot

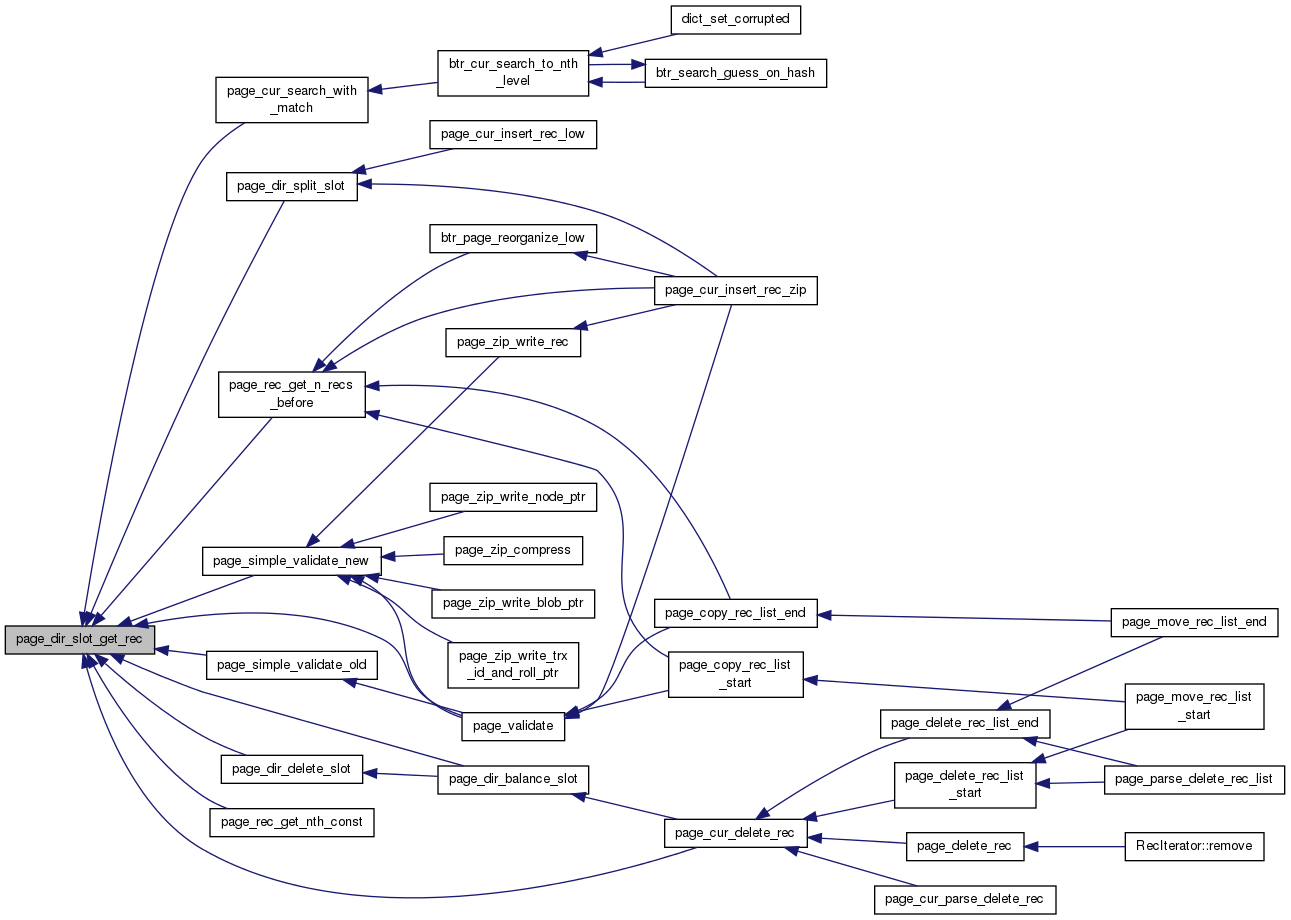

Here is the caller graph for this function:

UNIV_INLINE void page_dir_slot_set_n_owned	(	page_dir_slot_t *	slot,
		page_zip_des_t *	page_zip,
		ulint	n
	)

This is used to set the owned records field of a directory slot. in: number of records owned by the slot

Parameters

slot	in/out: directory slot
page_zip	in/out: compressed page, or NULL

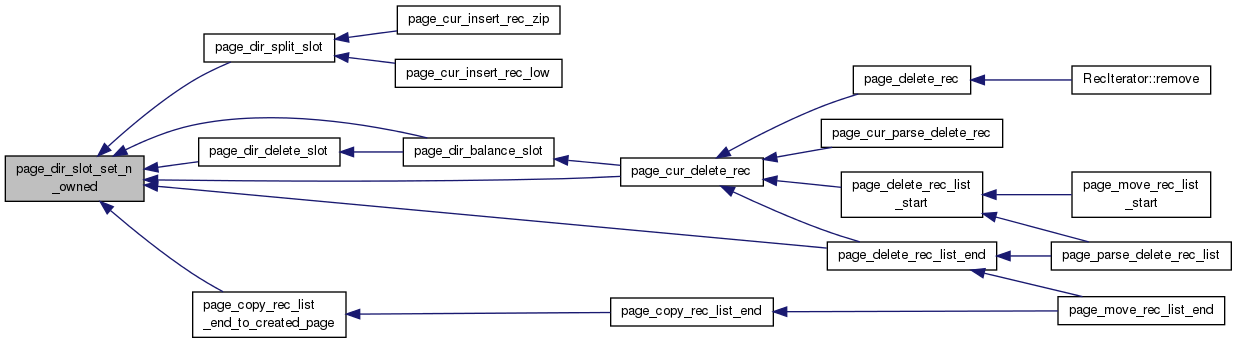

Here is the caller graph for this function:

UNIV_INLINE void page_dir_slot_set_rec	(	page_dir_slot_t *	slot,
		rec_t *	rec
	)

This is used to set the record offset in a directory slot. in: record on the page

Parameters

slot	in: directory slot

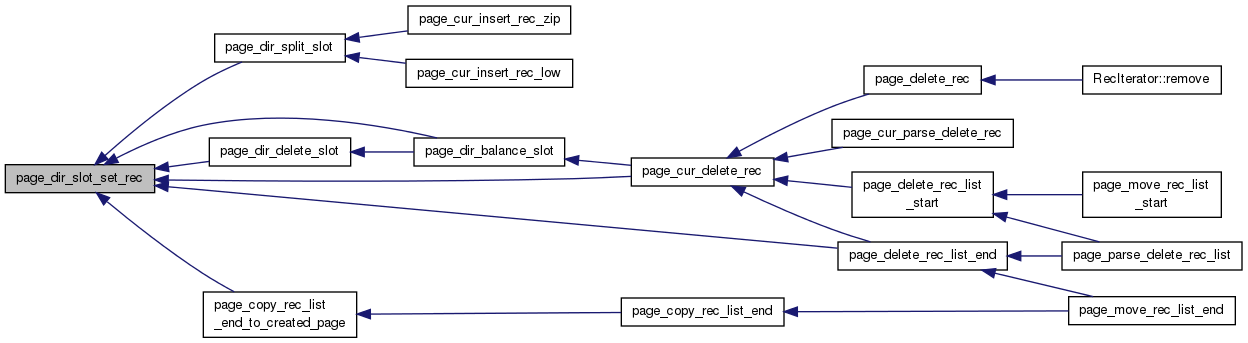

Here is the caller graph for this function:

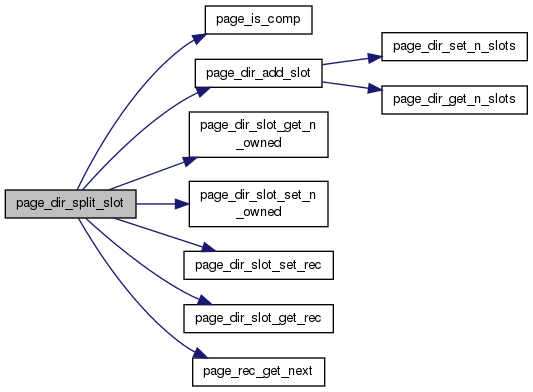

UNIV_INTERN ibool UNIV_INTERN ibool UNIV_INTERN void page_dir_split_slot	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	slot_no
	)

Splits a directory slot which owns too many records.

Parameters

page	in/out: index page
page_zip	in/out: compressed page whose uncompressed part will be written, or NULL
slot_no	in: the directory slot

Definition at line 1431 of file page0page.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

const rec_t* page_find_rec_with_heap_no	(	const page_t *	page,
		ulint	heap_no
	)

Looks in the page record list for a record with the given heap number.

Returns: record, NULL if not found in: heap number

Looks in the page record list for a record with the given heap number.

Returns: record, NULL if not found

Parameters

page	in: index page
heap_no	in: heap number

Definition at line 2683 of file page0page.cc.

Here is the call graph for this function:

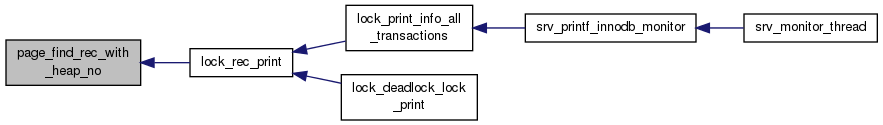

Here is the caller graph for this function:

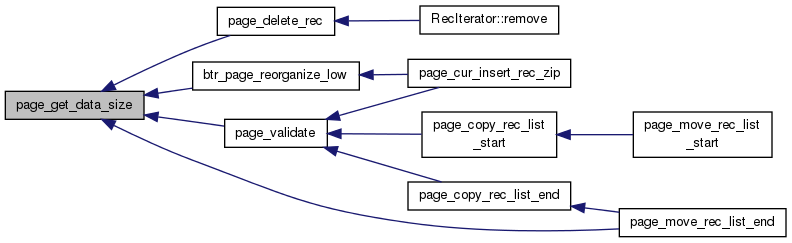

UNIV_INLINE ulint page_get_data_size ( const page_t * page )

Returns the sum of the sizes of the records in the record list excluding the infimum and supremum records.

Returns: data in bytes in: index page

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_free_space_of_empty ( ulint comp ) const

Calculates free space if a page is emptied.

Returns: free space

Parameters

comp	in: nonzero=compact page format

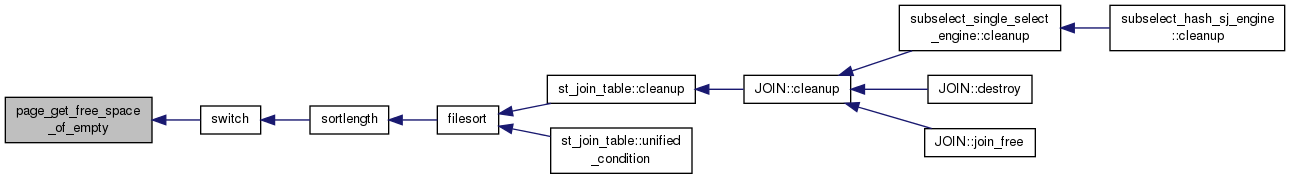

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_infimum_offset ( const page_t * page )

Gets the offset of the first record on the page.

Returns: offset of the first record in record list, relative from page in: page which must have record(s)

UNIV_INLINE ulint page_get_max_insert_size	(	const page_t *	page,
		ulint	n_recs
	)

Returns the maximum combined size of records which can be inserted on top of record heap.

Returns: maximum combined size for inserted records in: number of records

Parameters

page	in: index page

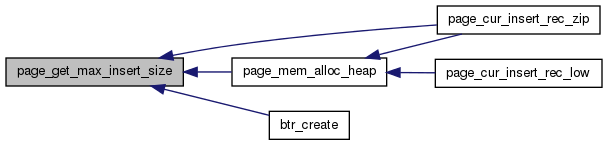

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_max_insert_size_after_reorganize	(	const page_t *	page,
		ulint	n_recs
	)

Returns the maximum combined size of records which can be inserted on top of record heap if page is first reorganized.

Returns: maximum combined size for inserted records in: number of records

Parameters

page	in: index page

Here is the caller graph for this function:

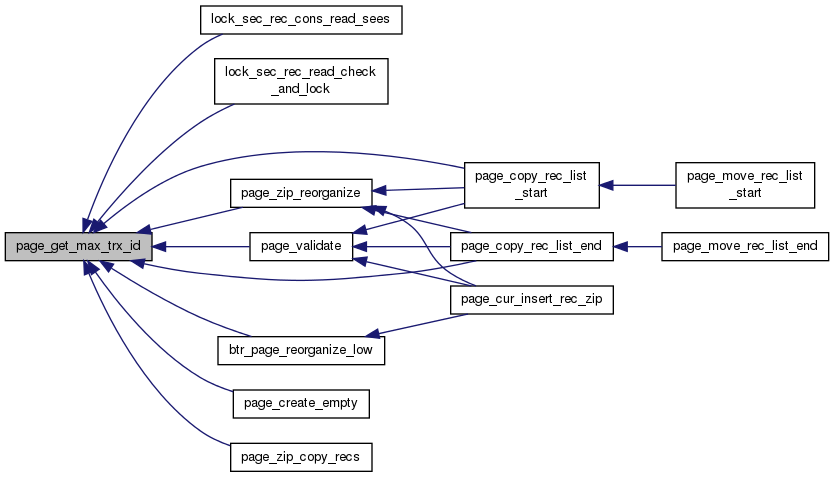

UNIV_INLINE trx_id_t page_get_max_trx_id ( const page_t * page )

Returns the max trx id field value. in: page

Here is the caller graph for this function:

UNIV_INLINE rec_t* page_get_middle_rec ( page_t * page )

Returns the middle record of the records on the page. If there is an even number of records in the list, returns the first record of the upper half-list.

Returns: middle record

Parameters

page in: page

UNIV_INLINE ulint page_get_n_recs ( const page_t * page )

Gets the number of user records on page (the infimum and supremum records are not user records).

Returns: number of user records in: index page

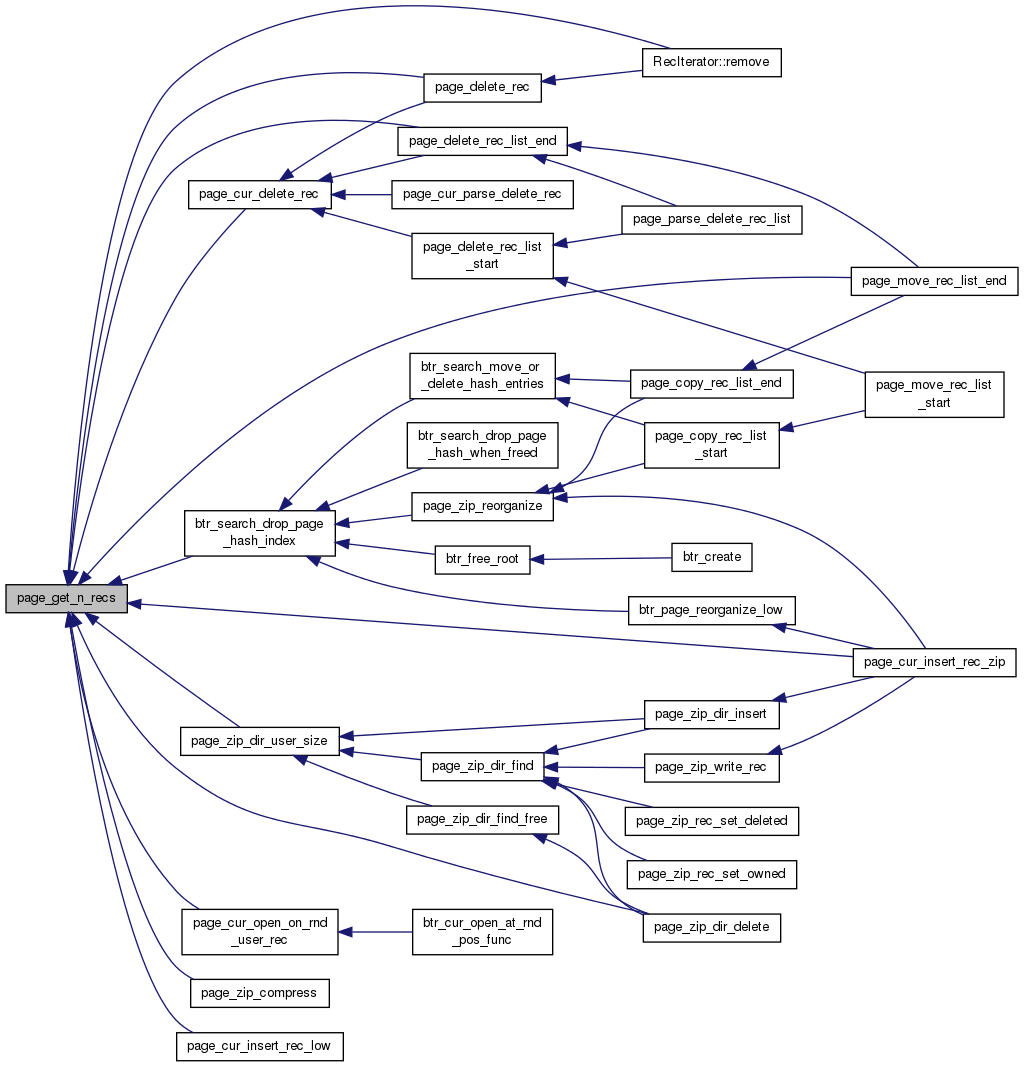

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_page_no ( const page_t * page )

Gets the page number.

Returns: page number in: page

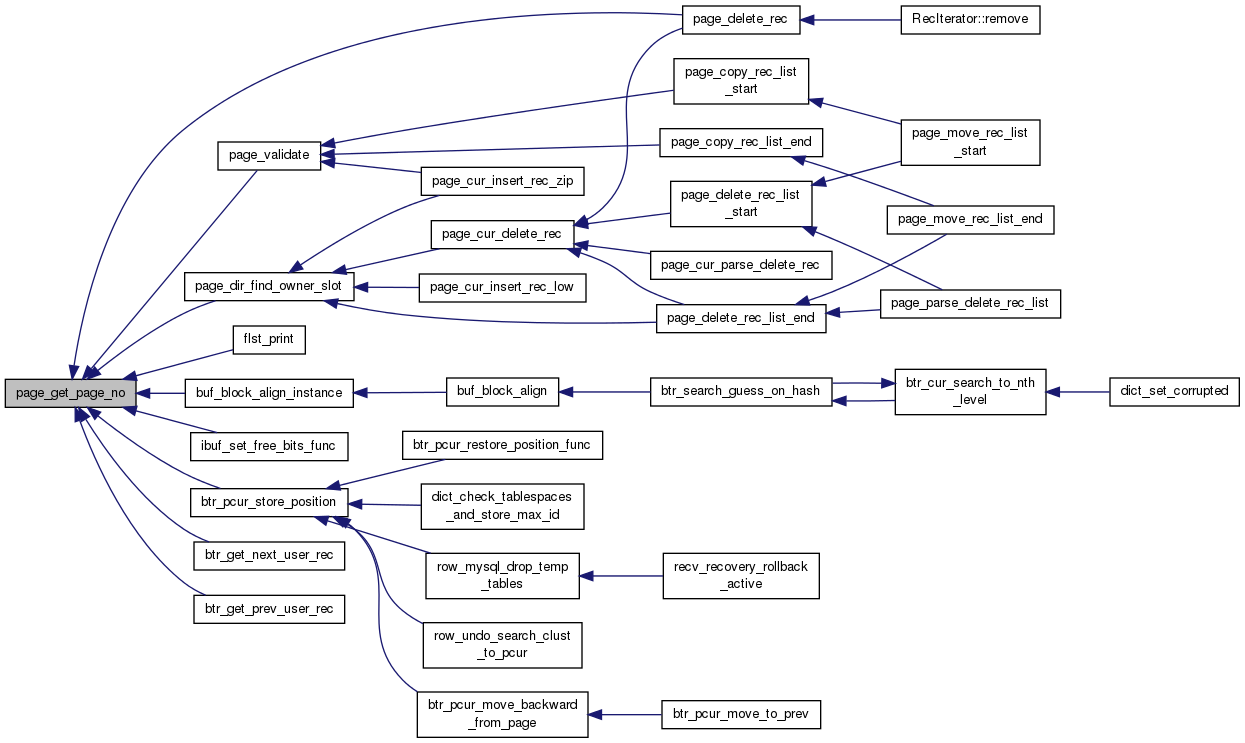

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_space_id ( const page_t * page )

Gets the tablespace identifier.

Returns: space id in: page

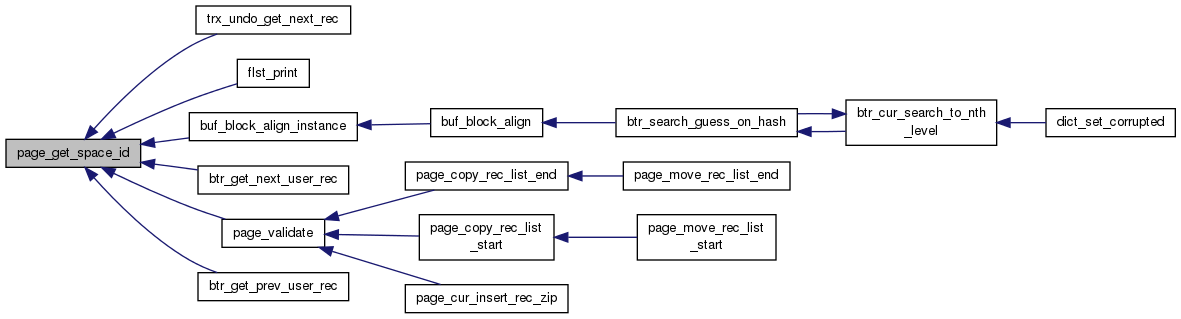

Here is the caller graph for this function:

UNIV_INLINE ulint page_get_supremum_offset ( const page_t * page )

Gets the offset of the last record on the page.

Returns: offset of the last record in record list, relative from page in: page which must have record(s)

UNIV_INLINE bool page_has_garbage ( const page_t * page )

Determine whether the page contains garbage.

Returns: true if the page contains garbage (PAGE_GARBAGE is not 0)

Parameters

page in: page

Here is the caller graph for this function:

UNIV_INLINE ulint page_header_get_field	(	const page_t *	page,
		ulint	field
	)

Reads the given header field. in: PAGE_N_DIR_SLOTS, ...

Parameters

page in: page

Here is the caller graph for this function:

UNIV_INLINE ulint page_header_get_offs	(	const page_t *	page,
		ulint	field
	)

Returns the offset stored in the given header field.

Returns: offset from the start of the page, or 0

Parameters

page	in: page
field	in: PAGE_FREE, ...

UNIV_INLINE void page_header_reset_last_insert	(	page_t *	page,
		page_zip_des_t *	page_zip,
		mtr_t *	mtr
	)

Resets the last insert info field in the page header. Writes to mlog about this operation. in: mtr

Parameters

page	in: page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL

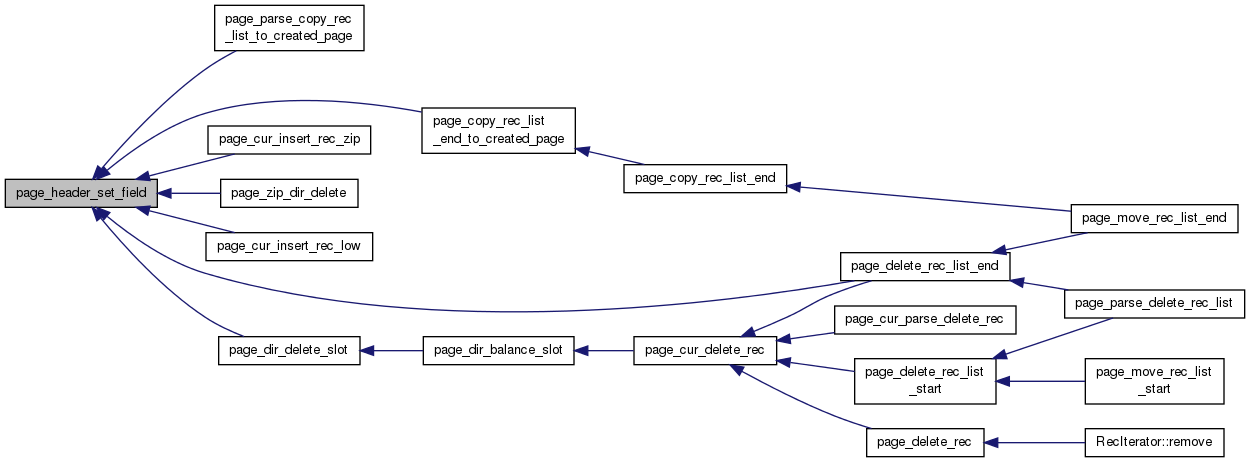

UNIV_INLINE void page_header_set_field	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	field,
		ulint	val
	)

Sets the given header field. in: value

Parameters

page	in/out: page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL
field	in: PAGE_N_DIR_SLOTS, ...

Here is the caller graph for this function:

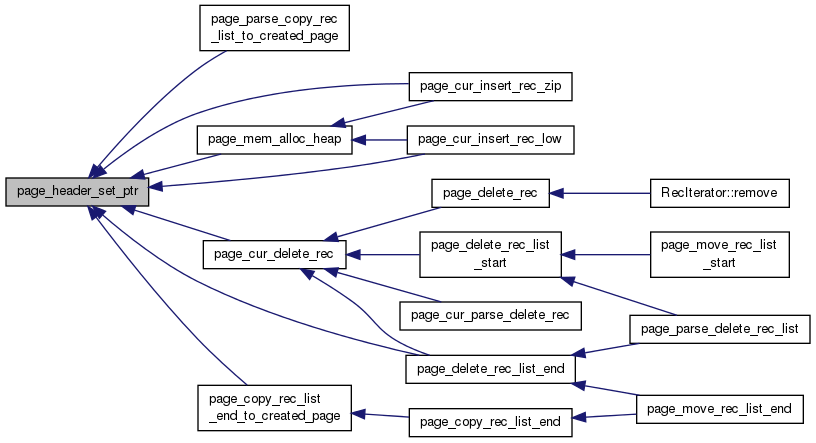

UNIV_INLINE void page_header_set_ptr	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	field,
		const byte *	ptr
	)

Sets the pointer stored in the given header field. in: pointer or NULL

Parameters

page	in/out: page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL
field	in/out: PAGE_FREE, ...

Here is the caller graph for this function:

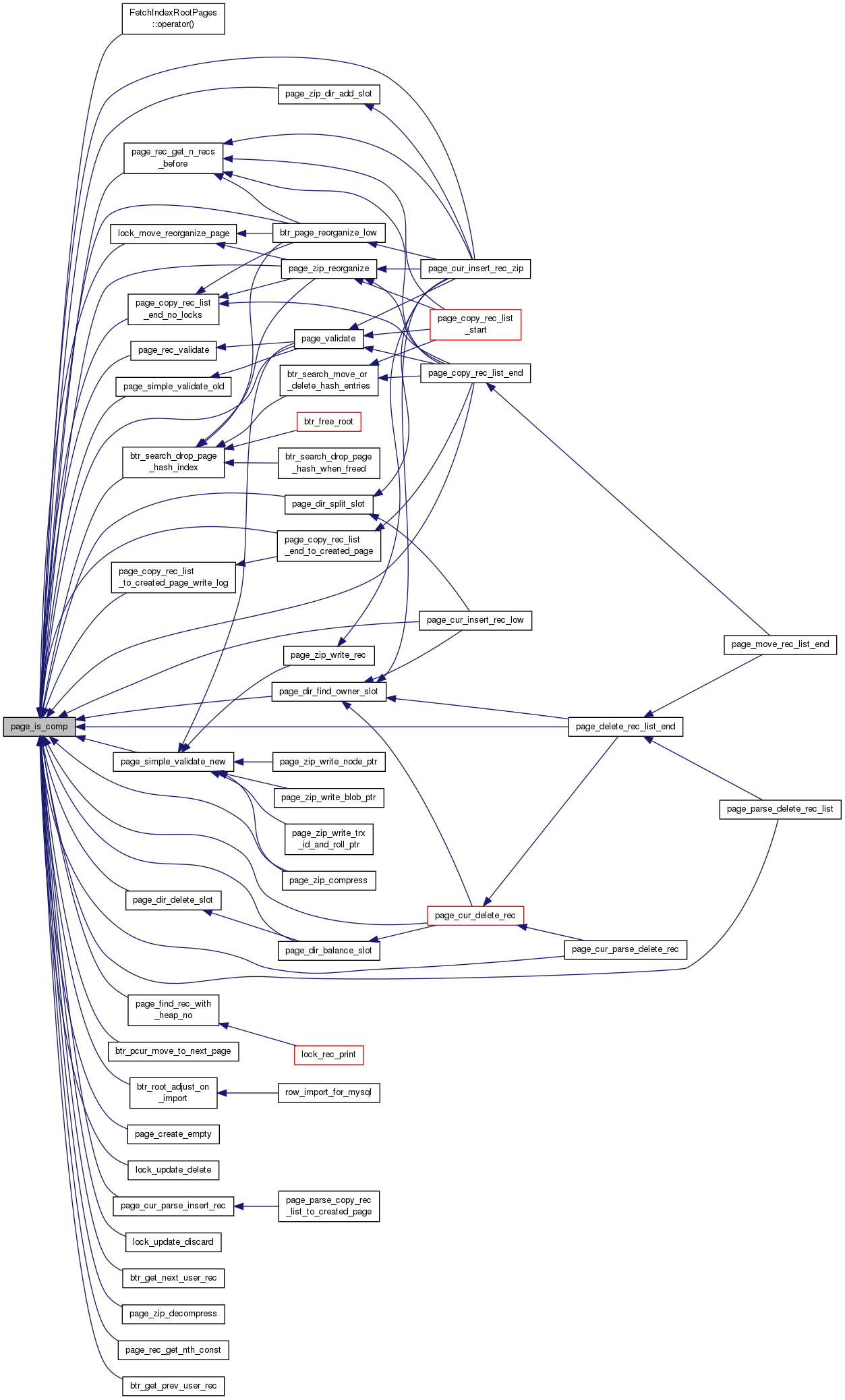

UNIV_INLINE ulint page_is_comp ( const page_t * page )

Determine whether the page is in new-style compact format.

Returns: nonzero if the page is in compact format, zero if it is in old-style format in: index page

Here is the caller graph for this function:

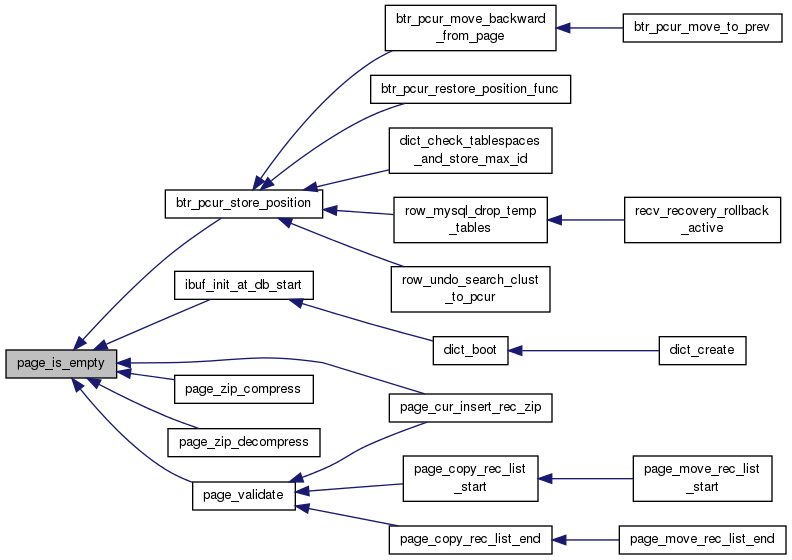

UNIV_INLINE bool page_is_empty ( const page_t * page )

Determine whether the page is empty.

Returns: true if the page is empty (PAGE_N_RECS = 0)

Parameters

page in: page

Here is the caller graph for this function:

UNIV_INLINE bool page_is_leaf ( const page_t * page )

Determine whether the page is a B-tree leaf.

Returns: true if the page is a B-tree leaf (PAGE_LEVEL = 0)

Parameters

page in: page

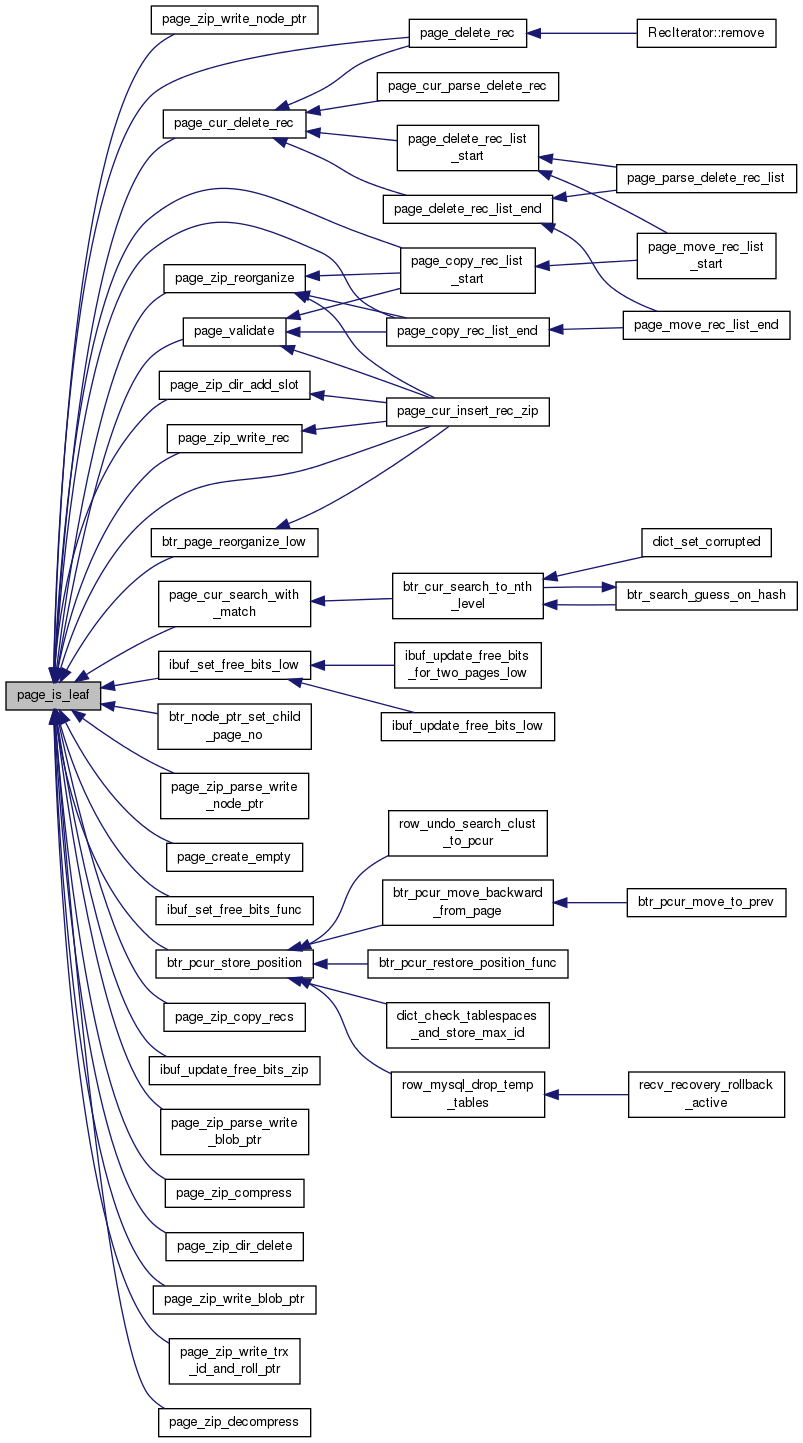

Here is the caller graph for this function:

UNIV_INLINE void page_mem_alloc_free	(	page_t *	page,
		page_zip_des_t *	page_zip,
		rec_t *	next_rec,
		ulint	need
	)

Allocates a block of memory from the head of the free list of an index page. in: number of bytes allocated

Parameters

page	in/out: index page
page_zip	in/out: compressed page with enough space available for inserting the record, or NULL
next_rec	in: pointer to the new head of the free record list

Here is the caller graph for this function:

UNIV_INTERN byte* page_mem_alloc_heap	(	page_t *	page,
		page_zip_des_t *	page_zip,
		ulint	need,
		ulint *	heap_no
	)

Allocates a block of memory from the heap of an index page.

Returns: pointer to start of allocated buffer, or NULL if allocation fails out: this contains the heap number of the allocated record if allocation succeeds

Allocates a block of memory from the heap of an index page.

Returns: pointer to start of allocated buffer, or NULL if allocation fails

Parameters

page	in/out: index page
page_zip	in/out: compressed page with enough space available for inserting the record, or NULL
need	in: total number of bytes needed
heap_no	out: this contains the heap number of the allocated record if allocation succeeds

Definition at line 246 of file page0page.cc.

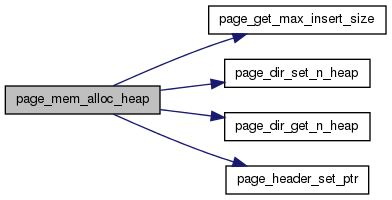

Here is the call graph for this function:

Here is the caller graph for this function:

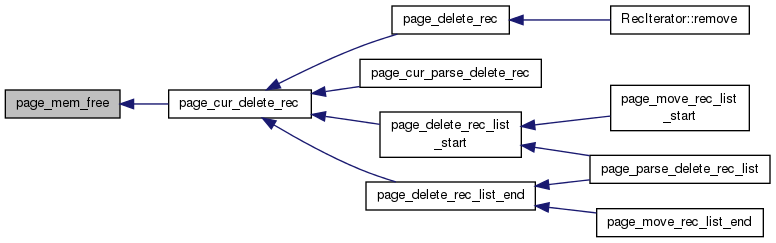

UNIV_INLINE void page_mem_free	(	page_t *	page,
		page_zip_des_t *	page_zip,
		rec_t *	rec,
		const dict_index_t *	index,
		const ulint *	offsets
	)

Puts a record to free list. in: array returned by rec_get_offsets()

Parameters

page	in/out: index page
page_zip	in/out: compressed page, or NULL
rec	in: pointer to the (origin of) record
index	in: index of rec

Here is the caller graph for this function:

UNIV_INTERN ibool page_move_rec_list_end	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	split_rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Moves record list end to another page. Moved records include split_rec.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: TRUE on success; FALSE on compression failure (new_block will be decompressed)

Parameters

new_block	in/out: index page where to move
block	in: index page from where to move
split_rec	in: first record to move
index	in: record descriptor
mtr	in: mtr

UNIV_INTERN ibool UNIV_INTERN ibool page_move_rec_list_start	(	buf_block_t *	new_block,
		buf_block_t *	block,
		rec_t *	split_rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Moves record list start to another page. Moved records do not include split_rec.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if new_block is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: TRUE on success; FALSE on compression failure

Parameters

new_block	in/out: index page where to move
block	in/out: page containing split_rec
split_rec	in: first record not to move
index	in: record descriptor
mtr	in: mtr

UNIV_INLINE ulint page_offset ( const void * ptr ) const

Gets the offset within a page.

Returns: offset from the start of the page

Parameters

ptr	in: pointer to page frame

Here is the caller graph for this function:

UNIV_INTERN byte* page_parse_create	(	byte *	ptr,
		byte *	end_ptr,
		ulint	comp,
		buf_block_t *	block,
		mtr_t *	mtr
	)

Parses a redo log record of creating a page.

Returns: end of log record or NULL in: mtr or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
comp	in: nonzero=compact page format
block	in: block or NULL

UNIV_INTERN byte* page_parse_delete_rec_list	(	byte	type,
		byte *	ptr,
		byte *	end_ptr,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Parses a log record of a record list end or start deletion.

Returns: end of log record or NULL in: mtr or NULL

Parses a log record of a record list end or start deletion.

Returns: end of log record or NULL

Parameters

type	in: MLOG_LIST_END_DELETE, MLOG_LIST_START_DELETE, MLOG_COMP_LIST_END_DELETE or MLOG_COMP_LIST_START_DELETE
ptr	in: buffer
end_ptr	in: buffer end
block	in/out: buffer block or NULL
index	in: record descriptor
mtr	in: mtr or NULL

Definition at line 921 of file page0page.cc.

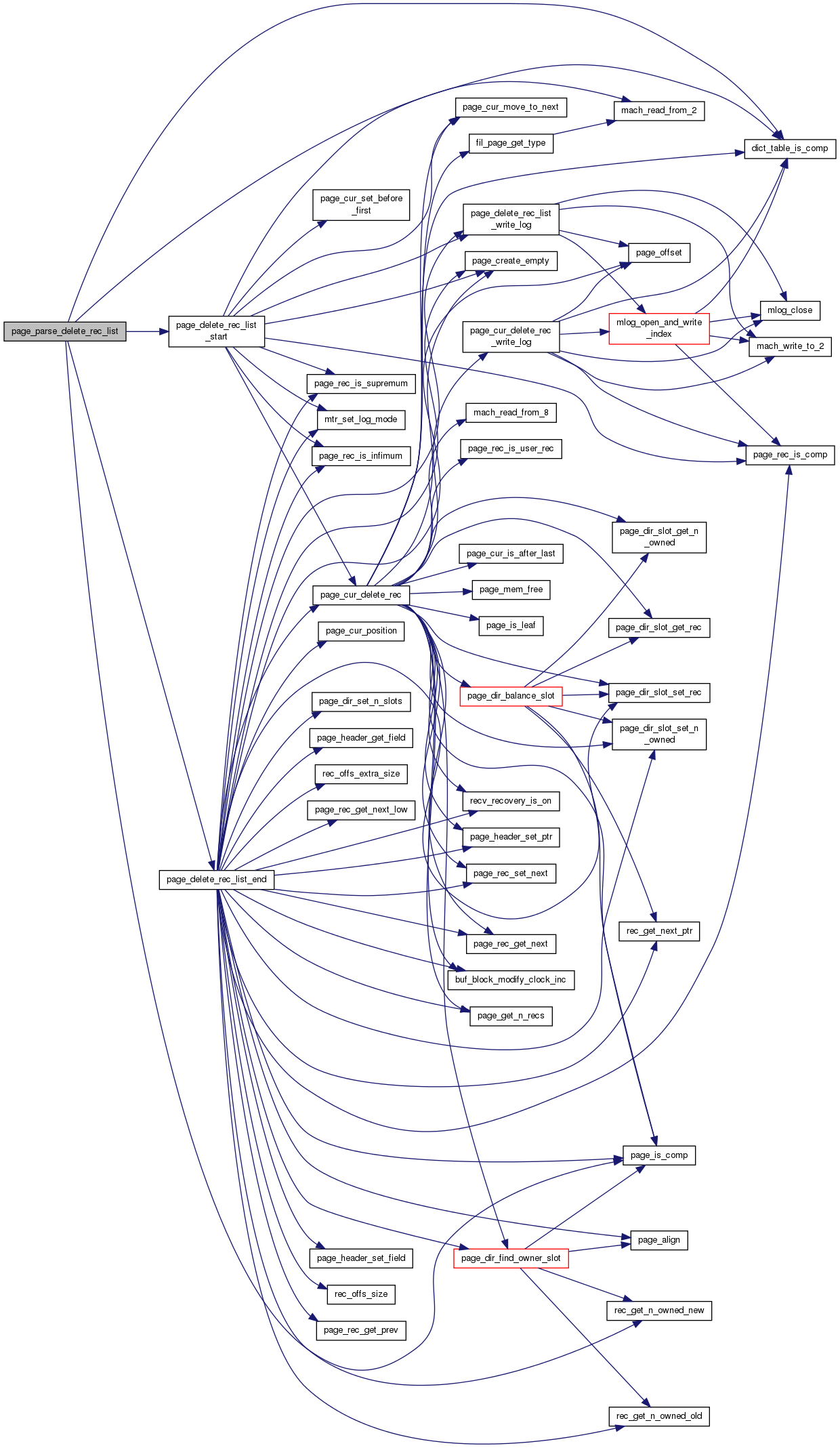

Here is the call graph for this function:

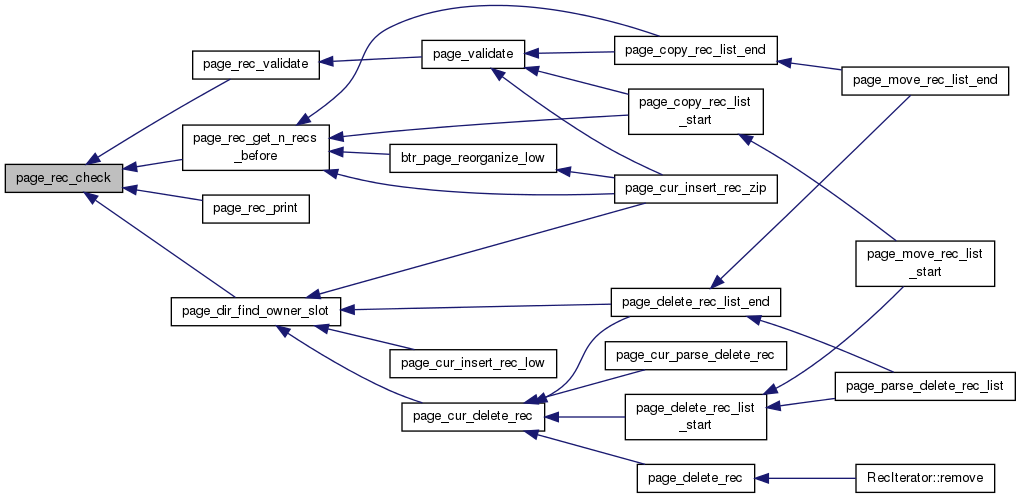

UNIV_INLINE ibool page_rec_check ( const rec_t * rec )

Used to check the consistency of a record on a page.

Returns: TRUE if succeed in: record

Here is the caller graph for this function:

UNIV_INLINE rec_t* page_rec_find_owner_rec ( rec_t * rec )

Looks for the record which owns the given record.

Returns: the owner record in: the physical record

Here is the caller graph for this function:

UNIV_INLINE ulint page_rec_get_base_extra_size ( const rec_t * rec )

Returns the base extra size of a physical record. This is the size of the fixed header, independent of the record size.

Returns: REC_N_NEW_EXTRA_BYTES or REC_N_OLD_EXTRA_BYTES in: physical record

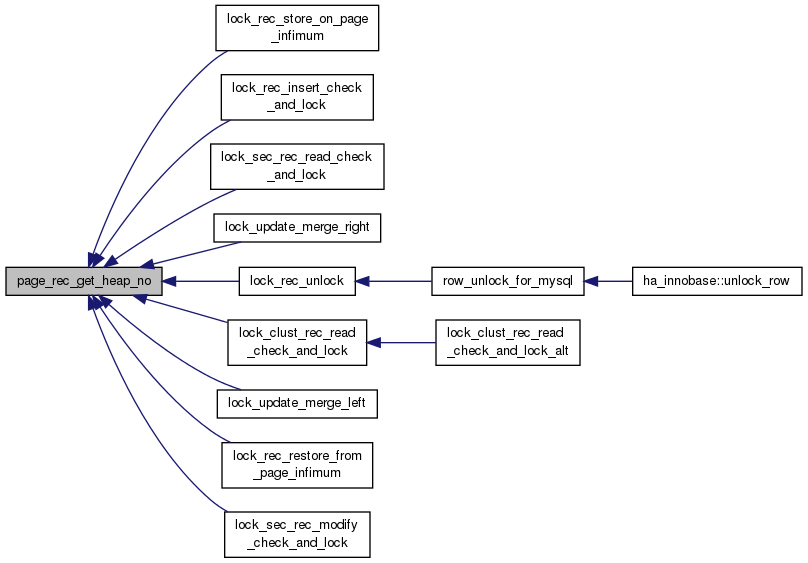

UNIV_INLINE ulint page_rec_get_heap_no ( const rec_t * rec )

Returns the heap number of a record.

Returns: heap number in: the physical record

Here is the caller graph for this function:

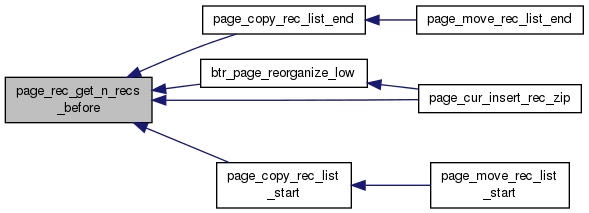

UNIV_INTERN ulint page_rec_get_n_recs_before ( const rec_t * rec )

Returns the number of records before the given record in chain. The number includes infimum and supremum records. This is the inverse function of page_rec_get_nth().

Returns: number of records in: the physical record

Returns the number of records before the given record in chain. The number includes infimum and supremum records.

Returns: number of records

Parameters

rec	in: the physical record

Definition at line 1618 of file page0page.cc.

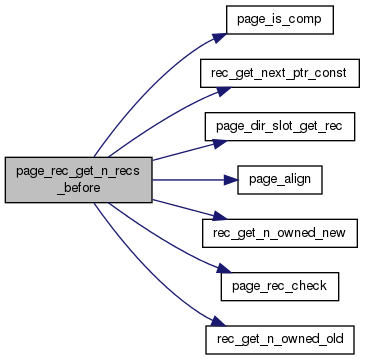

Here is the call graph for this function:

Here is the caller graph for this function:

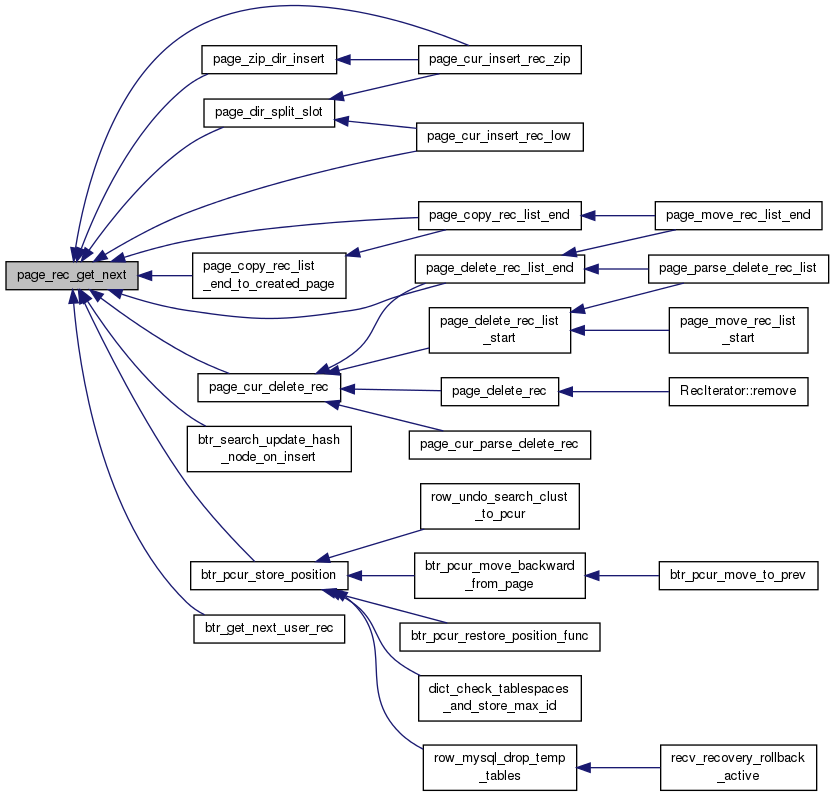

UNIV_INLINE rec_t* page_rec_get_next ( rec_t * rec )

Gets the pointer to the next record on the page.

Returns: pointer to next record in: pointer to record

Here is the caller graph for this function:

UNIV_INLINE const rec_t* page_rec_get_next_const ( const rec_t * rec )

Gets the pointer to the next record on the page.

Returns: pointer to next record in: pointer to record

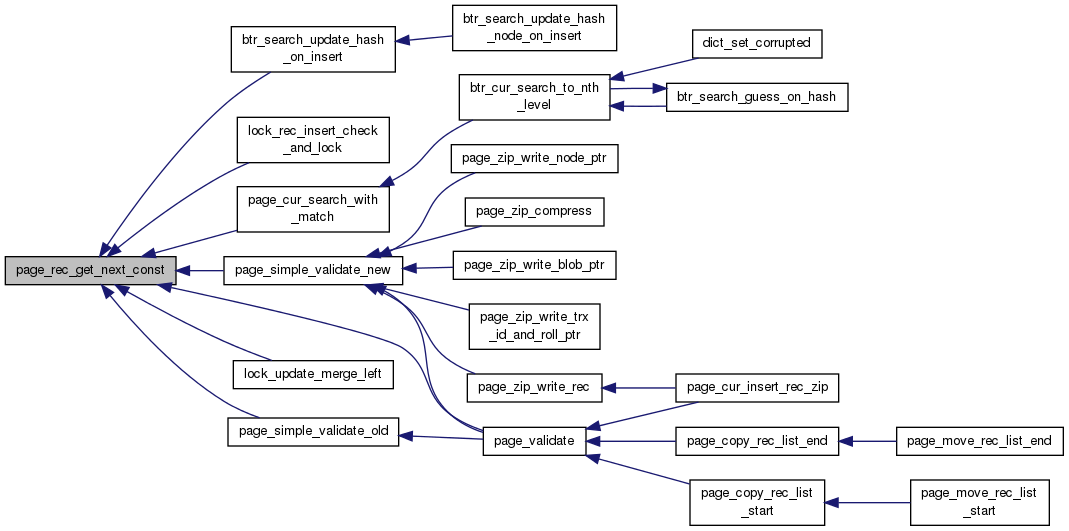

Here is the caller graph for this function:

UNIV_INLINE const rec_t* page_rec_get_next_low	(	const rec_t *	rec,
		ulint	comp
	)

Gets the pointer to the next record on the page.

Returns: pointer to next record in: nonzero=compact page layout

Parameters

rec	in: pointer to record

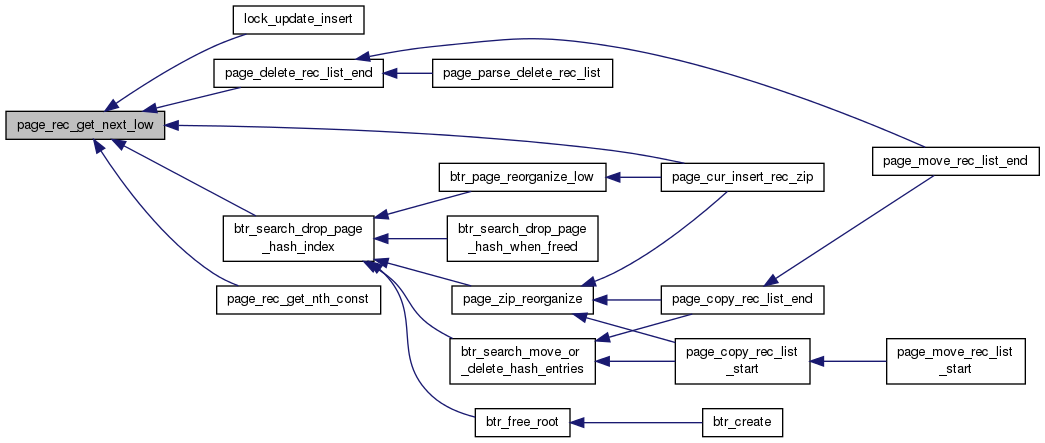

Here is the caller graph for this function:

UNIV_INLINE const rec_t* page_rec_get_next_non_del_marked ( const rec_t * rec )

Gets the pointer to the next non delete-marked record on the page. If all subsequent records are delete-marked, then this function will return the supremum record.

Returns: pointer to next non delete-marked record or pointer to supremum in: pointer to record

UNIV_INLINE rec_t* page_rec_get_nth	(	page_t *	page,
		ulint	nth
	)

Returns the nth record of the record list. This is the inverse function of page_rec_get_n_recs_before().

Returns: nth record

Parameters

nth	in: nth record

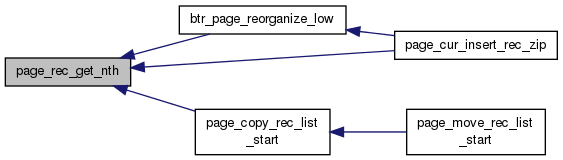

Here is the caller graph for this function:

UNIV_INTERN const rec_t* page_rec_get_nth_const	(	const page_t *	page,
		ulint	nth
	)

Returns the nth record of the record list. This is the inverse function of page_rec_get_n_recs_before().

Returns: nth record

Parameters

page	in: page
nth	in: nth record

UNIV_INLINE rec_t* page_rec_get_prev ( rec_t * rec )

Gets the pointer to the previous record.

Returns: pointer to previous record in: pointer to record, must not be page infimum

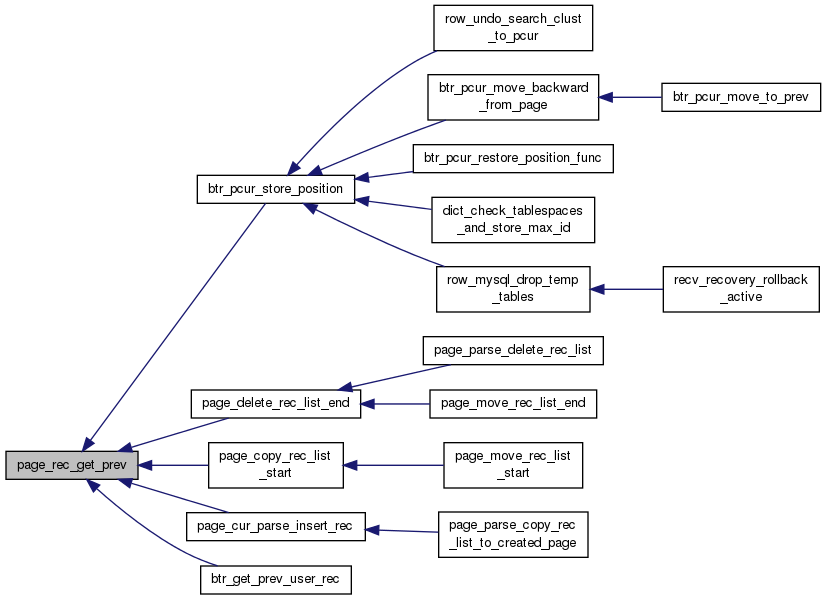

Here is the caller graph for this function:

UNIV_INLINE const rec_t* page_rec_get_prev_const ( const rec_t * rec )

Gets the pointer to the previous record.

Returns: pointer to previous record in: pointer to record, must not be page infimum

UNIV_INLINE ulint page_rec_is_comp ( const rec_t * rec )

TRUE if the record is on a page in compact format.

Returns: nonzero if in compact format in: record

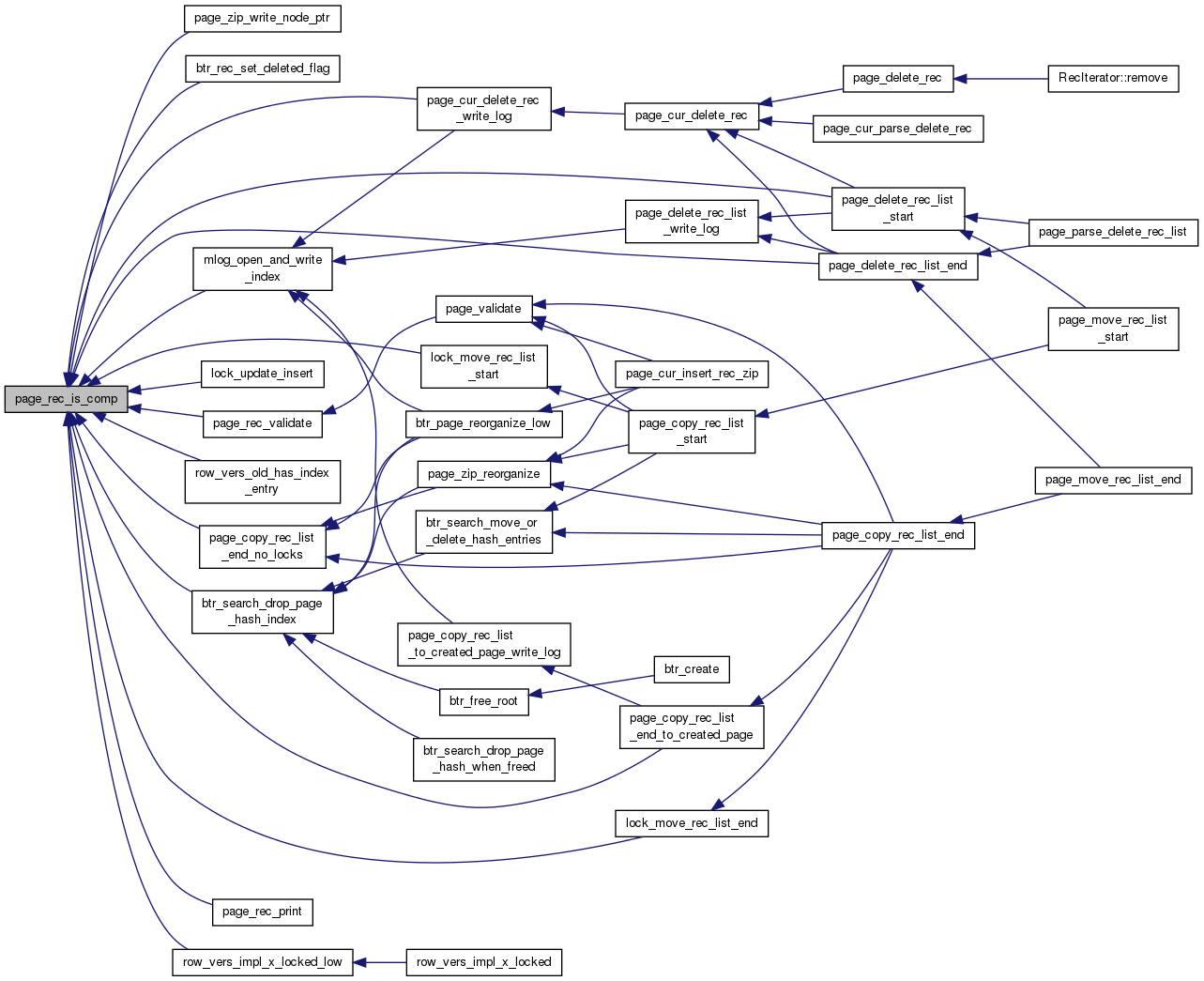

Here is the caller graph for this function:

UNIV_INLINE ibool page_rec_is_infimum ( const rec_t * rec ) const

TRUE if the record is the infimum record on a page.

Returns: TRUE if the infimum record

Parameters

rec	in: record

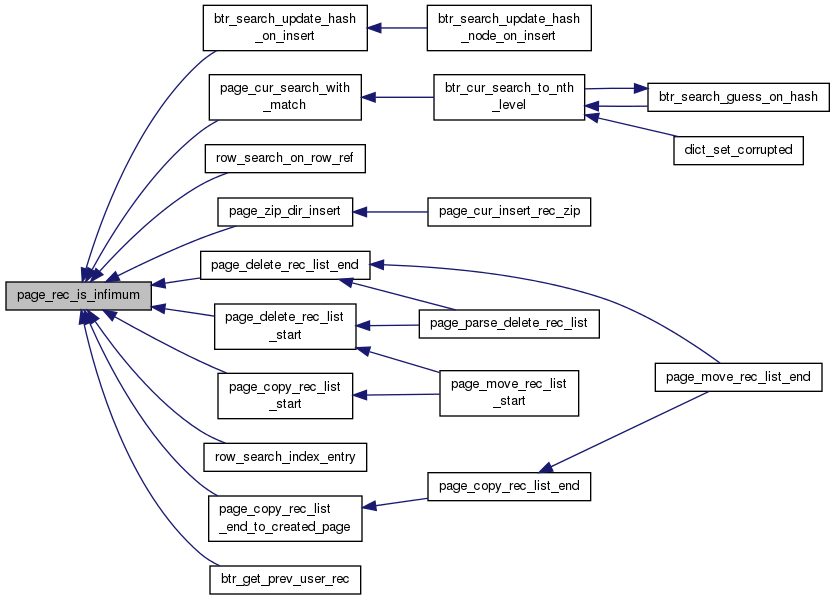

Here is the caller graph for this function:

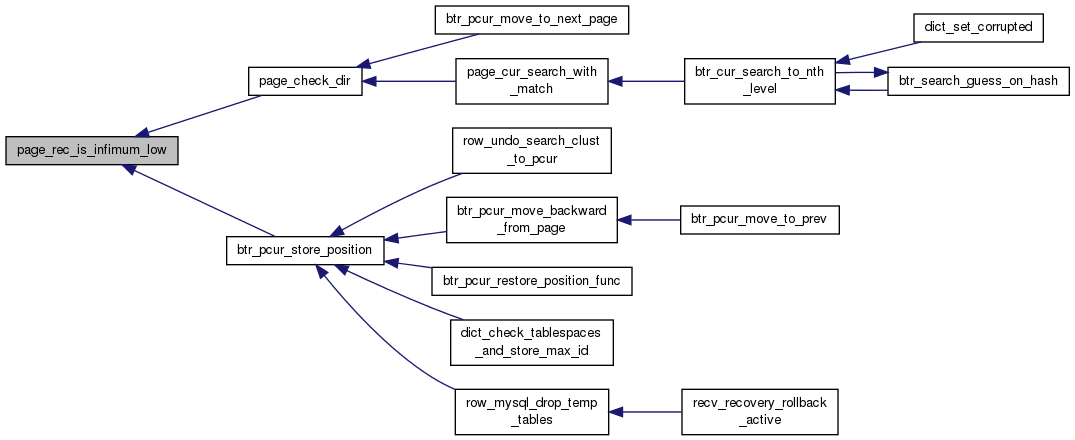

UNIV_INLINE ibool page_rec_is_infimum_low ( ulint offset ) const

TRUE if the record is the infimum record on a page.

Returns: TRUE if the infimum record

Parameters

offset in: record offset on page

Here is the caller graph for this function:

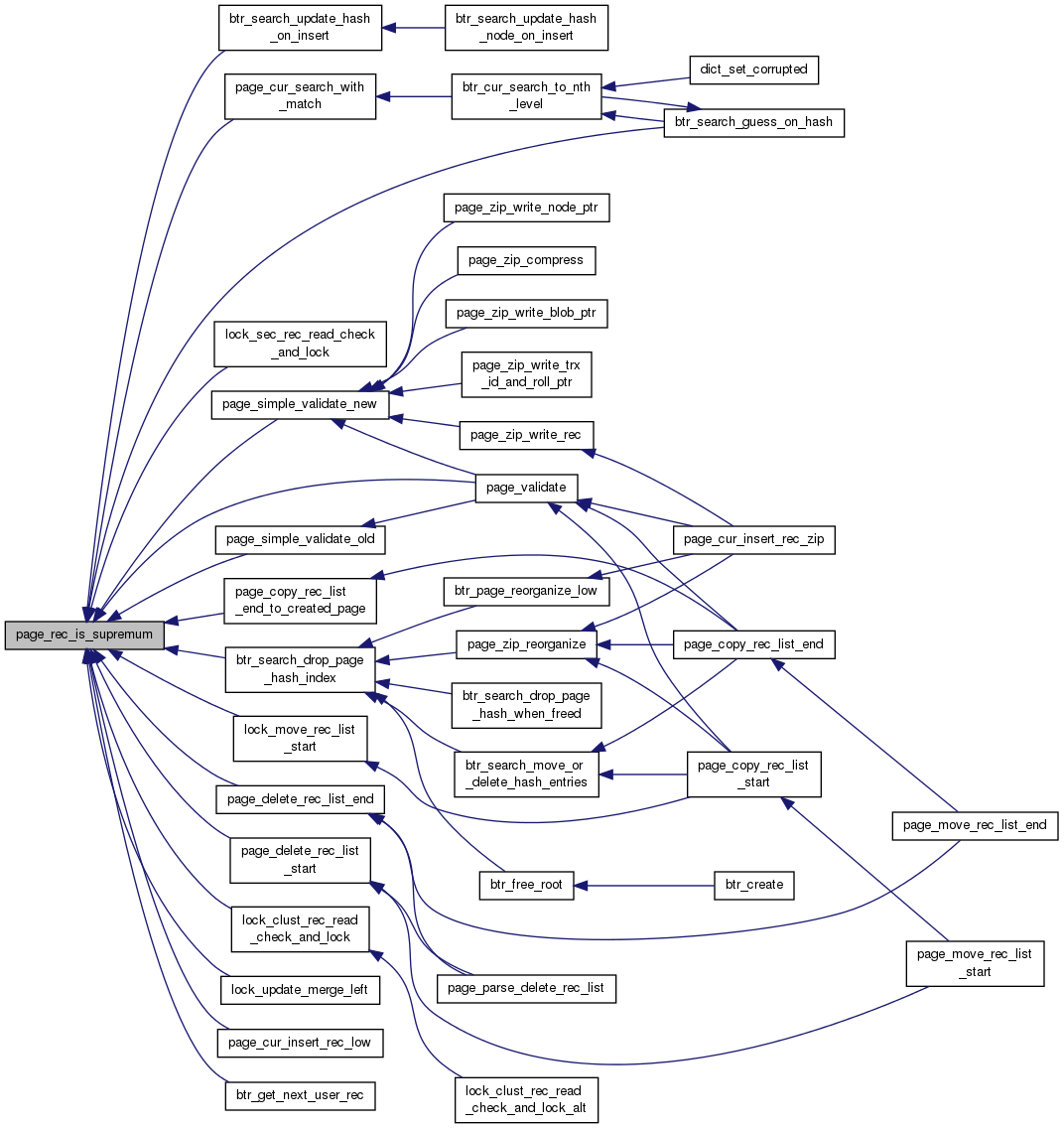

UNIV_INLINE ibool page_rec_is_supremum ( const rec_t * rec ) const

TRUE if the record is the supremum record on a page.

Returns: TRUE if the supremum record

Parameters

rec	in: record

Here is the caller graph for this function:

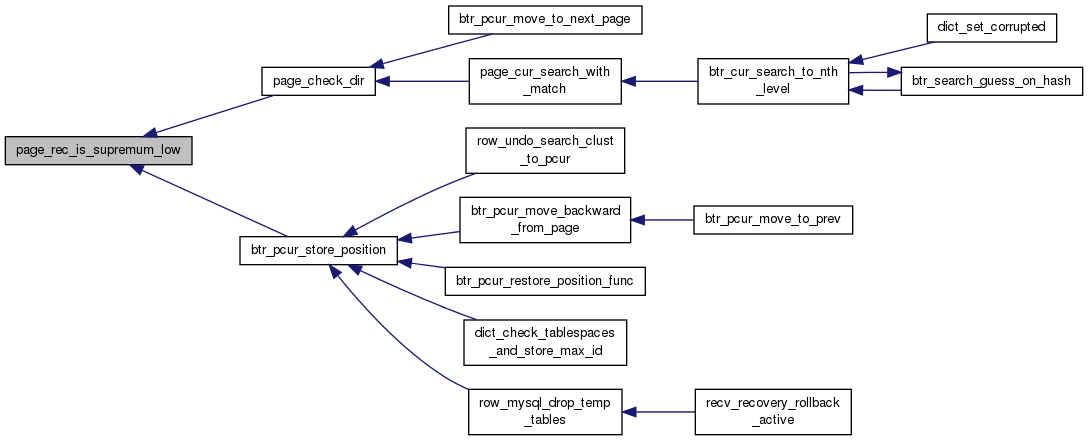

UNIV_INLINE ibool page_rec_is_supremum_low ( ulint offset ) const

TRUE if the record is the supremum record on a page.

Returns: TRUE if the supremum record

Parameters

offset in: record offset on page

Here is the caller graph for this function:

UNIV_INLINE ibool page_rec_is_user_rec ( const rec_t * rec ) const

TRUE if the record is a user record on the page.

Returns: TRUE if a user record

Parameters

rec	in: record

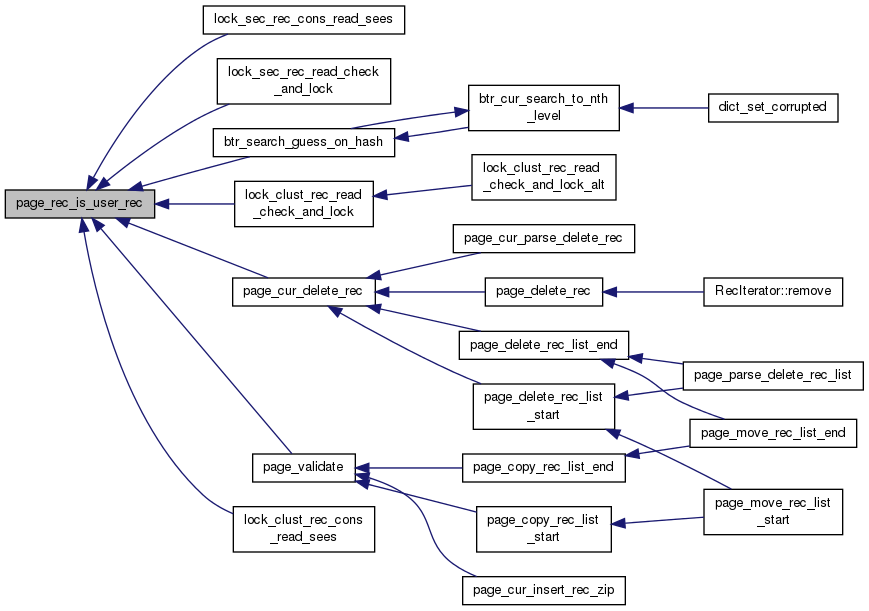

Here is the caller graph for this function:

UNIV_INLINE ibool page_rec_is_user_rec_low ( ulint offset ) const

TRUE if the record is a user record on the page.

Returns: TRUE if a user record

Parameters

offset in: record offset on page

UNIV_INTERN void page_rec_print	(	const rec_t *	rec,
		const ulint *	offsets
	)

Prints record contents including the data relevant only in the index page context. in: record descriptor

Prints record contents including the data relevant only in the index page context.

Parameters

rec	in: physical record
offsets	in: record descriptor

Definition at line 1683 of file page0page.cc.

Here is the call graph for this function:

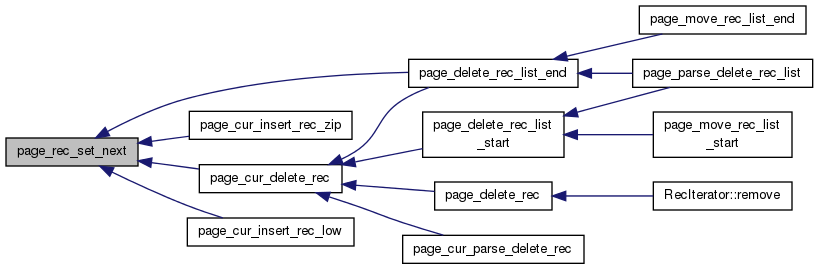

UNIV_INLINE void page_rec_set_next	(	rec_t *	rec,
		const rec_t *	next
	)

Sets the pointer to the next record on the page. in: pointer to next record, must not be page infimum

Parameters

rec	in: pointer to record, must not be page supremum

Here is the caller graph for this function:

UNIV_INTERN ibool page_rec_validate	(	const rec_t *	rec,
		const ulint *	offsets
	)

The following is used to validate a record on a page. This function differs from rec_validate as it can also check the n_owned field and the heap_no field.

Returns: TRUE if ok in: array returned by rec_get_offsets()

The following is used to validate a record on a page. This function differs from rec_validate as it can also check the n_owned field and the heap_no field.

Returns: TRUE if ok

Parameters

rec	in: physical record
offsets	in: array returned by rec_get_offsets()

Definition at line 1879 of file page0page.cc.

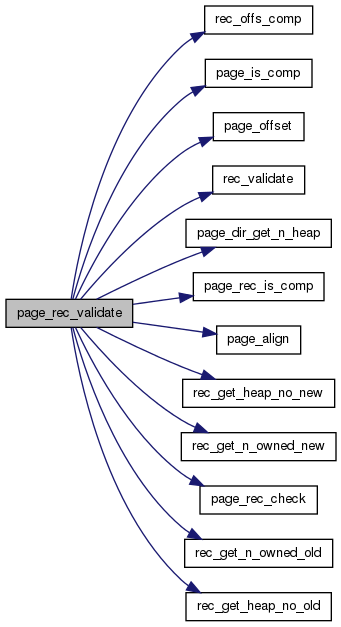

Here is the call graph for this function:

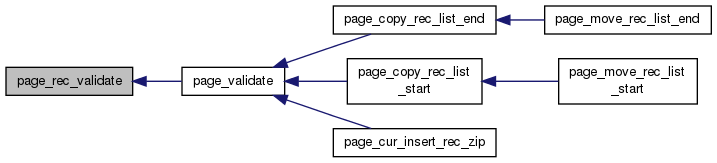

Here is the caller graph for this function:

UNIV_INLINE void page_rec_write_field	(	rec_t *	rec,
		ulint	i,
		ulint	val,
		mtr_t *	mtr
	)

Write a 32-bit field in a data dictionary record.

Parameters

rec	in/out: record to update
i	in: index of the field to update
val	in: value to write
mtr	in/out: mini-transaction

Here is the caller graph for this function:

UNIV_INTERN void page_set_max_trx_id	(	buf_block_t *	block,
		page_zip_des_t *	page_zip,
		trx_id_t	trx_id,
		mtr_t *	mtr
	)

Sets the max trx id field value. in/out: mini-transaction, or NULL

Sets the max trx id field value.

Parameters

block	in/out: page
page_zip	in/out: compressed page, or NULL
trx_id	in: transaction id
mtr	in/out: mini-transaction, or NULL

Definition at line 210 of file page0page.cc.

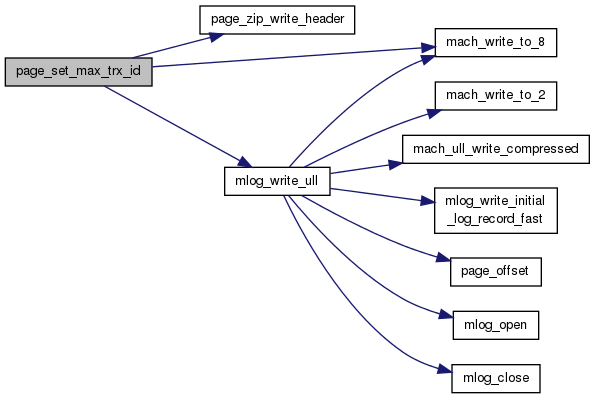

Here is the call graph for this function:

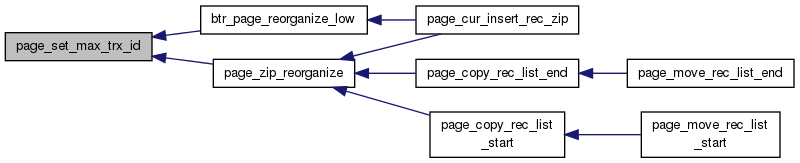

Here is the caller graph for this function:

UNIV_INTERN ibool page_simple_validate_new ( const page_t * page )

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.

Returns: TRUE if ok in: index page in ROW_FORMAT!=REDUNDANT

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.

Returns: TRUE if ok

Parameters

page	in: index page in ROW_FORMAT!=REDUNDANT

Definition at line 2175 of file page0page.cc.

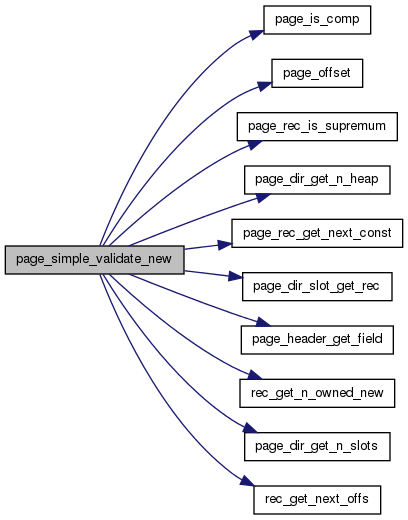

Here is the call graph for this function:

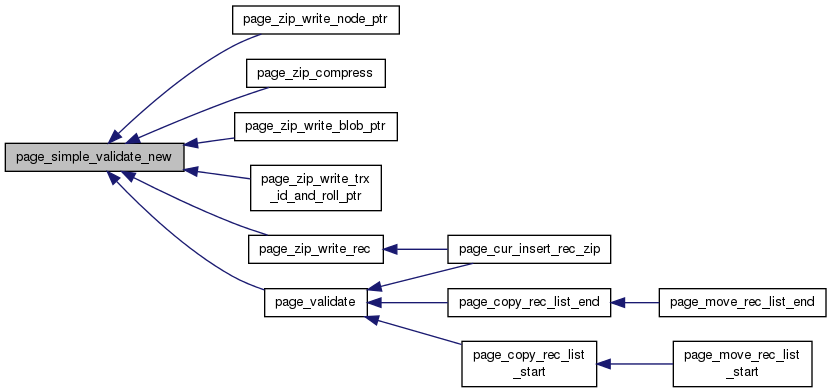

Here is the caller graph for this function:

UNIV_INTERN ibool page_simple_validate_old ( const page_t * page )

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.

Returns: TRUE if ok in: index page in ROW_FORMAT=REDUNDANT

This function checks the consistency of an index page when we do not know the index. This is also resilient so that this should never crash even if the page is total garbage.

Returns: TRUE if ok

Parameters

page	in: index page in ROW_FORMAT=REDUNDANT

Definition at line 1965 of file page0page.cc.

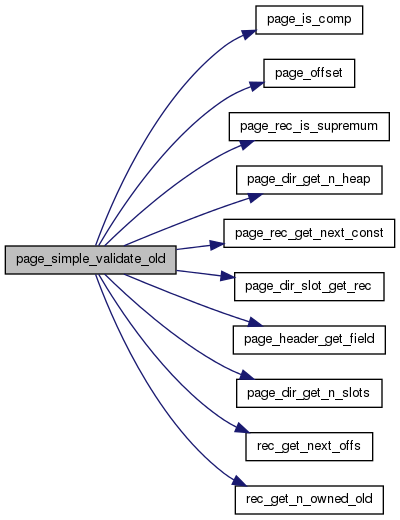

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void page_update_max_trx_id	(	buf_block_t *	block,
		page_zip_des_t *	page_zip,
		trx_id_t	trx_id,
		mtr_t *	mtr
	)

Sets the max trx id field value if trx_id is bigger than the previous value. in/out: mini-transaction

Parameters

block	in/out: page
page_zip	in/out: compressed page whose uncompressed part will be updated, or NULL
trx_id	in: transaction id

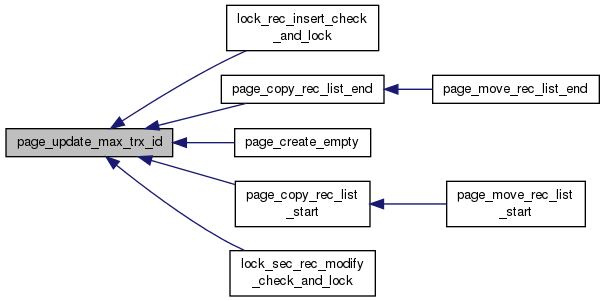

Here is the caller graph for this function:

UNIV_INTERN ibool page_validate	(	const page_t *	page,
		dict_index_t *	index
	)

This function checks the consistency of an index page.

Returns: TRUE if ok in: data dictionary index containing the page record type definition

This function checks the consistency of an index page.

Returns: TRUE if ok

Parameters

page	in: index page
index	in: data dictionary index containing the page record type definition

Definition at line 2384 of file page0page.cc.

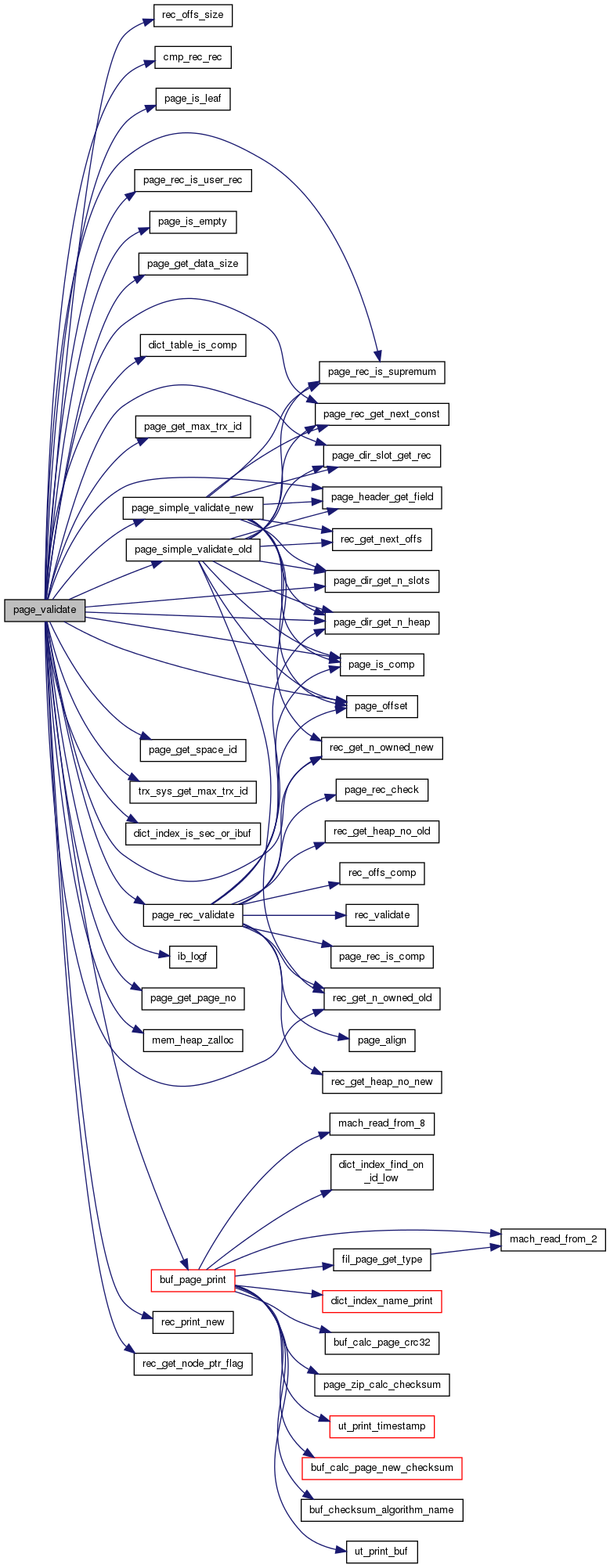

Here is the call graph for this function:

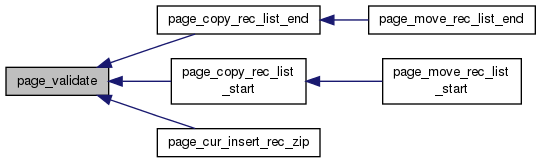

Here is the caller graph for this function:

Macros

Typedefs

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation
