#include "univ.i"
#include "btr0btr.h"
#include "btr0cur.h"
#include "dict0dict.h"
#include "dict0mem.h"
#include "dict0stats.h"
#include "data0type.h"
#include "db0err.h"
#include "page0page.h"
#include "pars0pars.h"
#include "pars0types.h"
#include "que0que.h"
#include "rem0cmp.h"
#include "row0sel.h"
#include "row0types.h"
#include "trx0trx.h"
#include "trx0roll.h"
#include "ut0rnd.h"
#include "ut0ut.h"
#include <vector>
#include "mysql_com.h"

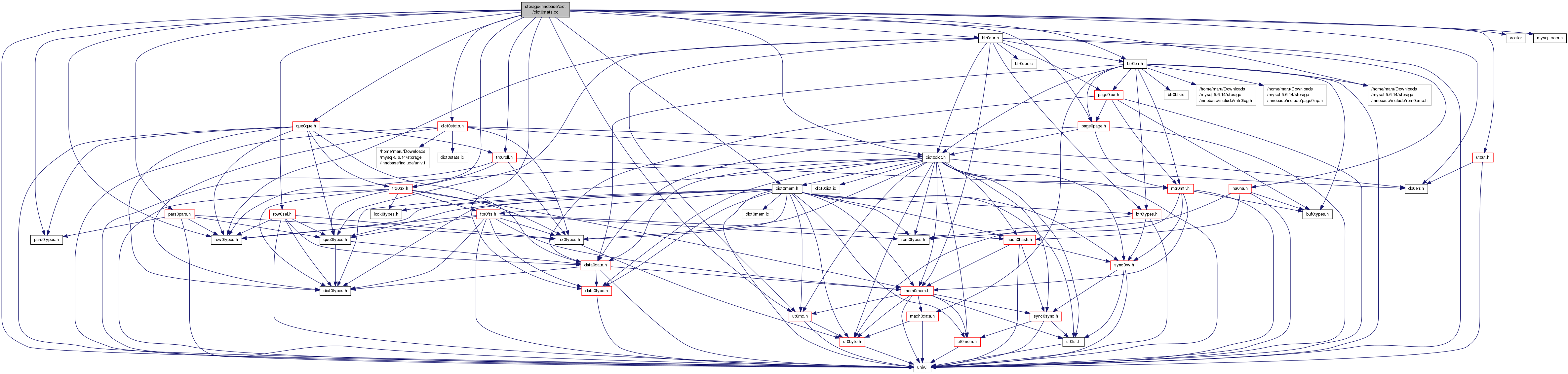

Include dependency graph for dict0stats.cc:

Macros
#define	TABLE_STATS_NAME "mysql/innodb_table_stats"
#define	TABLE_STATS_NAME_PRINT "mysql.innodb_table_stats"
#define	INDEX_STATS_NAME "mysql/innodb_index_stats"
#define	INDEX_STATS_NAME_PRINT "mysql.innodb_index_stats"
#define	DEBUG_PRINTF(fmt,...) /* noop */
#define	N_SAMPLE_PAGES(index)
#define	N_DIFF_REQUIRED(index) (N_SAMPLE_PAGES(index) * 10)
#define	INDEX_EQ(i1, i2)
#define	PREPARE_PINFO_FOR_TABLE_SAVE(p, t, n)
#define	PFX "n_diff_pfx"
#define	PFX_LEN 10

Typedefs
typedef std::vector< ib_uint64_t >	boundaries_t

Functions
UNIV_INLINE bool	dict_stats_should_ignore_index (const dict_index_t *index)
UNIV_INTERN void	dict_stats_update_transient (dict_table_t *table)
UNIV_INLINE	__attribute__ ((nonnull)) ulint dict_stats_scan_page(const rec_t *out_rec
UNIV_INTERN void	dict_stats_update_for_index (dict_index_t *index)
UNIV_INTERN dberr_t	dict_stats_update (dict_table_t *table, dict_stats_upd_option_t stats_upd_option)
UNIV_INTERN dberr_t	dict_stats_drop_index (const char db_and_table, const char iname, char *errstr, ulint errstr_sz)
UNIV_INLINE dberr_t	dict_stats_delete_from_table_stats (const char database_name, const char table_name)
UNIV_INLINE dberr_t	dict_stats_delete_from_index_stats (const char database_name, const char table_name)
UNIV_INTERN dberr_t	dict_stats_drop_table (const char db_and_table, char errstr, ulint errstr_sz)
UNIV_INLINE dberr_t	dict_stats_rename_in_table_stats (const char old_dbname_utf8, const char old_tablename_utf8, const char new_dbname_utf8, const char new_tablename_utf8)
UNIV_INLINE dberr_t	dict_stats_rename_in_index_stats (const char old_dbname_utf8, const char old_tablename_utf8, const char new_dbname_utf8, const char new_tablename_utf8)
UNIV_INTERN dberr_t	dict_stats_rename_table (const char old_name, const char new_name, char *errstr, size_t errstr_sz)

Variables
UNIV_INLINE ulint *	offsets1
UNIV_INLINE ulint ulint *	offsets2
UNIV_INLINE ulint ulint dict_index_t *	index
UNIV_INLINE ulint ulint dict_index_t const page_t *	page
UNIV_INLINE ulint ulint dict_index_t const page_t ulint	n_prefix
UNIV_INLINE ulint ulint dict_index_t const page_t ulint page_scan_method_t	scan_method
enum	page_scan_method_t { COUNT_ALL_NON_BORING_AND_SKIP_DEL_MARKED, QUIT_ON_FIRST_NON_BORING }

Detailed Description

Code used for calculating and manipulating table statistics.

Created Jan 06, 2010 Vasil Dimov

Definition in file dict0stats.cc.

Macro Definition Documentation

#define INDEX_EQ	(	i1,
		i2
	)

Value:

((i1) != NULL \
         && (i2) != NULL \
         && (i1)->id == (i2)->id \
         && strcmp((i1)->name, (i2)->name) == 0)

Definition at line 622 of file dict0stats.cc.

#define N_SAMPLE_PAGES ( index )

Value:

((index)->table->stats_sample_pages != 0 ?      \
         (index)->table->stats_sample_pages :           \
         srv_stats_persistent_sample_pages)

Definition at line 129 of file dict0stats.cc.

#define PREPARE_PINFO_FOR_TABLE_SAVE	(	p,
		t,
		n
	)

Value:

do {                                                            \
        pars_info_add_str_literal((p), "database_name", db_utf8);       \
        pars_info_add_str_literal((p), "table_name", table_utf8);       \
        pars_info_add_int4_literal((p), "last_update", (n));            \
        pars_info_add_ull_literal((p), "n_rows", (t)->stat_n_rows);     \
        pars_info_add_ull_literal((p), "clustered_index_size",          \
                (t)->stat_clustered_index_size);                        \
        pars_info_add_ull_literal((p), "sum_of_other_index_sizes",      \
                (t)->stat_sum_of_other_index_sizes);                    \
        } while(false);

Function Documentation

static __attribute__ ( (nonnull) ) const

Scan a page, reading records from left to right and counting the number of distinct records on that page (looking only at the first n_prefix columns). If scan_method is QUIT_ON_FIRST_NON_BORING then the function will return as soon as it finds a record that does not match its neighbor to the right, which means that in the case of QUIT_ON_FIRST_NON_BORING the returned n_diff can either be 0 (empty page), 1 (the whole page has all keys equal) or 2 (the function found a non-boring record and returned).

Returns: offsets1 or offsets2 (the offsets of *out_rec), or NULL if the page is empty and does not contain user records.

Drop any indexes that we were not able to free previously due to open table handles.

Releases the mlocks and other objects stored in an mtr memo. They are released in the order opposite to which they were pushed to the memo.

< in/out: mini-transaction

Definition at line 108 of file mtr0mtr.cc.

Here is the call graph for this function:

UNIV_INLINE dberr_t dict_stats_delete_from_index_stats	(	const char *	database_name,
		const char *	table_name
	)

Executes DELETE FROM mysql.innodb_index_stats WHERE database_name = '...' AND table_name = '...'; Creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

database_name	in: database name, e.g. 'db'
table_name	in: table name, e.g. 'table'

Definition at line 3259 of file dict0stats.cc.

Here is the call graph for this function:

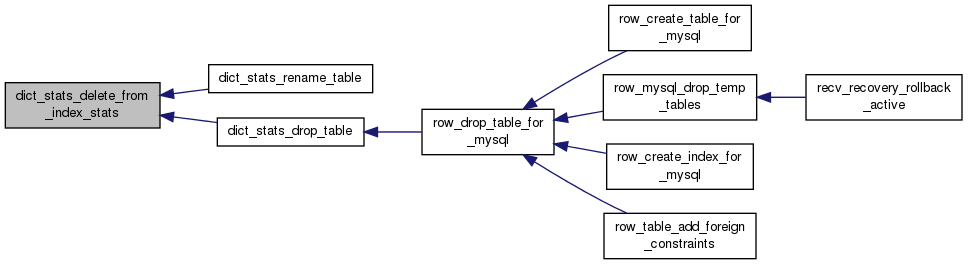

Here is the caller graph for this function:

UNIV_INLINE dberr_t dict_stats_delete_from_table_stats	(	const char *	database_name,
		const char *	table_name
	)

Executes DELETE FROM mysql.innodb_table_stats WHERE database_name = '...' AND table_name = '...'; Creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

database_name	in: database name, e.g. 'db'
table_name	in: table name, e.g. 'table'

Definition at line 3221 of file dict0stats.cc.

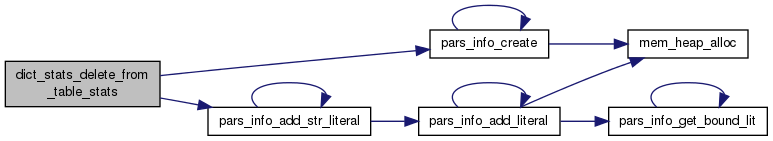

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_stats_drop_index	(	const char *	db_and_table,
		const char *	iname,
		char *	errstr,
		ulint	errstr_sz
	)

Removes the information for a particular index's stats from the persistent storage if it exists and if there is data stored for this index. This function creates its own trx and commits it. A note from Marko why we cannot edit user and sys_* tables in one trx: marko: The problem is that ibuf merges should be disabled while we are rolling back dict transactions. marko: If ibuf merges are not disabled, we need to scan the *.ibd files. But we shouldn't open *.ibd files before we have rolled back dict transactions and opened the SYS_* records for the *.ibd files.

Returns: DB_SUCCESS or error code

Parameters

db_and_table	in: db and table, e.g. 'db/table'
iname	in: index name
errstr	out: error message if != DB_SUCCESS is returned
errstr_sz	in: size of the errstr buffer

Definition at line 3134 of file dict0stats.cc.

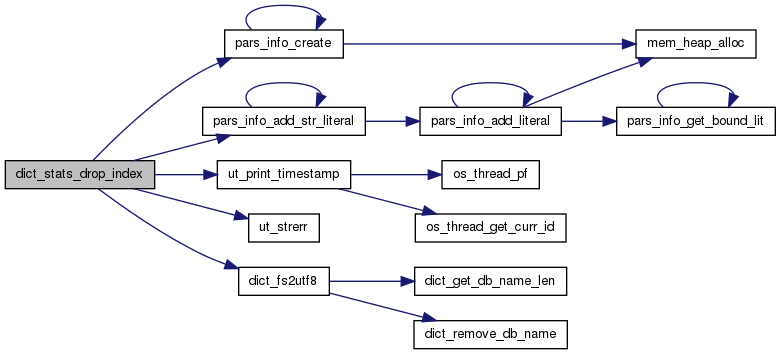

Here is the call graph for this function:

UNIV_INTERN dberr_t dict_stats_drop_table	(	const char *	db_and_table,
		char *	errstr,
		ulint	errstr_sz
	)

Removes the statistics for a table and all of its indexes from the persistent statistics storage if it exists and if there is data stored for the table. This function creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

db_and_table	in: db and table, e.g. 'db/table'
errstr	out: error message if != DB_SUCCESS is returned
errstr_sz	in: size of errstr buffer

Definition at line 3296 of file dict0stats.cc.

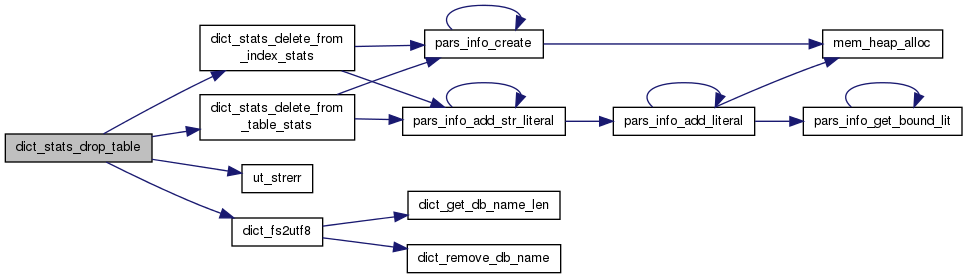

Here is the call graph for this function:

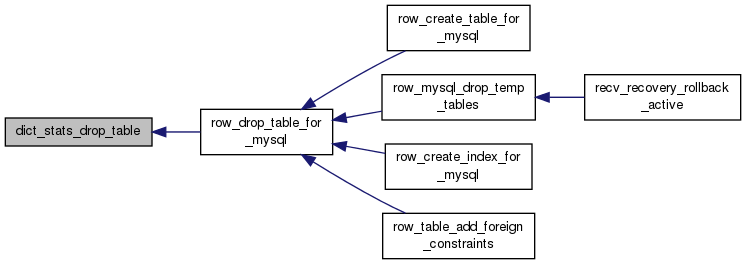

Here is the caller graph for this function:

UNIV_INLINE dberr_t dict_stats_rename_in_index_stats	(	const char *	old_dbname_utf8,
		const char *	old_tablename_utf8,
		const char *	new_dbname_utf8,
		const char *	new_tablename_utf8
	)

Executes UPDATE mysql.innodb_index_stats SET database_name = '...', table_name = '...' WHERE database_name = '...' AND table_name = '...'; Creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

old_dbname_utf8	in: database name, e.g. 'olddb'
old_tablename_utf8	in: table name, e.g. 'oldtable'
new_dbname_utf8	in: database name, e.g. 'newdb'
new_tablename_utf8	in: table name, e.g. 'newtable'

Definition at line 3421 of file dict0stats.cc.

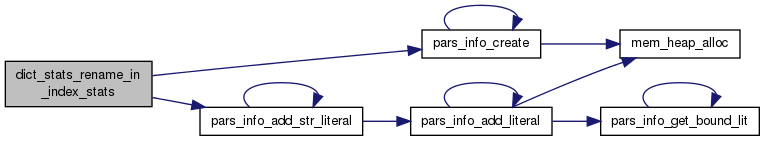

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE dberr_t dict_stats_rename_in_table_stats	(	const char *	old_dbname_utf8,
		const char *	old_tablename_utf8,
		const char *	new_dbname_utf8,
		const char *	new_tablename_utf8
	)

Executes UPDATE mysql.innodb_table_stats SET database_name = '...', table_name = '...' WHERE database_name = '...' AND table_name = '...'; Creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

old_dbname_utf8	in: database name, e.g. 'olddb'
old_tablename_utf8	in: table name, e.g. 'oldtable'
new_dbname_utf8	in: database name, e.g. 'newdb'
new_tablename_utf8	in: table name, e.g. 'newtable'

Definition at line 3375 of file dict0stats.cc.

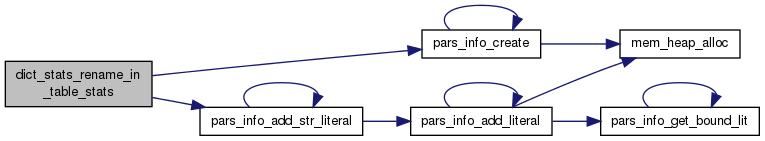

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_stats_rename_table	(	const char *	old_name,
		const char *	new_name,
		char *	errstr,
		size_t	errstr_sz
	)

Renames a table in InnoDB persistent stats storage. This function creates its own transaction and commits it.

Returns: DB_SUCCESS or error code

Parameters

old_name	in: old name, e.g. 'db/table'
new_name	in: new name, e.g. 'db/table'
errstr	out: error string if != DB_SUCCESS is returned
errstr_sz	in: errstr size

Definition at line 3464 of file dict0stats.cc.

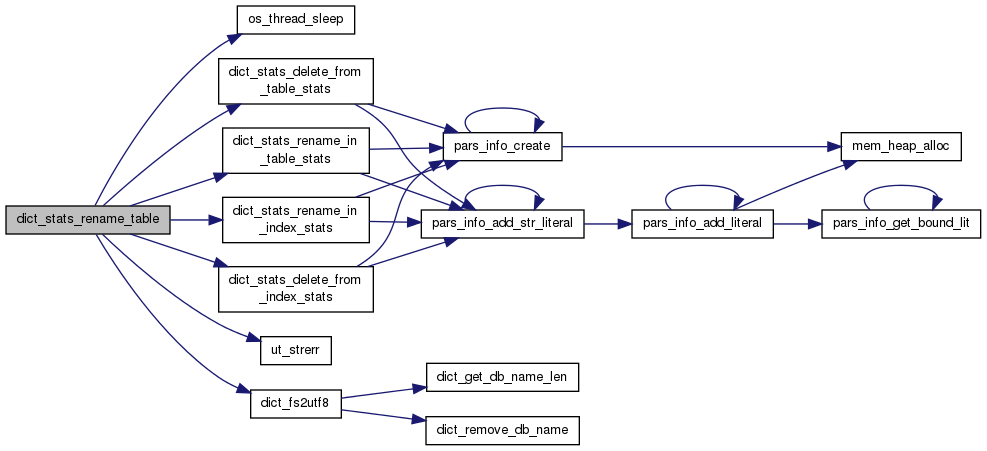

Here is the call graph for this function:

UNIV_INLINE bool dict_stats_should_ignore_index ( const dict_index_t * index )

Checks whether an index should be ignored in stats manipulations: stats fetch stats recalc stats save

Returns: true if exists and all tables are ok

Parameters

index in: index

Definition at line 154 of file dict0stats.cc.

Here is the call graph for this function:

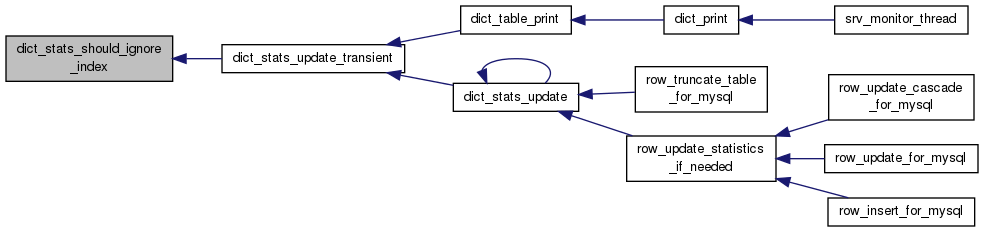

Here is the caller graph for this function:

UNIV_INTERN dberr_t dict_stats_update	(	dict_table_t *	table,
		dict_stats_upd_option_t	stats_upd_option
	)

Calculates new estimates for table and index statistics. The statistics are used in query optimization.

Returns: DB_SUCCESS or error code

Parameters

table	in/out: table
stats_upd_option	in: whether to (re) calc the stats or to fetch them from the persistent statistics storage

Definition at line 2894 of file dict0stats.cc.

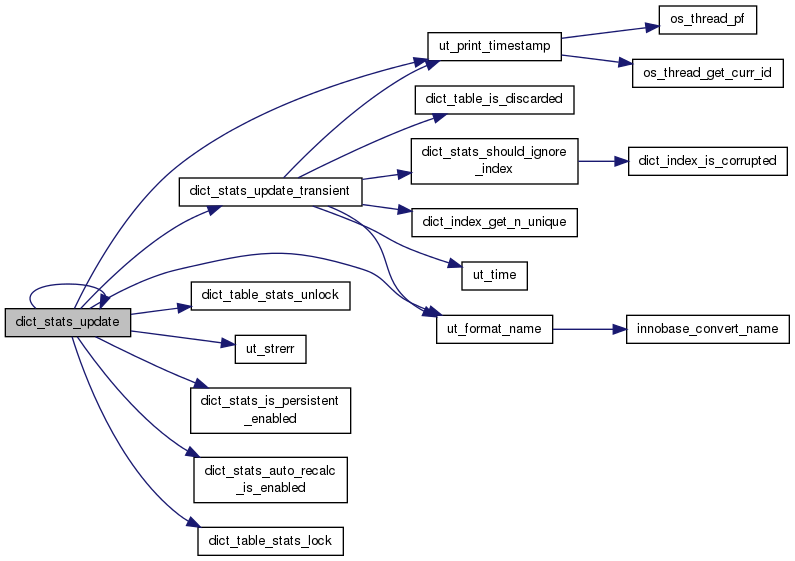

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void dict_stats_update_for_index ( dict_index_t * index )

Fetches or calculates new estimates for index statistics.

Parameters

index in/out: index

Definition at line 2846 of file dict0stats.cc.

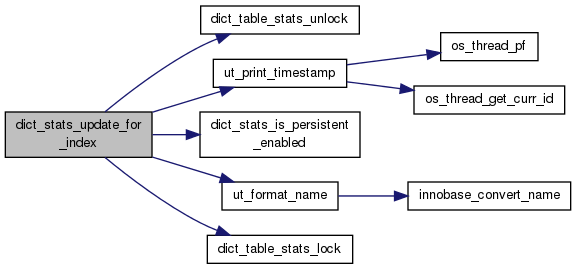

Here is the call graph for this function:

UNIV_INTERN void dict_stats_update_transient ( dict_table_t * table )

Calculates new estimates for table and index statistics. This function is relatively quick and is used to calculate transient statistics that are not saved on disk. This was the only way to calculate statistics before the Persistent Statistics feature was introduced.

Parameters

table in/out: table

Definition at line 834 of file dict0stats.cc.

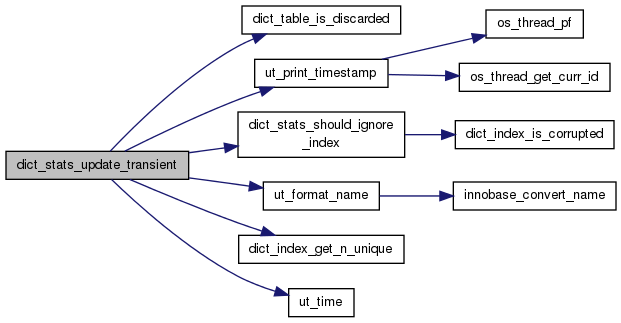

Here is the call graph for this function:

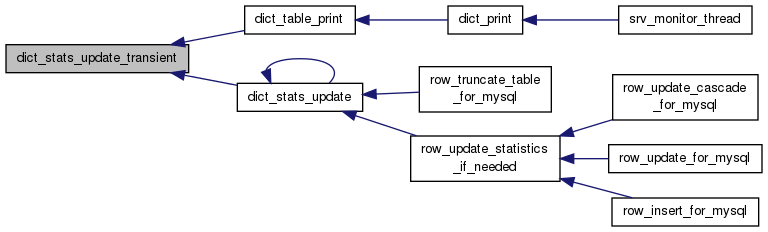

Here is the caller graph for this function:

Variable Documentation

UNIV_INLINE ulint ulint dict_index_t* index

in: index of the page

Definition at line 1266 of file dict0stats.cc.

UNIV_INLINE ulint ulint dict_index_t const page_t ulint n_prefix

in: look at the first n_prefix columns

Definition at line 1266 of file dict0stats.cc.

UNIV_INLINE ulint* offsets1

< out: record, or NULL out: rec_get_offsets() working space (must be big enough)

Definition at line 1266 of file dict0stats.cc.

UNIV_INLINE ulint ulint* offsets2

out: rec_get_offsets() working space (must be big enough)

Definition at line 1266 of file dict0stats.cc.

UNIV_INLINE ulint ulint dict_index_t const page_t* page

in: the page to scan

Definition at line 1266 of file dict0stats.cc.

UNIV_INLINE ulint ulint dict_index_t const page_t ulint page_scan_method_t scan_method

in: scan to the end of the page or not

Definition at line 1266 of file dict0stats.cc.
