#include <sql_table.h>
#include <sql_acl.h>
#include <debug_sync.h>
#include <my_base.h>
#include <mysys_err.h>
#include <mysql/innodb_priv.h>
#include "univ.i"
#include "buf0dump.h"
#include "buf0lru.h"
#include "buf0flu.h"
#include "buf0dblwr.h"
#include "btr0sea.h"
#include "os0file.h"
#include "os0thread.h"
#include "srv0start.h"
#include "srv0srv.h"
#include "trx0roll.h"
#include "trx0trx.h"
#include "trx0sys.h"
#include "mtr0mtr.h"
#include "rem0types.h"
#include "row0ins.h"
#include "row0mysql.h"
#include "row0sel.h"
#include "row0upd.h"
#include "log0log.h"
#include "lock0lock.h"
#include "dict0crea.h"
#include "btr0cur.h"
#include "btr0btr.h"
#include "fsp0fsp.h"
#include "sync0sync.h"
#include "fil0fil.h"
#include "trx0xa.h"
#include "row0merge.h"
#include "dict0boot.h"
#include "dict0stats.h"
#include "dict0stats_bg.h"
#include "ha_prototypes.h"
#include "ut0mem.h"
#include "ibuf0ibuf.h"
#include "dict0dict.h"
#include "srv0mon.h"
#include "api0api.h"
#include "api0misc.h"
#include "pars0pars.h"
#include "fts0fts.h"
#include "fts0types.h"
#include "row0import.h"
#include "row0quiesce.h"
#include "fts0priv.h"
#include "page0zip.h"
#include "ha_innodb.h"
#include "i_s.h"

Macros
#define	MYSQL_PLUGIN_IMPORT /* nothing */
#define	INSIDE_HA_INNOBASE_CC
#define	EQ_CURRENT_THD(thd) ((thd) == current_thd)
#define	INNOBASE_WAKE_INTERVAL 32
#define	normalize_table_name(norm_name, name) normalize_table_name_low(norm_name, name, FALSE)
#define	true_word_char(c, ch) ((c) & (_MY_U \| _MY_L \| _MY_NMR) \|\| (ch) == '_')
#define	misc_word_char(X) 0
#define	IS_MAGIC_TABLE_AND_USER_DENIED_ACCESS(table_name, thd)
#define	CHECK_ERROR_ROW_TYPE_NEEDS_FILE_PER_TABLE(use_tablespace)
#define	CHECK_ERROR_ROW_TYPE_NEEDS_GT_ANTELOPE
#define	STATS_SAMPLE_PAGES_DEPRECATED_MSG
#define	innodb_srv_buf_dump_filename_validate NULL

Functions
enum_tx_isolation	thd_get_trx_isolation (const THD *thd)
int	innodb_page_size_validate (ulong page_size)
UNIV_INTERN ibool	thd_is_replication_slave_thread (THD *thd)
UNIV_INTERN enum durability_properties	thd_requested_durability (const THD *thd)
UNIV_INTERN ibool	thd_trx_is_read_only (THD *thd)
UNIV_INTERN ibool	thd_trx_is_auto_commit (THD *thd)
UNIV_INTERN const char *	server_get_hostname ()
UNIV_INTERN ibool	thd_has_edited_nontrans_tables (THD *thd)
UNIV_INTERN ibool	thd_is_select (const THD *thd)
UNIV_INTERN ibool	thd_supports_xa (THD *thd)
UNIV_INTERN ulong	thd_lock_wait_timeout (THD *thd)

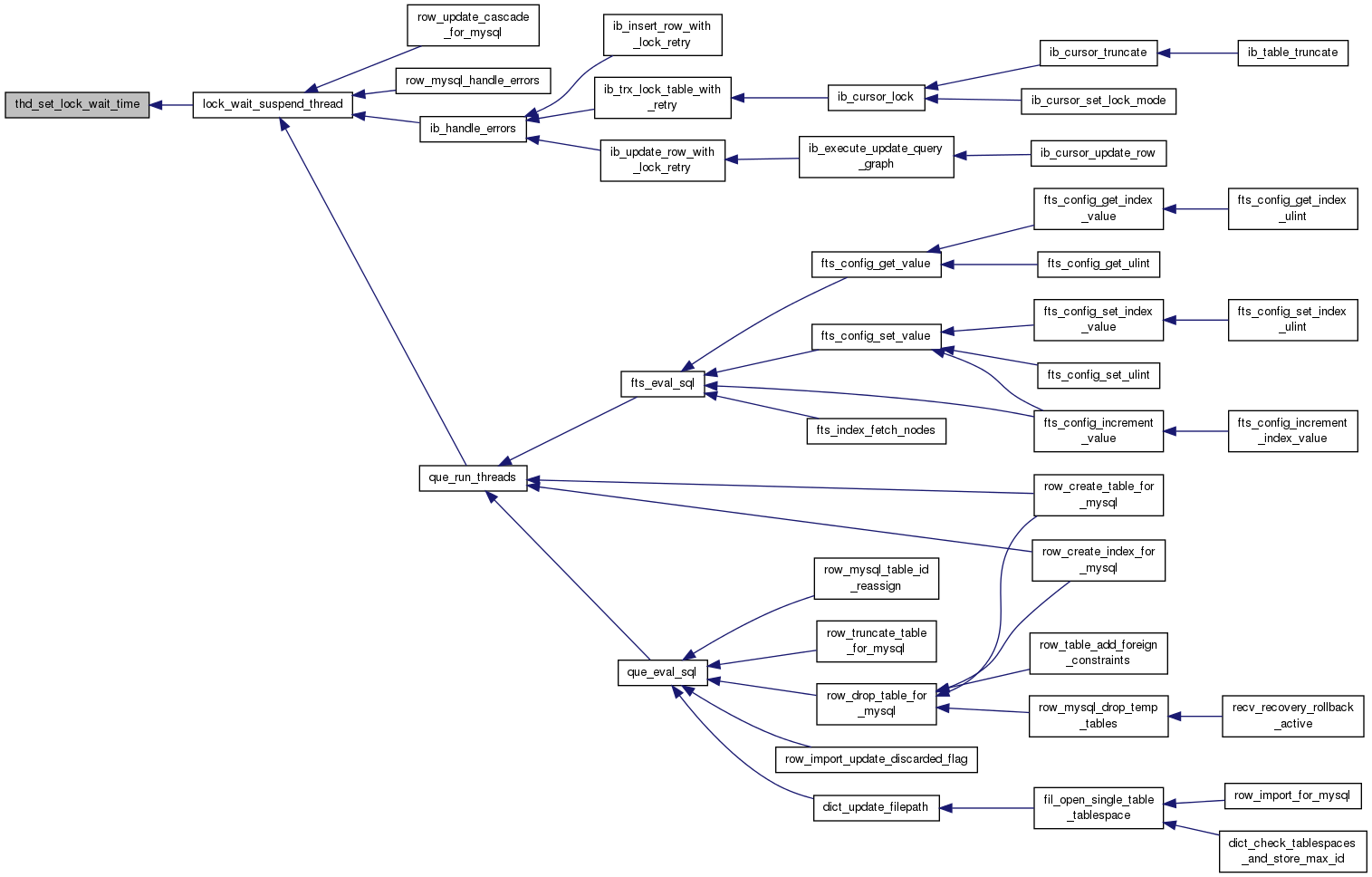

UNIV_INTERN void	thd_set_lock_wait_time (THD *thd, ulint value)
	__attribute__ ((warn_unused_result, nonnull)) static inline trx_t &thd_to_trx(THD thd)
UNIV_INTERN void	innobase_mysql_print_thd (FILE f, THD thd, uint max_query_len)
UNIV_INTERN const char *	innobase_get_err_msg (int error_code)
UNIV_INTERN void	innobase_get_cset_width (ulint cset, ulint mbminlen, ulint mbmaxlen)
UNIV_INTERN void	innobase_convert_from_table_id (struct charset_info_st cs, char to, const char *from, ulint len)
UNIV_INTERN my_bool	innobase_check_identifier_length (const char *id)
UNIV_INTERN void	innobase_convert_from_id (struct charset_info_st cs, char to, const char *from, ulint len)

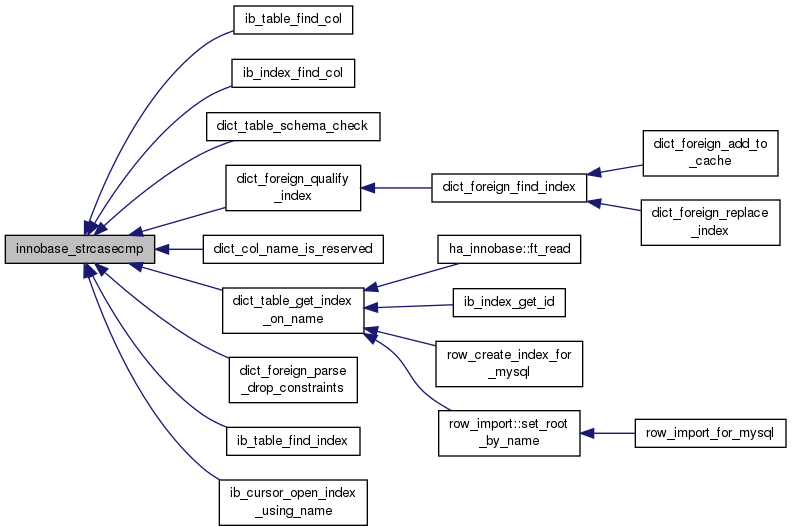

UNIV_INTERN int	innobase_strcasecmp (const char a, const char b)
UNIV_INTERN int	innobase_wildcasecmp (const char a, const char b)
UNIV_INTERN const char *	innobase_basename (const char *path_name)

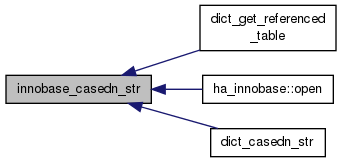

UNIV_INTERN void	innobase_casedn_str (char *a)
UNIV_INTERN struct charset_info_st *	innobase_get_charset (THD *mysql_thd)
UNIV_INTERN const char *	innobase_get_stmt (THD thd, size_t length)
UNIV_INTERN ulint	innobase_get_table_cache_size (void)

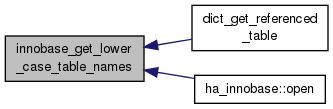

UNIV_INTERN ulint	innobase_get_lower_case_table_names (void)
UNIV_INTERN int	innobase_mysql_tmpfile (void)
UNIV_INTERN ulint	innobase_convert_string (void to, ulint to_length, CHARSET_INFO to_cs, const void from, ulint from_length, CHARSET_INFO from_cs, uint *errors)
UNIV_INTERN ulint	innobase_raw_format (const char data, ulint data_len, ulint charset_coll, char buf, ulint buf_size)

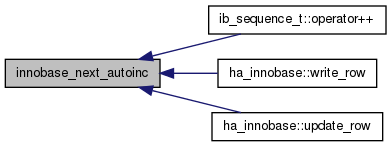

UNIV_INTERN ulonglong	innobase_next_autoinc (ulonglong current, ulonglong need, ulonglong step, ulonglong offset, ulonglong max_value)
UNIV_INTERN trx_t *	innobase_trx_allocate (THD *thd)
UNIV_INTERN void	innobase_copy_frm_flags_from_create_info (dict_table_t innodb_table, const HA_CREATE_INFO create_info)

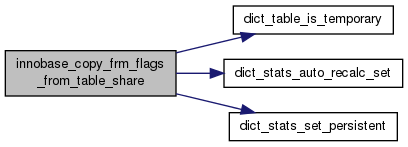

UNIV_INTERN void	innobase_copy_frm_flags_from_table_share (dict_table_t innodb_table, const TABLE_SHARE table_share)
UNIV_INTERN void	innobase_invalidate_query_cache (trx_t trx, const char full_name, ulint full_name_len)
UNIV_INTERN char *	innobase_convert_name (char buf, ulint buflen, const char id, ulint idlen, THD *thd, ibool table_id)

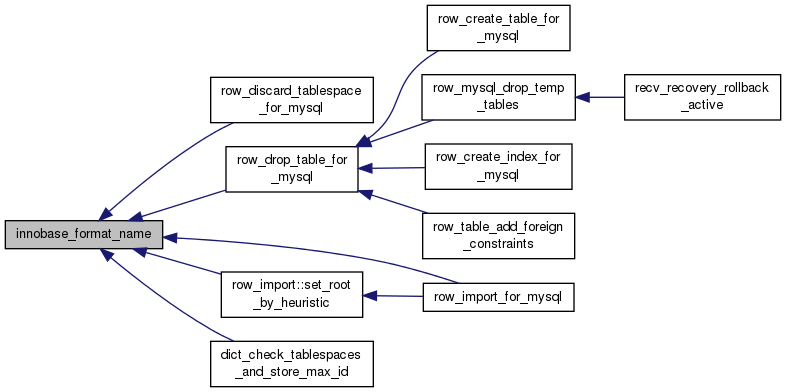

UNIV_INTERN void	innobase_format_name (char buf, ulint buflen, const char name, ibool is_index_name)
UNIV_INTERN ibool	trx_is_interrupted (const trx_t *trx)
UNIV_INTERN ibool	trx_is_strict (trx_t *trx)
UNIV_INLINE ibool	thd_is_strict (THD *thd)
UNIV_INTERN int	innobase_close_thd (THD *thd)
UNIV_INTERN ulonglong	innobase_get_int_col_max_value (const Field *field)
UNIV_INTERN int	innobase_mysql_cmp (int mysql_type, uint charset_number, const unsigned char a, unsigned int a_length, const unsigned char b, unsigned int b_length)

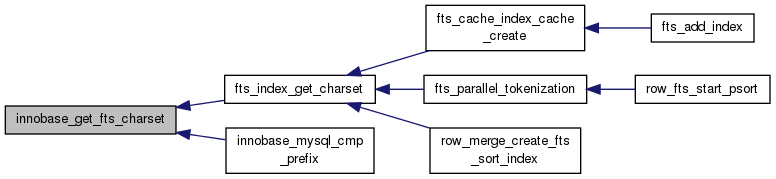

UNIV_INTERN CHARSET_INFO *	innobase_get_fts_charset (int mysql_type, uint charset_number)
UNIV_INTERN int	innobase_mysql_cmp_prefix (int mysql_type, uint charset_number, const unsigned char a, unsigned int a_length, const unsigned char b, unsigned int b_length)
UNIV_INTERN int	innobase_fts_text_cmp (const void cs, const void p1, const void *p2)
UNIV_INTERN int	innobase_fts_text_case_cmp (const void cs, const void p1, const void *p2)
UNIV_INTERN ulint	innobase_strnxfrm (const CHARSET_INFO cs, const uchar str, const ulint len)
UNIV_INTERN int	innobase_fts_text_cmp_prefix (const void cs, const void p1, const void *p2)
UNIV_INTERN int	innobase_fts_string_cmp (const void cs, const void p1, const void *p2)
UNIV_INTERN size_t	innobase_fts_casedn_str (CHARSET_INFO cs, char src, size_t src_len, char *dst, size_t dst_len)
UNIV_INTERN ulint	innobase_mysql_fts_get_token (CHARSET_INFO cs, const byte start, const byte end, fts_string_t token, ulint *offset)
UNIV_INTERN ulint	get_innobase_type_from_mysql_type (ulint unsigned_flag, const void f)
bool	build_template_needs_field_in_icp (const dict_index_t index, const row_prebuilt_t prebuilt, bool contains, ulint i)
	mysql_declare_plugin (innobase)
UNIV_INTERN enum icp_result	innobase_index_cond (void *file)
UNIV_INTERN void	ib_senderrf (THD *thd, ib_log_level_t level, ib_uint32_t code,...)
UNIV_INTERN void	ib_errf (THD thd, ib_log_level_t level, ib_uint32_t code, const char format,...)
UNIV_INTERN void	ib_logf (ib_log_level_t level, const char *format,...)
uint	innobase_convert_to_filename_charset (char to, const char from, ulint len)
uint	innobase_convert_to_system_charset (char to, const char from, ulint len, uint *errors)

Variables
struct _ft_vft	ft_vft_result
struct _ft_vft_ext	ft_vft_ext_result
ib_cb_t	innodb_api_cb []
const char	innobase_index_reserve_name [] = "GEN_CLUST_INDEX"
static const TABLE *	form
static const TABLE const char *	table_name
static const TABLE const char const char *	temp_path
static const TABLE const char const char const char *	remote_path
static const TABLE const char const char const char ulint	flags
	i_s_innodb_trx
	i_s_innodb_locks
	i_s_innodb_lock_waits
	i_s_innodb_cmp
	i_s_innodb_cmp_reset
	i_s_innodb_cmpmem
	i_s_innodb_cmpmem_reset
	i_s_innodb_cmp_per_index
	i_s_innodb_cmp_per_index_reset
	i_s_innodb_buffer_page
	i_s_innodb_buffer_page_lru
	i_s_innodb_buffer_stats
	i_s_innodb_metrics
	i_s_innodb_ft_default_stopword
	i_s_innodb_ft_deleted
	i_s_innodb_ft_being_deleted
	i_s_innodb_ft_config
	i_s_innodb_ft_index_cache
	i_s_innodb_ft_index_table
	i_s_innodb_sys_tables
	i_s_innodb_sys_tablestats
	i_s_innodb_sys_indexes
	i_s_innodb_sys_columns
	i_s_innodb_sys_fields
	i_s_innodb_sys_foreign
	i_s_innodb_sys_foreign_cols
	i_s_innodb_sys_tablespaces
i_s_innodb_sys_datafiles	mysql_declare_plugin_end

Detailed Description

Definition in file ha_innodb.cc.

Macro Definition Documentation

#define CHECK_ERROR_ROW_TYPE_NEEDS_FILE_PER_TABLE ( use_tablespace )

Value:

if (!use_tablespace) {                                  \
                push_warning_printf(                            \
                        thd, Sql_condition::WARN_LEVEL_WARN,    \
                        ER_ILLEGAL_HA_CREATE_OPTION,            \
                        "InnoDB: ROW_FORMAT=%s requires"        \
                        " innodb_file_per_table.",              \
                        get_row_format_name(row_format));       \
                ret = "ROW_FORMAT";                                     \
        }

#define CHECK_ERROR_ROW_TYPE_NEEDS_GT_ANTELOPE

Value:

if (srv_file_format < UNIV_FORMAT_B) {          \
                push_warning_printf(                            \
                        thd, Sql_condition::WARN_LEVEL_WARN,    \
                        ER_ILLEGAL_HA_CREATE_OPTION,            \
                        "InnoDB: ROW_FORMAT=%s requires"        \
                        " innodb_file_format > Antelope.",      \
                        get_row_format_name(row_format));       \
                ret = "ROW_FORMAT";                             \
        }

#define IS_MAGIC_TABLE_AND_USER_DENIED_ACCESS	(	table_name,
		thd
	)

Value:

(row_is_magic_monitor_table(table_name) \

&& check_global_access(thd, PROCESS_ACL))

Definition at line 8351 of file ha_innodb.cc.

#define normalize_table_name	(	norm_name,
		name
	)	normalize_table_name_low(norm_name, name, FALSE)

Always normalize table name to lower case on Windows

Definition at line 420 of file ha_innodb.cc.

#define STATS_SAMPLE_PAGES_DEPRECATED_MSG

Value:

"Using innodb_stats_sample_pages is deprecated and " \
        "the variable may be removed in future releases. " \
        "Please use innodb_stats_transient_sample_pages " \
        "instead."

Function Documentation

__attribute__ ( (warn_unused_result, nonnull) )

Obtain the InnoDB transaction of a MySQL thread.

Returns: reference to transaction pointer

< in: MySQL thread

Definition at line 1286 of file ha_innodb.cc.

bool build_template_needs_field_in_icp	(	const dict_index_t *	index,
		const row_prebuilt_t *	prebuilt,
		bool	contains,
		ulint	i
	)

inline

Determines if a field is needed in a prebuilt struct 'template'.

Returns: whether the field is needed for index condition pushdown

Parameters

index	in: InnoDB index
prebuilt	in: row fetch template
contains	in: whether the index contains column i
i	in: column number

Definition at line 5959 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN ulint get_innobase_type_from_mysql_type	(	ulint *	unsigned_flag,
		const void *	f
	)

Converts a MySQL type to an InnoDB type. Note that this function returns the 'mtype' of InnoDB. InnoDB differentiates between MySQL's old <= 4.1 VARCHAR and the new true VARCHAR in >= 5.0.3 by the 'prtype'.

Returns: DATA_BINARY, DATA_VARCHAR, ...

Parameters

unsigned_flag	out: DATA_UNSIGNED if an 'unsigned type'; at least ENUM and SET, and unsigned integer types are 'unsigned types'
f	in: MySQL Field

Definition at line 5472 of file ha_innodb.cc.

UNIV_INTERN void ib_errf	(	THD *	thd,
		ib_log_level_t	level,
		ib_uint32_t	code,
		const char *	format,
			...
	)

Use this when the args are first converted to a formatted string and then passed to the format string from errmsg-utf8.txt. The error message format must be: "Some string ... %s".

Push a warning message to the client, it is a wrapper around:

void push_warning_printf( THD *thd, Sql_condition::enum_warning_level level, uint code, const char *format, ...);

Parameters

thd	in/out: session
level	in: warning level
code	MySQL error code
format	printf format

Definition at line 16813 of file ha_innodb.cc.

Here is the call graph for this function:

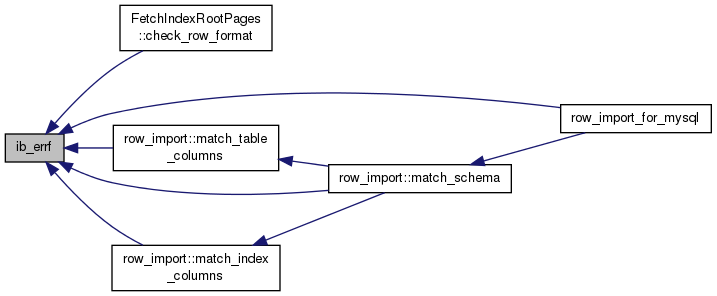

Here is the caller graph for this function:

UNIV_INTERN void ib_logf	(	ib_log_level_t	level,
		const char *	format,
			...
	)

Write a message to the MySQL log, prefixed with "InnoDB: "

Parameters

level	in: warning level
format	printf format

Definition at line 16855 of file ha_innodb.cc.

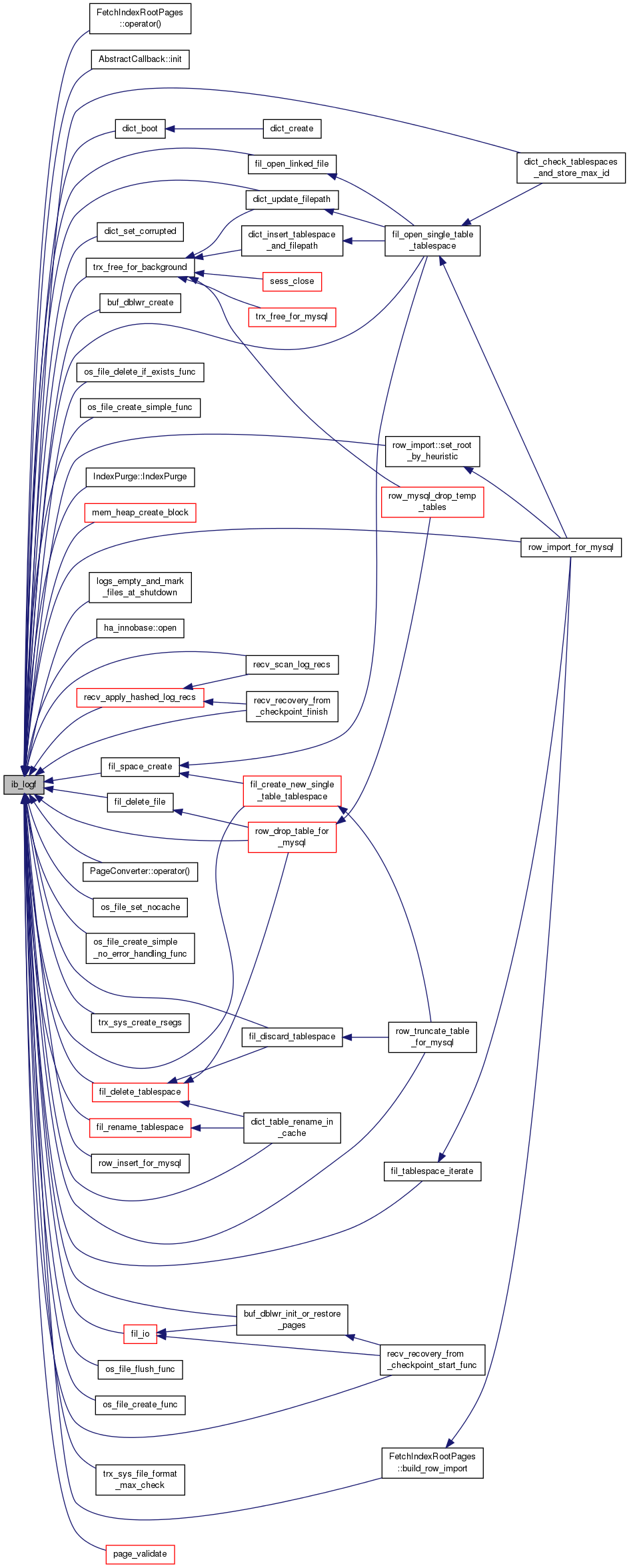

Here is the caller graph for this function:

UNIV_INTERN void ib_senderrf	(	THD *	thd,
		ib_log_level_t	level,
		ib_uint32_t	code,
			...
	)

Use this when the args are passed to the format string from errmsg-utf8.txt directly as is.

Push a warning message to the client, it is a wrapper around:

void push_warning_printf( THD *thd, Sql_condition::enum_warning_level level, uint code, const char *format, ...);

Parameters

thd	in/out: session
level	in: warning level
code	MySQL error code

Definition at line 16735 of file ha_innodb.cc.

Here is the call graph for this function:

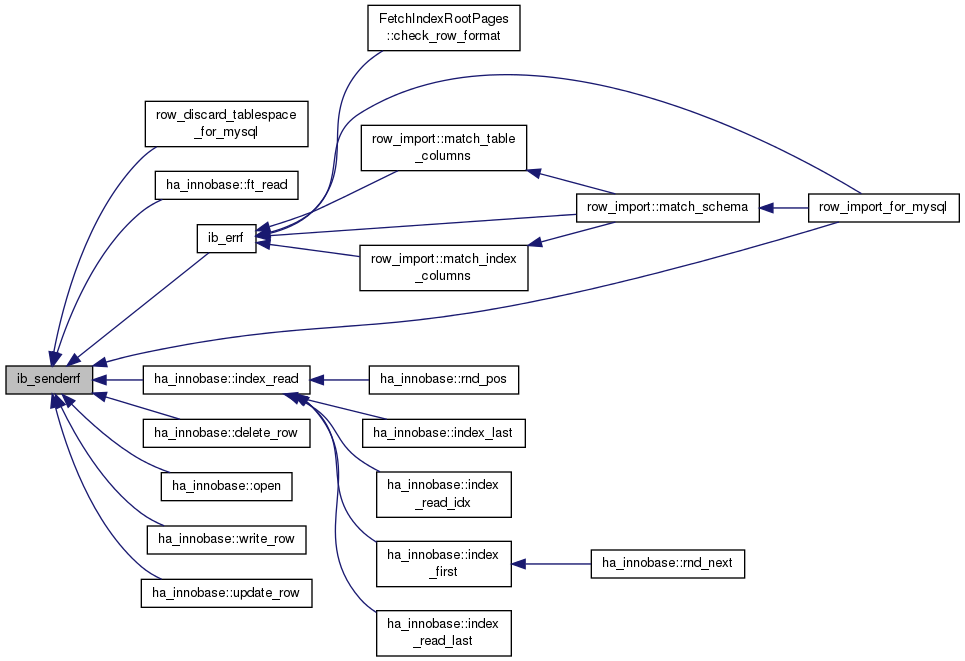

Here is the caller graph for this function:

UNIV_INTERN const char* innobase_basename ( const char * path_name )

Strip dir name from a full path name and return only the file name

Returns: file name or "null" if no file name

Parameters

path_name in: full path name

Definition at line 1688 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN void innobase_casedn_str ( char * a )

Makes all characters in a NUL-terminated UTF-8 string lower case.

Parameters

a	in/out: string to put in lower case

Definition at line 1701 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN int innobase_close_thd ( THD * thd )

Frees a possible InnoDB trx object associated with the current THD.

Returns: 0 or error number

Parameters

thd	in: handle to the MySQL thread of the user whose resources should be free'd

Definition at line 3826 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN void innobase_convert_from_id	(	struct charset_info_st *	cs,
		char *	to,
		const char *	from,
		ulint	len
	)

Converts an identifier to UTF-8.

Parameters

cs	in: the 'from' character set
to	out: converted identifier
from	in: identifier to convert
len	in: length of 'to', in bytes

Definition at line 1634 of file ha_innodb.cc.

UNIV_INTERN void innobase_convert_from_table_id	(	struct charset_info_st *	cs,
		char *	to,
		const char *	from,
		ulint	len
	)

Converts an identifier to a table name.

Parameters

cs	in: the 'from' character set
to	out: converted identifier
from	in: identifier to convert
len	in: length of 'to', in bytes

Definition at line 1593 of file ha_innodb.cc.

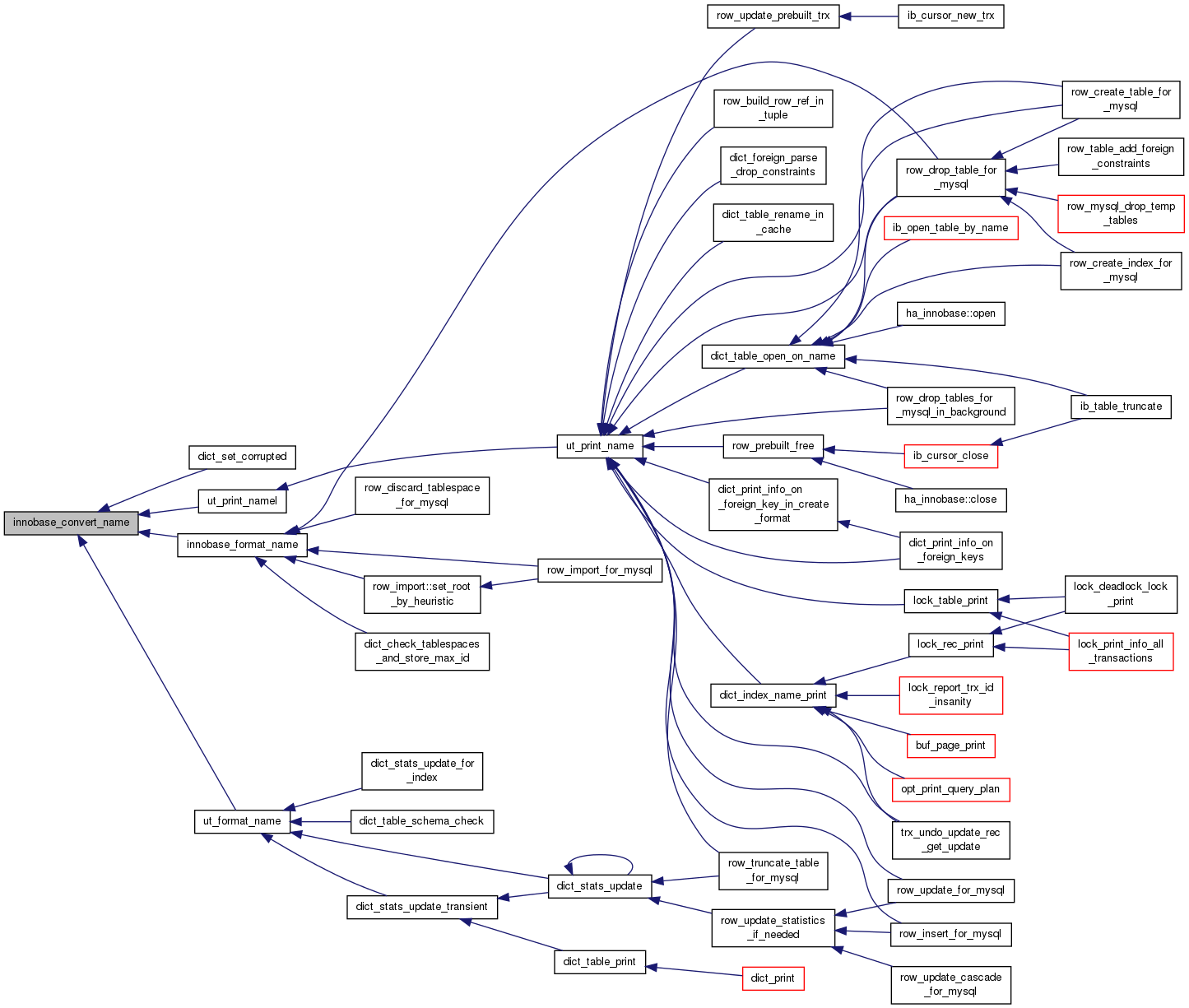

UNIV_INTERN char* innobase_convert_name	(	char *	buf,
		ulint	buflen,
		const char *	id,
		ulint	idlen,
		THD *	thd,
		ibool	table_id
	)

Convert a table or index name to the MySQL system_charset_info (UTF-8) and quote it if needed.

Returns: pointer to the end of buf

Parameters

buf	out: buffer for converted identifier
buflen	in: length of buf, in bytes
id	in: identifier to convert
idlen	in: length of id, in bytes
thd	in: MySQL connection thread, or NULL
table_id	in: TRUE=id is a table or database name; FALSE=id is an index name

Definition at line 2557 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint innobase_convert_string	(	void *	to,
		ulint	to_length,
		CHARSET_INFO *	to_cs,
		const void *	from,
		ulint	from_length,
		CHARSET_INFO *	from_cs,
		uint *	errors
	)

Wrapper around MySQL's copy_and_convert function.

Returns: number of bytes copied to 'to'

Parameters

to	out: converted string
to_length	in: number of bytes reserved for the converted string
to_cs	in: character set to convert to
from	in: string to convert
from_length	in: number of bytes to convert
from_cs	in: character set to convert from
errors	out: number of errors encountered during the conversion

Definition at line 1833 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN void innobase_copy_frm_flags_from_create_info	(	dict_table_t *	innodb_table,
		const HA_CREATE_INFO *	create_info
	)

Copy table flags from MySQL's HA_CREATE_INFO into an InnoDB table object. Those flags are stored in .frm file and end up in the MySQL table object, but are frequently used inside InnoDB so we keep their copies into the InnoDB table object.

Parameters

innodb_table	in/out: InnoDB table
create_info	in: create info

Definition at line 2120 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN void innobase_copy_frm_flags_from_table_share	(	dict_table_t *	innodb_table,
		const TABLE_SHARE *	table_share
	)

Copy table flags from MySQL's TABLE_SHARE into an InnoDB table object. Those flags are stored in .frm file and end up in the MySQL table object, but are frequently used inside InnoDB so we keep their copies into the InnoDB table object.

Parameters

innodb_table	in/out: InnoDB table
table_share	in: table share

Definition at line 2156 of file ha_innodb.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void innobase_format_name	(	char *	buf,
		ulint	buflen,
		const char *	name,
		ibool	is_index_name
	)

A wrapper function of innobase_convert_name(), convert a table or index name to the MySQL system_charset_info (UTF-8) and quote it if needed.

Returns: pointer to the end of buf

Parameters

buf	out: buffer for converted identifier
buflen	in: length of buf, in bytes
name	in: index or table name to format
is_index_name	in: index name

Definition at line 2613 of file ha_innodb.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN size_t innobase_fts_casedn_str	(	CHARSET_INFO *	cs,
		char *	src,
		size_t	src_len,
		char *	dst,
		size_t	dst_len
	)

Makes all characters in a string lower case.

Parameters

cs	in: Character set
src	in: string to put in lower case
src_len	in: input string length
dst	in: buffer for result string
dst_len	in: buffer size

Definition at line 5370 of file ha_innodb.cc.

UNIV_INTERN int innobase_fts_string_cmp	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string according to their charset.

Parameters

cs	in: Character set
p1	in: key
p2	in: node

Definition at line 5353 of file ha_innodb.cc.

UNIV_INTERN int innobase_fts_text_case_cmp	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string case insensitively according to their charset.

Parameters

cs	in: Character set
p1	in: key
p2	in: node

Definition at line 5280 of file ha_innodb.cc.

UNIV_INTERN int innobase_fts_text_cmp	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string according to their charset.

Parameters

cs	in: Character set
p1	in: key
p2	in: node

Definition at line 5263 of file ha_innodb.cc.

UNIV_INTERN int innobase_fts_text_cmp_prefix	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string according to their charset.

Parameters

cs	in: Character set
p1	in: prefix key
p2	in: value to compare

Definition at line 5331 of file ha_innodb.cc.

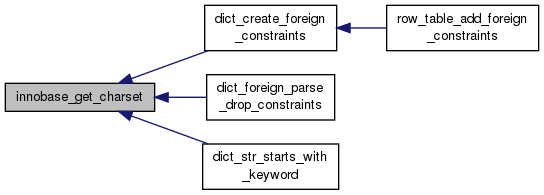

UNIV_INTERN struct charset_info_st* innobase_get_charset ( THD * mysql_thd )

read

Determines the connection character set.

Returns: connection character set

Parameters

mysql_thd in: MySQL thread handle

Definition at line 1713 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN void innobase_get_cset_width	(	ulint	cset,
		ulint *	mbminlen,
		ulint *	mbmaxlen
	)

Get the variable length bounds of the given character set.

Parameters

cset	in: MySQL charset-collation code
mbminlen	out: minimum length of a char (in bytes)
mbmaxlen	out: maximum length of a char (in bytes)

Definition at line 1550 of file ha_innodb.cc.

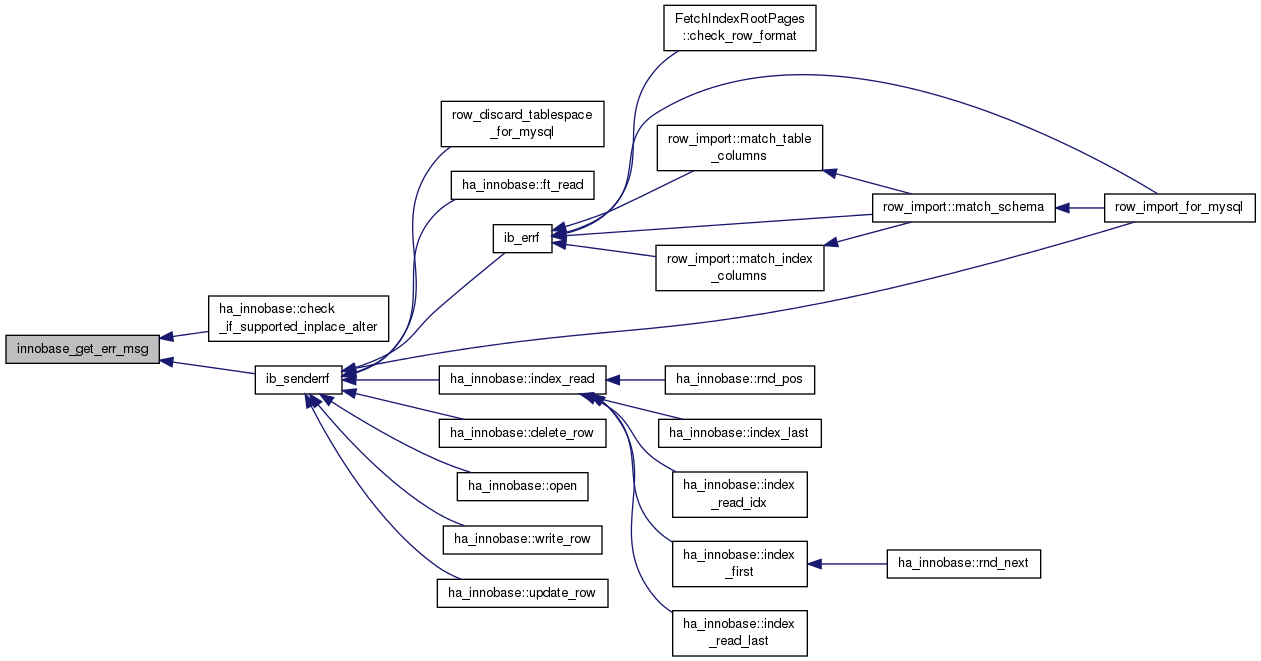

UNIV_INTERN const char* innobase_get_err_msg ( int error_code )

Get the error message format string.

Returns: the format string or 0 if not found.

Parameters

error_code in: MySQL error code

Definition at line 1539 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN CHARSET_INFO* innobase_get_fts_charset	(	int	mysql_type,
		uint	charset_number
	)

Get the next token from the given string and store it in *token.

Parameters

mysql_type	in: MySQL type
charset_number	in: number of the charset

Definition at line 5182 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulonglong innobase_get_int_col_max_value ( const Field * field )

Get the upper limit of the MySQL integral and floating-point type.

Returns: maximum allowed value for the field

Parameters

field in: MySQL field

Definition at line 4241 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint innobase_get_lower_case_table_names ( void )

Get the current setting of the lower_case_table_names global parameter from mysqld.cc. We do a dirty read because for one there is no synchronization object and secondly there is little harm in doing so even if we get a torn read.

Returns: value of lower_case_table_names

Definition at line 1758 of file ha_innodb.cc.

Here is the caller graph for this function:

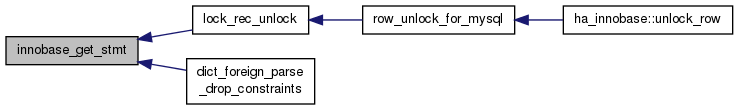

UNIV_INTERN const char* innobase_get_stmt	(	THD *	thd,
		size_t *	length
	)

Determines the current SQL statement.

Returns: SQL statement string

Parameters

thd	in: MySQL thread handle
length	out: length of the SQL statement

Definition at line 1725 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint innobase_get_table_cache_size ( void )

Get the current setting of the table_def_size global parameter. We do a dirty read because for one there is no synchronization object and secondly there is little harm in doing so even if we get a torn read.

Returns: value of table_def_size

Definition at line 1744 of file ha_innodb.cc.

UNIV_INTERN enum icp_result innobase_index_cond ( void * file )

Index Condition Pushdown interface implementation InnoDB index push-down condition check

Returns: ICP_NO_MATCH, ICP_MATCH, or ICP_OUT_OF_RANGE

Parameters

file	in/out: pointer to ha_innobase

Definition at line 16681 of file ha_innodb.cc.

UNIV_INTERN void innobase_invalidate_query_cache	(	trx_t *	trx,
		const char *	full_name,
		ulint	full_name_len
	)

Invalidates the MySQL query cache for the table.

Parameters

trx	in: transaction which modifies the table
full_name	in: concatenation of database name, null char NUL, table name, null char NUL; NOTE that in Windows this is always in LOWER CASE!
full_name_len	in: full name length where also the null chars count

Definition at line 2441 of file ha_innodb.cc.

UNIV_INTERN int innobase_mysql_cmp	(	int	mysql_type,
		uint	charset_number,
		const unsigned char *	a,
		unsigned int	a_length,
		const unsigned char *	b,
		unsigned int	b_length
	)

InnoDB uses this function to compare two data fields for which the data type is such that we must use MySQL code to compare them. NOTE that the prototype of this function is in rem0cmp.cc in InnoDB source code! If you change this function, remember to update the prototype there!

Returns: 1, 0, -1, if a is greater, equal, less than b, respectively

Parameters

mysql_type	in: MySQL type
charset_number	in: number of the charset
a	in: data field
a_length	in: data field length, not UNIV_SQL_NULL
b	in: data field
b_length	in: data field length, not UNIV_SQL_NULL

Definition at line 5104 of file ha_innodb.cc.

UNIV_INTERN int innobase_mysql_cmp_prefix	(	int	mysql_type,
		uint	charset_number,
		const unsigned char *	a,
		unsigned int	a_length,
		const unsigned char *	b,
		unsigned int	b_length
	)

InnoDB uses this function to compare two data fields for which the data type is such that we must use MySQL code to compare them. NOTE that the prototype of this function is in rem0cmp.c in InnoDB source code! If you change this function, remember to update the prototype there!

Returns: 1, 0, -1, if a is greater, equal, less than b, respectively

Parameters

mysql_type	in: MySQL type
charset_number	in: number of the charset
a	in: data field
a_length	in: data field length, not UNIV_SQL_NULL
b	in: data field
b_length	in: data field length, not UNIV_SQL_NULL

Definition at line 5238 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN ulint innobase_mysql_fts_get_token	(	CHARSET_INFO *	cs,
		const byte *	start,
		const byte *	end,
		fts_string_t *	token,
		ulint *	offset
	)

Get the next token from the given string and store it in *token. It is mostly copied from MyISAM's doc parsing function ft_simple_get_word()

Returns: length of string processed

Parameters

cs	in: Character set
start	in: start of text
end	in: one character past end of text
token	out: token's text
offset	out: offset to token, measured as characters from 'start'

Definition at line 5399 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN void innobase_mysql_print_thd	(	FILE *	f,
		THD *	thd,
		uint	max_query_len
	)

Prints info of a THD object (== user session thread) to the given file.

Parameters

f	in: output stream
thd	in: MySQL THD object
max_query_len	in: max query length to print, or 0 to use the default max length

Definition at line 1520 of file ha_innodb.cc.

UNIV_INTERN int innobase_mysql_tmpfile ( void )

Creates a temporary file.

Returns: temporary file descriptor, or < 0 on error

Definition at line 1769 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulonglong innobase_next_autoinc	(	ulonglong	current,
		ulonglong	need,
		ulonglong	step,
		ulonglong	offset,
		ulonglong	max_value
	)

Compute the next autoinc value.

For MySQL replication the autoincrement values can be partitioned among the nodes. The offset is the start or origin of the autoincrement value for a particular node. For n nodes the increment will be n and the offset will be in the interval [1, n]. The formula tries to allocate the next value for a particular node.

Note: This function is also called with increment set to the number of values we want to reserve for multi-value inserts e.g.,

    INSERT INTO T VALUES(), (), ();

innobase_next_autoinc() will be called with increment set to 3 where autoinc_lock_mode != TRADITIONAL because we want to reserve 3 values for the multi-value INSERT above.

Returns: the next value

Parameters

current	in: Current value
need	in: count of values needed
step	in: AUTOINC increment step
offset	in: AUTOINC offset
max_value	in: max value for type

Definition at line 1910 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint innobase_raw_format	(	const char *	data,
		ulint	data_len,
		ulint	charset_coll,
		char *	buf,
		ulint	buf_size
	)

Formats the raw data in "data" (in InnoDB on-disk format) that is of type DATA_(CHAR|VARCHAR|MYSQL|VARMYSQL) using "charset_coll" and writes the result to "buf". The result is converted to "system_charset_info". Not more than "buf_size" bytes are written to "buf". The result is always NUL-terminated (provided buf_size > 0) and the number of bytes that were written to "buf" is returned (including the terminating NUL).

Returns: number of bytes that were written

Parameters

data	in: raw data
data_len	in: raw data length in bytes
charset_coll	in: charset collation
buf	out: output buffer
buf_size	in: output buffer size in bytes

Definition at line 1863 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN int innobase_strcasecmp	(	const char *	a,
		const char *	b
	)

Compares NUL-terminated UTF-8 strings case insensitively.

Returns: 0 if a=b, <0 if a<b, >1 if a>b

Parameters

a	in: first string to compare
b	in: second string to compare

Definition at line 1651 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint innobase_strnxfrm	(	const CHARSET_INFO *	cs,
		const uchar *	str,
		const ulint	len
	)

Get the first character's code position for FTS index partition.

Parameters

cs	in: Character set
str	in: string
len	in: string length

Definition at line 5302 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN trx_t* innobase_trx_allocate ( THD * thd )

Allocates an InnoDB transaction for a MySQL handler object for DML.

Returns: InnoDB transaction handle

Parameters

thd	in: user thread handle

Definition at line 2018 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN int innobase_wildcasecmp	(	const char *	a,
		const char *	b
	)

Compares NUL-terminated UTF-8 strings case insensitively. The second string contains wildcards.

Returns: 0 if a match is found, 1 if not

Parameters

a	in: string to compare
b	in: wildcard string to compare

Definition at line 1675 of file ha_innodb.cc.

int innodb_page_size_validate ( ulong page_size )

inline

Check that a page_size is correct for InnoDB. If correct, set the associated page_size_shift which is the power of 2 for this page size.

Returns: an associated page_size_shift if valid, 0 if invalid.

Parameters

page_size in: Page Size to evaluate

Definition at line 1055 of file ha_innodb.cc.

UNIV_INTERN const char* server_get_hostname ( )

Returns the NUL terminated value of glob_hostname.

Returns: pointer to glob_hostname.

Definition at line 1207 of file ha_innodb.cc.

UNIV_INTERN ibool thd_has_edited_nontrans_tables ( THD * thd )

Returns true if the transaction this thread is processing has edited non-transactional tables. Used by the deadlock detector when deciding which transaction to rollback in case of a deadlock - we try to avoid rolling back transactions that have edited non-transactional tables.

Returns: true if non-transactional tables have been edited

Parameters

thd	in: thread handle

Definition at line 1221 of file ha_innodb.cc.

UNIV_INTERN ibool thd_is_replication_slave_thread ( THD * thd )

Returns true if the thread is the replication thread on the slave server. Used in srv_conc_enter_innodb() to determine if the thread should be allowed to enter InnoDB - the replication thread is treated differently than other threads. Also used in srv_conc_force_exit_innodb().

Returns: true if thd is the replication thread

Parameters

thd	in: thread handle

Definition at line 1083 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool thd_is_select ( const THD * thd )

Returns true if the thread is executing a SELECT statement.

Returns: true if thd is executing SELECT

Parameters

thd	in: thread handle

Definition at line 1233 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INLINE ibool thd_is_strict ( THD * thd )

Determines if the current MySQL thread is running in strict mode. If thd==NULL, THDVAR returns the global value of innodb-strict-mode.

Returns: TRUE if strict

Parameters

thd	in: MySQL thread descriptor

Definition at line 2660 of file ha_innodb.cc.

UNIV_INTERN ulong thd_lock_wait_timeout ( THD * thd )

Returns the lock wait timeout for the current connection.

Returns: the lock wait timeout, in seconds

Parameters

thd	in: thread handle, or NULL to query the global innodb_lock_wait_timeout

Definition at line 1259 of file ha_innodb.cc.

UNIV_INTERN enum durability_properties thd_requested_durability ( const THD * thd )

Gets information on the durability property requested by thread. Used when writing either a prepare or commit record to the log buffer.

Returns: the durability property.

Parameters

thd	in: thread handle

Definition at line 1096 of file ha_innodb.cc.

UNIV_INTERN void thd_set_lock_wait_time	(	THD *	thd,
		ulint	value
	)

Set the time waited for the lock for the current query.

Parameters

thd	in/out: thread handle
value	in: time waited for the lock

Definition at line 1273 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool thd_supports_xa ( THD * thd )

Returns true if the thread supports XA, global value of innodb_supports_xa if thd is NULL.

Returns: true if thd has XA support

Parameters

thd	in: thread handle, or NULL to query the global innodb_supports_xa

Definition at line 1246 of file ha_innodb.cc.

UNIV_INTERN ibool thd_trx_is_auto_commit ( THD * thd )

Check if the transaction is an auto-commit transaction. TRUE also implies that it is a SELECT (read-only) transaction.

Returns: true if the transaction is an auto commit read-only transaction.

Parameters

thd	in: thread handle, can be NULL

Definition at line 1121 of file ha_innodb.cc.

Here is the call graph for this function:

UNIV_INTERN ibool thd_trx_is_read_only ( THD * thd )

Returns true if transaction should be flagged as read-only.

Returns: true if the thd is marked as read-only

Parameters

thd	in: thread handle

Definition at line 1108 of file ha_innodb.cc.

UNIV_INTERN ibool trx_is_interrupted ( const trx_t * trx )

Determines if the currently running transaction has been interrupted.

Returns: TRUE if interrupted

Parameters

trx	in: transaction

Definition at line 2635 of file ha_innodb.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool trx_is_strict ( trx_t * trx )

Determines if the currently running transaction is in strict mode.

Returns: TRUE if strict

Parameters

trx	in: transaction

Definition at line 2647 of file ha_innodb.cc.

Variable Documentation

const TABLE const char const char const char ulint flags

in: table flags

Definition at line 8423 of file ha_innodb.cc.

const TABLE* form

< in: InnoDB transaction handle in: information on table columns and indexes

Definition at line 8423 of file ha_innodb.cc.

struct _ft_vft_ext ft_vft_ext_result

Initial value:

 {innobase_fts_get_version,
                                              innobase_fts_flags,
                                              innobase_fts_retrieve_docid,
                                              innobase_fts_count_matches}

Definition at line 260 of file ha_innodb.cc.

struct _ft_vft ft_vft_result

Initial value:

 {NULL,
                                      innobase_fts_find_ranking,
                                      innobase_fts_close_ranking,
                                      innobase_fts_retrieve_ranking,
                                      NULL}

Definition at line 254 of file ha_innodb.cc.

const char innobase_index_reserve_name[] = "GEN_CLUST_INDEX"

"GEN_CLUST_INDEX" is the name reserved for InnoDB default

system clustered index when there is no primary key.

Definition at line 504 of file ha_innodb.cc.

ib_cb_t innodb_api_cb[]

Set up InnoDB API callback function array

Definition at line 425 of file ha_innodb.cc.

const TABLE const char const char const char* remote_path

in: Remote path or zero length-string

Definition at line 8423 of file ha_innodb.cc.

const TABLE const char* table_name

in: table name

Definition at line 8423 of file ha_innodb.cc.

const TABLE const char const char* temp_path

in: if this is a table explicitly created by the user with the TEMPORARY keyword, then this parameter is the dir path where the table should be placed if we create an .ibd file for it (no .ibd extension in the path, though). Otherwise this is a zero length-string

Definition at line 8423 of file ha_innodb.cc.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
