Inheritance diagram for TABLE:

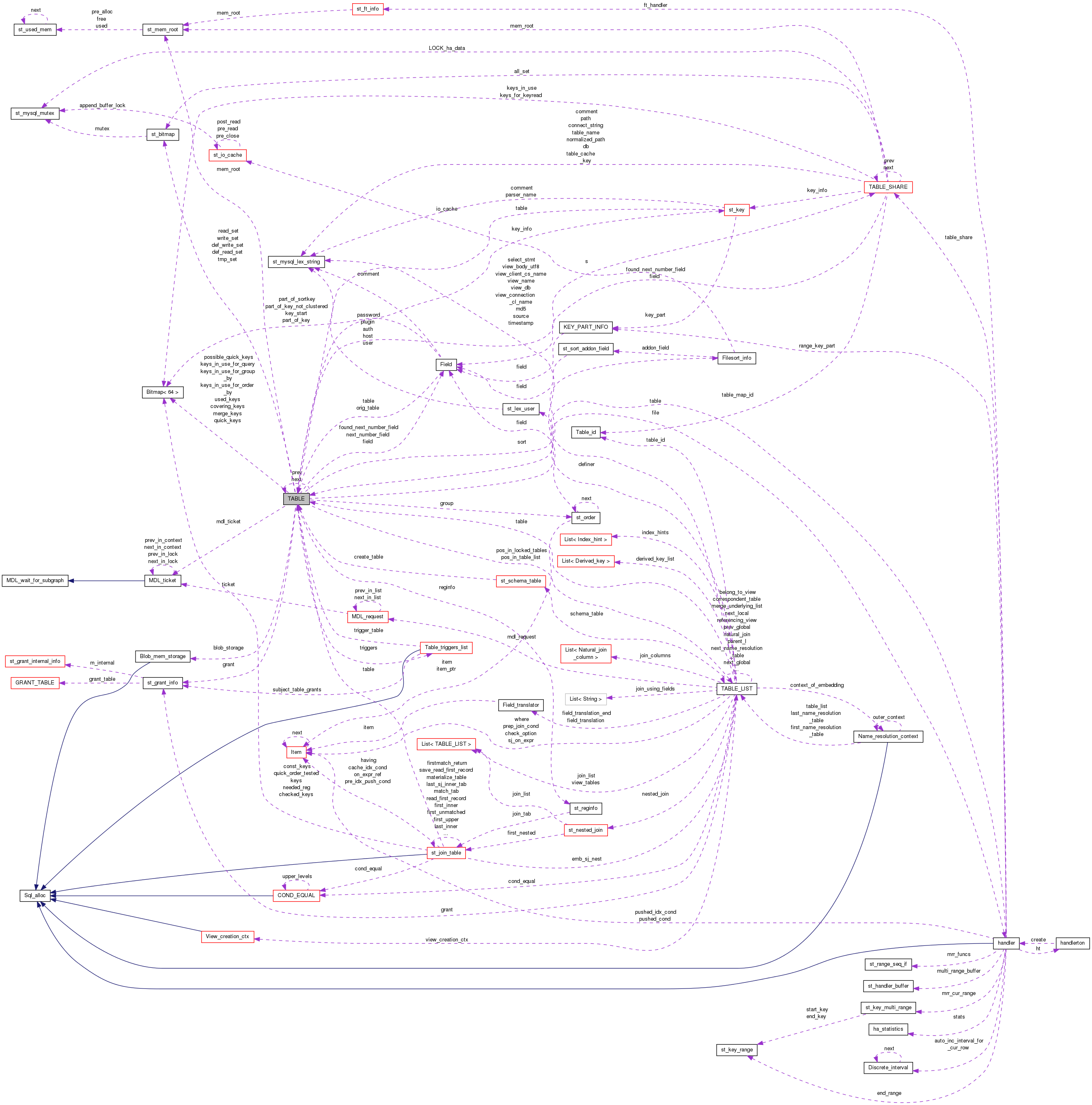

Collaboration diagram for TABLE:

Public Member Functions
void	init (THD thd, TABLE_LIST tl)
bool	fill_item_list (List< Item > *item_list) const
void	reset_item_list (List< Item > *item_list) const
void	clear_column_bitmaps (void)
void	prepare_for_position (void)
void	mark_columns_used_by_index_no_reset (uint index, MY_BITMAP *map)
void	mark_columns_used_by_index (uint index)
void	mark_auto_increment_column (void)
void	mark_columns_needed_for_update (void)
	Mark columns needed for doing an update of a row.
void	mark_columns_needed_for_delete (void)
void	mark_columns_needed_for_insert (void)
void	mark_columns_per_binlog_row_image (void)
void	column_bitmaps_set (MY_BITMAP read_set_arg, MY_BITMAP write_set_arg)
void	column_bitmaps_set_no_signal (MY_BITMAP read_set_arg, MY_BITMAP write_set_arg)
void	use_all_columns ()
void	default_column_bitmaps ()
bool	needs_reopen ()
bool	alloc_keys (uint key_count)
	Allocate space for keys.
bool	add_tmp_key (Field_map key_parts, char key_name)
	Add one key to a temporary table.
void	use_index (int key_to_save)
void	set_keyread (bool flag)
bool	update_const_key_parts (Item *conds)
bool	check_read_removal (uint index)
bool	is_created () const
	Return true if table is instantiated, and false otherwise.
void	set_created ()
void	set_deleted ()

Public Attributes
TABLE_SHARE *	s
handler *	file
TABLE *	next
TABLE *	prev
THD *	in_use
Field **	field
uchar *	record [2]
uchar *	write_row_record
uchar *	insert_values
key_map	covering_keys
key_map	quick_keys
key_map	merge_keys
key_map	used_keys
key_map	possible_quick_keys
key_map	keys_in_use_for_query
key_map	keys_in_use_for_group_by
key_map	keys_in_use_for_order_by
KEY *	key_info
Field *	next_number_field
Field *	found_next_number_field
Table_triggers_list *	triggers
TABLE_LIST *	pos_in_table_list
TABLE_LIST *	pos_in_locked_tables
ORDER *	group
const char *	alias
uchar *	null_flags
my_bitmap_map *	bitmap_init_value
MY_BITMAP	def_read_set
MY_BITMAP	def_write_set
MY_BITMAP	tmp_set
MY_BITMAP *	read_set
MY_BITMAP *	write_set
query_id_t	query_id
ha_rows	quick_rows [MAX_KEY]
key_part_map	const_key_parts [MAX_KEY]
uint	quick_key_parts [MAX_KEY]
uint	quick_n_ranges [MAX_KEY]
ha_rows	quick_condition_rows
table_map	map
uint	lock_position
uint	lock_data_start
uint	lock_count
uint	tablenr
uint	used_fields
uint	temp_pool_slot
uint	db_stat
int	current_lock
uint	maybe_null
my_bool	null_row
uint8	status
my_bool	copy_blobs
my_bool	force_index
my_bool	force_index_order
my_bool	force_index_group
my_bool	distinct
my_bool	const_table
my_bool	no_rows
my_bool	key_read
my_bool	no_keyread
my_bool	locked_by_logger
my_bool	no_replicate
my_bool	locked_by_name
my_bool	fulltext_searched
my_bool	no_cache
my_bool	open_by_handler
my_bool	auto_increment_field_not_null
my_bool	insert_or_update
my_bool	alias_name_used
my_bool	get_fields_in_item_tree
my_bool	m_needs_reopen
uint	max_keys
REGINFO	reginfo
MEM_ROOT	mem_root
Blob_mem_storage *	blob_storage
GRANT_INFO	grant
Filesort_info	sort
MDL_ticket *	mdl_ticket

Friends
class	Table_cache_element

Detailed Description

Definition at line 974 of file table.h.

Member Function Documentation

bool TABLE::add_tmp_key	(	Field_map *	key_parts,
		char *	key_name
	)

Add one key to a temporary table.

Parameters

key_parts	bitmap of fields that take a part in the key.
key_name	name of the key

Creates a key for this table from fields which corresponds the bits set to 1 in the 'key_parts' bitmap. The 'key_name' name is given to the newly created key.

See Also: add_derived_key

somehow manage to create keys in tmp_table_param for unification purposes

Returns: TRUE OOM error.; FALSE the key was created or ignored (too long key).

Definition at line 5528 of file table.cc.

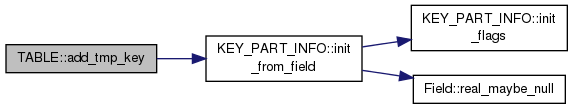

Here is the call graph for this function:

Here is the caller graph for this function:

bool TABLE::alloc_keys ( uint key_count )

Allocate space for keys.

Parameters

key_count number of keys to allocate.

Allocate space enough to fit 'key_count' keys for this table.

Returns: FALSE space was successfully allocated.; TRUE OOM error occur.

Definition at line 5496 of file table.cc.

Here is the caller graph for this function:

bool TABLE::check_read_removal ( uint index )

Read removal is possible if the selected quick read method is using full unique index

See Also: HA_READ_BEFORE_WRITE_REMOVAL

Parameters

index Number of the index used for read

Return values

true	success, read removal started
false	read removal not started

Definition at line 6370 of file table.cc.

void TABLE::init	(	THD *	thd,
		TABLE_LIST *	tl
	)

Initialize TABLE instance (newly created, or coming either from table cache or THD::temporary_tables list) and prepare it for further use during statement execution. Set the 'alias' attribute from the specified TABLE_LIST element. Remember the TABLE_LIST element in the TABLE::pos_in_table_list member.

Parameters

thd	Thread context.
tl	TABLE_LIST element.

Definition at line 3652 of file table.cc.

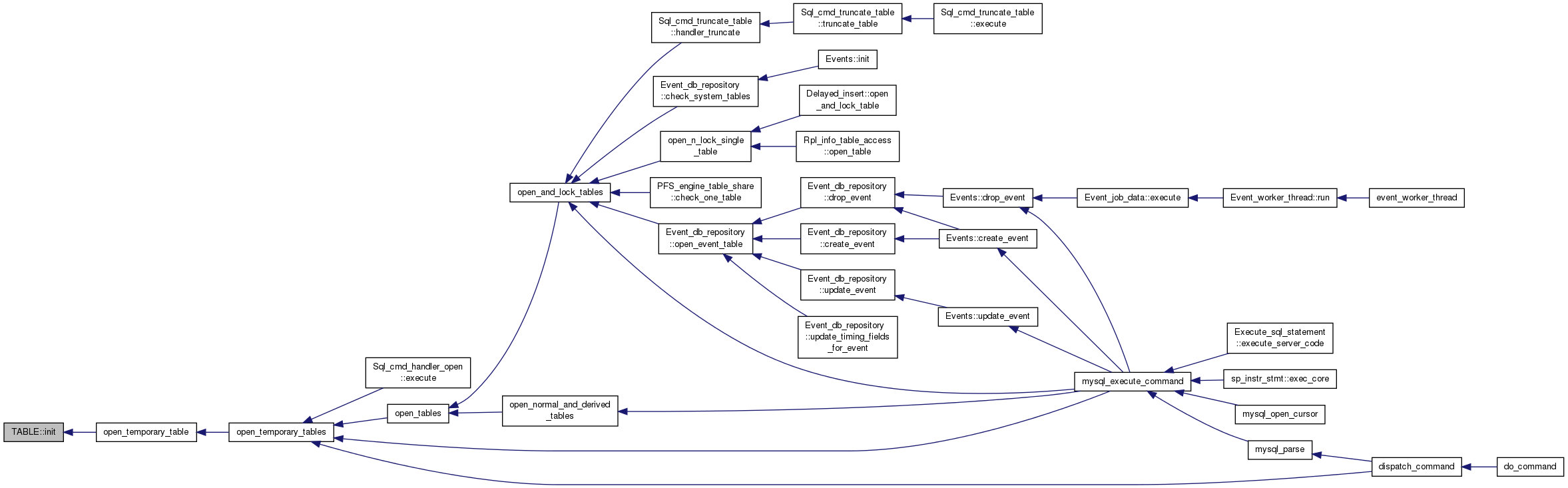

Here is the caller graph for this function:

void TABLE::mark_columns_needed_for_update ( void )

Mark columns needed for doing an update of a row.

Some engines needs to have all columns in an update (to be able to build a complete row). If this is the case, we mark all not updated columns to be read.

If this is no the case, we do like in the delete case and mark if neeed, either the primary key column or all columns to be read. (see mark_columns_needed_for_delete() for details)

If the engine has HA_REQUIRES_KEY_COLUMNS_FOR_DELETE, we will mark all USED key columns as 'to-be-read'. This allows the engine to loop over the given record to find all changed keys and doesn't have to retrieve the row again.

Unlike other similar methods, it doesn't mark fields used by triggers, that is the responsibility of the caller to do, by using Table_triggers_list::mark_used_fields(TRG_EVENT_UPDATE)!

Definition at line 5341 of file table.cc.

Here is the call graph for this function:

void TABLE::mark_columns_per_binlog_row_image ( void )

If in RBR we may need to mark some extra columns, depending on the binlog-row-image command line argument.

Definition at line 5416 of file table.cc.

Here is the caller graph for this function:

bool TABLE::needs_reopen ( )

inline

Should this instance of the table be reopened?

Definition at line 1239 of file table.h.

void TABLE::prepare_for_position ( void )

Tell handler we are going to call position() and rnd_pos() later.

This is needed for handlers that uses the primary key to find the row. In this case we have to extend the read bitmap with the primary key fields.

Note: : Calling this function does not initialize the table for reading using rnd_pos(). rnd_init() still has to be called before rnd_pos().

Definition at line 5182 of file table.cc.

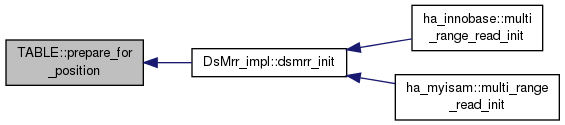

Here is the caller graph for this function:

void TABLE::set_created ( )

inline

Set the table as "created", and enable flags in storage engine that could not be enabled without an instantiated table.

Definition at line 1273 of file table.h.

Here is the caller graph for this function:

void TABLE::set_deleted ( )

inline

Set the contents of table to be "deleted", ie "not created", after having deleted the contents.

Definition at line 1285 of file table.h.

bool TABLE::update_const_key_parts ( Item * conds )

Update TABLE::const_key_parts for single table UPDATE/DELETE query

Parameters

conds WHERE clause expression

Return values

TRUE	error (OOM)
FALSE	success

Note: Set const_key_parts bits if key fields are equal to constants in the WHERE expression.

Definition at line 6334 of file table.cc.

Member Data Documentation

Blob_mem_storage* TABLE::blob_storage

Initialized in Item_func_group_concat::setup for appropriate temporary table if GROUP_CONCAT is used with ORDER BY | DISTINCT and BLOB field count > 0.

Definition at line 1193 of file table.h.

my_bool TABLE::force_index_group

Flag set when the statement contains FORCE INDEX FOR GROUP BY See TABLE_LIST::process_index_hints().

Definition at line 1147 of file table.h.

my_bool TABLE::force_index_order

Flag set when the statement contains FORCE INDEX FOR ORDER BY See TABLE_LIST::process_index_hints().

Definition at line 1141 of file table.h.

my_bool TABLE::key_read

If set, the optimizer has found that row retrieval should access index tree only.

Definition at line 1154 of file table.h.

MEM_ROOT TABLE::mem_root

Todo:: This member should not be declared in-line. That makes it impossible for any function that does memory allocation to take a const reference to a TABLE object.

Definition at line 1187 of file table.h.

my_bool TABLE::no_replicate

If set, indicate that the table is not replicated by the server.

Definition at line 1160 of file table.h.

The documentation for this struct was generated from the following files:

sql/table.h
sql/table.cc
