#include <sql_trigger.h>

Inheritance diagram for Table_triggers_list:

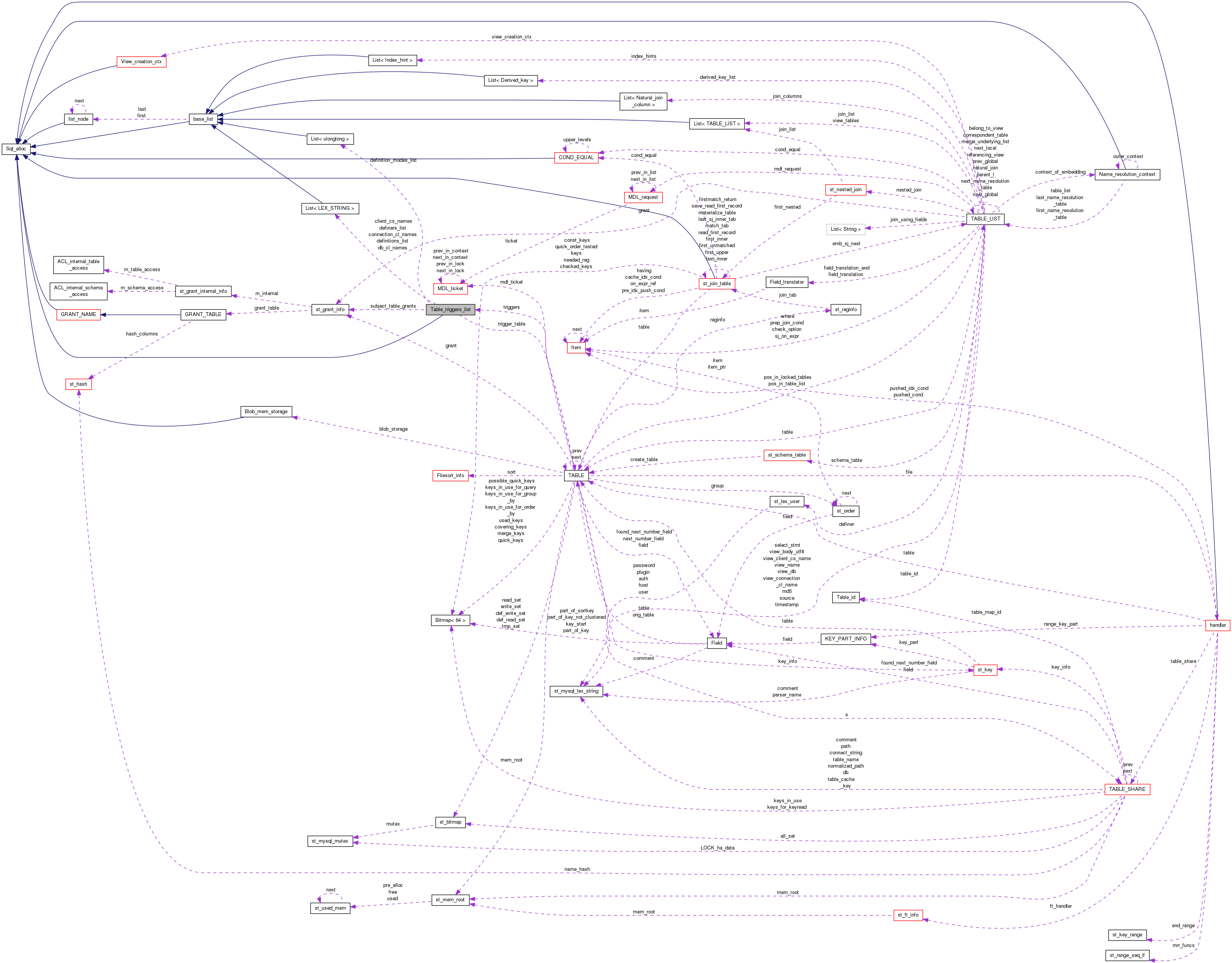

Collaboration diagram for Table_triggers_list:

Public Member Functions
	Table_triggers_list (TABLE *table_arg)
bool	create_trigger (THD thd, TABLE_LIST table, String *stmt_query)
bool	drop_trigger (THD thd, TABLE_LIST table, String *stmt_query)
bool	process_triggers (THD *thd, trg_event_type event, trg_action_time_type time_type, bool old_row_is_record1)
bool	get_trigger_info (THD thd, trg_event_type event, trg_action_time_type time_type, LEX_STRING trigger_name, LEX_STRING trigger_stmt, sql_mode_t sql_mode, LEX_STRING definer, LEX_STRING client_cs_name, LEX_STRING connection_cl_name, LEX_STRING db_cl_name)
void	get_trigger_info (THD thd, int trigger_idx, LEX_STRING trigger_name, sql_mode_t sql_mode, LEX_STRING sql_original_stmt, LEX_STRING client_cs_name, LEX_STRING connection_cl_name, LEX_STRING *db_cl_name)
int	find_trigger_by_name (const LEX_STRING *trigger_name)
bool	has_triggers (trg_event_type event_type, trg_action_time_type action_time)
bool	has_delete_triggers ()
void	set_table (TABLE *new_table)
void	mark_fields_used (trg_event_type event)
void	set_parse_error_message (char *error_message)
bool	add_tables_and_routines_for_triggers (THD thd, Query_tables_list prelocking_ctx, TABLE_LIST *table_list)
bool	is_fields_updated_in_trigger (MY_BITMAP *used_fields, trg_event_type event_type, trg_action_time_type action_time)

Static Public Member Functions
static bool	check_n_load (THD thd, const char db, const char table_name, TABLE table, bool names_only)
static bool	drop_all_triggers (THD thd, char db, char *table_name)
static bool	change_table_name (THD thd, const char db, const char old_alias, const char old_table, const char new_db, const char new_table)
Static Public Member Functions inherited from Sql_alloc
static void *	operator new (size_t size) throw ()
static void *	operator new[] (size_t size) throw ()
static void *	operator new[] (size_t size, MEM_ROOT *mem_root) throw ()
static void *	operator new (size_t size, MEM_ROOT *mem_root) throw ()
static void	operator delete (void *ptr, size_t size)
static void	operator delete (void ptr, MEM_ROOT mem_root)
static void	operator delete[] (void ptr, MEM_ROOT mem_root)
static void	operator delete[] (void *ptr, size_t size)

Public Attributes
TABLE *	trigger_table
GRANT_INFO	subject_table_grants [TRG_EVENT_MAX][TRG_ACTION_MAX]
List< LEX_STRING >	definitions_list
List< ulonglong >	definition_modes_list
List< LEX_STRING >	definers_list
List< LEX_STRING >	client_cs_names
List< LEX_STRING >	connection_cl_names
List< LEX_STRING >	db_cl_names

Friends
class	Item_trigger_field

Detailed Description

This class holds all information about triggers of table.

QQ: Will it be merged into TABLE in the future ?

Definition at line 59 of file sql_trigger.h.

Member Function Documentation

bool Table_triggers_list::add_tables_and_routines_for_triggers	(	THD *	thd,
		Query_tables_list *	prelocking_ctx,
		TABLE_LIST *	table_list
	)

Add triggers for table to the set of routines used by statement. Add tables used by them to statement table list. Do the same for routines used by triggers.

Parameters

thd	Thread context.
prelocking_ctx	Prelocking context of the statement.
table_list	Table list element for table with trigger.

Return values

FALSE	Success.
TRUE	Failure.

Definition at line 2183 of file sql_trigger.cc.

Here is the call graph for this function:

bool Table_triggers_list::change_table_name	(	THD *	thd,
		const char *	db,
		const char *	old_alias,
		const char *	old_table,
		const char *	new_db,
		const char *	new_table
	)

static

Update .TRG and .TRN files after renaming triggers' subject table.

Parameters

[in,out]	thd	Thread context
[in]	db	Old database of subject table
[in]	old_alias	Old alias of subject table
[in]	old_table	Old name of subject table
[in]	new_db	New database for subject table
[in]	new_table	New name of subject table

Note: This method tries to leave trigger related files in consistent state, i.e. it either will complete successfully, or will fail leaving files in their initial state. Also this method assumes that subject table is not renamed to itself. This method needs to be called under an exclusive table metadata lock.

Return values

FALSE	Success
TRUE	Error

Definition at line 1998 of file sql_trigger.cc.

Here is the call graph for this function:

bool Table_triggers_list::check_n_load	(	THD *	thd,
		const char *	db,
		const char *	table_name,
		TABLE *	table,
		bool	names_only
	)

static

Check whenever .TRG file for table exist and load all triggers it contains.

Parameters

thd	current thread context
db	table's database name
table_name	table's name
table	pointer to table object
names_only	stop after loading trigger names

Todo:: A lot of things to do here e.g. how about other funcs and being more paranoical ?

Todo:: This could be avoided if there is no triggers for UPDATE and DELETE.

Return values

False	success
True	error

Definition at line 1156 of file sql_trigger.cc.

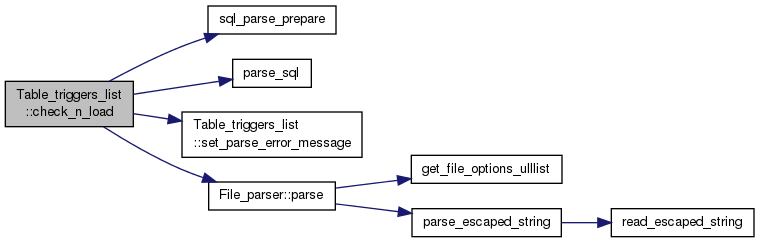

Here is the call graph for this function:

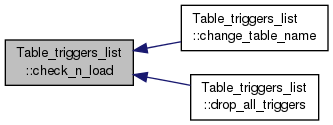

Here is the caller graph for this function:

bool Table_triggers_list::create_trigger	(	THD *	thd,
		TABLE_LIST *	tables,
		String *	stmt_query
	)

Create trigger for table.

Parameters

	thd	current thread context (including trigger definition in LEX)
	tables	table list containing one open table for which the trigger is created.
[out]	stmt_query	after successful return, this string contains well-formed statement for creation this trigger.

Note

Assumes that trigger name is fully qualified.
NULL-string means the following LEX_STRING instance: { str = 0; length = 0 }.
In other words, definer_user and definer_host should contain simultaneously NULL-strings (non-SUID/old trigger) or valid strings (SUID/new trigger).

Return values

False	success
True	error

Definition at line 628 of file sql_trigger.cc.

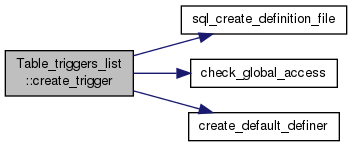

Here is the call graph for this function:

bool Table_triggers_list::drop_all_triggers	(	THD *	thd,
		char *	db,
		char *	name
	)

static

Drop all triggers for table.

Parameters

thd	current thread context
db	schema for table
name	name for table

Return values

False	success
True	error

Definition at line 1783 of file sql_trigger.cc.

Here is the call graph for this function:

bool Table_triggers_list::drop_trigger	(	THD *	thd,
		TABLE_LIST *	tables,
		String *	stmt_query
	)

Drop trigger for table.

Parameters

	thd	current thread context (including trigger definition in LEX)
	tables	table list containing one open table for which trigger is dropped.
[out]	stmt_query	after successful return, this string contains well-formed statement for creation this trigger.

Todo:: Probably instead of removing .TRG file we should move to archive directory but this should be done as part of parse_file.cc functionality (because we will need it elsewhere).

Return values

False	success
True	error

Definition at line 999 of file sql_trigger.cc.

bool Table_triggers_list::get_trigger_info	(	THD *	thd,
		trg_event_type	event,
		trg_action_time_type	time_type,
		LEX_STRING *	trigger_name,
		LEX_STRING *	trigger_stmt,
		sql_mode_t *	sql_mode,
		LEX_STRING *	definer,
		LEX_STRING *	client_cs_name,
		LEX_STRING *	connection_cl_name,
		LEX_STRING *	db_cl_name
	)

Obtains and returns trigger metadata.

Parameters

thd	current thread context
event	trigger event type
time_type	trigger action time
trigger_name	returns name of trigger
trigger_stmt	returns statement of trigger
sql_mode	returns sql_mode of trigger
definer	returns definer/creator of trigger. The caller is responsible to allocate enough space for storing definer information.

Return values

False	success
True	error

Definition at line 1610 of file sql_trigger.cc.

bool Table_triggers_list::is_fields_updated_in_trigger	(	MY_BITMAP *	used_fields,
		trg_event_type	event_type,
		trg_action_time_type	action_time
	)

Check if any of the marked fields are used in the trigger.

Parameters

used_fields	Bitmap over fields to check
event_type	Type of event triggers for which we are going to inspect
action_time	Type of trigger action time we are going to inspect

Definition at line 2231 of file sql_trigger.cc.

void Table_triggers_list::mark_fields_used ( trg_event_type event )

Mark fields of subject table which we read/set in its triggers as such.

This method marks fields of subject table which are read/set in its triggers as such (by properly updating TABLE::read_set/write_set) and thus informs handler that values for these fields should be retrieved/stored during execution of statement.

Parameters

event Type of event triggers for which we are going to inspect

Definition at line 2266 of file sql_trigger.cc.

Here is the call graph for this function:

bool Table_triggers_list::process_triggers	(	THD *	thd,
		trg_event_type	event,
		trg_action_time_type	time_type,
		bool	old_row_is_record1
	)

Execute trigger for given (event, time) pair.

The operation executes trigger for the specified event (insert, update, delete) and time (after, before) if it is set.

Parameters

thd
event
time_type
old_row_is_record1

Returns: Error status.

Return values

FALSE	on success.
TRUE	on error.

Definition at line 2113 of file sql_trigger.cc.

Here is the call graph for this function:

void Table_triggers_list::set_parse_error_message ( char * error_message )

Signals to the Table_triggers_list that a parse error has occured when reading a trigger from file. This makes the Table_triggers_list enter an error state flagged by m_has_unparseable_trigger == true. The error message will be used whenever a statement invoking or manipulating triggers is issued against the Table_triggers_list's table.

Parameters

error_message The error message thrown by the parser.

Definition at line 2303 of file sql_trigger.cc.

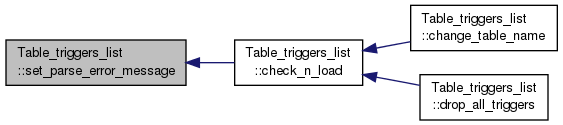

Here is the caller graph for this function:

void Table_triggers_list::set_table ( TABLE * new_table )

Adjust Table_triggers_list with new TABLE pointer.

Parameters

new_table new pointer to TABLE instance

Definition at line 1123 of file sql_trigger.cc.

Member Data Documentation

List<ulonglong> Table_triggers_list::definition_modes_list

List of sql modes for triggers

Definition at line 135 of file sql_trigger.h.

List<LEX_STRING> Table_triggers_list::definitions_list

Field responsible for storing triggers definitions in file. It have to be public because we are using it directly from parser.

Definition at line 130 of file sql_trigger.h.

GRANT_INFO Table_triggers_list::subject_table_grants[TRG_EVENT_MAX][TRG_ACTION_MAX]

Grant information for each trigger (pair: subject table, trigger definer).

Definition at line 101 of file sql_trigger.h.

TABLE* Table_triggers_list::trigger_table

TABLE instance for which this triggers list object was created.

Definition at line 81 of file sql_trigger.h.

The documentation for this class was generated from the following files:

sql/sql_trigger.h
sql/sql_trigger.cc
