Replication

Files

file  log_event.h
 Binary log event definitions. This includes generic code common to all types of log events, as well as specific code for each type of log event.
file  rpl_slave.cc
 Code to run the io thread and the sql thread on the replication slave.
file  rpl_slave.h

Classes

struct  old_sql_ex
struct  sql_ex_info
class  Log_event
class  Query_log_event
class  Load_log_event
class  Start_log_event_v3
class  Format_description_log_event
class  Intvar_log_event
class  Rand_log_event
class  Xid_log_event
class  User_var_log_event
class  Stop_log_event
class  Rotate_log_event
class  Create_file_log_event
class  Append_block_log_event
class  Delete_file_log_event
class  Execute_load_log_event
class  Begin_load_query_log_event
class  Execute_load_query_log_event
class  Table_map_log_event
class  Rows_log_event
class  Write_rows_log_event
class  Update_rows_log_event
class  Delete_rows_log_event
class  Incident_log_event
class  Ignorable_log_event
class  Rows_query_log_event
class  Gtid_log_event
class  Previous_gtids_log_event

Macros

#define PREFIX_SQL_LOAD   "SQL_LOAD-"
#define TEMP_FILE_MAX_LEN   UUID_LENGTH+38
#define ASSERT_OR_RETURN_ERROR(COND, ERRNO)   DBUG_ASSERT(COND)
#define LOG_READ_EOF   -1
#define LOG_READ_BOGUS   -2
#define LOG_READ_IO   -3
#define LOG_READ_MEM   -5
#define LOG_READ_TRUNC   -6
#define LOG_READ_TOO_LARGE   -7
#define LOG_READ_CHECKSUM_FAILURE   -8
#define LOG_EVENT_OFFSET   4
#define BINLOG_VERSION   4
#define ST_SERVER_VER_LEN   50
#define DUMPFILE_FLAG   0x1
#define OPT_ENCLOSED_FLAG   0x2
#define REPLACE_FLAG   0x4
#define IGNORE_FLAG   0x8
#define FIELD_TERM_EMPTY   0x1
#define ENCLOSED_EMPTY   0x2
#define LINE_TERM_EMPTY   0x4
#define LINE_START_EMPTY   0x8
#define ESCAPED_EMPTY   0x10
#define NUM_LOAD_DELIM_STRS   5
#define LOG_EVENT_HEADER_LEN   19U /* the fixed header length */
#define OLD_HEADER_LEN   13U /* the fixed header length in 3.23 */
#define LOG_EVENT_MINIMAL_HEADER_LEN   19U
#define QUERY_HEADER_MINIMAL_LEN   (4 + 4 + 1 + 2)
#define QUERY_HEADER_LEN   (QUERY_HEADER_MINIMAL_LEN + 2)
#define STOP_HEADER_LEN   0
#define LOAD_HEADER_LEN   (4 + 4 + 4 + 1 +1 + 4)
#define START_V3_HEADER_LEN   (2 + ST_SERVER_VER_LEN + 4)
#define ROTATE_HEADER_LEN   8
#define INTVAR_HEADER_LEN   0
#define CREATE_FILE_HEADER_LEN   4
#define APPEND_BLOCK_HEADER_LEN   4
#define EXEC_LOAD_HEADER_LEN   4
#define DELETE_FILE_HEADER_LEN   4
#define NEW_LOAD_HEADER_LEN   LOAD_HEADER_LEN
#define RAND_HEADER_LEN   0
#define USER_VAR_HEADER_LEN   0
#define FORMAT_DESCRIPTION_HEADER_LEN   (START_V3_HEADER_LEN+1+LOG_EVENT_TYPES)
#define XID_HEADER_LEN   0
#define BEGIN_LOAD_QUERY_HEADER_LEN   APPEND_BLOCK_HEADER_LEN
#define ROWS_HEADER_LEN_V1   8
#define TABLE_MAP_HEADER_LEN   8
#define EXECUTE_LOAD_QUERY_EXTRA_HEADER_LEN   (4 + 4 + 4 + 1)
#define EXECUTE_LOAD_QUERY_HEADER_LEN   (QUERY_HEADER_LEN + EXECUTE_LOAD_QUERY_EXTRA_HEADER_LEN)
#define INCIDENT_HEADER_LEN   2
#define HEARTBEAT_HEADER_LEN   0
#define IGNORABLE_HEADER_LEN   0
#define ROWS_HEADER_LEN_V2   10
#define MAX_DBS_IN_EVENT_MTS   16
#define OVER_MAX_DBS_IN_EVENT_MTS   254
#define MAX_SIZE_LOG_EVENT_STATUS
#define MAX_LOG_EVENT_HEADER
#define MAX_MAX_ALLOWED_PACKET   1024*1024*1024
#define EVENT_TYPE_OFFSET   4
#define SERVER_ID_OFFSET   5
#define EVENT_LEN_OFFSET   9
#define LOG_POS_OFFSET   13
#define FLAGS_OFFSET   17
#define ST_BINLOG_VER_OFFSET   0
#define ST_SERVER_VER_OFFSET   2
#define ST_CREATED_OFFSET   (ST_SERVER_VER_OFFSET + ST_SERVER_VER_LEN)
#define ST_COMMON_HEADER_LEN_OFFSET   (ST_CREATED_OFFSET + 4)
#define SL_MASTER_PORT_OFFSET   8
#define SL_MASTER_POS_OFFSET   0
#define SL_MASTER_HOST_OFFSET   10
#define Q_THREAD_ID_OFFSET   0
#define Q_EXEC_TIME_OFFSET   4
#define Q_DB_LEN_OFFSET   8
#define Q_ERR_CODE_OFFSET   9
#define Q_STATUS_VARS_LEN_OFFSET   11
#define Q_DATA_OFFSET   QUERY_HEADER_LEN
#define Q_FLAGS2_CODE   0
#define Q_SQL_MODE_CODE   1
#define Q_CATALOG_CODE   2
#define Q_AUTO_INCREMENT   3
#define Q_CHARSET_CODE   4
#define Q_TIME_ZONE_CODE   5
#define Q_CATALOG_NZ_CODE   6
#define Q_LC_TIME_NAMES_CODE   7
#define Q_CHARSET_DATABASE_CODE   8
#define Q_TABLE_MAP_FOR_UPDATE_CODE   9
#define Q_MASTER_DATA_WRITTEN_CODE   10
#define Q_INVOKER   11
#define Q_UPDATED_DB_NAMES   12
#define Q_MICROSECONDS   13
#define I_TYPE_OFFSET   0
#define I_VAL_OFFSET   1
#define RAND_SEED1_OFFSET   0
#define RAND_SEED2_OFFSET   8
#define UV_VAL_LEN_SIZE   4
#define UV_VAL_IS_NULL   1
#define UV_VAL_TYPE_SIZE   1
#define UV_NAME_LEN_SIZE   4
#define UV_CHARSET_NUMBER_SIZE   4
#define L_THREAD_ID_OFFSET   0
#define L_EXEC_TIME_OFFSET   4
#define L_SKIP_LINES_OFFSET   8
#define L_TBL_LEN_OFFSET   12
#define L_DB_LEN_OFFSET   13
#define L_NUM_FIELDS_OFFSET   14
#define L_SQL_EX_OFFSET   18
#define L_DATA_OFFSET   LOAD_HEADER_LEN
#define R_POS_OFFSET   0
#define R_IDENT_OFFSET   8
#define CF_FILE_ID_OFFSET   0
#define CF_DATA_OFFSET   CREATE_FILE_HEADER_LEN
#define AB_FILE_ID_OFFSET   0
#define AB_DATA_OFFSET   APPEND_BLOCK_HEADER_LEN
#define EL_FILE_ID_OFFSET   0
#define DF_FILE_ID_OFFSET   0
#define TM_MAPID_OFFSET   0
#define TM_FLAGS_OFFSET   6
#define RW_MAPID_OFFSET   0
#define RW_FLAGS_OFFSET   6
#define RW_VHLEN_OFFSET   8
#define RW_V_TAG_LEN   1
#define RW_V_EXTRAINFO_TAG   0
#define ELQ_FILE_ID_OFFSET   QUERY_HEADER_LEN
#define ELQ_FN_POS_START_OFFSET   ELQ_FILE_ID_OFFSET + 4
#define ELQ_FN_POS_END_OFFSET   ELQ_FILE_ID_OFFSET + 8
#define ELQ_DUP_HANDLING_OFFSET   ELQ_FILE_ID_OFFSET + 12
#define BINLOG_MAGIC   "\xfe\x62\x69\x6e"
#define LOG_EVENT_BINLOG_IN_USE_F   0x1
#define LOG_EVENT_THREAD_SPECIFIC_F   0x4
#define LOG_EVENT_SUPPRESS_USE_F   0x8
#define LOG_EVENT_ARTIFICIAL_F   0x20
#define LOG_EVENT_RELAY_LOG_F   0x40
#define LOG_EVENT_IGNORABLE_F   0x80
#define LOG_EVENT_NO_FILTER_F   0x100
#define LOG_EVENT_MTS_ISOLATE_F   0x200
#define OPTIONS_WRITTEN_TO_BIN_LOG
#define EXPECTED_OPTIONS   ((ULL(1) << 14) | (ULL(1) << 26) | (ULL(1) << 27) | (ULL(1) << 19))
#define CHECKSUM_CRC32_SIGNATURE_LEN   4
#define BINLOG_CHECKSUM_LEN   CHECKSUM_CRC32_SIGNATURE_LEN
#define BINLOG_CHECKSUM_ALG_DESC_LEN   1 /* 1 byte checksum alg descriptor */
#define LOG_EVENT_TYPES   (ENUM_END_EVENT-1)
#define SLAVE_MAX_HEARTBEAT_PERIOD   4294967
#define SLAVE_IO   1
#define SLAVE_SQL   2

Typedefs

typedef ulonglong sql_mode_t
typedef struct
st_db_worker_hash_entry 		db_worker_hash_entry

Enumerations

enum  enum_binlog_checksum_alg { BINLOG_CHECKSUM_ALG_OFF = 0, BINLOG_CHECKSUM_ALG_CRC32 = 1, BINLOG_CHECKSUM_ALG_ENUM_END, BINLOG_CHECKSUM_ALG_UNDEF = 255 }
enum  Log_event_type {
  UNKNOWN_EVENT = 0, START_EVENT_V3 = 1, QUERY_EVENT = 2, STOP_EVENT = 3,
  ROTATE_EVENT = 4, INTVAR_EVENT = 5, LOAD_EVENT = 6, SLAVE_EVENT = 7,
  CREATE_FILE_EVENT = 8, APPEND_BLOCK_EVENT = 9, EXEC_LOAD_EVENT = 10, DELETE_FILE_EVENT = 11,
  NEW_LOAD_EVENT = 12, RAND_EVENT = 13, USER_VAR_EVENT = 14, FORMAT_DESCRIPTION_EVENT = 15,
  XID_EVENT = 16, BEGIN_LOAD_QUERY_EVENT = 17, EXECUTE_LOAD_QUERY_EVENT = 18, TABLE_MAP_EVENT = 19,
  PRE_GA_WRITE_ROWS_EVENT = 20, PRE_GA_UPDATE_ROWS_EVENT = 21, PRE_GA_DELETE_ROWS_EVENT = 22, WRITE_ROWS_EVENT_V1 = 23,
  UPDATE_ROWS_EVENT_V1 = 24, DELETE_ROWS_EVENT_V1 = 25, INCIDENT_EVENT = 26, HEARTBEAT_LOG_EVENT = 27,
  IGNORABLE_LOG_EVENT = 28, ROWS_QUERY_LOG_EVENT = 29, WRITE_ROWS_EVENT = 30, UPDATE_ROWS_EVENT = 31,
  DELETE_ROWS_EVENT = 32, GTID_LOG_EVENT = 33, ANONYMOUS_GTID_LOG_EVENT = 34, PREVIOUS_GTIDS_LOG_EVENT = 35,
  ENUM_END_EVENT
}
enum  Int_event_type { INVALID_INT_EVENT = 0, LAST_INSERT_ID_EVENT = 1, INSERT_ID_EVENT = 2 }
enum  enum_load_dup_handling { LOAD_DUP_ERROR = 0, LOAD_DUP_IGNORE, LOAD_DUP_REPLACE }

Functions

char * str_to_hex (char *to, const char *from, uint len)
int append_query_string (THD *thd, const CHARSET_INFO *csinfo, String const *from, String *to)
bool event_checksum_test (uchar *buf, ulong event_len, uint8 alg)
uint8 get_checksum_alg (const char *buf, ulong len)
bool is_gtid_event (Log_event *evt)
ulong version_product (const uchar *version_split)

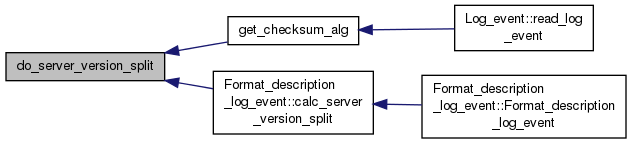

void do_server_version_split (char *version, uchar split_versions[3])
size_t my_strmov_quoted_identifier (char *buffer, const char *identifier)
size_t my_strmov_quoted_identifier_helper (int q, char *buffer, const char *identifier, uint length)

Variables

char server_version [SERVER_VERSION_LENGTH]
TYPELIB binlog_checksum_typelib

Detailed Description

Macro Definition Documentation

#define ASSERT_OR_RETURN_ERROR (   COND,
  ERRNO
)    DBUG_ASSERT(COND)

Either assert or return an error.

In debug build, the condition will be checked, but in non-debug builds, the error code given will be returned instead.

Parameters
CONDCondition to check
ERRNOError number to return in non-debug builds

Definition at line 82 of file log_event.h.

#define BINLOG_CHECKSUM_LEN   CHECKSUM_CRC32_SIGNATURE_LEN

defined statically while there is just one alg implemented

Definition at line 629 of file log_event.h.

#define LOG_EVENT_ARTIFICIAL_F   0x20

Artificial events are created arbitarily and not written to binary log

These events should not update the master log position when slave SQL thread executes them.

Definition at line 540 of file log_event.h.

#define LOG_EVENT_IGNORABLE_F   0x80

For an event, 'e', carrying a type code, that a slave, 's', does not recognize, 's' will check 'e' for LOG_EVENT_IGNORABLE_F, and if the flag is set, then 'e' is ignored. Otherwise, 's' acknowledges that it has found an unknown event in the relay log.

Definition at line 559 of file log_event.h.

#define LOG_EVENT_MTS_ISOLATE_F   0x200

MTS: group of events can be marked to force its execution in isolation from any other Workers. So it's a marker for Coordinator to memorize and perform necessary operations in order to guarantee no interference from other Workers. The flag can be set ON only for an event that terminates its group. Typically that is done for a transaction that contains a query accessing more than OVER_MAX_DBS_IN_EVENT_MTS databases.

Definition at line 579 of file log_event.h.

#define LOG_EVENT_NO_FILTER_F   0x100

Events with this flag are not filtered (e.g. on the current database) and are always written to the binary log regardless of filters.

Definition at line 568 of file log_event.h.

#define LOG_EVENT_RELAY_LOG_F   0x40

Events with this flag set are created by slave IO thread and written to relay log

Definition at line 548 of file log_event.h.

#define LOG_EVENT_SUPPRESS_USE_F   0x8

Suppress the generation of 'USE' statements before the actual statement. This flag should be set for any events that does not need the current database set to function correctly. Most notable cases are 'CREATE DATABASE' and 'DROP DATABASE'.

This flags should only be used in exceptional circumstances, since it introduce a significant change in behaviour regarding the replication logic together with the flags –binlog-do-db and –replicated-do-db.

Definition at line 523 of file log_event.h.

#define LOG_EVENT_THREAD_SPECIFIC_F   0x4

If the query depends on the thread (for example: TEMPORARY TABLE). Currently this is used by mysqlbinlog to know it must print SET @PSEUDO_THREAD_ID=xx; before the query (it would not hurt to print it for every query but this would be slow).

Definition at line 508 of file log_event.h.

#define MAX_LOG_EVENT_HEADER
Value:
( /* in order of Query_log_event::write */ \
LOG_EVENT_HEADER_LEN + /* write_header */ \
QUERY_HEADER_LEN + /* write_data */ \
EXECUTE_LOAD_QUERY_EXTRA_HEADER_LEN + /*write_post_header_for_derived */ \
MAX_SIZE_LOG_EVENT_STATUS + /* status */ \
NAME_LEN + 1)

Definition at line 307 of file log_event.h.

#define MAX_SIZE_LOG_EVENT_STATUS
Value:
(1U + 4 /* type, flags2 */ + \
1U + 8 /* type, sql_mode */ + \
1U + 1 + 255 /* type, length, catalog */ + \
1U + 4 /* type, auto_increment */ + \
1U + 6 /* type, charset */ + \
1U + 1 + 255 /* type, length, time_zone */ + \
1U + 2 /* type, lc_time_names_number */ + \
1U + 2 /* type, charset_database_number */ + \
1U + 8 /* type, table_map_for_update */ + \
1U + 4 /* type, master_data_written */ + \
/* type, db_1, db_2, ... */ \
1U + (MAX_DBS_IN_EVENT_MTS * (1 + NAME_LEN)) + \
3U + /* type, microseconds */ + \
1U + 16 + 1 + 60/* type, user_len, user, host_len, host */)

Definition at line 293 of file log_event.h.

#define OPTIONS_WRITTEN_TO_BIN_LOG
Value:
(OPTION_AUTO_IS_NULL | OPTION_NO_FOREIGN_KEY_CHECKS | \
OPTION_RELAXED_UNIQUE_CHECKS | OPTION_NOT_AUTOCOMMIT)

OPTIONS_WRITTEN_TO_BIN_LOG are the bits of thd->options which must be written to the binlog. OPTIONS_WRITTEN_TO_BIN_LOG could be written into the Format_description_log_event, so that if later we don't want to replicate a variable we did replicate, or the contrary, it's doable. But it should not be too hard to decide once for all of what we replicate and what we don't, among the fixed 32 bits of thd->options.

I (Guilhem) have read through every option's usage, and it looks like OPTION_AUTO_IS_NULL and OPTION_NO_FOREIGN_KEYS are the only ones which alter how the query modifies the table. It's good to replicate OPTION_RELAXED_UNIQUE_CHECKS too because otherwise, the slave may insert data slower than the master, in InnoDB. OPTION_BIG_SELECTS is not needed (the slave thread runs with max_join_size=HA_POS_ERROR) and OPTION_BIG_TABLES is not needed either, as the manual says (because a too big in-memory temp table is automatically written to disk).

Definition at line 603 of file log_event.h.

#define SLAVE_MAX_HEARTBEAT_PERIOD   4294967

Some of defines are need in parser even though replication is not compiled in (embedded). The maximum is defined as (ULONG_MAX/1000) with 4 bytes ulong

Definition at line 44 of file rpl_slave.h.

#define TEMP_FILE_MAX_LEN   UUID_LENGTH+38

Maximum length of the name of a temporary file PREFIX LENGTH - 9 UUID - UUID_LENGTH SEPARATORS - 2 SERVER ID - 10 (range of server ID 1 to (2^32)-1 = 4,294,967,295) FILE ID - 10 (uint) EXTENSION - 7 (Assuming that the extension is always less than 7 characters)

Definition at line 67 of file log_event.h.

Enumeration Type Documentation

enum Log_event_type

Enumeration type for the different types of log events.

Definition at line 637 of file log_event.h.

Function Documentation

int append_query_string ( THD *  thd,
const CHARSET_INFO *  csinfo,
String const *  from,
String *  to
)

Append a version of the 'from' string suitable for use in a query to the 'to' string. To generate a correct escaping, the character set information in 'csinfo' is used.

Definition at line 590 of file log_event.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

void do_server_version_split ( char *  version,
uchar  split_versions[3]
)
inline

Splits server 'version' string into three numeric pieces stored into 'split_versions': X.Y.Zabc (X,Y,Z numbers, a not a digit) -> {X,Y,Z} X.Yabc -> {X,Y,0}

Definition at line 5092 of file log_event.h.

Here is the caller graph for this function:

bool event_checksum_test ( uchar *  event_buf,
ulong  event_len,
uint8  alg
)
Parameters
even_bufpoint to the buffer containing serialized event
event_lenlength of the event accounting possible checksum alg
Returns
TRUE if test fails FALSE as success

Definition at line 1142 of file rpl_utility.cc.

Here is the caller graph for this function:

uint8 get_checksum_alg ( const char *  buf,
ulong  len
)
Parameters
bufbuffer holding serialized FD event
lennetto (possible checksum is stripped off) length of the event buf
Returns
the version-safe checksum alg descriptor where zero designates no checksum, 255 - the orginator is checksum-unaware (effectively no checksum) and the actuall [1-254] range alg descriptor.

Definition at line 5755 of file log_event.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

char* str_to_hex ( char *  to,
const char *  from,
uint  len
)

Transforms a string into "" or its expression in 0x... form.

Definition at line 568 of file log_event.cc.

Here is the caller graph for this function:
