Gtid_log_event Class Reference

Inheritance diagram for Gtid_log_event:

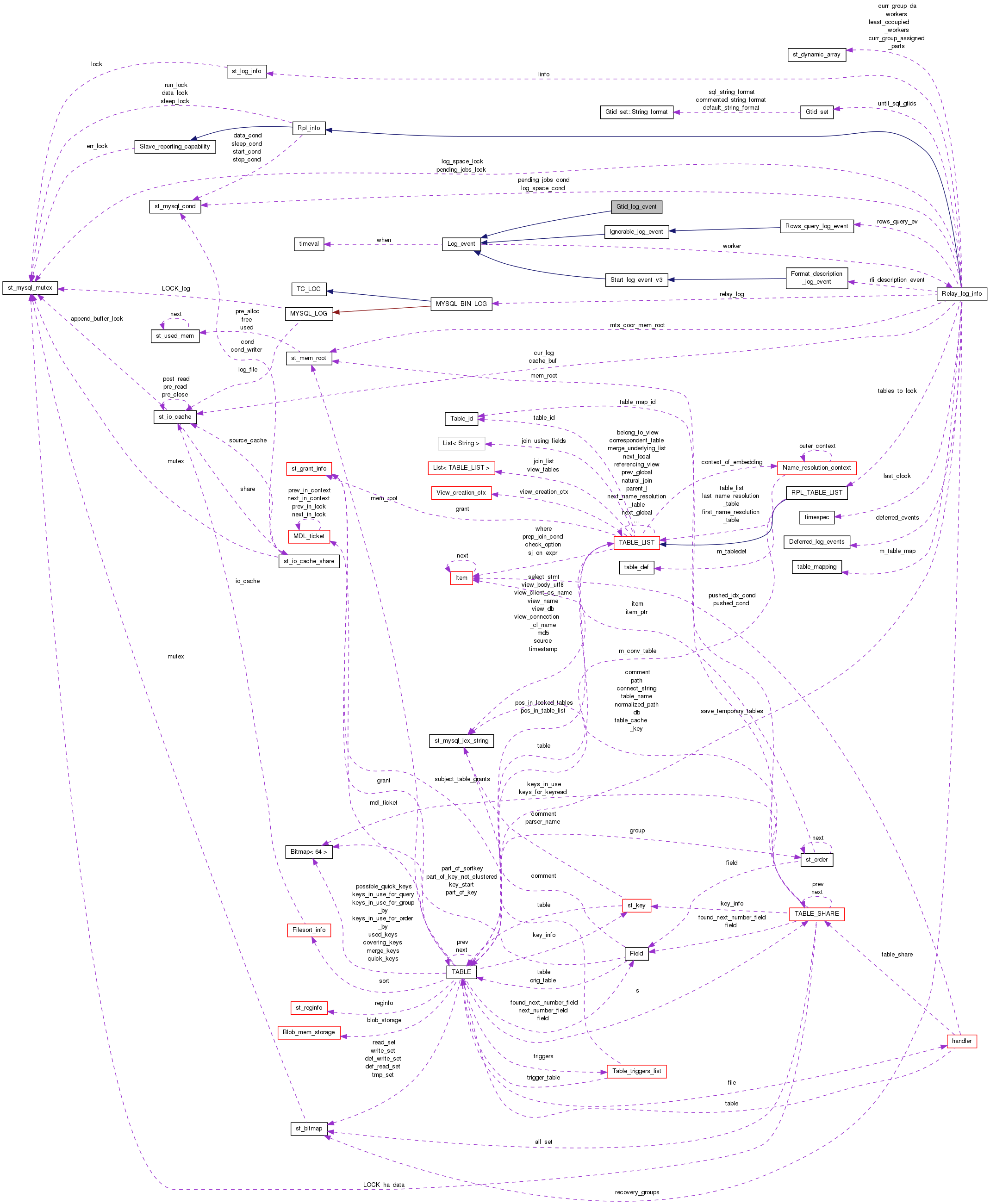

Collaboration diagram for Gtid_log_event:

Public Member Functions
	Gtid_log_event (THD *thd_arg, bool using_trans, const Gtid_specification *spec=NULL)
int	pack_info (Protocol *)
	Gtid_log_event (const char *buffer, uint event_len, const Format_description_log_event *descr_event)
Log_event_type	get_type_code ()
int	get_data_size ()
enum_group_type	get_type () const
bool	is_valid () const
const rpl_sid *	get_sid () const
rpl_sidno	get_sidno (bool need_lock)
rpl_sidno	get_sidno (Sid_map *sid_map)
rpl_gno	get_gno () const
	Return the GNO for this GTID.
bool	get_commit_flag () const
	Return true if this is the last group of the transaction, else false.
Public Member Functions inherited from Log_event
	Log_event (enum_event_cache_type cache_type_arg=EVENT_INVALID_CACHE, enum_event_logging_type logging_type_arg=EVENT_INVALID_LOGGING)
virtual void	print (FILE *file, PRINT_EVENT_INFO *print_event_info)=0
void	print_timestamp (IO_CACHE *file, time_t *ts)
void	print_header (IO_CACHE *file, PRINT_EVENT_INFO *print_event_info, bool is_more)
void	print_base64 (IO_CACHE *file, PRINT_EVENT_INFO *print_event_info, bool is_more)
bool	wrapper_my_b_safe_write (IO_CACHE *file, const uchar *buf, ulong data_length)
void	set_artificial_event ()
void	set_relay_log_event ()
bool	is_artificial_event () const
bool	is_relay_log_event () const
bool	is_ignorable_event () const
bool	is_no_filter_event () const
bool	is_using_trans_cache () const
bool	is_using_stmt_cache () const
bool	is_using_immediate_logging () const
	Log_event (const char *buf, const Format_description_log_event *description_event)
void	register_temp_buf (char *buf)
void	free_temp_buf ()
const char *	get_type_str ()

Static Public Attributes
static const int	POST_HEADER_LENGTH
	Total length of post header.

Additional Inherited Members
Public Types inherited from Log_event
enum	enum_skip_reason { EVENT_SKIP_NOT, EVENT_SKIP_IGNORE, EVENT_SKIP_COUNT }
typedef unsigned char	Byte
Static Public Member Functions inherited from Log_event
static Log_event *	read_log_event (IO_CACHE *file, const Format_description_log_event *description_event, my_bool crc_check)
static void *	operator new (size_t size)
static void	operator delete (void *ptr, size_t)
static void *	operator new (size_t, void *ptr)
static void	operator delete (void *, void *)
static Log_event *	read_log_event (const char *buf, uint event_len, const char **error, const Format_description_log_event *description_event, my_bool crc_check)
static const char *	get_type_str (Log_event_type type)
Public Attributes inherited from Log_event
my_off_t	log_pos
char *	temp_buf
struct timeval	when
ulong	exec_time
ulong	data_written
uint32	server_id
uint32	unmasked_server_id
uint16	flags
ulong	slave_exec_mode
enum_event_cache_type	event_cache_type
enum_event_logging_type	event_logging_type
ha_checksum	crc
ulong	mts_group_idx
Relay_log_info *	worker
ulonglong	future_event_relay_log_pos
uint8	checksum_alg
Protected Types inherited from Log_event
enum	enum_event_cache_type {   EVENT_INVALID_CACHE = 0, EVENT_STMT_CACHE, EVENT_TRANSACTIONAL_CACHE, EVENT_NO_CACHE,   EVENT_CACHE_COUNT }
enum	enum_event_logging_type { EVENT_INVALID_LOGGING = 0, EVENT_NORMAL_LOGGING, EVENT_IMMEDIATE_LOGGING, EVENT_CACHE_LOGGING_COUNT }

Detailed Description

Definition at line 4861 of file log_event.h.

Constructor & Destructor Documentation

Gtid_log_event::Gtid_log_event	(	THD *	thd_arg,
		bool	using_trans,
		const Gtid_specification *	spec = NULL
	)

Create a new event using the GTID from the given Gtid_specification, or from @SESSION.GTID_NEXT if spec==NULL.

Definition at line 13146 of file log_event.cc.

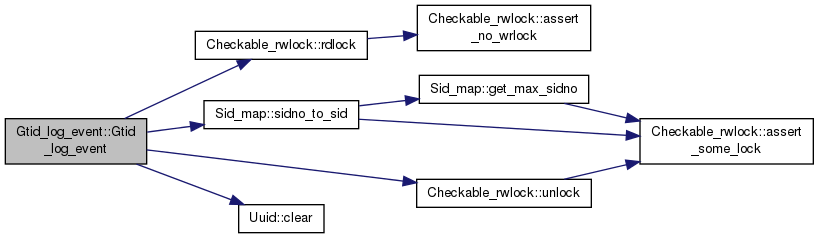

Here is the call graph for this function:

Member Function Documentation

const rpl_sid* Gtid_log_event::get_sid ( ) const

inline

Return the SID for this GTID. The SID is shared with the Log_event so it should not be modified.

Definition at line 4921 of file log_event.h.

rpl_sidno Gtid_log_event::get_sidno ( bool  need_lock )

inline

Return the SIDNO relative to the global sid_map for this GTID.

This requires a lookup and possibly even update of global_sid_map, hence global_sid_lock must be held. If global_sid_lock is not held, the caller must pass need_lock=true. If there is an error (e.g. out of memory) while updating global_sid_map, this function returns a negative number.

Parameters

need_lock

If true, the read lock on global_sid_lock is acquired and released inside this function; if false, the read lock or write lock must be held prior to calling this function.

Return values

SIDNO	if successful
negative	if adding SID to global_sid_map causes an error.

Definition at line 4937 of file log_event.h.

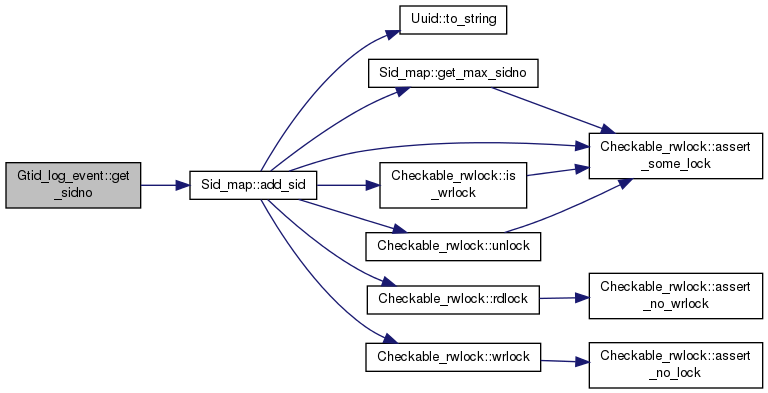

Here is the call graph for this function:

Here is the caller graph for this function:

rpl_sidno Gtid_log_event::get_sidno ( Sid_map *  sid_map )

inline

Return the SIDNO relative to the given Sid_map for this GTID.

This assumes that the Sid_map is local to the thread, and thus does not use locks.

Parameters

sid_map

The sid_map to use.

Return values

SIDNO

if successful. if adding SID to sid_map causes an error.

Definition at line 4961 of file log_event.h.

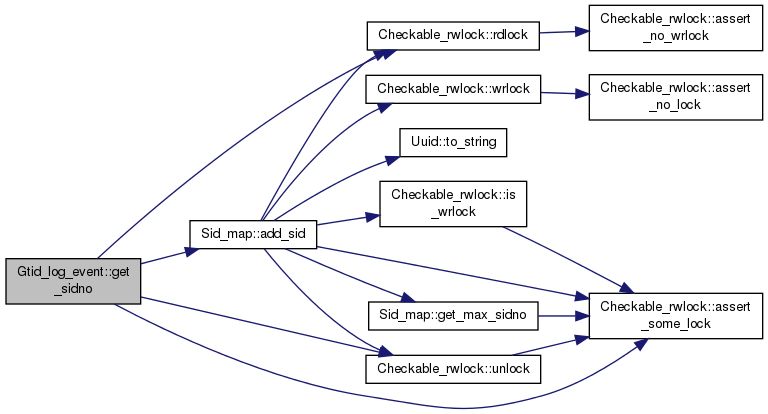

Here is the call graph for this function:

enum_group_type Gtid_log_event::get_type ( ) const

inline

Return the group type for this Gtid_log_event: this can be either ANONYMOUS_GROUP, AUTOMATIC_GROUP, or GTID_GROUP.

Definition at line 4914 of file log_event.h.

Member Data Documentation

const int Gtid_log_event::POST_HEADER_LENGTH

static

Initial value:

    ENCODED_FLAG_LENGTH + ENCODED_SID_LENGTH + ENCODED_GNO_LENGTH

Total length of post header.

Definition at line 4988 of file log_event.h.

---

The documentation for this class was generated from the following files:

• sql/log_event.h
• sql/log_event.cc
