Table_map_log_event Class Reference

#include <log_event.h>

Inheritance diagram for Table_map_log_event:

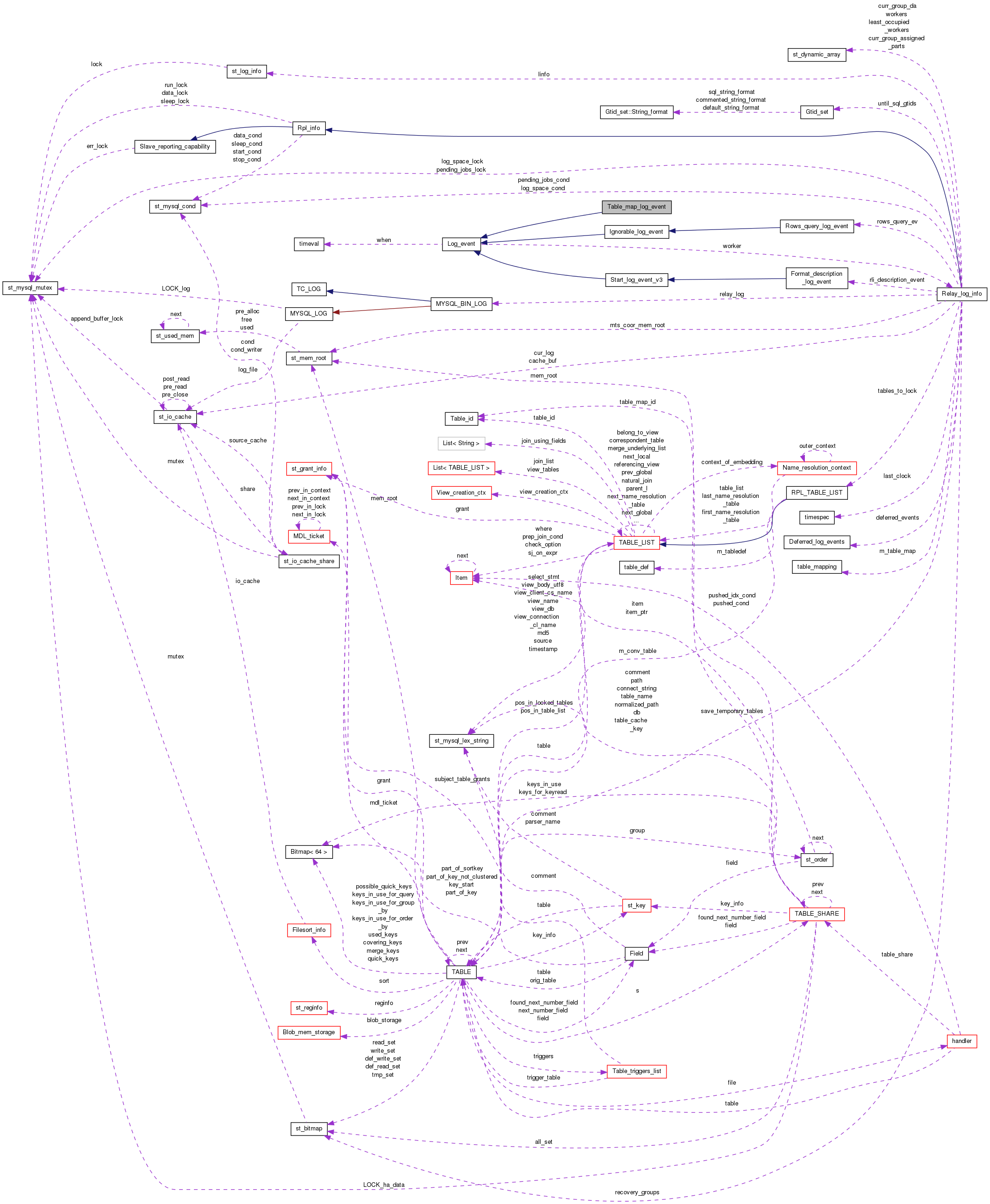

Collaboration diagram for Table_map_log_event:

Public Types
enum	{ TYPE_CODE = TABLE_MAP_EVENT }
enum	enum_error {   ERR_OPEN_FAILURE = -1, ERR_OK = 0, ERR_TABLE_LIMIT_EXCEEDED = 1, ERR_OUT_OF_MEM = 2,   ERR_BAD_TABLE_DEF = 3, ERR_RBR_TO_SBR = 4 }
enum	enum_flag { ENUM_FLAG_COUNT }
enum	{ TM_NO_FLAGS = 0U, TM_BIT_LEN_EXACT_F = (1U << 0), TM_REFERRED_FK_DB_F = (1U << 1) }
typedef uint16	flag_set
Public Types inherited from Log_event
enum	enum_skip_reason { EVENT_SKIP_NOT, EVENT_SKIP_IGNORE, EVENT_SKIP_COUNT }
typedef unsigned char	Byte

Public Member Functions
flag_set	get_flags (flag_set flag) const
const Table_id &	get_table_id () const
const char *	get_table_name () const
const char *	get_db_name () const
virtual Log_event_type	get_type_code ()
virtual bool	is_valid () const
virtual int	get_data_size ()
Public Member Functions inherited from Log_event
	Log_event (enum_event_cache_type cache_type_arg=EVENT_INVALID_CACHE, enum_event_logging_type logging_type_arg=EVENT_INVALID_LOGGING)
virtual void	print (FILE *file, PRINT_EVENT_INFO *print_event_info)=0
void	print_timestamp (IO_CACHE *file, time_t *ts)
void	print_header (IO_CACHE *file, PRINT_EVENT_INFO *print_event_info, bool is_more)
void	print_base64 (IO_CACHE *file, PRINT_EVENT_INFO *print_event_info, bool is_more)
bool	wrapper_my_b_safe_write (IO_CACHE *file, const uchar *buf, ulong data_length)
void	set_artificial_event ()
void	set_relay_log_event ()
bool	is_artificial_event () const
bool	is_relay_log_event () const
bool	is_ignorable_event () const
bool	is_no_filter_event () const
bool	is_using_trans_cache () const
bool	is_using_stmt_cache () const
bool	is_using_immediate_logging () const
	Log_event (const char *buf, const Format_description_log_event *description_event)
void	register_temp_buf (char *buf)
void	free_temp_buf ()
const char *	get_type_str ()

Additional Inherited Members
Static Public Member Functions inherited from Log_event
static Log_event *	read_log_event (IO_CACHE *file, const Format_description_log_event *description_event, my_bool crc_check)
static void *	operator new (size_t size)
static void	operator delete (void *ptr, size_t)
static void *	operator new (size_t, void *ptr)
static void	operator delete (void *, void *)
static Log_event *	read_log_event (const char *buf, uint event_len, const char **error, const Format_description_log_event *description_event, my_bool crc_check)
static const char *	get_type_str (Log_event_type type)
Public Attributes inherited from Log_event
my_off_t	log_pos
char *	temp_buf
struct timeval	when
ulong	exec_time
ulong	data_written
uint32	server_id
uint32	unmasked_server_id
uint16	flags
ulong	slave_exec_mode
enum_event_cache_type	event_cache_type
enum_event_logging_type	event_logging_type
ha_checksum	crc
ulong	mts_group_idx
Relay_log_info *	worker
ulonglong	future_event_relay_log_pos
uint8	checksum_alg
Protected Types inherited from Log_event
enum	enum_event_cache_type {   EVENT_INVALID_CACHE = 0, EVENT_STMT_CACHE, EVENT_TRANSACTIONAL_CACHE, EVENT_NO_CACHE,   EVENT_CACHE_COUNT }
enum	enum_event_logging_type { EVENT_INVALID_LOGGING = 0, EVENT_NORMAL_LOGGING, EVENT_IMMEDIATE_LOGGING, EVENT_CACHE_LOGGING_COUNT }

Detailed Description

In row-based mode, every row operation event is preceded by a Table_map_log_event which maps a table definition to a number. The table definition consists of database name, table name, and column definitions.

Binary Format

The Post-Header has the following components:

Post-Header for Table_map_log_event

Name	Format	Description
table_id	6 bytes unsigned integer	The number that identifies the table.
flags	2 byte bitfield	Reserved for future use; currently always 0.

The Body has the following components:

Body for Table_map_log_event

Name	Format	Description
database_name	one byte string length, followed by null-terminated string	The name of the database in which the table resides. The name is represented as a one byte unsigned integer representing the number of bytes in the name, followed by length bytes containing the database name, followed by a terminating 0 byte. (Note the redundancy in the representation of the length.)
table_name	one byte string length, followed by null-terminated string	The name of the table, encoded the same way as the database name above.
column_count	Packed Integer	The number of columns in the table, represented as a packed variable-length integer.
column_type	List of column_count 1 byte enumeration values	The type of each column in the table, listed from left to right. Each byte is mapped to a column type according to the enumeration type enum_field_types defined in mysql_com.h. The mapping of types to numbers is listed in the table below (along with description of the associated metadata field).
metadata_length	Packed Integer	The length of the following metadata block
metadata	list of metadata for each column	For each column from left to right, a chunk of data who's length and semantics depends on the type of the column. The length and semantics for the metadata for each column are listed in the table below.
null_bits	column_count bits, rounded up to nearest byte	For each column, a bit indicating whether data in the column can be NULL or not. The number of bytes needed for this is int((column_count+7)/8). The flag for the first column from the left is in the least-significant bit of the first byte, the second is in the second least significant bit of the first byte, the ninth is in the least significant bit of the second byte, and so on.

The table below lists all column types, along with the numerical identifier for it and the size and interpretation of meta-data used to describe the type.

Table_map_log_event column types: numerical identifier and metadata

Name	Identifier	Size of metadata in bytes	Description of metadata
MYSQL_TYPE_DECIMAL	0	0	No column metadata.
MYSQL_TYPE_TINY	1	0	No column metadata.
MYSQL_TYPE_SHORT	2	0	No column metadata.
MYSQL_TYPE_LONG	3	0	No column metadata.
MYSQL_TYPE_FLOAT	4	1 byte	1 byte unsigned integer, representing the "pack_length", which is equal to sizeof(float) on the server from which the event originates.
MYSQL_TYPE_DOUBLE	5	1 byte	1 byte unsigned integer, representing the "pack_length", which is equal to sizeof(double) on the server from which the event originates.
MYSQL_TYPE_NULL	6	0	No column metadata.
MYSQL_TYPE_TIMESTAMP	7	0	No column metadata.
MYSQL_TYPE_LONGLONG	8	0	No column metadata.
MYSQL_TYPE_INT24	9	0	No column metadata.
MYSQL_TYPE_DATE	10	0	No column metadata.
MYSQL_TYPE_TIME	11	0	No column metadata.
MYSQL_TYPE_DATETIME	12	0	No column metadata.
MYSQL_TYPE_YEAR	13	0	No column metadata.
MYSQL_TYPE_NEWDATE	14	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_VARCHAR	15	2 bytes	2 byte unsigned integer representing the maximum length of the string.
MYSQL_TYPE_BIT	16	2 bytes	A 1 byte unsigned int representing the length in bits of the bitfield (0 to 64), followed by a 1 byte unsigned int representing the number of bytes occupied by the bitfield. The number of bytes is either int((length+7)/8) or int(length/8).
MYSQL_TYPE_NEWDECIMAL	246	2 bytes	A 1 byte unsigned int representing the precision, followed by a 1 byte unsigned int representing the number of decimals.
MYSQL_TYPE_ENUM	247	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_SET	248	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_TINY_BLOB	249	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_MEDIUM_BLOB	250	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_LONG_BLOB	251	–	This enumeration value is only used internally and cannot exist in a binlog.
MYSQL_TYPE_BLOB	252	1 byte	The pack length, i.e., the number of bytes needed to represent the length of the blob: 1, 2, 3, or 4.
MYSQL_TYPE_VAR_STRING	253	2 bytes	This is used to store both strings and enumeration values. The first byte is a enumeration value storing the real type, which may be either MYSQL_TYPE_VAR_STRING or MYSQL_TYPE_ENUM. The second byte is a 1 byte unsigned integer representing the field size, i.e., the number of bytes needed to store the length of the string.
MYSQL_TYPE_STRING	254	2 bytes	The first byte is always MYSQL_TYPE_VAR_STRING (i.e., 253). The second byte is the field size, i.e., the number of bytes in the representation of size of the string: 3 or 4.
MYSQL_TYPE_GEOMETRY	255	1 byte	The pack length, i.e., the number of bytes needed to represent the length of the geometry: 1, 2, 3, or 4.

Definition at line 3791 of file log_event.h.

Member Enumeration Documentation

enum Table_map_log_event::enum_error

Enumeration of the errors that can be returned.

Enumerator:

ERR_OPEN_FAILURE	Failure to open table
ERR_OK	No error
ERR_TABLE_LIMIT_EXCEEDED	No more room for tables
ERR_OUT_OF_MEM	Out of memory
ERR_BAD_TABLE_DEF	Table definition does not match
ERR_RBR_TO_SBR	daisy-chanining RBR to SBR not allowed

Definition at line 3803 of file log_event.h.

---

The documentation for this class was generated from the following files:

• sql/log_event.h
• sql/log_event.cc
