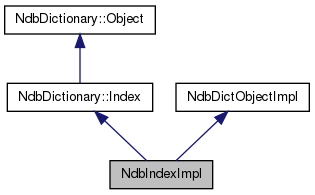

Inheritance diagram for NdbIndexImpl:

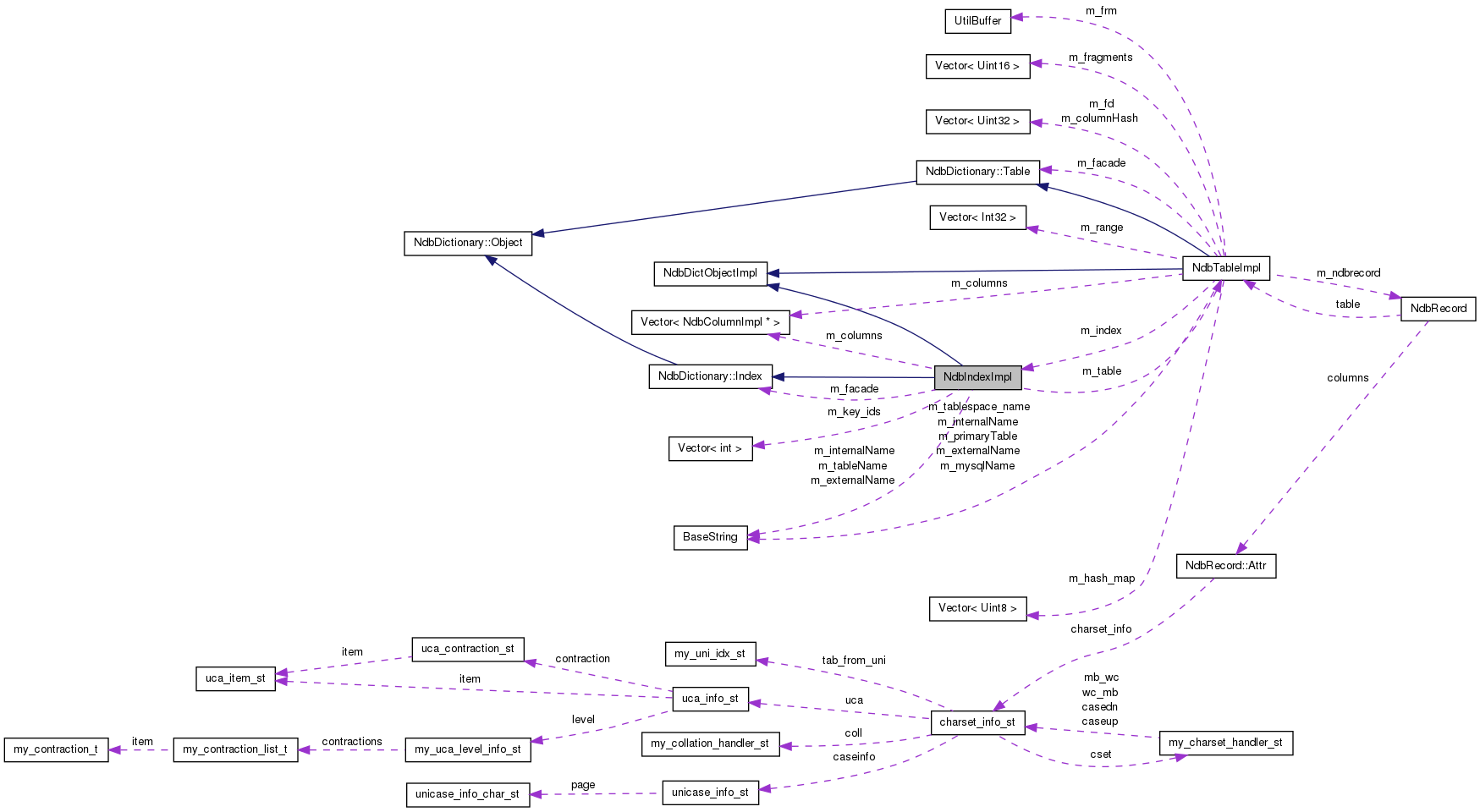

Collaboration diagram for NdbIndexImpl:

Public Member Functions
	NdbIndexImpl ()
	NdbIndexImpl (NdbDictionary::Index &)
void	init ()
int	setName (const char *name)
const char *	getName () const
int	setTable (const char *table)
const char *	getTable () const
const NdbTableImpl *	getIndexTable () const
Public Member Functions inherited from NdbDictionary::Index
	Index (const char *name="")
virtual	~Index ()
int	addColumn (const Column &c)
int	addColumnName (const char *name)
int	addIndexColumn (const char *name)
int	addColumnNames (unsigned noOfNames, const char **names)
int	addIndexColumns (int noOfNames, const char **names)
void	setType (Type type)
void	setLogging (bool enable)
void	setStoredIndex (bool x)
bool	getStoredIndex () const
bool	getTemporary () const
void	setTemporary (bool)
unsigned	getNoOfColumns () const
int	getNoOfIndexColumns () const
const Column *	getColumn (unsigned no) const
const char *	getIndexColumn (int no) const
Type	getType () const
bool	getLogging () const
virtual Object::Status	getObjectStatus () const
virtual int	getObjectVersion () const
virtual int	getObjectId () const
const NdbRecord *	getDefaultRecord () const
Public Member Functions inherited from NdbDictObjectImpl
bool	change ()

Static Public Member Functions
static NdbIndexImpl &	getImpl (NdbDictionary::Index &t)
static NdbIndexImpl &	getImpl (const NdbDictionary::Index &t)
Static Public Member Functions inherited from NdbDictObjectImpl
static NdbDictObjectImpl &	getImpl (NdbDictionary::ObjectId &t)
static const NdbDictObjectImpl &	getImpl (const NdbDictionary::ObjectId &t)

Public Attributes
BaseString	m_internalName
BaseString	m_externalName
BaseString	m_tableName
Uint32	m_table_id
Uint32	m_table_version
Vector< NdbColumnImpl * >	m_columns
Vector< int >	m_key_ids
bool	m_logging
bool	m_temporary
NdbTableImpl *	m_table
NdbDictionary::Index *	m_facade
Public Attributes inherited from NdbDictObjectImpl
int	m_id
Uint32	m_version
NdbDictionary::Object::Type	m_type
NdbDictionary::Object::Status	m_status

Additional Inherited Members
Public Types inherited from NdbDictionary::Index
enum	Type { Undefined = 0, UniqueHashIndex = 3, OrderedIndex = 6 }
Public Types inherited from NdbDictionary::Object
enum	Status { New, Changed, Retrieved, Invalid, Altered }
enum	Type { TypeUndefined = 0, SystemTable = 1, UserTable = 2, UniqueHashIndex = 3, OrderedIndex = 6, HashIndexTrigger = 7, IndexTrigger = 8, SubscriptionTrigger = 9, ReadOnlyConstraint = 10, TableEvent = 11, Tablespace = 20, LogfileGroup = 21, Datafile = 22, Undofile = 23, ReorgTrigger = 19, HashMap = 24 }
enum	State { StateUndefined = 0, StateOffline = 1, StateBuilding = 2, StateDropping = 3, StateOnline = 4, StateBackup = 5, StateBroken = 9 }
enum	Store { StoreUndefined = 0, StoreNotLogged = 1, StorePermanent = 2 }
enum	FragmentType { FragUndefined = 0, FragSingle = 1, FragAllSmall = 2, FragAllMedium = 3, FragAllLarge = 4, DistrKeyHash = 5, DistrKeyLin = 6, UserDefined = 7, HashMapPartition = 9 }
Protected Member Functions inherited from NdbDictObjectImpl
	NdbDictObjectImpl (NdbDictionary::Object::Type type)
