Represents an index in an NDB Cluster. More...

#include <NdbDictionary.hpp>

Inheritance diagram for NdbDictionary::Index:

Collaboration diagram for NdbDictionary::Index:

Public Member Functions
Index creation
These methods should normally not be used in an application as the result will not be visible from the MySQL Server
	Index (const char *name="")
virtual	~Index ()
int	setName (const char *name)
int	setTable (const char *name)
int	addColumn (const Column &c)
int	addColumnName (const char *name)
int	addIndexColumn (const char *name)
int	addColumnNames (unsigned noOfNames, const char **names)
int	addIndexColumns (int noOfNames, const char **names)
void	setType (Type type)
void	setLogging (bool enable)
void	setStoredIndex (bool x)
bool	getStoredIndex () const
bool	getTemporary () const
void	setTemporary (bool)

Friends
class	NdbIndexImpl
class	NdbIndexStat

Getting Index properties
enum	Type { Undefined = 0, UniqueHashIndex = 3, OrderedIndex = 6 }
const char *	getName () const
const char *	getTable () const
unsigned	getNoOfColumns () const
int	getNoOfIndexColumns () const
const Column *	getColumn (unsigned no) const
const char *	getIndexColumn (int no) const
Type	getType () const
bool	getLogging () const
virtual Object::Status	getObjectStatus () const
virtual int	getObjectVersion () const
virtual int	getObjectId () const
const NdbRecord *	getDefaultRecord () const

Additional Inherited Members
Public Types inherited from NdbDictionary::Object
enum	Status { New, Changed, Retrieved, Invalid, Altered }
enum	Type { TypeUndefined = 0, SystemTable = 1, UserTable = 2, UniqueHashIndex = 3, OrderedIndex = 6, HashIndexTrigger = 7, IndexTrigger = 8, SubscriptionTrigger = 9, ReadOnlyConstraint = 10, TableEvent = 11, Tablespace = 20, LogfileGroup = 21, Datafile = 22, Undofile = 23, ReorgTrigger = 19, HashMap = 24 }
enum	State { StateUndefined = 0, StateOffline = 1, StateBuilding = 2, StateDropping = 3, StateOnline = 4, StateBackup = 5, StateBroken = 9 }
enum	Store { StoreUndefined = 0, StoreNotLogged = 1, StorePermanent = 2 }
enum	FragmentType { FragUndefined = 0, FragSingle = 1, FragAllSmall = 2, FragAllMedium = 3, FragAllLarge = 4, DistrKeyHash = 5, DistrKeyLin = 6, UserDefined = 7, HashMapPartition = 9 }

Detailed Description

Represents an index in an NDB Cluster.

Definition at line 1139 of file NdbDictionary.hpp.

Member Enumeration Documentation

enum NdbDictionary::Index::Type

Represents type of index

Enumerator:

Undefined	Undefined object type (initial value)
UniqueHashIndex	Unique un-ordered hash index (only one currently supported)
OrderedIndex	Non-unique ordered index.

Definition at line 1186 of file NdbDictionary.hpp.

Constructor & Destructor Documentation

NdbDictionary::Index::Index ( const char * name = "" )

Constructor

Parameters

name	Name of index

Definition at line 1052 of file NdbDictionary.cpp.

Here is the call graph for this function:

Member Function Documentation

int NdbDictionary::Index::addColumn ( const Column & c )

Add a column to the index definition Note that the order of columns will be in the order they are added (only matters for ordered indexes).

Definition at line 1123 of file NdbDictionary.cpp.

int NdbDictionary::Index::addColumnName ( const char * name )

Add a column name to the index definition Note that the order of indexes will be in the order they are added (only matters for ordered indexes).

Definition at line 1145 of file NdbDictionary.cpp.

int NdbDictionary::Index::addColumnNames	(	unsigned	noOfNames,
		const char **	names
	)

Add several column names to the index definition Note that the order of indexes will be in the order they are added (only matters for ordered indexes).

Definition at line 1157 of file NdbDictionary.cpp.

int NdbDictionary::Index::addIndexColumn ( const char * name )

Add a column name to the index definition Note that the order of indexes will be in the order they are added (only matters for ordered indexes). Deprecated, use addColumnName instead.

Definition at line 1151 of file NdbDictionary.cpp.

int NdbDictionary::Index::addIndexColumns	(	int	noOfNames,
		const char **	names
	)

Add several column names to the index definition Note that the order of indexes will be in the order they are added (only matters for ordered indexes). Deprecated, use addColumnNames instead.

Definition at line 1169 of file NdbDictionary.cpp.

const NdbDictionary::Column * NdbDictionary::Index::getColumn ( unsigned no ) const

Get a specific column in the index

Definition at line 1101 of file NdbDictionary.cpp.

const NdbRecord * NdbDictionary::Index::getDefaultRecord ( ) const

Get default NdbRecord object for this index This NdbRecord object becomes invalid at the same time as the index object does - when the ndb_cluster_connection is closed.

Definition at line 1118 of file NdbDictionary.cpp.

const char * NdbDictionary::Index::getIndexColumn ( int no ) const

Get a specific column name in the index Deprecated, use getColumn instead.

Definition at line 1108 of file NdbDictionary.cpp.

Here is the call graph for this function:

bool NdbDictionary::Index::getLogging ( ) const

Check if index is set to be stored on disk

Returns: if true then logging is enabled

Note: Non-logged indexes are rebuilt at system restart.; Ordered index does not currently support logging.

Definition at line 1206 of file NdbDictionary.cpp.

const char * NdbDictionary::Index::getName ( ) const

Get the name of an index

Reimplemented in NdbIndexImpl.

Definition at line 1076 of file NdbDictionary.cpp.

Here is the caller graph for this function:

unsigned NdbDictionary::Index::getNoOfColumns ( ) const

Get the number of columns in the index

Definition at line 1091 of file NdbDictionary.cpp.

int NdbDictionary::Index::getNoOfIndexColumns ( ) const

Get the number of columns in the index Deprecated, use getNoOfColumns instead.

Definition at line 1096 of file NdbDictionary.cpp.

int NdbDictionary::Index::getObjectId ( ) const

virtual

Get object id

Implements NdbDictionary::Object.

Definition at line 1221 of file NdbDictionary.cpp.

NdbDictionary::Object::Status NdbDictionary::Index::getObjectStatus ( ) const

virtual

Get object status

Implements NdbDictionary::Object.

Definition at line 1211 of file NdbDictionary.cpp.

int NdbDictionary::Index::getObjectVersion ( ) const

virtual

Get object version

Implements NdbDictionary::Object.

Definition at line 1216 of file NdbDictionary.cpp.

const char * NdbDictionary::Index::getTable ( ) const

Get the name of the underlying table being indexed

Reimplemented in NdbIndexImpl.

Definition at line 1086 of file NdbDictionary.cpp.

Here is the caller graph for this function:

NdbDictionary::Index::Type NdbDictionary::Index::getType ( ) const

Get index type of the index

Definition at line 1186 of file NdbDictionary.cpp.

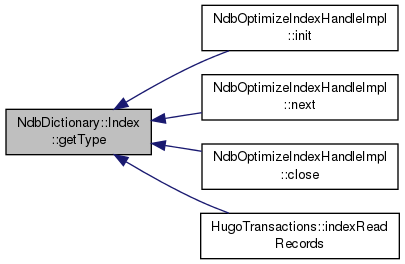

Here is the caller graph for this function:

void NdbDictionary::Index::setLogging ( bool enable )

Enable/Disable index storage on disk

Parameters

enable If enable is set to true, then logging becomes enabled

See Also: NdbDictionary::Index::getLogging

Definition at line 1191 of file NdbDictionary.cpp.

int NdbDictionary::Index::setName ( const char * name )

Set the name of an index

Reimplemented in NdbIndexImpl.

Definition at line 1071 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Index::setTable ( const char * name )

Define the name of the table to be indexed

Reimplemented in NdbIndexImpl.

Definition at line 1081 of file NdbDictionary.cpp.

void NdbDictionary::Index::setType ( Type type )

Set index type of the index

Friends And Related Function Documentation

friend class NdbIndexImpl

friend

Definition at line 1326 of file NdbDictionary.hpp.

The documentation for this class was generated from the following files:

storage/ndb/include/ndbapi/NdbDictionary.hpp
storage/ndb/src/ndbapi/NdbDictionary.cpp
