NdbRecord Class Reference

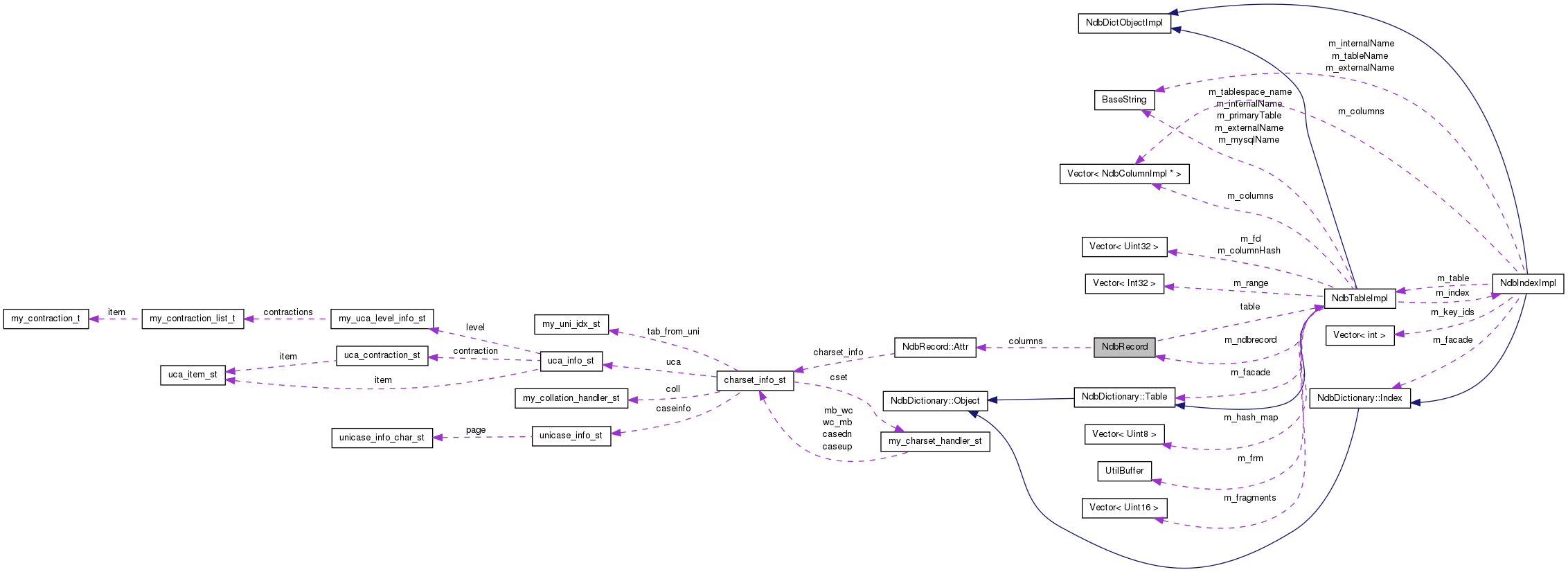

Collaboration diagram for NdbRecord:

Classes
struct	Attr

Public Types
enum	RecFlags {   RecIsKeyRecord = 0x1, RecHasAllKeys = 0x2, RecIsIndex = 0x4, RecHasBlob = 0x8,   RecTableHasBlob = 0x10, RecIsDefaultRec = 0x20, RecHasUserDefinedPartitioning = 0x40 }
enum	ColFlags {   IsKey = 0x1, IsDisk = 0x2, IsNullable = 0x04, IsVar1ByteLen = 0x08,   IsVar2ByteLen = 0x10, IsDistributionKey = 0x20, IsBlob = 0x40, IsMysqldShrinkVarchar = 0x80,   IsMysqldBitfield = 0x100 }

Public Member Functions
void	copyMask (Uint32 *dst, const unsigned char *src) const
void	clearMask (Uint32 *dst) const

Public Attributes
const NdbTableImpl *	table
Uint32	tableId
Uint32	tableVersion
Uint32	m_keyLenInWords
Uint32	m_max_transid_ai_bytes
Uint32	m_no_of_distribution_keys
Uint32	flags
Uint32	m_row_size
const Uint32 *	key_indexes
Uint32	key_index_length
const Uint32 *	distkey_indexes
Uint32	distkey_index_length
const int *	m_attrId_indexes
Uint32	m_attrId_indexes_length
Uint32	m_min_distkey_prefix_length
Uint32	noOfColumns
struct Attr	columns [1]

Detailed Description

Definition at line 22 of file NdbRecord.hpp.

Member Data Documentation

const int* NdbRecord::m_attrId_indexes

Array mapping an attribute Id into the corresponding index into the columns[] array, useful for looking up a column by attribute id.

If the column is not included in the NdbRecord, the value is -1.

Definition at line 232 of file NdbRecord.hpp.

Uint32 NdbRecord::m_no_of_distribution_keys

Number of distribution keys (usually == number of primary keys).

For an index NdbRecord, this is zero if the index does not include all of the distribution keys in the table.

Definition at line 200 of file NdbRecord.hpp.

---

The documentation for this class was generated from the following files:

• storage/ndb/src/ndbapi/NdbRecord.hpp
• storage/ndb/src/ndbapi/NdbDictionaryImpl.cpp
