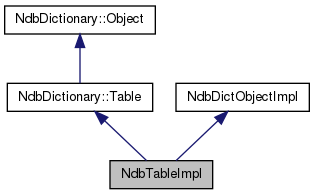

Inheritance diagram for NdbTableImpl:

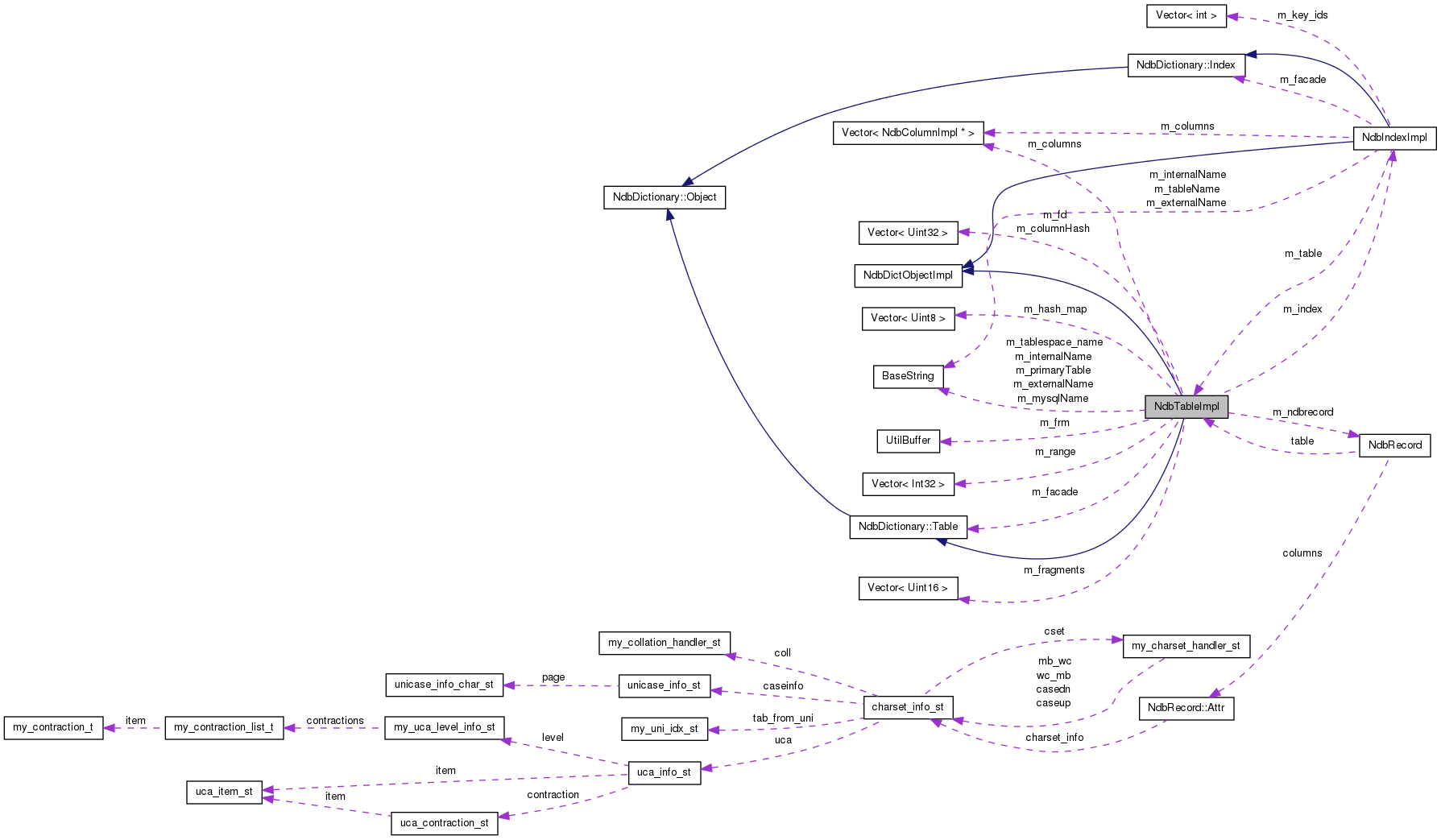

Collaboration diagram for NdbTableImpl:

Public Member Functions
	NdbTableImpl ()
	NdbTableImpl (NdbDictionary::Table &)
void	init ()
int	setName (const char *name)
const char *	getName () const
void	setFragmentCount (Uint32 count)
Uint32	getFragmentCount () const
int	setFrm (const void *data, Uint32 len)
const void *	getFrmData () const
Uint32	getFrmLength () const
int	setFragmentData (const Uint32 *data, Uint32 cnt)
const Uint32 *	getFragmentData () const
Uint32	getFragmentDataLen () const
int	setRangeListData (const Int32 *data, Uint32 cnt)
const Int32 *	getRangeListData () const
Uint32	getRangeListDataLen () const
Uint32	getFragmentNodes (Uint32 fragmentId, Uint32 *nodeIdArrayPtr, Uint32 arraySize) const
const char *	getMysqlName () const
int	updateMysqlName ()
bool	matchDb (const char *name, size_t len) const
int	aggregate (NdbError &error)
int	validate (NdbError &error)
int	getDbName (char *buf, size_t len) const
int	getSchemaName (char *buf, size_t len) const
void	setDbSchema (const char db, const char schema)
void	computeAggregates ()
int	buildColumnHash ()
NdbColumnImpl *	getColumn (unsigned attrId)
NdbColumnImpl *	getColumn (const char *name)
const NdbColumnImpl *	getColumn (unsigned attrId) const
const NdbColumnImpl *	getColumn (const char *name) const
bool	equal (const NdbTableImpl &) const
int	assign (const NdbTableImpl &)
Uint32	get_nodes (Uint32 partitionId, const Uint16 **nodes) const
Public Member Functions inherited from NdbDictionary::Table
void	setRowGCIIndicator (bool value)
bool	getRowGCIIndicator () const
void	setRowChecksumIndicator (bool value)
bool	getRowChecksumIndicator () const
void	setStoredTable (bool x)
bool	getStoredTable () const
int	getRowSizeInBytes () const
int	createTableInDb (Ndb *, bool existingEqualIsOk=true) const
int	getReplicaCount () const
bool	getTemporary () const
void	setTemporary (bool)
bool	getForceVarPart () const
void	setForceVarPart (bool)
int	checkColumns (const Uint32 *bitmap, unsigned len_in_bytes) const
void	assignObjId (const ObjectId &)
void	setStorageType (Column::StorageType)
Column::StorageType	getStorageType () const
void	setExtraRowGciBits (Uint32)
Uint32	getExtraRowGciBits () const
void	setExtraRowAuthorBits (Uint32)
Uint32	getExtraRowAuthorBits () const
Uint32	getPartitionId (Uint32 hashvalue) const
bool	hasDefaultValues () const
int	getTableId () const
Column *	getColumn (const int attributeId)
const Column *	getColumn (const int attributeId) const
bool	getLogging () const
FragmentType	getFragmentType () const
int	getKValue () const
int	getMinLoadFactor () const
int	getMaxLoadFactor () const
int	getNoOfColumns () const
int	getNoOfAutoIncrementColumns () const
int	getNoOfPrimaryKeys () const
const char *	getPrimaryKey (int no) const
bool	equal (const Table &) const
const NdbRecord *	getDefaultRecord () const
	Table (const char *name="")
	Table (const Table &table)
virtual	~Table ()
Table &	operator= (const Table &table)
int	addColumn (const Column &)
void	setLogging (bool)
void	setLinearFlag (Uint32 flag)
bool	getLinearFlag () const
void	setFragmentType (FragmentType)
void	setKValue (int kValue)
void	setMinLoadFactor (int)
void	setMaxLoadFactor (int)
int	setTablespaceName (const char *name)
const char *	getTablespaceName () const
int	setTablespace (const class Tablespace &)
bool	getTablespace (Uint32 id=0, Uint32 version=0) const
bool	getHashMap (Uint32 id=0, Uint32 version=0) const
int	setHashMap (const class HashMap &)
Object::Type	getObjectType () const
virtual Object::Status	getObjectStatus () const
void	setStatusInvalid () const
virtual int	getObjectVersion () const
void	setDefaultNoPartitionsFlag (Uint32 indicator)
Uint32	getDefaultNoPartitionsFlag () const
virtual int	getObjectId () const
void	setObjectType (Object::Type type)
void	setMaxRows (Uint64 maxRows)
Uint64	getMaxRows () const
void	setMinRows (Uint64 minRows)
Uint64	getMinRows () const
void	setSingleUserMode (enum SingleUserMode)
enum SingleUserMode	getSingleUserMode () const
Public Member Functions inherited from NdbDictObjectImpl
bool	change ()

Static Public Member Functions
static NdbTableImpl &	getImpl (NdbDictionary::Table &t)
static NdbTableImpl &	getImpl (const NdbDictionary::Table &t)
Static Public Member Functions inherited from NdbDictObjectImpl
static NdbDictObjectImpl &	getImpl (NdbDictionary::ObjectId &t)
static const NdbDictObjectImpl &	getImpl (const NdbDictionary::ObjectId &t)

Public Attributes
Uint32	m_primaryTableId
BaseString	m_internalName
BaseString	m_externalName
BaseString	m_mysqlName
UtilBuffer	m_frm
Vector< Uint32 >	m_fd
Vector< Int32 >	m_range
NdbDictionary::Object::FragmentType	m_fragmentType
Uint32	m_columnHashMask
Vector< Uint32 >	m_columnHash
Vector< NdbColumnImpl * >	m_columns
Uint32	m_noOfAutoIncColumns
Uint32	m_hashValueMask
Uint32	m_hashpointerValue
Vector< Uint16 >	m_fragments
Vector< Uint8 >	m_hash_map
Uint64	m_max_rows
Uint64	m_min_rows
Uint32	m_default_no_part_flag
bool	m_linear_flag
bool	m_logging
bool	m_temporary
bool	m_row_gci
bool	m_row_checksum
bool	m_force_var_part
bool	m_has_default_values
int	m_kvalue
int	m_minLoadFactor
int	m_maxLoadFactor
Uint16	m_keyLenInWords
Uint16	m_fragmentCount
Uint8	m_single_user_mode
Uint8	m_storageType
Uint8	m_extra_row_gci_bits
Uint8	m_extra_row_author_bits
NdbIndexImpl *	m_index
BaseString	m_primaryTable
NdbDictionary::Object::Type	m_indexType
Uint8	m_noOfKeys
Uint8	m_noOfDistributionKeys
Uint8	m_noOfBlobs
Uint8	m_noOfDiskColumns
Uint8	m_replicaCount
NdbRecord *	m_ndbrecord
const unsigned char *	m_pkMask
NdbDictionary::Table *	m_facade
BaseString	m_tablespace_name
Uint32	m_tablespace_id
Uint32	m_tablespace_version
Uint32	m_hash_map_id
Uint32	m_hash_map_version
Public Attributes inherited from NdbDictObjectImpl
int	m_id
Uint32	m_version
NdbDictionary::Object::Type	m_type
NdbDictionary::Object::Status	m_status

Additional Inherited Members
Public Types inherited from NdbDictionary::Table
enum	SingleUserMode { SingleUserModeLocked = NDB_SUM_LOCKED, SingleUserModeReadOnly = NDB_SUM_READONLY, SingleUserModeReadWrite = NDB_SUM_READ_WRITE }
Protected Member Functions inherited from NdbDictObjectImpl
	NdbDictObjectImpl (NdbDictionary::Object::Type type)

Detailed Description

Definition at line 152 of file NdbDictionaryImpl.hpp.

Constructor & Destructor Documentation

NdbTableImpl::NdbTableImpl ( )

NdbTableImpl

Definition at line 570 of file NdbDictionaryImpl.cpp.

Member Function Documentation

int NdbTableImpl::aggregate ( NdbError & error )

This method is not needed in normal usage.

Compute aggregate data on table being defined. Required for aggregate methods such as getNoOfPrimaryKeys() to work before table has been created and retrieved via getTable().

May adjust some column flags. If no PK is so far marked as distribution key then all PK's will be marked.

Returns 0 on success. Returns -1 and sets error if an inconsistency is detected.

Reimplemented from NdbDictionary::Table.

Definition at line 1107 of file NdbDictionaryImpl.cpp.

Here is the caller graph for this function:

bool NdbTableImpl::equal ( const NdbTableImpl & obj ) const

Equality/assign

Definition at line 667 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

Uint32 NdbTableImpl::get_nodes	(	Uint32	partitionId,
		const Uint16 **	nodes
	)		const

Return count

Definition at line 1296 of file NdbDictionaryImpl.cpp.

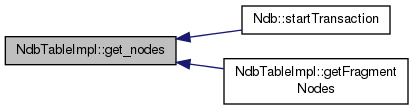

Here is the caller graph for this function:

NdbColumnImpl * NdbTableImpl::getColumn ( const char * name )

inline

Get column definition via name.

Returns: null if none existing name

Reimplemented from NdbDictionary::Table.

Definition at line 1166 of file NdbDictionaryImpl.hpp.

Here is the call graph for this function:

const NdbColumnImpl * NdbTableImpl::getColumn ( const char * name ) const

inline

Get column definition via name.

Returns: null if none existing name

Reimplemented from NdbDictionary::Table.

Definition at line 1224 of file NdbDictionaryImpl.hpp.

Here is the call graph for this function:

Uint32 NdbTableImpl::getFragmentCount ( ) const

Get fragment count

Reimplemented from NdbDictionary::Table.

Definition at line 1126 of file NdbDictionaryImpl.cpp.

Here is the caller graph for this function:

const Uint32 * NdbTableImpl::getFragmentData ( ) const

Get Fragment Data (array of node groups)

Reimplemented from NdbDictionary::Table.

Definition at line 1155 of file NdbDictionaryImpl.cpp.

Uint32 NdbTableImpl::getFragmentNodes	(	Uint32	fragmentId,
		Uint32 *	nodeIdArrayPtr,
		Uint32	arraySize
	)		const

Get list of nodes storing given fragment, primary is normally entry 0 Returns : 0 for error, > 0 for fragment count If fragment count is > arraySize param, only arraySize entries are written.

Reimplemented from NdbDictionary::Table.

Definition at line 1185 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

const void * NdbTableImpl::getFrmData ( ) const

Get frm file stored with this table

Reimplemented from NdbDictionary::Table.

Definition at line 1137 of file NdbDictionaryImpl.cpp.

const char * NdbTableImpl::getName ( ) const

Get table name

Reimplemented from NdbDictionary::Table.

Definition at line 977 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

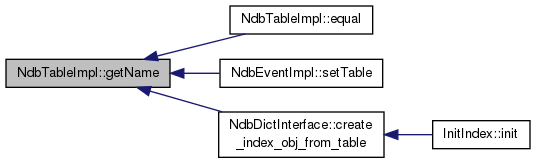

Here is the caller graph for this function:

const Int32 * NdbTableImpl::getRangeListData ( ) const

Get Range or List Array (value, partition)

Reimplemented from NdbDictionary::Table.

Definition at line 1173 of file NdbDictionaryImpl.cpp.

void NdbTableImpl::setFragmentCount ( Uint32 count )

Set fragment count

Reimplemented from NdbDictionary::Table.

Definition at line 1121 of file NdbDictionaryImpl.cpp.

Here is the caller graph for this function:

int NdbTableImpl::setFragmentData	(	const Uint32 *	nodegroups,
		Uint32	cnt
	)

Set fragmentation One Uint32 per fragment, containing nodegroup of fragment nodegroups[0] - correspondce to fragment 0

Note: This calls also modifies setFragmentCount

Reimplemented from NdbDictionary::Table.

Definition at line 1149 of file NdbDictionaryImpl.cpp.

int NdbTableImpl::setFrm	(	const void *	data,
		Uint32	len
	)

Set frm file to store with this table

Reimplemented from NdbDictionary::Table.

Definition at line 1131 of file NdbDictionaryImpl.cpp.

int NdbTableImpl::setName ( const char * name )

Name of table

Parameters

name	Name of table

Reimplemented from NdbDictionary::Table.

Definition at line 971 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

int NdbTableImpl::setRangeListData	(	const Int32 *	data,
		Uint32	cnt
	)

Set array of information mapping range values and list values to fragments.

For range, this is a sorted list of range values For list, this is a list of pairs { value, partition }

Reimplemented from NdbDictionary::Table.

Definition at line 1167 of file NdbDictionaryImpl.cpp.

int NdbTableImpl::validate ( NdbError & error )

This method is not needed in normal usage.

Validate new table definition before create. Does aggregate() and additional checks. There may still be errors which are detected only by NDB kernel at create table.

Create table and retrieve table do validate() automatically.

Returns 0 on success. Returns -1 and sets error if an inconsistency is detected.

Reimplemented from NdbDictionary::Table.

Definition at line 1113 of file NdbDictionaryImpl.cpp.

Here is the call graph for this function:

Member Data Documentation

Uint32 NdbTableImpl::m_hashValueMask

Fragment info

Definition at line 219 of file NdbDictionaryImpl.hpp.

NdbRecord* NdbTableImpl::m_ndbrecord

Default NdbRecord for this table or index Currently used by old-Api scans to use NdbRecord API internally.

Definition at line 270 of file NdbDictionaryImpl.hpp.

Uint8 NdbTableImpl::m_noOfKeys

Aggregates

Definition at line 259 of file NdbDictionaryImpl.hpp.

const unsigned char* NdbTableImpl::m_pkMask

Bitmask describing PK column positions for this table Currently used by old-Api scans to use NdbRecord API internally.

Definition at line 276 of file NdbDictionaryImpl.hpp.

BaseString NdbTableImpl::m_primaryTable

Index only stuff

Definition at line 253 of file NdbDictionaryImpl.hpp.

BaseString NdbTableImpl::m_tablespace_name

Disk stuff

Definition at line 296 of file NdbDictionaryImpl.hpp.

The documentation for this class was generated from the following files:

storage/ndb/src/ndbapi/NdbDictionaryImpl.hpp
storage/ndb/src/ndbapi/NdbDictionaryImpl.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
