Dictionary for defining and retreiving meta data. More...

#include <NdbDictionary.hpp>

Inheritance diagram for NdbDictionary::Dictionary:

Classes
class	List
	Structure for retrieving lists of object names. More...

Public Member Functions
const Table *	getTable (const char name, void *data) const
void	set_local_table_data_size (unsigned sz)
const Index *	getIndexGlobal (const char *indexName, const Table &ndbtab) const
const Index *	getIndexGlobal (const char indexName, const char tableName) const
const Table *	getTableGlobal (const char *tableName) const
int	alterTableGlobal (const Table &f, const Table &t)
int	dropTableGlobal (const Table &ndbtab)
int	dropIndexGlobal (const Index &index)
int	removeIndexGlobal (const Index &ndbidx, int invalidate) const
int	removeTableGlobal (const Table &ndbtab, int invalidate) const
void	invalidateDbGlobal (const char *dbname)
NdbRecord *	createRecord (const Table table, const RecordSpecification recSpec, Uint32 length, Uint32 elemSize, Uint32 flags=0)
NdbRecord *	createRecord (const Index index, const Table table, const RecordSpecification *recSpec, Uint32 length, Uint32 elemSize, Uint32 flags=0)
NdbRecord *	createRecord (const Index index, const RecordSpecification recSpec, Uint32 length, Uint32 elemSize, Uint32 flags=0)
void	releaseRecord (NdbRecord *rec)
General
int	listObjects (List &list, Object::Type type=Object::TypeUndefined)
int	listObjects (List &list, Object::Type type=Object::TypeUndefined) const
int	listObjects (List &list, Object::Type type, bool fullyQualified) const
struct NdbError &	getNdbError () const
int	getWarningFlags () const
Retrieving references to Tables and Indexes
const Table *	getTable (const char *name) const
const Table *	getBlobTable (const Table , const char col_name)
const Table *	getBlobTable (const Table *, Uint32 col_no)
void	putTable (const Table *table)
const Index *	getIndex (const char indexName, const char tableName) const
int	listIndexes (List &list, const char *tableName)
int	listIndexes (List &list, const char *tableName) const
int	listIndexes (List &list, const Table &table) const
Events
int	createEvent (const Event &event)
int	dropEvent (const char *eventName, int force=0)
const Event *	getEvent (const char *eventName)
int	listEvents (List &list)
int	listEvents (List &list) const
Table creation
These methods should normally not be used in an application as the result will not be visible from the MySQL Server
int	createTable (const Table &table)
int	createTable (const Table &table, ObjectId *objid)
int	optimizeTable (const Table &t, OptimizeTableHandle &h)
int	optimizeIndex (const Index &ind, OptimizeIndexHandle &h)
int	dropTable (Table &table)
int	dropTable (const char *name)
bool	supportedAlterTable (const Table &f, const Table &t)
int	alterTable (const Table &f, const Table &t)
void	invalidateTable (const char *name)
void	removeCachedTable (const char *table)
void	removeCachedIndex (const char index, const char table)
Index creation
These methods should normally not be used in an application as the result will not be visible from the MySQL Server
int	createIndex (const Index &index, bool offline=false)
int	createIndex (const Index &index, const Table &table, bool offline=false)
int	dropIndex (const char indexName, const char tableName)
int	updateIndexStat (const Index &, const Table &)
int	updateIndexStat (Uint32 indexId, Uint32 indexVersion, Uint32 tableId)
int	deleteIndexStat (const Index &, const Table &)
int	deleteIndexStat (Uint32 indexId, Uint32 indexVersion, Uint32 tableId)
void	removeCachedTable (const Table *table)
void	removeCachedIndex (const Index *index)
void	invalidateTable (const Table *table)
void	invalidateIndex (const char indexName, const char tableName)
void	invalidateIndex (const Index *index)
int	forceGCPWait ()
int	forceGCPWait (int type)
int	getRestartGCI (Uint32 *gci)
HashMap
int	createHashMap (const HashMap &, ObjectId *=0)
int	getHashMap (HashMap &dst, const char *name)
int	getHashMap (HashMap &dst, const Table *table)
int	getDefaultHashMap (HashMap &dst, Uint32 fragments)
int	initDefaultHashMap (HashMap &dst, Uint32 fragments)
int	prepareHashMap (const Table &oldTable, Table &newTable)

Protected Member Functions
	Dictionary (Ndb &ndb)

Friends
class	NdbDictionaryImpl
class	UtilTransactions
class	NdbBlob

Disk data objects
enum	{ WarnUndobufferRoundUp = 0x1, WarnUndofileRoundDown = 0x2, WarnExtentRoundUp = 0x4, WarnDatafileRoundDown = 0x8, WarnDatafileRoundUp = 0x10 }
int	createLogfileGroup (const LogfileGroup &, ObjectId *=0)
int	dropLogfileGroup (const LogfileGroup &)
LogfileGroup	getLogfileGroup (const char *name)
int	createTablespace (const Tablespace &, ObjectId *=0)
int	dropTablespace (const Tablespace &)
Tablespace	getTablespace (const char *name)
Tablespace	getTablespace (Uint32 tablespaceId)
int	createDatafile (const Datafile &, bool overwrite_existing=false, ObjectId *=0)
int	dropDatafile (const Datafile &)
Datafile	getDatafile (Uint32 node, const char *path)
int	createUndofile (const Undofile &, bool overwrite_existing=false, ObjectId *=0)
int	dropUndofile (const Undofile &)
Undofile	getUndofile (Uint32 node, const char *path)

Schema transactions
Metadata operations are create, alter, and drop of objects of various types. An operation may create additional sub-operations in the kernel. By default, each user operation is executed separately. That is, a schema transaction is started implicitly, the operation and its suboperations are executed, and the transaction is closed. The Ndb object and its associated Dictionary support one schema transaction at a time. Using begin and end transaction explicitly it is possible to execute a set of user defined operations atomically i.e. either all operations succeed or all are aborted (rolled back). The steps are 1) beginSchemaTrans 2) submit operations such as createTable 3) endSchemaTrans. Each operation is sent to the kernel which parses and saves it. Parse failure does rollback to previous user operation before returning. The user can continue or abort entire transaction. After all operations have been submitted, endSchemaTrans with flags 0 (the default) processes and commits them. On error return the transaction is already aborted. If the user exits before calling endSchemaTrans, the kernel aborts the transaction. If the user exits before the call to endSchemaTrans returns, the kernel continues with the request. Completion status is reported in cluster log.
enum	SchemaTransFlag { SchemaTransAbort = 1, SchemaTransBackground = 2 }
int	beginSchemaTrans ()
int	endSchemaTrans (Uint32 flags=0)
bool	hasSchemaTrans () const

Detailed Description

Dictionary for defining and retreiving meta data.

Definition at line 2048 of file NdbDictionary.hpp.

Member Enumeration Documentation

enum NdbDictionary::Dictionary::SchemaTransFlag

Flags for endSchemaTrans, or-ed together.

Definition at line 2540 of file NdbDictionary.hpp.

Member Function Documentation

int NdbDictionary::Dictionary::alterTable	(	const Table &	f,
		const Table &	t
	)

Alter defined table given defined Table instance

Parameters

f	Table to alter
t	New definition of table

Returns: -2 (incompatible version)
-1 general error
0 success

Definition at line 2250 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::beginSchemaTrans ( )

Begin schema transaction. Returns error if a transaction is already active or if the kernel metadata is locked.

Returns: 0 on success, -1 on error

Definition at line 3603 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::createEvent ( const Event & event )

Create event given defined Event instance

Parameters

event Event to create

Returns: 0 if successful otherwise -1.

Definition at line 2730 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Dictionary::createHashMap	(	const HashMap &	map,
		ObjectId *	dst = `0`
	)

Create a HashMap in database

Definition at line 3621 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::createIndex	(	const Index &	index,
		bool	offline = `false`
	)

Create index given defined Index instance

Parameters

index Index to create

Returns: 0 if successful otherwise -1.

Definition at line 2544 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::createTable ( const Table & table )

Create defined table given defined Table instance

Parameters

table Table to create

Returns: 0 if successful otherwise -1.

Definition at line 2134 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Dictionary::createTable	(	const Table &	table,
		ObjectId *	objid
	)

Create defined table given defined Table instance return ObjectId

Parameters

table Table to create

Returns: 0 if successful otherwise -1.

Definition at line 2140 of file NdbDictionary.cpp.

Here is the call graph for this function:

int NdbDictionary::Dictionary::dropEvent	(	const char *	eventName,
		int	force = `0`
	)

Drop event with given name

Parameters

eventName Name of event to drop.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbDictionaryImpl.

Definition at line 2736 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Dictionary::dropIndex	(	const char *	indexName,
		const char *	tableName
	)

Drop index with given name

Parameters

indexName	Name of index to drop.
tableName	Name of table that index belongs to.

Returns: 0 if successful otherwise -1.

Reimplemented in NdbDictionaryImpl.

Definition at line 2569 of file NdbDictionary.cpp.

Here is the caller graph for this function:

int NdbDictionary::Dictionary::dropTable ( Table & table )

Drop table given retrieved Table instance

Parameters

table Table to drop

Returns: 0 if successful otherwise -1.

Definition at line 2182 of file NdbDictionary.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbDictionary::Dictionary::dropTable ( const char * name )

Drop table given table name

Parameters

name	Name of table to drop

Returns: 0 if successful otherwise -1.

Reimplemented in NdbDictionaryImpl.

Definition at line 2222 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::endSchemaTrans ( Uint32 flags = 0 )

End schema transaction, with commit or with abort. Combines execute and close which do not exist separately. May be called and succeeds even if no transaction is active.

Note: Like any method, may overwrite current error code. First save error code from any failed operation.

Parameters

flags Bitmask of options. Default 0 commits the transaction. Including option 1 aborts the transaction. See SchemaTransFlag for others.

Returns: 0 on success, -1 on error

Reimplemented in NdbDictionaryImpl.

Definition at line 3609 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::forceGCPWait ( )

Force gcp and wait for gcp complete

Definition at line 2679 of file NdbDictionary.cpp.

const NdbDictionary::Table * NdbDictionary::Dictionary::getBlobTable	(	const Table *	table,
		const char *	col_name
	)

Given main table, get blob table.

Definition at line 2497 of file NdbDictionary.cpp.

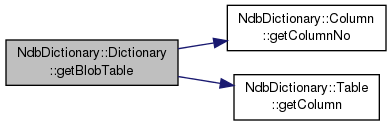

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbDictionary::Dictionary::getDefaultHashMap	(	NdbDictionary::HashMap &	dst,
		Uint32	fragments
	)

Get default HashMap

Definition at line 1894 of file NdbDictionary.cpp.

Here is the call graph for this function:

const NdbDictionary::Event * NdbDictionary::Dictionary::getEvent ( const char * eventName )

Get event with given name.

Parameters

eventName Name of event to get.

Returns: an Event if successful, otherwise NULL.

Definition at line 2742 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::getHashMap	(	NdbDictionary::HashMap &	dst,
		const char *	name
	)

Get a HashMap by name

Definition at line 1905 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::getHashMap	(	NdbDictionary::HashMap &	dst,
		const Table *	table
	)

Get a HashMap for a table

Definition at line 1912 of file NdbDictionary.cpp.

Here is the call graph for this function:

const NdbDictionary::Index * NdbDictionary::Dictionary::getIndex	(	const char *	indexName,
		const char *	tableName
	)		const

Get index with given name, NULL if undefined

Parameters

indexName	Name of index to get.
tableName	Name of table that index belongs to.

Returns: index if successful, otherwise 0.

Definition at line 2648 of file NdbDictionary.cpp.

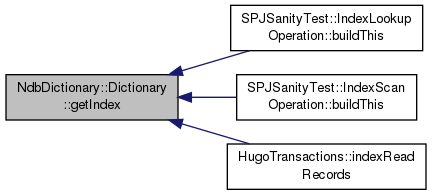

Here is the caller graph for this function:

struct NdbError & NdbDictionary::Dictionary::getNdbError ( ) const

read

Get the latest error

Returns: Error object.

Reimplemented in NdbDictionaryImpl.

Definition at line 2816 of file NdbDictionary.cpp.

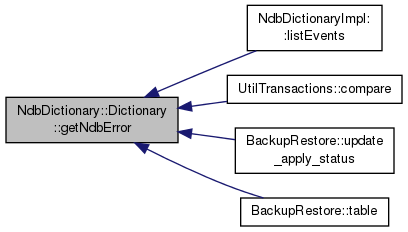

Here is the caller graph for this function:

int NdbDictionary::Dictionary::getRestartGCI ( Uint32 * gci )

Get restart gci

Reimplemented in NdbDictionaryImpl.

Definition at line 2691 of file NdbDictionary.cpp.

const NdbDictionary::Table * NdbDictionary::Dictionary::getTable ( const char * name ) const

Get table with given name, NULL if undefined

Parameters

name	Name of table to get

Returns: table if successful otherwise NULL.

Definition at line 2491 of file NdbDictionary.cpp.

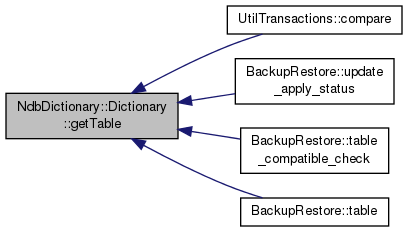

Here is the caller graph for this function:

int NdbDictionary::Dictionary::getWarningFlags ( ) const

Get warning flags. The value is valid only if the operation did not return an error and can return warnings. The flags are specific to the operation.

Definition at line 2821 of file NdbDictionary.cpp.

bool NdbDictionary::Dictionary::hasSchemaTrans ( ) const

Check if a schema transaction exists currently.

Reimplemented in NdbDictionaryImpl.

Definition at line 3615 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::initDefaultHashMap	(	NdbDictionary::HashMap &	dst,
		Uint32	fragments
	)

Init a default HashMap

Definition at line 1926 of file NdbDictionary.cpp.

Here is the call graph for this function:

void NdbDictionary::Dictionary::invalidateIndex	(	const char *	indexName,
		const char *	tableName
	)

Invalidate cached index object

Definition at line 2667 of file NdbDictionary.cpp.

void NdbDictionary::Dictionary::invalidateTable ( const char * name )

Invalidate cached table object

Parameters

name	Name of table to invalidate

Definition at line 2516 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::listEvents ( List & list )

List defined events

Parameters

list	List of events returned in the dictionary

Returns: 0 if successful otherwise -1.

Reimplemented in NdbDictionaryImpl.

Definition at line 2751 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::listIndexes	(	List &	list,
		const char *	tableName
	)

Fetch list of indexes of given table.

Parameters

list	Reference to list where to store the listed indexes
tableName	Name of table that index belongs to.

Returns: 0 if successful, otherwise -1

Definition at line 2789 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::listIndexes	(	List &	list,
		const Table &	table
	)		const

Fetch list of indexes of given table.

Parameters

list	Reference to list where to store the listed indexes
table	Reference to table that index belongs to.

Returns: 0 if successful, otherwise -1

Definition at line 2809 of file NdbDictionary.cpp.

Here is the call graph for this function:

int NdbDictionary::Dictionary::listObjects	(	List &	list,
		Object::Type	type = `Object::TypeUndefined`
	)

Fetch list of all objects, optionally restricted to given type.

Parameters

list	List of objects returned in the dictionary
type	Restrict returned list to only contain objects of this type

Returns: -1 if error.

Definition at line 2765 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::optimizeIndex	(	const Index &	ind,
		NdbDictionary::OptimizeIndexHandle &	h
	)

Start index optimization given defined index object

Parameters

ind	Object of index to optimize
Pre-allocated	OptimizeIndexHandle

Returns: 0 if successful otherwise -1.

Definition at line 2173 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::optimizeTable	(	const Table &	t,
		OptimizeTableHandle &	h
	)

Start table optimization given defined table object

Parameters

t	Object of table to optimize
Pre-allocated	OptimizeTableHandle

Returns: 0 if successful otherwise -1.

Definition at line 2165 of file NdbDictionary.cpp.

int NdbDictionary::Dictionary::prepareHashMap	(	const Table &	oldTable,
		Table &	newTable
	)

create (or retreive) a HashMap suitable for alter NOTE: Requires a started schema transaction

reorg...we don't know how many fragments new table should have create if exist a default map...which will "know" how many fragments there are

drop partition is currently not supported... and since this is a "reorg" (newcnt == 0) we silently change it to a nop

Check if this accidently became a "default" map

Definition at line 1946 of file NdbDictionary.cpp.

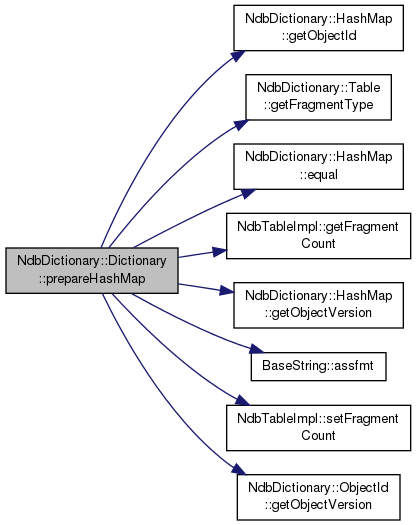

Here is the call graph for this function:

void NdbDictionary::Dictionary::removeCachedIndex	(	const char *	index,
		const char *	table
	)

Remove index from local cache

Definition at line 2706 of file NdbDictionary.cpp.

void NdbDictionary::Dictionary::removeCachedTable ( const char * table )

Remove table from local cache

Definition at line 2531 of file NdbDictionary.cpp.

bool NdbDictionary::Dictionary::supportedAlterTable	(	const Table &	f,
		const Table &	t
	)

Check if alter of table given defined Table instance to new definition is supported

Parameters

f	Table to alter
t	New definition of table

Returns: TRUE supported
FALSE not supported

Definition at line 2242 of file NdbDictionary.cpp.

The documentation for this class was generated from the following files:

storage/ndb/include/ndbapi/NdbDictionary.hpp
storage/ndb/src/ndbapi/NdbDictionary.cpp

Classes

Public Member Functions

Protected Member Functions

Friends

Disk data objects

Schema transactions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
