Inheritance diagram for st_join_table:

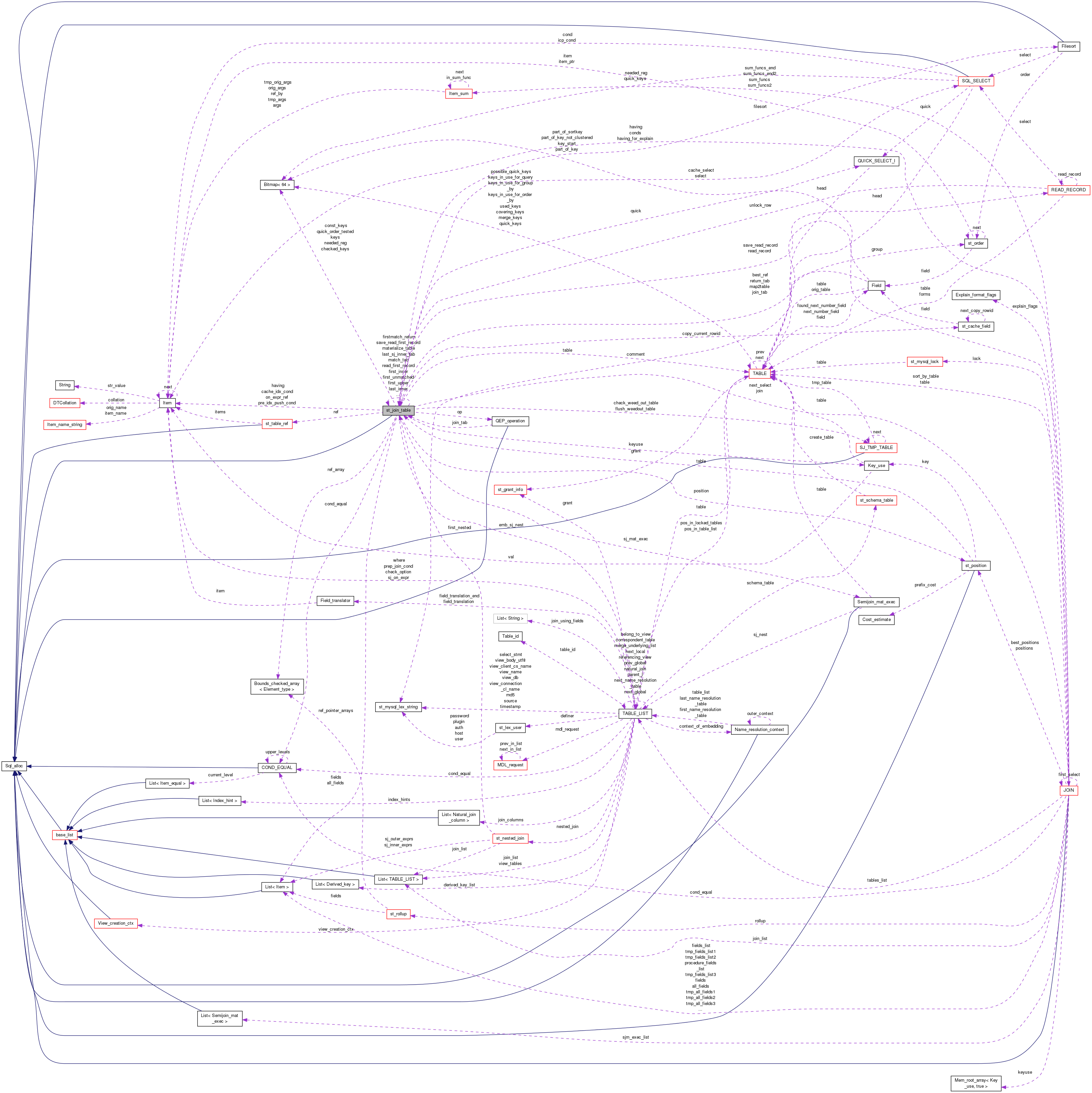

Collaboration diagram for st_join_table:

Public Member Functions
	st_join_table ()
table_map	prefix_tables () const
table_map	added_tables () const
void	set_prefix_tables (table_map prefix_tables, table_map prev_tables)
void	add_prefix_tables (table_map tables)
bool	do_firstmatch () const
	Return true if join_tab should perform a FirstMatch action.
bool	do_loosescan () const
	Return true if join_tab should perform a LooseScan action.
bool	starts_weedout () const
	Return true if join_tab starts a Duplicate Weedout action.
bool	finishes_weedout () const
	Return true if join_tab finishes a Duplicate Weedout action.
void	cleanup ()
bool	is_using_loose_index_scan ()
bool	is_using_agg_loose_index_scan ()
bool	check_rowid_field ()
bool	is_inner_table_of_outer_join ()
bool	is_single_inner_of_semi_join ()
bool	is_single_inner_of_outer_join ()
bool	is_first_inner_for_outer_join ()
Item *	condition () const
void	set_condition (Item *to, uint line)
Item *	set_jt_and_sel_condition (Item *new_cond, uint line)
uint	get_sj_strategy () const
uint	sjm_query_block_id () const
bool	and_with_condition (Item *tmp_cond, uint line)
bool	and_with_jt_and_sel_condition (Item *tmp_cond, uint line)
bool	has_guarded_conds () const
Item *	unified_condition () const
bool	prepare_scan ()
	Prepare table to be scanned.
bool	use_order () const
	Use ordering provided by chosen index?
bool	sort_table ()
bool	remove_duplicates ()

Public Attributes
TABLE *	table
POSITION *	position
Key_use *	keyuse
SQL_SELECT *	select
QUICK_SELECT_I *	quick
Item **	on_expr_ref
COND_EQUAL *	cond_equal
st_join_table *	first_inner
bool	found
bool	not_null_compl
bool	materialized
	For a materializable derived or SJ table: true if has been materialized.
st_join_table *	last_inner
st_join_table *	first_upper
st_join_table *	first_unmatched
Item *	pre_idx_push_cond
Extra_tag	info
uint	packed_info
READ_RECORD::Setup_func	materialize_table
READ_RECORD::Setup_func	read_first_record
Next_select_func	next_select
READ_RECORD	read_record
READ_RECORD::Setup_func	save_read_first_record
READ_RECORD::Read_func	save_read_record
Semijoin_mat_exec *	sj_mat_exec
double	worst_seeks
key_map	const_keys
key_map	checked_keys
key_map	needed_reg
key_map	keys
key_map	quick_order_tested
ha_rows	records
ha_rows	found_records
ha_rows	read_time
table_map	dependent
table_map	key_dependent
uint	index
	ID of index used for index scan or semijoin LooseScan.
uint	used_fields
uint	used_fieldlength
uint	used_blobs
uint	used_null_fields
uint	used_rowid_fields
uint	used_uneven_bit_fields
enum quick_type	use_quick
enum join_type	type
bool	not_used_in_distinct
ha_rows	limit
TABLE_REF	ref
uint	use_join_cache
QEP_operation *	op
Item *	cache_idx_cond
SQL_SELECT *	cache_select
JOIN *	join
TABLE_LIST *	emb_sj_nest
struct st_join_table *	first_sj_inner_tab
struct st_join_table *	last_sj_inner_tab
SJ_TMP_TABLE *	flush_weedout_table
SJ_TMP_TABLE *	check_weed_out_table
struct st_join_table *	firstmatch_return
uint	loosescan_key_len
uchar *	loosescan_buf
struct st_join_table *	match_tab
bool	found_match
int	keep_current_rowid
st_cache_field *	copy_current_rowid
nested_join_map	embedding_map
TMP_TABLE_PARAM *	tmp_table_param
Filesort *	filesort
List< Item > *	fields
List< Item > *	all_fields
Ref_ptr_array *	ref_array
ha_rows	send_records
Item *	having
bool	distinct

Additional Inherited Members
Static Public Member Functions inherited from Sql_alloc
static void *	operator new (size_t size) throw ()
static void *	operator new[] (size_t size) throw ()
static void *	operator new[] (size_t size, MEM_ROOT *mem_root) throw ()
static void *	operator new (size_t size, MEM_ROOT *mem_root) throw ()
static void	operator delete (void *ptr, size_t size)
static void	operator delete (void ptr, MEM_ROOT mem_root)
static void	operator delete[] (void ptr, MEM_ROOT mem_root)
static void	operator delete[] (void *ptr, size_t size)

Detailed Description

Definition at line 498 of file sql_select.h.

Constructor & Destructor Documentation

st_join_table::st_join_table ( )

inline

Todo:: Add constructor to READ_RECORD. All users do init_read_record(), which does memset(), rather than invoking a constructor.

Definition at line 888 of file sql_select.h.

Member Function Documentation

void st_join_table::add_prefix_tables ( table_map tables )

inline

Add an available set of tables for a table in a join plan.

Parameters

tables,: Set of tables added for this table in plan.

Definition at line 524 of file sql_select.h.

uint st_join_table::get_sj_strategy ( ) const

inline

Returns: semijoin strategy for this table.

Definition at line 852 of file sql_select.h.

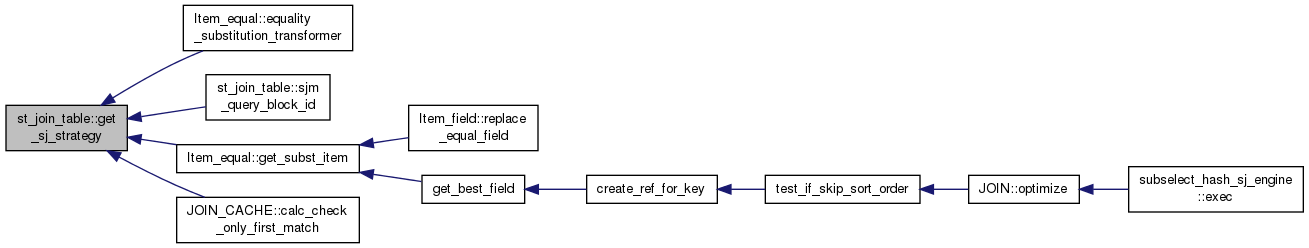

Here is the caller graph for this function:

bool st_join_table::has_guarded_conds ( ) const

inline

Check if there are triggered/guarded conditions that might be 'switched off' by the subquery code when executing 'Full scan on NULL key' subqueries.

Returns: true if there are guarded conditions, false otherwise

Definition at line 876 of file sql_select.h.

Here is the call graph for this function:

void st_join_table::set_prefix_tables	(	table_map	prefix_tables,
		table_map	prev_tables
	)

inline

Set available tables for a table in a join plan.

Parameters

prefix_tables,:	Set of tables available for this plan
prev_tables,:	Set of tables available for previous table, used to calculate set of tables added for this table.

Definition at line 513 of file sql_select.h.

Member Data Documentation

List<Item>* st_join_table::all_fields

List of all expressions in the select list

Definition at line 756 of file sql_select.h.

key_map st_join_table::checked_keys

Keys checked

Definition at line 599 of file sql_select.h.

COND_EQUAL* st_join_table::cond_equal

multiple equalities for the on expression

Definition at line 548 of file sql_select.h.

key_map st_join_table::const_keys

Keys with constant part. Subset of keys.

Definition at line 598 of file sql_select.h.

table_map st_join_table::dependent

The set of tables that this table depends on. Used for outer join and straight join dependencies.

Definition at line 629 of file sql_select.h.

bool st_join_table::distinct

TRUE <=> remove duplicates on this table.

Definition at line 770 of file sql_select.h.

List<Item>* st_join_table::fields

List of topmost expressions in the select list. The next JOIN TAB in the plan should use it to obtain correct values. Same applicable to all_fields. These lists are needed because after tmp tables functions will be turned to fields. These variables are pointing to tmp_fields_list[123]. Valid only for tmp tables and the last non-tmp table in the query plan.

See Also: JOIN::make_tmp_tables_info()

Definition at line 754 of file sql_select.h.

st_join_table* st_join_table::first_inner

first inner table for including outerjoin

Definition at line 549 of file sql_select.h.

struct st_join_table* st_join_table::first_sj_inner_tab

Boundaries of semijoin inner tables around this table. Valid only once final QEP has been chosen. Depending on the strategy, they may define an interval (all tables inside are inner of a semijoin) or not. last_sj_inner_tab is not set for Duplicates Weedout.

Definition at line 688 of file sql_select.h.

st_join_table* st_join_table::first_unmatched

used for optimization purposes only

Definition at line 556 of file sql_select.h.

st_join_table* st_join_table::first_upper

first inner table for embedding outer join

Definition at line 555 of file sql_select.h.

bool st_join_table::found

true after all matches or null complement

Definition at line 550 of file sql_select.h.

Item* st_join_table::having

HAVING condition for checking prior saving a record into tmp table

Definition at line 767 of file sql_select.h.

table_map st_join_table::key_dependent

The set of tables that are referenced by key from this table.

Definition at line 633 of file sql_select.h.

key_map st_join_table::keys

all keys with can be used

Definition at line 601 of file sql_select.h.

Key_use* st_join_table::keyuse

pointer to first used key

Definition at line 541 of file sql_select.h.

st_join_table* st_join_table::last_inner

last table table for embedding outer join

Definition at line 554 of file sql_select.h.

bool st_join_table::not_null_compl

true before null complement is added

Definition at line 551 of file sql_select.h.

Item** st_join_table::on_expr_ref

pointer to the associated on expression

Definition at line 547 of file sql_select.h.

POSITION* st_join_table::position

points into best_positions array

Definition at line 540 of file sql_select.h.

key_map st_join_table::quick_order_tested

Used to avoid repeated range analysis for the same key in test_if_skip_sort_order(). This would otherwise happen if the best range access plan found for a key is turned down. quick_order_tested is cleared every time the select condition for this JOIN_TAB changes since a new condition may give another plan and cost from range analysis.

Definition at line 610 of file sql_select.h.

READ_RECORD::Setup_func st_join_table::read_first_record

Initialize table for reading and fetch the first row from the table. If table is a materialized derived one, function must materialize it with prepare_scan().

Definition at line 580 of file sql_select.h.

ha_rows st_join_table::send_records

Number of records saved in tmp table

Definition at line 764 of file sql_select.h.

Semijoin_mat_exec* st_join_table::sj_mat_exec

Struct needed for materialization of semi-join. Set for a materialized temporary table, and NULL for all other join_tabs (except when materialization is in progress,

See Also: join_materialize_semijoin()).

Definition at line 595 of file sql_select.h.

uint st_join_table::use_join_cache

Join buffering strategy. After optimization it contains chosen join buffering strategy (if any).

Definition at line 666 of file sql_select.h.

The documentation for this struct was generated from the following files:
