MySQL 5.6.14 Source Code Document
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
sql_select.h File Reference

classes to use when handling where clause More...

#include "procedure.h"
#include <myisam.h>
#include "sql_array.h"
#include "records.h"
#include "opt_range.h"
#include "filesort.h"
#include "mem_root_array.h"
#include "sql_executor.h"
#include "opt_explain_format.h"
#include <functional>

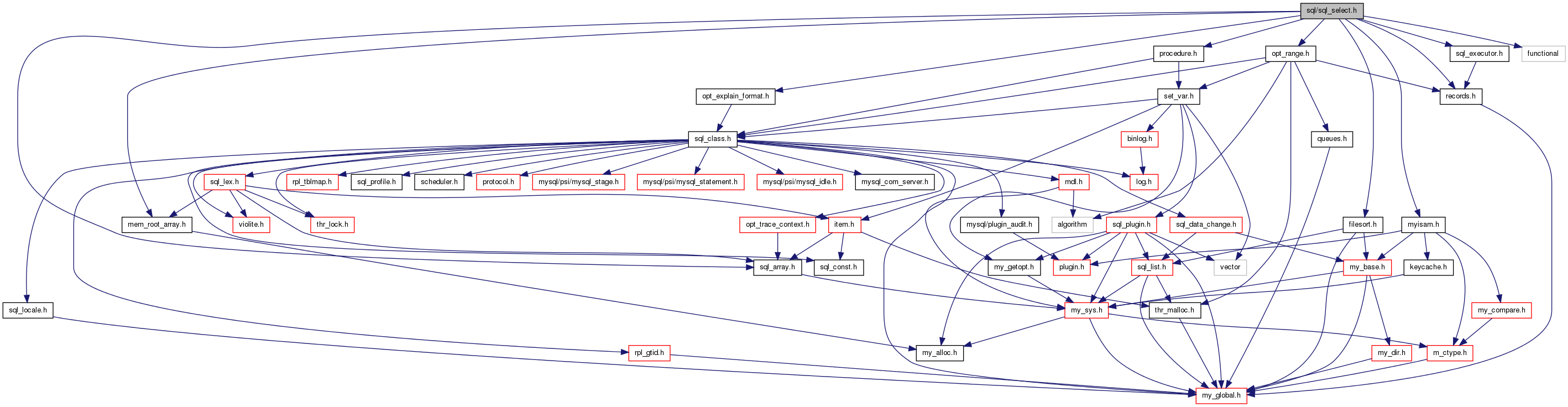

Include dependency graph for sql_select.h:

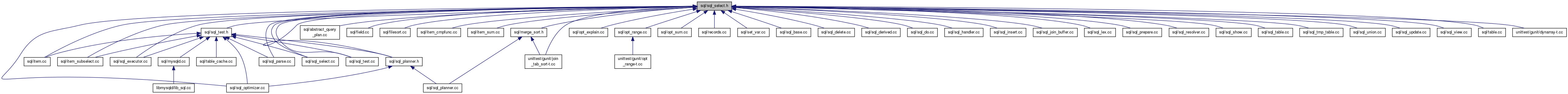

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  Key_use
struct  st_table_ref
struct  st_position
struct  st_join_table
class  Join_tab_compare_default
class  Join_tab_compare_straight
class  Join_tab_compare_embedded_first
struct  st_select_check
class  store_key
class  store_key_field
class  store_key_item
class  store_key_const_item

Macros

#define LOWER_BITS(type, A)   ((type) (((type) 1 << (A)) -1))
#define KEY_OPTIMIZE_EXISTS   1
#define KEY_OPTIMIZE_REF_OR_NULL   2
#define FT_KEYPART   (MAX_REF_PARTS+10)
#define TAB_INFO_HAVE_VALUE   1
#define TAB_INFO_USING_INDEX   2
#define TAB_INFO_USING_WHERE   4
#define TAB_INFO_FULL_SCAN_ON_NULL   8
#define SJ_OPT_NONE   0
#define SJ_OPT_DUPS_WEEDOUT   1
#define SJ_OPT_LOOSE_SCAN   2
#define SJ_OPT_FIRST_MATCH   3
#define SJ_OPT_MATERIALIZE_LOOKUP   4
#define SJ_OPT_MATERIALIZE_SCAN   5

Typedefs

typedef Mem_root_array
< Key_use, true >
Key_use_array
typedef st_table_ref TABLE_REF
typedef st_position POSITION
typedef st_join_table JOIN_TAB
typedef Bounds_checked_array
< Item_null_result * >
Item_null_array
typedef struct st_select_check SELECT_CHECK

Enumerations

enum  join_type {
  JT_UNKNOWN, JT_SYSTEM, JT_CONST, JT_EQ_REF,
  JT_REF, JT_ALL, JT_RANGE, JT_INDEX_SCAN,
  JT_FT, JT_REF_OR_NULL, JT_UNIQUE_SUBQUERY, JT_INDEX_SUBQUERY,
  JT_INDEX_MERGE
}
enum  quick_type { QS_NONE, QS_RANGE, QS_DYNAMIC_RANGE }

Functions

bool sj_is_materialize_strategy (uint strategy)
void count_field_types (SELECT_LEX *select_lex, TMP_TABLE_PARAM *param, List< Item > &fields, bool reset_with_sum_func)
uint find_shortest_key (TABLE *table, const key_map *usable_keys)
bool simple_pred (Item_func *func_item, Item **args, bool *inv_order)
int opt_sum_query (THD *thd, TABLE_LIST *tables, List< Item > &all_fields, Item *conds)
int refpos_order_cmp (const void *arg, const void *a, const void *b)
bool error_if_full_join (JOIN *join)
bool handle_select (THD *thd, select_result *result, ulong setup_tables_done_option)
bool mysql_select (THD *thd, TABLE_LIST *tables, uint wild_num, List< Item > &list, Item *conds, SQL_I_List< ORDER > *order, SQL_I_List< ORDER > *group, Item *having, ulonglong select_type, select_result *result, SELECT_LEX_UNIT *unit, SELECT_LEX *select_lex)
void free_underlaid_joins (THD *thd, SELECT_LEX *select)
void calc_used_field_length (THD *thd, JOIN_TAB *join_tab)
bool optimizer_flag (THD *thd, uint flag)
uint get_index_for_order (ORDER *order, TABLE *table, SQL_SELECT *select, ha_rows limit, bool *need_sort, bool *reverse)
ORDERsimple_remove_const (ORDER *order, Item *where)
bool const_expression_in_where (Item *cond, Item *comp_item, Field *comp_field=NULL, Item **const_item=NULL)
bool test_if_subpart (ORDER *a, ORDER *b)
void calc_group_buffer (JOIN *join, ORDER *group)
bool test_if_skip_sort_order (JOIN_TAB *tab, ORDER *order, ha_rows select_limit, const bool no_changes, const key_map *map, const char *clause_type)
bool make_join_readinfo (JOIN *join, ulonglong options, uint no_jbuf_after)
bool create_ref_for_key (JOIN *join, JOIN_TAB *j, Key_use *org_keyuse, table_map used_tables)
bool types_allow_materialization (Item *outer, Item *inner)
 Check if two items are compatible wrt. materialization.
bool and_conditions (Item **e1, Item *e2)
uint actual_key_parts (KEY *key_info)
uint actual_key_flags (KEY *key_info)
int test_if_order_by_key (ORDER *order, TABLE *table, uint idx, uint *used_key_parts=NULL)

Detailed Description

classes to use when handling where clause

Definition in file sql_select.h.

Macro Definition Documentation

#define LOWER_BITS (   type,
  A
)    ((type) (((type) 1 << (A)) -1))

Returns a constant of type 'type' with the 'A' lowest-weight bits set. Example: LOWER_BITS(uint, 3) == 7. Requirement: A < sizeof(type) * 8.

Definition at line 44 of file sql_select.h.

Typedef Documentation

A position of table within a join order. This structure is primarily used as a part of join->positions and join->best_positions arrays.

One POSITION element contains information about:

  • Which table is accessed
  • Which access method was chosen = Its cost and #of output records
  • Semi-join strategy choice. Note that there are two different representation formats:
    1. The one used during join optimization
    2. The one used at plan refinement/code generation stage. We call fix_semijoin_strategies_for_picked_join_order() to switch between #1 and #2. See that function's comment for more details.
  • Semi-join optimization state. When we're running join optimization, we main a state for every semi-join strategy which are various variables that tell us if/at which point we could consider applying the strategy. The variables are really a function of join prefix but they are too expensive to re-caclulate for every join prefix we consider, so we maintain current state in join->positions[#tables_in_prefix]. See advance_sj_state() for details.

This class has to stay a POD, because it is memcpy'd in many places.

Enumeration Type Documentation

enum quick_type

Bits describing quick select type

Definition at line 332 of file sql_select.h.

Function Documentation

int opt_sum_query ( THD *  thd,
TABLE_LIST tables,
List< Item > &  all_fields,
Item conds
)

Substitutes constants for some COUNT(), MIN() and MAX() functions.

Parameters
thdthread handler
tableslist of leaves of join table tree
all_fieldsAll fields to be returned
condsWHERE clause
Note
This function is only called for queries with aggregate functions and no GROUP BY part. This means that the result set shall contain a single row only
Return values
0no errors
1if all items were resolved
HA_ERR_KEY_NOT_FOUNDon impossible conditions
HA_ERR_...if a deadlock or a lock wait timeout happens, for example
ER_...e.g. ER_SUBQUERY_NO_1_ROW

Definition at line 237 of file opt_sum.cc.

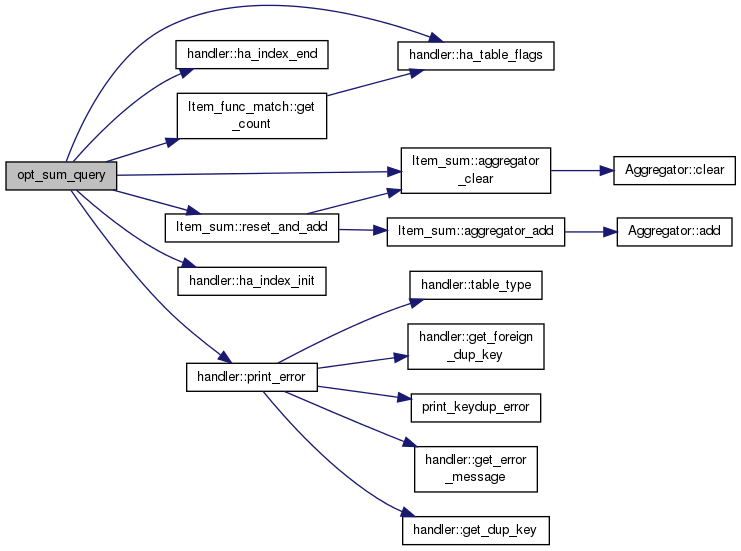

Here is the call graph for this function:

Here is the caller graph for this function:

bool simple_pred ( Item_func func_item,
Item **  args,
bool *  inv_order
)

Test if the predicate compares a field with constants.

Parameters
func_itemPredicate item
[out]argsHere we store the field followed by constants
[out]inv_orderIs set to 1 if the predicate is of the form 'const op field'
Return values
0func_item is a simple predicate: a field is compared with constants
1Otherwise

Definition at line 527 of file opt_sum.cc.
