#include "univ.i"
#include "data0data.h"
#include "que0types.h"
#include "dict0types.h"
#include "trx0types.h"
#include "row0types.h"
#include "row0ins.ic"

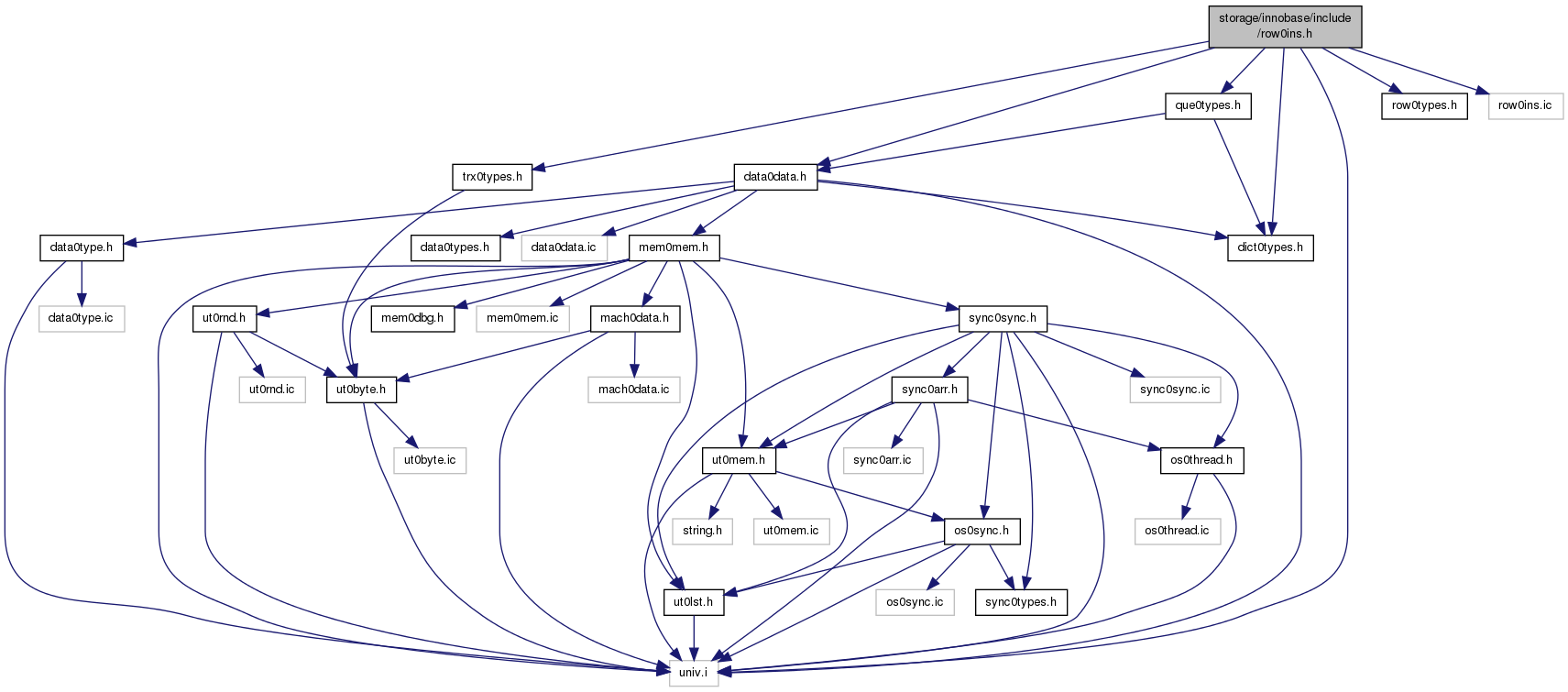

Include dependency graph for row0ins.h:

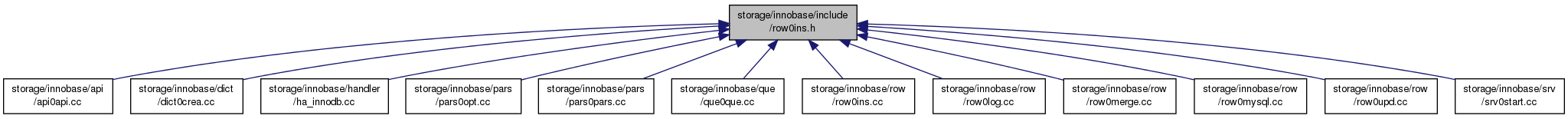

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ins_node_t

Macros
#define	row_ins_index_entry_big_rec(e, big, ofs, heap, index, thd, file, line) row_ins_index_entry_big_rec_func(e,big,ofs,heap,index,file,thd,line)
#define	INS_NODE_MAGIC_N 15849075
#define	INS_SEARCHED 0 /* INSERT INTO ... SELECT ... */
#define	INS_VALUES 1 /* INSERT INTO ... VALUES ... */
#define	INS_DIRECT
#define	INS_NODE_SET_IX_LOCK 1 /* we should set an IX lock on table */
#define	INS_NODE_ALLOC_ROW_ID 2 /* row id should be allocated */
#define	INS_NODE_INSERT_ENTRIES

Functions
UNIV_INTERN dberr_t	row_ins_check_foreign_constraint (ibool check_ref, dict_foreign_t foreign, dict_table_t table, dtuple_t entry, que_thr_t thr) __attribute__((nonnull
UNIV_INTERN ins_node_t *	ins_node_create (ulint ins_type, dict_table_t table, mem_heap_t heap)
UNIV_INTERN void	ins_node_set_new_row (ins_node_t node, dtuple_t row)
UNIV_INTERN dberr_t	row_ins_clust_index_entry_low (ulint flags, ulint mode, dict_index_t index, ulint n_uniq, dtuple_t entry, ulint n_ext, que_thr_t *thr) __attribute__((nonnull
UNIV_INTERN dberr_t	row_ins_sec_index_entry_low (ulint flags, ulint mode, dict_index_t index, mem_heap_t offsets_heap, mem_heap_t heap, dtuple_t entry, trx_id_t trx_id, que_thr_t *thr) __attribute__((nonnull
UNIV_INTERN dberr_t	row_ins_index_entry_big_rec_func (const dtuple_t entry, const big_rec_t big_rec, ulint offsets, mem_heap_t heap, dict_index_t index, const char file, const void thd, ulint line) __attribute__((nonnull(1
UNIV_INTERN dberr_t	row_ins_clust_index_entry (dict_index_t index, dtuple_t entry, que_thr_t *thr, ulint n_ext) __attribute__((nonnull
UNIV_INTERN dberr_t	row_ins_sec_index_entry (dict_index_t index, dtuple_t entry, que_thr_t *thr) __attribute__((nonnull
UNIV_INTERN que_thr_t *	row_ins_step (que_thr_t *thr)

Variables
UNIV_INTERN dberr_t	warn_unused_result

Detailed Description

Insert into a table

Created 4/20/1996 Heikki Tuuri

Definition in file row0ins.h.

Macro Definition Documentation

#define INS_DIRECT

Value:

2 /* this is for internal use in dict0crea:

insert the row directly */

Definition at line 227 of file row0ins.h.

#define INS_NODE_INSERT_ENTRIES

Value:

3 /* index entries should be built and

inserted */

Definition at line 232 of file row0ins.h.

Function Documentation

UNIV_INTERN ins_node_t* ins_node_create	(	ulint	ins_type,
		dict_table_t *	table,
		mem_heap_t *	heap
	)

Creates an insert node struct.

Returns: own: insert node struct in: mem heap where created

Creates an insert node struct.

Returns: own: insert node struct

Parameters

ins_type	in: INS_VALUES, ...
table	in: table where to insert
heap	in: mem heap where created

Definition at line 71 of file row0ins.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void ins_node_set_new_row	(	ins_node_t *	node,
		dtuple_t *	row
	)

Sets a new row to insert for an INS_DIRECT node. This function is only used if we have constructed the row separately, which is a rare case; this function is quite slow. in: new row (or first row) for the node

Sets a new row to insert for an INS_DIRECT node. This function is only used if we have constructed the row separately, which is a rare case; this function is quite slow.

Parameters

node	in: insert node
row	in: new row (or first row) for the node

Definition at line 193 of file row0ins.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_ins_check_foreign_constraint	(	ibool	check_ref,
		dict_foreign_t *	foreign,
		dict_table_t *	table,
		dtuple_t *	entry,
		que_thr_t *	thr
	)

Checks if foreign key constraint fails for an index entry. Sets shared locks which lock either the success or the failure of the constraint. NOTE that the caller must have a shared latch on dict_foreign_key_check_lock.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_NO_REFERENCED_ROW, or DB_ROW_IS_REFERENCED

Parameters

check_ref	in: TRUE If we want to check that the referenced table is ok, FALSE if we want to check the foreign key table
foreign	in: foreign constraint; NOTE that the tables mentioned in it must be in the dictionary cache if they exist at all
table	in: if check_ref is TRUE, then the foreign table, else the referenced table
entry	in: index entry for index
thr	in: query thread

UNIV_INTERN dberr_t row_ins_clust_index_entry	(	dict_index_t *	index,
		dtuple_t *	entry,
		que_thr_t *	thr,
		ulint	n_ext
	)

Inserts an entry into a clustered index. Tries first optimistic, then pessimistic descent down the tree. If the entry matches enough to a delete marked record, performs the insert by updating or delete unmarking the delete marked record.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DUPLICATE_KEY, or some other error code

Parameters

index	in: clustered index
entry	in/out: index entry to insert
thr	in: query thread
n_ext	in: number of externally stored columns

UNIV_INTERN dberr_t row_ins_clust_index_entry_low	(	ulint	flags,
		ulint	mode,
		dict_index_t *	index,
		ulint	n_uniq,
		dtuple_t *	entry,
		ulint	n_ext,
		que_thr_t *	thr
	)

Tries to insert an entry into a clustered index, ignoring foreign key constraints. If a record with the same unique key is found, the other record is necessarily marked deleted by a committed transaction, or a unique key violation error occurs. The delete marked record is then updated to an existing record, and we must write an undo log record on the delete marked record.

Return values

DB_SUCCESS	on success
DB_LOCK_WAIT	on lock wait when !(flags & BTR_NO_LOCKING_FLAG)
DB_FAIL	if retry with BTR_MODIFY_TREE is needed

Returns: error code

Parameters

flags	in: undo logging and locking flags
mode	in: BTR_MODIFY_LEAF or BTR_MODIFY_TREE, depending on whether we wish optimistic or pessimistic descent down the index tree
index	in: clustered index
n_uniq	in: 0 or index->n_uniq
entry	in/out: index entry to insert
n_ext	in: number of externally stored columns
thr	in: query thread or NULL

UNIV_INTERN dberr_t row_ins_index_entry_big_rec_func	(	const dtuple_t *	entry,
		const big_rec_t *	big_rec,
		ulint *	offsets,
		mem_heap_t **	heap,
		dict_index_t *	index,
		const char *	file,
		const void *	thd,
		ulint	line
	)

Tries to insert the externally stored fields (off-page columns) of a clustered index entry.

Returns: DB_SUCCESS or DB_OUT_OF_FILE_SPACE

Parameters

entry	in/out: index entry to insert
big_rec	in: externally stored fields
offsets	in/out: rec offsets
heap	in/out: memory heap
index	in: index
file	in: file name of caller
thd	in: connection, or NULL
line	in: line number of caller

UNIV_INTERN dberr_t row_ins_sec_index_entry	(	dict_index_t *	index,
		dtuple_t *	entry,
		que_thr_t *	thr
	)

Inserts an entry into a secondary index. Tries first optimistic, then pessimistic descent down the tree. If the entry matches enough to a delete marked record, performs the insert by updating or delete unmarking the delete marked record.

Returns: DB_SUCCESS, DB_LOCK_WAIT, DB_DUPLICATE_KEY, or some other error code

Parameters

index	in: secondary index
entry	in/out: index entry to insert
thr	in: query thread

UNIV_INTERN dberr_t row_ins_sec_index_entry_low	(	ulint	flags,
		ulint	mode,
		dict_index_t *	index,
		mem_heap_t *	offsets_heap,
		mem_heap_t *	heap,
		dtuple_t *	entry,
		trx_id_t	trx_id,
		que_thr_t *	thr
	)

Tries to insert an entry into a secondary index. If a record with exactly the same fields is found, the other record is necessarily marked deleted. It is then unmarked. Otherwise, the entry is just inserted to the index.

Return values

DB_SUCCESS	on success
DB_LOCK_WAIT	on lock wait when !(flags & BTR_NO_LOCKING_FLAG)
DB_FAIL	if retry with BTR_MODIFY_TREE is needed

Returns: error code

Parameters

flags	in: undo logging and locking flags
mode	in: BTR_MODIFY_LEAF or BTR_MODIFY_TREE, depending on whether we wish optimistic or pessimistic descent down the index tree
index	in: secondary index
offsets_heap	in/out: memory heap that can be emptied
heap	in/out: memory heap
entry	in/out: index entry to insert
trx_id	in: PAGE_MAX_TRX_ID during row_log_table_apply(), or 0
thr	in: query thread

UNIV_INTERN que_thr_t* row_ins_step ( que_thr_t * thr )

Inserts a row to a table. This is a high-level function used in SQL execution graphs.

Returns: query thread to run next or NULL in: query thread

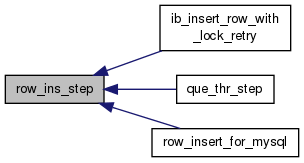

Here is the caller graph for this function:
