#include "api0api.h"
#include "innodb_engine.h"
#include "assert.h"
#include "handler_api.h"

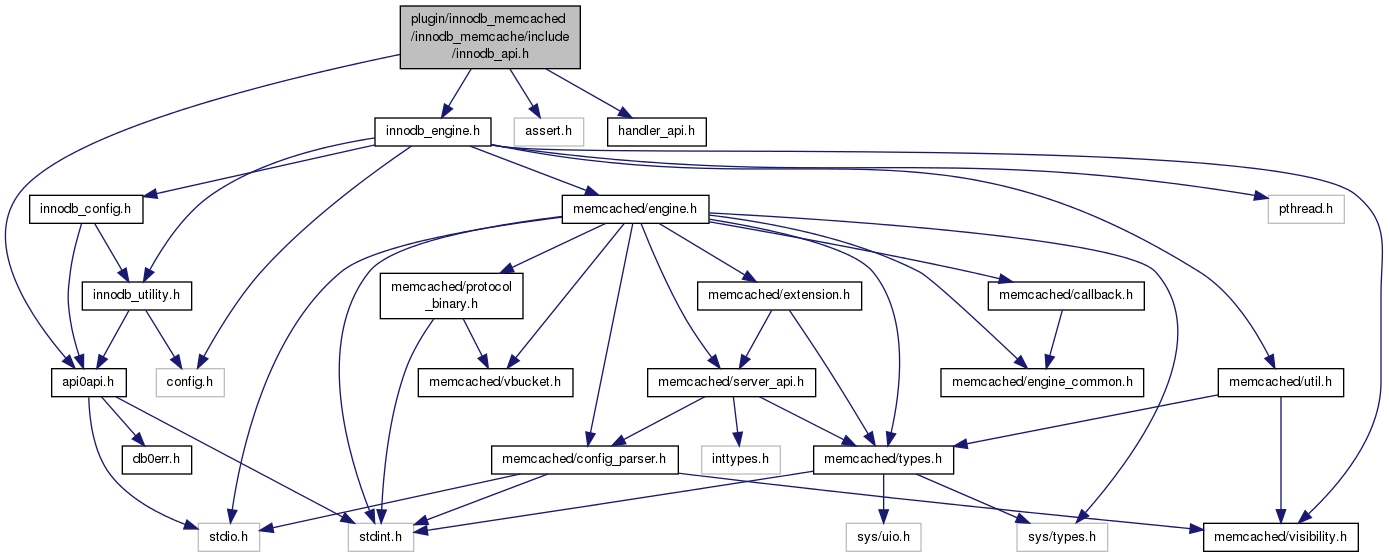

Include dependency graph for innodb_api.h:

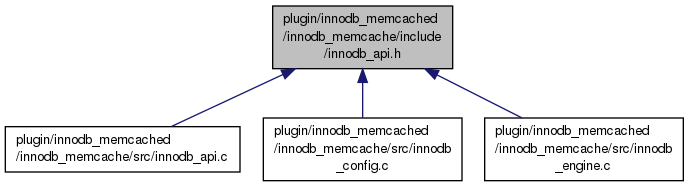

This graph shows which files directly or indirectly include this file:

Classes
struct	mci_column
struct	mci_item

Macros
#define	LOCK_CONN_IF_NOT_LOCKED(has_lock, engine)
#define	UNLOCK_CONN_IF_NOT_LOCKED(has_lock, engine)
#define	LOCK_CURRENT_CONN_IF_NOT_LOCKED(has_lock, conn)
#define	UNLOCK_CURRENT_CONN_IF_NOT_LOCKED(has_lock, conn)
#define	MCI_COL_TO_GET 5

Typedefs
typedef enum mci_col	mci_col_t
typedef struct mci_column	mci_column_t
typedef struct mci_item	mci_item_t
typedef enum conn_op_type	conn_op_type_t

Enumerations
enum	mci_col { MCI_COL_KEY, MCI_COL_VALUE, MCI_COL_FLAG, MCI_COL_CAS, MCI_COL_EXP }
enum	conn_op_type { CONN_OP_READ, CONN_OP_WRITE, CONN_OP_DELETE, CONN_OP_FLUSH }

Functions
void	register_innodb_cb (void *p)
ib_err_t	innodb_api_begin (innodb_engine_t engine, const char dbname, const char name, innodb_conn_data_t conn_data, ib_trx_t ib_trx, ib_crsr_t crsr, ib_crsr_t idx_crsr, ib_lck_mode_t lock_mode)
ib_err_t	innodb_api_search (innodb_conn_data_t cursor_data, ib_crsr_t crsr, const char key, int len, mci_item_t item, ib_tpl_t *r_tpl, bool sel_only)
ib_err_t	innodb_api_insert (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, uint32_t val_len, uint64_t exp, uint64_t cas, uint64_t flags)
ENGINE_ERROR_CODE	innodb_api_delete (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char *key, int len)
ENGINE_ERROR_CODE	innodb_api_arithmetic (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, int delta, bool increment, uint64_t cas, rel_time_t exp_time, bool create, uint64_t initial, uint64_t *result)
ENGINE_ERROR_CODE	innodb_api_store (innodb_engine_t engine, innodb_conn_data_t cursor_data, const char key, int len, uint32_t val_len, uint64_t exp, uint64_t cas, uint64_t input_cas, uint64_t flags, ENGINE_STORE_OPERATION op)
ENGINE_ERROR_CODE	innodb_api_flush (innodb_engine_t engine, innodb_conn_data_t conn_data, const char dbname, const char name)
uint64_t	mci_get_time (void)
void	innodb_api_cursor_reset (innodb_engine_t engine, innodb_conn_data_t conn_data, conn_op_type_t op_type, bool commit)
bool	innodb_reset_conn (innodb_conn_data_t *conn_data, bool has_lock, bool commit, bool has_binlog)
ib_err_t	innodb_verify_low (meta_cfg_info_t *info, ib_crsr_t crsr, bool runtime)
ib_err_t	innodb_cb_cursor_close (ib_crsr_t ib_crsr)
ib_trx_t	innodb_cb_trx_begin (ib_trx_level_t ib_trx_level)
ib_err_t	innodb_cb_trx_commit (ib_trx_t ib_trx)
ib_err_t	innodb_cb_close_thd (void *thd)
ib_err_t	innodb_cb_cursor_new_trx (ib_crsr_t ib_crsr, ib_trx_t ib_trx)
ib_err_t	innodb_cb_cursor_lock (innodb_engine_t *eng, ib_crsr_t ib_crsr, ib_lck_mode_t ib_lck_mode)
ib_tpl_t	innodb_cb_read_tuple_create (ib_crsr_t ib_crsr)
ib_err_t	innodb_cb_cursor_first (ib_crsr_t ib_crsr)
ib_err_t	innodb_cb_read_row (ib_crsr_t ib_crsr, ib_tpl_t ib_tpl)
ib_ulint_t	innodb_cb_col_get_meta (ib_tpl_t ib_tpl, ib_ulint_t i, ib_col_meta_t *ib_col_meta)
void	innodb_cb_tuple_delete (ib_tpl_t ib_tpl)
ib_ulint_t	innodb_cb_tuple_get_n_cols (const ib_tpl_t ib_tpl)
const void *	innodb_cb_col_get_value (ib_tpl_t ib_tpl, ib_ulint_t i)
ib_err_t	innodb_cb_open_table (const char name, ib_trx_t ib_trx, ib_crsr_t ib_crsr)
char *	innodb_cb_col_get_name (ib_crsr_t ib_crsr, ib_ulint_t i)
ib_err_t	innodb_cb_cursor_open_index_using_name (ib_crsr_t ib_open_crsr, const char index_name, ib_crsr_t ib_crsr, int idx_type, ib_id_u64_t idx_id)
int	innodb_cb_get_cfg ()

Detailed Description

Created 03/15/2011 Jimmy Yang

Definition in file innodb_api.h.

Macro Definition Documentation

#define LOCK_CONN_IF_NOT_LOCKED	(	has_lock,
		engine
	)

Value:

if (!(has_lock)) {                                      \
                pthread_mutex_lock(&(engine)->conn_mutex);      \
        }

Macros to lock/unlock the engine connection mutex

Definition at line 34 of file innodb_api.h.

#define LOCK_CURRENT_CONN_IF_NOT_LOCKED	(	has_lock,
		conn
	)

Value:

if (!(has_lock)) {                                      \
                pthread_mutex_lock(&(conn)->curr_conn_mutex);   \
        }

Macros to lock/unlock the connection mutex, used for any

connection specific operations

Definition at line 46 of file innodb_api.h.

#define MCI_COL_TO_GET 5

We would need to fetch 5 column values from each key value rows if they

are available. They are the "key", "value", "cas", "exp" and "flag"

Definition at line 58 of file innodb_api.h.

#define UNLOCK_CONN_IF_NOT_LOCKED	(	has_lock,
		engine
	)

Value:

if (!(has_lock)) {                                      \
                pthread_mutex_unlock(&(engine)->conn_mutex);    \
        }

Definition at line 39 of file innodb_api.h.

#define UNLOCK_CURRENT_CONN_IF_NOT_LOCKED	(	has_lock,
		conn
	)

Value:

if (!(has_lock)) {                                      \
                pthread_mutex_unlock(&(conn)->curr_conn_mutex); \
        }

Definition at line 51 of file innodb_api.h.

Typedef Documentation

typedef enum conn_op_type conn_op_type_t

types of operations performed

typedef struct mci_column mci_column_t

mci_column is the structure that stores and describes a column info

in InnoDB Memcached. The supported column types are either character type or integer type (see above "enum mci_col" for columns supporting memcached)

typedef struct mci_item mci_item_t

"mci_item_t" represents values we read from a table row, and enough

to assemble to an memcached response. As described in above mci_col, we must have "MCI_COL_TO_GET" (5) column values to read. In addition, the user table could have multiple "value" columns, and it is possible to map such multiple "value" columns to a single memcached key, such value is separated by "separator" as defined in the "config_option" table. And we will assemble and disassemble the memcached value from these column values. And "extra_col_value" and "n_extra_col" is used to support multiple value columns

Enumeration Type Documentation

enum conn_op_type

types of operations performed

Enumerator:

CONN_OP_READ	read operation
CONN_OP_WRITE	write operation
CONN_OP_DELETE	delete operation
CONN_OP_FLUSH	flush operation

Definition at line 227 of file innodb_api.h.

enum mci_col

Enumerator:

MCI_COL_KEY	key
MCI_COL_VALUE	value
MCI_COL_FLAG	flag
MCI_COL_CAS	check and set value
MCI_COL_EXP	expiration

Definition at line 60 of file innodb_api.h.

Function Documentation

ENGINE_ERROR_CODE innodb_api_arithmetic	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		int	delta,
		bool	increment,
		uint64_t *	cas,
		rel_time_t	exp_time,
		bool	create,
		uint64_t	initial,
		uint64_t *	result
	)

Update a row with arithmetic operation

Returns: DB_SUCCESS if successful otherwise ENGINE_NOT_STORED out: result value

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key values
len	in: key length
delta	in: value to add or subtract
increment	in: increment or decrement
cas	out: cas
exp_time	in: expire time
create	in: whether to create new entry if not found
initial	in: initialize value

ib_err_t innodb_api_begin	(	innodb_engine_t *	engine,
		const char *	dbname,
		const char *	name,
		innodb_conn_data_t *	conn_data,
		ib_trx_t	ib_trx,
		ib_crsr_t *	crsr,
		ib_crsr_t *	idx_crsr,
		ib_lck_mode_t	lock_mode
	)

in: lock mode

Open a table and return a cursor for the table.

Returns: DB_SUCCESS if table successfully opened

Parameters

engine	in: InnoDB Memcached engine
dbname	in: NUL terminated database name
name	in: NUL terminated table name
conn_data	in/out: connnection specific data
ib_trx	in: transaction
crsr	out: innodb cursor
idx_crsr	out: innodb index cursor
lock_mode	in: lock mode

Definition at line 139 of file innodb_api.c.

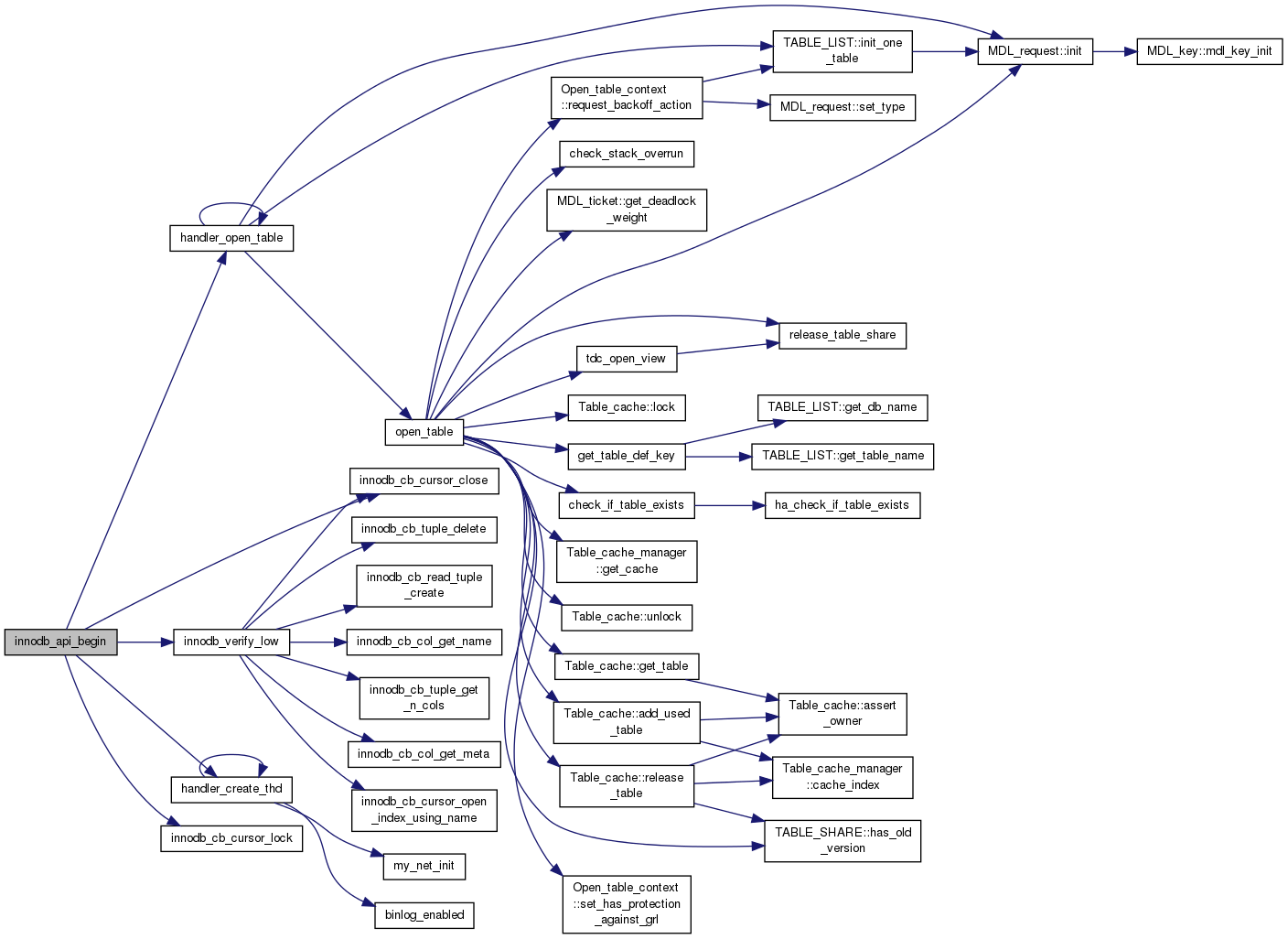

Here is the call graph for this function:

Here is the caller graph for this function:

void innodb_api_cursor_reset	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	conn_data,
		conn_op_type_t	op_type,
		bool	commit
	)

Increment read and write counters, if they exceed the batch size, commit the transaction. in: commit or abort trx

Increment read and write counters, if they exceed the batch size, commit the transaction.

Parameters

engine	in: InnoDB Memcached engine
conn_data	in/out: cursor affiliated with a connection
op_type	in: type of DML performed
commit	in: commit or abort trx

Definition at line 1984 of file innodb_api.c.

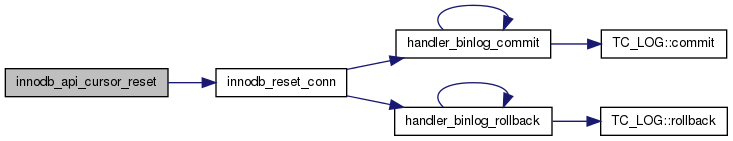

Here is the call graph for this function:

ENGINE_ERROR_CODE innodb_api_delete	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len
	)

Delete a row, implements the "remove" command

Returns: ENGINE_SUCCESS if successful otherwise, error code in: value length

Delete a row, support the memcached "remove" command

Returns: ENGINE_SUCCESS if successful otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: value to insert
len	in: value length

Definition at line 1367 of file innodb_api.c.

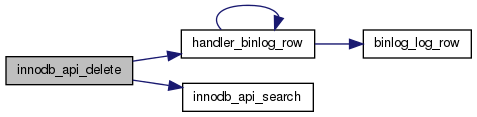

Here is the call graph for this function:

ENGINE_ERROR_CODE innodb_api_flush	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	conn_data,
		const char *	dbname,
		const char *	name
	)

in: table name

Implement the "flush_all" command, map to InnoDB's "trunk table" operation return ENGINE_SUCCESS is all successful

Parameters

engine	in: InnoDB Memcached engine
conn_data	in/out: cursor affiliated with a connection
dbname	in: database name
name	in: table name

Definition at line 1842 of file innodb_api.c.

Here is the call graph for this function:

ib_err_t innodb_api_insert	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		uint32_t	val_len,
		uint64_t	exp,
		uint64_t *	cas,
		uint64_t	flags
	)

Insert a row

Returns: DB_SUCCESS if successful otherwise, error code in: flags

Insert a row

Returns: DB_SUCCESS if successful, otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key and value to insert
len	in: key length
val_len	in: value length
exp	in: expiration time
cas	in/out: cas value
flags	in: flags

Definition at line 1234 of file innodb_api.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t innodb_api_search	(	innodb_conn_data_t *	cursor_data,
		ib_crsr_t *	crsr,
		const char *	key,
		int	len,
		mci_item_t *	item,
		ib_tpl_t *	r_tpl,
		bool	sel_only
	)

Position a row accord to key, and fetch value if needed

Returns: DB_SUCCESS if successful otherwise, error code in: for select only

Position a row according to the search key, and fetch value if needed

Returns: DB_SUCCESS if successful otherwise, error code

Parameters

cursor_data	in/out: cursor info
crsr	in/out: cursor used to search
key	in: key to search
len	in: key length
item	in: result
r_tpl	in: tpl for other DML operations
sel_only	in: for select only

Definition at line 748 of file innodb_api.c.

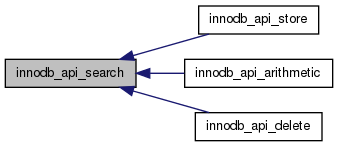

Here is the caller graph for this function:

ENGINE_ERROR_CODE innodb_api_store	(	innodb_engine_t *	engine,
		innodb_conn_data_t *	cursor_data,
		const char *	key,
		int	len,
		uint32_t	val_len,
		uint64_t	exp,
		uint64_t *	cas,
		uint64_t	input_cas,
		uint64_t	flags,
		ENGINE_STORE_OPERATION	op
	)

This is the interface to following commands: 1) add 2) replace 3) append 4) prepend 5) set 6) cas

Returns: ENGINE_SUCCESS if successful otherwise, error code in: Operations

This is the main interface to following memcached commands: 1) add 2) replace 3) append 4) prepend 5) set 6) cas

Returns: ENGINE_SUCCESS if successful, otherwise, error code

Parameters

engine	in: InnoDB Memcached engine
cursor_data	in/out: cursor info
key	in: key value
len	in: key length
val_len	in: value length
exp	in: expire time
cas	out: cas value
input_cas	in: cas value supplied by user
flags	in: flags
op	in: Operations

Definition at line 1727 of file innodb_api.c.

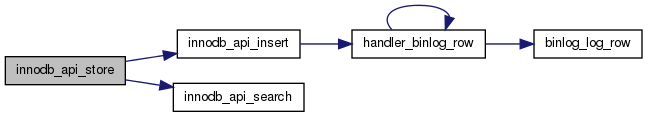

Here is the call graph for this function:

ib_err_t innodb_cb_close_thd ( void * thd )

Close table associated to the connection

Returns: DB_SUCCESS if successful or error code in: THD

Close table associated to the connection

Returns: DB_SUCCESS if successful or error code

Parameters

thd in: THD

Definition at line 2059 of file innodb_api.c.

ib_ulint_t innodb_cb_col_get_meta	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i,
		ib_col_meta_t *	ib_col_meta
	)

Get a column type, length and attributes from the tuple.

Returns: len of column data out: column meta data

Get a column type, length and attributes from the tuple.

Returns: len of column data

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple
ib_col_meta	out: column meta data

Definition at line 2156 of file innodb_api.c.

Here is the caller graph for this function:

char* innodb_cb_col_get_name	(	ib_crsr_t	ib_crsr,
		ib_ulint_t	i
	)

Get a column name from the tuple.

Returns: name of the column in: column index in tuple

Get a column name from the tuple.

Returns: name of the column

Parameters

ib_crsr	in: InnoDB cursor instance
i	in: column index in tuple

Definition at line 2216 of file innodb_api.c.

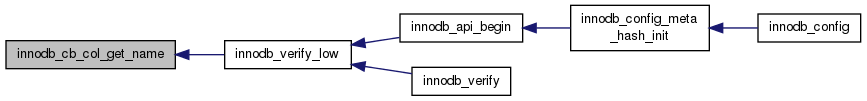

Here is the caller graph for this function:

const void* innodb_cb_col_get_value	(	ib_tpl_t	ib_tpl,
		ib_ulint_t	i
	)

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer in: column index in tuple

Get a column value pointer from the tuple.

Returns: NULL or pointer to buffer

Parameters

ib_tpl	in: tuple instance
i	in: column index in tuple

Definition at line 2191 of file innodb_api.c.

ib_err_t innodb_cb_cursor_close ( ib_crsr_t ib_crsr )

Following are a set of InnoDB callback function wrappers for functions that will be used outside innodb_api.c

Returns: DB_SUCCESS if successful or error code in: cursor to close

Following are a set of InnoDB callback function wrappers for functions

that will be used outside innodb_api.c Close a cursor

Returns: DB_SUCCESS if successful or error code

Parameters

ib_crsr in/out: cursor to close

Definition at line 2037 of file innodb_api.c.

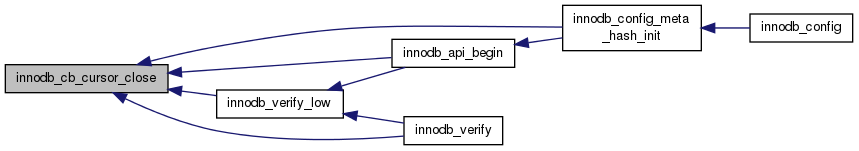

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_first ( ib_crsr_t ib_crsr )

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code in: InnoDB cursor instance

Move cursor to the first record in the table.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr in: InnoDB cursor instance

Definition at line 2133 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_lock	(	innodb_engine_t *	eng,
		ib_crsr_t	ib_crsr,
		ib_lck_mode_t	ib_lck_mode
	)

Lock the table with specified lock mode

Returns: DB_SUCCESS or error code in: lock mode

Set the Lock an InnoDB cursor/table.

Returns: DB_SUCCESS or error code

Parameters

eng	in: InnoDB Memcached engine
ib_crsr	in/out: InnoDB cursor
ib_lck_mode	in: InnoDB lock mode

Definition at line 2093 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_cursor_new_trx	(	ib_crsr_t	ib_crsr,
		ib_trx_t	ib_trx
	)

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or error code in: transaction

update the cursor with new transactions and also reset the cursor

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in/out: InnoDB cursor
ib_trx	in: transaction

Definition at line 2081 of file innodb_api.c.

ib_err_t innodb_cb_cursor_open_index_using_name	(	ib_crsr_t	ib_open_crsr,
		const char *	index_name,
		ib_crsr_t *	ib_crsr,
		int *	idx_type,
		ib_id_u64_t *	idx_id
	)

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code out: index id

Open an InnoDB secondary index cursor and return a cursor handle to it.

Returns: DB_SUCCESS or err code

Parameters

ib_open_crsr	in: open/active cursor
index_name	in: secondary index name
ib_crsr	out,own: InnoDB index cursor
idx_type	out: index is cluster index
idx_id	out: index id

Definition at line 2228 of file innodb_api.c.

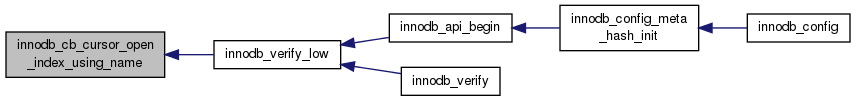

Here is the caller graph for this function:

int innodb_cb_get_cfg ( )

Get InnoDB API configure option

Returns: configure status

Definition at line 2243 of file innodb_api.c.

ib_err_t innodb_cb_open_table	(	const char *	name,
		ib_trx_t	ib_trx,
		ib_crsr_t *	ib_crsr
	)

Open a table using the table name.

Returns: table instance if found in: cursor to be used

Open a table using the table name.

Returns: table instance if found

Parameters

name	in: table name to lookup
ib_trx	in: transaction
ib_crsr	in: cursor to be used

Definition at line 2203 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_read_row	(	ib_crsr_t	ib_crsr,
		ib_tpl_t	ib_tpl
	)

Read current row.

Returns: DB_SUCCESS or err code out: read cols into this tuple

Read current row.

Returns: DB_SUCCESS or err code

Parameters

ib_crsr	in: InnoDB cursor instance
ib_tpl	out: read cols into this tuple

Definition at line 2144 of file innodb_api.c.

Here is the caller graph for this function:

ib_tpl_t innodb_cb_read_tuple_create ( ib_crsr_t ib_crsr )

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index in: Cursor instance

Create an InnoDB tuple used for index/table search.

Returns: own: Tuple for current index

Parameters

ib_crsr in: Cursor instance

Definition at line 2122 of file innodb_api.c.

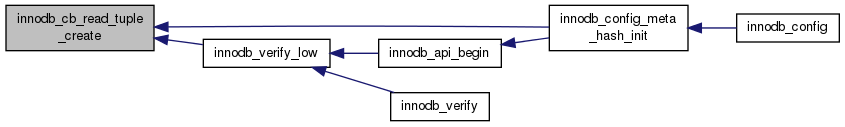

Here is the caller graph for this function:

ib_trx_t innodb_cb_trx_begin ( ib_trx_level_t ib_trx_level )

Start a transaction

Returns: DB_SUCCESS if successful or error code in: trx isolation level

Start a transaction

Returns: DB_SUCCESS if successful or error code

Parameters

ib_trx_level in: trx isolation level

Definition at line 2070 of file innodb_api.c.

Here is the caller graph for this function:

ib_err_t innodb_cb_trx_commit ( ib_trx_t ib_trx )

Commit the transaction

Returns: DB_SUCCESS if successful or error code in: transaction to commit

Commit the transaction

Returns: DB_SUCCESS if successful or error code

Parameters

ib_trx in/out: transaction to commit

Definition at line 2048 of file innodb_api.c.

Here is the caller graph for this function:

void innodb_cb_tuple_delete ( ib_tpl_t ib_tpl )

Destroy an InnoDB tuple. in,own: Tuple instance to delete

Destroy an InnoDB tuple.

Parameters

ib_tpl in,own: Tuple instance to delete

Definition at line 2168 of file innodb_api.c.

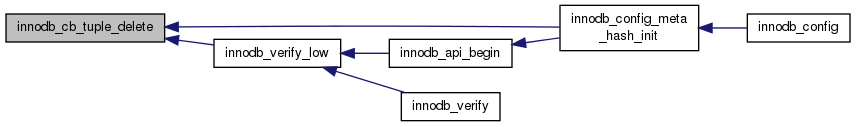

Here is the caller graph for this function:

ib_ulint_t innodb_cb_tuple_get_n_cols ( const ib_tpl_t ib_tpl )

Return the number of columns in the tuple definition.

Returns: number of columns in: Tuple for table/index

Return the number of columns in the tuple definition.

Returns: number of columns

Parameters

ib_tpl in: Tuple for table/index

Definition at line 2180 of file innodb_api.c.

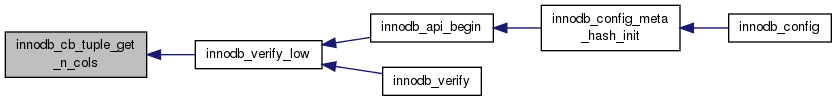

Here is the caller graph for this function:

bool innodb_reset_conn	(	innodb_conn_data_t *	conn_data,
		bool	has_lock,
		bool	commit,
		bool	has_binlog
	)

Increment read and write counters, if they exceed the batch size, commit the transaction. in: binlog enabled

Increment read and write counters, if they exceed the batch size, commit the transaction.

Parameters

conn_data	in/out: cursor affiliated with a connection
has_lock	in: has lock on connection
commit	in: commit or abort trx
has_binlog	in: binlog enabled

Definition at line 1878 of file innodb_api.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ib_err_t innodb_verify_low	(	meta_cfg_info_t *	info,
		ib_crsr_t	crsr,
		bool	runtime
	)

This function verifies the table configuration information on an opened table, and fills in columns used for memcached functionalities (cas, exp etc.)

Returns: true if everything works out fine in: verify at the runtime

This function verifies the table configuration information on an opened table, and fills in columns used for memcached functionalities (cas, exp etc.)

Returns: true if everything works out fine

Parameters

info	in/out: meta info structure
crsr	in: crsr
runtime	in: verify at the runtime

Definition at line 877 of file innodb_config.c.

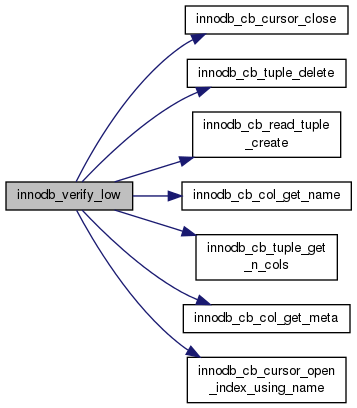

Here is the call graph for this function:

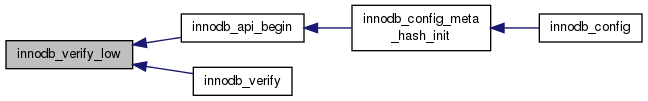

Here is the caller graph for this function:

uint64_t mci_get_time ( void )

Get current time

Returns: time in seconds

Definition at line 997 of file innodb_api.c.

void register_innodb_cb ( void * p )

Register InnoDB Callback functions in: Pointer to callback function arrary

Register InnoDB Callback functions

Parameters

p	in: Pointer to callback function array

Definition at line 118 of file innodb_api.c.

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
