#include "api0api.h"
#include "innodb_utility.h"

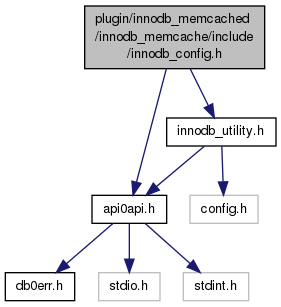

Include dependency graph for innodb_config.h:

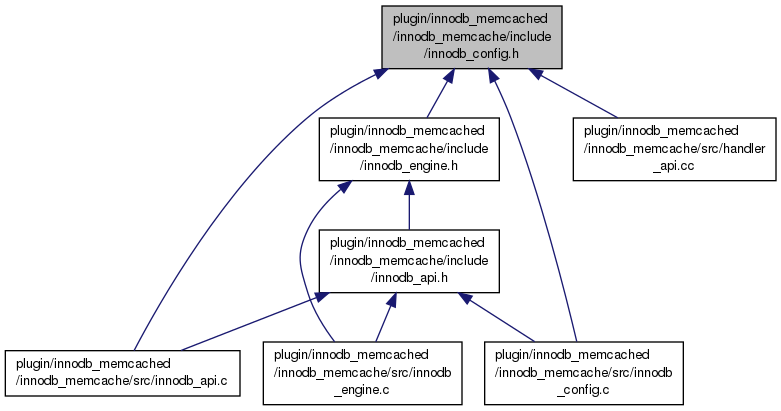

This graph shows which files directly or indirectly include this file:

Classes
struct	meta_column
struct	meta_index
struct	option_value
struct	option
struct	meta_cfg_info

Macros
#define	MCI_CFG_DB_NAME "innodb_memcache"
#define	MCI_CFG_CONTAINER_TABLE "containers"
#define	MCI_CFG_CACHE_POLICIES "cache_policies"
#define	MCI_CFG_CONFIG_OPTIONS "config_options"
#define	MAX_TABLE_NAME_LEN 192
#define	MAX_DATABASE_NAME_LEN MAX_TABLE_NAME_LEN
#define	MAX_FULL_NAME_LEN (MAX_TABLE_NAME_LEN + MAX_DATABASE_NAME_LEN + 14)
#define	COLUMN_SEPARATOR "separator"
#define	TABLE_MAP_SEPARATOR "table_map_delimiter"
#define	MAX_DELIMITER_LEN 32
#define	GET_OPTION(meta_info, option, val, val_len)

Typedefs
typedef void *	hash_node_t
typedef struct meta_column	meta_column_t
typedef enum container	container_t
typedef enum cache_policy	cache_policy_t
typedef enum config_opt	config_opt_t
typedef enum meta_use_idx	meta_use_idx_t
typedef struct meta_index	meta_index_t
typedef enum meta_cache_opt	meta_cache_opt_t
typedef enum option_id	option_id_t
typedef struct option_value	option_value_t
typedef struct option	option_t
typedef struct meta_cfg_info	meta_cfg_info_t

Enumerations
enum	container { CONTAINER_NAME, CONTAINER_DB, CONTAINER_TABLE, CONTAINER_KEY, CONTAINER_VALUE, CONTAINER_FLAG, CONTAINER_CAS, CONTAINER_EXP, CONTAINER_NUM_COLS }
enum	cache_policy { CACHE_POLICY_NAME, CACHE_POLICY_GET, CACHE_POLICY_SET, CACHE_POLICY_DEL, CACHE_POLICY_FLUSH, CACHE_POLICY_NUM_COLS }
enum	config_opt { CONFIG_OPT_KEY, CONFIG_OPT_VALUE, CONFIG_OPT_NUM_COLS }
enum	meta_use_idx { META_USE_NO_INDEX = 1, META_USE_CLUSTER, META_USE_SECONDARY }
enum	meta_cache_opt { META_CACHE_OPT_INNODB = 1, META_CACHE_OPT_DEFAULT, META_CACHE_OPT_MIX, META_CACHE_OPT_DISABLE, META_CACHE_NUM_OPT }
enum	option_id { OPTION_ID_COL_SEP, OPTION_ID_TBL_MAP_SEP, OPTION_ID_NUM_OPTIONS, OPT_port = 1, OPT_socket, OPT_compress, OPT_password, OPT_pipe, OPT_timeout, OPT_user, OPT_init_command, OPT_host, OPT_database, OPT_debug, OPT_return_found_rows, OPT_ssl_key, OPT_ssl_cert, OPT_ssl_ca, OPT_ssl_capath, OPT_character_sets_dir, OPT_default_character_set, OPT_interactive_timeout, OPT_connect_timeout, OPT_local_infile, OPT_disable_local_infile, OPT_ssl_cipher, OPT_max_allowed_packet, OPT_protocol, OPT_shared_memory_base_name, OPT_multi_results, OPT_multi_statements, OPT_multi_queries, OPT_secure_auth, OPT_report_data_truncation, OPT_plugin_dir, OPT_default_auth, OPT_bind_address, OPT_ssl_crl, OPT_ssl_crlpath, OPT_enable_cleartext_plugin, OPT_keep_this_one_last }

Functions
meta_cfg_info_t *	innodb_config (const char name, size_t name_len, hash_table_t *meta_hash)
bool	innodb_verify (meta_cfg_info_t *info)
void	innodb_config_free (meta_cfg_info_t *item)
meta_cfg_info_t *	innodb_config_meta_hash_init (hash_table_t *meta_hash)

Detailed Description

Created 03/15/2011 Jimmy Yang

Definition in file innodb_config.h.

Macro Definition Documentation

#define COLUMN_SEPARATOR "separator"

The "names" in the "config_option" table to identify possible

config options. Both are optional. "COLUMN_SEPARATOR" is the delimiter that separates multiple columns and "TABLE_MAP_SEPARATOR" is the delimiter that separates table map name and key value

Definition at line 148 of file innodb_config.h.

#define GET_OPTION	(	meta_info,
		option,
		val,
		val_len
	)

Value:

do {                                                                    \
        val_len = meta_info->options[option].value_len;                 \
                                                                        \
        if (val_len == 0) {                                             \
                val = config_option_names[option].default_value.value;  \
                val_len = config_option_names[option].default_value.value_len;\
        } else {                                                        \
                val = meta_info->options[option].value;                 \
        }                                                               \
} while (0)

Get configure option value. If the value is not configured by

user, obtain its default value from "config_option_names"

Parameters

meta_info	metadata structure contains configure options
option	option whose value to get
val	value to fetch
val_len	value length

Definition at line 184 of file innodb_config.h.

#define MAX_DELIMITER_LEN 32

Maximum delimiter length

Definition at line 161 of file innodb_config.h.

#define MAX_TABLE_NAME_LEN 192

Max table name length as defined in univ.i

Definition at line 49 of file innodb_config.h.

Typedef Documentation

typedef enum cache_policy cache_policy_t

columns in the "cache_policy" table

typedef enum config_opt config_opt_t

columns in the "config_options" table

typedef enum container container_t

Following are enums defining column IDs indexing into each of three

system tables Columns in the "containers" system table, this maps the Memcached operation to a consistent InnoDB table

typedef enum meta_cache_opt meta_cache_opt_t

Cache options, tells if we will used Memcached default engine or InnoDB

Memcached engine to handle the request

typedef struct meta_cfg_info meta_cfg_info_t

In memory structure contains most necessary metadata info

to configure an InnoDB Memcached engine

typedef struct meta_column meta_column_t

structure describes each column's basic info (name, field_id etc.)

typedef struct meta_index meta_index_t

Describes the index's name and ID of the index on the "key" column

typedef enum meta_use_idx meta_use_idx_t

Following are some value defines describes the options that configures

the InnoDB Memcached Values to set up "m_use_idx" field of "meta_index_t" structure, indicating whether we will use cluster or secondary index on the "key" column to perform the search. Please note the index must be unique index

typedef struct option option_t

structure to define some default "config_option" option settings

Enumeration Type Documentation

enum cache_policy

columns in the "cache_policy" table

Enumerator:

CACHE_POLICY_NAME	"name" column, for the "cache_policy" name
CACHE_POLICY_GET	"get" column, specifies the cache policy for "get" command
CACHE_POLICY_SET	"set" column, specifies the cache policy for "set" command
CACHE_POLICY_DEL	"delete" column, specifies the cache policy for "delete" command
CACHE_POLICY_FLUSH	"flush_all" column, specifies the cache policy for "flush_all" command
CACHE_POLICY_NUM_COLS	total 5 columns

Definition at line 86 of file innodb_config.h.

enum config_opt

columns in the "config_options" table

Enumerator:

CONFIG_OPT_KEY	key column in the "config_option" table
CONFIG_OPT_VALUE	value column
CONFIG_OPT_NUM_COLS	number of columns (currently 2) in table

Definition at line 101 of file innodb_config.h.

enum container

Following are enums defining column IDs indexing into each of three

system tables Columns in the "containers" system table, this maps the Memcached operation to a consistent InnoDB table

Enumerator:

CONTAINER_NAME	name for this mapping
CONTAINER_DB	database name
CONTAINER_TABLE	table name
CONTAINER_KEY	column name for column maps to memcached "key"
CONTAINER_VALUE	column name for column maps to memcached "value"
CONTAINER_FLAG	column name for column maps to memcached "flag" value
CONTAINER_CAS	column name for column maps to memcached "cas" value
CONTAINER_EXP	column name for column maps to "expiration" value
CONTAINER_NUM_COLS	number of columns

Definition at line 68 of file innodb_config.h.

enum meta_cache_opt

Cache options, tells if we will used Memcached default engine or InnoDB

Memcached engine to handle the request

Enumerator:

META_CACHE_OPT_INNODB	Use InnoDB Memcached Engine only
META_CACHE_OPT_DEFAULT	Use Default Memcached Engine only
META_CACHE_OPT_MIX	Use both, first use default memcached engine
META_CACHE_OPT_DISABLE	This operation is disabled
META_CACHE_NUM_OPT	Number of options

Definition at line 133 of file innodb_config.h.

enum meta_use_idx

Following are some value defines describes the options that configures

the InnoDB Memcached Values to set up "m_use_idx" field of "meta_index_t" structure, indicating whether we will use cluster or secondary index on the "key" column to perform the search. Please note the index must be unique index

Enumerator:

META_USE_NO_INDEX	no cluster or unique secondary index on the key column. This is an error, will cause setup to fail
META_USE_CLUSTER	have cluster index on the key column
META_USE_SECONDARY	have unique secondary index on the key column

Definition at line 114 of file innodb_config.h.

enum option_id

Enumerator:

OPTION_ID_COL_SEP	ID for character(s) separating multiple column mapping
OPTION_ID_TBL_MAP_SEP	ID for character(s) separating table map name and key
OPTION_ID_NUM_OPTIONS	number of options

Definition at line 152 of file innodb_config.h.

Function Documentation

meta_cfg_info_t* innodb_config	(	const char *	name,
		size_t	name_len,
		hash_table_t **	meta_hash
	)

This function opens the default configuration table, and find the table and column info that used for InnoDB Memcached, and set up InnoDB Memcached's meta_cfg_info_t structure. If the "name" parameter is not NULL, it will find the specified setting in the "container" table. If "name" field is NULL, it will then look for setting with the name of "default". Otherwise, it returns the setting corresponding to the first row of the configure table.

Returns: meta_cfg_info_t* structure if configure option found, otherwise NULL in: engine hash table

If the hash table (meta_hash) is NULL, then initialise the hash table with data in the configure tables. And return the "default" item. If there is no setting named "default" then use the first row in the table. This is currently only used at the engine initialization time. If the hash table (meta_hash) is created, then look for the meta-data based on specified configuration name parameter. If such metadata does not exist in the hash table, then add such metadata into hash table.

Returns: meta_cfg_info_t* structure if configure option found, otherwise NULL

Parameters

name	in: config option name
name_len	in: name length
meta_hash	in/out: engine hash table. If NULL, it will be created and initialized

Definition at line 1173 of file innodb_config.c.

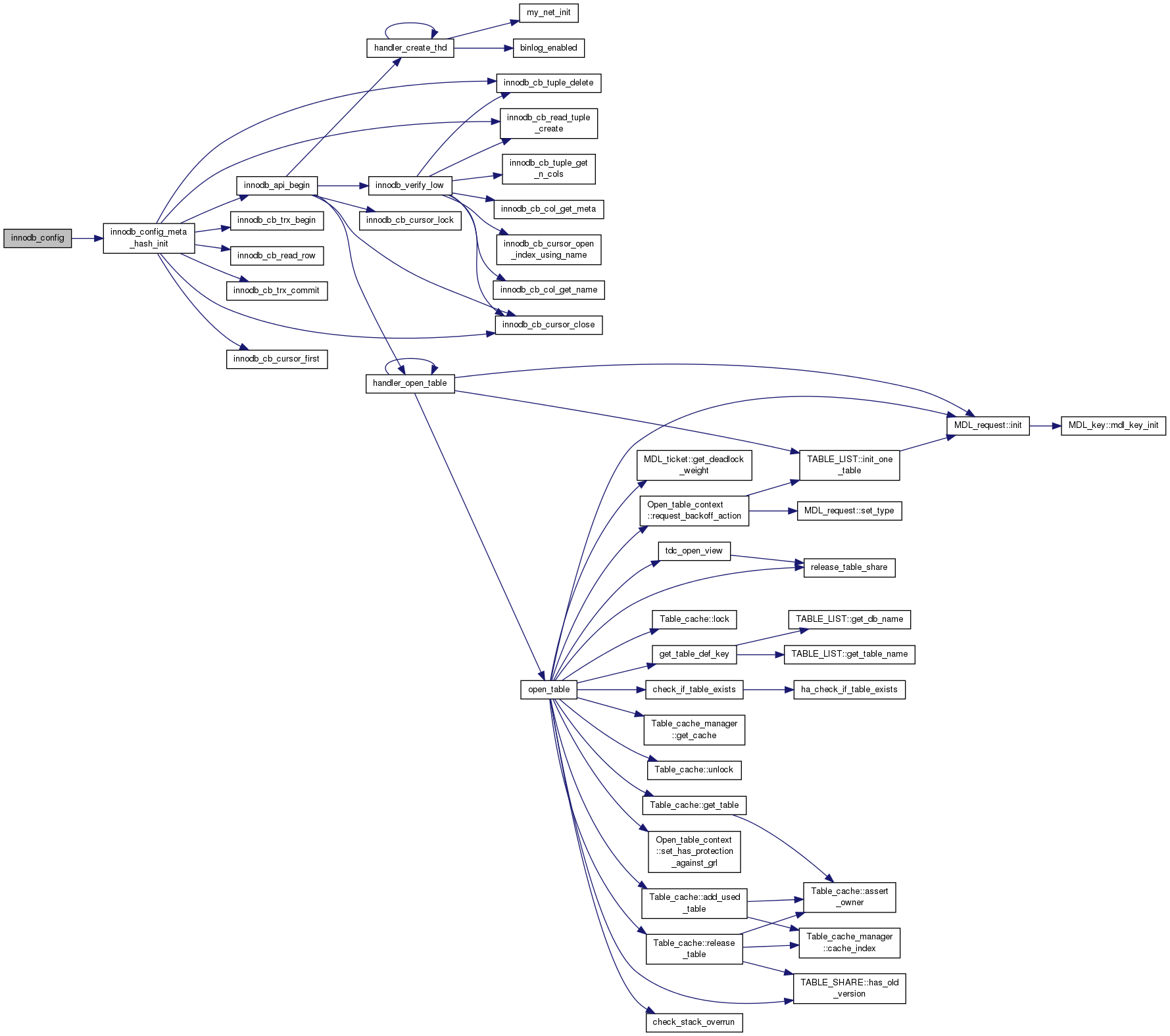

Here is the call graph for this function:

void innodb_config_free ( meta_cfg_info_t * item )

This function frees meta info structure in/own: meta info structure

This function frees meta info structures

Parameters

item	in: meta info structure

Definition at line 68 of file innodb_config.c.

meta_cfg_info_t* innodb_config_meta_hash_init ( hash_table_t * meta_hash )

This function opens the "containers" table, reads in all rows and instantiates the metadata hash table.

Returns: the default configuration setting (whose mapping name is "default") in/out: InnoDB Memcached engine

This function opens the "containers" table, reads in all rows and instantiates the metadata hash table.

Returns: the default configuration setting (whose mapping name is "default")

Parameters

meta_hash in/out: InnoDB Memcached engine

Definition at line 505 of file innodb_config.c.

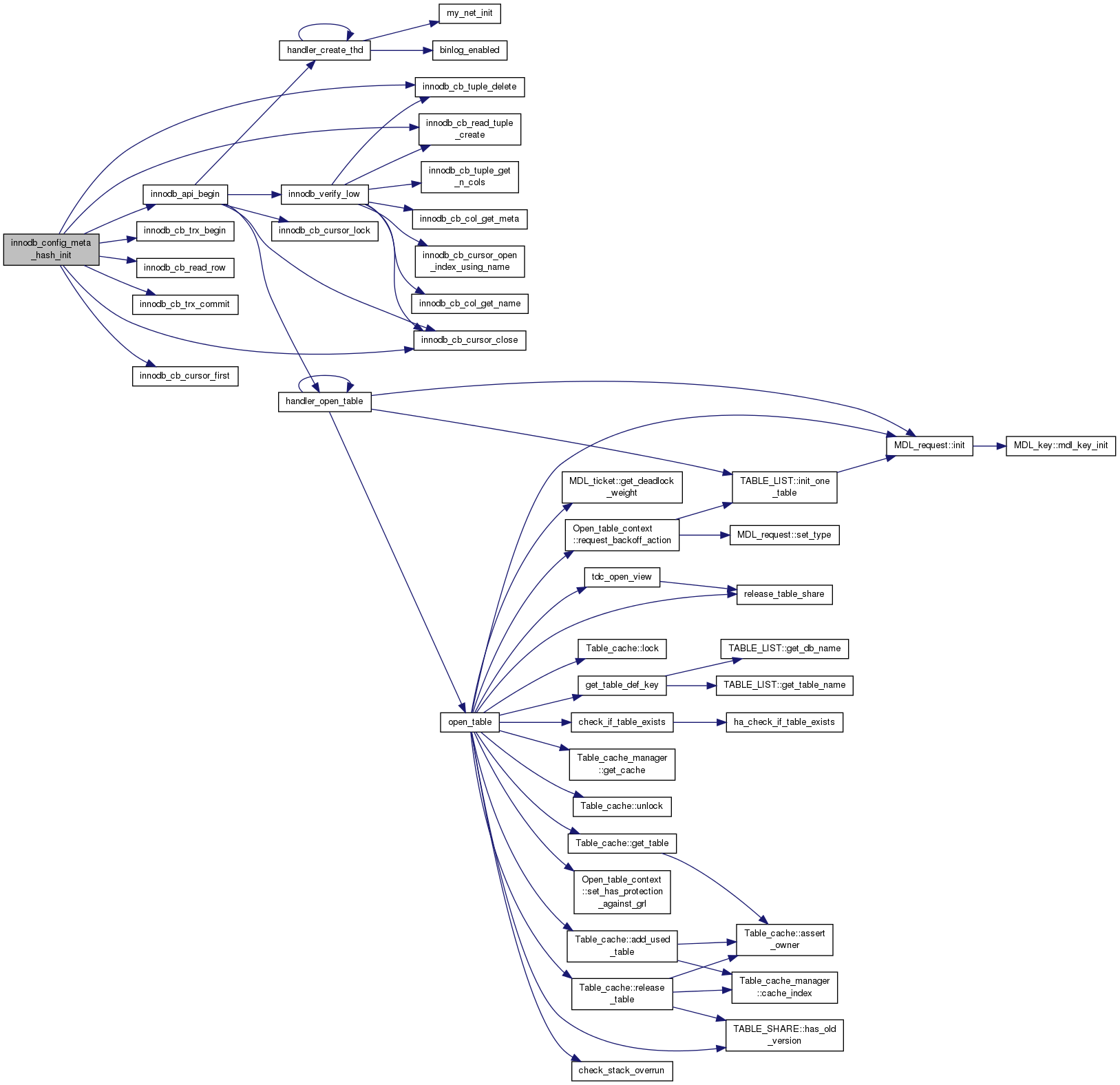

Here is the call graph for this function:

Here is the caller graph for this function:

bool innodb_verify ( meta_cfg_info_t * info )

This function verifies the table configuration information, and fills in columns used for memcached functionalities (cas, exp etc.)

Returns: true if everything works out fine in: meta info structure

This function verifies the table configuration information, and fills in columns used for memcached functionalities (cas, exp etc.)

Returns: true if everything works out fine

Parameters

info	in: meta info structure

Definition at line 1122 of file innodb_config.c.

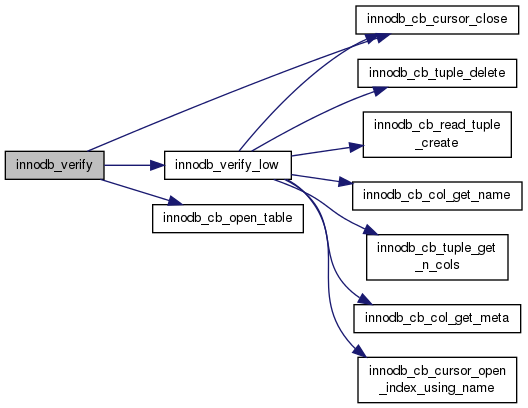

Here is the call graph for this function:
