#include "univ.i"
#include "data0type.h"
#include "data0types.h"
#include "dict0types.h"
#include "hash0hash.h"
#include "mem0mem.h"
#include "rem0types.h"
#include "row0types.h"
#include "trx0types.h"
#include "ut0vec.h"
#include "ut0rbt.h"
#include "ut0wqueue.h"
#include "que0types.h"
#include "ft_global.h"

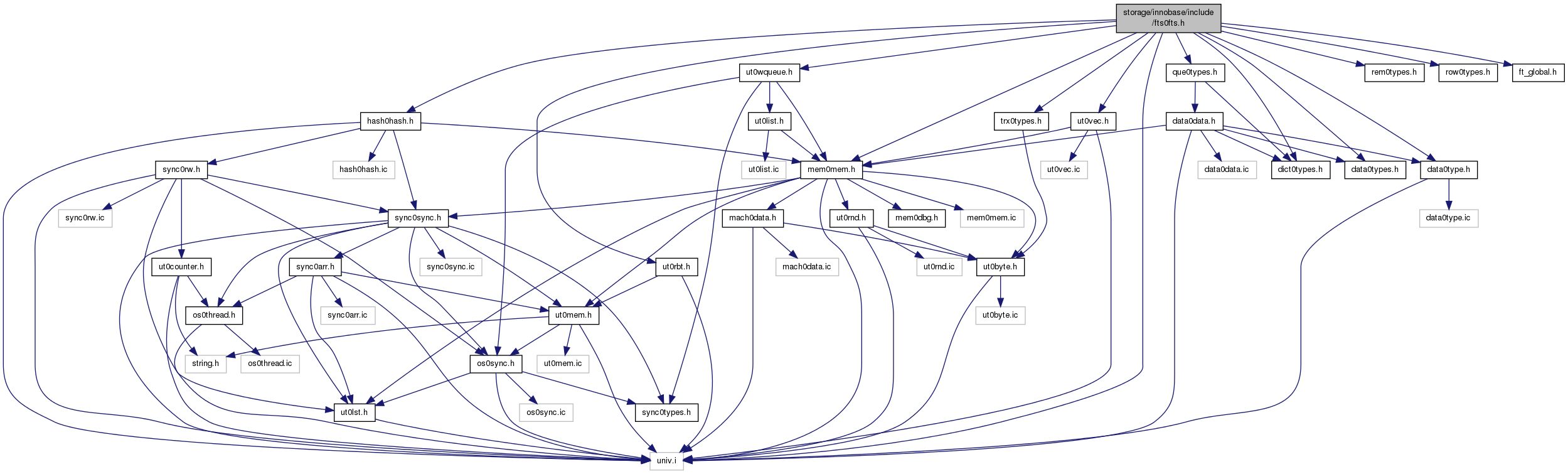

Include dependency graph for fts0fts.h:

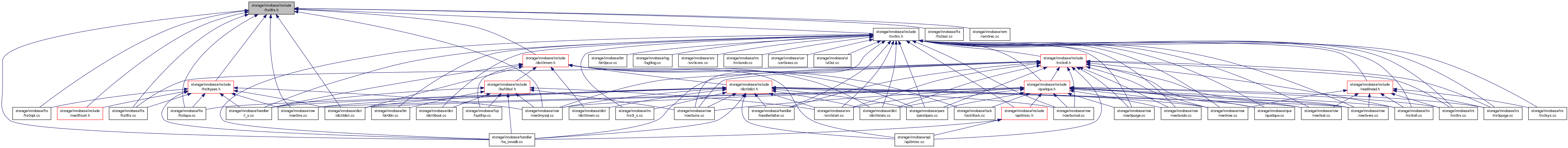

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fts_trx_t
struct	fts_savepoint_t
struct	fts_trx_table_t
struct	fts_trx_row_t
struct	fts_doc_ids_t
struct	fts_string_t
struct	fts_ranking_t
struct	fts_result_t
struct	fts_table_t
struct	fts_t

Macros
#define	FTS_NULL_DOC_ID 0
#define	FTS_DOC_ID_COL_NAME "FTS_DOC_ID"
#define	FTS_DOC_ID_INDEX_NAME "FTS_DOC_ID_INDEX"
#define	FTS_DOC_ID_INDEX_NAME_LEN 16
#define	FTS_DOC_ID_LEN 8
#define	FTS_NUM_FIELDS_SORT 3
#define	MAX_DOC_ID_OPT_VAL 1073741824
#define	FTS_DOC_ID_FORMAT IB_ID_FMT
#define	fts_write_doc_id(d, s) mach_write_to_8(d, s)
#define	fts_read_doc_id(s) mach_read_from_8(s)
#define	fts_bind_doc_id(i, n, v) pars_info_bind_int8_literal(i, n, v)
#define	FTS_NL 0
#define	FTS_BOOL 1
#define	FTS_SORTED 2
#define	FTS_EXPAND 4
#define	FTS_PROXIMITY 8
#define	FTS_PHRASE 16
#define	FTS_OPT_RANKING 32
#define	FTS_INDEX_TABLE_IND_NAME "FTS_INDEX_TABLE_IND"
#define	FTS_OPTIMIZE_THRESHOLD 10000000
#define	FTS_DOC_ID_MAX_STEP 10000
#define	FTS_INIT_FTS_TABLE(fts_table, m_suffix, m_type, m_table)
#define	FTS_INIT_INDEX_TABLE(fts_table, m_suffix, m_type, m_index)
#define	STOPWORD_NOT_INIT 0x1
#define	STOPWORD_OFF 0x2
#define	STOPWORD_FROM_DEFAULT 0x4
#define	STOPWORD_USER_TABLE 0x8
#define	FTS_MAX_WORD_LEN HA_FT_MAXBYTELEN
#define	FTS_MAX_WORD_LEN_IN_CHAR HA_FT_MAXCHARLEN
#define	fts_que_graph_free(graph)

Typedefs
typedef ib_uint64_t	doc_id_t
typedef float	fts_rank_t
typedef unsigned short	ib_uc_t
typedef enum fts_status	fts_status_t

Enumerations
enum	fts_row_state { FTS_INSERT = 0, FTS_MODIFY, FTS_DELETE, FTS_NOTHING, FTS_INVALID }
enum	fts_table_type_t { FTS_INDEX_TABLE, FTS_COMMON_TABLE }
enum	fts_status { BG_THREAD_STOP = 1, BG_THREAD_READY = 2, ADD_THREAD_STARTED = 4, ADDED_TABLE_SYNCED = 8, TABLE_DICT_LOCKED = 16 }

Functions

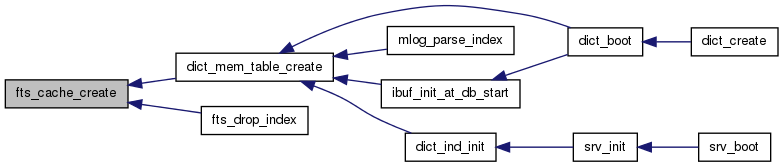

UNIV_INTERN fts_cache_t *	fts_cache_create (dict_table_t *table)

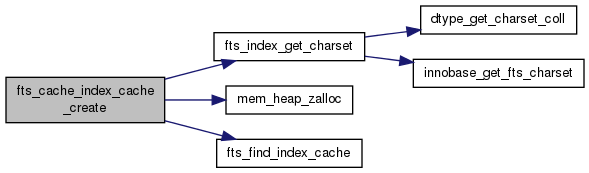

UNIV_INTERN fts_index_cache_t *	fts_cache_index_cache_create (dict_table_t table, dict_index_t index)
UNIV_INTERN dberr_t	fts_get_next_doc_id (const dict_table_t table, doc_id_t doc_id) __attribute__((nonnull))
UNIV_INTERN void	fts_update_next_doc_id (trx_t trx, const dict_table_t table, const char *table_name, doc_id_t doc_id) __attribute__((nonnull(2)))
UNIV_INTERN dberr_t	fts_create_doc_id (dict_table_t table, dtuple_t row, mem_heap_t *heap) __attribute__((nonnull))
UNIV_INTERN fts_doc_ids_t *	fts_doc_ids_create (void)
UNIV_INTERN void	fts_doc_ids_free (fts_doc_ids_t *doc_ids)
UNIV_INTERN void	fts_trx_add_op (trx_t trx, dict_table_t table, doc_id_t doc_id, fts_row_state state, ib_vector_t *fts_indexes) __attribute__((nonnull(1
UNIV_INTERN void UNIV_INTERN void	fts_trx_free (fts_trx_t *fts_trx)
UNIV_INTERN dberr_t	fts_create_common_tables (trx_t trx, const dict_table_t table, const char *name, bool skip_doc_id_index) __attribute__((nonnull
UNIV_INTERN dberr_t	fts_create_index_tables (trx_t trx, const dict_index_t index) __attribute__((nonnull
UNIV_INTERN dberr_t	fts_create_index_tables_low (trx_t trx, const dict_index_t index, const char *table_name, table_id_t table_id) __attribute__((nonnull
UNIV_INTERN void	fts_add_doc_id_column (dict_table_t table, mem_heap_t heap) __attribute__((nonnull(1)))

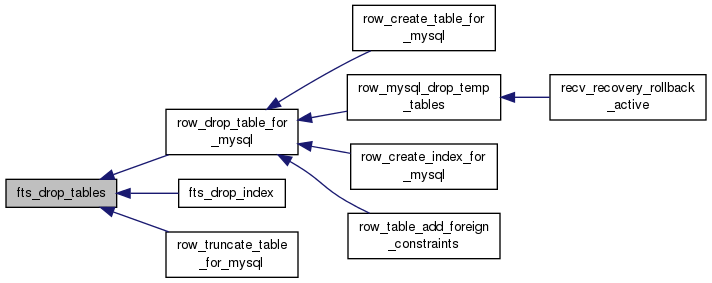

UNIV_INTERN dberr_t	fts_drop_tables (trx_t trx, dict_table_t table) __attribute__((nonnull))
UNIV_INTERN dberr_t	fts_commit (trx_t *trx) __attribute__((nonnull
UNIV_INTERN dberr_t	fts_query (trx_t trx, dict_index_t index, uint flags, const byte query, ulint query_len, fts_result_t *result) __attribute__((nonnull
UNIV_INTERN float	fts_retrieve_ranking (fts_result_t *result, doc_id_t doc_id)
UNIV_INTERN void	fts_query_sort_result_on_rank (fts_result_t *result)
UNIV_INTERN void	fts_query_free_result (fts_result_t *result)
UNIV_INTERN doc_id_t	fts_get_doc_id_from_row (dict_table_t table, dtuple_t row)
UNIV_INTERN doc_id_t	fts_get_doc_id_from_rec (dict_table_t table, const rec_t rec, mem_heap_t *heap)
UNIV_INTERN doc_id_t	fts_update_doc_id (dict_table_t table, upd_field_t ufield, doc_id_t *next_doc_id)
UNIV_INTERN void	fts_startup (void)
UNIV_INTERN void	fts_start_shutdown (dict_table_t table, fts_t fts)
UNIV_INTERN void	fts_shutdown (dict_table_t table, fts_t fts)

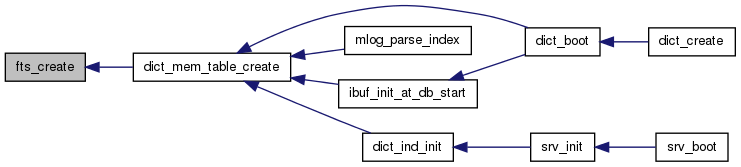

UNIV_INTERN fts_t *	fts_create (dict_table_t *table)

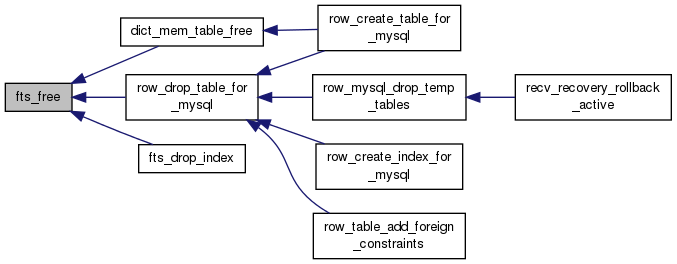

UNIV_INTERN void	fts_free (dict_table_t *table)
UNIV_INTERN dberr_t	fts_optimize_table (dict_table_t *table) __attribute__((nonnull))
UNIV_INTERN void	fts_optimize_init (void)
UNIV_INTERN ibool	fts_optimize_is_init (void)
UNIV_INTERN dberr_t	fts_drop_index_tables (trx_t trx, dict_index_t index) __attribute__((nonnull

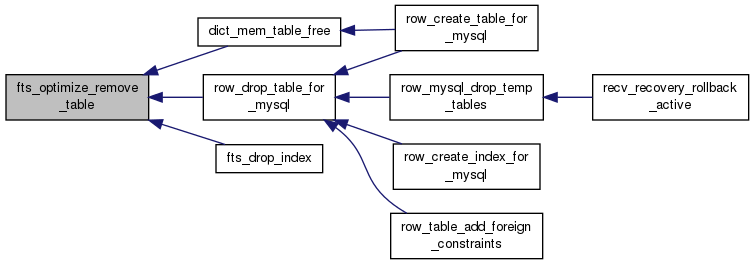

UNIV_INTERN void	fts_optimize_remove_table (dict_table_t *table)
UNIV_INTERN void	fts_optimize_start_shutdown (void)
UNIV_INTERN void	fts_optimize_end (void)
UNIV_INTERN void	fts_savepoint_take (trx_t trx, const char name) __attribute__((nonnull))
UNIV_INTERN void	fts_savepoint_laststmt_refresh (trx_t *trx) __attribute__((nonnull))
UNIV_INTERN void	fts_savepoint_release (trx_t trx, const char name)
UNIV_INTERN void	fts_cache_destroy (fts_cache_t *cache)

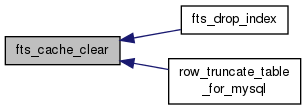

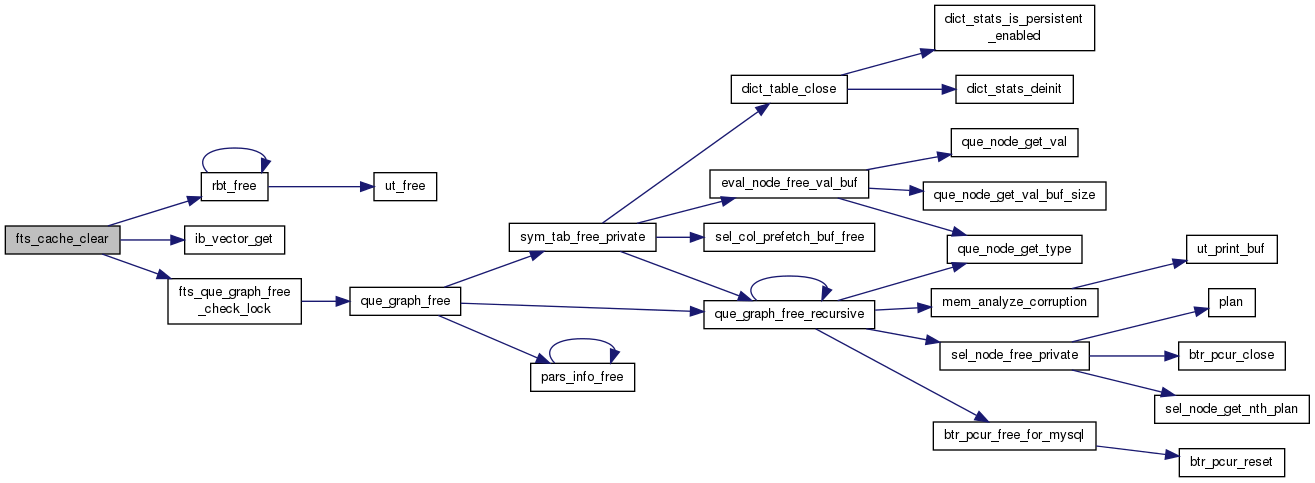

UNIV_INTERN void	fts_cache_clear (fts_cache_t *cache, ibool free_words)

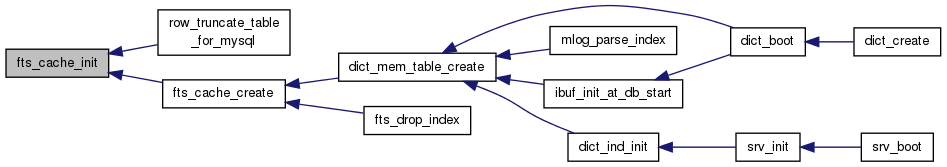

UNIV_INTERN void	fts_cache_init (fts_cache_t *cache)
UNIV_INTERN void	fts_savepoint_rollback (trx_t trx, const char name)
UNIV_INTERN void	fts_savepoint_rollback_last_stmt (trx_t *trx)
UNIV_INTERN void	fts_drop_orphaned_tables (void)
UNIV_INTERN dberr_t	fts_drop_index_split_tables (trx_t trx, dict_index_t index) __attribute__((nonnull
UNIV_INTERN void	fts_sync_table (dict_table_t *table) __attribute__((nonnull))

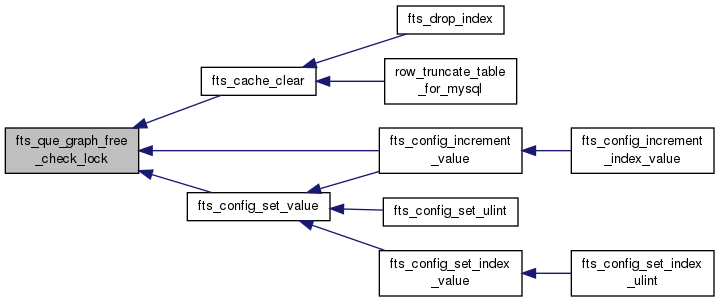

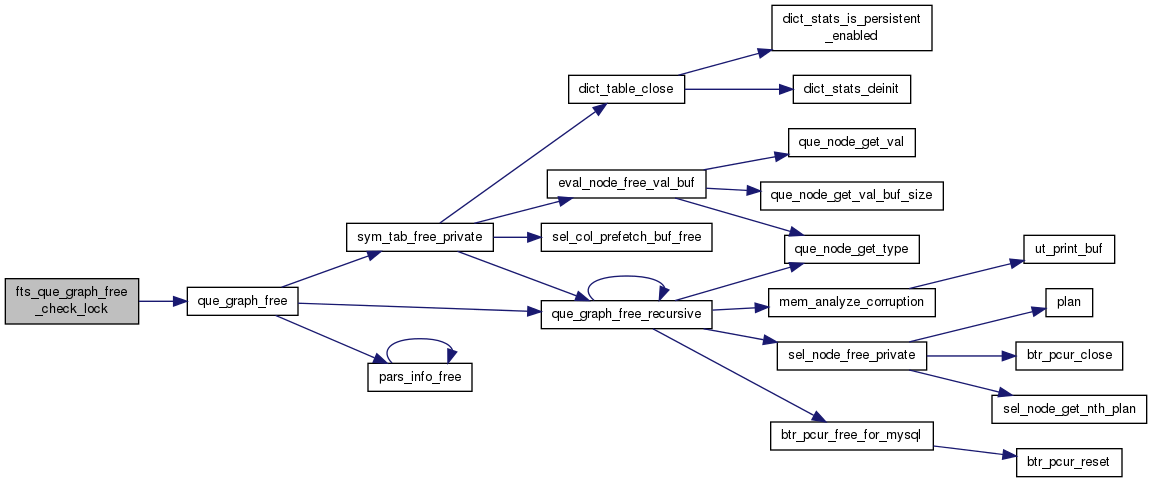

UNIV_INTERN void	fts_que_graph_free_check_lock (fts_table_t fts_table, const fts_index_cache_t index_cache, que_t *graph)

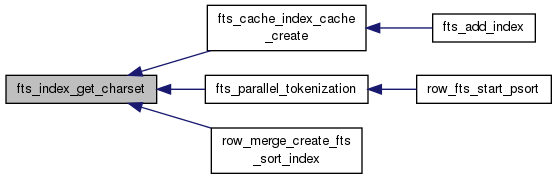

UNIV_INTERN CHARSET_INFO *	fts_index_get_charset (dict_index_t *index)
UNIV_INTERN doc_id_t	fts_init_doc_id (const dict_table_t *table)
int	innobase_fts_text_cmp (const void cs, const void p1, const void *p2)
size_t	innobase_fts_casedn_str (CHARSET_INFO cs, char src, size_t src_len, char *dst, size_t dst_len)
int	innobase_fts_text_cmp_prefix (const void cs, const void p1, const void *p2)
ulint	innobase_mysql_fts_get_token (CHARSET_INFO charset, const byte start, const byte end, fts_string_t token, ulint *offset)
UNIV_INTERN ulint	fts_get_rows_count (fts_table_t *fts_table)
UNIV_INTERN doc_id_t	fts_get_max_doc_id (dict_table_t *table)
UNIV_INTERN CHARSET_INFO *	fts_valid_stopword_table (const char *stopword_table_name)
UNIV_INTERN ibool	fts_load_stopword (const dict_table_t table, trx_t trx, const char global_stopword_table, const char session_stopword_table, ibool stopword_is_on, ibool reload)
UNIV_INTERN ib_vector_t *	fts_get_docs_create (fts_cache_t *cache)
UNIV_INTERN dberr_t	fts_table_fetch_doc_ids (trx_t trx, fts_table_t fts_table, fts_doc_ids_t *doc_ids)
UNIV_INTERN ibool	fts_init_index (dict_table_t *table, ibool has_cache_lock)

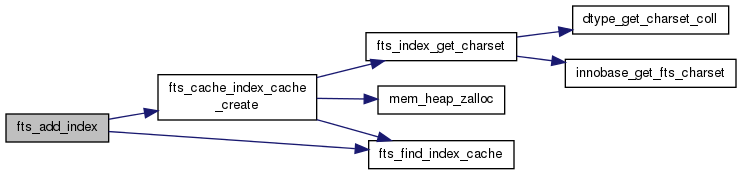

UNIV_INTERN void	fts_add_index (dict_index_t index, dict_table_t table)

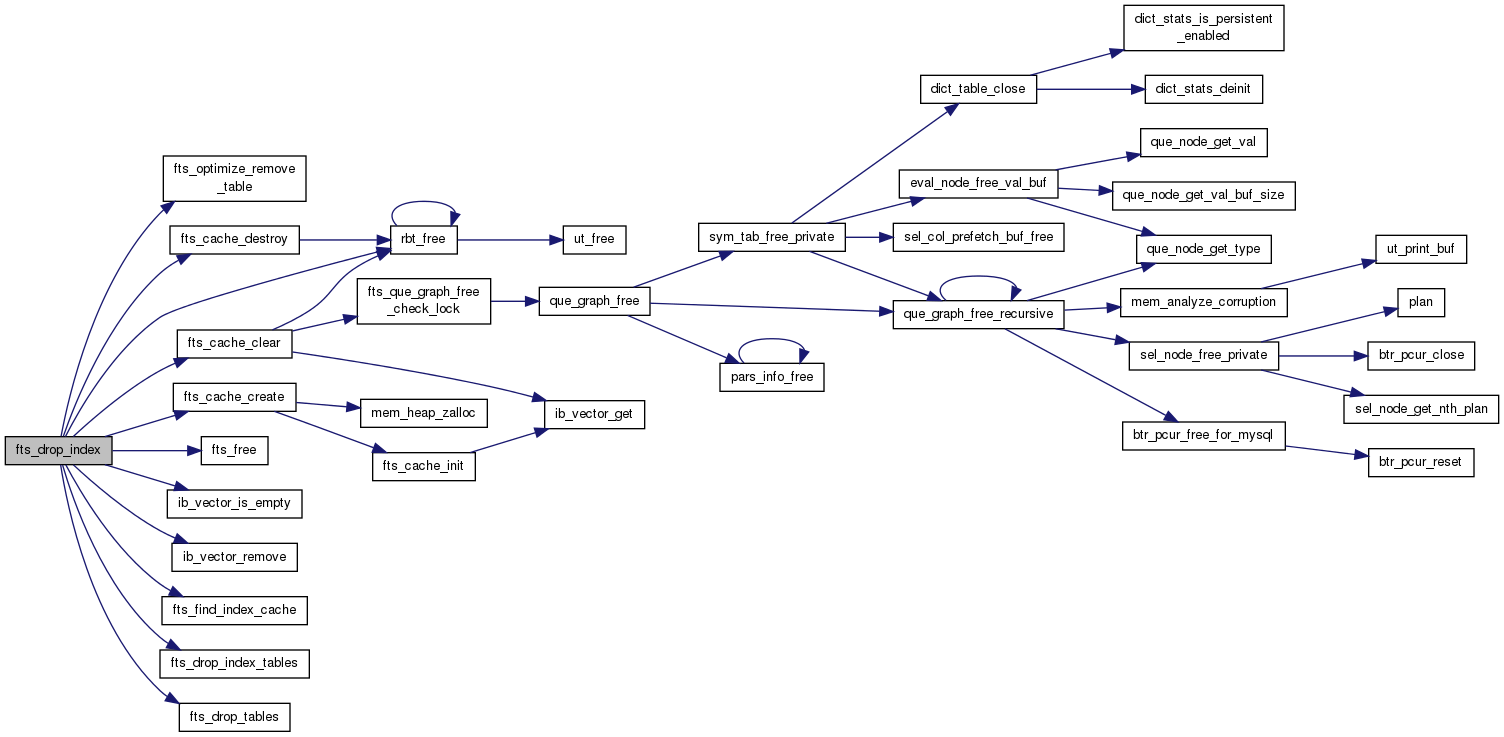

UNIV_INTERN dberr_t	fts_drop_index (dict_table_t table, dict_index_t index, trx_t *trx) __attribute__((nonnull))
dberr_t	fts_rename_aux_tables (dict_table_t table, const char new_name, trx_t *trx)
UNIV_INTERN ibool	fts_check_cached_index (dict_table_t *table)

Variables
ulong	fts_sort_pll_degree
ulong	fts_num_word_optimize
char	fts_enable_diag_print
const char *	fts_default_stopword []
ulong	fts_max_cache_size
ulong	fts_max_total_cache_size
ulong	fts_result_cache_limit
ulong	fts_max_token_size
ulong	fts_min_token_size
bool	fts_need_sync
char *	fts_internal_tbl_name
UNIV_INTERN dberr_t	warn_unused_result

Detailed Description

Full text search header file

Created 2011/09/02 Sunny Bains

Definition in file fts0fts.h.

Macro Definition Documentation

#define fts_bind_doc_id	(	i,
		n,
		v
	)	pars_info_bind_int8_literal(i, n, v)

Bind the doc id to a variable

Definition at line 80 of file fts0fts.h.

#define FTS_DOC_ID_COL_NAME "FTS_DOC_ID"

FTS hidden column that is used to map to and from the row

Definition at line 49 of file fts0fts.h.

#define FTS_DOC_ID_FORMAT IB_ID_FMT

doc_id_t printf format

Definition at line 71 of file fts0fts.h.

#define FTS_DOC_ID_INDEX_NAME "FTS_DOC_ID_INDEX"

The name of the index created by FTS

Definition at line 52 of file fts0fts.h.

#define FTS_DOC_ID_LEN 8

Doc ID is a 8 byte value

Definition at line 57 of file fts0fts.h.

#define FTS_INIT_FTS_TABLE	(	fts_table,
		m_suffix,
		m_type,
		m_table
	)

Value:

do {                                                            \
        (fts_table)->suffix = m_suffix;                         \
        (fts_table)->type = m_type;                             \
        (fts_table)->table_id = m_table->id;                    \
        (fts_table)->parent = m_table->name;                    \
        (fts_table)->table = m_table;                           \
} while (0);

Initialize the "fts_table" for internal query into FTS auxiliary

tables

Definition at line 145 of file fts0fts.h.

#define FTS_INIT_INDEX_TABLE	(	fts_table,
		m_suffix,
		m_type,
		m_index
	)

Value:

do {                                                            \
        (fts_table)->suffix = m_suffix;                         \
        (fts_table)->type = m_type;                             \
        (fts_table)->table_id = m_index->table->id;             \
        (fts_table)->parent = m_index->table->name;             \
        (fts_table)->table = m_index->table;                    \
        (fts_table)->index_id = m_index->id;                    \
} while (0);

Definition at line 154 of file fts0fts.h.

#define FTS_MAX_WORD_LEN HA_FT_MAXBYTELEN

Maximum possible Fulltext word length

Definition at line 367 of file fts0fts.h.

#define FTS_MAX_WORD_LEN_IN_CHAR HA_FT_MAXCHARLEN

Maximum possible Fulltext word length (in characters)

Definition at line 370 of file fts0fts.h.

#define FTS_NL 0

Defines for FTS query mode, they have the same values as

those defined in mysql file ft_global.h

Definition at line 84 of file fts0fts.h.

#define FTS_NULL_DOC_ID 0

"NULL" value of a document id.

Definition at line 46 of file fts0fts.h.

#define FTS_NUM_FIELDS_SORT 3

The number of fields to sort when we build FT index with

FIC. Three fields are sort: (word, doc_id, position)

Definition at line 61 of file fts0fts.h.

#define FTS_OPTIMIZE_THRESHOLD 10000000

Threshold where our optimize thread automatically kicks in

Definition at line 95 of file fts0fts.h.

#define fts_que_graph_free ( graph )

Value:

do {                                                    \
        mutex_enter(&dict_sys->mutex);                  \
        que_graph_free(graph);                          \
        mutex_exit(&dict_sys->mutex);                   \
} while (0)

Definition at line 376 of file fts0fts.h.

#define fts_read_doc_id ( s ) mach_read_from_8(s)

Read a document id to internal format.

Definition at line 77 of file fts0fts.h.

#define fts_write_doc_id	(	d,
		s
	)	mach_write_to_8(d, s)

Convert document id to the InnoDB (BIG ENDIAN) storage format.

Definition at line 74 of file fts0fts.h.

#define MAX_DOC_ID_OPT_VAL 1073741824

Maximum number of rows in a table, smaller than which, we will

optimize using a 4 byte Doc ID for FIC merge sort to reduce sort size

Definition at line 65 of file fts0fts.h.

#define STOPWORD_NOT_INIT 0x1

status bits for fts_stopword_t status field.

Definition at line 340 of file fts0fts.h.

Typedef Documentation

typedef ib_uint64_t doc_id_t

Document id type.

Definition at line 68 of file fts0fts.h.

typedef float fts_rank_t

FTS rank type, which will be between 0 .. 1 inclusive

Definition at line 110 of file fts0fts.h.

typedef unsigned short ib_uc_t

Since MySQL's character set support for Unicode is woefully inadequate

(it supports basic operations like isalpha etc. only for 8-bit characters), we have to implement our own. We use UTF-16 without surrogate processing as our in-memory format. This typedef is a single such character.

Definition at line 228 of file fts0fts.h.

Enumeration Type Documentation

enum fts_row_state

Type of a row during a transaction. FTS_NOTHING means the row can be

forgotten from the FTS system's POV, FTS_INVALID is an internal value used to mark invalid states.

NOTE: Do not change the order or value of these, fts_trx_row_get_new_state depends on them being exactly as they are.

Definition at line 118 of file fts0fts.h.

enum fts_status

Enumerator:

BG_THREAD_STOP	TRUE if the FTS background thread has finished reading the ADDED table, meaning more items can be added to the table.
BG_THREAD_READY	TRUE if the FTS background thread is ready
ADD_THREAD_STARTED	TRUE if the FTS add thread has started
ADDED_TABLE_SYNCED	TRUE if the ADDED table record is sync-ed after crash recovery
TABLE_DICT_LOCKED	Set if the table has dict_sys->mutex

Definition at line 284 of file fts0fts.h.

enum fts_table_type_t

The FTS table types.

Enumerator:

FTS_INDEX_TABLE	FTS auxiliary table that is specific to a particular FTS index on a table
FTS_COMMON_TABLE	FTS auxiliary table that is common for all FTS index on a table

Definition at line 127 of file fts0fts.h.

Function Documentation

UNIV_INTERN void fts_add_doc_id_column	(	dict_table_t *	table,
		mem_heap_t *	heap
	)

Add the FTS document id hidden column.

Parameters

table	in/out: Table with FTS index
heap	in: temporary memory heap, or NULL

UNIV_INTERN void fts_add_index	(	dict_index_t *	index,
		dict_table_t *	table
	)

Add a newly create index in FTS cache table

Add a newly create index into FTS cache

Parameters

index	FTS index to be added
table	table

Definition at line 685 of file fts0fts.cc.

Here is the call graph for this function:

UNIV_INTERN void fts_cache_clear	(	fts_cache_t *	cache,
		ibool	free_words
	)

Clear cache. If the shutdown flag is TRUE then the cache can contain data that needs to be freed. For regular clear as part of normal working we assume the caller has freed all resources. in: TRUE if free in memory word cache.

Clear cache. If the shutdown flag is TRUE then the cache can contain data that needs to be freed. For regular clear as part of normal working we assume the caller has freed all resources.

Parameters

cache	in: cache
free_words	in: TRUE if free in memory word cache.

Definition at line 1087 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN fts_cache_t* fts_cache_create ( dict_table_t * table )

Create a FTS cache. table owns the FTS cache

Create a FTS cache.

Parameters

table in: table owns the FTS cache

Definition at line 621 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void fts_cache_destroy ( fts_cache_t * cache )

Free the FTS cache. in: cache

Free the FTS cache.

Parameters

cache in: cache

Definition at line 1212 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN fts_index_cache_t* fts_cache_index_cache_create	(	dict_table_t *	table,
		dict_index_t *	index
	)

Create a FTS index cache.

Returns: Index Cache in: FTS index

Create an FTS index cache.

Returns: Index Cache

Parameters

table	in: table with FTS index
index	in: FTS index

Definition at line 1000 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void fts_cache_init ( fts_cache_t * cache )

Initialize things in cache. in: cache

Initialize FTS cache.

Parameters

cache in: cache to initialize

Definition at line 590 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool fts_check_cached_index ( dict_table_t * table )

Check indexes in the fts->indexes is also present in index cache and table->indexes list

Returns: TRUE if all indexes match in: Table where indexes are dropped fts0fts.h

Check indexes in the fts->indexes is also present in index cache and table->indexes list

Returns: TRUE if all indexes match

Parameters

table in: Table where indexes are dropped

Definition at line 801 of file fts0fts.cc.

UNIV_INTERN dberr_t fts_commit ( trx_t * trx )

The given transaction is about to be committed; do whatever is necessary from the FTS system's POV.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction

UNIV_INTERN fts_t* fts_create ( dict_table_t * table )

Create an instance of fts_t.

Returns: instance of fts_t out: table with FTS indexes

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_create_common_tables	(	trx_t *	trx,
		const dict_table_t *	table,
		const char *	name,
		bool	skip_doc_id_index
	)

Creates the common ancillary tables needed for supporting an FTS index on the given table. row_mysql_lock_data_dictionary must have been called before this.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction handle
table	in: table with one FTS index
name	in: table name
skip_doc_id_index	in: Skip index on doc id

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_create_doc_id	(	dict_table_t *	table,
		dtuple_t *	row,
		mem_heap_t *	heap
	)

Create a new document id .

Returns: DB_SUCCESS if all went well else error

Parameters

table	in: row is of this table.
row	in/out: add doc id value to this row. This is the current row that is being inserted.
heap	in: heap

UNIV_INTERN dberr_t fts_create_index_tables	(	trx_t *	trx,
		const dict_index_t *	index
	)

Wrapper function of fts_create_index_tables_low(), create auxiliary tables for an FTS index

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction handle
index	in: the FTS index instance

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_create_index_tables_low	(	trx_t *	trx,
		const dict_index_t *	index,
		const char *	table_name,
		table_id_t	table_id
	)

Creates the column specific ancillary tables needed for supporting an FTS index on the given table. row_mysql_lock_data_dictionary must have been called before this.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction handle
index	in: the FTS index instance
table_name	in: the table name
table_id	in: the table id

Here is the caller graph for this function:

UNIV_INTERN fts_doc_ids_t* fts_doc_ids_create ( void )

Create a new fts_doc_ids_t.

Returns: new fts_doc_ids_t.

UNIV_INTERN void fts_doc_ids_free ( fts_doc_ids_t * doc_ids )

Free a fts_doc_ids_t. in: doc_ids to free

UNIV_INTERN dberr_t fts_drop_index	(	dict_table_t *	table,
		dict_index_t *	index,
		trx_t *	trx
	)

Drop auxiliary tables related to an FTS index

Returns: DB_SUCCESS or error number

Parameters

table	in: Table where indexes are dropped
index	in: Index to be dropped
trx	in: Transaction for the drop

Definition at line 837 of file fts0fts.cc.

Here is the call graph for this function:

UNIV_INTERN dberr_t fts_drop_index_split_tables	(	trx_t *	trx,
		dict_index_t *	index
	)

Since we do a horizontal split on the index table, we need to drop all the split tables.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
index	in: fts instance

UNIV_INTERN dberr_t fts_drop_index_tables	(	trx_t *	trx,
		dict_index_t *	index
	)

Drops index ancillary tables for a FTS index

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
index	in: Index to drop

Here is the caller graph for this function:

UNIV_INTERN void fts_drop_orphaned_tables ( void )

Drop all orphaned FTS auxiliary tables, those that don't have a parent table or FTS index defined on them.

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_drop_tables	(	trx_t *	trx,
		dict_table_t *	table
	)

Drops the ancillary tables needed for supporting an FTS index on the given table. row_mysql_lock_data_dictionary must have been called before this.

Returns: DB_SUCCESS or error code

Parameters

trx	in: transaction
table	in: table has the FTS index

Here is the caller graph for this function:

UNIV_INTERN void fts_free ( dict_table_t * table )

Free the FTS resources. in/out: table with FTS indexes

Here is the caller graph for this function:

UNIV_INTERN doc_id_t fts_get_doc_id_from_rec	(	dict_table_t *	table,
		const rec_t *	rec,
		mem_heap_t *	heap
	)

Extract the doc id from the FTS hidden column. in: heap

Parameters

table	in: table
rec	in: rec

UNIV_INTERN doc_id_t fts_get_doc_id_from_row	(	dict_table_t *	table,
		dtuple_t *	row
	)

Extract the doc id from the FTS hidden column. in: row whose FTS doc id we want to extract.

Parameters

table in: table

Here is the caller graph for this function:

UNIV_INTERN ib_vector_t* fts_get_docs_create ( fts_cache_t * cache )

Create the vector of fts_get_doc_t instances.

Returns: vector of fts_get_doc_t instances in: fts cache

UNIV_INTERN doc_id_t fts_get_max_doc_id ( dict_table_t * table )

Get maximum Doc ID in a table if index "FTS_DOC_ID_INDEX" exists

Returns: max Doc ID or 0 if index "FTS_DOC_ID_INDEX" does not exist in: user table

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_get_next_doc_id	(	const dict_table_t *	table,
		doc_id_t *	doc_id
	)

Get the next available document id. This function creates a new transaction to generate the document id.

Returns: DB_SUCCESS if OK

Parameters

table	in: table
doc_id	out: new document id

UNIV_INTERN ulint fts_get_rows_count ( fts_table_t * fts_table )

Fetch COUNT(*) from specified table.

Returns: the number of rows in the table in: fts table to read

UNIV_INTERN CHARSET_INFO* fts_index_get_charset ( dict_index_t * index )

Create an FTS index cache. in: FTS index

Create an FTS index cache.

Parameters

index in: FTS index

Definition at line 955 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN doc_id_t fts_init_doc_id ( const dict_table_t * table )

Get the initial Doc ID by consulting the CONFIG table

Returns: initial Doc ID in: table

UNIV_INTERN ibool fts_init_index	(	dict_table_t *	table,
		ibool	has_cache_lock
	)

This function brings FTS index in sync when FTS index is first used. There are documents that have not yet sync-ed to auxiliary tables from last server abnormally shutdown, we will need to bring such document into FTS cache before any further operations

Returns: TRUE if all OK in: Whether we already have cache lock

Parameters

table in: Table with FTS

Here is the caller graph for this function:

UNIV_INTERN ibool fts_load_stopword	(	const dict_table_t *	table,
		trx_t *	trx,
		const char *	global_stopword_table,
		const char *	session_stopword_table,
		ibool	stopword_is_on,
		ibool	reload
	)

This function loads specified stopword into FTS cache

Returns: TRUE if success in: Whether it is during reload of FTS table

Parameters

table	in: Table with FTS
trx	in: Transaction
global_stopword_table	in: Global stopword table name
session_stopword_table	in: Session stopword table name
stopword_is_on	in: Whether stopword option is turned on/off

UNIV_INTERN void fts_optimize_end ( void )

Inform optimize to clean up.

UNIV_INTERN void fts_optimize_init ( void )

Startup the optimize thread and create the work queue.

UNIV_INTERN ibool fts_optimize_is_init ( void )

Check whether the work queue is initialized.

Returns: TRUE if optimze queue is initialized.

UNIV_INTERN void fts_optimize_remove_table ( dict_table_t * table )

Remove the table from the OPTIMIZER's list. We do wait for acknowledgement from the consumer of the message. in: table to remove

Here is the caller graph for this function:

UNIV_INTERN void fts_optimize_start_shutdown ( void )

Signal the optimize thread to prepare for shutdown.

UNIV_INTERN dberr_t fts_optimize_table ( dict_table_t * table )

Run OPTIMIZE on the given table.

Returns: DB_SUCCESS if all OK

Parameters

table in: table to optimiza

UNIV_INTERN void fts_que_graph_free_check_lock	(	fts_table_t *	fts_table,
		const fts_index_cache_t *	index_cache,
		que_t *	graph
	)

Free the query graph but check whether dict_sys->mutex is already held in: query graph

Free the query graph but check whether dict_sys->mutex is already held

Parameters

fts_table	in: FTS table
index_cache	in: FTS index cache
graph	in: query graph

Definition at line 918 of file fts0fts.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN dberr_t fts_query	(	trx_t *	trx,
		dict_index_t *	index,
		uint	flags,
		const byte *	query,
		ulint	query_len,
		fts_result_t **	result
	)

FTS Query entry point.

Returns: DB_SUCCESS if successful otherwise error code

Parameters

trx	in: transaction
index	in: FTS index to search
flags	in: FTS search mode
query	in: FTS query
query_len	in: FTS query string len in bytes
result	out: query result, to be freed by the caller.

Here is the caller graph for this function:

UNIV_INTERN void fts_query_free_result ( fts_result_t * result )

FTS Query free result, returned by fts_query(). in: result instance to free.

UNIV_INTERN void fts_query_sort_result_on_rank ( fts_result_t * result )

FTS Query sort result, returned by fts_query() on fts_ranking_t::rank. out: result instance to sort.

Here is the caller graph for this function:

dberr_t fts_rename_aux_tables	(	dict_table_t *	table,
		const char *	new_name,
		trx_t *	trx
	)

Rename auxiliary tables for all fts index for a table

Returns: DB_SUCCESS or error code in: transaction

Parameters

table	in: user Table
new_name	in: new table name

UNIV_INTERN float fts_retrieve_ranking	(	fts_result_t *	result,
		doc_id_t	doc_id
	)

Retrieve the FTS Relevance Ranking result for doc with doc_id

Returns: the relevance ranking value. in: the interested document doc_id

Parameters

result in: FTS result structure

UNIV_INTERN void fts_savepoint_laststmt_refresh ( trx_t * trx )

Refresh last statement savepoint.

Parameters

trx	in: transaction

UNIV_INTERN void fts_savepoint_release	(	trx_t *	trx,
		const char *	name
	)

Release the savepoint data identified by name. in: savepoint name

Parameters

trx	in: transaction

UNIV_INTERN void fts_savepoint_rollback	(	trx_t *	trx,
		const char *	name
	)

Rollback to and including savepoint indentified by name. in: savepoint name

Parameters

trx	in: transaction

UNIV_INTERN void fts_savepoint_rollback_last_stmt ( trx_t * trx )

Rollback to and including savepoint indentified by name. in: transaction

Here is the caller graph for this function:

UNIV_INTERN void fts_savepoint_take	(	trx_t *	trx,
		const char *	name
	)

Take a FTS savepoint.

Parameters

trx	in: transaction
name	in: savepoint name

UNIV_INTERN void fts_shutdown	(	dict_table_t *	table,
		fts_t *	fts
	)

Wait for FTS threads to shutdown. in: fts instance to shutdown

Parameters

table in: table with FTS indexes

UNIV_INTERN void fts_start_shutdown	(	dict_table_t *	table,
		fts_t *	fts
	)

Signal FTS threads to initiate shutdown. in: fts instance to shutdown

Parameters

table in: table with FTS indexes

UNIV_INTERN void fts_startup ( void )

FTS initialize.

UNIV_INTERN void fts_sync_table ( dict_table_t * table )

Run SYNC on the table, i.e., write out data from the cache to the FTS auxiliary INDEX table and clear the cache at the end.

Parameters

table in: table

UNIV_INTERN dberr_t fts_table_fetch_doc_ids	(	trx_t *	trx,
		fts_table_t *	fts_table,
		fts_doc_ids_t *	doc_ids
	)

Read the rows from the FTS index

Returns: DB_SUCCESS if OK in: For collecting doc ids

Parameters

trx	in: transaction
fts_table	in: aux table

UNIV_INTERN void fts_trx_add_op	(	trx_t *	trx,
		dict_table_t *	table,
		doc_id_t	doc_id,
		fts_row_state	state,
		ib_vector_t *	fts_indexes
	)

Notify the FTS system about an operation on an FTS-indexed table.

Parameters

trx	in: InnoDB transaction
table	in: table
doc_id	in: doc id
state	in: state of the row
fts_indexes	in: FTS indexes affected (NULL=all)

Here is the caller graph for this function:

UNIV_INTERN void UNIV_INTERN void fts_trx_free ( fts_trx_t * fts_trx )

Free an FTS trx. in, own: FTS trx

UNIV_INTERN doc_id_t fts_update_doc_id	(	dict_table_t *	table,
		upd_field_t *	ufield,
		doc_id_t *	next_doc_id
	)

Update the query graph with a new document id.

Returns: Doc ID used out: buffer for writing

Parameters

table	in: table
ufield	out: update node

UNIV_INTERN void fts_update_next_doc_id	(	trx_t *	trx,
		const dict_table_t *	table,
		const char *	table_name,
		doc_id_t	doc_id
	)

Update the next and last Doc ID in the CONFIG table to be the input "doc_id" value (+ 1). We would do so after each FTS index build or table truncate

Parameters

trx	in/out: transaction
table	in: table
table_name	in: table name, or NULL
doc_id	in: DOC ID to set

Here is the caller graph for this function:

UNIV_INTERN CHARSET_INFO* fts_valid_stopword_table ( const char * stopword_table_name )

Check whether user supplied stopword table exists and is of the right format.

Returns: the stopword column charset if qualifies in: Stopword table name

size_t innobase_fts_casedn_str	(	CHARSET_INFO *	cs,
		char *	src,
		size_t	src_len,
		char *	dst,
		size_t	dst_len
	)

Makes all characters in a string lower case. in: buffer size

Makes all characters in a string lower case.

Parameters

cs	in: Character set
src	in: string to put in lower case
src_len	in: input string length
dst	in: buffer for result string
dst_len	in: buffer size

Definition at line 5370 of file ha_innodb.cc.

int innobase_fts_text_cmp	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string according to their charset. in: node

compare two character string according to their charset.

Parameters

cs	in: Character set
p1	in: key
p2	in: node

Definition at line 5263 of file ha_innodb.cc.

int innobase_fts_text_cmp_prefix	(	const void *	cs,
		const void *	p1,
		const void *	p2
	)

compare two character string according to their charset. in: node

compare two character string according to their charset.

Parameters

cs	in: Character set
p1	in: prefix key
p2	in: value to compare

Definition at line 5331 of file ha_innodb.cc.

ulint innobase_mysql_fts_get_token	(	CHARSET_INFO *	cs,
		const byte *	start,
		const byte *	end,
		fts_string_t *	token,
		ulint *	offset
	)

Get the next token from the given string and store it in *token. out: offset to token, measured as characters from 'start'

Get the next token from the given string and store it in *token. It is mostly copied from MyISAM's doc parsing function ft_simple_get_word()

Returns: length of string processed

Parameters

cs	in: Character set
start	in: start of text
end	in: one character past end of text
token	out: token's text
offset	out: offset to token, measured as characters from 'start'

Definition at line 5399 of file ha_innodb.cc.

Variable Documentation

const char* fts_default_stopword[]

InnoDB default stopword list:

There are different versions of stopwords, the stop words listed below comes from "Google Stopword" list. Reference: http://meta.wikimedia.org/wiki/Stop_word_list/google_stop_word_list. The final version of InnoDB default stopword list is still pending for decision

Definition at line 107 of file fts0fts.cc.

char fts_enable_diag_print

Variable specifying whether we do additional FTS diagnostic printout

in the log

Definition at line 235 of file fts0opt.cc.

char* fts_internal_tbl_name

Variable specifying the table that has Fulltext index to display its

content through information schema table

variable to record innodb_fts_internal_tbl_name for information

schema table INNODB_FTS_INSERTED etc.

Definition at line 99 of file fts0fts.cc.

ulong fts_max_cache_size

Variable specifying the maximum FTS cache size for each table

This is maximum FTS cache for each table and would be

a configurable variable

Definition at line 49 of file fts0fts.cc.

ulong fts_max_token_size

Variable specifying the maximum FTS max token size

Definition at line 63 of file fts0fts.cc.

ulong fts_max_total_cache_size

Variable specifying the total memory allocated for FTS cache

Definition at line 56 of file fts0fts.cc.

ulong fts_min_token_size

Variable specifying the minimum FTS max token size

Definition at line 66 of file fts0fts.cc.

bool fts_need_sync

Whether the total memory used for FTS cache is exhausted, and we will

need a sync to free some memory

Definition at line 53 of file fts0fts.cc.

ulong fts_num_word_optimize

Variable specifying the number of word to optimize for each optimize table

call

The number of words to read and optimize in a single pass.

Definition at line 232 of file fts0opt.cc.

ulong fts_result_cache_limit

Variable specifying the FTS result cache limit for each query

This is FTS result cache limit for each query and would be

a configurable variable

Definition at line 60 of file fts0fts.cc.

ulong fts_sort_pll_degree

Variable specifying the FTS parallel sort degree

Parallel sort degree

Definition at line 49 of file row0ftsort.cc.

Classes

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
