DsMrr_impl Class Reference

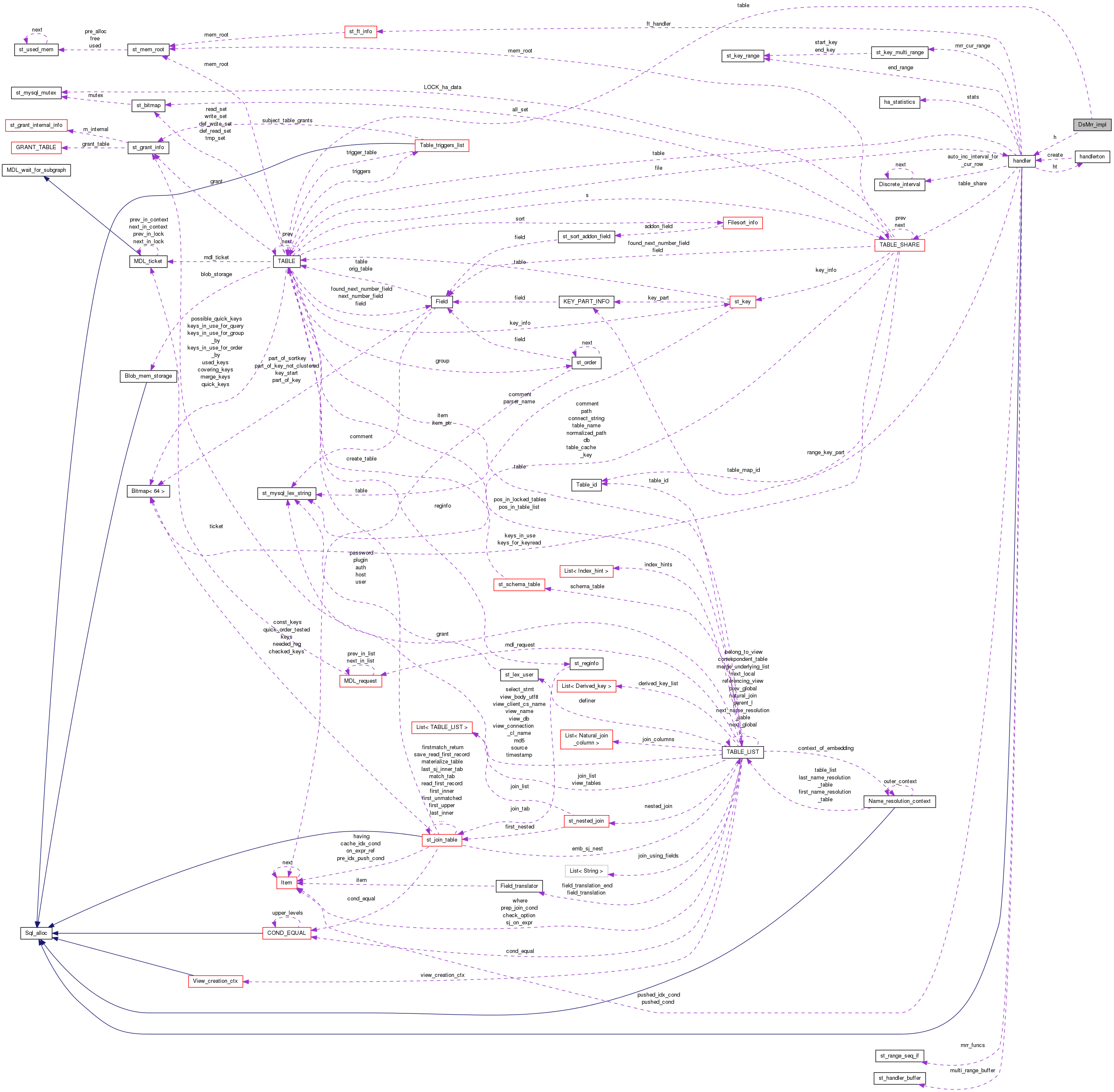

Collaboration diagram for DsMrr_impl:

Public Types
typedef void(handler::*	range_check_toggle_func_t )(bool on)

Public Member Functions
void	init (handler *h_arg, TABLE *table_arg)
int	dsmrr_init (handler *h, RANGE_SEQ_IF *seq_funcs, void *seq_init_param, uint n_ranges, uint mode, HANDLER_BUFFER *buf)
void	dsmrr_close ()
void	reset ()
int	dsmrr_fill_buffer ()
int	dsmrr_next (char **range_info)
ha_rows	dsmrr_info (uint keyno, uint n_ranges, uint keys, uint *bufsz, uint *flags, Cost_estimate *cost)
ha_rows	dsmrr_info_const (uint keyno, RANGE_SEQ_IF *seq, void *seq_init_param, uint n_ranges, uint *bufsz, uint *flags, Cost_estimate *cost)

Public Attributes
handler *	h
TABLE *	table

Detailed Description

Definition at line 3249 of file handler.h.

Member Function Documentation

int DsMrr_impl::dsmrr_fill_buffer

(

)

DS-MRR: Fill the buffer with rowids and sort it by rowid

{This is an internal function of DiskSweep MRR implementation} Scan the MRR ranges and collect ROWIDs (or {ROWID, range_id} pairs) into buffer. When the buffer is full or scan is completed, sort the buffer by rowid and return.

The function assumes that rowids buffer is empty when it is invoked.

Parameters

h	Table handler

Return values

0	OK, the next portion of rowids is in the buffer, properly ordered
other	Error

Definition at line 6106 of file handler.cc.

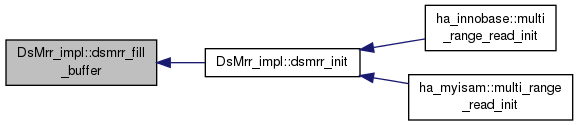

Here is the caller graph for this function:

int DsMrr_impl::dsmrr_init	(	handler *	h_arg,
		RANGE_SEQ_IF *	seq_funcs,
		void *	seq_init_param,
		uint	n_ranges,
		uint	mode,
		HANDLER_BUFFER *	buf
	)

DS-MRR: Initialize and start MRR scan

Initialize and start the MRR scan. Depending on the mode parameter, this may use default or DS-MRR implementation.

The DS-MRR implementation will use a second handler object (h2) for doing scan on the index:

• on the first call to this function the h2 handler will be created and h2 will be opened using the same index as the main handler is set to use. The index scan on the main index will be closed and it will be re-opened to read records from the table using either no key or the primary key. The h2 handler will be deleted when reset() is called (which should happen on the end of the statement).
• when dsmrr_close() is called the index scan on h2 is closed.
• on following calls to this function one of the following must be valid: a. if dsmrr_close has been called: the main handler (h) must be open on an index, h2 will be opened using this index, and the index on h will be closed and h will be re-opened to read reads from the table using either no key or the primary key. b. dsmrr_close has not been called: h2 will already be open, the main handler h must be set up to read records from the table (handler->inited is RND) either using the primary index or using no index at all.

Parameters

h_arg	Table handler to be used
seq_funcs	Interval sequence enumeration functions
seq_init_param	Interval sequence enumeration parameter
n_ranges	Number of ranges in the sequence.
mode	HA_MRR_* modes to use
buf	INOUT Buffer to use

Return values

0	Ok, Scan started.
other	Error

Definition at line 5856 of file handler.cc.

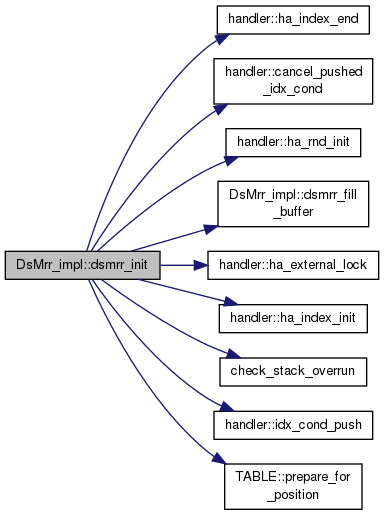

Here is the call graph for this function:

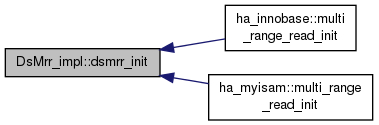

Here is the caller graph for this function:

void DsMrr_impl::reset

(

void

)

Resets the DS-MRR object to the state it had after being intialized.

If there is an open scan then this will be closed.

This function should be called by handler::ha_reset() which is called when a statement is completed in order to make the handler object ready for re-use by a different statement.

Definition at line 6065 of file handler.cc.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• sql/handler.h
• sql/handler.cc
