#include "row0row.h"
#include "data0type.h"
#include "dict0dict.h"
#include "btr0btr.h"
#include "ha_prototypes.h"
#include "mach0data.h"
#include "trx0rseg.h"
#include "trx0trx.h"
#include "trx0roll.h"
#include "trx0undo.h"
#include "trx0purge.h"
#include "trx0rec.h"
#include "que0que.h"
#include "row0ext.h"
#include "row0upd.h"
#include "rem0cmp.h"
#include "read0read.h"
#include "ut0mem.h"

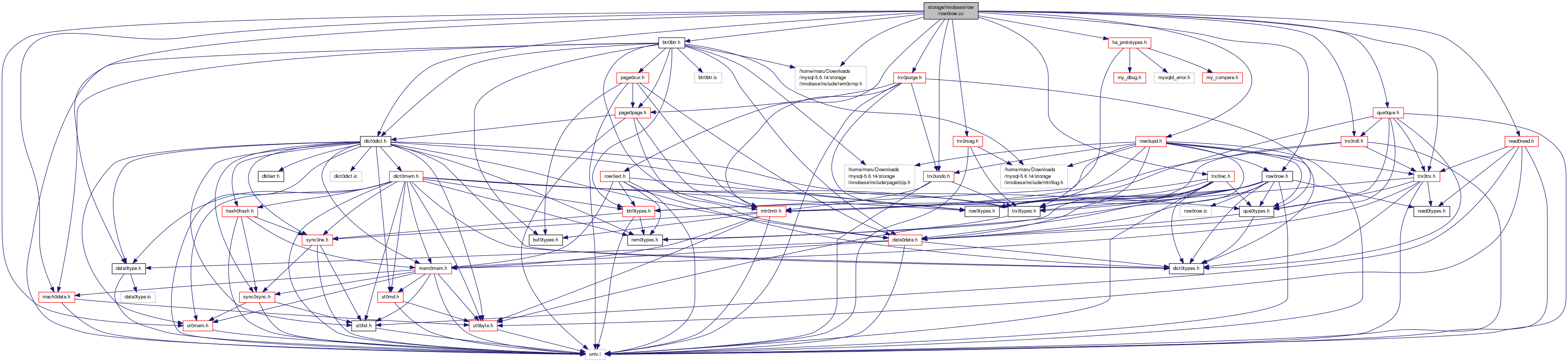

Include dependency graph for row0row.cc:

Functions
UNIV_INTERN dtuple_t *	row_build_index_entry_low (const dtuple_t row, const row_ext_t ext, dict_index_t index, mem_heap_t heap)
UNIV_INTERN dtuple_t *	row_build (ulint type, const dict_index_t index, const rec_t rec, const ulint offsets, const dict_table_t col_table, const dtuple_t add_cols, const ulint col_map, row_ext_t *ext, mem_heap_t heap)
UNIV_INTERN dtuple_t *	row_rec_to_index_entry_low (const rec_t rec, const dict_index_t index, const ulint offsets, ulint n_ext, mem_heap_t *heap)
UNIV_INTERN dtuple_t *	row_rec_to_index_entry (const rec_t rec, const dict_index_t index, const ulint offsets, ulint n_ext, mem_heap_t *heap)
UNIV_INTERN dtuple_t *	row_build_row_ref (ulint type, dict_index_t index, const rec_t rec, mem_heap_t *heap)
UNIV_INTERN void	row_build_row_ref_in_tuple (dtuple_t ref, const rec_t rec, const dict_index_t index, ulint offsets, trx_t *trx)
UNIV_INTERN ibool	row_search_on_row_ref (btr_pcur_t pcur, ulint mode, const dict_table_t table, const dtuple_t ref, mtr_t mtr)
UNIV_INTERN rec_t *	row_get_clust_rec (ulint mode, const rec_t rec, dict_index_t index, dict_index_t *clust_index, mtr_t mtr)
UNIV_INTERN enum row_search_result	row_search_index_entry (dict_index_t index, const dtuple_t entry, ulint mode, btr_pcur_t pcur, mtr_t mtr)
UNIV_INTERN ulint	row_raw_format (const char data, ulint data_len, const dict_field_t dict_field, char *buf, ulint buf_size)

Detailed Description

General row routines

Created 4/20/1996 Heikki Tuuri

Definition in file row0row.cc.

Function Documentation

UNIV_INTERN dtuple_t* row_build	(	ulint	type,
		const dict_index_t *	index,
		const rec_t *	rec,
		const ulint *	offsets,
		const dict_table_t *	col_table,
		const dtuple_t *	add_cols,
		const ulint *	col_map,
		row_ext_t **	ext,
		mem_heap_t *	heap
	)

An inverse function to row_build_index_entry. Builds a row from a record in a clustered index.

Returns: own: row built; see the NOTE below!

Parameters

type	in: ROW_COPY_POINTERS or ROW_COPY_DATA; the latter copies also the data fields to heap while the first only places pointers to data fields on the index page, and thus is more efficient
index	in: clustered index
rec	in: record in the clustered index; NOTE: in the case ROW_COPY_POINTERS the data fields in the row will point directly into this record, therefore, the buffer page of this record must be at least s-latched and the latch held as long as the row dtuple is used!
offsets	in: rec_get_offsets(rec,index) or NULL, in which case this function will invoke rec_get_offsets()
col_table	in: table, to check which externally stored columns occur in the ordering columns of an index, or NULL if index->table should be consulted instead
add_cols	in: default values of added columns, or NULL
col_map	in: mapping of old column numbers to new ones, or NULL
ext	out, own: cache of externally stored column prefixes, or NULL
heap	in: memory heap from which the memory needed is allocated

Definition at line 192 of file row0row.cc.

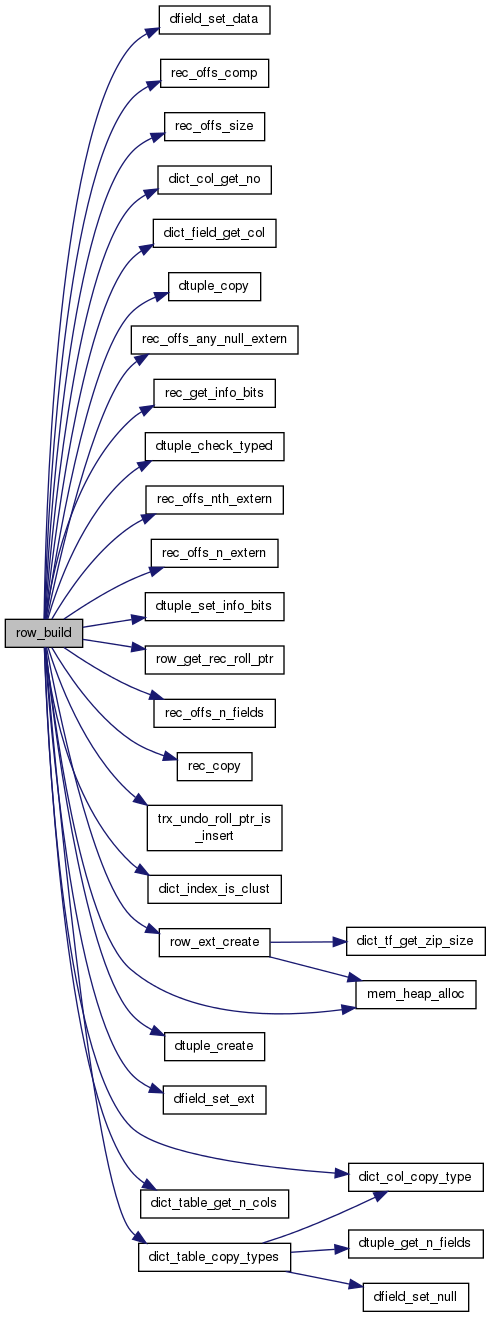

Here is the call graph for this function:

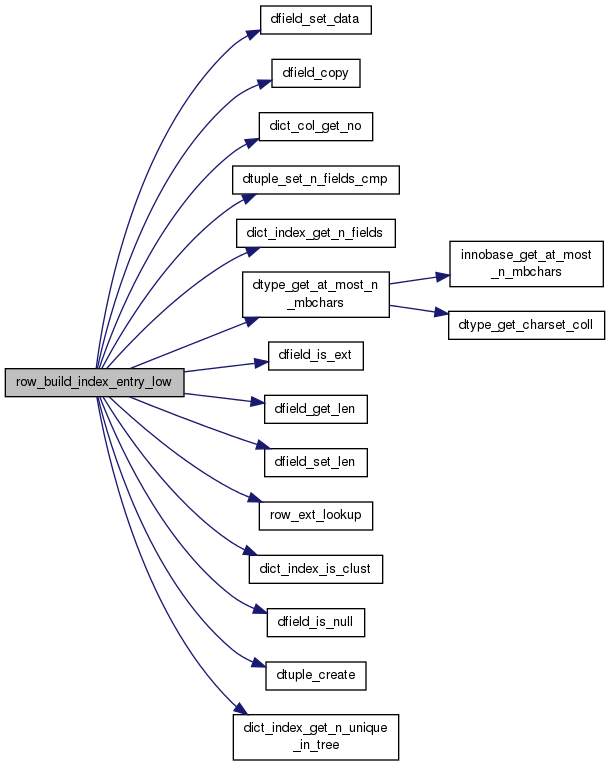

UNIV_INTERN dtuple_t* row_build_index_entry_low	(	const dtuple_t *	row,
		const row_ext_t *	ext,
		dict_index_t *	index,
		mem_heap_t *	heap
	)

When an insert or purge to a table is performed, this function builds the entry to be inserted into or purged from an index on the table.

Returns: index entry which should be inserted or purged

Return values

NULL	if the externally stored columns in the clustered index record are unavailable and ext != NULL, or row is missing some needed columns.

Parameters

row	in: row which should be inserted or purged
ext	in: externally stored column prefixes, or NULL
index	in: index on the table
heap	in: memory heap from which the memory for the index entry is allocated

Definition at line 58 of file row0row.cc.

Here is the call graph for this function:

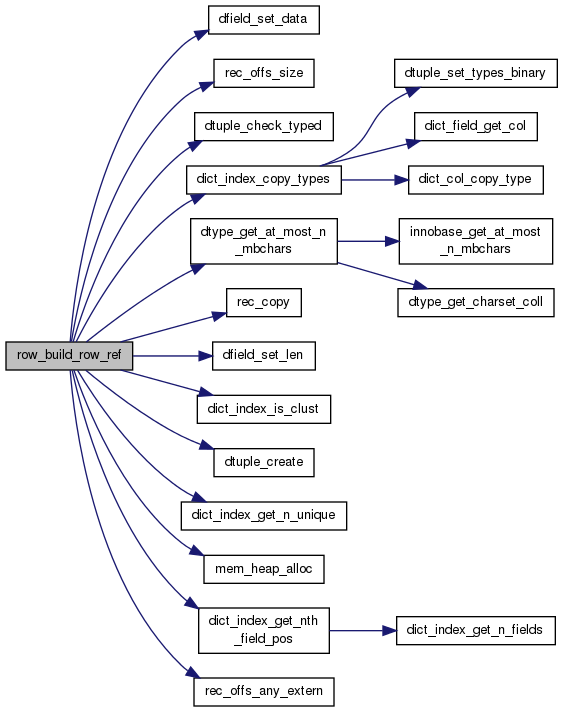

UNIV_INTERN dtuple_t* row_build_row_ref	(	ulint	type,
		dict_index_t *	index,
		const rec_t *	rec,
		mem_heap_t *	heap
	)

Builds from a secondary index record a row reference with which we can search the clustered index record.

Returns: own: row reference built; see the NOTE below!

Parameters

type	in: ROW_COPY_DATA, or ROW_COPY_POINTERS: the former copies also the data fields to heap, whereas the latter only places pointers to data fields on the index page
index	in: secondary index
rec	in: record in the index; NOTE: in the case ROW_COPY_POINTERS the data fields in the row will point directly into this record, therefore, the buffer page of this record must be at least s-latched and the latch held as long as the row reference is used!
heap	in: memory heap from which the memory needed is allocated

Definition at line 493 of file row0row.cc.

Here is the call graph for this function:

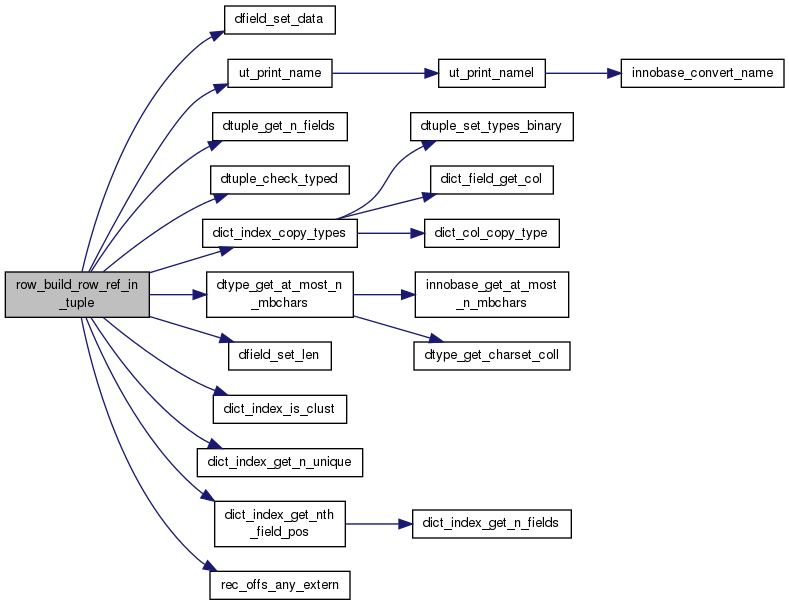

UNIV_INTERN void row_build_row_ref_in_tuple	(	dtuple_t *	ref,
		const rec_t *	rec,
		const dict_index_t *	index,
		ulint *	offsets,
		trx_t *	trx
	)

Builds from a secondary index record a row reference with which we can search the clustered index record.

Parameters

ref	in/out: row reference built; see the NOTE below!
rec	in: record in the index; NOTE: the data fields in ref will point directly into this record, therefore, the buffer page of this record must be at least s-latched and the latch held as long as the row reference is used!
index	in: secondary index
offsets	in: rec_get_offsets(rec, index) or NULL
trx	in: transaction

Definition at line 603 of file row0row.cc.

Here is the call graph for this function:

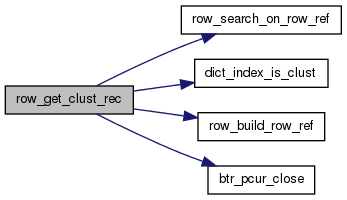

UNIV_INTERN rec_t* row_get_clust_rec	(	ulint	mode,
		const rec_t *	rec,
		dict_index_t *	index,
		dict_index_t **	clust_index,
		mtr_t *	mtr
	)

Fetches the clustered index record for a secondary index record. The latches on the secondary index record are preserved.

Returns: record or NULL, if no record found

Parameters

mode	in: BTR_MODIFY_LEAF, ...
rec	in: record in a secondary index
index	in: secondary index
clust_index	out: clustered index
mtr	in: mtr

Definition at line 759 of file row0row.cc.

Here is the call graph for this function:

UNIV_INTERN ulint row_raw_format	(	const char *	data,
		ulint	data_len,
		const dict_field_t *	dict_field,
		char *	buf,
		ulint	buf_size
	)

Formats the raw data in "data" (in InnoDB on-disk format) using "dict_field" and writes the result to "buf". Not more than "buf_size" bytes are written to "buf". The result is always NUL-terminated (provided buf_size is positive) and the number of bytes that were written to "buf" is returned (including the terminating NUL).

Returns: number of bytes that were written

Parameters

data	in: raw data
data_len	in: raw data length in bytes
dict_field	in: index field
buf	out: output buffer
buf_size	in: output buffer size in bytes

Definition at line 961 of file row0row.cc.

Here is the call graph for this function:

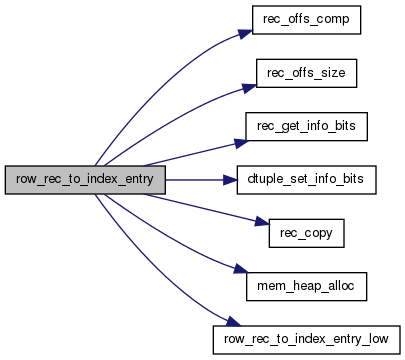

UNIV_INTERN dtuple_t* row_rec_to_index_entry	(	const rec_t *	rec,
		const dict_index_t *	index,
		const ulint *	offsets,
		ulint *	n_ext,
		mem_heap_t *	heap
	)

Converts an index record to a typed data tuple. NOTE that externally stored (often big) fields are NOT copied to heap.

Returns: own: index entry built

Parameters

rec	in: record in the index
index	in: index
offsets	in: rec_get_offsets(rec)
n_ext	out: number of externally stored columns
heap	in: memory heap from which the memory needed is allocated

Definition at line 453 of file row0row.cc.

Here is the call graph for this function:

UNIV_INTERN dtuple_t* row_rec_to_index_entry_low	(	const rec_t *	rec,
		const dict_index_t *	index,
		const ulint *	offsets,
		ulint *	n_ext,
		mem_heap_t *	heap
	)

Converts an index record to a typed data tuple.

Returns: index entry built; does not set info_bits, and the data fields in the entry will point directly to rec

Parameters

rec	in: record in the index
index	in: index
offsets	in: rec_get_offsets(rec, index)
n_ext	out: number of externally stored columns
heap	in: memory heap from which the memory needed is allocated

Definition at line 395 of file row0row.cc.

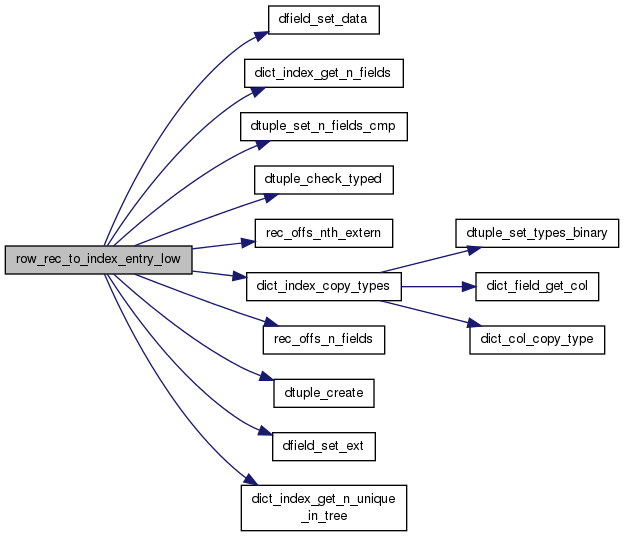

Here is the call graph for this function:

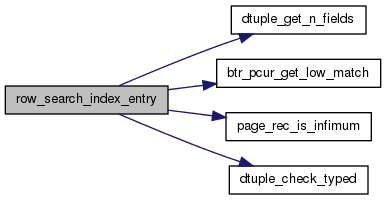

UNIV_INTERN enum row_search_result row_search_index_entry	(	dict_index_t *	index,
		const dtuple_t *	entry,
		ulint	mode,
		btr_pcur_t *	pcur,
		mtr_t *	mtr
	)

Searches an index record.

Returns: whether the record was found or buffered

Parameters

index	in: index
entry	in: index entry
mode	in: BTR_MODIFY_LEAF, ...
pcur	in/out: persistent cursor, which must be closed by the caller
mtr	in: mtr

Definition at line 800 of file row0row.cc.

Here is the call graph for this function:

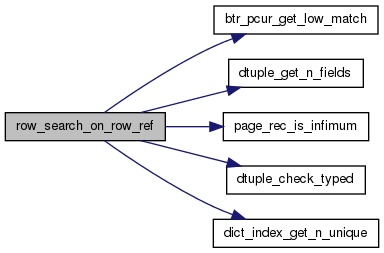

UNIV_INTERN ibool row_search_on_row_ref	(	btr_pcur_t *	pcur,
		ulint	mode,
		const dict_table_t *	table,
		const dtuple_t *	ref,
		mtr_t *	mtr
	)

Searches the clustered index record for a row, if we have the row reference.

Returns: TRUE if found

Parameters

pcur	out: persistent cursor, which must be closed by the caller
mode	in: BTR_MODIFY_LEAF, ...
table	in: table
ref	in: row reference
mtr	in/out: mtr

Definition at line 715 of file row0row.cc.

Here is the call graph for this function:
