#include "univ.i"
#include "buf0types.h"
#include "page0page.h"
#include "rem0rec.h"
#include "data0data.h"
#include "mtr0mtr.h"
#include "page0cur.ic"

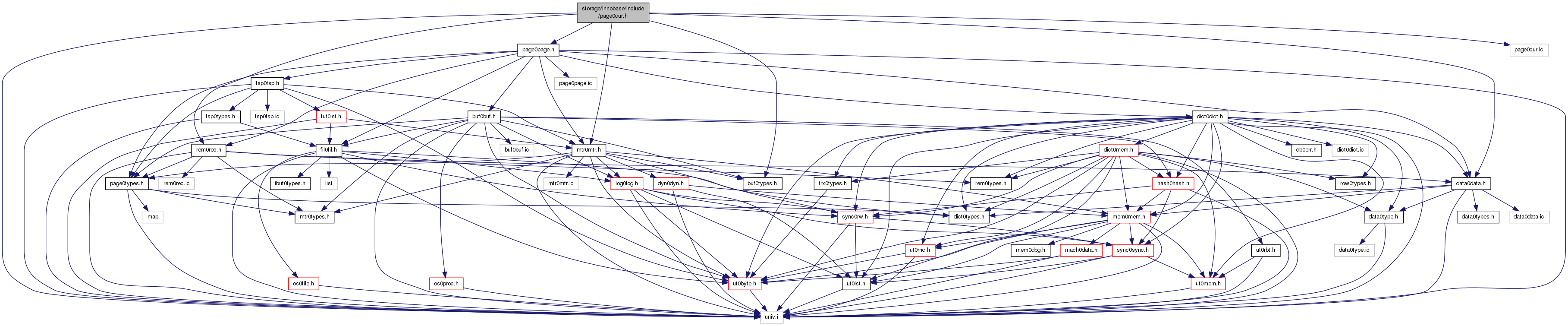

Include dependency graph for page0cur.h:

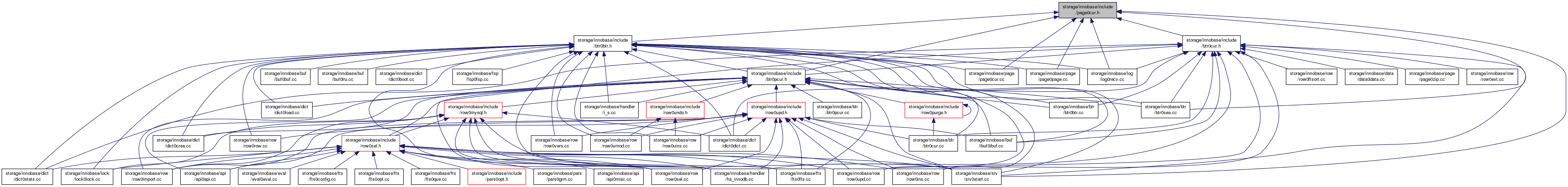

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	page_cur_t

Macros
#define	PAGE_CUR_ADAPT
#define	PAGE_CUR_UNSUPP 0
#define	PAGE_CUR_G 1
#define	PAGE_CUR_GE 2
#define	PAGE_CUR_L 3
#define	PAGE_CUR_LE 4
#define	page_cur_get_page(cur) page_align((cur)->rec)
#define	page_cur_get_block(cur) (cur)->block
#define	page_cur_get_page_zip(cur) buf_block_get_page_zip((cur)->block)
#define	page_cur_get_rec(cur) (cur)->rec

Functions
UNIV_INLINE void	page_cur_set_before_first (const buf_block_t block, page_cur_t cur)
UNIV_INLINE void	page_cur_set_after_last (const buf_block_t block, page_cur_t cur)
UNIV_INLINE ibool	page_cur_is_before_first (const page_cur_t *cur)
UNIV_INLINE ibool	page_cur_is_after_last (const page_cur_t *cur)
UNIV_INLINE void	page_cur_position (const rec_t rec, const buf_block_t block, page_cur_t *cur)
UNIV_INLINE void	page_cur_invalidate (page_cur_t *cur)
UNIV_INLINE void	page_cur_move_to_next (page_cur_t *cur)
UNIV_INLINE void	page_cur_move_to_prev (page_cur_t *cur)
UNIV_INLINE rec_t *	page_cur_tuple_insert (page_cur_t cursor, const dtuple_t tuple, dict_index_t index, ulint offsets, mem_heap_t heap, ulint n_ext, mtr_t mtr) __attribute__((nonnull(1
UNIV_INLINE rec_t *	page_cur_rec_insert (page_cur_t cursor, const rec_t rec, dict_index_t index, ulint offsets, mtr_t *mtr)
UNIV_INTERN rec_t *	page_cur_insert_rec_low (rec_t current_rec, dict_index_t index, const rec_t rec, ulint offsets, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN rec_t *	page_cur_insert_rec_zip (page_cur_t cursor, dict_index_t index, const rec_t rec, ulint offsets, mtr_t *mtr) __attribute__((nonnull(1
UNIV_INTERN void	page_copy_rec_list_end_to_created_page (page_t new_page, rec_t rec, dict_index_t index, mtr_t mtr)
UNIV_INTERN void	page_cur_delete_rec (page_cur_t cursor, const dict_index_t index, const ulint offsets, mtr_t mtr)
UNIV_INLINE ulint	page_cur_search (const buf_block_t block, const dict_index_t index, const dtuple_t tuple, ulint mode, page_cur_t cursor)
UNIV_INTERN void	page_cur_search_with_match (const buf_block_t block, const dict_index_t index, const dtuple_t tuple, ulint mode, ulint iup_matched_fields, ulint iup_matched_bytes, ulint ilow_matched_fields, ulint ilow_matched_bytes, page_cur_t cursor)
UNIV_INTERN void	page_cur_open_on_rnd_user_rec (buf_block_t block, page_cur_t cursor)
UNIV_INTERN byte *	page_cur_parse_insert_rec (ibool is_short, byte ptr, byte end_ptr, buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN byte *	page_parse_copy_rec_list_to_created_page (byte ptr, byte end_ptr, buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN byte *	page_cur_parse_delete_rec (byte ptr, byte end_ptr, buf_block_t block, dict_index_t index, mtr_t *mtr)
UNIV_INTERN bool	page_delete_rec (const dict_index_t index, page_cur_t pcur, page_zip_des_t page_zip, const ulint offsets)

Variables
UNIV_INLINE rec_t	warn_unused_result

Detailed Description

The page cursor

Created 10/4/1994 Heikki Tuuri

Definition in file page0cur.h.

Function Documentation

UNIV_INTERN void page_copy_rec_list_end_to_created_page	(	page_t *	new_page,
		rec_t *	rec,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Copies records from page to a newly created page, from a given record onward, including that record. Infimum and supremum records are not copied.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit(). in: mtr

Copies records from page to a newly created page, from a given record onward, including that record. Infimum and supremum records are not copied.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Parameters

new_page	in/out: index page to copy to
rec	in: first record to copy
index	in: record descriptor
mtr	in: mtr

Definition at line 1715 of file page0cur.cc.

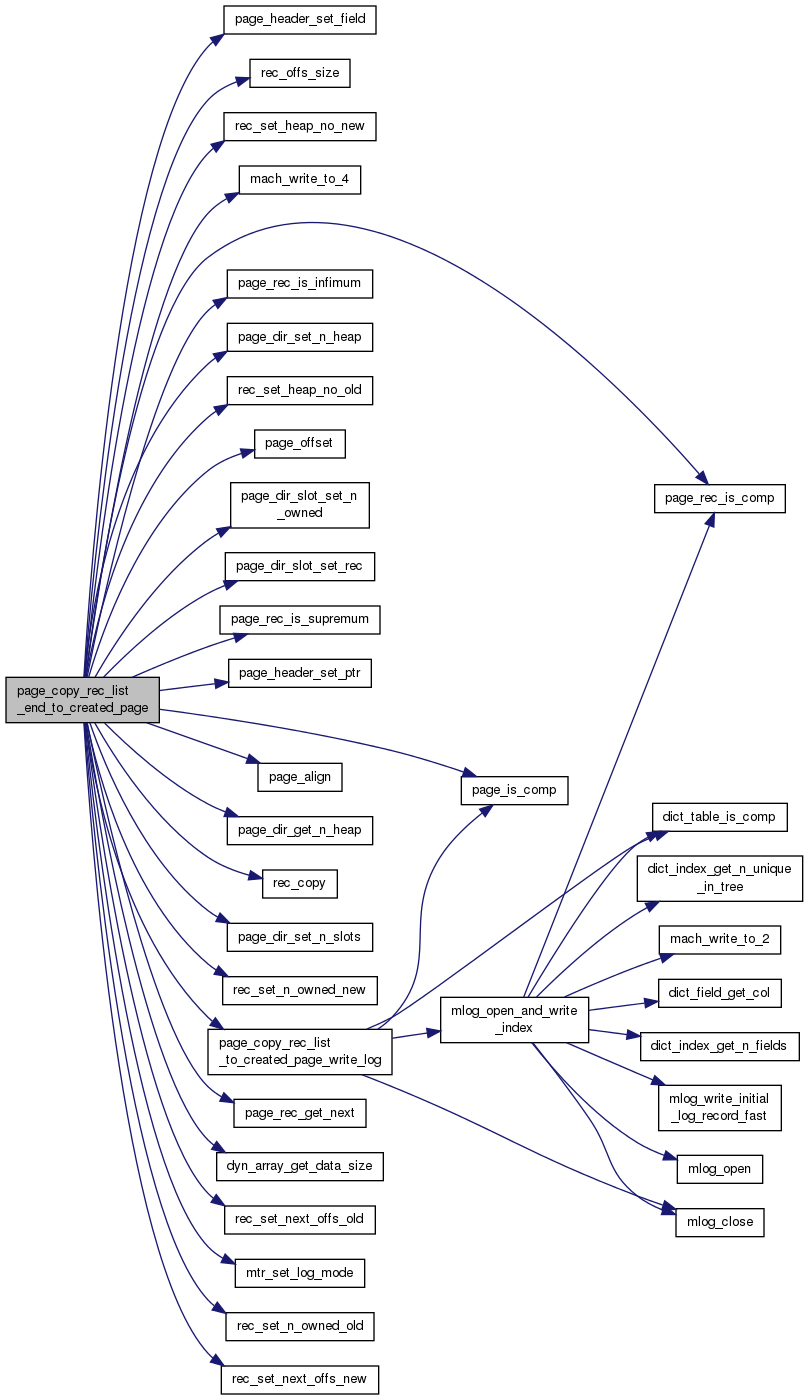

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void page_cur_delete_rec	(	page_cur_t *	cursor,
		const dict_index_t *	index,
		const ulint *	offsets,
		mtr_t *	mtr
	)

Deletes a record at the page cursor. The cursor is moved to the next record after the deleted one. in: mini-transaction handle

Deletes a record at the page cursor. The cursor is moved to the next record after the deleted one.

Parameters

cursor	in/out: a page cursor
index	in: record descriptor
offsets	in: rec_get_offsets( cursor->rec, index)
mtr	in: mini-transaction handle

Definition at line 1974 of file page0cur.cc.

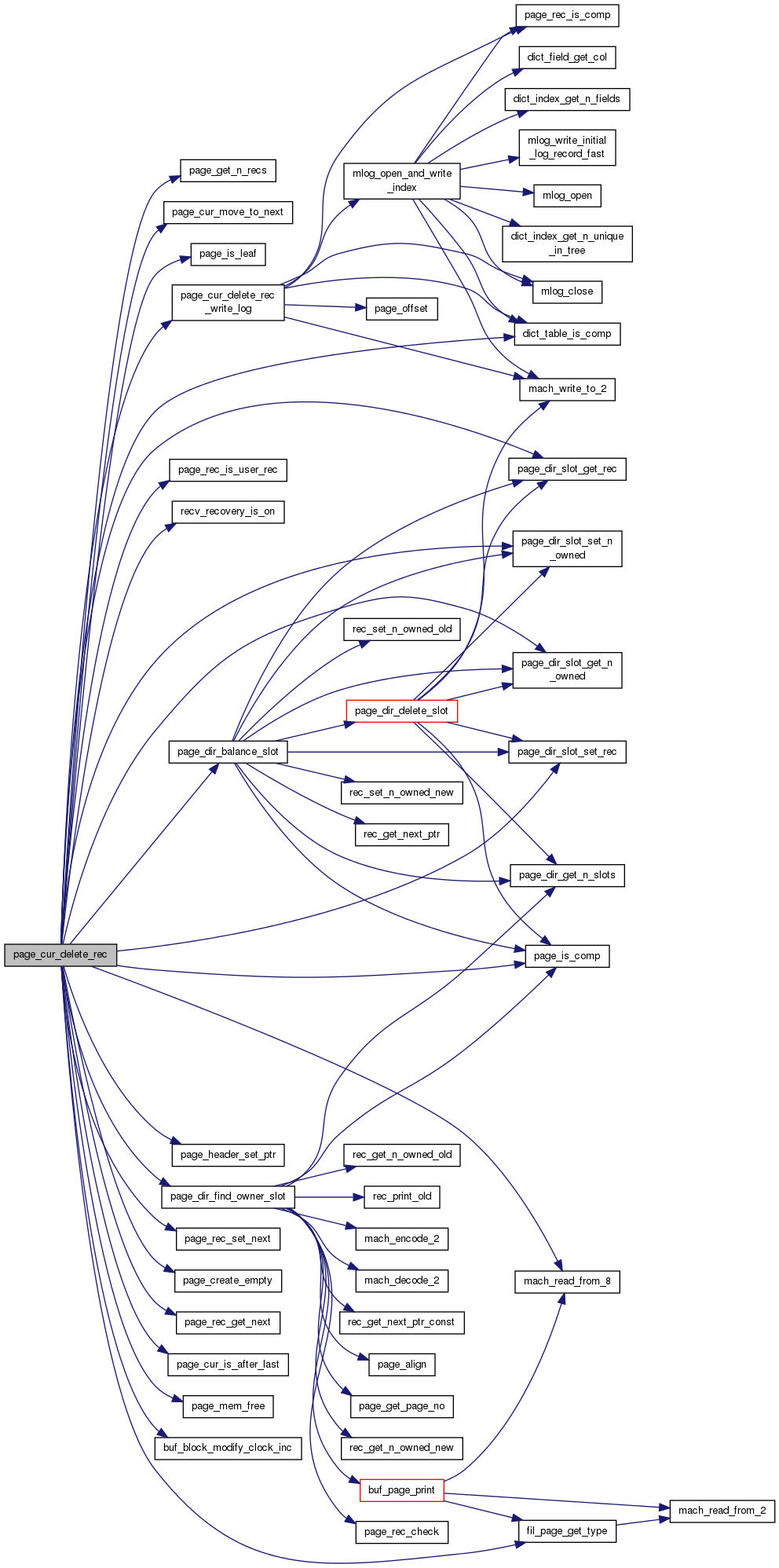

Here is the call graph for this function:

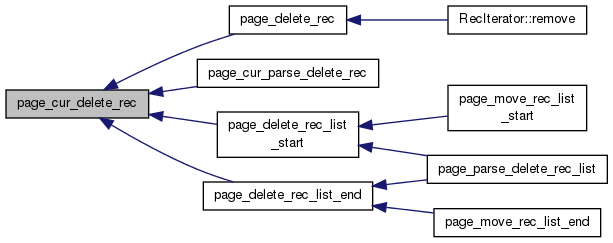

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_cur_insert_rec_low	(	rec_t *	current_rec,
		dict_index_t *	index,
		const rec_t *	rec,
		ulint *	offsets,
		mtr_t *	mtr
	)

Inserts a record next to page cursor on an uncompressed page. Returns pointer to inserted record if succeed, i.e., enough space available, NULL otherwise. The cursor stays at the same position.

Returns: pointer to record if succeed, NULL otherwise

Parameters

current_rec	in: pointer to current record after which the new record is inserted
index	in: record descriptor
rec	in: pointer to a physical record
offsets	in/out: rec_get_offsets(rec, index)
mtr	in: mini-transaction handle, or NULL

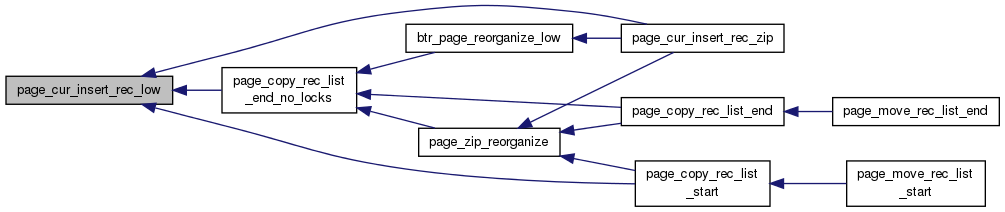

Here is the caller graph for this function:

UNIV_INTERN rec_t* page_cur_insert_rec_zip	(	page_cur_t *	cursor,
		dict_index_t *	index,
		const rec_t *	rec,
		ulint *	offsets,
		mtr_t *	mtr
	)

Inserts a record next to page cursor on a compressed and uncompressed page. Returns pointer to inserted record if succeed, i.e., enough space available, NULL otherwise. The cursor stays at the same position.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to record if succeed, NULL otherwise

Parameters

cursor	in/out: page cursor
index	in: record descriptor
rec	in: pointer to a physical record
offsets	in/out: rec_get_offsets(rec, index)
mtr	in: mini-transaction handle, or NULL

UNIV_INLINE void page_cur_invalidate ( page_cur_t * cur )

Invalidates a page cursor by setting the record pointer NULL. out: page cursor

UNIV_INLINE ibool page_cur_is_after_last ( const page_cur_t * cur )

Returns TRUE if the cursor is after last user record.

Returns: TRUE if at end in: cursor

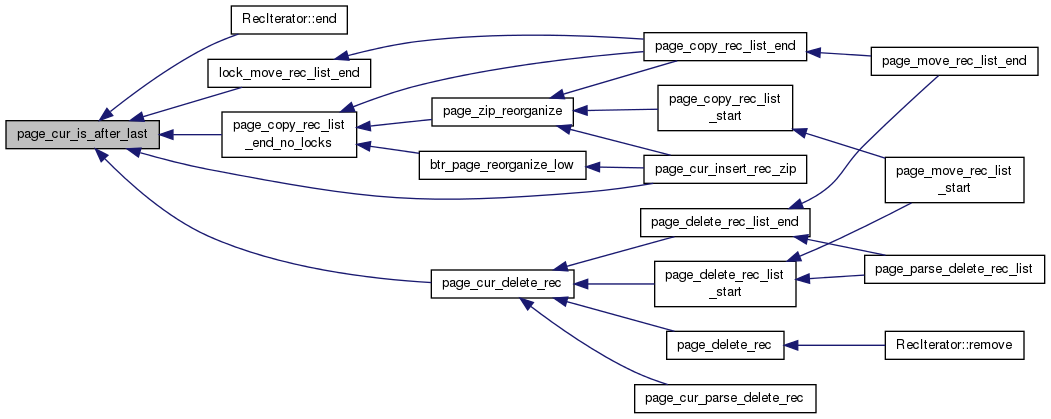

Here is the caller graph for this function:

UNIV_INLINE ibool page_cur_is_before_first ( const page_cur_t * cur )

Returns TRUE if the cursor is before first user record on page.

Returns: TRUE if at start in: cursor

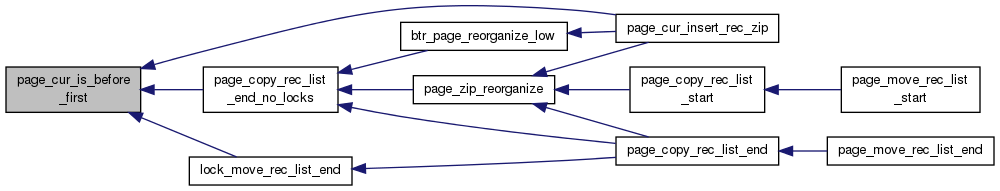

Here is the caller graph for this function:

UNIV_INLINE void page_cur_move_to_next ( page_cur_t * cur )

Moves the cursor to the next record on page. in/out: cursor; must not be after last

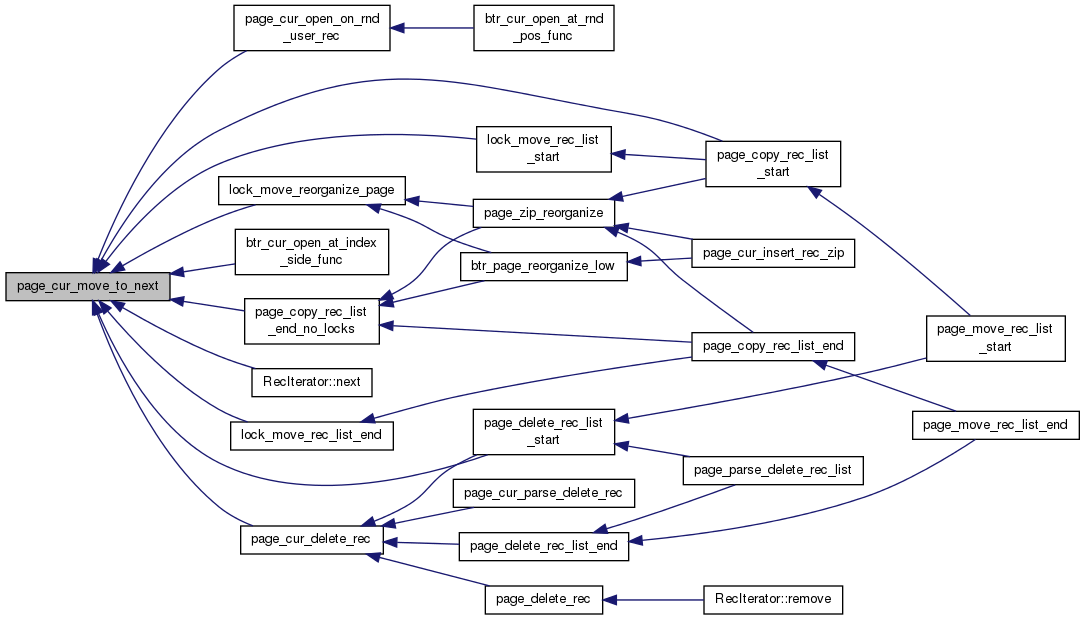

Here is the caller graph for this function:

UNIV_INLINE void page_cur_move_to_prev ( page_cur_t * cur )

Moves the cursor to the previous record on page. in/out: cursor; not before first

Here is the caller graph for this function:

UNIV_INTERN void page_cur_open_on_rnd_user_rec	(	buf_block_t *	block,
		page_cur_t *	cursor
	)

Positions a page cursor on a randomly chosen user record on a page. If there are no user records, sets the cursor on the infimum record. out: page cursor

Positions a page cursor on a randomly chosen user record on a page. If there are no user records, sets the cursor on the infimum record.

Parameters

block	in: page
cursor	out: page cursor

Definition at line 547 of file page0cur.cc.

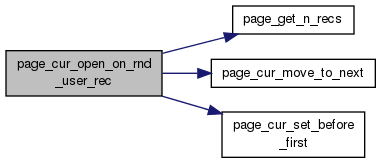

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN byte* page_cur_parse_delete_rec	(	byte *	ptr,
		byte *	end_ptr,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Parses log record of a record delete on a page.

Returns: pointer to record end or NULL in: mtr or NULL

Parses log record of a record delete on a page.

Returns: pointer to record end or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
block	in: page or NULL
index	in: record descriptor
mtr	in: mtr or NULL

Definition at line 1925 of file page0cur.cc.

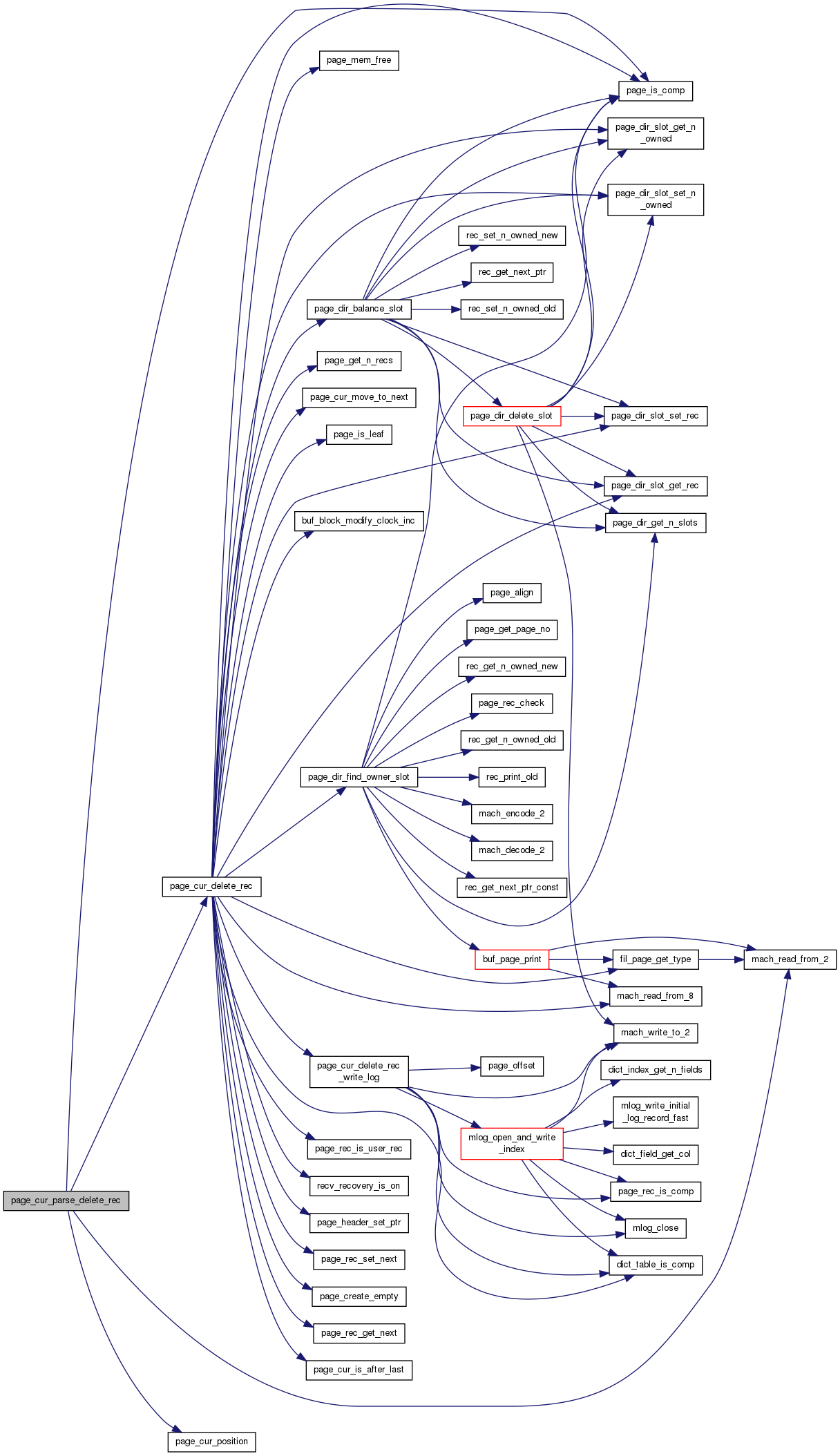

Here is the call graph for this function:

UNIV_INTERN byte* page_cur_parse_insert_rec	(	ibool	is_short,
		byte *	ptr,
		byte *	end_ptr,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Parses a log record of a record insert on a page.

Returns: end of log record or NULL in: mtr or NULL

Parses a log record of a record insert on a page.

Returns: end of log record or NULL

Parameters

is_short	in: TRUE if short inserts
ptr	in: buffer
end_ptr	in: buffer end
block	in: page or NULL
index	in: record descriptor
mtr	in: mtr or NULL

Definition at line 759 of file page0cur.cc.

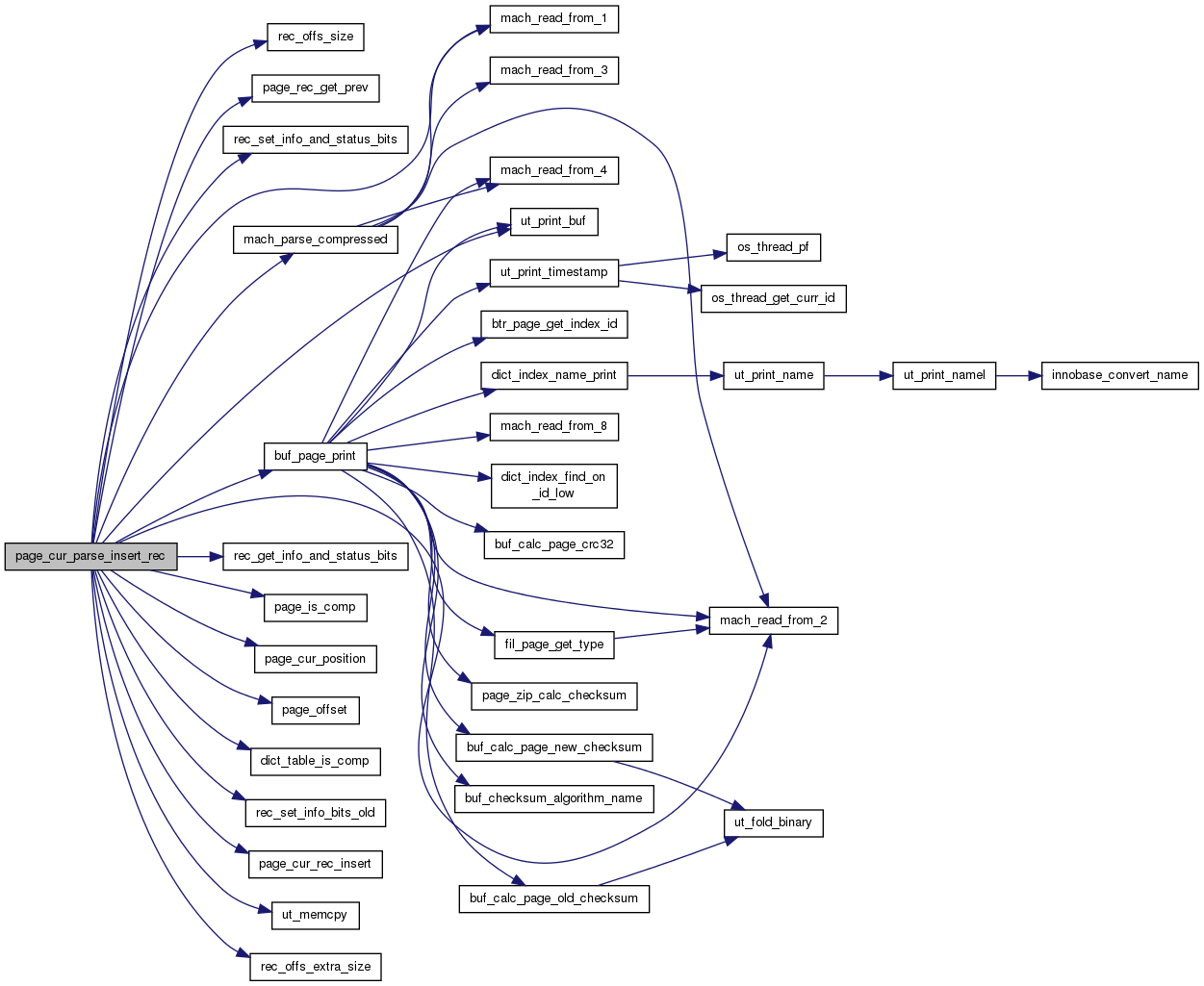

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void page_cur_position	(	const rec_t *	rec,
		const buf_block_t *	block,
		page_cur_t *	cur
	)

Positions the cursor on the given record. out: page cursor

Parameters

rec	in: record on a page
block	in: buffer block containing the record

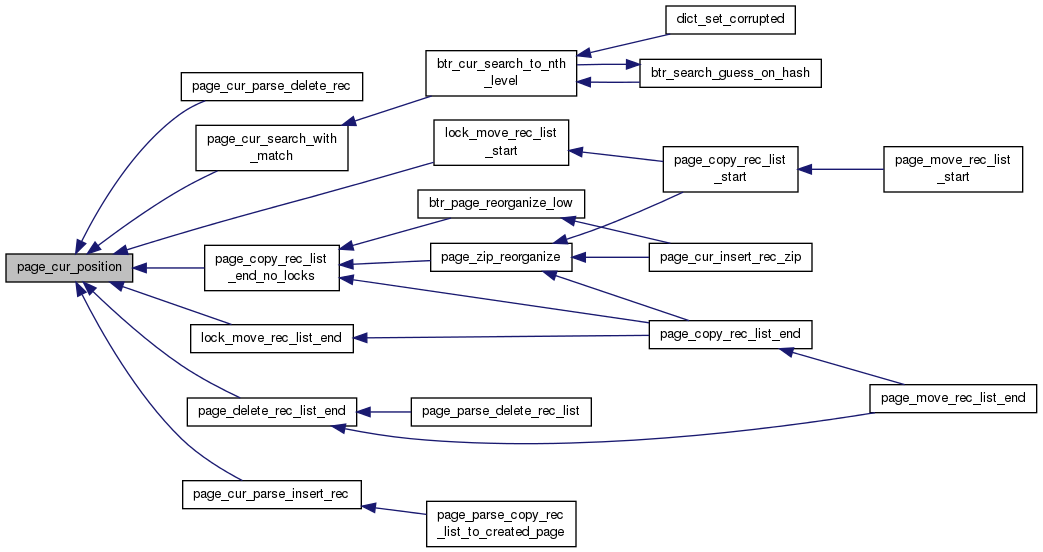

Here is the caller graph for this function:

UNIV_INLINE rec_t* page_cur_rec_insert	(	page_cur_t *	cursor,
		const rec_t *	rec,
		dict_index_t *	index,
		ulint *	offsets,
		mtr_t *	mtr
	)

Inserts a record next to page cursor. Returns pointer to inserted record if succeed, i.e., enough space available, NULL otherwise. The cursor stays at the same logical position, but the physical position may change if it is pointing to a compressed page that was reorganized.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to record if succeed, NULL otherwise in: mini-transaction handle, or NULL

Parameters

cursor	in/out: a page cursor
rec	in: record to insert
index	in: record descriptor
offsets	in/out: rec_get_offsets(rec, index)

Here is the caller graph for this function:

UNIV_INLINE ulint page_cur_search	(	const buf_block_t *	block,
		const dict_index_t *	index,
		const dtuple_t *	tuple,
		ulint	mode,
		page_cur_t *	cursor
	)

Searches the right position for a page cursor.

Returns: number of matched fields on the left out: page cursor

Parameters

block	in: buffer block
index	in: record descriptor
tuple	in: data tuple
mode	in: PAGE_CUR_L, PAGE_CUR_LE, PAGE_CUR_G, or PAGE_CUR_GE

UNIV_INTERN void page_cur_search_with_match	(	const buf_block_t *	block,
		const dict_index_t *	index,
		const dtuple_t *	tuple,
		ulint	mode,
		ulint *	iup_matched_fields,
		ulint *	iup_matched_bytes,
		ulint *	ilow_matched_fields,
		ulint *	ilow_matched_bytes,
		page_cur_t *	cursor
	)

Searches the right position for a page cursor. out: page cursor

Searches the right position for a page cursor.

Parameters

block	in: buffer block
index	in: record descriptor
tuple	in: data tuple
mode	in: PAGE_CUR_L, PAGE_CUR_LE, PAGE_CUR_G, or PAGE_CUR_GE
iup_matched_fields	in/out: already matched fields in upper limit record
iup_matched_bytes	in/out: already matched bytes in a field not yet completely matched
ilow_matched_fields	in/out: already matched fields in lower limit record
ilow_matched_bytes	in/out: already matched bytes in a field not yet completely matched
cursor	out: page cursor

Definition at line 248 of file page0cur.cc.

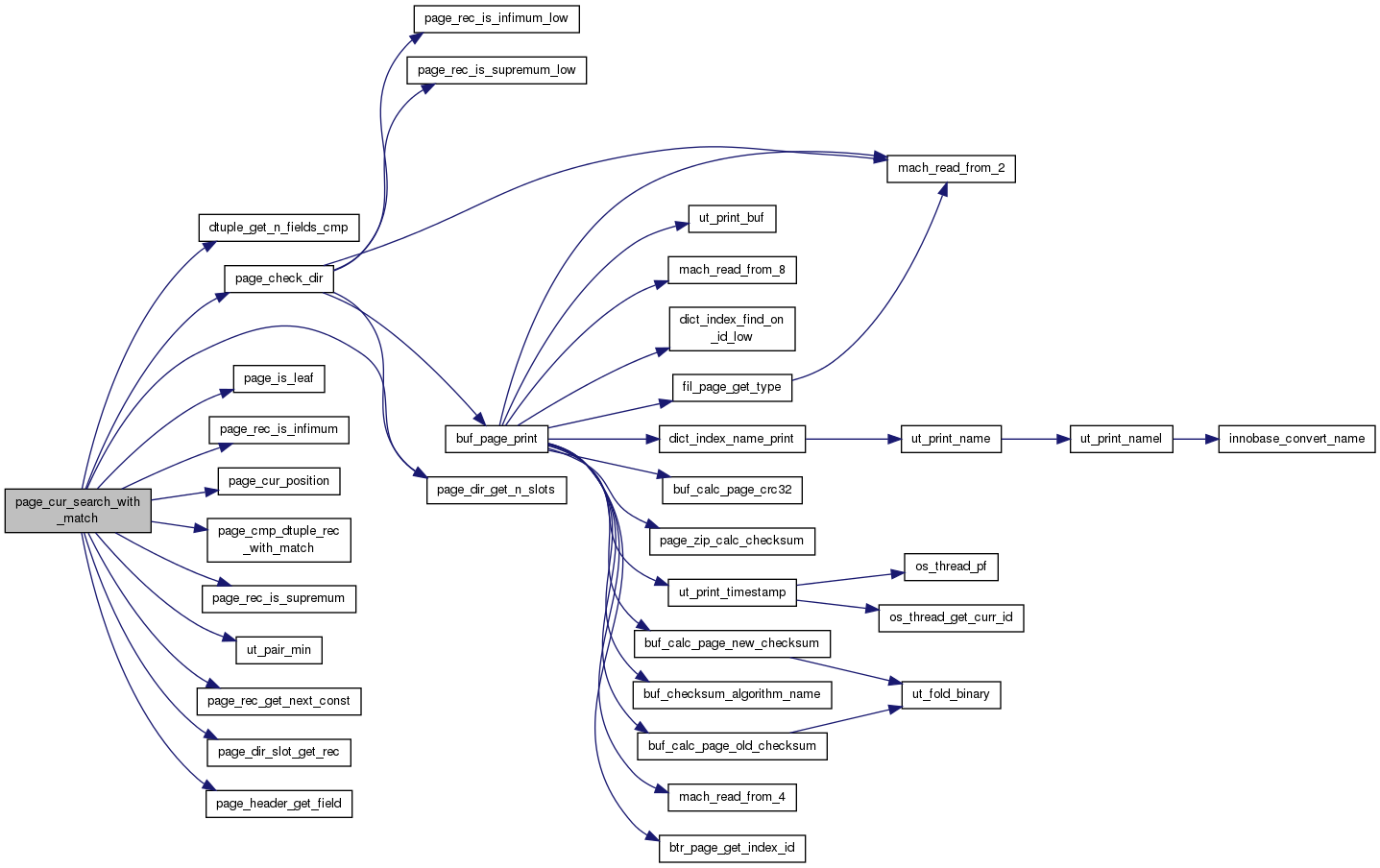

Here is the call graph for this function:

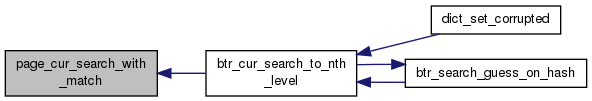

Here is the caller graph for this function:

UNIV_INLINE void page_cur_set_after_last	(	const buf_block_t *	block,
		page_cur_t *	cur
	)

Sets the cursor object to point after the last user record on the page. in: cursor

Parameters

block in: index page

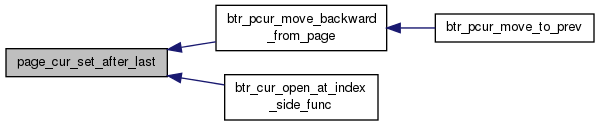

Here is the caller graph for this function:

UNIV_INLINE void page_cur_set_before_first	(	const buf_block_t *	block,
		page_cur_t *	cur
	)

Sets the cursor object to point before the first user record on the page. in: cursor

Parameters

block in: index page

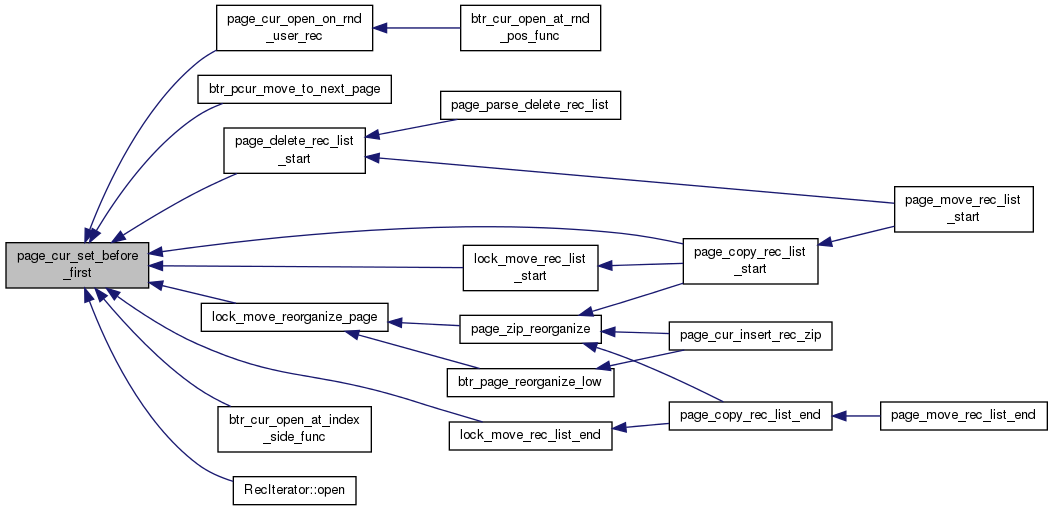

Here is the caller graph for this function:

UNIV_INLINE rec_t* page_cur_tuple_insert	(	page_cur_t *	cursor,
		const dtuple_t *	tuple,
		dict_index_t *	index,
		ulint **	offsets,
		mem_heap_t **	heap,
		ulint	n_ext,
		mtr_t *	mtr
	)

Inserts a record next to page cursor. Returns pointer to inserted record if succeed, i.e., enough space available, NULL otherwise. The cursor stays at the same logical position, but the physical position may change if it is pointing to a compressed page that was reorganized.

IMPORTANT: The caller will have to update IBUF_BITMAP_FREE if this is a compressed leaf page in a secondary index. This has to be done either within the same mini-transaction, or by invoking ibuf_reset_free_bits() before mtr_commit().

Returns: pointer to record if succeed, NULL otherwise

Parameters

cursor	in/out: a page cursor
tuple	in: pointer to a data tuple
index	in: record descriptor
offsets	out: offsets on *rec
heap	in/out: pointer to memory heap, or NULL
n_ext	in: number of externally stored columns
mtr	in: mini-transaction handle, or NULL

UNIV_INTERN bool page_delete_rec	(	const dict_index_t *	index,
		page_cur_t *	pcur,
		page_zip_des_t *	page_zip,
		const ulint *	offsets
	)

Removes the record from a leaf page. This function does not log any changes. It is used by the IMPORT tablespace functions.

Returns: true if success, i.e., the page did not become too empty in: offsets for record

Removes the record from a leaf page. This function does not log any changes. It is used by the IMPORT tablespace functions. The cursor is moved to the next record after the deleted one.

Returns: true if success, i.e., the page did not become too empty

Parameters

index	in: The index that the record belongs to
pcur	in/out: page cursor on record to delete
page_zip	in: compressed page descriptor
offsets	in: offsets for record

Definition at line 2733 of file page0page.cc.

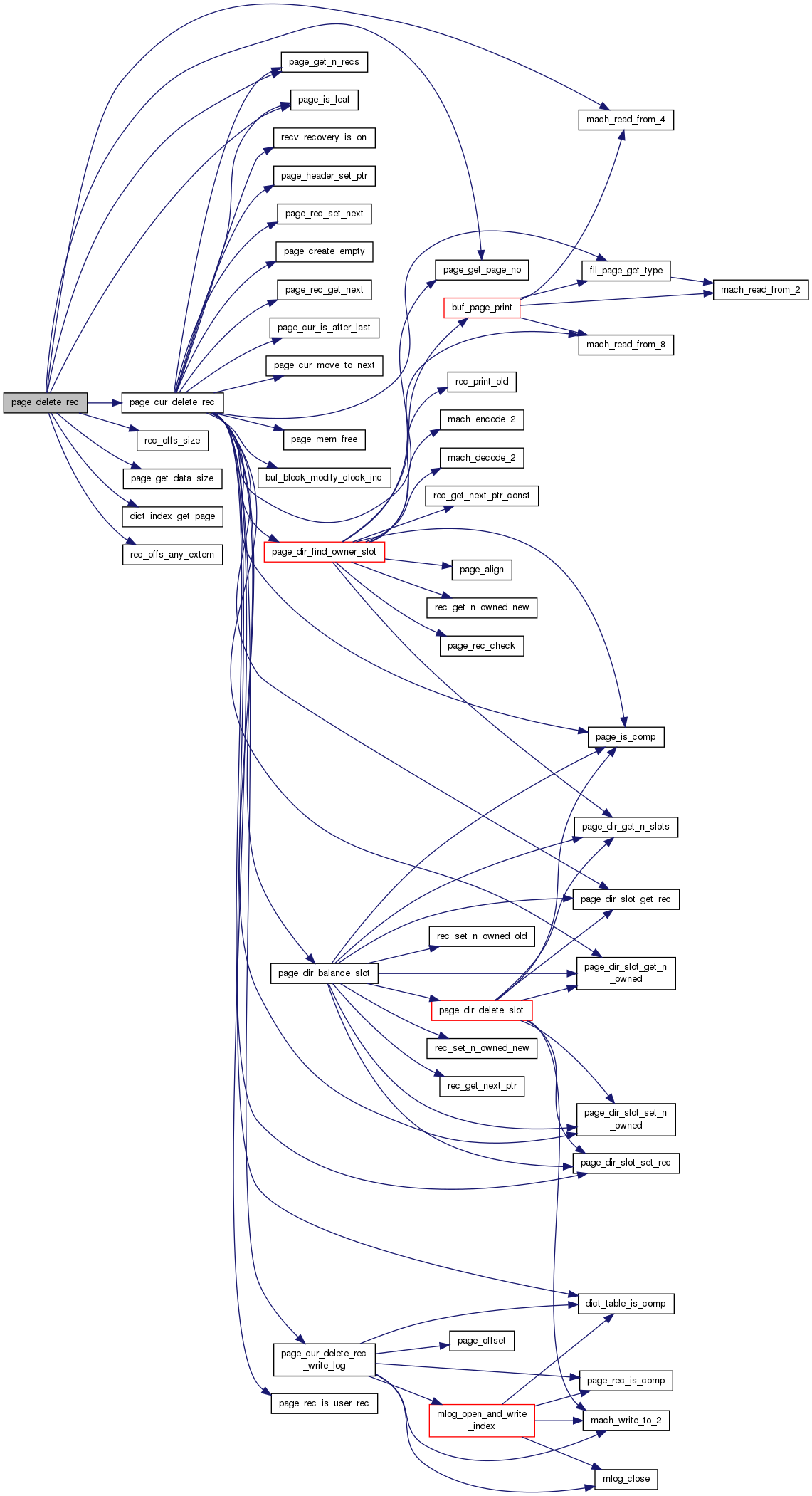

Here is the call graph for this function:

Here is the caller graph for this function:

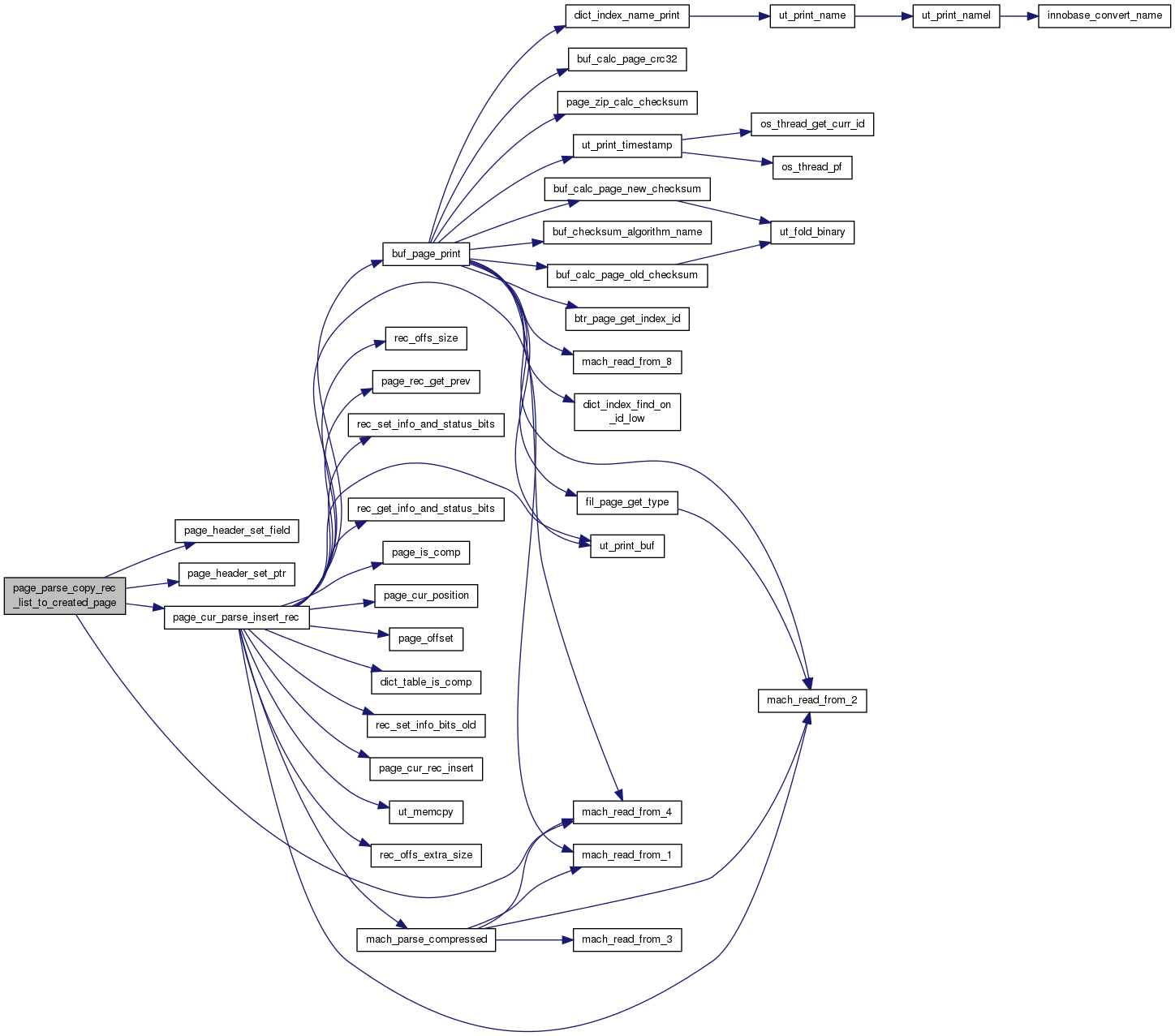

UNIV_INTERN byte* page_parse_copy_rec_list_to_created_page	(	byte *	ptr,
		byte *	end_ptr,
		buf_block_t *	block,
		dict_index_t *	index,
		mtr_t *	mtr
	)

Parses a log record of copying a record list end to a new created page.

Returns: end of log record or NULL in: mtr or NULL

Parses a log record of copying a record list end to a new created page.

Returns: end of log record or NULL

Parameters

ptr	in: buffer
end_ptr	in: buffer end
block	in: page or NULL
index	in: record descriptor
mtr	in: mtr or NULL

Definition at line 1653 of file page0cur.cc.

Here is the call graph for this function:

Classes

Macros

Functions

Variables

Detailed Description

Function Documentation
