NdbQueryBuilder Class Reference

#include <NdbQueryBuilder.hpp>

Public Member Functions
void	destroy ()
const NdbQueryDef *	prepare ()
NdbConstOperand *	constValue (Int32 value)
NdbConstOperand *	constValue (Uint32 value)
NdbConstOperand *	constValue (Int64 value)
NdbConstOperand *	constValue (Uint64 value)
NdbConstOperand *	constValue (double value)
NdbConstOperand *	constValue (const char *value)
NdbConstOperand *	constValue (const void *value, Uint32 len)
NdbParamOperand *	paramValue (const char *name=0)
NdbLinkedOperand *	linkedValue (const NdbQueryOperationDef *, const char *attr)
const NdbQueryLookupOperationDef *	readTuple (const NdbDictionary::Table *, const NdbQueryOperand *const keys[], const NdbQueryOptions *options=0, const char *ident=0)
const NdbQueryLookupOperationDef *	readTuple (const NdbDictionary::Index *, const NdbDictionary::Table *, const NdbQueryOperand *const keys[], const NdbQueryOptions *options=0, const char *ident=0)
const NdbQueryTableScanOperationDef *	scanTable (const NdbDictionary::Table *, const NdbQueryOptions *options=0, const char *ident=0)
const NdbQueryIndexScanOperationDef *	scanIndex (const NdbDictionary::Index *, const NdbDictionary::Table *, const NdbQueryIndexBound *bound=0, const NdbQueryOptions *options=0, const char *ident=0)

Static Public Member Functions
static NdbQueryBuilder *	create ()

Friends
class	NdbQueryBuilderImpl

Error Handling
const NdbError &	getNdbError () const
NdbQueryBuilderImpl &	getImpl () const

Detailed Description

The Query builder constructs a NdbQueryDef which is a collection of (possibly linked) NdbQueryOperationDefs Each NdbQueryOperationDef may use NdbQueryOperands to specify keys and bounds.

LIFETIME:

• All NdbQueryOperand and NdbQueryOperationDef objects created in the context of a NdbQueryBuilder has a lifetime restricted by:

  1. The NdbQueryDef created by the ::prepare() methode.
  2. The NdbQueryBuilder if the builder is destructed before the query was prepared.

  A single NdbQueryOperand or NdbQueryOperationDef object may be used/referrer multiple times during the build process whenever we need a reference to the same value/node during the build phase.

• The NdbQueryDef produced by the ::prepare() method has a lifetime until it is explicit released by NdbQueryDef::release()

Definition at line 363 of file NdbQueryBuilder.hpp.

Member Function Documentation

NdbQueryBuilder * NdbQueryBuilder::create ( )

static

Allocate an instance.

Returns

New instance, or NULL if allocation failed.

Definition at line 692 of file NdbQueryBuilder.cpp.

Here is the caller graph for this function:

void NdbQueryBuilder::destroy

(

)

Release this object and any resources held by it.

Definition at line 715 of file NdbQueryBuilder.cpp.

Here is the caller graph for this function:

const NdbError & NdbQueryBuilder::getNdbError

(

)

const

Get error object with information about the latest error.

Returns

An error object with information about the latest error.

Definition at line 733 of file NdbQueryBuilder.cpp.

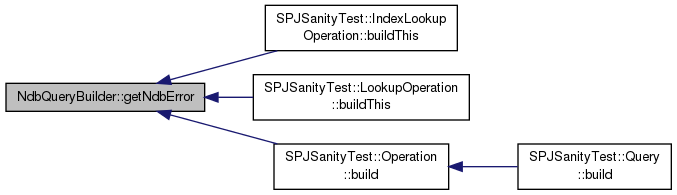

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• storage/ndb/src/ndbapi/NdbQueryBuilder.hpp
• storage/ndb/src/ndbapi/NdbQueryBuilder.cpp
