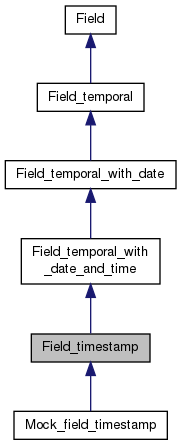

Inheritance diagram for Field_timestamp:

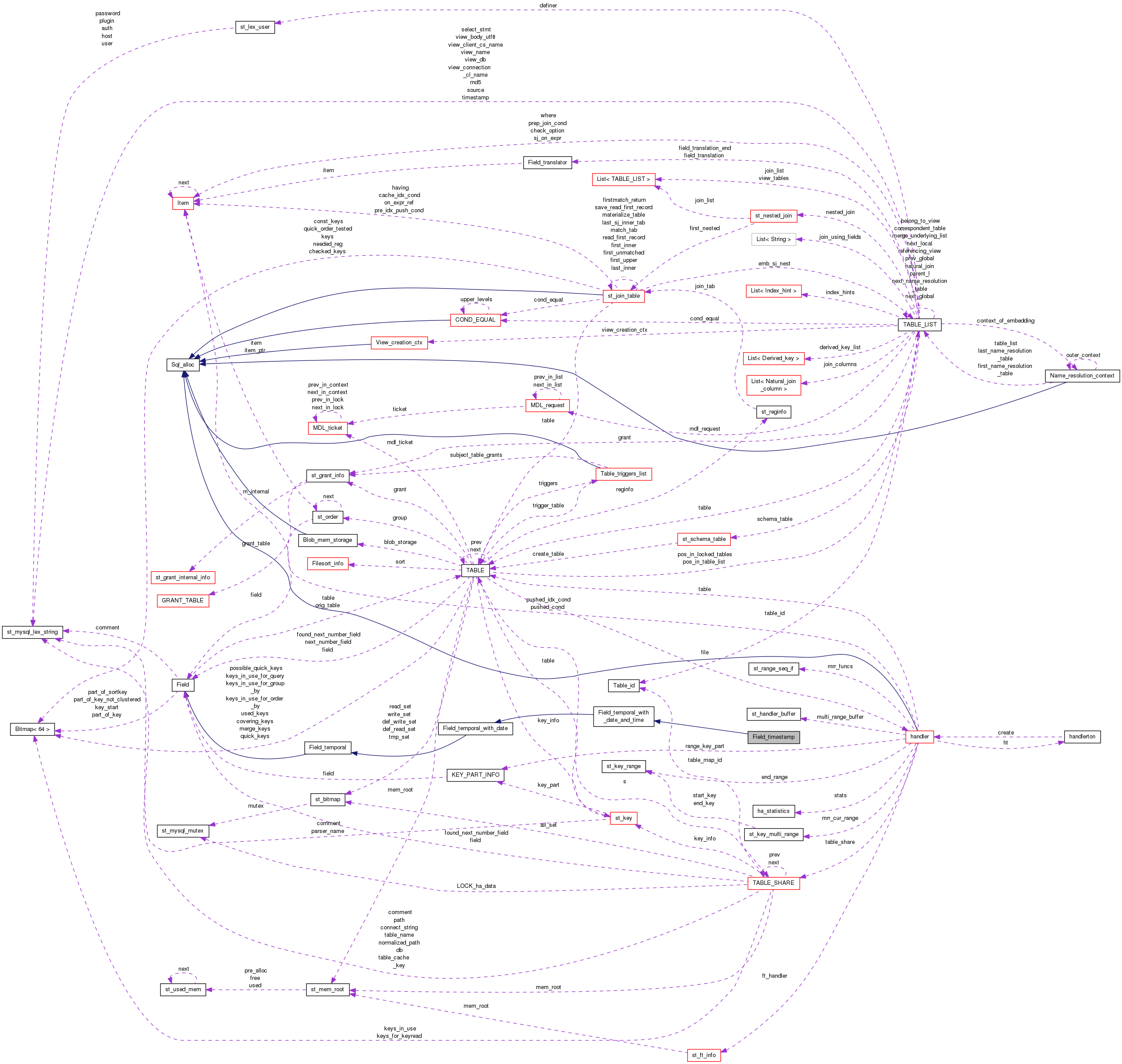

Collaboration diagram for Field_timestamp:

Public Member Functions
	Field_timestamp (uchar ptr_arg, uint32 len_arg, uchar null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg)
	Field_timestamp (bool maybe_null_arg, const char *field_name_arg)
enum_field_types	type () const
enum ha_base_keytype	key_type () const
type_conversion_status	store_packed (longlong nr)
type_conversion_status	reset (void)
longlong	val_int (void)
int	cmp (const uchar , const uchar )
void	make_sort_key (uchar *buff, uint length)
uint32	pack_length () const
void	sql_type (String &str) const
bool	zero_pack () const
bool	get_timestamp (struct timeval tm, int warnings)
bool	get_date (MYSQL_TIME *ltime, uint fuzzydate)
Field_timestamp *	clone (MEM_ROOT *mem_root) const
Field_timestamp *	clone () const
uchar *	pack (uchar to, const uchar from, uint max_length __attribute__((unused)), bool low_byte_first)
const uchar *	unpack (uchar to, const uchar from, uint param_data __attribute__((unused)), bool low_byte_first)
virtual type_conversion_status	validate_stored_val (THD *thd)
Public Member Functions inherited from Field_temporal_with_date_and_time
	Field_temporal_with_date_and_time (uchar ptr_arg, uchar null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg, uint8 dec_arg)
void	store_timestamp (const struct timeval *tm)
Public Member Functions inherited from Field_temporal_with_date
	Field_temporal_with_date (uchar ptr_arg, uchar null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg, uint8 int_length_arg, uint8 dec_arg)
	Field_temporal_with_date (bool maybe_null_arg, const char *field_name_arg, uint int_length_arg, uint8 dec_arg)
bool	send_binary (Protocol *protocol)
type_conversion_status	store_time (MYSQL_TIME *ltime, uint8 dec)
String *	val_str (String , String )
longlong	val_time_temporal ()
longlong	val_date_temporal ()
bool	get_time (MYSQL_TIME *ltime)
Public Member Functions inherited from Field_temporal
	Field_temporal (uchar ptr_arg, uchar null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg, uint32 len_arg, uint8 dec_arg)
	Field_temporal (bool maybe_null_arg, const char *field_name_arg, uint32 len_arg, uint8 dec_arg)
virtual Item_result	result_type () const
virtual uint32	max_display_length ()
virtual bool	str_needs_quotes ()
virtual uint	is_equal (Create_field *new_field)
Item_result	numeric_context_result_type () const
enum Item_result	cmp_type () const
enum Derivation	derivation () const
uint	repertoire () const
const CHARSET_INFO *	charset () const
bool	can_be_compared_as_longlong () const
bool	binary () const
type_conversion_status	store (const char str, uint len, const CHARSET_INFO cs)
type_conversion_status	store_decimal (const my_decimal *decimal)
type_conversion_status	store (longlong nr, bool unsigned_val)
type_conversion_status	store (double nr)
double	val_real ()
my_decimal *	val_decimal (my_decimal *decimal_value)
Public Member Functions inherited from Field
bool	has_insert_default_function () const
bool	has_update_default_function () const
	Field (uchar ptr_arg, uint32 length_arg, uchar null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg)
	This is used as a table name when the table structure is not set up.
type_conversion_status	store_time (MYSQL_TIME *ltime)
type_conversion_status	store (const char to, uint length, const CHARSET_INFO cs, enum_check_fields check_level)
longlong	val_temporal_by_field_type ()
String *	val_str (String *str)
String *	val_int_as_str (String *val_buffer, my_bool unsigned_flag)
virtual Item_result	cast_to_int_type () const
virtual bool	eq (Field *field)
virtual bool	eq_def (Field *field)
virtual uint32	pack_length_in_rec () const
virtual bool	compatible_field_size (uint metadata, Relay_log_info rli, uint16 mflags, int order)
virtual uint	pack_length_from_metadata (uint field_metadata)
virtual uint	row_pack_length () const
virtual int	save_field_metadata (uchar *first_byte)
virtual uint32	data_length ()
virtual uint32	sort_length () const
virtual uint32	max_data_length () const
virtual void	reset_fields ()
virtual void	store_timestamp (const timeval *tm)
void	store_timestamp (my_time_t sec)
virtual void	set_default ()
void	evaluate_insert_default_function ()
void	evaluate_update_default_function ()
virtual uint32	key_length () const
virtual enum_field_types	real_type () const
virtual enum_field_types	binlog_type () const
int	cmp (const uchar *str)
virtual int	cmp_max (const uchar a, const uchar b, uint max_len)
virtual int	cmp_binary (const uchar a, const uchar b, uint32 max_length=~0L)
virtual int	cmp_offset (uint row_offset)
virtual int	cmp_binary_offset (uint row_offset)
virtual int	key_cmp (const uchar a, const uchar b)
virtual int	key_cmp (const uchar *str, uint length)
virtual uint	decimals () const
bool	is_temporal () const
bool	is_temporal_with_date () const
bool	is_temporal_with_time () const
bool	is_temporal_with_date_and_time () const
bool	is_null (my_ptrdiff_t row_offset=0) const
bool	is_real_null (my_ptrdiff_t row_offset=0) const
bool	is_null_in_record (const uchar *record) const
void	set_null (my_ptrdiff_t row_offset=0)
void	set_notnull (my_ptrdiff_t row_offset=0)
bool	maybe_null (void) const
bool	real_maybe_null (void) const
uint	null_offset (const uchar *record) const
uint	null_offset () const
void	set_null_ptr (uchar *p_null_ptr, uint p_null_bit)
size_t	last_null_byte () const
virtual void	make_field (Send_field *)
virtual bool	optimize_range (uint idx, uint part)
virtual void	free ()
virtual Field *	new_field (MEM_ROOT root, TABLE new_table, bool keep_type)
virtual Field *	new_key_field (MEM_ROOT root, TABLE new_table, uchar new_ptr, uchar new_null_ptr, uint new_null_bit)
Field *	new_key_field (MEM_ROOT root, TABLE new_table, uchar *new_ptr)
void	move_field (uchar ptr_arg, uchar null_ptr_arg, uchar null_bit_arg)
void	move_field (uchar *ptr_arg)
virtual void	move_field_offset (my_ptrdiff_t ptr_diff)
virtual void	get_image (uchar buff, uint length, const CHARSET_INFO cs)
virtual void	set_image (const uchar buff, uint length, const CHARSET_INFO cs)
virtual uint	get_key_image (uchar *buff, uint length, imagetype type)
virtual void	set_key_image (const uchar *buff, uint length)
longlong	val_int_offset (uint row_offset)
longlong	val_int (const uchar *new_ptr)
String *	val_str (String str, const uchar new_ptr)
virtual uchar *	pack (uchar to, const uchar from, uint max_length, bool low_byte_first)
uchar *	pack (uchar to, const uchar from)
virtual const uchar *	unpack (uchar to, const uchar from, uint param_data, bool low_byte_first)
const uchar *	unpack (uchar to, const uchar from)
virtual uint	packed_col_length (const uchar *to, uint length)
virtual uint	max_packed_col_length (uint max_length)
uint	offset (uchar *record)
void	copy_from_tmp (int offset)
uint	fill_cache_field (struct st_cache_field *copy)
virtual const CHARSET_INFO *	charset_for_protocol (void) const
virtual const CHARSET_INFO *	sort_charset (void) const
virtual bool	has_charset (void) const
virtual bool	match_collation_to_optimize_range () const
virtual void	set_derivation (enum Derivation derivation_arg)
bool	set_warning (Sql_condition::enum_warning_level, unsigned int code, int cuted_increment) const
bool	check_overflow (int op_result)
bool	check_truncated (int op_result)
bool	warn_if_overflow (int op_result)
void	init (TABLE *table_arg)
longlong	convert_decimal2longlong (const my_decimal val, bool unsigned_flag, bool has_overflow)
virtual uint32	char_length ()
virtual geometry_type	get_geometry_type ()
void	dbug_print ()
ha_storage_media	field_storage_type () const
void	set_storage_type (ha_storage_media storage_type_arg)
column_format_type	column_format () const
void	set_column_format (column_format_type column_format_arg)
virtual void	hash (ulong nr, ulong nr2)

Static Public Attributes
static const int	PACK_LENGTH = 4

Protected Member Functions
ulonglong	date_flags (const THD *thd)
type_conversion_status	store_internal (const MYSQL_TIME ltime, int error)
bool	get_date_internal (MYSQL_TIME *ltime)
void	store_timestamp_internal (const struct timeval *tm)
Protected Member Functions inherited from Field_temporal_with_date_and_time
void	init_timestamp_flags ()
bool	convert_TIME_to_timestamp (THD thd, const MYSQL_TIME ltime, struct timeval tm, int error)
Protected Member Functions inherited from Field_temporal_with_date
bool	get_internal_check_zero (MYSQL_TIME *ltime, uint fuzzydate)
type_conversion_status	convert_number_to_TIME (longlong nr, bool unsigned_val, int nanoseconds, MYSQL_TIME ltime, int warning)
bool	convert_str_to_TIME (const char str, uint len, const CHARSET_INFO cs, MYSQL_TIME ltime, MYSQL_TIME_STATUS status)
type_conversion_status	store_internal_with_round (MYSQL_TIME ltime, int warnings)
Protected Member Functions inherited from Field_temporal
uint8	normalize_dec (uint8 dec_arg)
type_conversion_status	store_lldiv_t (const lldiv_t lld, int warning)
longlong	convert_number_to_datetime (longlong nr, bool unsigned_val, MYSQL_TIME ltime, int warning)
void	set_warnings (ErrConvString str, int warnings)
ulonglong	date_flags ()
void	set_datetime_warning (Sql_condition::enum_warning_level level, uint code, ErrConvString str, timestamp_type ts_type, int cuted_increment)
Protected Member Functions inherited from Field
uchar *	pack_int16 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int16 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int24 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int24 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int32 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int32 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int64 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int64 (uchar to, const uchar from, bool low_byte_first_from)
bool	field_flags_are_binary ()

Additional Inherited Members
Public Types inherited from Field
enum	utype { NONE, DATE, SHIELD, NOEMPTY, CASEUP, PNR, BGNR, PGNR, YES, NO, REL, CHECK, EMPTY, UNKNOWN_FIELD, CASEDN, NEXT_NUMBER, INTERVAL_FIELD, BIT_FIELD, TIMESTAMP_OLD_FIELD, CAPITALIZE, BLOB_FIELD, TIMESTAMP_DN_FIELD, TIMESTAMP_UN_FIELD, TIMESTAMP_DNUN_FIELD }
enum	geometry_type { GEOM_GEOMETRY = 0, GEOM_POINT = 1, GEOM_LINESTRING = 2, GEOM_POLYGON = 3, GEOM_MULTIPOINT = 4, GEOM_MULTILINESTRING = 5, GEOM_MULTIPOLYGON = 6, GEOM_GEOMETRYCOLLECTION = 7 }
enum	imagetype { itRAW, itMBR }
enum	{ LAST_NULL_BYTE_UNDEF = 0 }
Static Public Member Functions inherited from Field
static void *	operator new (size_t size) throw ()
static void *	operator new (size_t size, MEM_ROOT *mem_root) throw ()
static void	operator delete (void ptr, MEM_ROOT mem_root)
static void	operator delete (void *ptr_arg, size_t size) throw ()
static bool	type_can_have_key_part (enum_field_types)
static enum_field_types	field_type_merge (enum_field_types, enum_field_types)
static Item_result	result_merge_type (enum_field_types)
Public Attributes inherited from Field
uchar *	ptr
TABLE *	table
TABLE *	orig_table
const char **	table_name
const char *	field_name
LEX_STRING	comment
key_map	key_start
key_map	part_of_key
key_map	part_of_key_not_clustered
key_map	part_of_sortkey
utype	unireg_check
uint32	field_length
uint32	flags
uint16	field_index
uchar	null_bit
bool	is_created_from_null_item
Static Protected Member Functions inherited from Field
static void	handle_int16 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int24 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int32 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int64 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
Protected Attributes inherited from Field_temporal
uint8	dec

Detailed Description

Definition at line 2513 of file field.h.

Constructor & Destructor Documentation

Field_timestamp::Field_timestamp	(	uchar *	ptr_arg,
		uint32	len_arg,
		uchar *	null_ptr_arg,
		uchar	null_bit_arg,
		enum utype	unireg_check_arg,
		const char *	field_name_arg
	)

TIMESTAMP type columns hold date and time values in the range 1970-01-01 00:00:01 UTC to 2038-01-01 00:00:00 UTC, stored as number of seconds since the start of the Unix Epoch (1970-01-01 00:00:01 UTC.)

TIMESTAMP columns can be automatically set on row updates to and/or have CURRENT_TIMESTAMP as default value for inserts.

The implementation of function defaults is heavily entangled with the binary .frm file format. The utype enum is part of the file format specification but is declared a member of the Field class. This constructor accepts a unireg_check value to initialize the column default expression.

Five distinct unireg_check values are used for TIMESTAMP columns to distinguish various cases of DEFAULT or ON UPDATE values. These values are:

TIMESTAMP_OLD_FIELD - old timestamp, this has no significance when creating a the Field_timestamp.

TIMESTAMP_DN_FIELD - means TIMESTAMP DEFAULT CURRENT_TIMESTAMP.

TIMESTAMP_UN_FIELD - means TIMESTAMP DEFAULT <default value>=""> ON UPDATE CURRENT_TIMESTAMP, where <default value>=""> is an implicit or explicit expression other than CURRENT_TIMESTAMP or any synonym thereof (e.g. NOW().)

TIMESTAMP_DNUN_FIELD - means DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP.

NONE - means that the column has neither DEFAULT CURRENT_TIMESTAMP, nor ON UPDATE CURRENT_TIMESTAMP

Note that columns with TIMESTAMP_OLD_FIELD are no longer created explicitly, the value is meant to preserve the ability to read tables from old databases. Such columns are replaced with their newer counterparts by CREATE TABLE and SHOW CREATE TABLE. This is because we want to prefer NONE unireg_check over TIMESTAMP_OLD_FIELD for "TIMESTAMP DEFAULT 'Const'" field. (Old TIMESTAMP columns allowed such definitions as well but ignored the default value for first the TIMESTAMP column. This is, of course, non-standard.) In most cases a user won't notice any change, only exception being different behavior of old/new TIMESTAMPS columns during ALTER TABLE.

Definition at line 5335 of file field.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

Field_timestamp* Field_timestamp::clone ( MEM_ROOT * mem_root ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note: This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Parameters

mem_root MEM_ROOT to use for memory allocation.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 2542 of file field.h.

Here is the call graph for this function:

Field_timestamp* Field_timestamp::clone ( ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note: This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 2546 of file field.h.

Here is the call graph for this function:

ulonglong Field_timestamp::date_flags ( const THD * thd )

protectedvirtual

Flags that are passed as "flag" argument to check_date(), number_to_datetime(), str_to_datetime().

Flags depend on the session sql_mode settings, such as MODE_NO_ZERO_DATE, MODE_NO_ZERO_IN_DATE. Also, Field_newdate, Field_datetime, Field_datetimef add TIME_FUZZY_DATE to the session sql_mode settings, to allow relaxed date format, while Field_timestamp, Field_timestampf do not.

Parameters

thd THD

Return values

sql_mode flags mixed with the field type flags.

Reimplemented from Field_temporal.

Definition at line 5360 of file field.cc.

bool Field_timestamp::get_date_internal ( MYSQL_TIME * ltime )

protectedvirtual

Get a value from record, without checking fuzzy date flags.

Return values

true	- if timestamp is 0, ltime is not touched in this case.
false	- if timestamp is non-zero.

Implements Field_temporal_with_date.

Definition at line 5385 of file field.cc.

bool Field_timestamp::get_timestamp	(	struct timeval *	tm,
		int *	warnings
	)

virtual

Get TIMESTAMP field value as seconds since begging of Unix Epoch

Reimplemented from Field.

Definition at line 5406 of file field.cc.

void Field_timestamp::make_sort_key	(	uchar *	buff,
		uint	length
	)

virtual

Writes a copy of the current value in the record buffer, suitable for sorting using byte-by-byte comparison. Integers are always in big-endian regardless of hardware architecture. At most length bytes are written into the buffer.

Parameters

buff	The buffer, assumed to be at least length bytes.
length	Number of bytes to write.

Implements Field.

Definition at line 5483 of file field.cc.

type_conversion_status Field_timestamp::store_internal	(	const MYSQL_TIME *	ltime,
		int *	error
	)

protectedvirtual

Low level routine to store a MYSQL_TIME value into a field. The value must be already properly rounded or truncated and checked for being a valid TIME/DATE/DATETIME value.

Parameters

IN	ltime MYSQL_TIME value.
OUT	error Error flag vector, set in case of error.

Return values

false	In case of success.
true	In case of error.

Implements Field_temporal.

Definition at line 5368 of file field.cc.

Here is the call graph for this function:

type_conversion_status Field_timestamp::store_packed ( longlong nr )

virtual

Store a temporal value in packed longlong format into a field. The packed value is compatible with TIME_to_longlong_time_packed(), TIME_to_longlong_date_packed() or TIME_to_longlong_datetime_packed(). Note, the value must be properly rounded or truncated according according to field->decimals().

Parameters
