Inheritance diagram for Field_short:

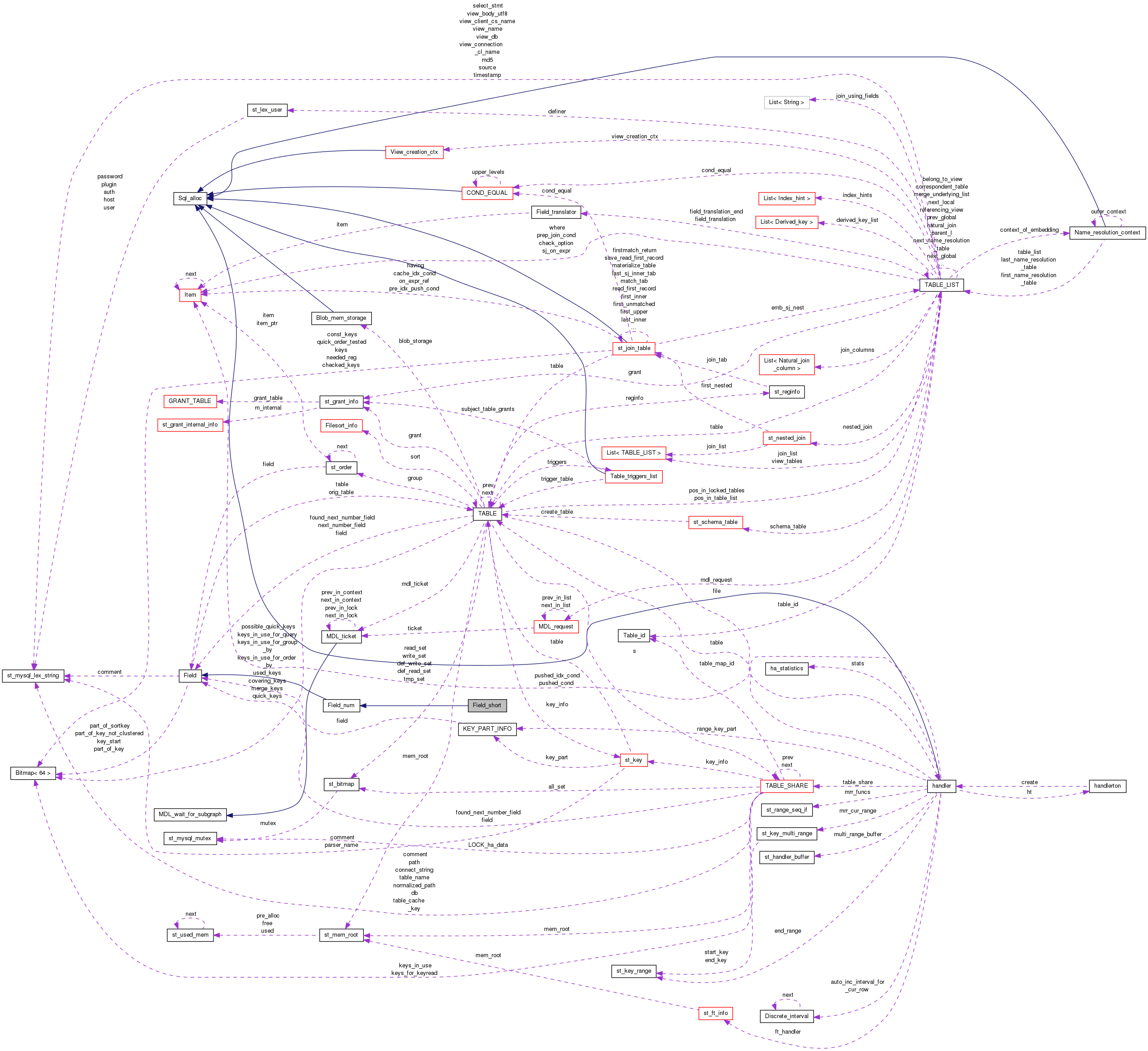

Collaboration diagram for Field_short:

Public Member Functions
	Field_short (uchar ptr_arg, uint32 len_arg, uchar null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg, bool zero_arg, bool unsigned_arg)
	Field_short (uint32 len_arg, bool maybe_null_arg, const char *field_name_arg, bool unsigned_arg)
enum Item_result	result_type () const
enum_field_types	type () const
enum ha_base_keytype	key_type () const
type_conversion_status	store (const char to, uint length, const CHARSET_INFO charset)
type_conversion_status	store (double nr)
type_conversion_status	store (longlong nr, bool unsigned_val)
type_conversion_status	reset (void)
double	val_real (void)
longlong	val_int (void)
String *	val_str (String , String )
bool	send_binary (Protocol *protocol)
int	cmp (const uchar , const uchar )
void	make_sort_key (uchar *buff, uint length)
uint32	pack_length () const
void	sql_type (String &str) const
uint32	max_display_length ()
Field_short *	clone (MEM_ROOT *mem_root) const
Field_short *	clone () const
virtual uchar *	pack (uchar to, const uchar from, uint max_length, bool low_byte_first)
virtual const uchar *	unpack (uchar to, const uchar from, uint param_data, bool low_byte_first)
Public Member Functions inherited from Field_num
	Field_num (uchar ptr_arg, uint32 len_arg, uchar null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg, uint8 dec_arg, bool zero_arg, bool unsigned_arg)
enum Derivation	derivation (void) const
uint	repertoire (void) const
const CHARSET_INFO *	charset (void) const
void	prepend_zeros (String *value)
void	add_zerofill_and_unsigned (String &res) const
uint	decimals () const
bool	eq_def (Field *field)
type_conversion_status	store_decimal (const my_decimal *)
type_conversion_status	store_time (MYSQL_TIME *ltime, uint8 dec)
my_decimal *	val_decimal (my_decimal *)
bool	get_date (MYSQL_TIME *ltime, uint fuzzydate)
bool	get_time (MYSQL_TIME *ltime)
uint	is_equal (Create_field *new_field)
uint	row_pack_length () const
uint32	pack_length_from_metadata (uint field_metadata)
type_conversion_status	check_int (const CHARSET_INFO cs, const char str, int length, const char *int_end, int error)
type_conversion_status	get_int (const CHARSET_INFO cs, const char from, uint len, longlong *rnd, ulonglong unsigned_max, longlong signed_min, longlong signed_max)
Public Member Functions inherited from Field
bool	has_insert_default_function () const
bool	has_update_default_function () const
	Field (uchar ptr_arg, uint32 length_arg, uchar null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg)
	This is used as a table name when the table structure is not set up.
virtual type_conversion_status	store_packed (longlong nr)
type_conversion_status	store_time (MYSQL_TIME *ltime)
type_conversion_status	store (const char to, uint length, const CHARSET_INFO cs, enum_check_fields check_level)
virtual longlong	val_time_temporal ()
virtual longlong	val_date_temporal ()
longlong	val_temporal_by_field_type ()
String *	val_str (String *str)
String *	val_int_as_str (String *val_buffer, my_bool unsigned_flag)
virtual bool	str_needs_quotes ()
virtual Item_result	numeric_context_result_type () const
virtual Item_result	cmp_type () const
virtual Item_result	cast_to_int_type () const
virtual bool	eq (Field *field)
virtual uint32	pack_length_in_rec () const
virtual bool	compatible_field_size (uint metadata, Relay_log_info rli, uint16 mflags, int order)
virtual int	save_field_metadata (uchar *first_byte)
virtual uint32	data_length ()
virtual uint32	sort_length () const
virtual uint32	max_data_length () const
virtual void	reset_fields ()
virtual bool	get_timestamp (struct timeval tm, int warnings)
virtual void	store_timestamp (const timeval *tm)
void	store_timestamp (my_time_t sec)
virtual void	set_default ()
void	evaluate_insert_default_function ()
void	evaluate_update_default_function ()
virtual bool	binary () const
virtual bool	zero_pack () const
virtual uint32	key_length () const
virtual enum_field_types	real_type () const
virtual enum_field_types	binlog_type () const
int	cmp (const uchar *str)
virtual int	cmp_max (const uchar a, const uchar b, uint max_len)
virtual int	cmp_binary (const uchar a, const uchar b, uint32 max_length=~0L)
virtual int	cmp_offset (uint row_offset)
virtual int	cmp_binary_offset (uint row_offset)
virtual int	key_cmp (const uchar a, const uchar b)
virtual int	key_cmp (const uchar *str, uint length)
bool	is_temporal () const
bool	is_temporal_with_date () const
bool	is_temporal_with_time () const
bool	is_temporal_with_date_and_time () const
bool	is_null (my_ptrdiff_t row_offset=0) const
bool	is_real_null (my_ptrdiff_t row_offset=0) const
bool	is_null_in_record (const uchar *record) const
void	set_null (my_ptrdiff_t row_offset=0)
void	set_notnull (my_ptrdiff_t row_offset=0)
bool	maybe_null (void) const
bool	real_maybe_null (void) const
uint	null_offset (const uchar *record) const
uint	null_offset () const
void	set_null_ptr (uchar *p_null_ptr, uint p_null_bit)
size_t	last_null_byte () const
virtual void	make_field (Send_field *)
virtual bool	optimize_range (uint idx, uint part)
virtual bool	can_be_compared_as_longlong () const
virtual void	free ()
virtual Field *	new_field (MEM_ROOT root, TABLE new_table, bool keep_type)
virtual Field *	new_key_field (MEM_ROOT root, TABLE new_table, uchar new_ptr, uchar new_null_ptr, uint new_null_bit)
Field *	new_key_field (MEM_ROOT root, TABLE new_table, uchar *new_ptr)
void	move_field (uchar ptr_arg, uchar null_ptr_arg, uchar null_bit_arg)
void	move_field (uchar *ptr_arg)
virtual void	move_field_offset (my_ptrdiff_t ptr_diff)
virtual void	get_image (uchar buff, uint length, const CHARSET_INFO cs)
virtual void	set_image (const uchar buff, uint length, const CHARSET_INFO cs)
virtual uint	get_key_image (uchar *buff, uint length, imagetype type)
virtual void	set_key_image (const uchar *buff, uint length)
longlong	val_int_offset (uint row_offset)
longlong	val_int (const uchar *new_ptr)
String *	val_str (String str, const uchar new_ptr)
uchar *	pack (uchar to, const uchar from)
const uchar *	unpack (uchar to, const uchar from)
virtual uint	packed_col_length (const uchar *to, uint length)
virtual uint	max_packed_col_length (uint max_length)
uint	offset (uchar *record)
void	copy_from_tmp (int offset)
uint	fill_cache_field (struct st_cache_field *copy)
virtual const CHARSET_INFO *	charset_for_protocol (void) const
virtual const CHARSET_INFO *	sort_charset (void) const
virtual bool	has_charset (void) const
virtual bool	match_collation_to_optimize_range () const
virtual void	set_derivation (enum Derivation derivation_arg)
bool	set_warning (Sql_condition::enum_warning_level, unsigned int code, int cuted_increment) const
bool	check_overflow (int op_result)
bool	check_truncated (int op_result)
bool	warn_if_overflow (int op_result)
void	init (TABLE *table_arg)
longlong	convert_decimal2longlong (const my_decimal val, bool unsigned_flag, bool has_overflow)
virtual uint32	char_length ()
virtual geometry_type	get_geometry_type ()
void	dbug_print ()
ha_storage_media	field_storage_type () const
void	set_storage_type (ha_storage_media storage_type_arg)
column_format_type	column_format () const
void	set_column_format (column_format_type column_format_arg)
virtual type_conversion_status	validate_stored_val (THD *thd)
virtual void	hash (ulong nr, ulong nr2)

Additional Inherited Members
Public Types inherited from Field
enum	utype { NONE, DATE, SHIELD, NOEMPTY, CASEUP, PNR, BGNR, PGNR, YES, NO, REL, CHECK, EMPTY, UNKNOWN_FIELD, CASEDN, NEXT_NUMBER, INTERVAL_FIELD, BIT_FIELD, TIMESTAMP_OLD_FIELD, CAPITALIZE, BLOB_FIELD, TIMESTAMP_DN_FIELD, TIMESTAMP_UN_FIELD, TIMESTAMP_DNUN_FIELD }
enum	geometry_type { GEOM_GEOMETRY = 0, GEOM_POINT = 1, GEOM_LINESTRING = 2, GEOM_POLYGON = 3, GEOM_MULTIPOINT = 4, GEOM_MULTILINESTRING = 5, GEOM_MULTIPOLYGON = 6, GEOM_GEOMETRYCOLLECTION = 7 }
enum	imagetype { itRAW, itMBR }
enum	{ LAST_NULL_BYTE_UNDEF = 0 }
Static Public Member Functions inherited from Field
static void *	operator new (size_t size) throw ()
static void *	operator new (size_t size, MEM_ROOT *mem_root) throw ()
static void	operator delete (void ptr, MEM_ROOT mem_root)
static void	operator delete (void *ptr_arg, size_t size) throw ()
static bool	type_can_have_key_part (enum_field_types)
static enum_field_types	field_type_merge (enum_field_types, enum_field_types)
static Item_result	result_merge_type (enum_field_types)
Public Attributes inherited from Field_num
const uint8	dec
bool	zerofill
bool	unsigned_flag
Protected Member Functions inherited from Field
uchar *	pack_int16 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int16 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int24 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int24 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int32 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int32 (uchar to, const uchar from, bool low_byte_first_from)
uchar *	pack_int64 (uchar to, const uchar from, bool low_byte_first_to)
const uchar *	unpack_int64 (uchar to, const uchar from, bool low_byte_first_from)
bool	field_flags_are_binary ()
Static Protected Member Functions inherited from Field
static void	handle_int16 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int24 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int32 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int64 (uchar to, const uchar from, bool low_byte_first_from, bool low_byte_first_to)
Protected Attributes inherited from Field
uchar *	null_ptr

Detailed Description

Definition at line 1724 of file field.h.

Member Function Documentation

Field_short* Field_short::clone ( MEM_ROOT * mem_root ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note: This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Parameters

mem_root MEM_ROOT to use for memory allocation.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 1757 of file field.h.

Field_short* Field_short::clone ( ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note: This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 1761 of file field.h.

void Field_short::make_sort_key	(	uchar *	buff,
		uint	length
	)

virtual

Writes a copy of the current value in the record buffer, suitable for sorting using byte-by-byte comparison. Integers are always in big-endian regardless of hardware architecture. At most length bytes are written into the buffer.

Parameters

buff	The buffer, assumed to be at least length bytes.
length	Number of bytes to write.

Implements Field.

Definition at line 3436 of file field.cc.

virtual uchar* Field_short::pack	(	uchar *	to,
		const uchar *	from,
		uint	max_length,
		bool	low_byte_first
	)

inlinevirtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from Field.

Definition at line 1765 of file field.h.

virtual const uchar* Field_short::unpack	(	uchar *	to,
		const uchar *	from,
		uint	param_data,
		bool	low_byte_first
	)

inlinevirtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from Field.

Definition at line 1771 of file field.h.

The documentation for this class was generated from the following files:

sql/field.h
sql/field.cc
