Field_blob Class Reference

Inheritance diagram for Field_blob:

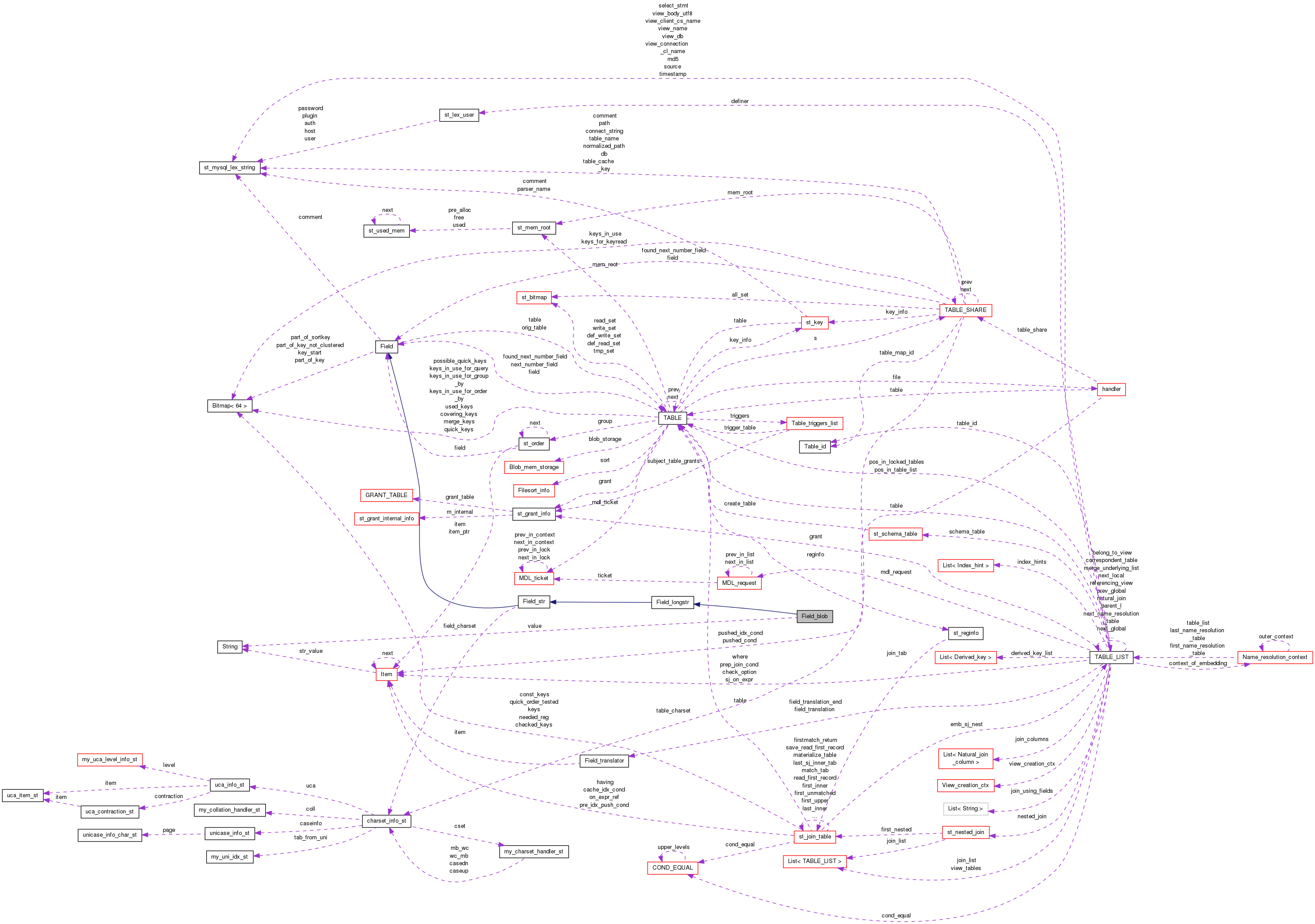

Collaboration diagram for Field_blob:

Public Member Functions
	Field_blob (uchar *ptr_arg, uchar *null_ptr_arg, uchar null_bit_arg, enum utype unireg_check_arg, const char *field_name_arg, TABLE_SHARE *share, uint blob_pack_length, const CHARSET_INFO *cs)
	Field_blob (uint32 len_arg, bool maybe_null_arg, const char *field_name_arg, const CHARSET_INFO *cs)
	Field_blob (uint32 len_arg, bool maybe_null_arg, const char *field_name_arg, const CHARSET_INFO *cs, bool set_packlength)
	Field_blob (uint32 packlength_arg)
enum_field_types	type () const
bool	match_collation_to_optimize_range () const
enum ha_base_keytype	key_type () const
type_conversion_status	store (const char *to, uint length, const CHARSET_INFO *charset)
type_conversion_status	store (double nr)
type_conversion_status	store (longlong nr, bool unsigned_val)
double	val_real (void)
longlong	val_int (void)
String *	val_str (String *, String *)
my_decimal *	val_decimal (my_decimal *)
int	cmp_max (const uchar *, const uchar *, uint max_length)
int	cmp (const uchar *a, const uchar *b)
int	cmp (const uchar *a, uint32 a_length, const uchar *b, uint32 b_length)
int	cmp_binary (const uchar *a, const uchar *b, uint32 max_length=~0L)
int	key_cmp (const uchar *, const uchar *)
int	key_cmp (const uchar *str, uint length)
uint32	key_length () const
void	make_sort_key (uchar *buff, uint length)
uint32	pack_length () const
uint32	pack_length_no_ptr () const
uint	row_pack_length () const
uint32	sort_length () const
virtual uint32	max_data_length () const
type_conversion_status	reset (void)
void	reset_fields ()
uint32	get_field_buffer_size (void)
void	store_length (uchar *i_ptr, uint i_packlength, uint32 i_number)
void	store_length (uint32 number)
uint32	get_packed_size (const uchar *ptr_arg, bool low_byte_first)
uint32	get_length (uint row_offset=0)
uint32	get_length (const uchar *ptr, uint packlength, bool low_byte_first)
uint32	get_length (const uchar *ptr_arg)
void	put_length (uchar *pos, uint32 length)
void	get_ptr (uchar **str)
void	get_ptr (uchar **str, uint row_offset)
void	set_ptr (uchar *length, uchar *data)
void	set_ptr_offset (my_ptrdiff_t ptr_diff, uint32 length, uchar *data)
void	set_ptr (uint32 length, uchar *data)
uint	get_key_image (uchar *buff, uint length, imagetype type)
void	set_key_image (const uchar *buff, uint length)
void	sql_type (String &str) const
bool	copy ()
Field_blob *	clone (MEM_ROOT *mem_root) const
Field_blob *	clone () const
virtual uchar *	pack (uchar *to, const uchar *from, uint max_length, bool low_byte_first)
virtual const uchar *	unpack (uchar *to, const uchar *from, uint param_data, bool low_byte_first)
uint	packed_col_length (const uchar *col_ptr, uint length)
uint	max_packed_col_length (uint max_length)
void	free ()
void	clear_temporary ()
bool	has_charset (void) const
uint32	max_display_length ()
uint32	char_length ()
uint	is_equal (Create_field *new_field)
bool	in_read_set ()
bool	in_write_set ()
Public Member Functions inherited from Field_longstr
	Field_longstr (uchar *ptr_arg, uint32 len_arg, uchar *null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg, const CHARSET_INFO *charset_arg)
type_conversion_status	store_decimal (const my_decimal *d)
Public Member Functions inherited from Field_str
	Field_str (uchar *ptr_arg, uint32 len_arg, uchar *null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg, const CHARSET_INFO *charset)
Item_result	result_type () const
Item_result	numeric_context_result_type () const
uint	decimals () const
void	make_field (Send_field *field)
uint	repertoire (void) const
const CHARSET_INFO *	charset (void) const
void	set_charset (const CHARSET_INFO *charset_arg)
enum Derivation	derivation (void) const
virtual void	set_derivation (enum Derivation derivation_arg)
bool	binary () const
virtual bool	str_needs_quotes ()
Public Member Functions inherited from Field
bool	has_insert_default_function () const
bool	has_update_default_function () const
	Field (uchar *ptr_arg, uint32 length_arg, uchar *null_ptr_arg, uchar null_bit_arg, utype unireg_check_arg, const char *field_name_arg)
	This is used as a table name when the table structure is not set up.
virtual type_conversion_status	store_packed (longlong nr)
virtual type_conversion_status	store_time (MYSQL_TIME *ltime, uint8 dec)
type_conversion_status	store_time (MYSQL_TIME *ltime)
type_conversion_status	store (const char *to, uint length, const CHARSET_INFO *cs, enum_check_fields check_level)
virtual longlong	val_time_temporal ()
virtual longlong	val_date_temporal ()
longlong	val_temporal_by_field_type ()
String *	val_str (String *str)
String *	val_int_as_str (String *val_buffer, my_bool unsigned_flag)
virtual Item_result	cmp_type () const
virtual Item_result	cast_to_int_type () const
virtual bool	eq (Field *field)
virtual bool	eq_def (Field *field)
virtual uint32	pack_length_in_rec () const
virtual bool	compatible_field_size (uint metadata, Relay_log_info *rli, uint16 mflags, int *order)
virtual uint	pack_length_from_metadata (uint field_metadata)
virtual int	save_field_metadata (uchar *first_byte)
virtual uint32	data_length ()
virtual bool	get_timestamp (struct timeval *tm, int *warnings)
virtual void	store_timestamp (const timeval *tm)
void	store_timestamp (my_time_t sec)
virtual void	set_default ()
void	evaluate_insert_default_function ()
void	evaluate_update_default_function ()
virtual bool	zero_pack () const
virtual enum_field_types	real_type () const
virtual enum_field_types	binlog_type () const
int	cmp (const uchar *str)
virtual int	cmp_offset (uint row_offset)
virtual int	cmp_binary_offset (uint row_offset)
bool	is_temporal () const
bool	is_temporal_with_date () const
bool	is_temporal_with_time () const
bool	is_temporal_with_date_and_time () const
bool	is_null (my_ptrdiff_t row_offset=0) const
bool	is_real_null (my_ptrdiff_t row_offset=0) const
bool	is_null_in_record (const uchar *record) const
void	set_null (my_ptrdiff_t row_offset=0)
void	set_notnull (my_ptrdiff_t row_offset=0)
bool	maybe_null (void) const
bool	real_maybe_null (void) const
uint	null_offset (const uchar *record) const
uint	null_offset () const
void	set_null_ptr (uchar *p_null_ptr, uint p_null_bit)
size_t	last_null_byte () const
virtual bool	optimize_range (uint idx, uint part)
virtual bool	can_be_compared_as_longlong () const
virtual Field *	new_field (MEM_ROOT *root, TABLE *new_table, bool keep_type)
virtual Field *	new_key_field (MEM_ROOT *root, TABLE *new_table, uchar *new_ptr, uchar *new_null_ptr, uint new_null_bit)
Field *	new_key_field (MEM_ROOT *root, TABLE *new_table, uchar *new_ptr)
void	move_field (uchar *ptr_arg, uchar *null_ptr_arg, uchar null_bit_arg)
void	move_field (uchar *ptr_arg)
virtual void	move_field_offset (my_ptrdiff_t ptr_diff)
virtual void	get_image (uchar *buff, uint length, const CHARSET_INFO *cs)
virtual void	set_image (const uchar *buff, uint length, const CHARSET_INFO *cs)
longlong	val_int_offset (uint row_offset)
longlong	val_int (const uchar *new_ptr)
String *	val_str (String *str, const uchar *new_ptr)
virtual bool	send_binary (Protocol *protocol)
uchar *	pack (uchar *to, const uchar *from)
const uchar *	unpack (uchar *to, const uchar *from)
uint	offset (uchar *record)
void	copy_from_tmp (int offset)
uint	fill_cache_field (struct st_cache_field *copy)
virtual bool	get_date (MYSQL_TIME *ltime, uint fuzzydate)
virtual bool	get_time (MYSQL_TIME *ltime)
virtual const CHARSET_INFO *	charset_for_protocol (void) const
virtual const CHARSET_INFO *	sort_charset (void) const
bool	set_warning (Sql_condition::enum_warning_level, unsigned int code, int cuted_increment) const
bool	check_overflow (int op_result)
bool	check_truncated (int op_result)
bool	warn_if_overflow (int op_result)
void	init (TABLE *table_arg)
longlong	convert_decimal2longlong (const my_decimal *val, bool unsigned_flag, bool *has_overflow)
virtual geometry_type	get_geometry_type ()
void	dbug_print ()
ha_storage_media	field_storage_type () const
void	set_storage_type (ha_storage_media storage_type_arg)
column_format_type	column_format () const
void	set_column_format (column_format_type column_format_arg)
virtual type_conversion_status	validate_stored_val (THD *thd)
virtual void	hash (ulong *nr, ulong *nr2)

Static Public Member Functions
static void	store_length (uchar *i_ptr, uint i_packlength, uint32 i_number, bool low_byte_first)

Protected Member Functions
void	store_ptr_and_length (const char *from, uint32 length)
Protected Member Functions inherited from Field_longstr
type_conversion_status	report_if_important_data (const char *ptr, const char *end, bool count_spaces) const
type_conversion_status	check_string_copy_error (const char *well_formed_error_pos, const char *cannot_convert_error_pos, const char *from_end_pos, const char *end, bool count_spaces, const CHARSET_INFO *cs) const

Protected Attributes
uint	packlength
String	value

Friends
type_conversion_status	field_conv (Field *to, Field *from)

Additional Inherited Members
Public Types inherited from Field
enum	utype {   NONE, DATE, SHIELD, NOEMPTY,   CASEUP, PNR, BGNR, PGNR,   YES, NO, REL, CHECK,   EMPTY, UNKNOWN_FIELD, CASEDN, NEXT_NUMBER,   INTERVAL_FIELD, BIT_FIELD, TIMESTAMP_OLD_FIELD, CAPITALIZE,   BLOB_FIELD, TIMESTAMP_DN_FIELD, TIMESTAMP_UN_FIELD, TIMESTAMP_DNUN_FIELD }
enum	geometry_type {   GEOM_GEOMETRY = 0, GEOM_POINT = 1, GEOM_LINESTRING = 2, GEOM_POLYGON = 3,   GEOM_MULTIPOINT = 4, GEOM_MULTILINESTRING = 5, GEOM_MULTIPOLYGON = 6, GEOM_GEOMETRYCOLLECTION = 7 }
enum	imagetype { itRAW, itMBR }
enum	{ LAST_NULL_BYTE_UNDEF = 0 }
Public Attributes inherited from Field
uchar *	ptr
TABLE *	table
TABLE *	orig_table
const char **	table_name
const char *	field_name
LEX_STRING	comment
key_map	key_start
key_map	part_of_key
key_map	part_of_key_not_clustered
key_map	part_of_sortkey
utype	unireg_check
uint32	field_length
uint32	flags
uint16	field_index
uchar	null_bit
bool	is_created_from_null_item
Static Protected Member Functions inherited from Field
static void	handle_int16 (uchar *to, const uchar *from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int24 (uchar *to, const uchar *from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int32 (uchar *to, const uchar *from, bool low_byte_first_from, bool low_byte_first_to)
static void	handle_int64 (uchar *to, const uchar *from, bool low_byte_first_from, bool low_byte_first_to)

Detailed Description

Definition at line 3259 of file field.h.

Member Function Documentation

uint32 Field_blob::char_length ( )

virtual

maximum possible character length for blob.

This method is used in Item_field::set_field to calculate max_length for Item.

For example: CREATE TABLE t2 SELECT CONCAT(tinyblob_utf8_column) FROM t1; must create a "VARCHAR(255) CHARACTER SET utf8" column.

Returns

length

Reimplemented from Field.

Definition at line 10511 of file field.cc.

Field_blob* Field_blob::clone ( MEM_ROOT *  mem_root ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note

This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Parameters

mem_root

MEM_ROOT to use for memory allocation.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 3436 of file field.h.

Field_blob* Field_blob::clone ( ) const

inlinevirtual

Makes a shallow copy of the Field object.

Note

This member function must be overridden in all concrete subclasses. Several of the Field subclasses are concrete even though they are not leaf classes, so the compiler will not always catch this.

Return values

NULL	If memory allocation failed.

Implements Field.

Definition at line 3440 of file field.h.

uint32 Field_blob::get_packed_size ( const uchar *  ptr_arg, bool  low_byte_first  )

inline

Return the packed length plus the length of the data.

This is used to determine the size of the data plus the packed length portion in the row data.

Returns

The length in the row plus the size of the data.

Definition at line 3388 of file field.h.

uint Field_blob::is_equal ( Create_field *  new_field )

virtual

Whether a field being created is compatible with a existing one.

Used by the ALTER TABLE code to evaluate whether the new definition of a table is compatible with the old definition so that it can determine if data needs to be copied over (table data change).

Reimplemented from Field_str.

Definition at line 8229 of file field.cc.

Here is the call graph for this function:

void Field_blob::make_sort_key ( uchar *  buff, uint  length  )

virtual

Writes a copy of the current value in the record buffer, suitable for sorting using byte-by-byte comparison. Integers are always in big-endian regardless of hardware architecture. At most length bytes are written into the buffer.

Parameters

buff	The buffer, assumed to be at least length bytes.
length	Number of bytes to write.

Implements Field.

Definition at line 8081 of file field.cc.

virtual uint32 Field_blob::max_data_length ( ) const

inlinevirtual

Get the maximum size of the data in packed format.

Returns

Maximum data length of the field when packed using the Field::pack() function.

Reimplemented from Field_longstr.

Definition at line 3356 of file field.h.

Here is the caller graph for this function:

uint32 Field_blob::max_display_length ( )

virtual

maximum possible display length for blob.

Returns

length

Reimplemented from Field_str.

Definition at line 10537 of file field.cc.

uchar * Field_blob::pack ( uchar *  to, const uchar *  from, uint  max_length, bool  low_byte_first  )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from Field.

Definition at line 8146 of file field.cc.

uint32 Field_blob::pack_length_no_ptr ( ) const

inline

Return the packed length without the pointer size added.

This is used to determine the size of the actual data in the row buffer.

Returns

The length of the raw data itself without the pointer.

Definition at line 3352 of file field.h.

void Field_blob::put_length	(	uchar *	pos,
		uint32	length
	)

Put a blob length field into a record buffer.

Depending on the maximum length of a blob, its length field is put into 1 to 4 bytes. This is a property of the blob object, described by 'packlength'.

Parameters

pos	Pointer into the record buffer.
length	The length value to put.

Definition at line 7689 of file field.cc.

type_conversion_status Field_blob::store ( double  nr )

virtual

Store double value in Field_string or Field_varstring.

Pretty prints double number into field_length characters buffer.

Parameters

nr

number

Reimplemented from Field_str.

Definition at line 7849 of file field.cc.

void Field_blob::store_ptr_and_length ( const char *  from, uint32  length  )

inlineprotected

Store ptr and length.

Definition at line 3283 of file field.h.

const uchar * Field_blob::unpack ( uchar *  to, const uchar *  from, uint  param_data, bool  low_byte_first  )

virtual

Unpack a blob field from row data.

This method is used to unpack a blob field from a master whose size of the field is less than that of the slave. Note: This method is included to satisfy inheritance rules, but is not needed for blob fields. It simply is used as a pass-through to the original unpack() method for blob fields.

Parameters

to	Destination of the data
from	Source of the data
param_data	TRUE if base types should be stored in little- endian format, FALSE if native format should be used.

Returns

New pointer into memory based on from + length of the data

Reimplemented from Field.

Definition at line 8190 of file field.cc.

Friends And Related Function Documentation

type_conversion_status field_conv ( Field *  to, Field *  from  )

friend

Simple quick field convert that is called on insert.

Definition at line 784 of file field_conv.cc.

Member Data Documentation

uint Field_blob::packlength

protected

The number of bytes used to represent the length of the blob.

Definition at line 3273 of file field.h.

String Field_blob::value

protected

The 'value'-object is a cache fronting the storage engine.

Definition at line 3278 of file field.h.

---

The documentation for this class was generated from the following files:

• sql/field.h
• sql/field.cc
