Inheritance diagram for BackupRestore:

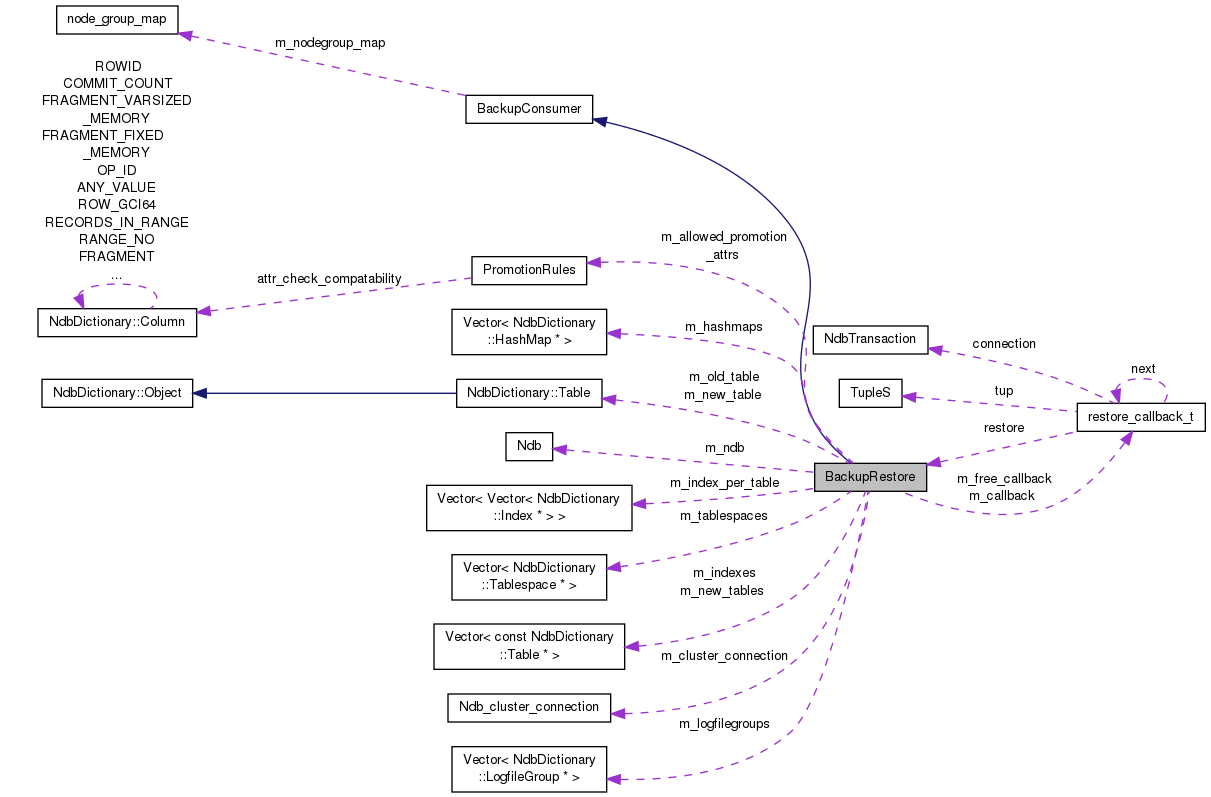

Collaboration diagram for BackupRestore:

Public Member Functions
	BackupRestore (const char ndb_connectstring, int ndb_nodeid, NODE_GROUP_MAP ng_map, uint ng_map_len, Uint32 parallelism=1)
virtual bool	init (Uint32 tableChangesMask)
virtual void	release ()
virtual bool	object (Uint32 type, const void *ptr)
virtual bool	table (const TableS &)
virtual bool	endOfTables ()
virtual void	tuple (const TupleS &, Uint32 fragId)
virtual void	tuple_free ()
virtual void	tuple_a (restore_callback_t *cb)
virtual void	tuple_SYSTAB_0 (restore_callback_t *cb, const TableS &)
virtual int	restoreAutoIncrement (restore_callback_t *cb, Uint32 tableId, Uint64 value)
virtual void	cback (int result, restore_callback_t *cb)
virtual bool	errorHandler (restore_callback_t *cb)
virtual void	exitHandler ()
virtual void	endOfTuples ()
virtual void	logEntry (const LogEntry &)
virtual void	endOfLogEntrys ()
virtual bool	finalize_table (const TableS &)
virtual bool	rebuild_indexes (const TableS &)
virtual bool	has_temp_error ()
virtual bool	createSystable (const TableS &table)
virtual bool	table_compatible_check (const TableS &tableS)
virtual bool	column_compatible_check (const char tableName, const NDBCOL backupCol, const NDBCOL *dbCol)
virtual bool	update_apply_status (const RestoreMetaData &metaData)
virtual bool	report_started (unsigned node_id, unsigned backup_id)
virtual bool	report_meta_data (unsigned node_id, unsigned backup_id)
virtual bool	report_data (unsigned node_id, unsigned backup_id)
virtual bool	report_log (unsigned node_id, unsigned backup_id)
virtual bool	report_completed (unsigned node_id, unsigned backup_id)
void	connectToMysql ()
bool	map_in_frm (char new_data, const char data, uint data_len, uint *new_data_len)
bool	search_replace (char search_str, char new_data, const char data, const char end_data, uint *new_data_len)
bool	map_nodegroups (Uint32 *ng_array, Uint32 no_parts)
Uint32	map_ng (Uint32 ng)
bool	translate_frm (NdbDictionary::Table *table)
AttrCheckCompatFunc	get_attr_check_compatability (const NDBCOL::Type &old_type, const NDBCOL::Type &new_type)
AttrConvertFunc	get_convert_func (const NDBCOL::Type &old_type, const NDBCOL::Type &new_type)
const NdbDictionary::Table *	get_table (const NdbDictionary::Table *)
Public Member Functions inherited from BackupConsumer
virtual bool	table_equal (const TableS &)

Static Public Member Functions
static AttrConvType	check_compat_sizes (const NDBCOL &old_col, const NDBCOL &new_col)
static AttrConvType	check_compat_promotion (const NDBCOL &old_col, const NDBCOL &new_col)
static AttrConvType	check_compat_lossy (const NDBCOL &old_col, const NDBCOL &new_col)
static void *	convert_bitset (const void source, void target, bool &truncated)
template<typename S , typename T >
static void *	convert_array (const void source, void target, bool &truncated)
template<typename T , typename S >
static void *	convert_integral (const void source, void target, bool &truncated)

Public Attributes
Ndb *	m_ndb
Ndb_cluster_connection *	m_cluster_connection
const char *	m_ndb_connectstring
int	m_ndb_nodeid
bool	m_restore
bool	m_restore_meta
bool	m_no_restore_disk
bool	m_restore_epoch
bool	m_no_upgrade
bool	m_disable_indexes
bool	m_rebuild_indexes
Uint32	m_tableChangesMask
Uint32	m_n_tablespace
Uint32	m_n_logfilegroup
Uint32	m_n_datafile
Uint32	m_n_undofile
Uint32	m_n_tables
Uint64	m_logBytes
Uint64	m_dataBytes
Uint32	m_logCount
Uint32	m_dataCount
Uint32	m_parallelism
volatile Uint32	m_transactions
restore_callback_t *	m_callback
restore_callback_t *	m_free_callback
bool	m_temp_error
Vector< const NdbDictionary::Table * >	m_new_tables
struct {
const NdbDictionary::Table * m_old_table
const NdbDictionary::Table * m_new_table
}	m_cache
Vector< const NdbDictionary::Table * >	m_indexes
Vector< Vector < NdbDictionary::Index * > >	m_index_per_table
Vector < NdbDictionary::Tablespace * >	m_tablespaces
Vector < NdbDictionary::LogfileGroup * >	m_logfilegroups
Vector< NdbDictionary::HashMap * >	m_hashmaps
Public Attributes inherited from BackupConsumer
NODE_GROUP_MAP *	m_nodegroup_map
uint	m_nodegroup_map_len

Static Public Attributes
static bool	m_preserve_trailing_spaces = false
static const PromotionRules	m_allowed_promotion_attrs []

Detailed Description

Definition at line 53 of file consumer_restore.hpp.

Member Function Documentation

void BackupRestore::cback	(	int	result,
		restore_callback_t *	cb
	)

virtual

Error. temporary or permanent?

OK! close transaction

Definition at line 2345 of file consumer_restore.cpp.

Here is the call graph for this function:

bool BackupRestore::errorHandler ( restore_callback_t * cb )

virtual

returns true if is recoverable, Error handling based on hugo false if it is an error that generates an abort.

Definition at line 2381 of file consumer_restore.cpp.

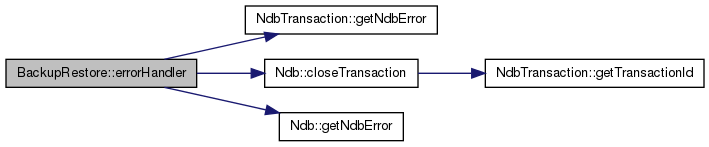

Here is the call graph for this function:

Here is the caller graph for this function:

bool BackupRestore::table ( const TableS & table )

virtual

Ignore blob tables

Force of varpart was introduced in 5.1.18, telco 6.1.7 and 6.2.1 Since default from mysqld is to add force of varpart (disable with ROW_FORMAT=FIXED) we force varpart onto tables when they are restored from backups taken with older versions. This will be wrong if ROW_FORMAT=FIXED was used on original table, however the likelyhood of this is low, since ROW_FORMAT= was a NOOP in older versions.

Reimplemented from BackupConsumer.

Definition at line 1783 of file consumer_restore.cpp.

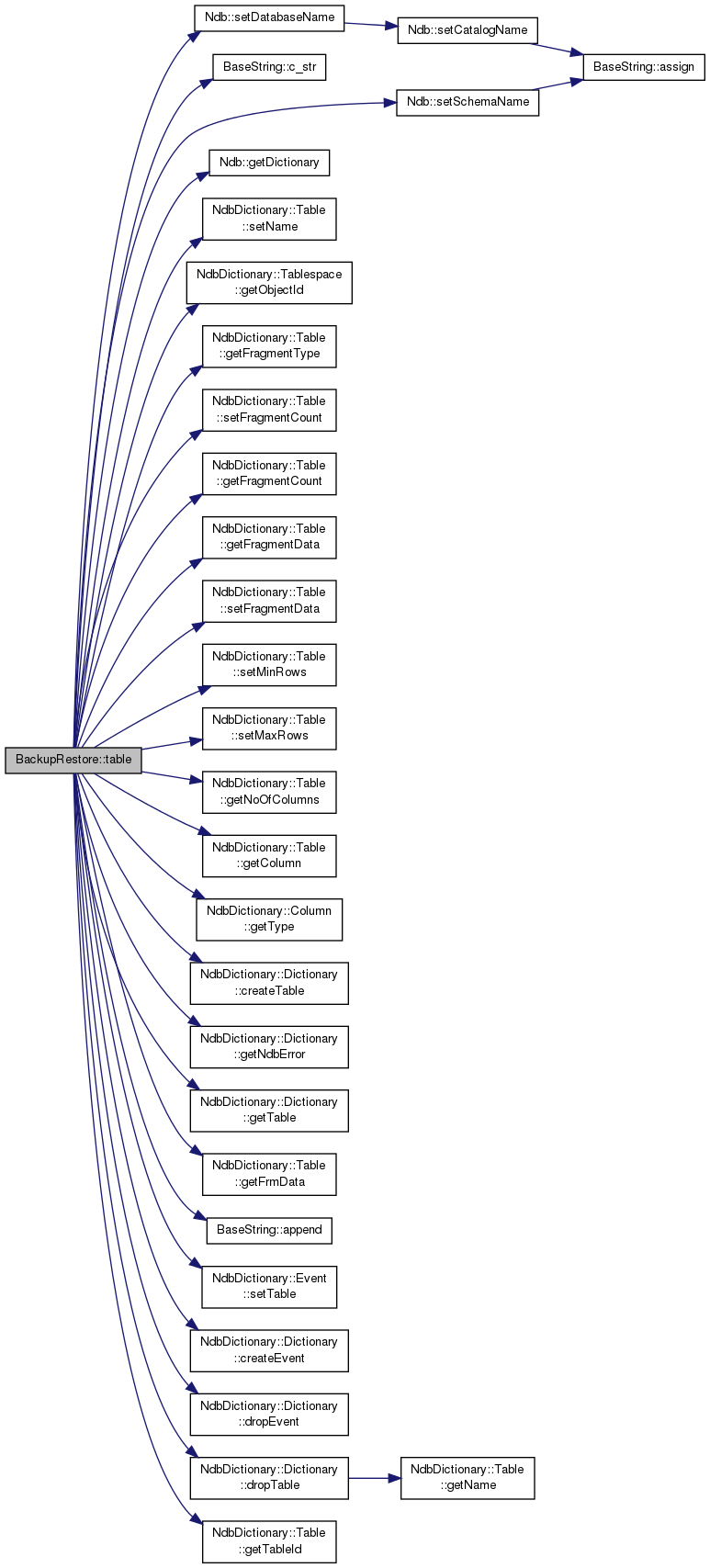

Here is the call graph for this function:

bool BackupRestore::table_compatible_check ( const TableS & tableS )

virtual

Ignore blob tables

remap column(s) based on column-names

only nullable or defaulted non primary key columns can be missing from backup

Reimplemented from BackupConsumer.

Definition at line 1532 of file consumer_restore.cpp.

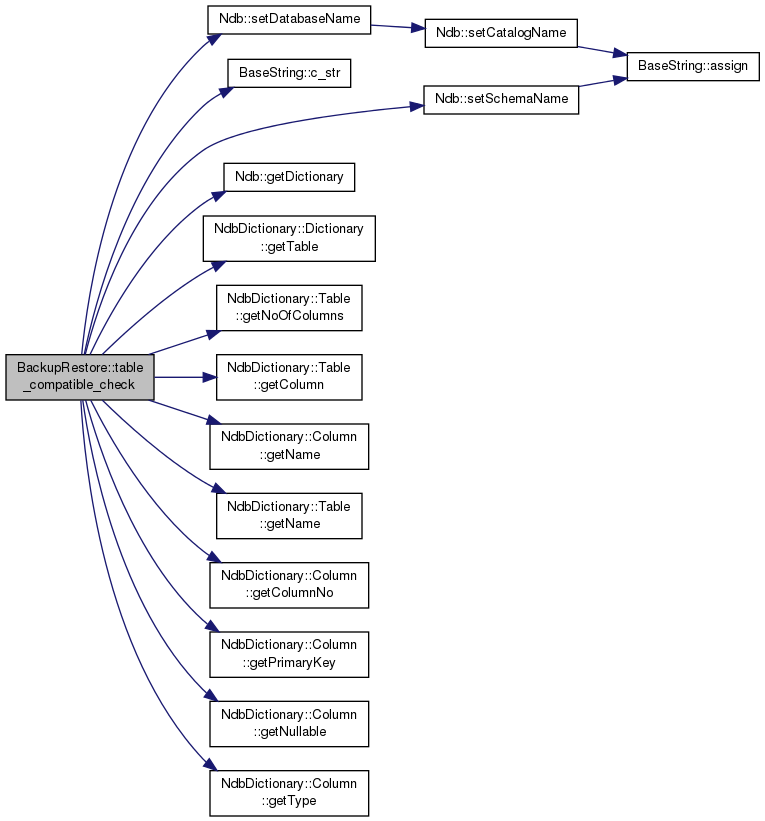

Here is the call graph for this function:

void BackupRestore::tuple_a ( restore_callback_t * cb )

virtual

start transactions

Definition at line 2112 of file consumer_restore.cpp.

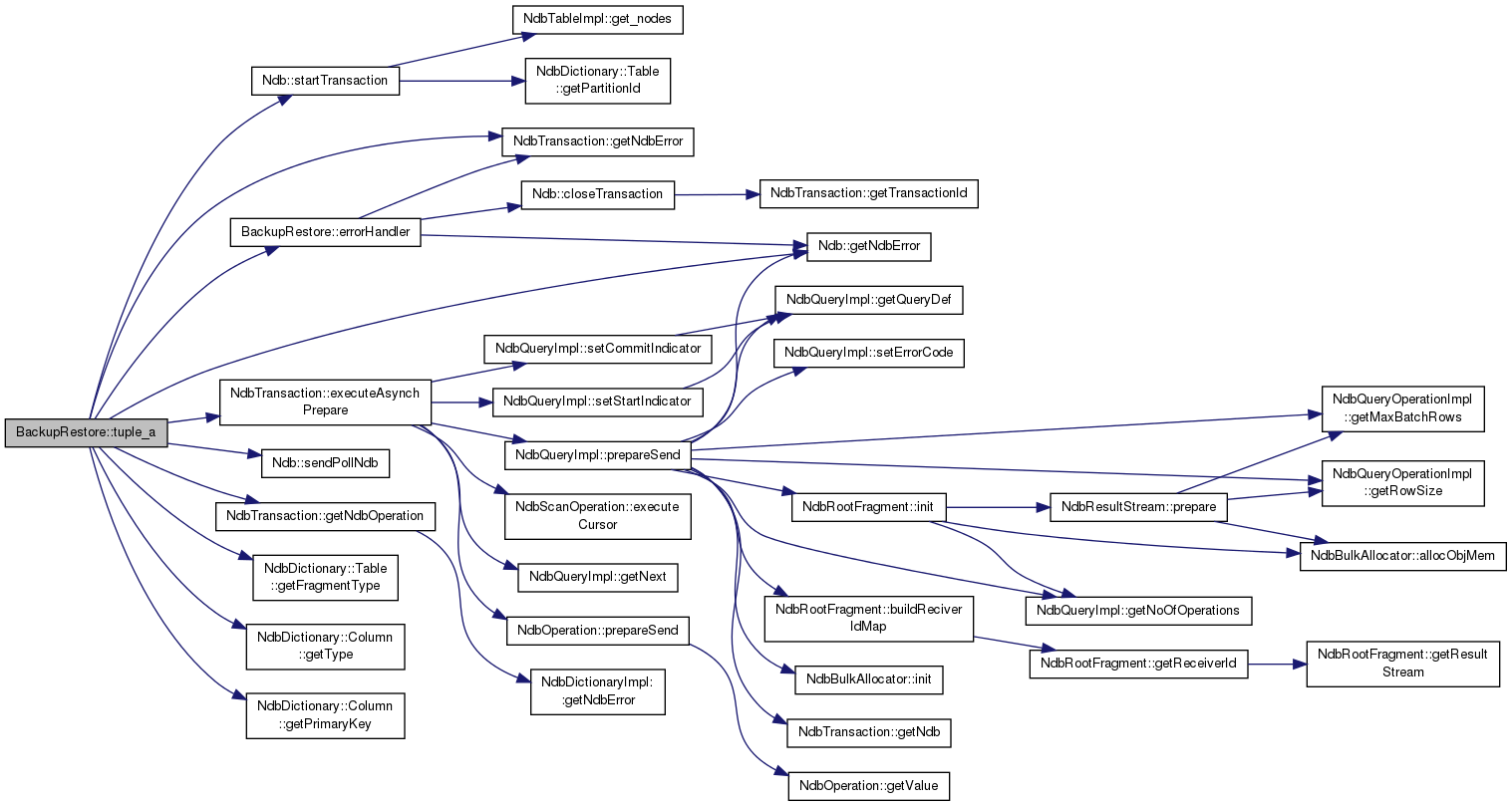

Here is the call graph for this function:

Here is the caller graph for this function:

bool BackupRestore::update_apply_status ( const RestoreMetaData & metaData )

virtual

Bug::XXX, stopGCP is not really stop GCP, but stopGCP - 1

Backup contains all epochs with those top bits, so we indicate that with max setting

Reimplemented from BackupConsumer.

Definition at line 1193 of file consumer_restore.cpp.

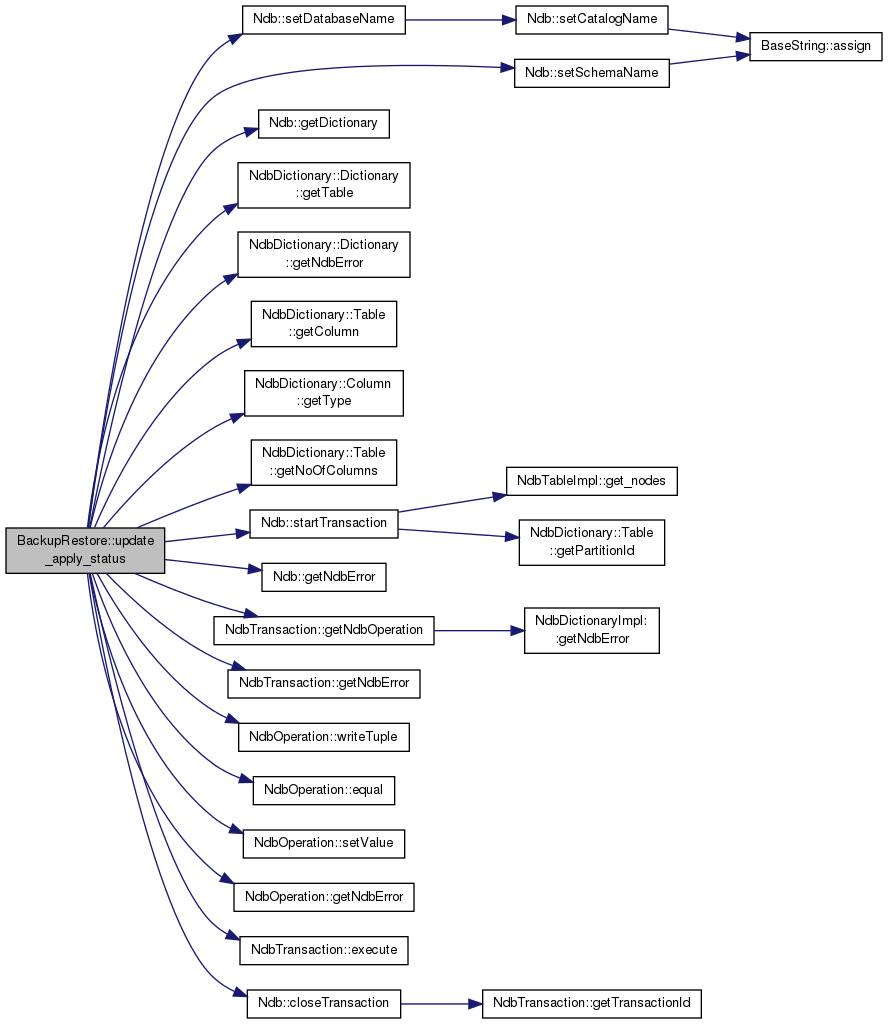

Here is the call graph for this function:

Member Data Documentation

Vector<const NdbDictionary::Table*> BackupRestore::m_new_tables

m_new_table_ids[X] = Y; X - old table id Y != 0 - new table

Definition at line 204 of file consumer_restore.hpp.

The documentation for this class was generated from the following files:

storage/ndb/tools/restore/consumer_restore.hpp
storage/ndb/tools/restore/consumer_restore.cpp
storage/ndb/tools/restore/consumer_restorem.cpp
