Gtid Struct Reference

#include <rpl_gtid.h>

Public Member Functions
void	clear ()
	Set both components to 0.
int	to_string (const rpl_sid &sid, char *buf) const
int	to_string (const Sid_map *sid_map, char *buf) const
bool	equals (const Gtid &other) const
	Returns true if this Gtid has the same sid and gno as 'other'.
enum_return_status	parse (Sid_map *sid_map, const char *text)
void	print (const Sid_map *sid_map) const
	Debug only: print this Gtid to stdout.
void	dbug_print (const Sid_map *sid_map, const char *text="") const
	Print this Gtid to the trace file if debug is enabled; no-op otherwise.

Static Public Member Functions
static bool	is_valid (const char *text)

Public Attributes
rpl_sidno	sidno
	SIDNO of this Gtid.
rpl_gno	gno
	GNO of this Gtid.

Static Public Attributes
static const int	MAX_TEXT_LENGTH = Uuid::TEXT_LENGTH + 1 + MAX_GNO_TEXT_LENGTH

Detailed Description

Holds information about a GTID: the sidno and the gno.

This is a POD. It has to be a POD because it is part of Gtid_specification, which has to be a POD because it is used in THD::variables.

Definition at line 754 of file rpl_gtid.h.

Member Function Documentation

bool Gtid::is_valid ( const char *  text )

static

Return true if parse() would succeed, but don't store the result anywhere.

Definition at line 104 of file rpl_gtid_misc.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

enum_return_status Gtid::parse	(	Sid_map *	sid_map,
		const char *	text
	)

Parses the given string and stores in this Gtid.

Parameters

text	The text to parse

Returns

RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 27 of file rpl_gtid_misc.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

int Gtid::to_string	(	const rpl_sid &	sid,
		char *	buf
	)		const

Convert a Gtid to a string.

Parameters

	sid	the sid to use. This overrides the sidno of this Gtid.
[out]	buf	Buffer to store the Gtid in (normally MAX_TEXT_LENGTH+1 bytes long).

Returns

Length of the string, not counting '\0'.

Definition at line 85 of file rpl_gtid_misc.cc.

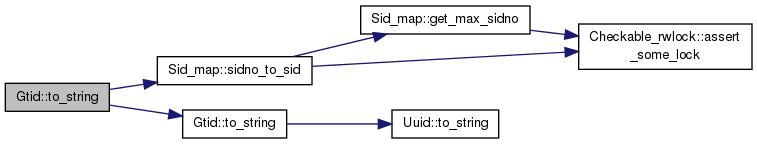

Here is the call graph for this function:

Here is the caller graph for this function:

int Gtid::to_string	(	const Sid_map *	sid_map,
		char *	buf
	)		const

Convert this Gtid to a string.

Parameters

	sid_map	sid_map to use when converting sidno to a SID.
[out]	buf	Buffer to store the Gtid in (normally MAX_TEXT_LENGTH+1 bytes long).

Returns

Length of the string, not counting '\0'.

Definition at line 96 of file rpl_gtid_misc.cc.

Here is the call graph for this function:

Member Data Documentation

const int Gtid::MAX_TEXT_LENGTH = Uuid::TEXT_LENGTH + 1 + MAX_GNO_TEXT_LENGTH

static

The maximal length of the textual representation of a SID, not including the terminating '\0'.

Definition at line 767 of file rpl_gtid.h.

---

The documentation for this struct was generated from the following files:

• sql/rpl_gtid.h
• sql/rpl_gtid_misc.cc
