row0sel.h File Reference

#include "univ.i"
#include "data0data.h"
#include "que0types.h"
#include "dict0types.h"
#include "trx0types.h"
#include "row0types.h"
#include "pars0sym.h"
#include "btr0pcur.h"
#include "read0read.h"
#include "row0mysql.h"
#include "row0sel.ic"

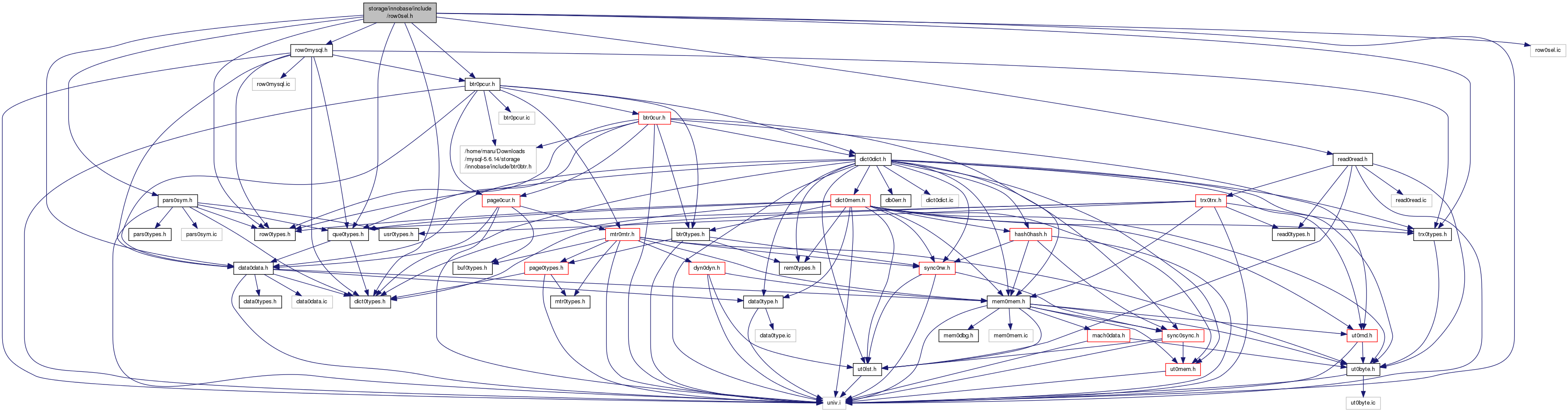

Include dependency graph for row0sel.h:

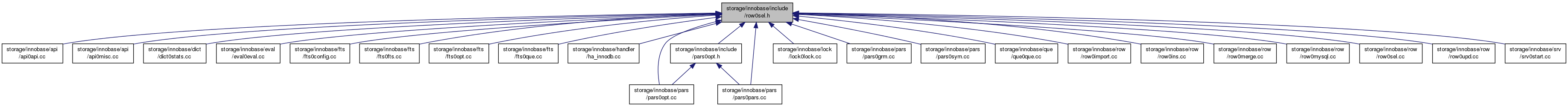

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sel_buf_t
struct	plan_t
struct	sel_node_t
struct	fetch_node_t
struct	open_node_t
struct	row_printf_node_t

Enumerations
enum	sel_node_state { SEL_NODE_CLOSED, SEL_NODE_OPEN, SEL_NODE_FETCH, SEL_NODE_NO_MORE_ROWS }
enum	open_node_op { ROW_SEL_OPEN_CURSOR, ROW_SEL_CLOSE_CURSOR }
enum	row_sel_direction { ROW_SEL_NEXT = 1, ROW_SEL_PREV = 2 }
enum	row_sel_match_mode { ROW_SEL_EXACT = 1, ROW_SEL_EXACT_PREFIX }

Functions
UNIV_INTERN sel_node_t *	sel_node_create (mem_heap_t *heap)
UNIV_INTERN void	sel_node_free_private (sel_node_t *node)
UNIV_INTERN void	sel_col_prefetch_buf_free (sel_buf_t *prefetch_buf)
UNIV_INLINE plan_t *	sel_node_get_nth_plan (sel_node_t *node, ulint i)
UNIV_INTERN que_thr_t *	row_sel_step (que_thr_t *thr)
UNIV_INLINE que_thr_t *	open_step (que_thr_t *thr)
UNIV_INTERN que_thr_t *	fetch_step (que_thr_t *thr)
UNIV_INTERN void *	row_fetch_print (void *row, void *user_arg)
UNIV_INTERN que_thr_t *	row_printf_step (que_thr_t *thr)
UNIV_INTERN void	row_sel_convert_mysql_key_to_innobase (dtuple_t *tuple, byte *buf, ulint buf_len, dict_index_t *index, const byte *key_ptr, ulint key_len, trx_t *trx)
UNIV_INTERN dberr_t	row_search_for_mysql (byte *buf, ulint mode, row_prebuilt_t *prebuilt, ulint match_mode, ulint direction) __attribute__((nonnull
UNIV_INTERN ibool	row_search_check_if_query_cache_permitted (trx_t *trx, const char *norm_name)
UNIV_INTERN dberr_t	row_search_max_autoinc (dict_index_t *index, const char *col_name, ib_uint64_t *value) __attribute__((nonnull

Variables
UNIV_INTERN dberr_t	warn_unused_result

Detailed Description

Select

Created 12/19/1997 Heikki Tuuri

Definition in file row0sel.h.

Enumeration Type Documentation

enum open_node_op

Open or close cursor operation type

Enumerator:

ROW_SEL_OPEN_CURSOR	open cursor
ROW_SEL_CLOSE_CURSOR	close cursor

Definition at line 369 of file row0sel.h.

enum row_sel_direction

Search direction for the MySQL interface

Enumerator:

ROW_SEL_NEXT	ascending direction
ROW_SEL_PREV	descending direction

Definition at line 390 of file row0sel.h.

enum row_sel_match_mode

Match mode for the MySQL interface

Enumerator:

ROW_SEL_EXACT	search using a complete key value
ROW_SEL_EXACT_PREFIX	search using a key prefix which must match rows: the prefix may contain an incomplete field (the last field in prefix may be just a prefix of a fixed length column)

Definition at line 396 of file row0sel.h.

enum sel_node_state

Select node states

Enumerator:

SEL_NODE_CLOSED	it is a declared cursor which is not currently open
SEL_NODE_OPEN	intention locks not yet set on tables
SEL_NODE_FETCH	intention locks have been set
SEL_NODE_NO_MORE_ROWS	cursor has reached the result set end

Definition at line 286 of file row0sel.h.

Function Documentation

UNIV_INTERN que_thr_t* fetch_step

(

que_thr_t *

thr

)

Performs a fetch for a cursor.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INLINE que_thr_t* open_step

(

que_thr_t *

thr

)

Performs an execution step of an open or close cursor statement node.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN void* row_fetch_print	(	void *	row,
		void *	user_arg
	)

Sample callback function for fetch that prints each row.

Returns

always returns non-NULL in: not used

Parameters

row	in: sel_node_t*

UNIV_INTERN que_thr_t* row_printf_step

(

que_thr_t *

thr

)

Prints a row in a select result.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN ibool row_search_check_if_query_cache_permitted	(	trx_t *	trx,
		const char *	norm_name
	)

Checks if MySQL at the moment is allowed for this table to retrieve a consistent read result, or store it to the query cache.

Returns

TRUE if storing or retrieving from the query cache is permitted in: concatenation of database name, '/' char, table name

Parameters

trx	in: transaction object

UNIV_INTERN dberr_t row_search_for_mysql	(	byte *	buf,
		ulint	mode,
		row_prebuilt_t *	prebuilt,
		ulint	match_mode,
		ulint	direction
	)

Searches for rows in the database. This is used in the interface to MySQL. This function opens a cursor, and also implements fetch next and fetch prev. NOTE that if we do a search with a full key value from a unique index (ROW_SEL_EXACT), then we will not store the cursor position and fetch next or fetch prev must not be tried to the cursor!

Returns

DB_SUCCESS, DB_RECORD_NOT_FOUND, DB_END_OF_INDEX, DB_DEADLOCK, DB_LOCK_TABLE_FULL, or DB_TOO_BIG_RECORD

Parameters

buf	in/out: buffer for the fetched row in the MySQL format
mode	in: search mode PAGE_CUR_L, ...
prebuilt	in: prebuilt struct for the table handle; this contains the info of search_tuple, index; if search tuple contains 0 fields then we position the cursor at the start or the end of the index, depending on 'mode'
match_mode	in: 0 or ROW_SEL_EXACT or ROW_SEL_EXACT_PREFIX
direction	in: 0 or ROW_SEL_NEXT or ROW_SEL_PREV; NOTE: if this is != 0, then prebuilt must have a pcur with stored position! In opening of a cursor 'direction' should be 0.

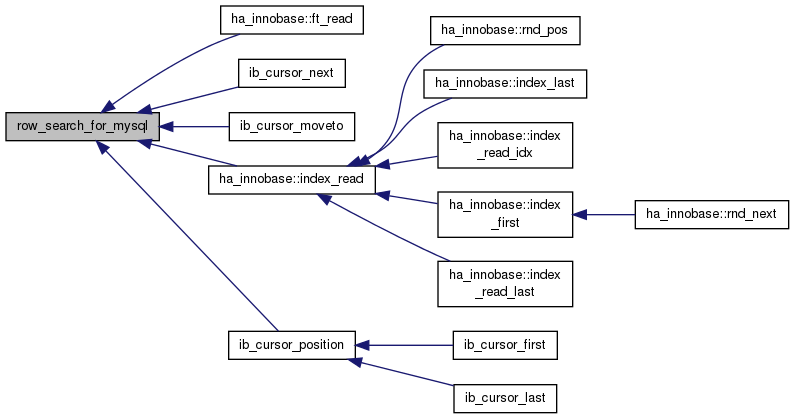

Here is the caller graph for this function:

UNIV_INTERN dberr_t row_search_max_autoinc	(	dict_index_t *	index,
		const char *	col_name,
		ib_uint64_t *	value
	)

Read the max AUTOINC value from an index.

Returns

DB_SUCCESS if all OK else error code

Parameters

index	in: index to search
col_name	in: autoinc column name
value	out: AUTOINC value read

UNIV_INTERN void row_sel_convert_mysql_key_to_innobase	(	dtuple_t *	tuple,
		byte *	buf,
		ulint	buf_len,
		dict_index_t *	index,
		const byte *	key_ptr,
		ulint	key_len,
		trx_t *	trx
	)

Converts a key value stored in MySQL format to an Innobase dtuple. The last field of the key value may be just a prefix of a fixed length field: hence the parameter key_len. But currently we do not allow search keys where the last field is only a prefix of the full key field len and print a warning if such appears. in: transaction

Parameters

tuple	in/out: tuple where to build; NOTE: we assume that the type info in the tuple is already according to index!
buf	in: buffer to use in field conversions; NOTE that dtuple->data may end up pointing inside buf so do not discard that buffer while the tuple is being used. See row_mysql_store_col_in_innobase_format() in the case of DATA_INT
buf_len	in: buffer length
index	in: index of the key value
key_ptr	in: MySQL key value
key_len	in: MySQL key value length

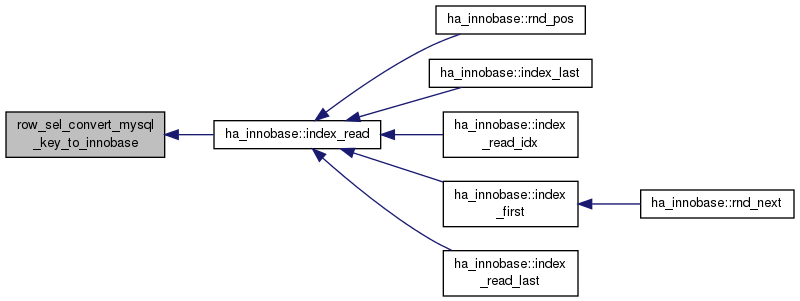

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* row_sel_step

(

que_thr_t *

thr

)

Performs a select step. This is a high-level function used in SQL execution graphs.

Returns

query thread to run next or NULL in: query thread

Here is the caller graph for this function:

UNIV_INTERN void sel_col_prefetch_buf_free

(

sel_buf_t *

prefetch_buf

)

Frees a prefetch buffer for a column, including the dynamically allocated memory for data stored there. in, own: prefetch buffer

Frees a prefetch buffer for a column, including the dynamically allocated memory for data stored there.

Parameters

prefetch_buf

in, own: prefetch buffer

Definition at line 524 of file row0sel.cc.

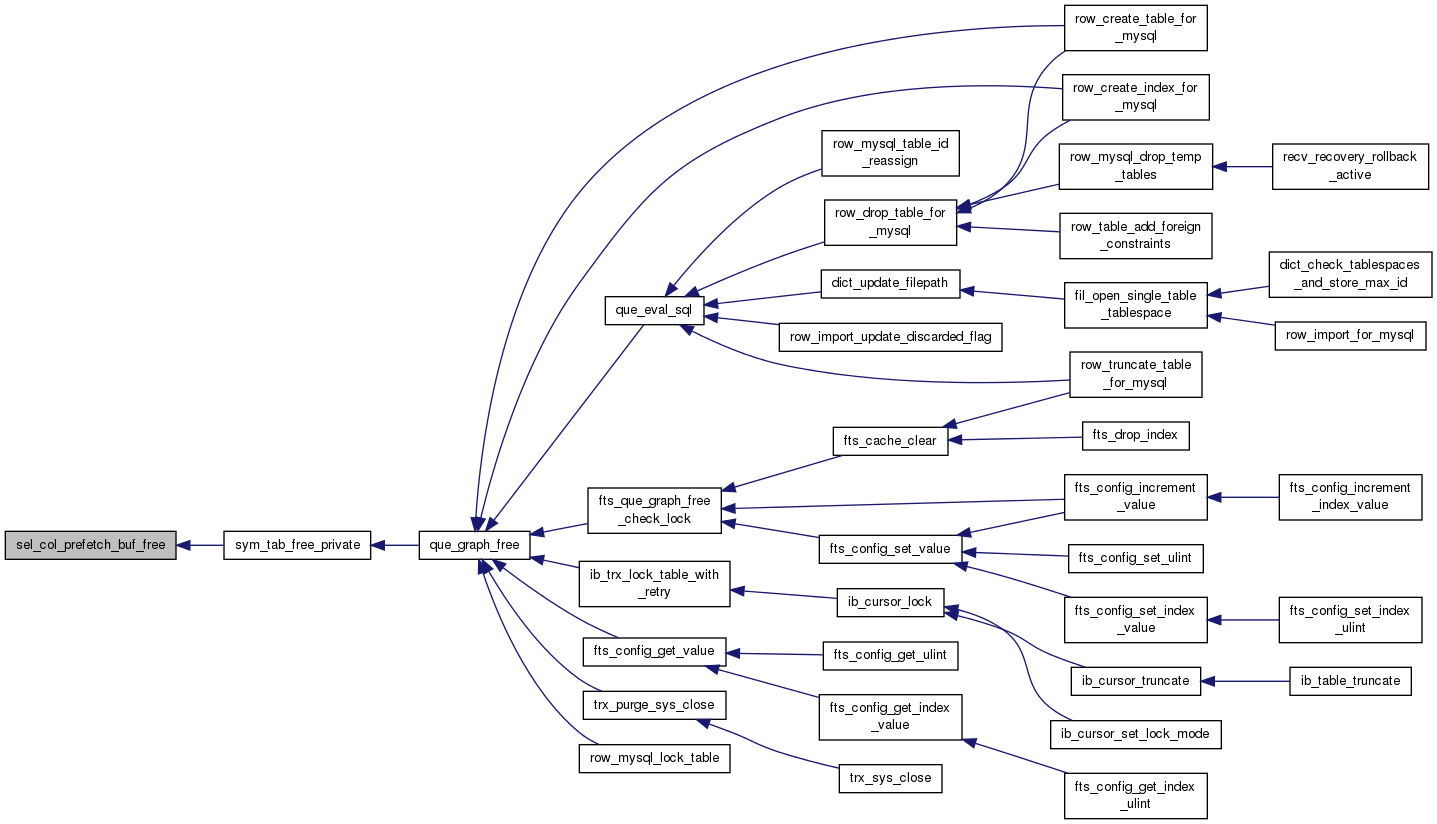

Here is the caller graph for this function:

UNIV_INTERN sel_node_t* sel_node_create

(

mem_heap_t *

heap

)

Creates a select node struct.

Returns

own: select node struct in: memory heap where created

Creates a select node struct.

Returns

own: select node struct

Parameters

heap	in: memory heap where created

Definition at line 270 of file row0sel.cc.

Here is the call graph for this function:

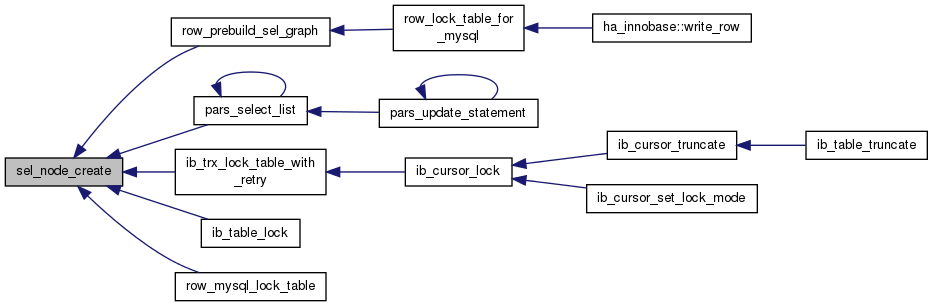

Here is the caller graph for this function:

UNIV_INTERN void sel_node_free_private

(

sel_node_t *

node

)

Frees the memory private to a select node when a query graph is freed, does not free the heap where the node was originally created. in: select node struct

Frees the memory private to a select node when a query graph is freed, does not free the heap where the node was originally created.

Parameters

node	in: select node struct

Definition at line 292 of file row0sel.cc.

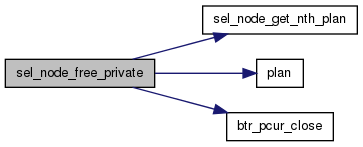

Here is the call graph for this function:

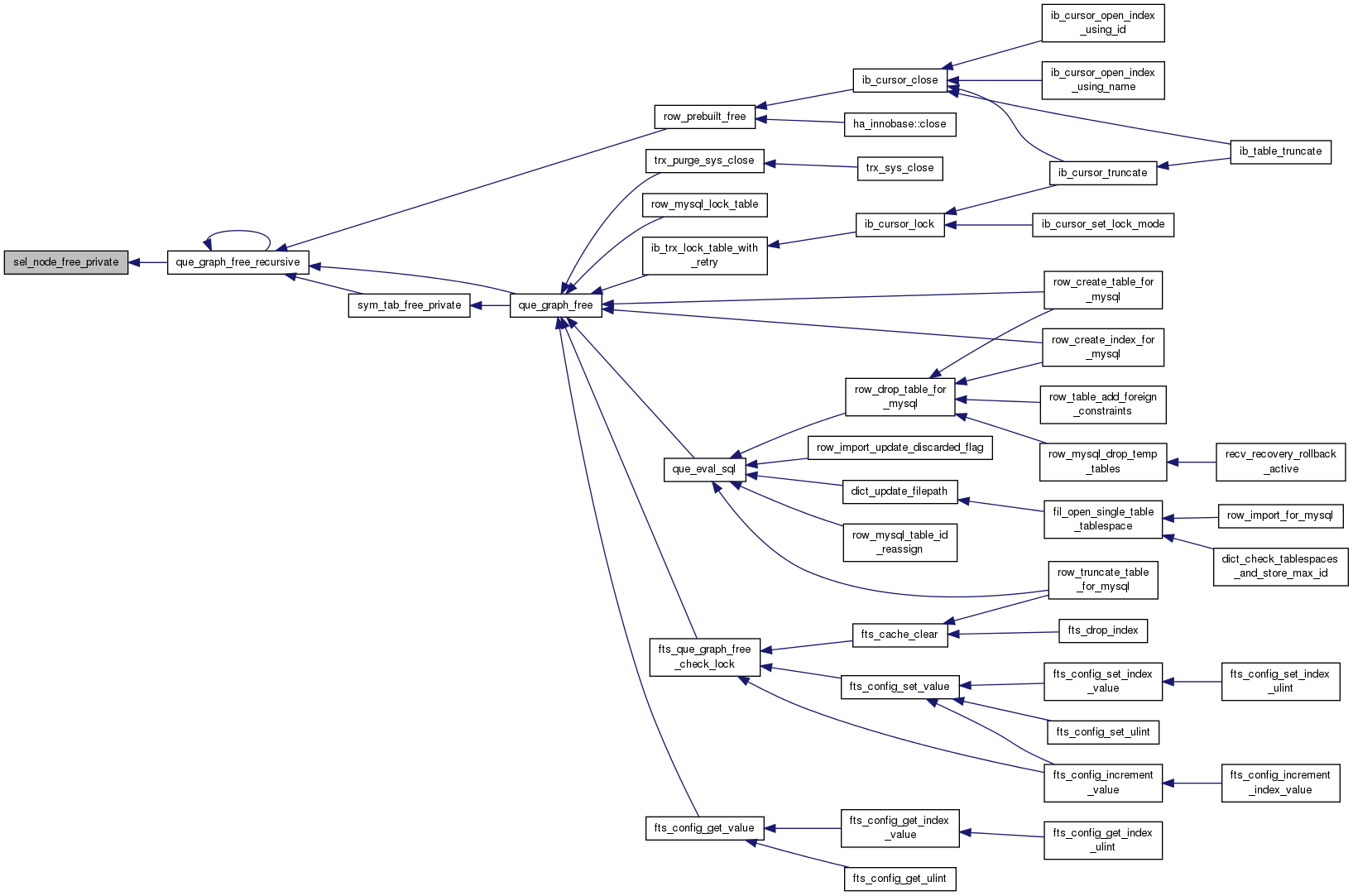

Here is the caller graph for this function:

UNIV_INLINE plan_t* sel_node_get_nth_plan	(	sel_node_t *	node,
		ulint	i
	)

Gets the plan node for the nth table in a join.

Returns

plan node in: get ith plan node

Parameters

node	in: select node

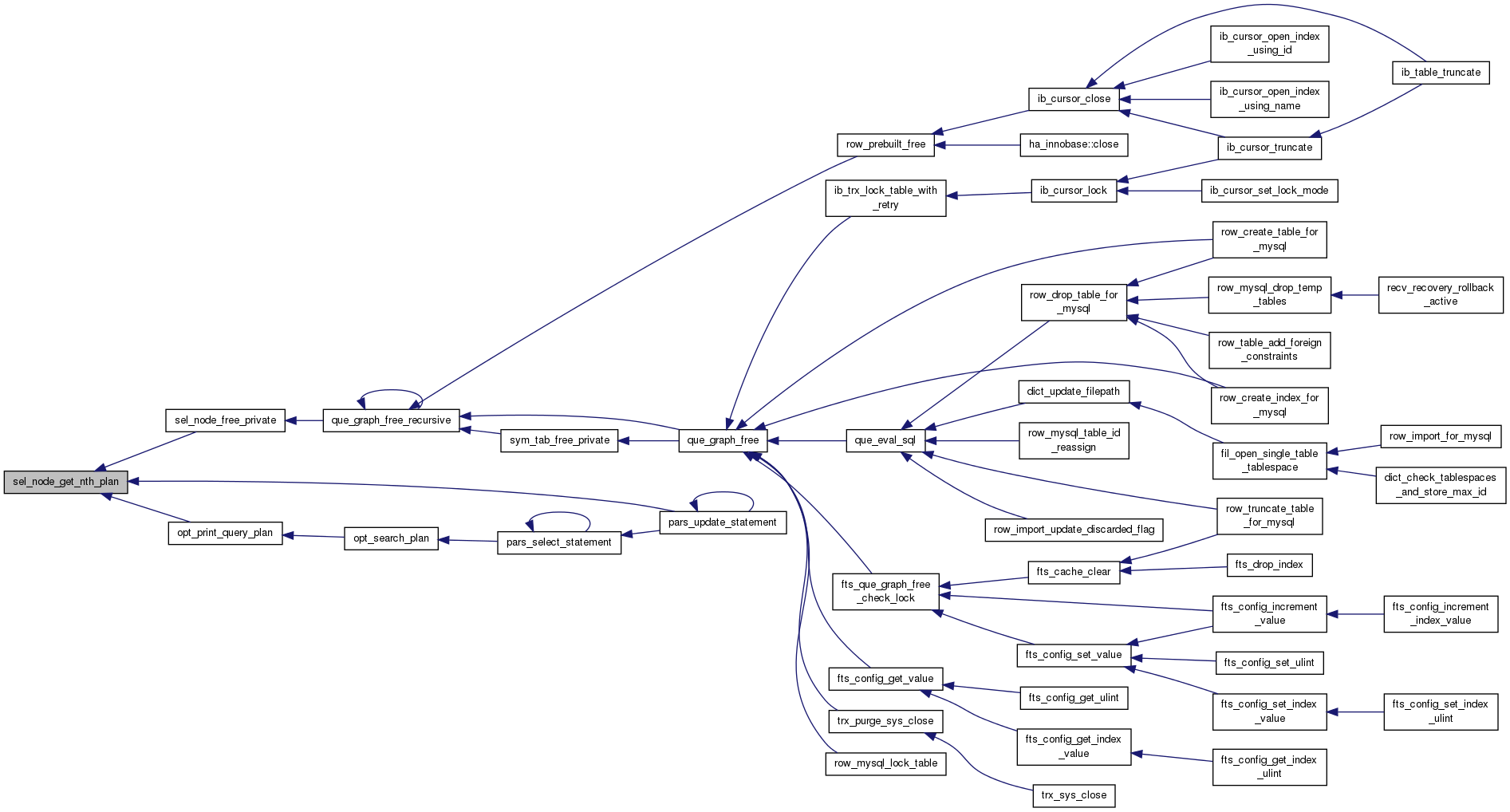

Here is the caller graph for this function:
