#include "univ.i"
#include "data0data.h"
#include "dict0types.h"
#include "trx0trx.h"
#include "trx0roll.h"
#include "srv0srv.h"
#include "usr0types.h"
#include "que0types.h"
#include "row0types.h"
#include "pars0types.h"
#include "que0que.ic"

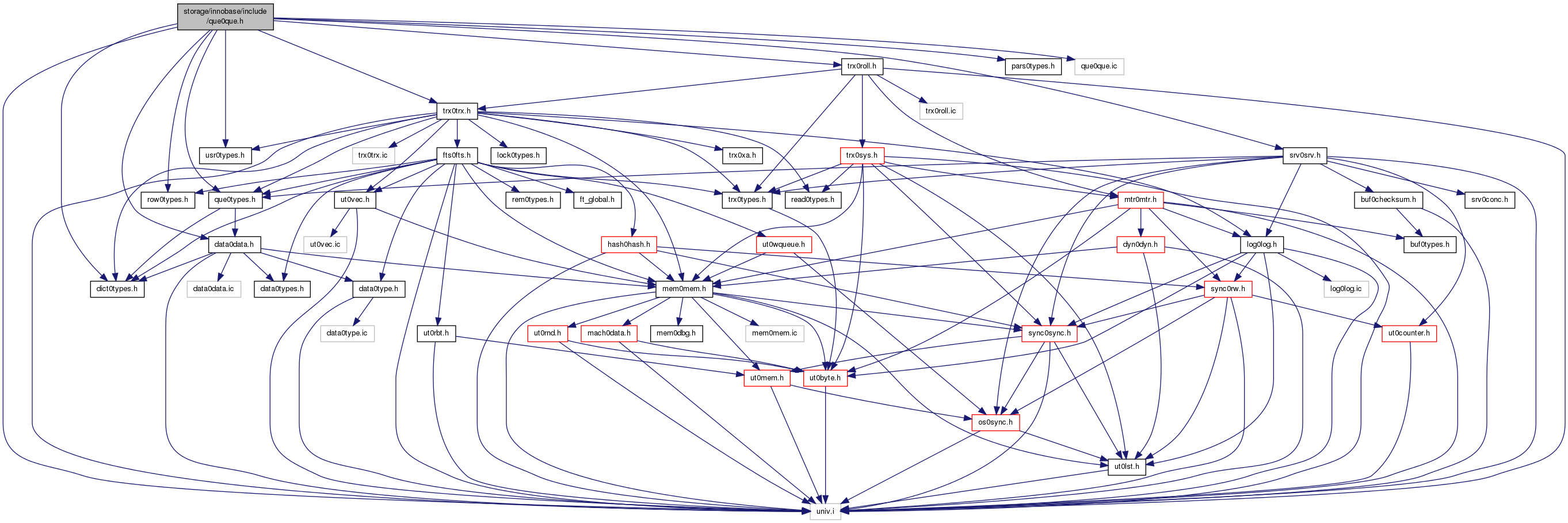

Include dependency graph for que0que.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	que_thr_t
struct	que_fork_t

Macros
#define	QUE_THR_MAGIC_N 8476583
#define	QUE_THR_MAGIC_FREED 123461526
#define	QUE_FORK_SELECT_NON_SCROLL 1 /* forward-only cursor */
#define	QUE_FORK_SELECT_SCROLL 2 /* scrollable cursor */
#define	QUE_FORK_INSERT 3
#define	QUE_FORK_UPDATE 4
#define	QUE_FORK_ROLLBACK 5
#define	QUE_FORK_PURGE 6
#define	QUE_FORK_EXECUTE 7
#define	QUE_FORK_PROCEDURE 8
#define	QUE_FORK_PROCEDURE_CALL 9
#define	QUE_FORK_MYSQL_INTERFACE 10
#define	QUE_FORK_RECOVERY 11
#define	QUE_FORK_ACTIVE 1
#define	QUE_FORK_COMMAND_WAIT 2
#define	QUE_FORK_INVALID 3
#define	QUE_FORK_BEING_FREED 4
#define	QUE_NODE_CONTROL_STAT 1024
#define	QUE_NODE_LOCK 1
#define	QUE_NODE_INSERT 2
#define	QUE_NODE_UPDATE 4
#define	QUE_NODE_CURSOR 5
#define	QUE_NODE_SELECT 6
#define	QUE_NODE_AGGREGATE 7
#define	QUE_NODE_FORK 8
#define	QUE_NODE_THR 9
#define	QUE_NODE_UNDO 10
#define	QUE_NODE_COMMIT 11
#define	QUE_NODE_ROLLBACK 12
#define	QUE_NODE_PURGE 13
#define	QUE_NODE_CREATE_TABLE 14
#define	QUE_NODE_CREATE_INDEX 15
#define	QUE_NODE_SYMBOL 16
#define	QUE_NODE_RES_WORD 17
#define	QUE_NODE_FUNC 18
#define	QUE_NODE_ORDER 19
#define	QUE_NODE_PROC (20 + QUE_NODE_CONTROL_STAT)
#define	QUE_NODE_IF (21 + QUE_NODE_CONTROL_STAT)
#define	QUE_NODE_WHILE (22 + QUE_NODE_CONTROL_STAT)
#define	QUE_NODE_ASSIGNMENT 23
#define	QUE_NODE_FETCH 24
#define	QUE_NODE_OPEN 25
#define	QUE_NODE_COL_ASSIGNMENT 26
#define	QUE_NODE_FOR (27 + QUE_NODE_CONTROL_STAT)
#define	QUE_NODE_RETURN 28
#define	QUE_NODE_ROW_PRINTF 29
#define	QUE_NODE_ELSIF 30
#define	QUE_NODE_CALL 31
#define	QUE_NODE_EXIT 32
#define	QUE_THR_RUNNING 1
#define	QUE_THR_PROCEDURE_WAIT 2
#define	QUE_THR_COMPLETED
#define	QUE_THR_COMMAND_WAIT 4
#define	QUE_THR_LOCK_WAIT 5
#define	QUE_THR_SUSPENDED 7
#define	QUE_THR_ERROR 8
#define	QUE_THR_LOCK_NOLOCK 0
#define	QUE_THR_LOCK_ROW 1
#define	QUE_THR_LOCK_TABLE 2
#define	QUE_CUR_NOT_DEFINED 1
#define	QUE_CUR_START 2
#define	QUE_CUR_END 3

Functions
UNIV_INTERN que_fork_t *	que_fork_create (que_t graph, que_node_t parent, ulint fork_type, mem_heap_t *heap)
UNIV_INLINE que_thr_t *	que_fork_get_first_thr (que_fork_t *fork)
UNIV_INLINE que_node_t *	que_fork_get_child (que_fork_t *fork)
UNIV_INLINE void	que_node_set_parent (que_node_t node, que_node_t parent)
UNIV_INTERN que_thr_t *	que_thr_create (que_fork_t parent, mem_heap_t heap)
UNIV_INTERN void	que_graph_free_recursive (que_node_t *node)
UNIV_INTERN void	que_graph_free (que_t *graph)
UNIV_INTERN ibool	que_thr_stop (que_thr_t *thr)
UNIV_INTERN void	que_thr_move_to_run_state_for_mysql (que_thr_t thr, trx_t trx)
UNIV_INTERN void	que_thr_stop_for_mysql_no_error (que_thr_t thr, trx_t trx)
UNIV_INTERN void	que_thr_stop_for_mysql (que_thr_t *thr)
UNIV_INTERN void	que_run_threads (que_thr_t *thr)
UNIV_INTERN que_thr_t *	que_thr_end_lock_wait (trx_t *trx)
UNIV_INTERN que_thr_t *	que_fork_start_command (que_fork_t *fork)
UNIV_INLINE trx_t *	thr_get_trx (que_thr_t *thr)
UNIV_INLINE ibool	thr_is_recv (const que_thr_t *thr)
UNIV_INLINE ulint	que_node_get_type (que_node_t *node)
UNIV_INLINE dtype_t *	que_node_get_data_type (que_node_t *node)
UNIV_INLINE dfield_t *	que_node_get_val (que_node_t *node)
UNIV_INLINE ulint	que_node_get_val_buf_size (que_node_t *node)
UNIV_INLINE void	que_node_set_val_buf_size (que_node_t *node, ulint size)
UNIV_INLINE que_node_t *	que_node_get_next (que_node_t *node)
UNIV_INLINE que_node_t *	que_node_get_parent (que_node_t *node)
UNIV_INTERN que_node_t *	que_node_get_containing_loop_node (que_node_t *node)
UNIV_INLINE que_node_t *	que_node_list_add_last (que_node_t node_list, que_node_t node)
UNIV_INLINE que_node_t *	que_node_list_get_last (que_node_t *node_list)
UNIV_INLINE ulint	que_node_list_get_len (que_node_t *node_list)
UNIV_INLINE ibool	que_thr_peek_stop (que_thr_t *thr)
UNIV_INLINE ibool	que_graph_is_select (que_t *graph)
UNIV_INTERN void	que_node_print_info (que_node_t *node)
UNIV_INTERN dberr_t	que_eval_sql (pars_info_t info, const char sql, ibool reserve_dict_mutex, trx_t *trx)
UNIV_INTERN que_thr_t *	que_fork_scheduler_round_robin (que_fork_t fork, que_thr_t thr)
UNIV_INTERN void	que_init (void)
UNIV_INTERN void	que_close (void)

Variables
ibool	que_trace_on
ib_mutex_t	que_thr_mutex

Detailed Description

Query graph

Created 5/27/1996 Heikki Tuuri

Definition in file que0que.h.

Macro Definition Documentation

#define QUE_THR_COMPLETED

Value:

3       /* in selects this means that the
                                        thread is at the end of its result set
                                        (or start, in case of a scroll cursor);
                                        in other statements, this means the
                                        thread has done its task */

Definition at line 506 of file que0que.h.

Function Documentation

UNIV_INTERN void que_close ( void )

Close the query sub-system.

Definition at line 1314 of file que0que.cc.

UNIV_INTERN dberr_t que_eval_sql	(	pars_info_t *	info,
		const char *	sql,
		ibool	reserve_dict_mutex,
		trx_t *	trx
	)

Evaluate the given SQL

Returns: error code or DB_SUCCESS in: trx

Evaluate the given SQL.

Returns: error code or DB_SUCCESS

Parameters

info	in: info struct, or NULL
sql	in: SQL string
reserve_dict_mutex	in: if TRUE, acquire/release dict_sys->mutex around call to pars_sql.
trx	in: trx

Definition at line 1252 of file que0que.cc.

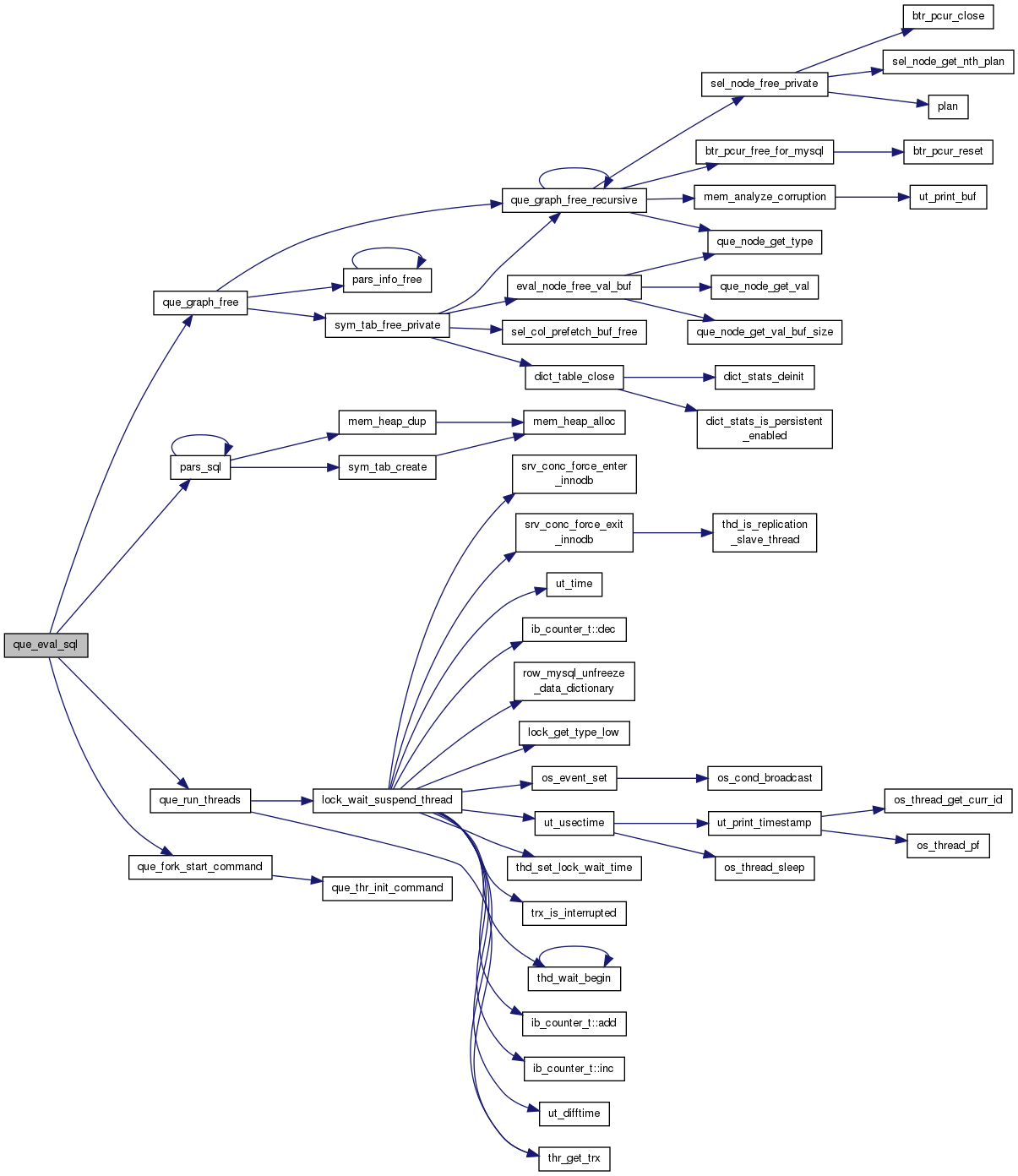

Here is the call graph for this function:

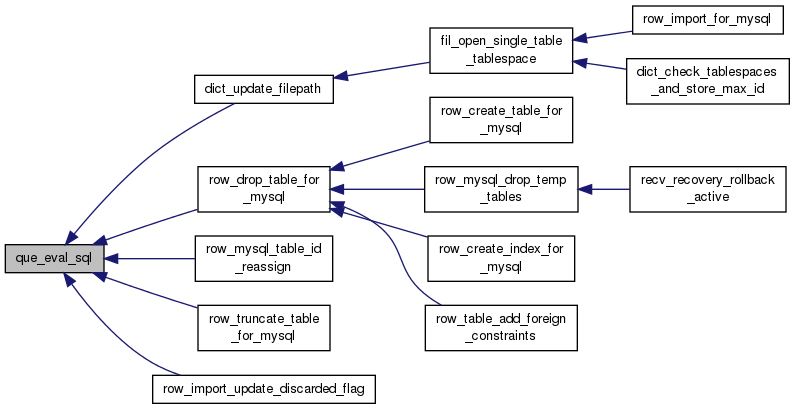

Here is the caller graph for this function:

UNIV_INTERN que_fork_t* que_fork_create	(	que_t *	graph,
		que_node_t *	parent,
		ulint	fork_type,
		mem_heap_t *	heap
	)

Creates a query graph fork node.

Returns: own: fork node in: memory heap where created

Creates a query graph fork node.

Returns: own: fork node

Parameters

graph	in: graph, if NULL then this fork node is assumed to be the graph root
parent	in: parent node
fork_type	in: fork type
heap	in: memory heap where created

Definition at line 129 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE que_node_t* que_fork_get_child ( que_fork_t * fork )

Gets the child node of the first thr in a fork. in: query fork

UNIV_INLINE que_thr_t* que_fork_get_first_thr ( que_fork_t * fork )

Gets the first thr in a fork. in: query fork

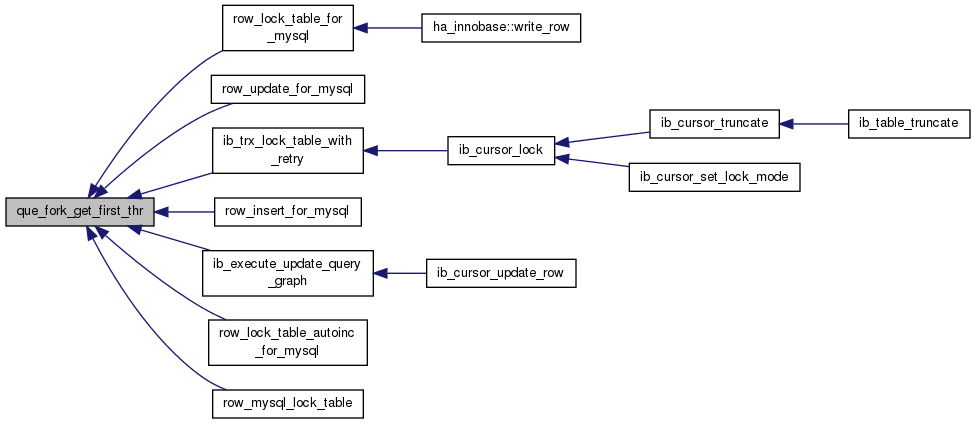

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_fork_scheduler_round_robin	(	que_fork_t *	fork,
		que_thr_t *	thr
	)

Round robin scheduler.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller in: current pos

Round robin scheduler.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller

Parameters

fork	in: a query fork
thr	in: current pos

Definition at line 254 of file que0que.cc.

Here is the call graph for this function:

UNIV_INTERN que_thr_t* que_fork_start_command ( que_fork_t * fork )

Starts execution of a command in a query fork. Picks a query thread which is not in the QUE_THR_RUNNING state and moves it to that state. If none can be chosen, a situation which may arise in parallelized fetches, NULL is returned.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller in: a query fork

Starts execution of a command in a query fork. Picks a query thread which is not in the QUE_THR_RUNNING state and moves it to that state. If none can be chosen, a situation which may arise in parallelized fetches, NULL is returned.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller

Parameters

fork	in: a query fork

Definition at line 304 of file que0que.cc.

Here is the call graph for this function:

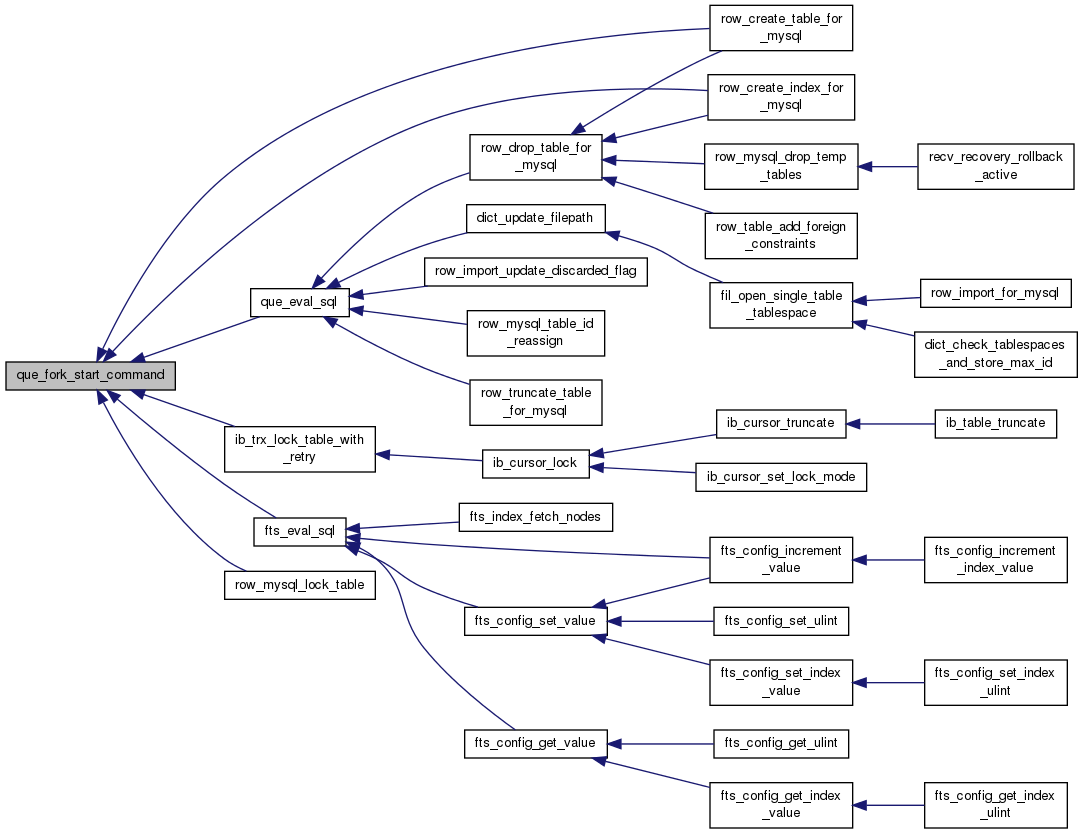

Here is the caller graph for this function:

UNIV_INTERN void que_graph_free ( que_t * graph )

Frees a query graph. in: query graph; we assume that the memory heap where this graph was created is private to this graph: if not, then use que_graph_free_recursive and free the heap afterwards!

Frees a query graph.

Parameters

graph in: query graph; we assume that the memory heap where this graph was created is private to this graph: if not, then use que_graph_free_recursive and free the heap afterwards!

Definition at line 600 of file que0que.cc.

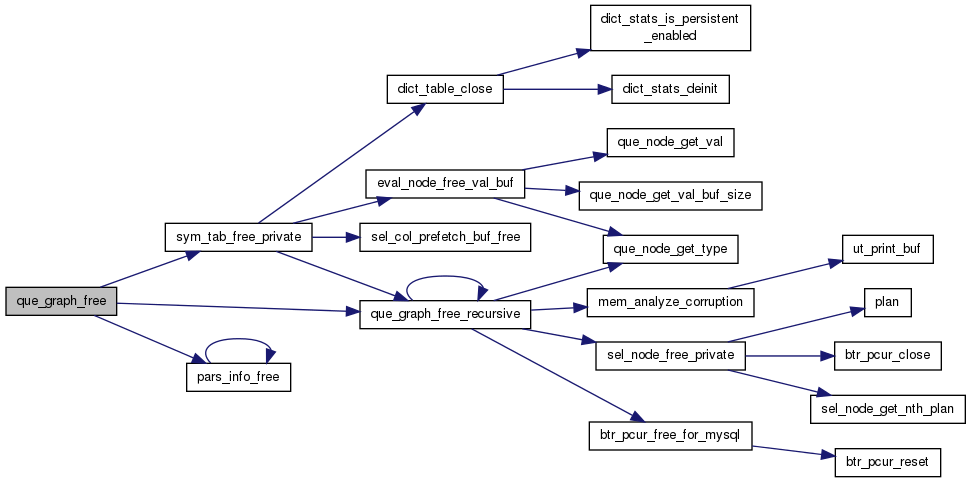

Here is the call graph for this function:

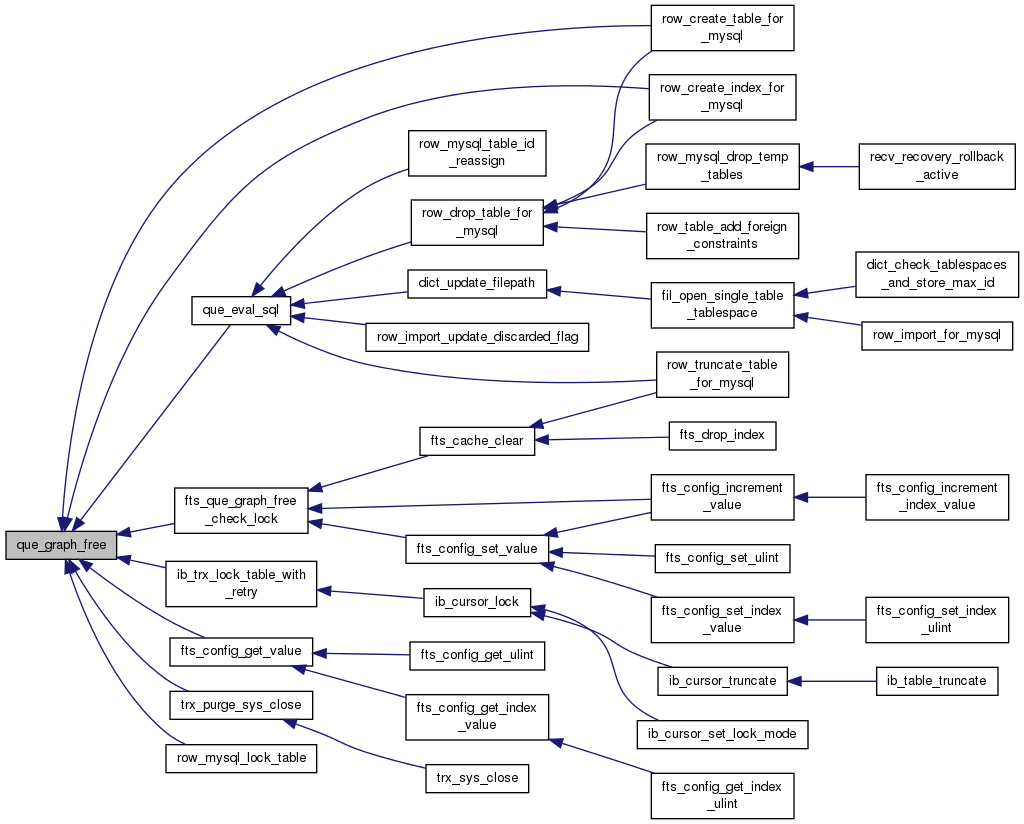

Here is the caller graph for this function:

UNIV_INTERN void que_graph_free_recursive ( que_node_t * node )

Frees a query graph, but not the heap where it was created. Does not free explicit cursor declarations, they are freed in que_graph_free. in: query graph node

Frees a query graph, but not the heap where it was created. Does not free explicit cursor declarations, they are freed in que_graph_free.

Parameters

node	in: query graph node

Definition at line 429 of file que0que.cc.

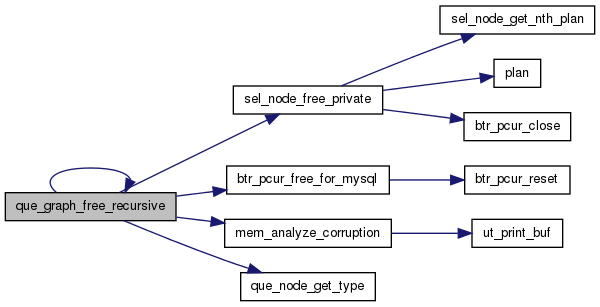

Here is the call graph for this function:

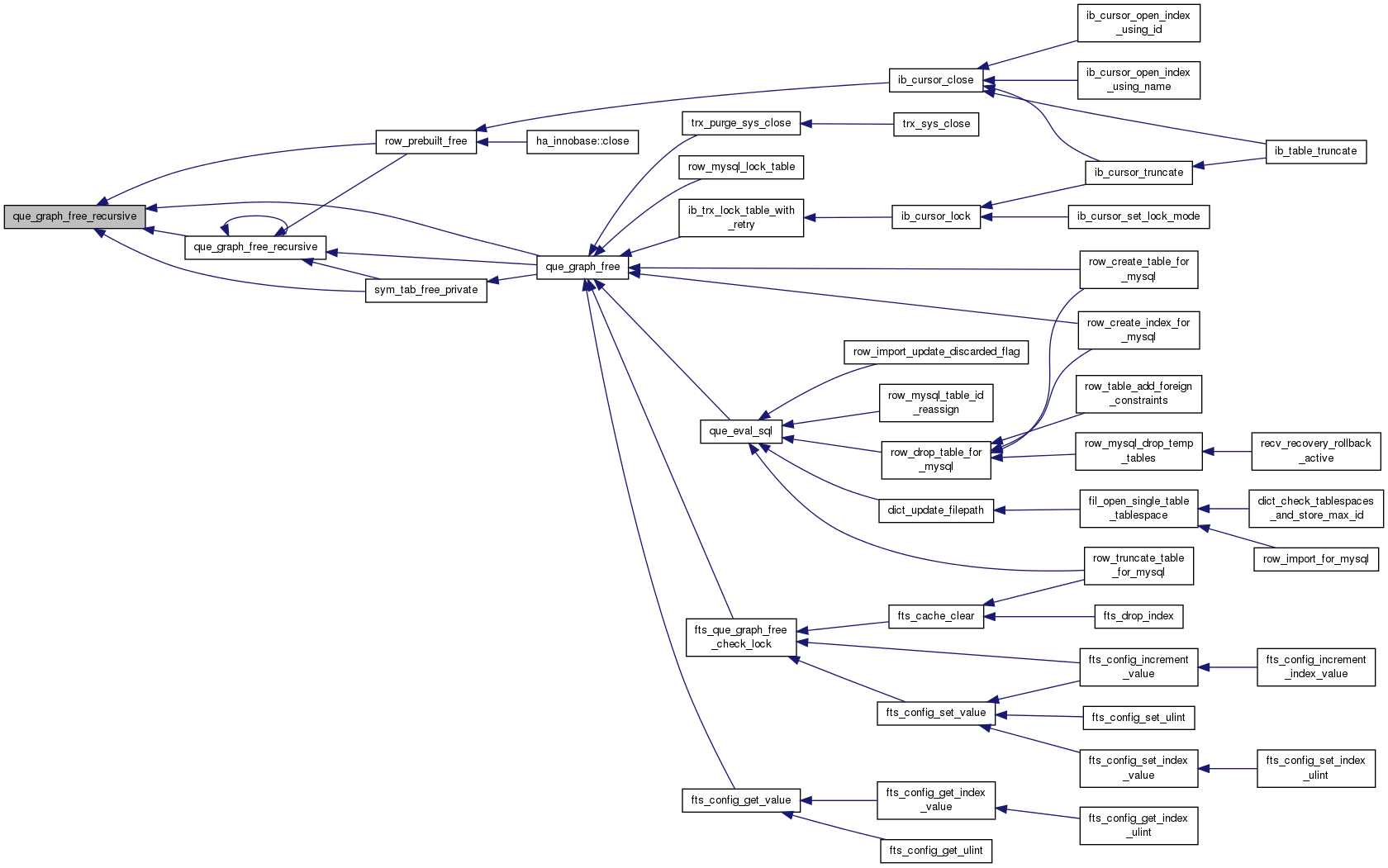

Here is the caller graph for this function:

UNIV_INLINE ibool que_graph_is_select ( que_t * graph )

Returns TRUE if the query graph is for a SELECT statement.

Returns: TRUE if a select in: graph

UNIV_INTERN void que_init ( void )

Initialise the query sub-system.

Definition at line 1304 of file que0que.cc.

Here is the caller graph for this function:

UNIV_INTERN que_node_t* que_node_get_containing_loop_node ( que_node_t * node )

Get the first containing loop node (e.g. while_node_t or for_node_t) for the given node, or NULL if the node is not within a loop.

Returns: containing loop node, or NULL. in: node

Get the first containing loop node (e.g. while_node_t or for_node_t) for the given node, or NULL if the node is not within a loop.

Returns: containing loop node, or NULL.

Parameters

node in: node

Definition at line 928 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE dtype_t* que_node_get_data_type ( que_node_t * node )

Gets pointer to the value data type field of a graph node. in: graph node

Here is the caller graph for this function:

UNIV_INLINE que_node_t* que_node_get_next ( que_node_t * node )

Gets the next list node in a list of query graph nodes. in: node in a list

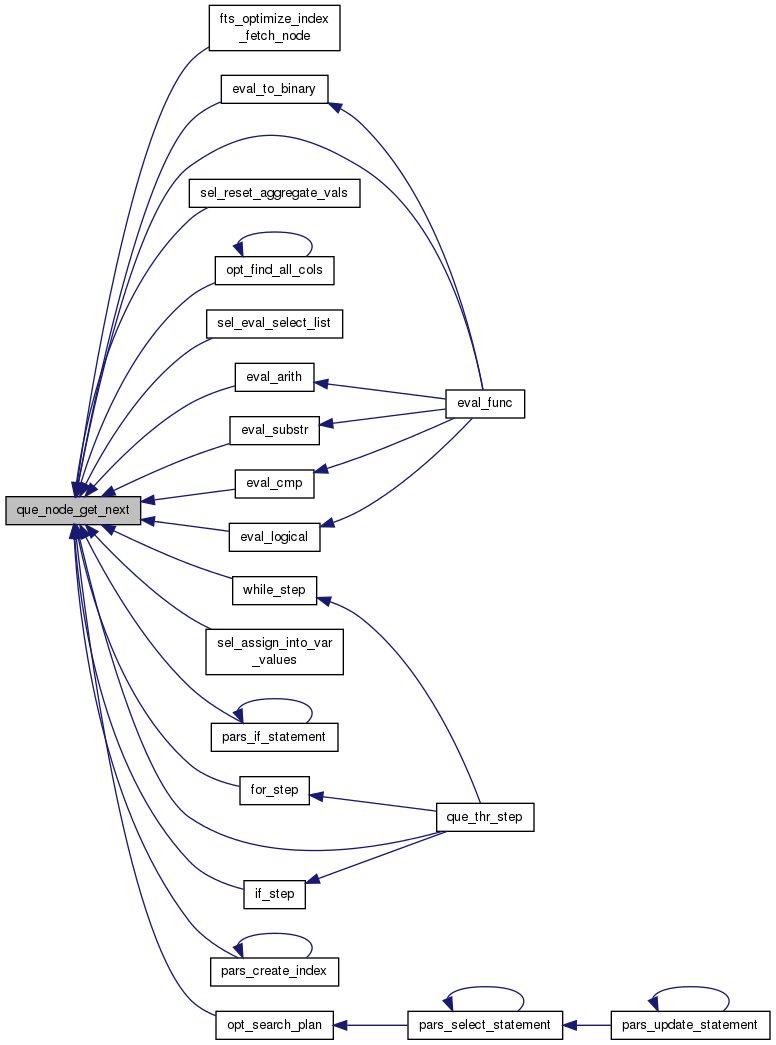

Here is the caller graph for this function:

UNIV_INLINE que_node_t* que_node_get_parent ( que_node_t * node )

Gets the parent node of a query graph node.

Returns: parent node or NULL in: node

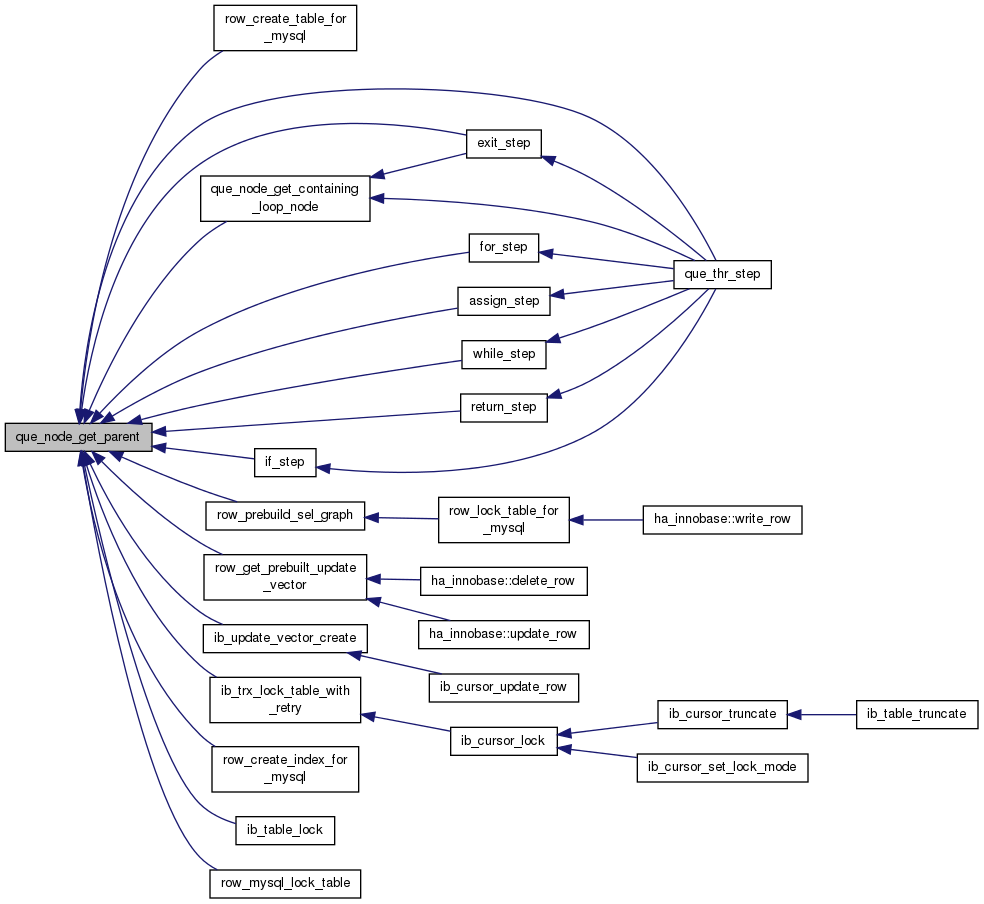

Here is the caller graph for this function:

UNIV_INLINE ulint que_node_get_type ( que_node_t * node )

Gets the type of a graph node. in: graph node

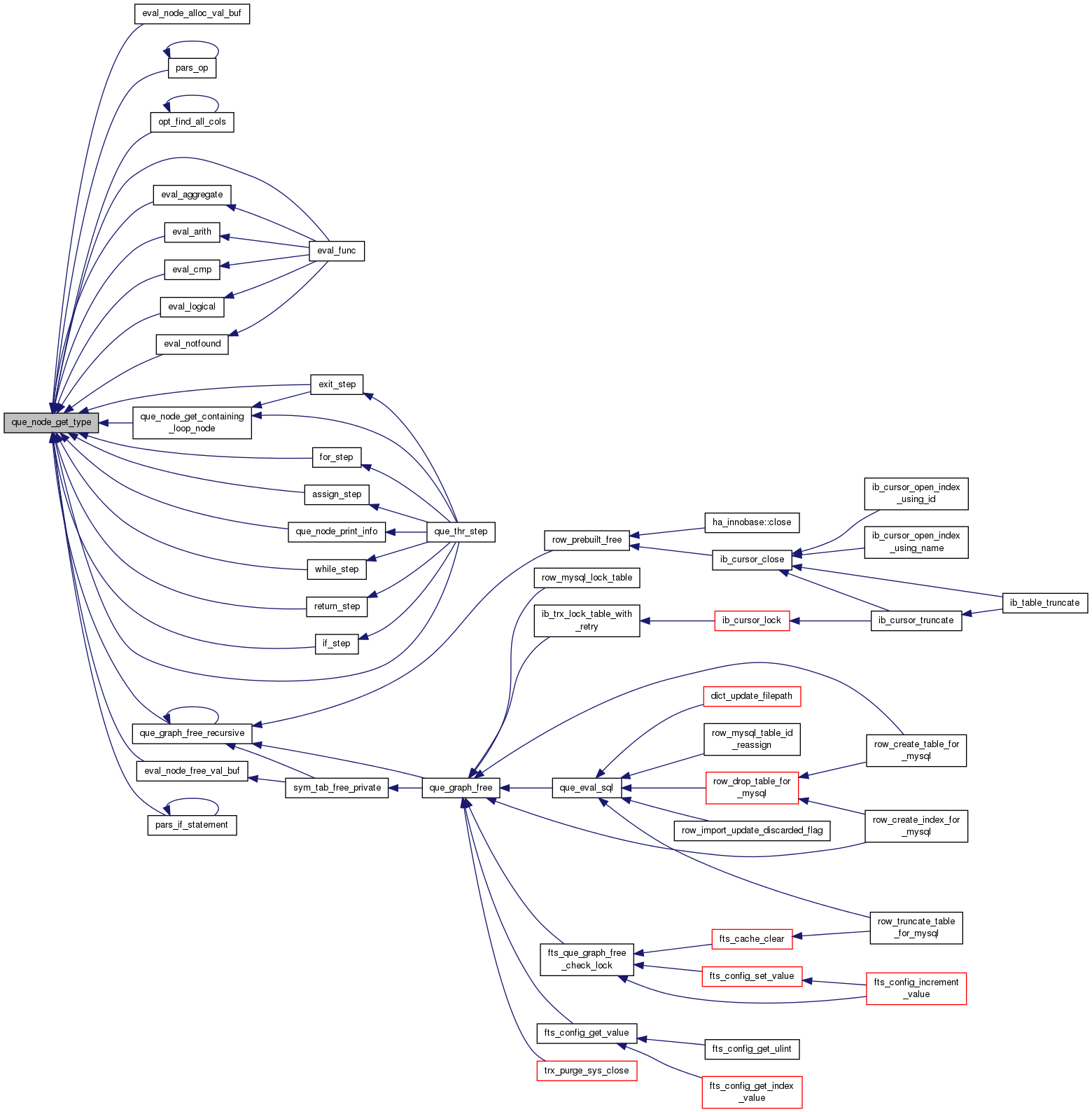

Here is the caller graph for this function:

UNIV_INLINE dfield_t* que_node_get_val ( que_node_t * node )

Gets pointer to the value dfield of a graph node. in: graph node

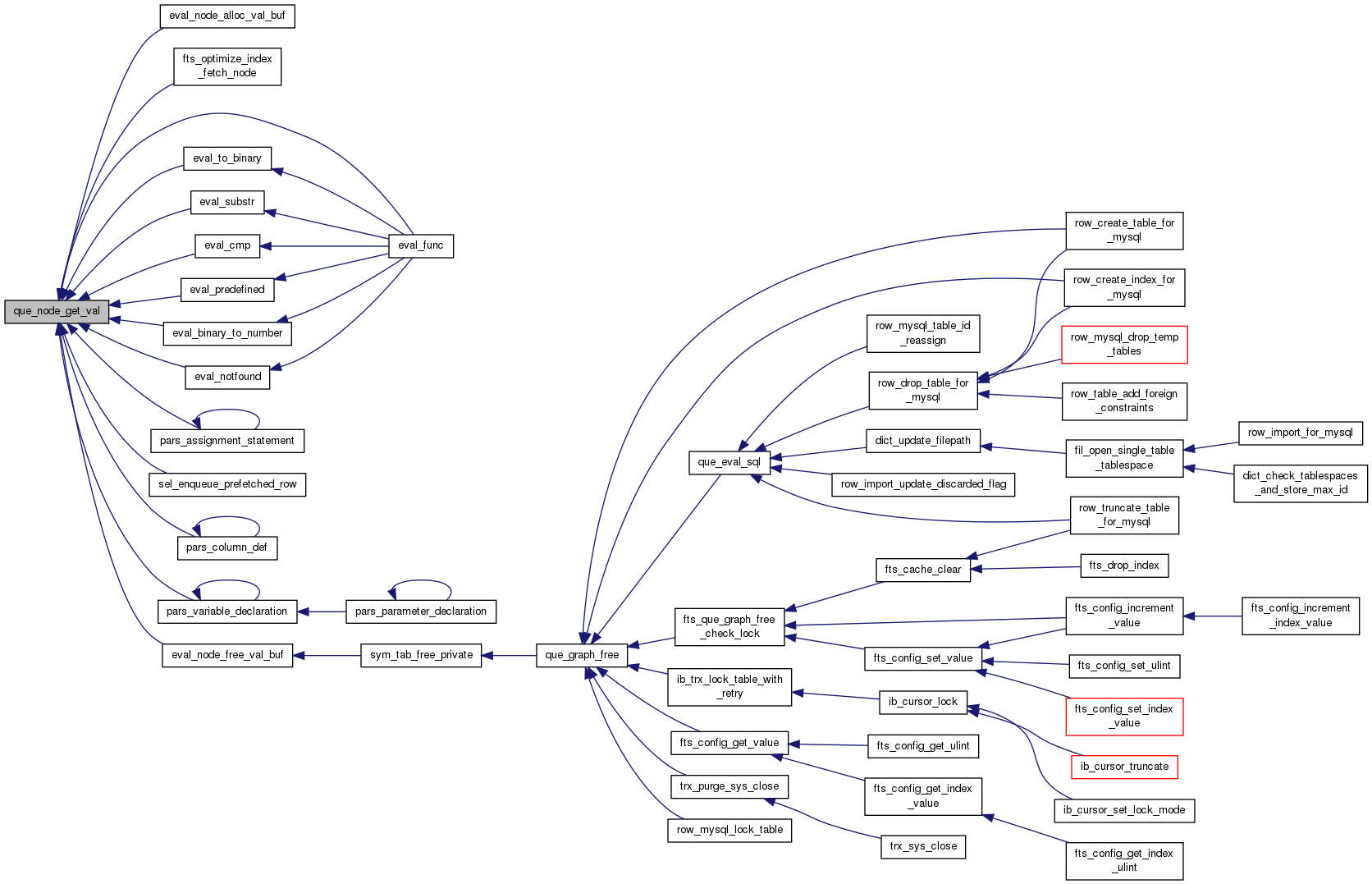

Here is the caller graph for this function:

UNIV_INLINE ulint que_node_get_val_buf_size ( que_node_t * node )

Gets the value buffer size of a graph node.

Returns: val buffer size, not defined if val.data == NULL in node in: graph node

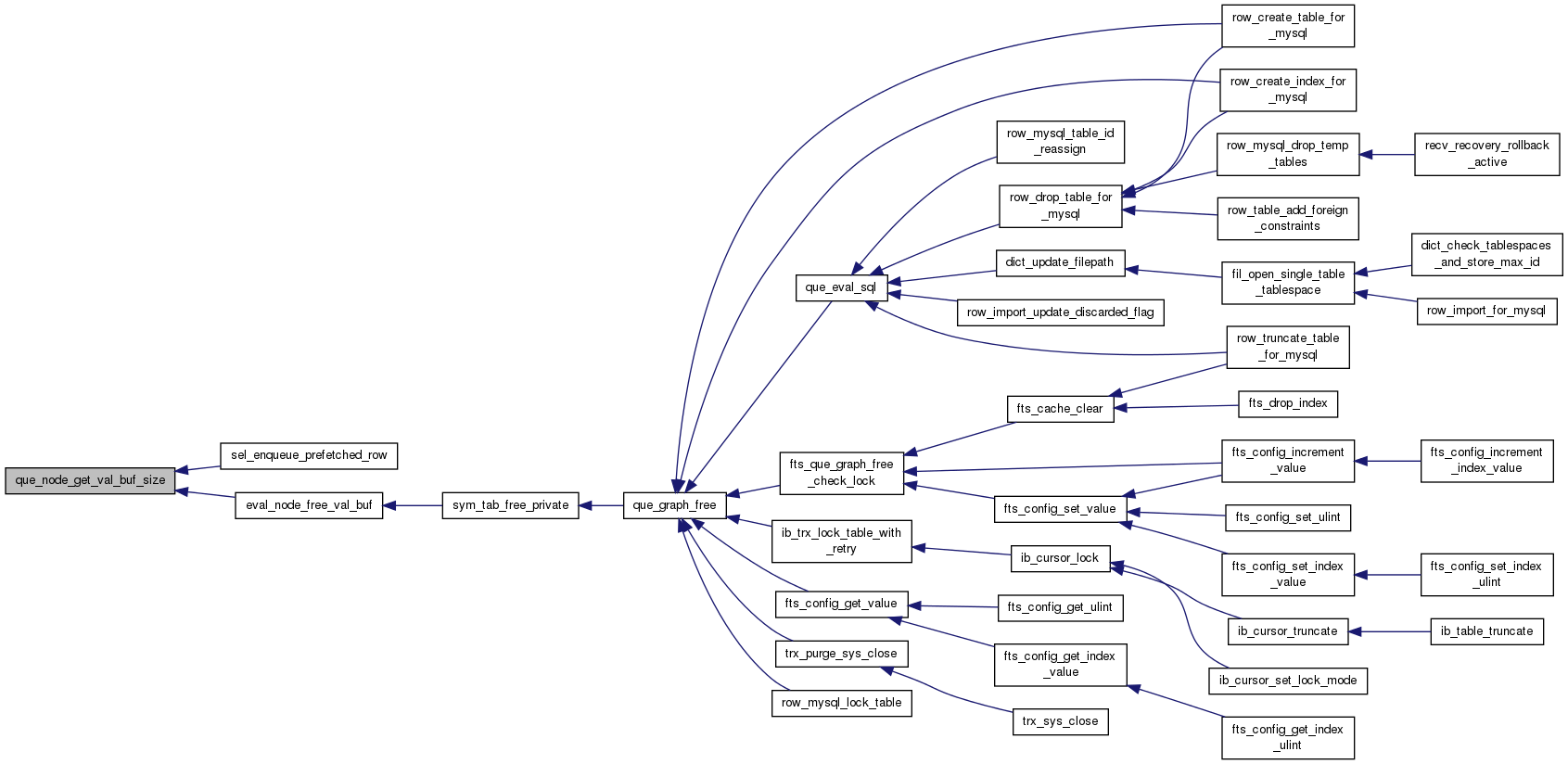

Here is the caller graph for this function:

UNIV_INLINE que_node_t* que_node_list_add_last	(	que_node_t *	node_list,
		que_node_t *	node
	)

Catenates a query graph node to a list of them, possible empty list.

Returns: one-way list of nodes in: node

Parameters

node_list in: node list, or NULL

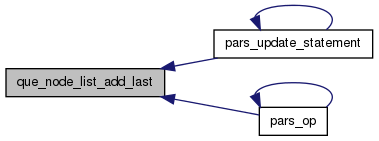

Here is the caller graph for this function:

UNIV_INLINE ulint que_node_list_get_len ( que_node_t * node_list )

Gets a query graph node list length.

Returns: length, for NULL list 0 in: node list, or NULL

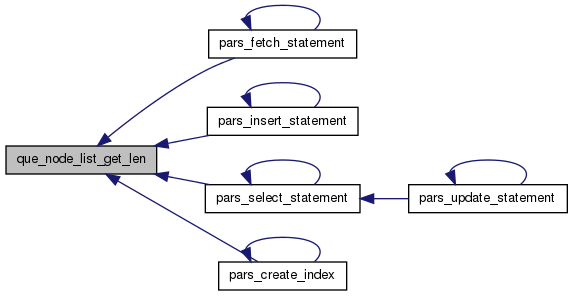

Here is the caller graph for this function:

UNIV_INTERN void que_node_print_info ( que_node_t * node )

Prints info of an SQL query graph node. in: query graph node

Prints info of an SQL query graph node.

Parameters

node	in: query graph node

Definition at line 957 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void que_node_set_parent	(	que_node_t *	node,
		que_node_t *	parent
	)

Sets the parent of a graph node. in: parent

Parameters

node	in: graph node

UNIV_INLINE void que_node_set_val_buf_size	(	que_node_t *	node,
		ulint	size
	)

Sets the value buffer size of a graph node. in: size

Parameters

node	in: graph node

Here is the caller graph for this function:

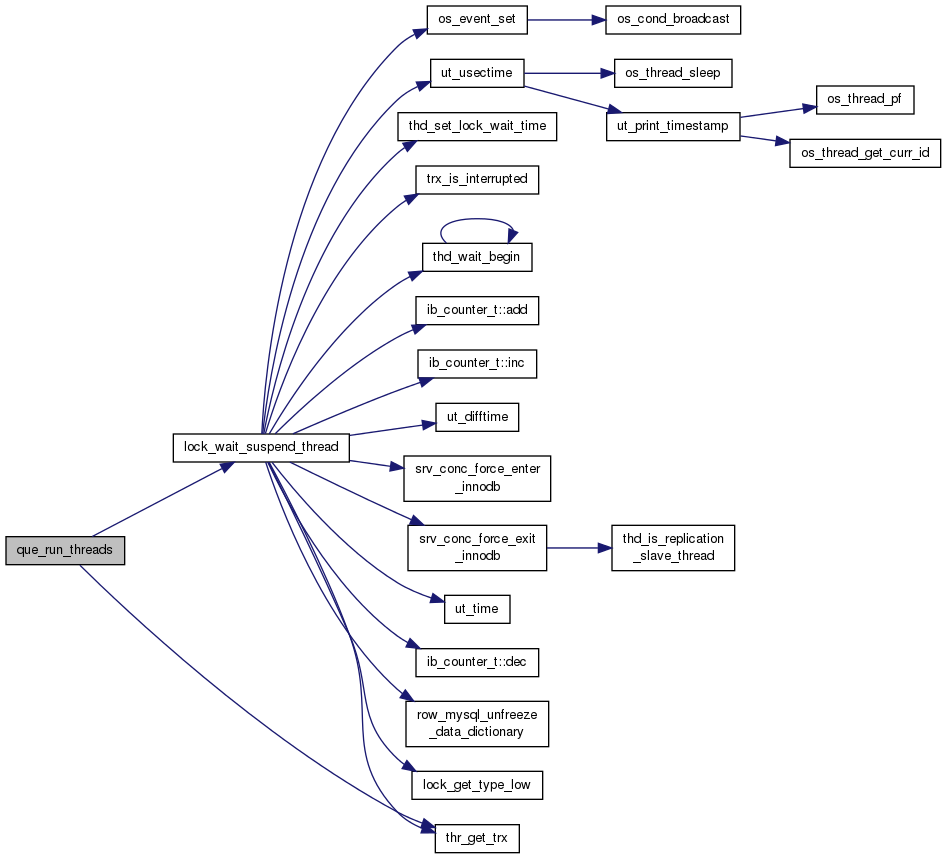

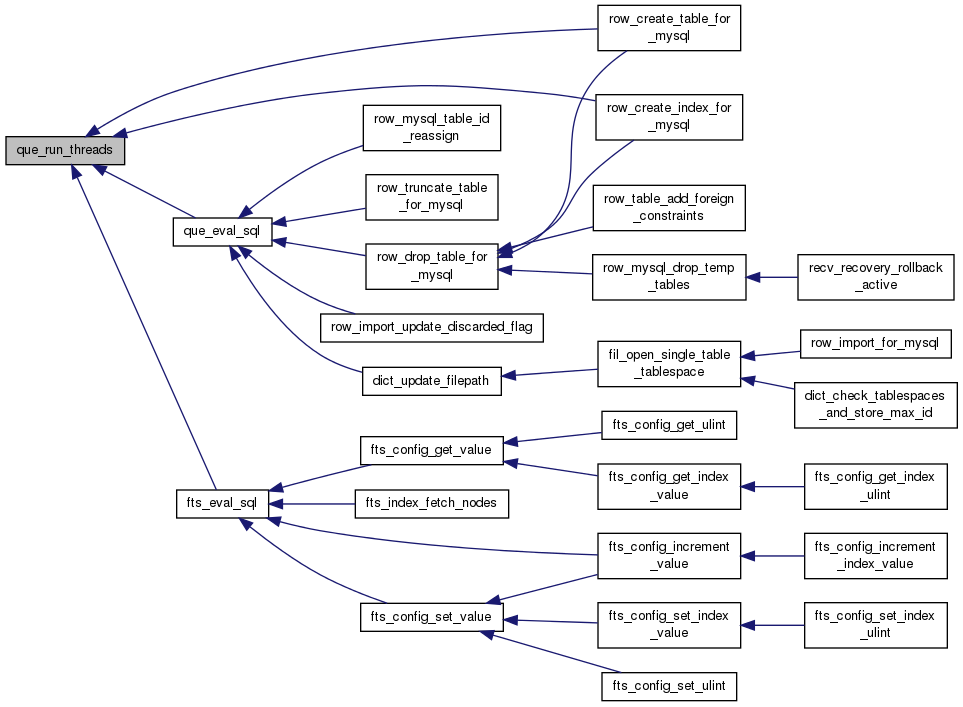

UNIV_INTERN void que_run_threads ( que_thr_t * thr )

Run a query thread. Handles lock waits. in: query thread

Run a query thread. Handles lock waits.

Parameters

thr	in: query thread

Definition at line 1199 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_thr_create	(	que_fork_t *	parent,
		mem_heap_t *	heap
	)

Creates a query graph thread node.

Returns: own: query thread node in: memory heap where created

Creates a query graph thread node.

Returns: own: query thread node

Parameters

parent	in: parent node, i.e., a fork node
heap	in: memory heap where created

Definition at line 164 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_thr_end_lock_wait ( trx_t * trx )

Moves a suspended query thread to the QUE_THR_RUNNING state and release a worker thread to execute it. This function should be used to end the wait state of a query thread waiting for a lock or a stored procedure completion.

Returns: query thread instance of thread to wakeup or NULL in: transaction in the QUE_THR_LOCK_WAIT state

Moves a suspended query thread to the QUE_THR_RUNNING state and may release a worker thread to execute it. This function should be used to end the wait state of a query thread waiting for a lock or a stored procedure completion.

Returns: the query thread that needs to be released.

Parameters

trx	in: transaction with que_state in QUE_THR_LOCK_WAIT

Definition at line 200 of file que0que.cc.

Here is the caller graph for this function:

UNIV_INTERN void que_thr_move_to_run_state_for_mysql	(	que_thr_t *	thr,
		trx_t *	trx
	)

Moves a thread from another state to the QUE_THR_RUNNING state. Increments the n_active_thrs counters of the query graph and transaction. in: transaction

Moves a thread from another state to the QUE_THR_RUNNING state. Increments the n_active_thrs counters of the query graph and transaction if thr was not active.

Parameters

thr	in: an query thread
trx	in: transaction

Definition at line 861 of file que0que.cc.

Here is the call graph for this function:

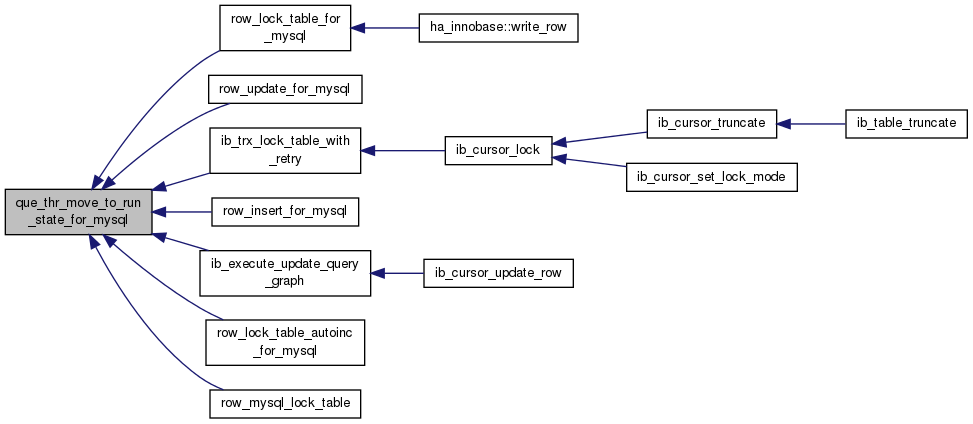

Here is the caller graph for this function:

UNIV_INLINE ibool que_thr_peek_stop ( que_thr_t * thr )

Checks if graph, trx, or session is in a state where the query thread should be stopped.

Returns: TRUE if should be stopped; NOTE that if the peek is made without reserving the trx_t::mutex, then another peek with the mutex reserved is necessary before deciding the actual stopping in: query thread

UNIV_INTERN ibool que_thr_stop ( que_thr_t * thr )

Stops a query thread if graph or trx is in a state requiring it. The conditions are tested in the order (1) graph, (2) trx. The lock_sys_t::mutex has to be reserved.

Returns: TRUE if stopped in: query thread

Stops a query thread if graph or trx is in a state requiring it. The conditions are tested in the order (1) graph, (2) trx.

Returns: TRUE if stopped

Parameters

thr	in: query thread

Definition at line 701 of file que0que.cc.

Here is the call graph for this function:

UNIV_INTERN void que_thr_stop_for_mysql ( que_thr_t * thr )

A patch for MySQL used to 'stop' a dummy query thread used in MySQL. The query thread is stopped and made inactive, except in the case where it was put to the lock wait state in lock0lock.cc, but the lock has already been granted or the transaction chosen as a victim in deadlock resolution. in: query thread

A patch for MySQL used to 'stop' a dummy query thread used in MySQL. The query thread is stopped and made inactive, except in the case where it was put to the lock wait state in lock0lock.cc, but the lock has already been granted or the transaction chosen as a victim in deadlock resolution.

Parameters

thr	in: query thread

Definition at line 812 of file que0que.cc.

Here is the call graph for this function:

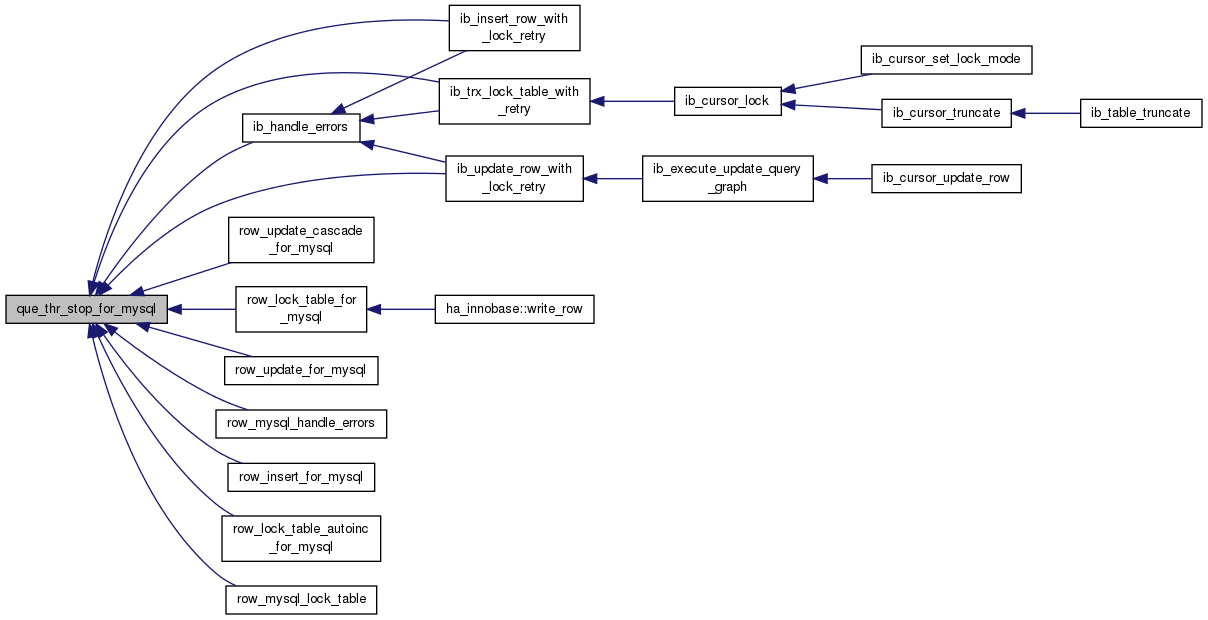

Here is the caller graph for this function:

UNIV_INTERN void que_thr_stop_for_mysql_no_error	(	que_thr_t *	thr,
		trx_t *	trx
	)

A patch for MySQL used to 'stop' a dummy query thread used in MySQL select, when there is no error or lock wait. in: transaction

A patch for MySQL used to 'stop' a dummy query thread used in MySQL select, when there is no error or lock wait.

Parameters

thr	in: query thread
trx	in: transaction

Definition at line 893 of file que0que.cc.

Here is the call graph for this function:

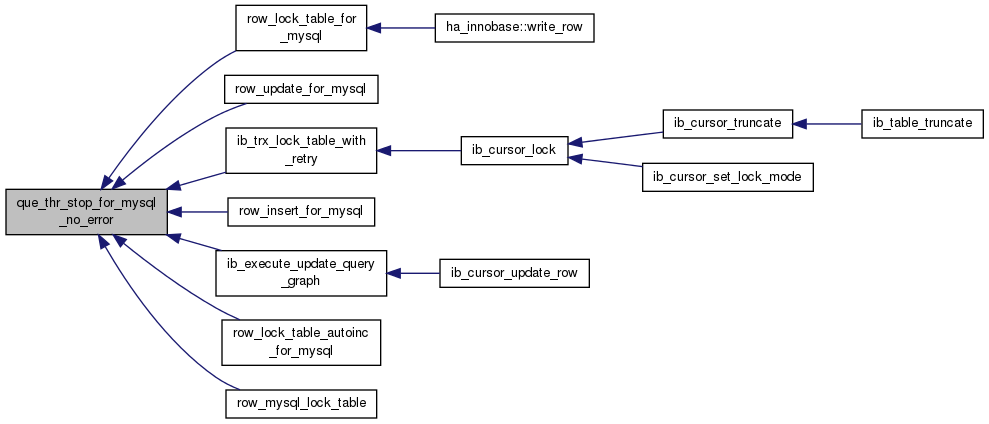

Here is the caller graph for this function:

UNIV_INLINE trx_t* thr_get_trx ( que_thr_t * thr )

Gets the trx of a query thread. in: query thread

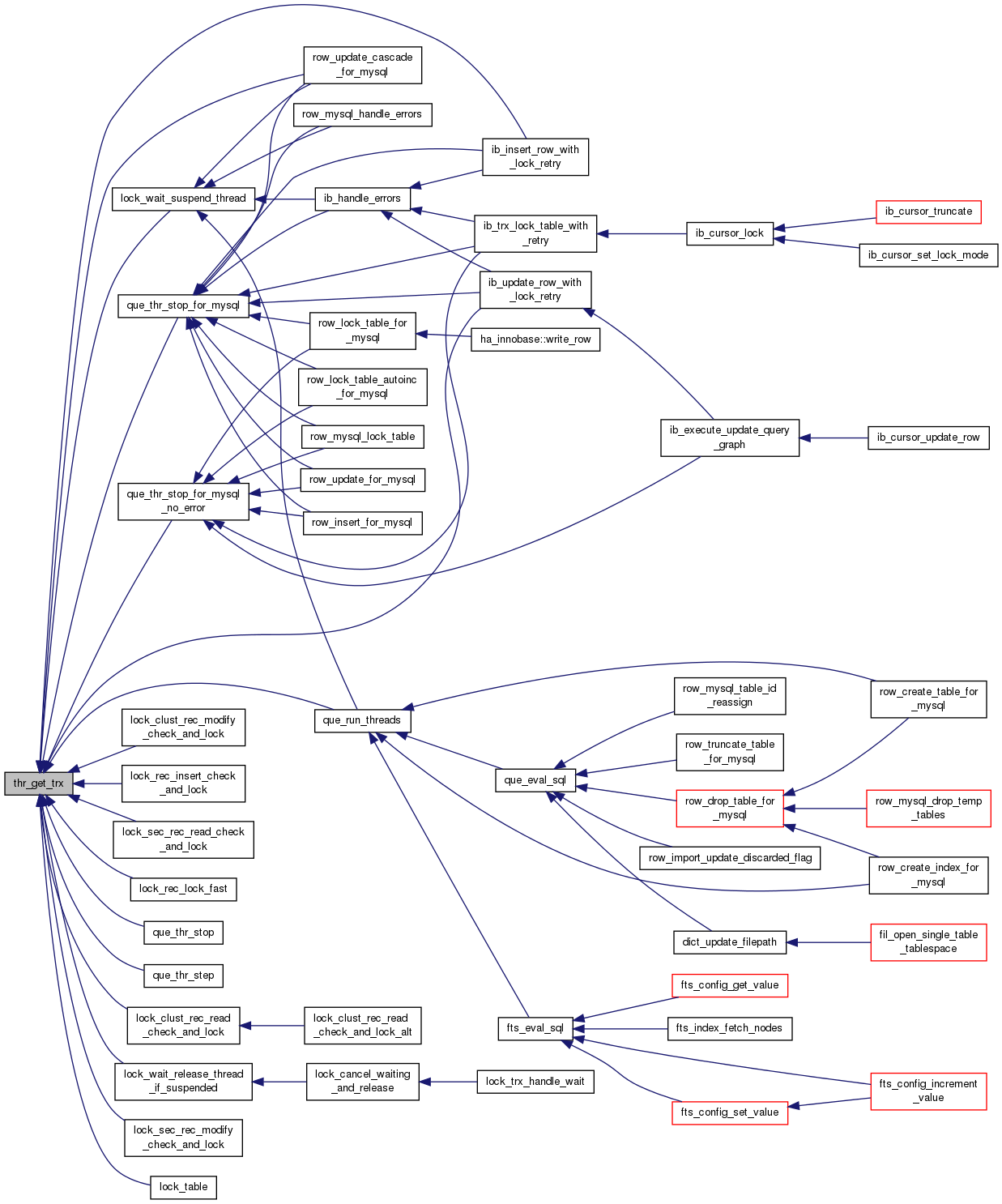

Here is the caller graph for this function:

UNIV_INLINE ibool thr_is_recv ( const que_thr_t * thr )

Determines if this thread is rolling back an incomplete transaction in crash recovery.

Returns: TRUE if thr is rolling back an incomplete transaction in crash recovery in: query thread

Variable Documentation

ib_mutex_t que_thr_mutex

Mutex protecting the query threads.

Classes

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation

Variable Documentation
