#include "que0que.h"
#include "usr0sess.h"
#include "trx0trx.h"
#include "trx0roll.h"
#include "row0undo.h"
#include "row0ins.h"
#include "row0upd.h"
#include "row0sel.h"
#include "row0purge.h"
#include "dict0crea.h"
#include "log0log.h"
#include "eval0proc.h"
#include "lock0lock.h"
#include "eval0eval.h"
#include "pars0types.h"

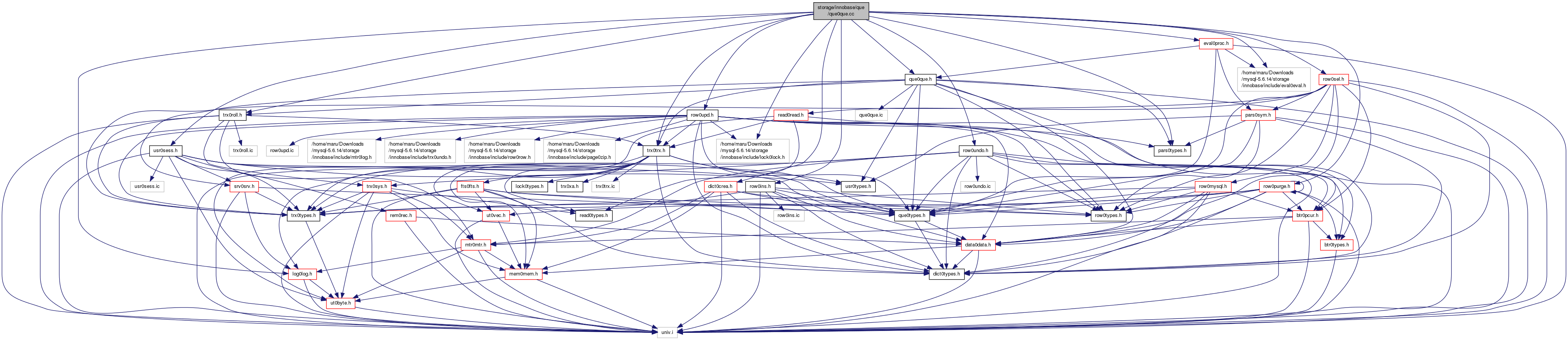

Include dependency graph for que0que.cc:

Macros
#define	QUE_MAX_LOOPS_WITHOUT_CHECK 16

Functions
UNIV_INTERN que_fork_t *	que_fork_create (que_t graph, que_node_t parent, ulint fork_type, mem_heap_t *heap)
UNIV_INTERN que_thr_t *	que_thr_create (que_fork_t parent, mem_heap_t heap)
UNIV_INTERN que_thr_t *	que_thr_end_lock_wait (trx_t *trx)
UNIV_INLINE void	que_thr_init_command (que_thr_t *thr)
UNIV_INTERN que_thr_t *	que_fork_scheduler_round_robin (que_fork_t fork, que_thr_t thr)
UNIV_INTERN que_thr_t *	que_fork_start_command (que_fork_t *fork)
UNIV_INLINE ibool	que_fork_all_thrs_in_state (que_fork_t *fork, ulint state)
UNIV_INTERN void	que_graph_free_recursive (que_node_t *node)
UNIV_INTERN void	que_graph_free (que_t *graph)
UNIV_INTERN ibool	que_thr_stop (que_thr_t *thr)
UNIV_INTERN void	que_thr_stop_for_mysql (que_thr_t *thr)
UNIV_INTERN void	que_thr_move_to_run_state_for_mysql (que_thr_t thr, trx_t trx)
UNIV_INTERN void	que_thr_stop_for_mysql_no_error (que_thr_t thr, trx_t trx)
UNIV_INTERN que_node_t *	que_node_get_containing_loop_node (que_node_t *node)
UNIV_INTERN void	que_node_print_info (que_node_t *node)
UNIV_INLINE que_thr_t *	que_thr_step (que_thr_t *thr)
UNIV_INTERN void	que_run_threads (que_thr_t *thr)
UNIV_INTERN dberr_t	que_eval_sql (pars_info_t info, const char sql, ibool reserve_dict_mutex, trx_t *trx)
UNIV_INTERN void	que_init (void)
UNIV_INTERN void	que_close (void)

Detailed Description

Query graph

Created 5/27/1996 Heikki Tuuri

Definition in file que0que.cc.

Function Documentation

UNIV_INTERN void que_close ( void )

Close the query sub-system.

Definition at line 1314 of file que0que.cc.

UNIV_INTERN dberr_t que_eval_sql	(	pars_info_t *	info,
		const char *	sql,
		ibool	reserve_dict_mutex,
		trx_t *	trx
	)

Evaluate the given SQL.

Returns: error code or DB_SUCCESS

Parameters

info	in: info struct, or NULL
sql	in: SQL string
reserve_dict_mutex	in: if TRUE, acquire/release dict_sys->mutex around call to pars_sql.
trx	in: trx

Definition at line 1252 of file que0que.cc.

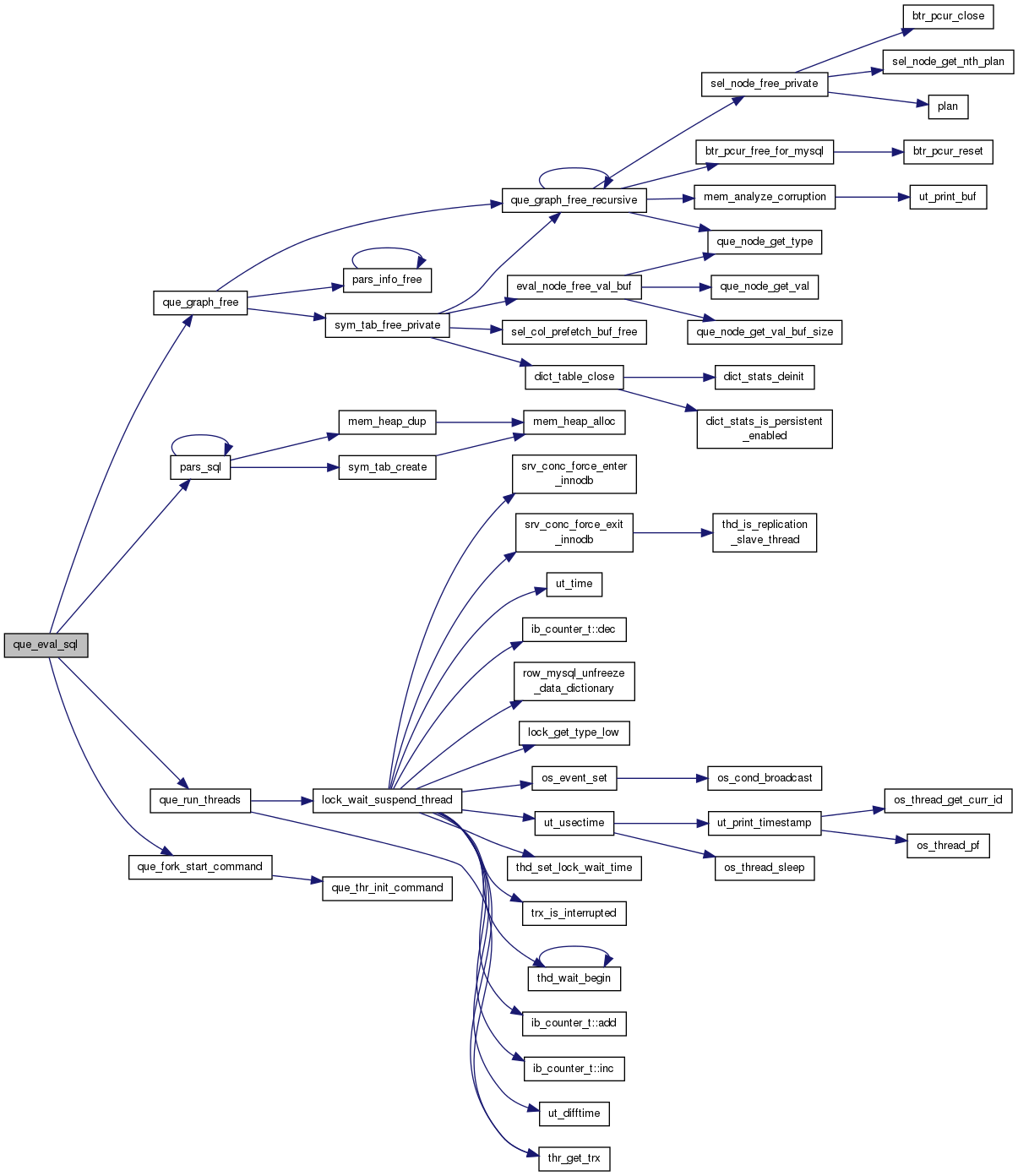

Here is the call graph for this function:

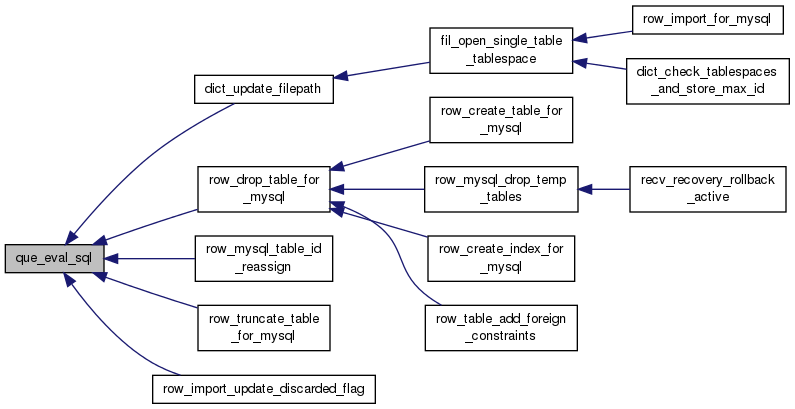

Here is the caller graph for this function:

UNIV_INLINE ibool que_fork_all_thrs_in_state	(	que_fork_t *	fork,
		ulint	state
	)

Tests if all the query threads in the same fork have a given state.

Returns: TRUE if all the query threads in the same fork were in the given state

Parameters

fork	in: query fork
state	in: state

Definition at line 389 of file que0que.cc.

UNIV_INTERN que_fork_t* que_fork_create	(	que_t *	graph,
		que_node_t *	parent,
		ulint	fork_type,
		mem_heap_t *	heap
	)

Creates a query graph fork node.

Returns: own: fork node

Parameters

graph	in: graph, if NULL then this fork node is assumed to be the graph root
parent	in: parent node
fork_type	in: fork type
heap	in: memory heap where created

Definition at line 129 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_fork_scheduler_round_robin	(	que_fork_t *	fork,
		que_thr_t *	thr
	)

Round robin scheduler.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller

Parameters

fork	in: a query fork
thr	in: current pos

Definition at line 254 of file que0que.cc.

Here is the call graph for this function:

UNIV_INTERN que_thr_t* que_fork_start_command ( que_fork_t * fork )

Starts execution of a command in a query fork. Picks a query thread which is not in the QUE_THR_RUNNING state and moves it to that state. If none can be chosen, a situation which may arise in parallelized fetches, NULL is returned.

Returns: a query thread of the graph moved to QUE_THR_RUNNING state, or NULL; the query thread should be executed by que_run_threads by the caller

Parameters

fork	in: a query fork

Definition at line 304 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

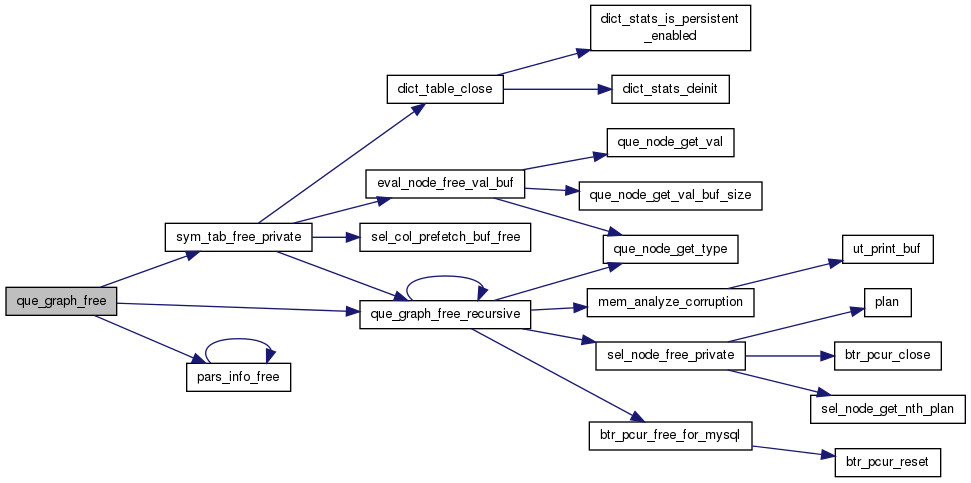

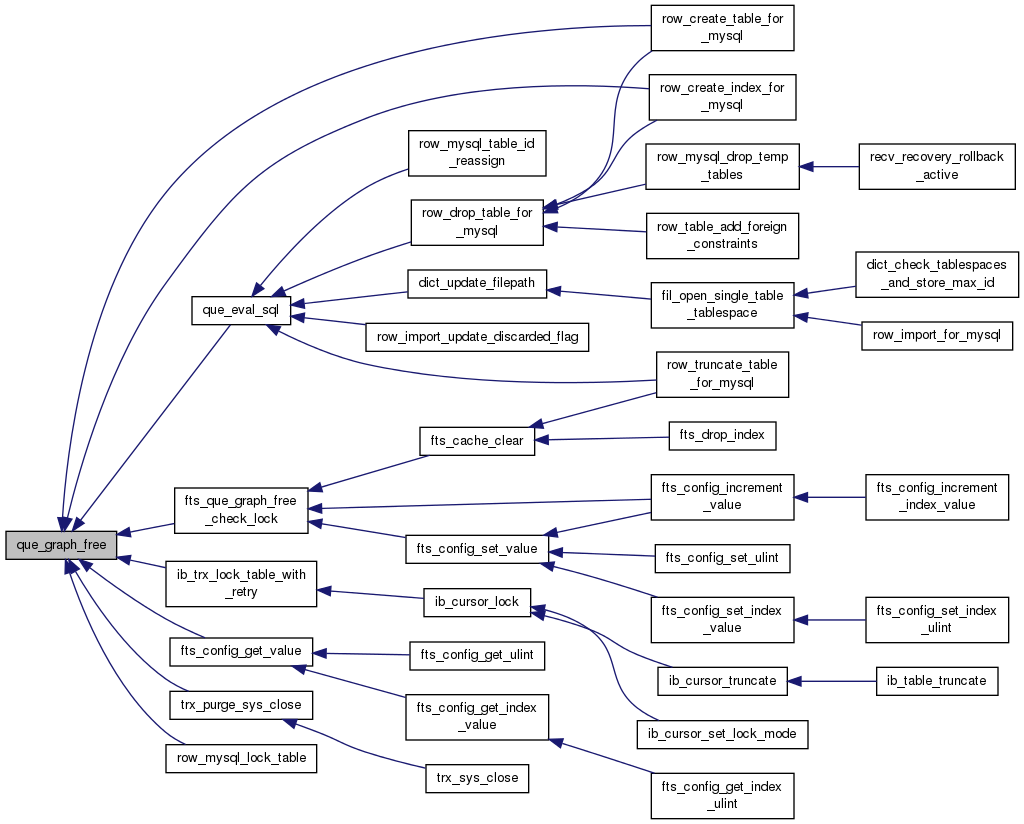

UNIV_INTERN void que_graph_free ( que_t * graph )

Frees a query graph.

Parameters

graph in: query graph; we assume that the memory heap where this graph was created is private to this graph: if not, then use que_graph_free_recursive and free the heap afterwards!

Definition at line 600 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void que_graph_free_recursive ( que_node_t * node )

Frees a query graph, but not the heap where it was created. Does not free explicit cursor declarations, they are freed in que_graph_free.

Parameters

node	in: query graph node

Definition at line 429 of file que0que.cc.

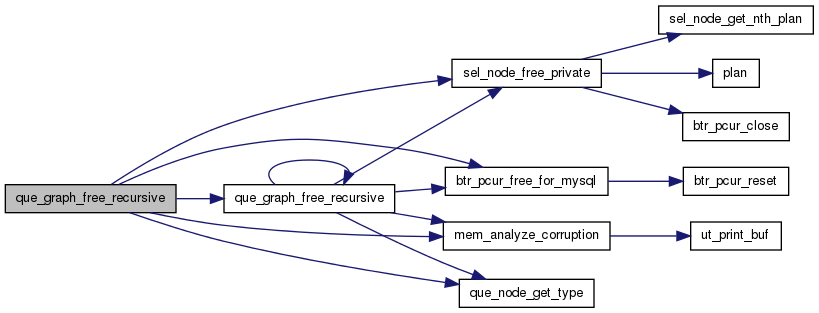

Here is the call graph for this function:

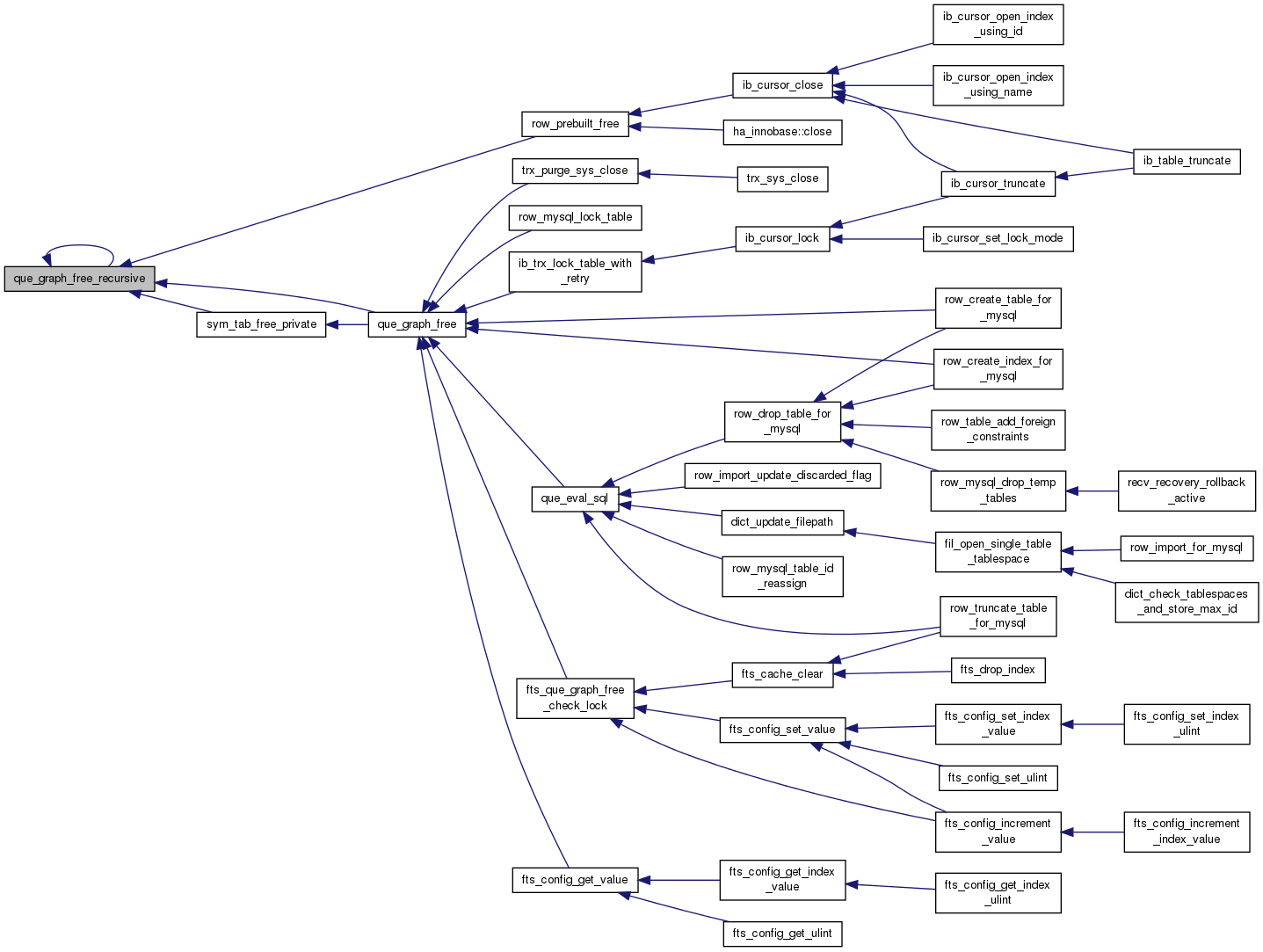

Here is the caller graph for this function:

UNIV_INTERN void que_init ( void )

Initialise the query sub-system.

Definition at line 1304 of file que0que.cc.

Here is the caller graph for this function:

UNIV_INTERN que_node_t* que_node_get_containing_loop_node ( que_node_t * node )

Get the first containing loop node (e.g. while_node_t or for_node_t) for the given node, or NULL if the node is not within a loop.

Returns: containing loop node, or NULL.

Parameters

node in: node

Definition at line 928 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void que_node_print_info ( que_node_t * node )

Prints info of an SQL query graph node.

Parameters

node	in: query graph node

Definition at line 957 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void que_run_threads ( que_thr_t * thr )

Run a query thread. Handles lock waits.

Parameters

thr	in: query thread

Definition at line 1199 of file que0que.cc.

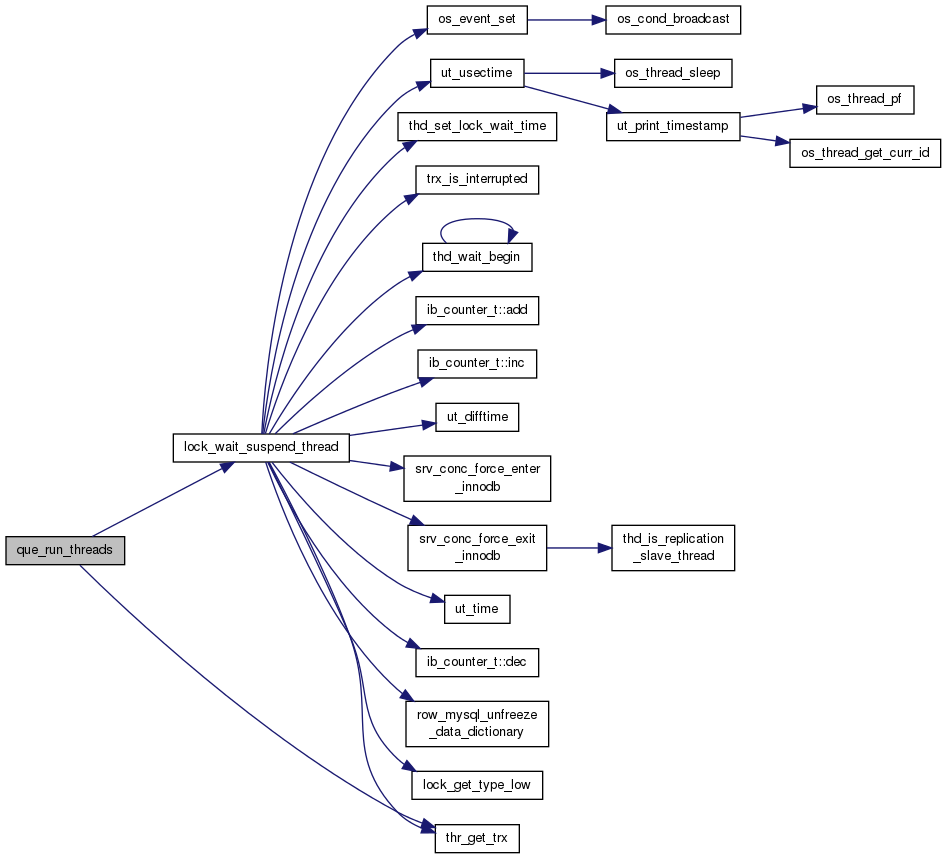

Here is the call graph for this function:

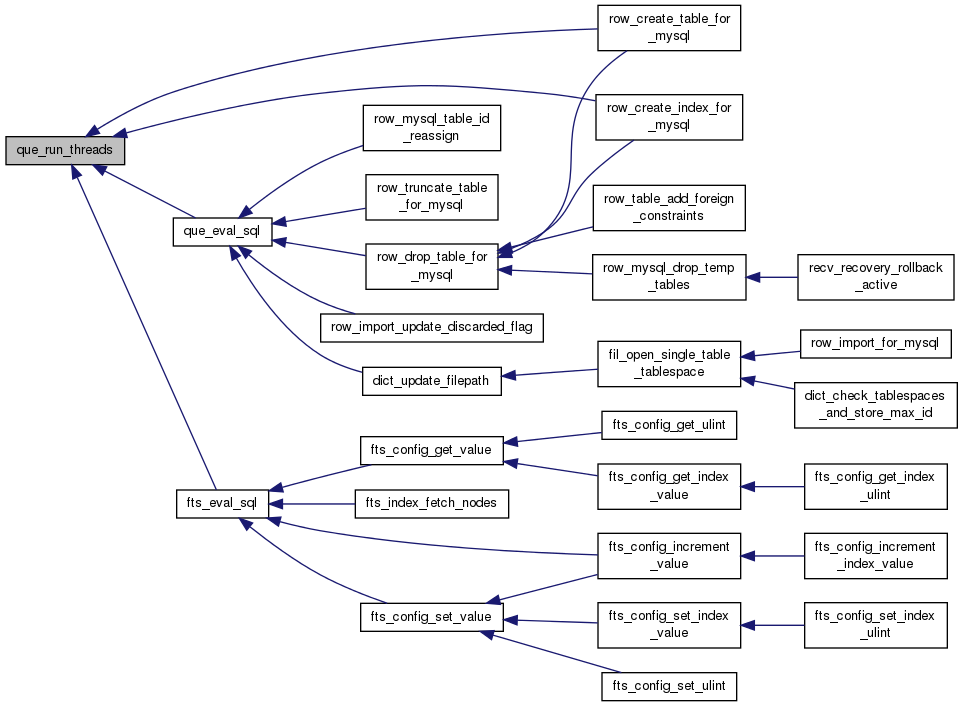

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_thr_create	(	que_fork_t *	parent,
		mem_heap_t *	heap
	)

Creates a query graph thread node.

Returns: own: query thread node

Parameters

parent	in: parent node, i.e., a fork node
heap	in: memory heap where created

Definition at line 164 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN que_thr_t* que_thr_end_lock_wait ( trx_t * trx )

Moves a suspended query thread to the QUE_THR_RUNNING state and may release a worker thread to execute it. This function should be used to end the wait state of a query thread waiting for a lock or a stored procedure completion.

Returns: the query thread that needs to be released.

Parameters

trx	in: transaction with que_state in QUE_THR_LOCK_WAIT

Definition at line 200 of file que0que.cc.

Here is the caller graph for this function:

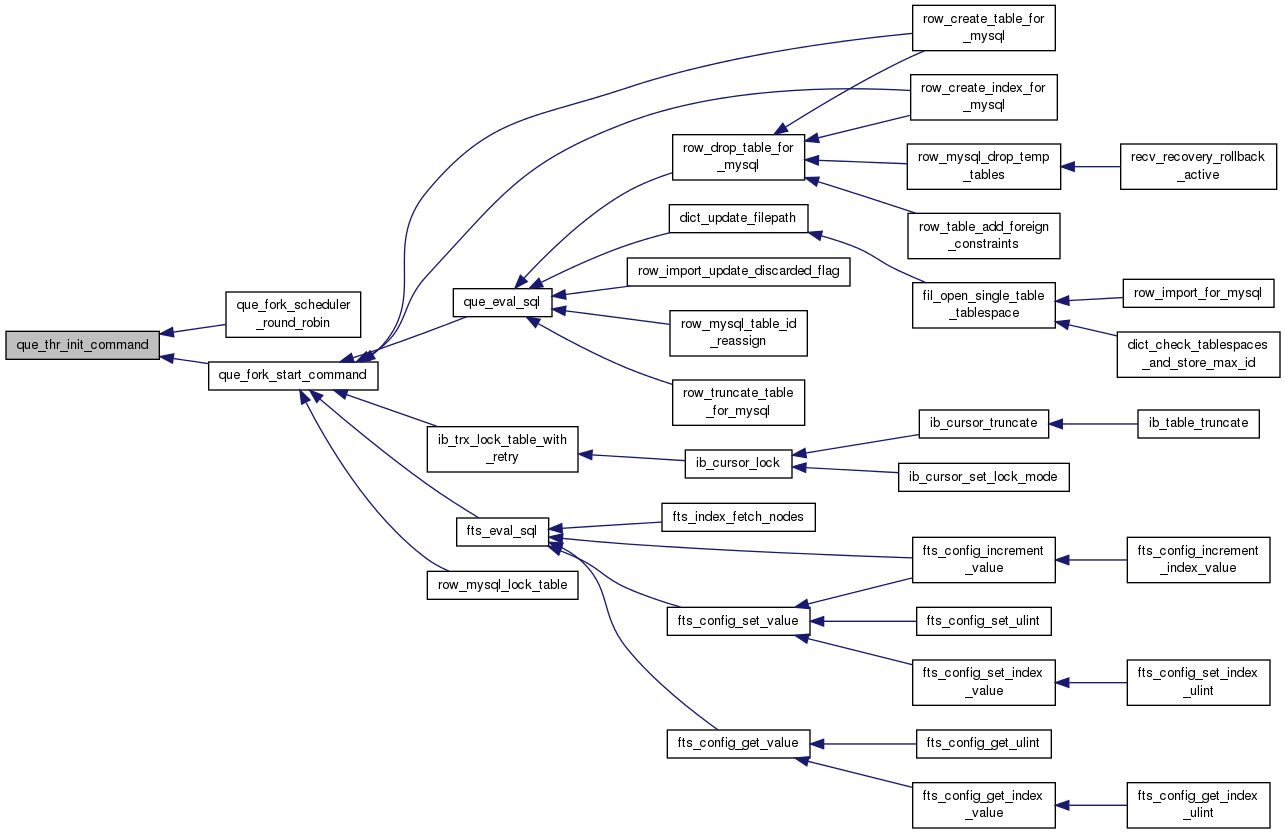

UNIV_INLINE void que_thr_init_command ( que_thr_t * thr )

Inits a query thread for a command.

Parameters

thr	in: query thread

Definition at line 237 of file que0que.cc.

Here is the caller graph for this function:

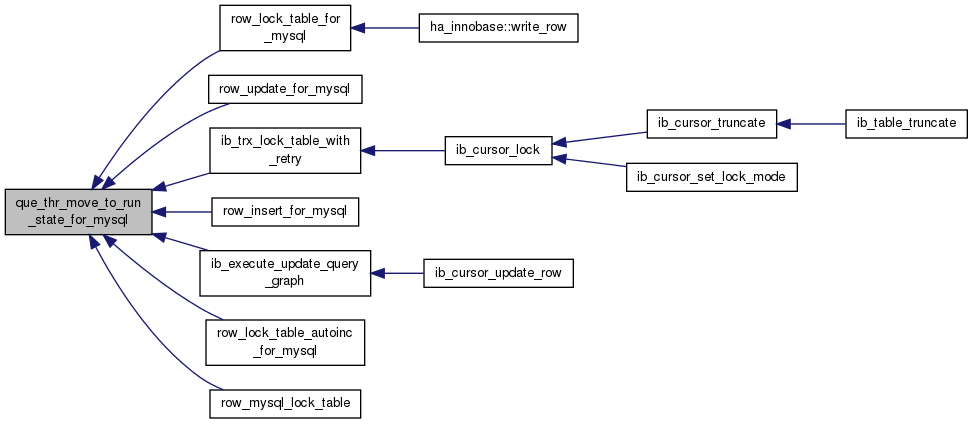

UNIV_INTERN void que_thr_move_to_run_state_for_mysql	(	que_thr_t *	thr,
		trx_t *	trx
	)

Moves a thread from another state to the QUE_THR_RUNNING state. Increments the n_active_thrs counters of the query graph and transaction if thr was not active.

Parameters

thr	in: an query thread
trx	in: transaction

Definition at line 861 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

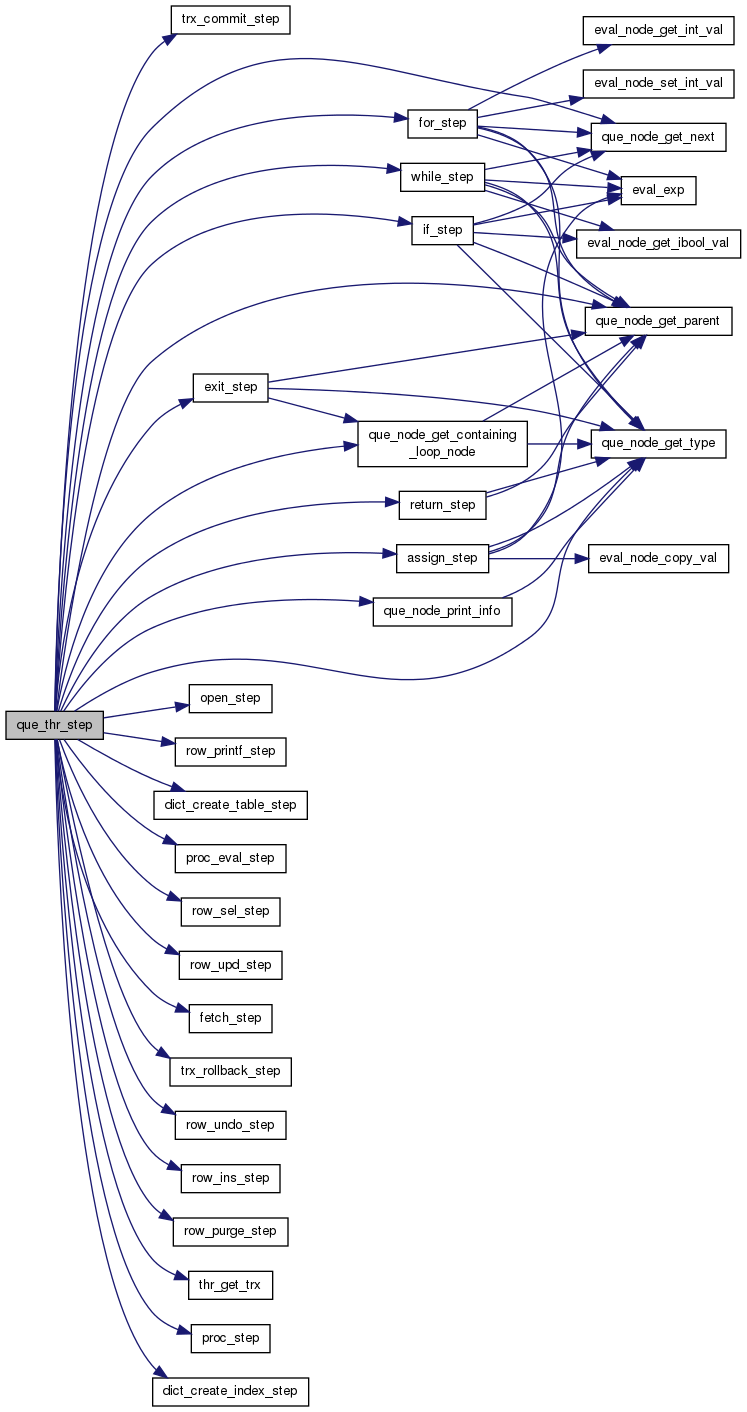

UNIV_INLINE que_thr_t* que_thr_step ( que_thr_t * thr )

Performs an execution step on a query thread.

Returns: query thread to run next: it may differ from the input parameter if, e.g., a subprocedure call is made

Parameters

thr	in: query thread

Definition at line 1022 of file que0que.cc.

Here is the call graph for this function:

UNIV_INTERN ibool que_thr_stop ( que_thr_t * thr )

Stops a query thread if graph or trx is in a state requiring it. The conditions are tested in the order (1) graph, (2) trx.

Returns: TRUE if stopped

Parameters

thr	in: query thread

Definition at line 701 of file que0que.cc.

Here is the call graph for this function:

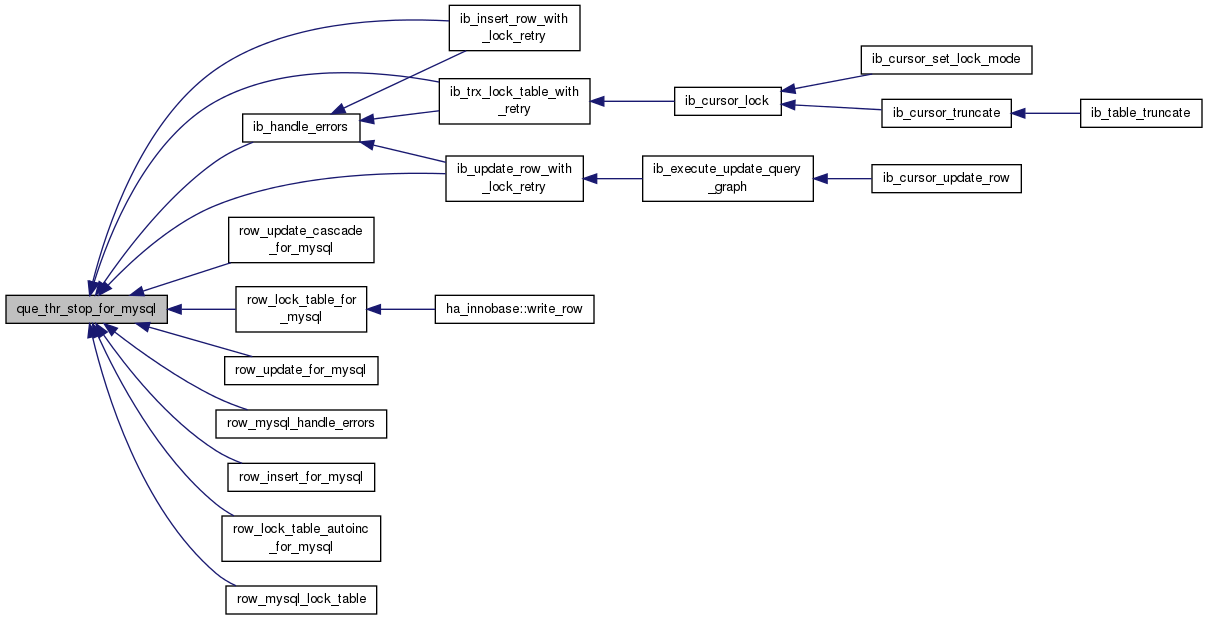

UNIV_INTERN void que_thr_stop_for_mysql ( que_thr_t * thr )

A patch for MySQL used to 'stop' a dummy query thread used in MySQL. The query thread is stopped and made inactive, except in the case where it was put to the lock wait state in lock0lock.cc, but the lock has already been granted or the transaction chosen as a victim in deadlock resolution.

Parameters

thr	in: query thread

Definition at line 812 of file que0que.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void que_thr_stop_for_mysql_no_error	(	que_thr_t *	thr,
		trx_t *	trx
	)

A patch for MySQL used to 'stop' a dummy query thread used in MySQL select, when there is no error or lock wait.

Parameters

thr	in: query thread
trx	in: transaction

Definition at line 893 of file que0que.cc.

Here is the call graph for this function:

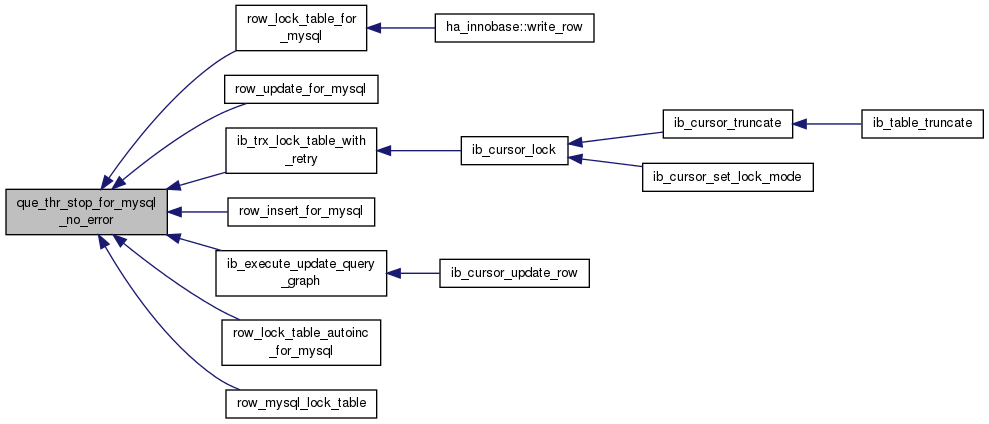

Here is the caller graph for this function:
