#include "univ.i"
#include "hash0hash.h"
#include "page0types.h"
#include "buf0types.h"
#include "rem0types.h"
#include "ha0ha.ic"

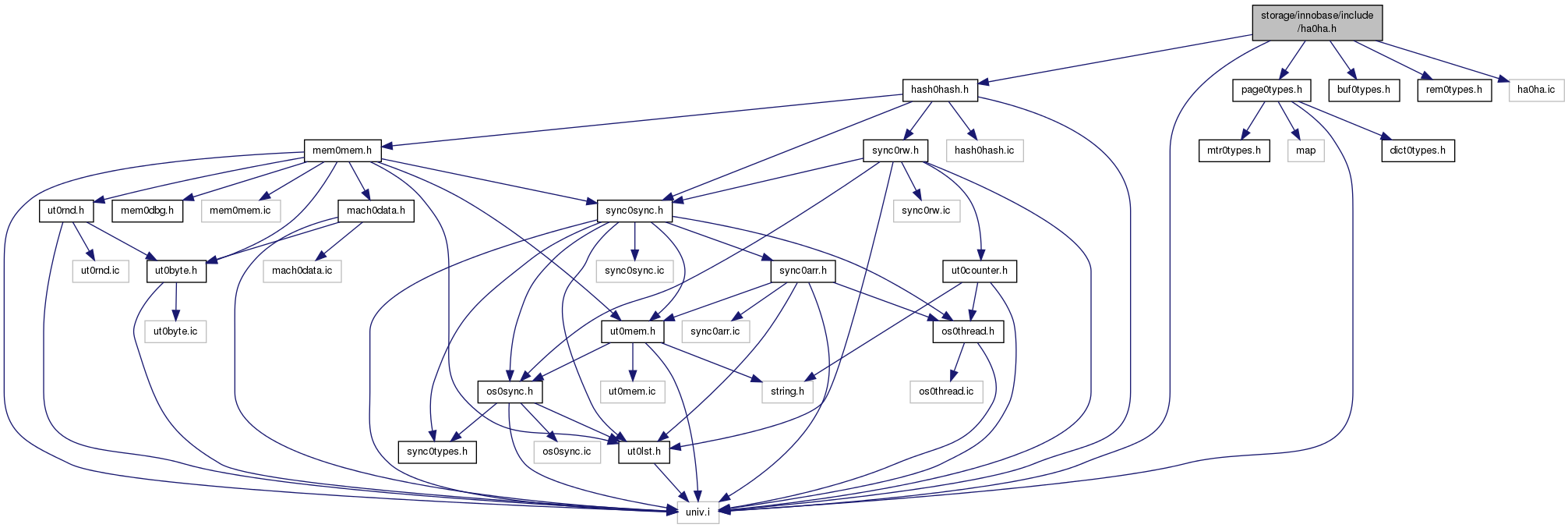

Include dependency graph for ha0ha.h:

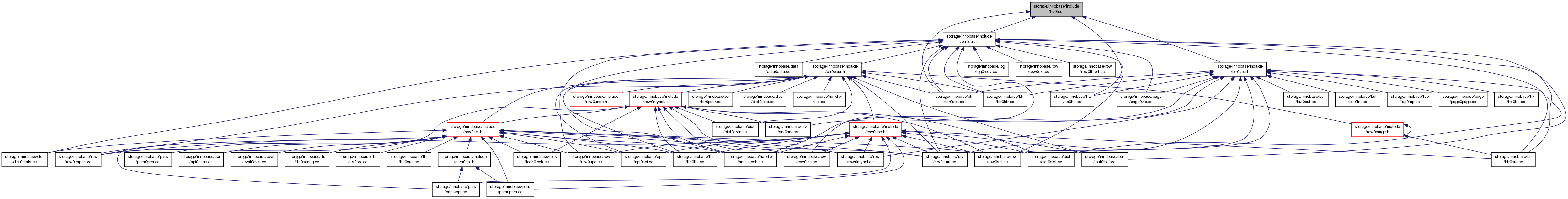

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ha_node_t

Macros
#define	ha_search_and_update_if_found(table, fold, data, new_block, new_data) ha_search_and_update_if_found_func(table,fold,data,new_data)
#define	ha_create(n_c, n_m, type, level) ha_create_func(n_c,n_m,type)
#define	ha_insert_for_fold(t, f, b, d)
#define	hash_assert_can_modify(t, f)
#define	hash_assert_can_search(t, f)

Functions
UNIV_INLINE const rec_t *	ha_search_and_get_data (hash_table_t *table, ulint fold)
UNIV_INTERN ibool	ha_search_and_update_if_found_func (hash_table_t table, ulint fold, const rec_t data, const rec_t *new_data)
UNIV_INTERN hash_table_t *	ha_create_func (ulint n, ulint n_mutexes, ulint type)
UNIV_INTERN void	ha_clear (hash_table_t *table)
UNIV_INTERN ibool	ha_insert_for_fold_func (hash_table_t table, ulint fold, const rec_t data)
UNIV_INLINE ibool	ha_search_and_delete_if_found (hash_table_t table, ulint fold, const rec_t data)
UNIV_INTERN void	ha_remove_all_nodes_to_page (hash_table_t table, ulint fold, const page_t page)
UNIV_INTERN void	ha_print_info (FILE file, hash_table_t table)

Detailed Description

The hash table with external chains

Created 8/18/1994 Heikki Tuuri

Definition in file ha0ha.h.

Macro Definition Documentation

#define ha_create	(	n_c,
		n_m,
		type,
		level
	)	ha_create_func(n_c,n_m,type)

Creates a hash table.

Returns: own: created table

Parameters

n_c	in: number of array cells. The actual number of cells is chosen to be a slightly bigger prime number.
level	in: level of the mutexes in the latching order
n_m	in: number of mutexes to protect the hash table; must be a power of 2, or 0

Definition at line 119 of file ha0ha.h.

#define ha_insert_for_fold	(	t,
		f,
		b,
		d
	)

Value:

do {            \
        ha_insert_for_fold_func(t,f,d);                 \
        MONITOR_INC(MONITOR_ADAPTIVE_HASH_ROW_ADDED);   \
} while (0)

Inserts an entry into a hash table. If an entry with the same fold number is found, its node is updated to point to the new data, and no new node is inserted.

Returns: TRUE if succeed, FALSE if no more memory could be allocated

Parameters

t	in: hash table
f	in: folded value of data
b	ignored: buffer block containing the data
d	in: data, must not be NULL

Definition at line 173 of file ha0ha.h.

#define ha_search_and_update_if_found	(	table,
		fold,
		data,
		new_block,
		new_data
	)	ha_search_and_update_if_found_func(table,fold,data,new_data)

Looks for an element when we know the pointer to the data and

updates the pointer to data if found.

Parameters

table	in/out: hash table
fold	in: folded value of the searched data
data	in: pointer to the data
new_block	ignored: block containing new_data
new_data	in: new pointer to the data

Definition at line 80 of file ha0ha.h.

Function Documentation

UNIV_INTERN void ha_clear ( hash_table_t * table )

Empties a hash table and frees the memory heaps. in, own: hash table

Empties a hash table and frees the memory heaps.

Parameters

table in, own: hash table

Definition at line 105 of file ha0ha.cc.

Here is the call graph for this function:

UNIV_INTERN hash_table_t* ha_create_func	(	ulint	n,
		ulint	n_sync_obj,
		ulint	type
	)

Creates a hash table with at least n array cells. The actual number of cells is chosen to be a prime number slightly bigger than n.

Returns: own: created table in: type of datastructure for which the memory heap is going to be used e.g.: MEM_HEAP_FOR_BTR_SEARCH or MEM_HEAP_FOR_PAGE_HASH

Creates a hash table with at least n array cells. The actual number of cells is chosen to be a prime number slightly bigger than n.

Returns: own: created table

Parameters

n	in: number of array cells
n_sync_obj	in: number of mutexes or rw_locks to protect the hash table: must be a power of 2, or 0
type	in: type of datastructure for which the memory heap is going to be used e.g.: MEM_HEAP_FOR_BTR_SEARCH or MEM_HEAP_FOR_PAGE_HASH

Definition at line 44 of file ha0ha.cc.

Here is the call graph for this function:

UNIV_INTERN ibool ha_insert_for_fold_func	(	hash_table_t *	table,
		ulint	fold,
		const rec_t *	data
	)

Inserts an entry into a hash table. If an entry with the same fold number is found, its node is updated to point to the new data, and no new node is inserted.

Returns: TRUE if succeed, FALSE if no more memory could be allocated in: data, must not be NULL

Inserts an entry into a hash table. If an entry with the same fold number is found, its node is updated to point to the new data, and no new node is inserted. If btr_search_enabled is set to FALSE, we will only allow updating existing nodes, but no new node is allowed to be added.

Returns: TRUE if succeed, FALSE if no more memory could be allocated

Parameters

table	in: hash table
fold	in: folded value of data; if a node with the same fold value already exists, it is updated to point to the same data, and no new node is created!
data	in: data, must not be NULL

Definition at line 166 of file ha0ha.cc.

Here is the call graph for this function:

UNIV_INTERN void ha_print_info	(	FILE *	file,
		hash_table_t *	table
	)

Prints info of a hash table. in: hash table

Prints info of a hash table.

Parameters

file	in: file where to print
table	in: hash table

Definition at line 444 of file ha0ha.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void ha_remove_all_nodes_to_page	(	hash_table_t *	table,
		ulint	fold,
		const page_t *	page
	)

Removes from the chain determined by fold all nodes whose data pointer points to the page given. in: buffer page

Removes from the chain determined by fold all nodes whose data pointer points to the page given.

Parameters

table	in: hash table
fold	in: fold value
page	in: buffer page

Definition at line 348 of file ha0ha.cc.

Here is the call graph for this function:

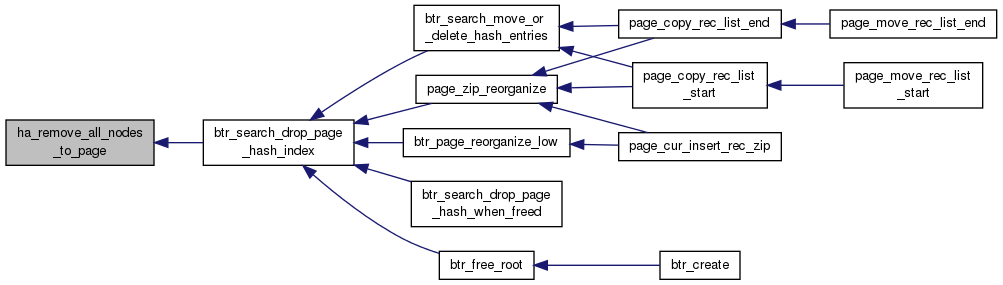

Here is the caller graph for this function:

UNIV_INLINE ibool ha_search_and_delete_if_found	(	hash_table_t *	table,
		ulint	fold,
		const rec_t *	data
	)

Looks for an element when we know the pointer to the data and deletes it from the hash table if found.

Returns: TRUE if found in: pointer to the data

Parameters

table	in: hash table
fold	in: folded value of the searched data

Here is the caller graph for this function:

UNIV_INLINE const rec_t* ha_search_and_get_data	(	hash_table_t *	table,
		ulint	fold
	)

Looks for an element in a hash table.

Returns: pointer to the data of the first hash table node in chain having the fold number, NULL if not found in: folded value of the searched data

Parameters

table in: hash table

Here is the caller graph for this function:

UNIV_INTERN ibool ha_search_and_update_if_found_func	(	hash_table_t *	table,
		ulint	fold,
		const rec_t *	data,
		const rec_t *	new_data
	)

Looks for an element when we know the pointer to the data and updates the pointer to data if found.

Returns: TRUE if found in: new pointer to the data

Looks for an element when we know the pointer to the data, and updates the pointer to data, if found.

Returns: TRUE if found

Parameters

table	in/out: hash table
fold	in: folded value of the searched data
data	in: pointer to the data
new_data	in: new pointer to the data

Definition at line 297 of file ha0ha.cc.

Here is the call graph for this function:
