fut0lst.h File Reference

#include "univ.i"
#include "fil0fil.h"
#include "mtr0mtr.h"
#include "fut0lst.ic"

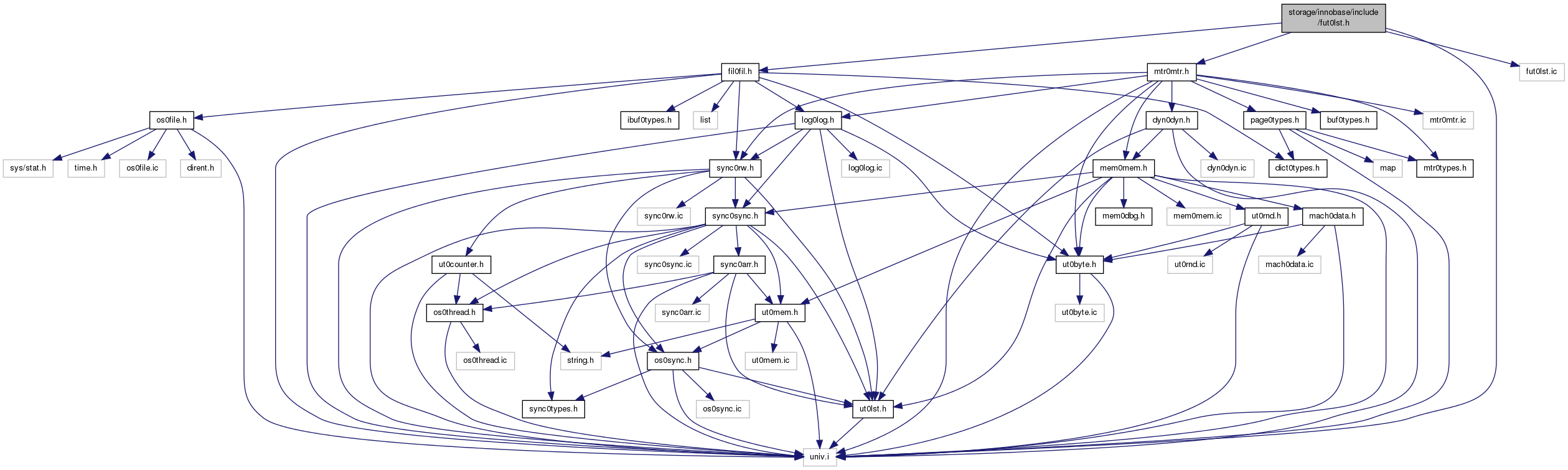

Include dependency graph for fut0lst.h:

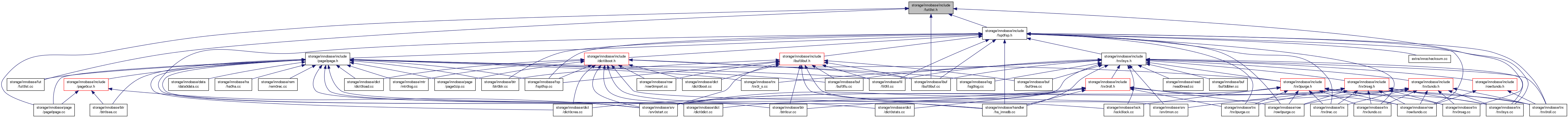

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	FLST_BASE_NODE_SIZE   (4 + 2 * FIL_ADDR_SIZE)
#define	FLST_NODE_SIZE   (2 * FIL_ADDR_SIZE)

Typedefs
typedef byte	flst_base_node_t
typedef byte	flst_node_t

Functions
UNIV_INLINE void	flst_init (flst_base_node_t *base, mtr_t *mtr)
UNIV_INTERN void	flst_add_last (flst_base_node_t *base, flst_node_t *node, mtr_t *mtr)
UNIV_INTERN void	flst_add_first (flst_base_node_t *base, flst_node_t *node, mtr_t *mtr)
UNIV_INTERN void	flst_insert_after (flst_base_node_t *base, flst_node_t *node1, flst_node_t *node2, mtr_t *mtr)
UNIV_INTERN void	flst_insert_before (flst_base_node_t *base, flst_node_t *node2, flst_node_t *node3, mtr_t *mtr)
UNIV_INTERN void	flst_remove (flst_base_node_t *base, flst_node_t *node2, mtr_t *mtr)
UNIV_INTERN void	flst_cut_end (flst_base_node_t *base, flst_node_t *node2, ulint n_nodes, mtr_t *mtr)
UNIV_INTERN void	flst_truncate_end (flst_base_node_t *base, flst_node_t *node2, ulint n_nodes, mtr_t *mtr)
UNIV_INLINE ulint	flst_get_len (const flst_base_node_t *base, mtr_t *mtr)
UNIV_INLINE fil_addr_t	flst_get_first (const flst_base_node_t *base, mtr_t *mtr)
UNIV_INLINE fil_addr_t	flst_get_last (const flst_base_node_t *base, mtr_t *mtr)
UNIV_INLINE fil_addr_t	flst_get_next_addr (const flst_node_t *node, mtr_t *mtr)
UNIV_INLINE fil_addr_t	flst_get_prev_addr (const flst_node_t *node, mtr_t *mtr)
UNIV_INLINE void	flst_write_addr (fil_faddr_t *faddr, fil_addr_t addr, mtr_t *mtr)
UNIV_INLINE fil_addr_t	flst_read_addr (const fil_faddr_t *faddr, mtr_t *mtr)
UNIV_INTERN ibool	flst_validate (const flst_base_node_t *base, mtr_t *mtr1)
UNIV_INTERN void	flst_print (const flst_base_node_t *base, mtr_t *mtr)

Detailed Description

File-based list utilities

Created 11/28/1995 Heikki Tuuri

Definition in file fut0lst.h.

Function Documentation

UNIV_INTERN void flst_add_first	(	flst_base_node_t *	base,
		flst_node_t *	node,
		mtr_t *	mtr
	)

Adds a node as the first node in a list. in: mini-transaction handle

Adds a node as the first node in a list.

Parameters

base	in: pointer to base node of list
node	in: node to add
mtr	in: mini-transaction handle

Definition at line 118 of file fut0lst.cc.

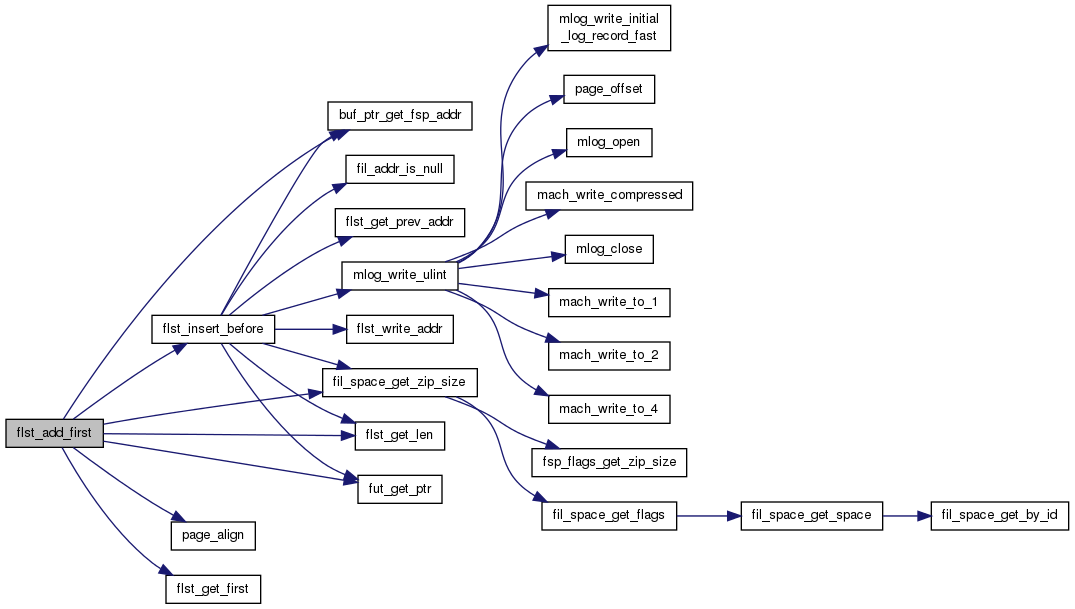

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void flst_add_last	(	flst_base_node_t *	base,
		flst_node_t *	node,
		mtr_t *	mtr
	)

Adds a node as the last node in a list. in: mini-transaction handle

Adds a node as the last node in a list.

Parameters

base	in: pointer to base node of list
node	in: node to add
mtr	in: mini-transaction handle

Definition at line 75 of file fut0lst.cc.

Here is the call graph for this function:

UNIV_INTERN void flst_cut_end	(	flst_base_node_t *	base,
		flst_node_t *	node2,
		ulint	n_nodes,
		mtr_t *	mtr
	)

Cuts off the tail of the list, including the node given. The number of nodes which will be removed must be provided by the caller, as this function does not measure the length of the tail. in: mini-transaction handle

Cuts off the tail of the list, including the node given. The number of nodes which will be removed must be provided by the caller, as this function does not measure the length of the tail.

Parameters

base	in: pointer to base node of list
node2	in: first node to remove
n_nodes	in: number of nodes to remove, must be >= 1
mtr	in: mini-transaction handle

Definition at line 347 of file fut0lst.cc.

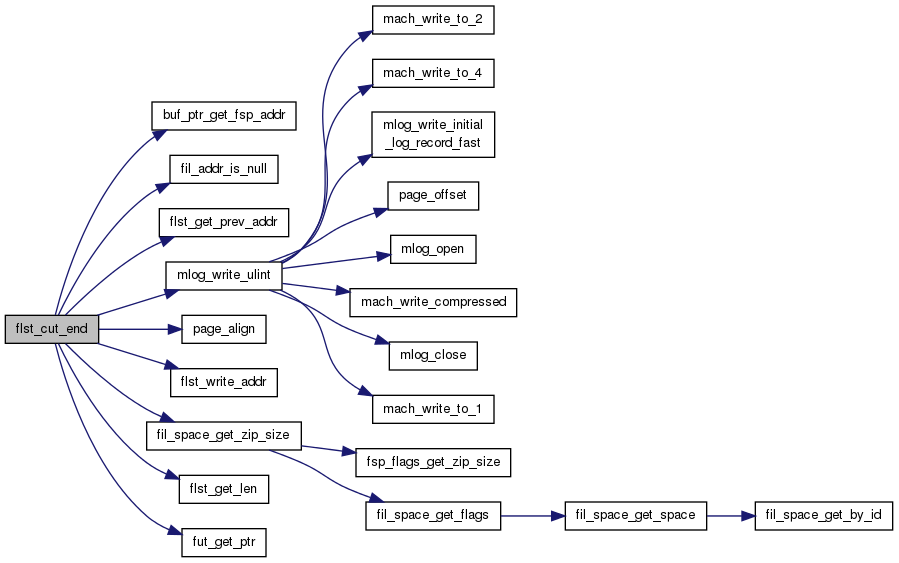

Here is the call graph for this function:

UNIV_INLINE fil_addr_t flst_get_first	(	const flst_base_node_t *	base,
		mtr_t *	mtr
	)

Gets list first node address.

Returns

file address in: mini-transaction handle

Parameters

base	in: pointer to base node

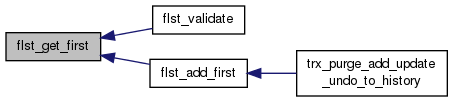

Here is the caller graph for this function:

UNIV_INLINE fil_addr_t flst_get_last	(	const flst_base_node_t *	base,
		mtr_t *	mtr
	)

Gets list last node address.

Returns

file address in: mini-transaction handle

Parameters

base	in: pointer to base node

Here is the caller graph for this function:

UNIV_INLINE ulint flst_get_len	(	const flst_base_node_t *	base,
		mtr_t *	mtr
	)

Gets list length.

Returns

length in: mini-transaction handle

Parameters

base	in: pointer to base node

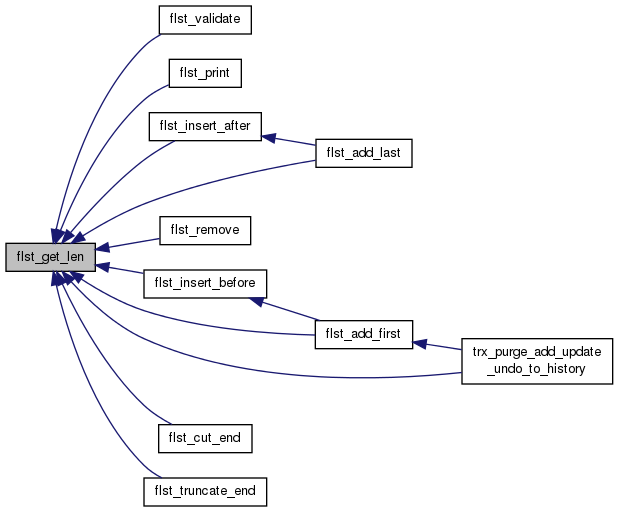

Here is the caller graph for this function:

UNIV_INLINE fil_addr_t flst_get_next_addr	(	const flst_node_t *	node,
		mtr_t *	mtr
	)

Gets list next node address.

Returns

file address in: mini-transaction handle

Parameters

node	in: pointer to node

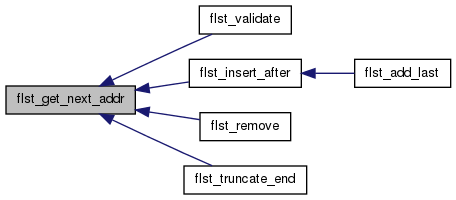

Here is the caller graph for this function:

UNIV_INLINE fil_addr_t flst_get_prev_addr	(	const flst_node_t *	node,
		mtr_t *	mtr
	)

Gets list prev node address.

Returns

file address in: mini-transaction handle

Parameters

node	in: pointer to node

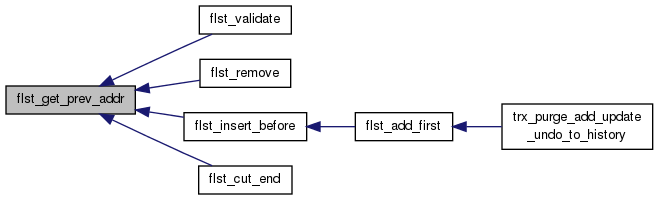

Here is the caller graph for this function:

UNIV_INLINE void flst_init	(	flst_base_node_t *	base,
		mtr_t *	mtr
	)

Initializes a list base node. in: mini-transaction handle

Parameters

base	in: pointer to base node

Here is the caller graph for this function:

UNIV_INTERN void flst_insert_after	(	flst_base_node_t *	base,
		flst_node_t *	node1,
		flst_node_t *	node2,
		mtr_t *	mtr
	)

Inserts a node after another in a list. in: mini-transaction handle

Inserts a node after another in a list.

Parameters

base	in: pointer to base node of list
node1	in: node to insert after
node2	in: node to add
mtr	in: mini-transaction handle

Definition at line 161 of file fut0lst.cc.

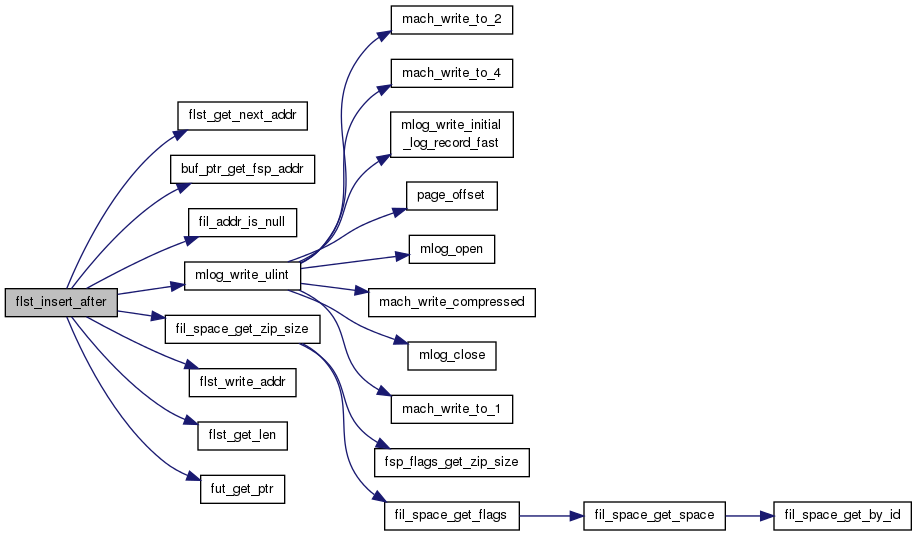

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void flst_insert_before	(	flst_base_node_t *	base,
		flst_node_t *	node2,
		flst_node_t *	node3,
		mtr_t *	mtr
	)

Inserts a node before another in a list. in: mini-transaction handle

Inserts a node before another in a list.

Parameters

base	in: pointer to base node of list
node2	in: node to insert
node3	in: node to insert before
mtr	in: mini-transaction handle

Definition at line 216 of file fut0lst.cc.

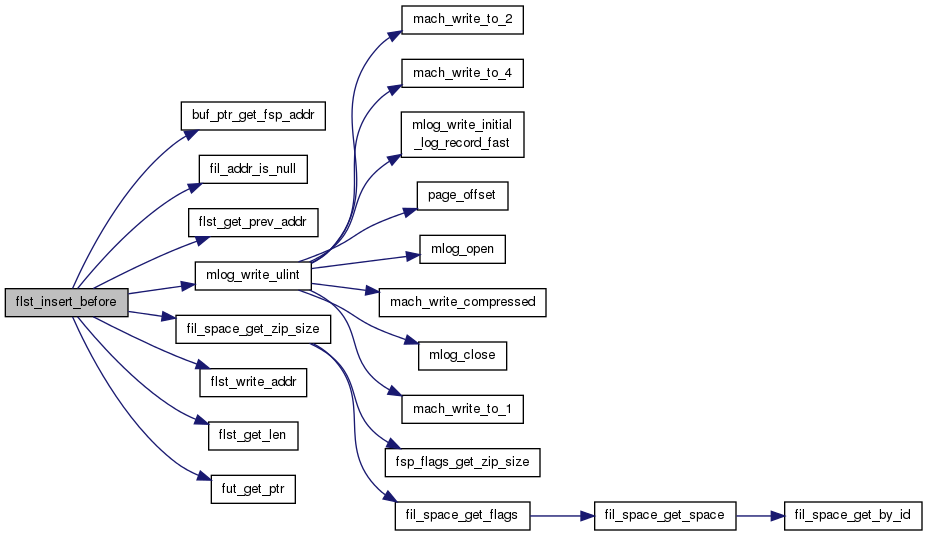

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void flst_print	(	const flst_base_node_t *	base,
		mtr_t *	mtr
	)

Prints info of a file-based list. in: mtr

Prints info of a file-based list.

Parameters

base	in: pointer to base node of list
mtr	in: mtr

Definition at line 510 of file fut0lst.cc.

Here is the call graph for this function:

UNIV_INLINE fil_addr_t flst_read_addr	(	const fil_faddr_t *	faddr,
		mtr_t *	mtr
	)

Reads a file address.

Returns

file address in: mini-transaction handle

Parameters

faddr

in: pointer to file faddress

UNIV_INTERN void flst_remove	(	flst_base_node_t *	base,
		flst_node_t *	node2,
		mtr_t *	mtr
	)

Removes a node. in: mini-transaction handle

Removes a node.

Parameters

base	in: pointer to base node of list
node2	in: node to remove
mtr	in: mini-transaction handle

Definition at line 270 of file fut0lst.cc.

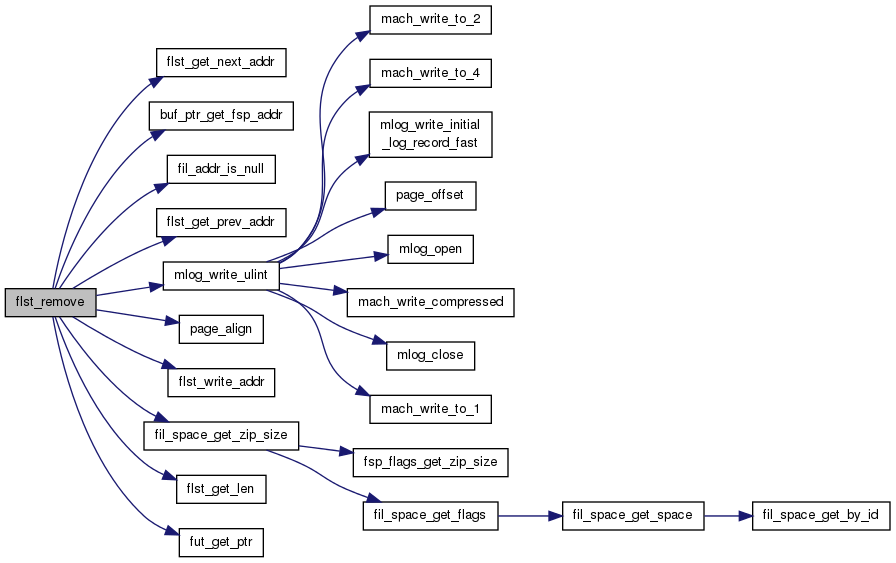

Here is the call graph for this function:

UNIV_INTERN void flst_truncate_end	(	flst_base_node_t *	base,
		flst_node_t *	node2,
		ulint	n_nodes,
		mtr_t *	mtr
	)

Cuts off the tail of the list, not including the given node. The number of nodes which will be removed must be provided by the caller, as this function does not measure the length of the tail. in: mini-transaction handle

Cuts off the tail of the list, not including the given node. The number of nodes which will be removed must be provided by the caller, as this function does not measure the length of the tail.

Parameters

base	in: pointer to base node of list
node2	in: first node not to remove
n_nodes	in: number of nodes to remove
mtr	in: mini-transaction handle

Definition at line 404 of file fut0lst.cc.

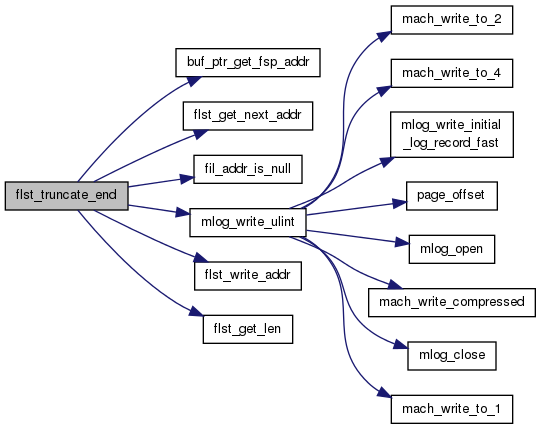

Here is the call graph for this function:

UNIV_INTERN ibool flst_validate	(	const flst_base_node_t *	base,
		mtr_t *	mtr1
	)

Validates a file-based list.

Returns

TRUE if ok in: mtr

Validates a file-based list.

Returns

TRUE if ok

Parameters

base	in: pointer to base node of list
mtr1	in: mtr

Definition at line 444 of file fut0lst.cc.

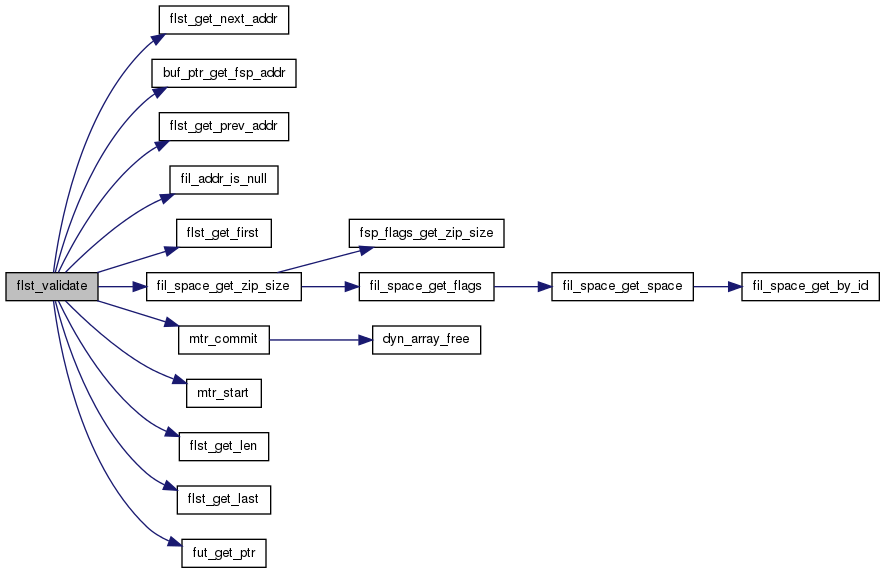

Here is the call graph for this function:

UNIV_INLINE void flst_write_addr	(	fil_faddr_t *	faddr,
		fil_addr_t	addr,
		mtr_t *	mtr
	)

Writes a file address. in: mini-transaction handle

Parameters

faddr	in: pointer to file faddress
addr	in: file address

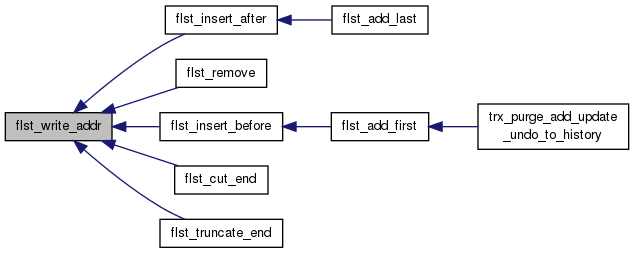

Here is the caller graph for this function:
