#include "univ.i"
#include "data0type.ic"

Include dependency graph for data0type.h:

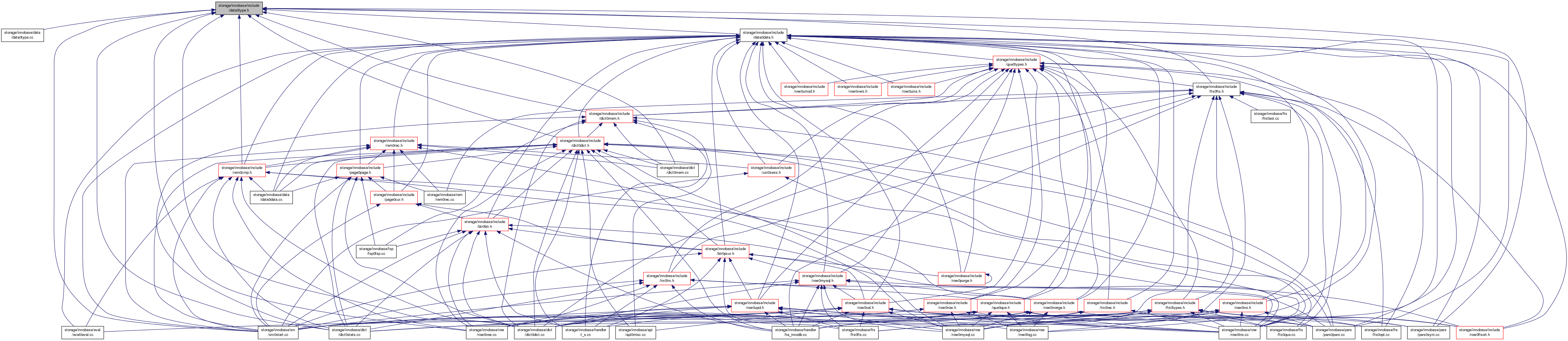

This graph shows which files directly or indirectly include this file:

Classes
struct	dtype_t

Macros
#define	DATA_MYSQL_LATIN1_SWEDISH_CHARSET_COLL 8
#define	DATA_MYSQL_BINARY_CHARSET_COLL 63
#define	DATA_MISSING 0 /* missing column */
#define	DATA_VARCHAR
#define	DATA_CHAR
#define	DATA_FIXBINARY 3 /* binary string of fixed length */
#define	DATA_BINARY 4 /* binary string */
#define	DATA_BLOB
#define	DATA_INT 6 /* integer: can be any size 1 - 8 bytes */
#define	DATA_SYS_CHILD 7 /* address of the child page in node pointer */
#define	DATA_SYS 8 /* system column */
#define	DATA_FLOAT 9
#define	DATA_DOUBLE 10
#define	DATA_DECIMAL 11 /* decimal number stored as an ASCII string */
#define	DATA_VARMYSQL 12 /* any charset varying length char */
#define	DATA_MYSQL 13 /* any charset fixed length char */
#define	DATA_MTYPE_MAX
#define	DATA_ENGLISH
#define	DATA_ERROR 111 /* another relic from pre-MySQL time */
#define	DATA_MYSQL_TYPE_MASK
#define	DATA_MYSQL_TRUE_VARCHAR
#define	DATA_ROW_ID 0 /* row id: a 48-bit integer */
#define	DATA_ROW_ID_LEN 6 /* stored length for row id */
#define	DATA_TRX_ID 1 /* transaction id: 6 bytes */
#define	DATA_TRX_ID_LEN 6
#define	DATA_ROLL_PTR 2 /* rollback data pointer: 7 bytes */
#define	DATA_ROLL_PTR_LEN 7
#define	DATA_N_SYS_COLS 3 /* number of system columns defined above */
#define	DATA_FTS_DOC_ID 3 /* Used as FTS DOC ID column */
#define	DATA_SYS_PRTYPE_MASK 0xF /* mask to extract the above from prtype */
#define	DATA_NOT_NULL
#define	DATA_UNSIGNED
#define	DATA_BINARY_TYPE
#define	DATA_LONG_TRUE_VARCHAR
#define	DATA_ORDER_NULL_TYPE_BUF_SIZE 4
#define	DATA_NEW_ORDER_NULL_TYPE_BUF_SIZE 6
#define	DATA_MBMAX 5
#define	DATA_MBMINMAXLEN(mbminlen, mbmaxlen) ((mbmaxlen) * DATA_MBMAX + (mbminlen))
#define	DATA_MBMINLEN(mbminmaxlen)
#define	DATA_MBMAXLEN(mbminmaxlen) ((ulint) ((mbminmaxlen) / DATA_MBMAX))
#define	MAX_CHAR_COLL_NUM 32767
#define	CHAR_COLL_MASK MAX_CHAR_COLL_NUM

Enumerations
enum	ib_like_t { IB_LIKE_EXACT, IB_LIKE_PREFIX, IB_LIKE_SUFFIX, IB_LIKE_SUBSTR, IB_LIKE_REGEXP }

Functions
UNIV_INLINE ulint	dtype_get_mysql_type (const dtype_t *type)
UNIV_INTERN ulint	dtype_get_at_most_n_mbchars (ulint prtype, ulint mbminmaxlen, ulint prefix_len, ulint data_len, const char *str)
UNIV_INTERN ibool	dtype_is_string_type (ulint mtype)

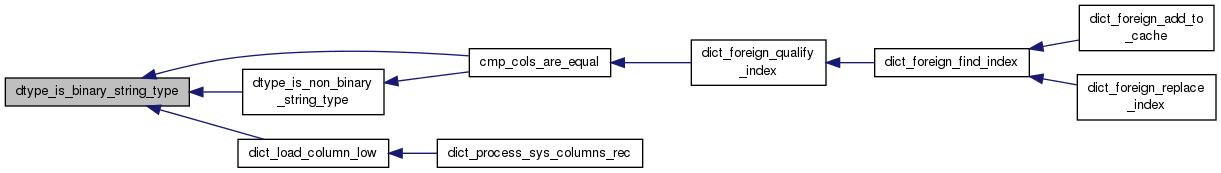

UNIV_INTERN ibool	dtype_is_binary_string_type (ulint mtype, ulint prtype)
UNIV_INTERN ibool	dtype_is_non_binary_string_type (ulint mtype, ulint prtype)
UNIV_INLINE void	dtype_set (dtype_t *type, ulint mtype, ulint prtype, ulint len)
UNIV_INLINE void	dtype_copy (dtype_t type1, const dtype_t type2)
UNIV_INLINE ulint	dtype_get_mtype (const dtype_t *type)
UNIV_INLINE ulint	dtype_get_prtype (const dtype_t *type)
UNIV_INLINE void	dtype_get_mblen (ulint mtype, ulint prtype, ulint mbminlen, ulint mbmaxlen)
UNIV_INLINE ulint	dtype_get_charset_coll (ulint prtype)
UNIV_INTERN ulint	dtype_form_prtype (ulint old_prtype, ulint charset_coll)
UNIV_INLINE ibool	dtype_is_utf8 (ulint prtype)
UNIV_INLINE ulint	dtype_get_len (const dtype_t *type)
UNIV_INLINE ulint	dtype_get_mbminlen (const dtype_t *type)
UNIV_INLINE ulint	dtype_get_mbmaxlen (const dtype_t *type)
UNIV_INLINE void	dtype_set_mbminmaxlen (dtype_t *type, ulint mbminlen, ulint mbmaxlen)
UNIV_INLINE ulint	dtype_get_pad_char (ulint mtype, ulint prtype)
UNIV_INLINE ulint	dtype_get_fixed_size_low (ulint mtype, ulint prtype, ulint len, ulint mbminmaxlen, ulint comp)
UNIV_INLINE ulint	dtype_get_min_size_low (ulint mtype, ulint prtype, ulint len, ulint mbminmaxlen)
UNIV_INLINE ulint	dtype_get_max_size_low (ulint mtype, ulint len)
UNIV_INLINE ulint	dtype_get_sql_null_size (const dtype_t *type, ulint comp)
UNIV_INLINE void	dtype_read_for_order_and_null_size (dtype_t type, const byte buf)
UNIV_INLINE void	dtype_new_store_for_order_and_null_size (byte buf, const dtype_t type, ulint prefix_len)
UNIV_INLINE void	dtype_new_read_for_order_and_null_size (dtype_t type, const byte buf)
UNIV_INLINE char *	dtype_sql_name (unsigned mtype, unsigned prtype, unsigned len, char *name, unsigned name_sz)
UNIV_INTERN ibool	dtype_validate (const dtype_t *type)
UNIV_INTERN void	dtype_print (const dtype_t *type)

Variables
ulint	data_mysql_default_charset_coll

Detailed Description

Data types

Created 1/16/1996 Heikki Tuuri

Definition in file data0type.h.

Macro Definition Documentation

#define DATA_BINARY_TYPE

Value:

1024    /* if the data type is a binary character
                                string, this is ORed to the precise type:
                                this only holds for tables created with
                                >= MySQL-4.0.14 */

Definition at line 143 of file data0type.h.

#define DATA_BLOB

Value:

5       /* binary large object, or a TEXT type;
                                if prtype & DATA_BINARY_TYPE == 0, then this is
                                actually a TEXT column (or a BLOB created
                                with < 4.0.14; since column prefix indexes
                                came only in 4.0.14, the missing flag in BLOBs
                                created before that does not cause any harm) */

Definition at line 54 of file data0type.h.

#define DATA_CHAR

Value:

2 /* fixed length character of the

latin1_swedish_ci charset-collation */

Definition at line 51 of file data0type.h.

#define DATA_ENGLISH

Value:

4       /* English language character string: this
                                is a relic from pre-MySQL time and only used
                                for InnoDB's own system tables */

Definition at line 116 of file data0type.h.

#define DATA_LONG_TRUE_VARCHAR

Value:

4096    /* this is ORed to the precise data
                                type when the column is true VARCHAR where
                                MySQL uses 2 bytes to store the data len;
                                for shorter VARCHARs MySQL uses only 1 byte */

Definition at line 148 of file data0type.h.

#define DATA_MBMINLEN ( mbminmaxlen )

Value:

((ulint) \
                                    UNIV_EXPECT(((mbminmaxlen) % DATA_MBMAX), \
                                                1))

Definition at line 167 of file data0type.h.

#define DATA_MTYPE_MAX

Value:

63 /* dtype_store_for_order_and_null_size()

requires the values are <= 63 */

Definition at line 71 of file data0type.h.

#define DATA_MYSQL_TRUE_VARCHAR

Value:

15 /* MySQL type code for the >= 5.0.3

format true VARCHAR */

Definition at line 120 of file data0type.h.

#define DATA_MYSQL_TYPE_MASK

Value:

255 /* AND with this mask to extract the MySQL

type from the precise type */

Definition at line 119 of file data0type.h.

#define DATA_NOT_NULL

Value:

256 /* this is ORed to the precise type when

the column is declared as NOT NULL */

Definition at line 141 of file data0type.h.

#define DATA_UNSIGNED

Value:

512 /* this id ORed to the precise type when

we have an unsigned integer type */

Definition at line 142 of file data0type.h.

#define DATA_VARCHAR

Value:

1       /* character varying of the
                                latin1_swedish_ci charset-collation; note
                                that the MySQL format for this, DATA_BINARY,
                                DATA_VARMYSQL, is also affected by whether the
                                'precise type' contains
                                DATA_MYSQL_TRUE_VARCHAR */

Definition at line 50 of file data0type.h.

Function Documentation

UNIV_INLINE void dtype_copy	(	dtype_t *	type1,
		const dtype_t *	type2
	)

Copies a data type structure. in: type struct to copy from

Parameters

type1 in: type struct to copy to

UNIV_INTERN ulint dtype_form_prtype	(	ulint	old_prtype,
		ulint	charset_coll
	)

Forms a precise type from the < 4.1.2 format precise type plus the charset-collation code.

Returns: precise type, including the charset-collation code in: MySQL charset-collation code

Forms a precise type from the < 4.1.2 format precise type plus the charset-collation code.

Returns: precise type, including the charset-collation code

Parameters

old_prtype	in: the MySQL type code and the flags DATA_BINARY_TYPE etc.
charset_coll	in: MySQL charset-collation code

Definition at line 154 of file data0type.cc.

Here is the caller graph for this function:

UNIV_INTERN ulint dtype_get_at_most_n_mbchars	(	ulint	prtype,
		ulint	mbminmaxlen,
		ulint	prefix_len,
		ulint	data_len,
		const char *	str
	)

Determine how many bytes the first n characters of the given string occupy. If the string is shorter than n characters, returns the number of bytes the characters in the string occupy.

Returns: length of the prefix, in bytes in: the string whose prefix length is being determined

Determine how many bytes the first n characters of the given string occupy. If the string is shorter than n characters, returns the number of bytes the characters in the string occupy.

Returns: length of the prefix, in bytes

Parameters

prtype	in: precise type
mbminmaxlen	in: minimum and maximum length of a multi-byte character
prefix_len	in: length of the requested prefix, in characters, multiplied by dtype_get_mbmaxlen(dtype)
data_len	in: length of str (in bytes)
str	in: the string whose prefix length is being determined

Definition at line 49 of file data0type.cc.

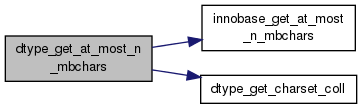

Here is the call graph for this function:

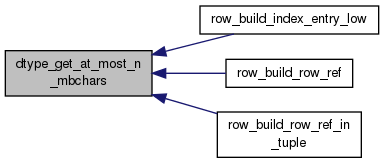

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_charset_coll ( ulint prtype )

Gets the MySQL charset-collation code for MySQL string types.

Returns: MySQL charset-collation code in: precise data type

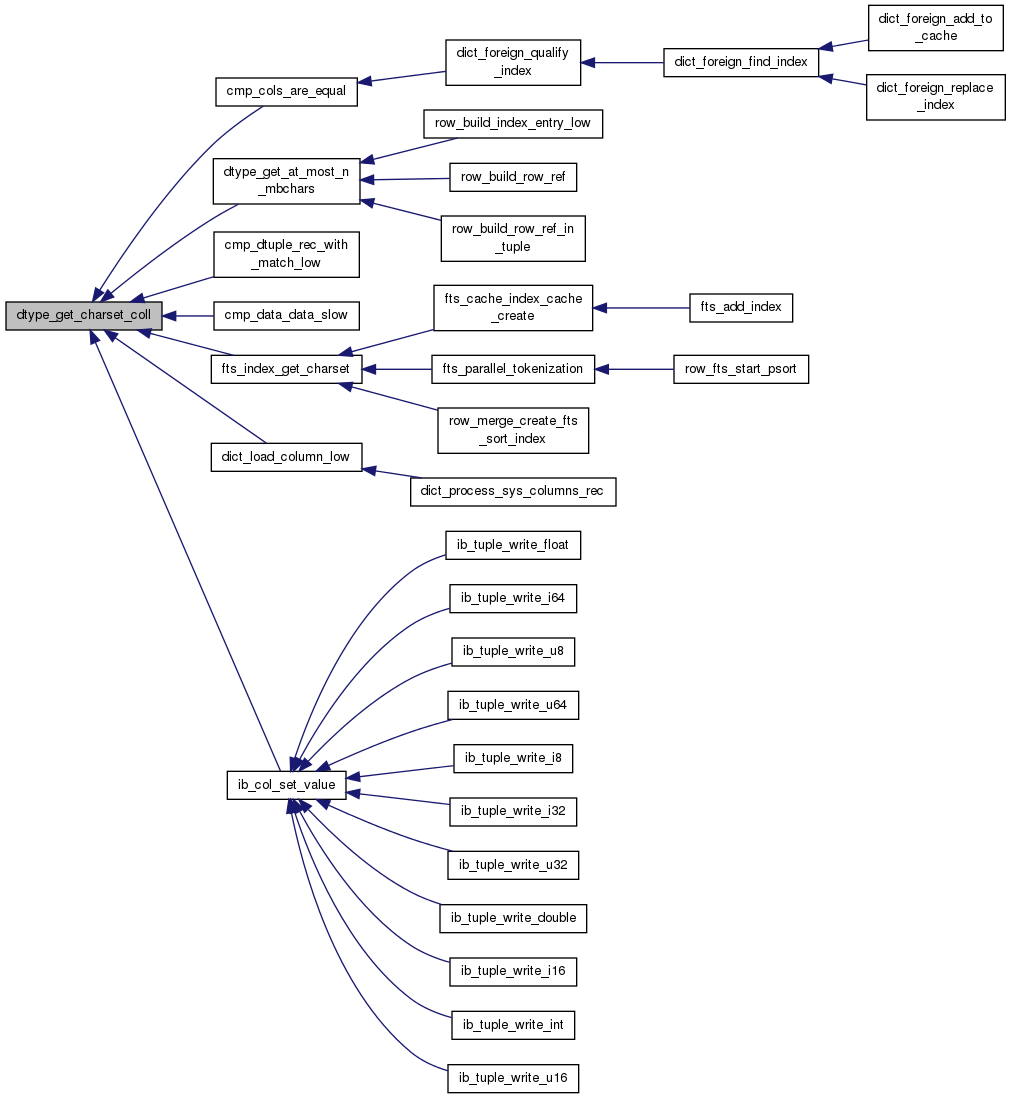

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_fixed_size_low	(	ulint	mtype,
		ulint	prtype,
		ulint	len,
		ulint	mbminmaxlen,
		ulint	comp
	)

Returns the size of a fixed size data type, 0 if not a fixed size type.

Returns: fixed size, or 0 in: nonzero=ROW_FORMAT=COMPACT

Parameters

mtype	in: main type
prtype	in: precise type
len	in: length
mbminmaxlen	in: minimum and maximum length of a multibyte character, in bytes

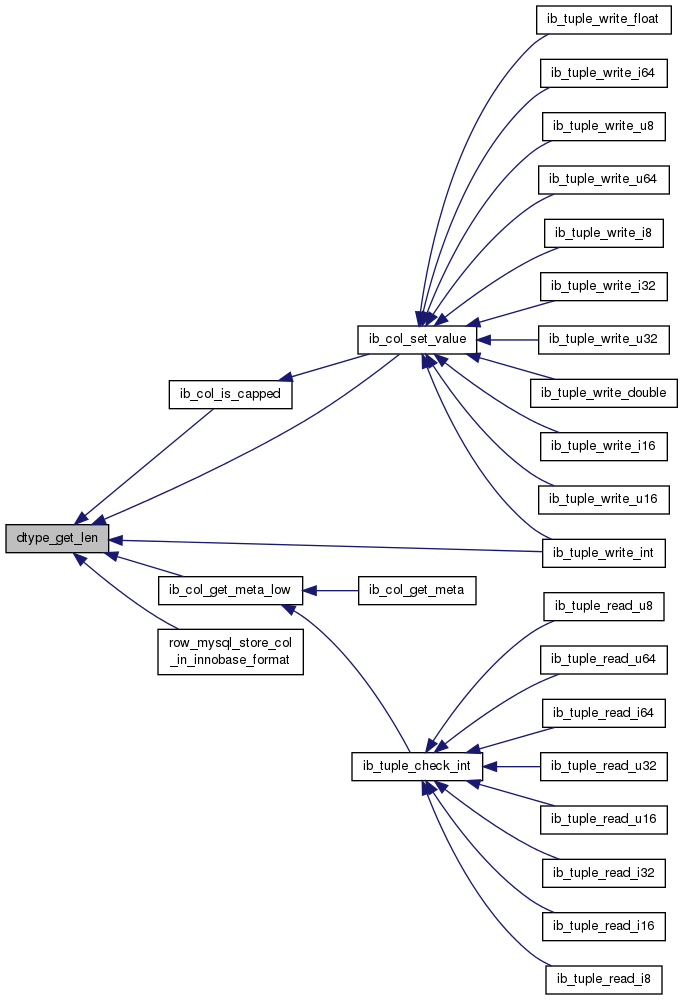

UNIV_INLINE ulint dtype_get_len ( const dtype_t * type )

Gets the type length.

Returns: fixed length of the type, in bytes, or 0 if variable-length in: data type

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_max_size_low	(	ulint	mtype,
		ulint	len
	)

Returns the maximum size of a data type. Note: types in system tables may be incomplete and return incorrect information.

Returns: maximum size in: length

Parameters

mtype in: main type

UNIV_INLINE void dtype_get_mblen	(	ulint	mtype,
		ulint	prtype,
		ulint *	mbminlen,
		ulint *	mbmaxlen
	)

Compute the mbminlen and mbmaxlen members of a data type structure. out: maximum length of a multi-byte character

Parameters

mtype	in: main type
prtype	in: precise type (and collation)
mbminlen	out: minimum length of a multi-byte character

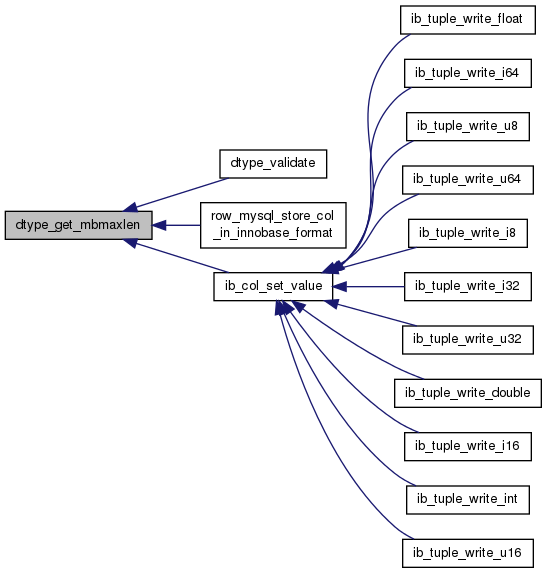

UNIV_INLINE ulint dtype_get_mbmaxlen ( const dtype_t * type )

Gets the maximum length of a character, in bytes.

Returns: maximum length of a char, in bytes, or 0 if this is not a character type in: type

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_mbminlen ( const dtype_t * type )

Gets the minimum length of a character, in bytes.

Returns: minimum length of a char, in bytes, or 0 if this is not a character type in: type

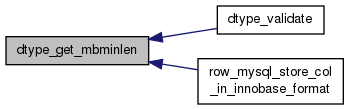

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_min_size_low	(	ulint	mtype,
		ulint	prtype,
		ulint	len,
		ulint	mbminmaxlen
	)

Returns the minimum size of a data type.

Returns: minimum size in: minimum and maximum length of a multibyte character

Parameters

mtype	in: main type
prtype	in: precise type
len	in: length

UNIV_INLINE ulint dtype_get_mtype ( const dtype_t * type )

Gets the SQL main data type.

Returns: SQL main data type in: data type

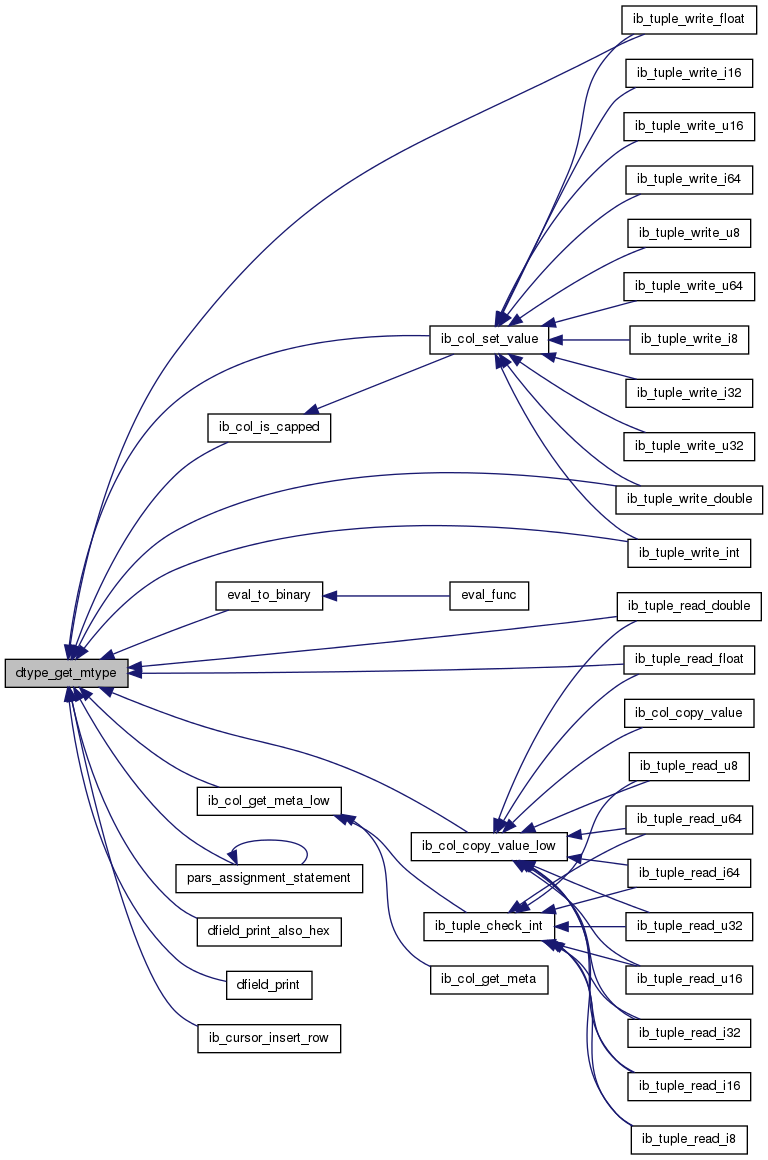

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_mysql_type ( const dtype_t * type )

Gets the MySQL type code from a dtype.

Returns: MySQL type code; this is NOT an InnoDB type code! in: type struct

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_pad_char	(	ulint	mtype,
		ulint	prtype
	)

Gets the padding character code for the type.

Returns: padding character code, or ULINT_UNDEFINED if no padding specified in: precise type

Parameters

mtype in: main type

Here is the caller graph for this function:

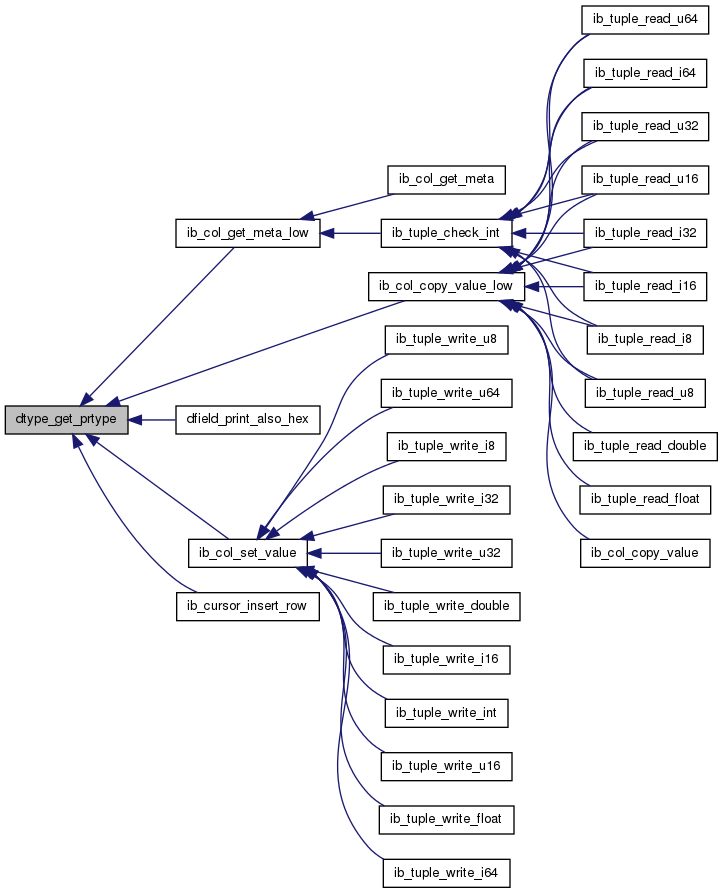

UNIV_INLINE ulint dtype_get_prtype ( const dtype_t * type )

Gets the precise data type.

Returns: precise data type in: data type

Here is the caller graph for this function:

UNIV_INLINE ulint dtype_get_sql_null_size	(	const dtype_t *	type,
		ulint	comp
	)

Returns the ROW_FORMAT=REDUNDANT stored SQL NULL size of a type. For fixed length types it is the fixed length of the type, otherwise 0.

Returns: SQL null storage size in ROW_FORMAT=REDUNDANT in: nonzero=ROW_FORMAT=COMPACT

Parameters

type in: type

Here is the caller graph for this function:

UNIV_INTERN ibool dtype_is_binary_string_type	(	ulint	mtype,
		ulint	prtype
	)

Checks if a type is a binary string type. Note that for tables created with < 4.0.14, we do not know if a DATA_BLOB column is a BLOB or a TEXT column. For those DATA_BLOB columns this function currently returns FALSE.

Returns: TRUE if binary string type in: precise type

Checks if a type is a binary string type. Note that for tables created with < 4.0.14, we do not know if a DATA_BLOB column is a BLOB or a TEXT column. For those DATA_BLOB columns this function currently returns FALSE.

Returns: TRUE if binary string type

Parameters

mtype	in: main data type
prtype	in: precise type

Definition at line 111 of file data0type.cc.

Here is the caller graph for this function:

UNIV_INTERN ibool dtype_is_non_binary_string_type	(	ulint	mtype,
		ulint	prtype
	)

Checks if a type is a non-binary string type. That is, dtype_is_string_type is TRUE and dtype_is_binary_string_type is FALSE. Note that for tables created with < 4.0.14, we do not know if a DATA_BLOB column is a BLOB or a TEXT column. For those DATA_BLOB columns this function currently returns TRUE.

Returns: TRUE if non-binary string type in: precise type

Checks if a type is a non-binary string type. That is, dtype_is_string_type is TRUE and dtype_is_binary_string_type is FALSE. Note that for tables created with < 4.0.14, we do not know if a DATA_BLOB column is a BLOB or a TEXT column. For those DATA_BLOB columns this function currently returns TRUE.

Returns: TRUE if non-binary string type

Parameters

mtype	in: main data type
prtype	in: precise type

Definition at line 134 of file data0type.cc.

Here is the call graph for this function:

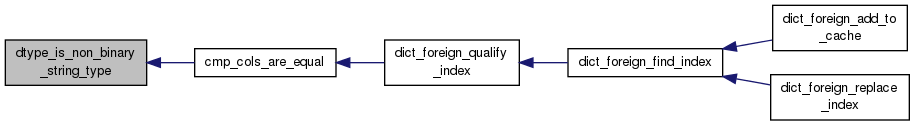

Here is the caller graph for this function:

UNIV_INTERN ibool dtype_is_string_type ( ulint mtype )

Checks if a data main type is a string type. Also a BLOB is considered a string type.

Returns: TRUE if string type in: InnoDB main data type code: DATA_CHAR, ...

Checks if a data main type is a string type. Also a BLOB is considered a string type.

Returns: TRUE if string type

Parameters

mtype in: InnoDB main data type code: DATA_CHAR, ...

Definition at line 90 of file data0type.cc.

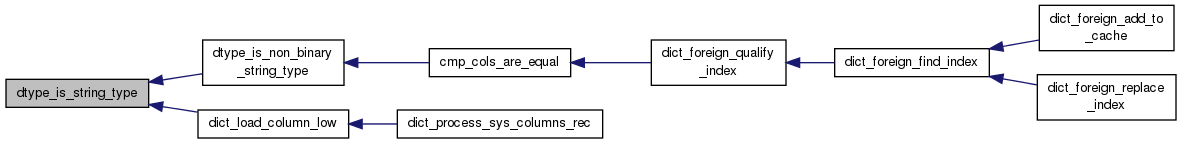

Here is the caller graph for this function:

UNIV_INLINE ibool dtype_is_utf8 ( ulint prtype )

Determines if a MySQL string type is a subset of UTF-8. This function may return false negatives, in case further character-set collation codes are introduced in MySQL later.

Returns: TRUE if a subset of UTF-8 in: precise data type

UNIV_INLINE void dtype_new_read_for_order_and_null_size	(	dtype_t *	type,
		const byte *	buf
	)

Reads to a type the stored information which determines its alphabetical ordering and the storage size of an SQL NULL value. This is the 4.1.x storage format. in: buffer for stored type order info

Parameters

type	in: type struct

Here is the caller graph for this function:

UNIV_INLINE void dtype_new_store_for_order_and_null_size	(	byte *	buf,
		const dtype_t *	type,
		ulint	prefix_len
	)

Stores for a type the information which determines its alphabetical ordering and the storage size of an SQL NULL value. This is the >= 4.1.x storage format. in: prefix length to replace type->len, or 0

Parameters

buf	in: buffer for DATA_NEW_ORDER_NULL_TYPE_BUF_SIZE bytes where we store the info
type	in: type struct

UNIV_INTERN void dtype_print ( const dtype_t * type )

Prints a data type structure. in: type

Prints a data type structure.

Parameters

type in: type

Definition at line 195 of file data0type.cc.

UNIV_INLINE void dtype_read_for_order_and_null_size	(	dtype_t *	type,
		const byte *	buf
	)

Reads to a type the stored information which determines its alphabetical ordering and the storage size of an SQL NULL value. in: buffer for the stored order info

Parameters

type	in: type struct

UNIV_INLINE void dtype_set	(	dtype_t *	type,
		ulint	mtype,
		ulint	prtype,
		ulint	len
	)

Sets a data type structure. in: precision of type

Parameters

type	in: type struct to init
mtype	in: main data type
prtype	in: precise type

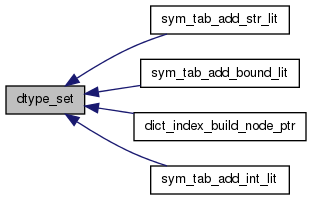

Here is the caller graph for this function:

UNIV_INLINE void dtype_set_mbminmaxlen	(	dtype_t *	type,
		ulint	mbminlen,
		ulint	mbmaxlen
	)

Sets the minimum and maximum length of a character, in bytes. in: maximum length of a char, in bytes, or 0 if this is not a character type

Parameters

type	in/out: type
mbminlen	in: minimum length of a char, in bytes, or 0 if this is not a character type

UNIV_INLINE char* dtype_sql_name	(	unsigned	mtype,
		unsigned	prtype,
		unsigned	len,
		char *	name,
		unsigned	name_sz
	)

Returns the type's SQL name (e.g. BIGINT UNSIGNED) from mtype,prtype,len

Returns: the SQL type name in: size of the name buffer

Parameters

mtype	in: mtype
prtype	in: prtype
len	in: len
name	out: SQL name

Here is the caller graph for this function:

UNIV_INTERN ibool dtype_validate ( const dtype_t * type )

Validates a data type structure.

Returns: TRUE if ok in: type struct to validate

Validates a data type structure.

Returns: TRUE if ok

Parameters

type	in: type struct to validate

Definition at line 171 of file data0type.cc.

Here is the call graph for this function:

Classes

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

Function Documentation
