Inheritance diagram for com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >:

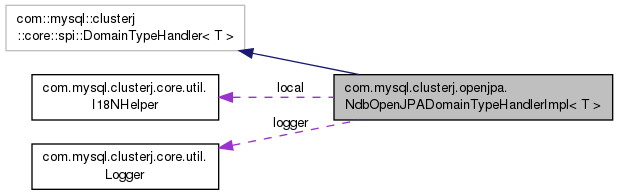

Collaboration diagram for com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >:

Classes
enum	Status

Public Member Functions
String	getName ()
Class<?>	getOidClass ()
String	getTableName ()
DomainFieldHandler	getFieldHandler (String fieldName)
Class< T >	getProxyClass ()
T	newInstance ()
void	objectMarkModified (ValueHandler handler, String fieldName)
void	objectSetKeys (Object keys, Object instance)
void	objectSetValues (ResultData rs, ValueHandler handler)
void	objectSetValuesExcept (ResultData rs, ValueHandler handler, String indexName)
void	objectSetCacheManager (CacheManager cm, Object instance)
void	objectResetModified (ValueHandler handler)
void	operationGetValues (Operation op)
void	operationGetKeys (Operation op)
void	operationGetValues (Operation op, BitSet fields)
void	operationSetKeys (ValueHandler handler, Operation op)
void	operationSetModifiedValues (ValueHandler handler, Operation op)
void	operationSetValuesExcept (ValueHandler handler, Operation op, String index)
void	operationSetModifiedNonPKValues (ValueHandler handler, Operation op)
T	getInstance (ValueHandler handler)
ValueHandler	createKeyValueHandler (Object keys)
ValueHandler	getValueHandler (Object instance)
ValueHandler	getValueHandler (OpenJPAStateManager sm, NdbOpenJPAStoreManager store)
int[]	getKeyFieldNumbers ()
void	newInstance (OpenJPAStateManager sm)
CandidateIndexImpl[]	createCandidateIndexes ()
boolean	load (OpenJPAStateManager sm, NdbOpenJPAStoreManager store, BitSet fields, JDBCFetchConfiguration fetch, Object context) throws SQLException
void	load (OpenJPAStateManager sm, NdbOpenJPAStoreManager store, JDBCFetchConfiguration fetch, NdbOpenJPAResult result) throws SQLException
Set < com.mysql.clusterj.core.store.Column >	getStoreColumns (BitSet fields)
NdbOpenJPADomainFieldHandlerImpl	getDomainFieldHandler (FieldMapping fm)
int[][]	createIndexHandler (NdbOpenJPADomainFieldHandlerImpl fieldHandler, Dictionary dictionary, String indexName)
com.mysql.clusterj.core.store.Table	getTable ()
Table	getStoreTable ()
PartitionKey	createPartitionKey (ValueHandler handler)
NdbOpenJPADomainTypeHandlerImpl<?>	registerDependency (ClassMapping mapping)
void	initializeRelations ()
boolean	isSupportedType ()
String	getReasons ()
String	toString ()
String[]	getFieldNames ()
void	operationSetValues (ValueHandler valueHandler, Operation op)
void	operationSetNonPKValues (ValueHandler valueHandler, Operation op)

Protected Member Functions
void	registerPrimaryKeyColumn (NdbOpenJPADomainFieldHandlerImpl fmd, String columnName)

Detailed Description

Definition at line 55 of file NdbOpenJPADomainTypeHandlerImpl.java.

Member Function Documentation

CandidateIndexImpl [] com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.createCandidateIndexes ( )

inline

Create a list of candidate indexes to evaluate query terms and decide what type of scan to use.

Returns: a new array of CandidateIndexImpl

Definition at line 419 of file NdbOpenJPADomainTypeHandlerImpl.java.

int [][] com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.createIndexHandler	(	NdbOpenJPADomainFieldHandlerImpl	fieldHandler,
		Dictionary	dictionary,
		String	indexName
	)

inline

Register an index from a field and return a special int[][] that contains all indexHandlerImpls in which the field participates. One index can be defined in the field annotation and this index is identified here. This method is called by the FieldHandler constructor after the Index annotation is processed and the mapped column name is known. TODO: Currently, only one index is supported per field.

Parameters

fieldHandler	the FieldHandler
indexName	the index name
dictionary	the dictionary used to validate index metadata

Returns: the array of array identifying the indexes into the IndexHandler list and columns in the IndexHandler corresponding to the field

Definition at line 537 of file NdbOpenJPADomainTypeHandlerImpl.java.

PartitionKey com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.createPartitionKey ( ValueHandler handler )

inline

Create a partition key for any operation that knows the primary key.

Parameters

handler the handler that contains the values of the primary key

Definition at line 559 of file NdbOpenJPADomainTypeHandlerImpl.java.

NdbOpenJPADomainFieldHandlerImpl com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.getDomainFieldHandler ( FieldMapping fm )

inline

Get the DomainFieldHandler for the related field.

Parameters

fm	the related field mapping

Returns: the DomainFieldHandler

Definition at line 513 of file NdbOpenJPADomainTypeHandlerImpl.java.

Set<com.mysql.clusterj.core.store.Column> com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.getStoreColumns ( BitSet fields )

inline

Get StoreColumns for fields identified by the BitSet

Definition at line 492 of file NdbOpenJPADomainTypeHandlerImpl.java.

boolean com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.load	(	OpenJPAStateManager	sm,
		NdbOpenJPAStoreManager	store,
		BitSet	fields,
		JDBCFetchConfiguration	fetch,
		Object	context
	)		throws SQLException

inline

Load the fields for the persistent instance owned by the sm.

Parameters

sm	the StateManager
store	the StoreManager
fields	the fields to load
fetch	the FetchConfiguration

Returns: true if any field was loaded

Definition at line 435 of file NdbOpenJPADomainTypeHandlerImpl.java.

Here is the call graph for this function:

void com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.load	(	OpenJPAStateManager	sm,
		NdbOpenJPAStoreManager	store,
		JDBCFetchConfiguration	fetch,
		NdbOpenJPAResult	result
	)		throws SQLException

inline

Load the fields for the persistent instance owned by the sm. This is the normal way for fields to be loaded into the instance from a result.

Parameters

sm	the StateManager
store	the StoreManager
fetch	the FetchConfiguration

Definition at line 480 of file NdbOpenJPADomainTypeHandlerImpl.java.

void com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.operationGetKeys ( Operation op )

inline

Specify that the key columns are to be returned in the result.

Parameters

op	the operation

Definition at line 293 of file NdbOpenJPADomainTypeHandlerImpl.java.

void com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.operationGetValues	(	Operation	op,
		BitSet	fields
	)

inline

Specify the fields to be returned in the result.

Parameters

op	the operation
fields	the fields to be returned by the operation

Definition at line 303 of file NdbOpenJPADomainTypeHandlerImpl.java.

NdbOpenJPADomainTypeHandlerImpl<?> com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.registerDependency ( ClassMapping mapping )

inline

Register a dependency on another class. If the class is not already known, add it to the list of dependencies.

Definition at line 575 of file NdbOpenJPADomainTypeHandlerImpl.java.

Here is the call graph for this function:

void com.mysql.clusterj.openjpa.NdbOpenJPADomainTypeHandlerImpl< T >.registerPrimaryKeyColumn	(	NdbOpenJPADomainFieldHandlerImpl	fmd,
		String	columnName
	)

inlineprotected

Register a primary key column field. This is used to associate primary key and partition key column names with field handlers. This method is called by the NdbOpenJPADomainFieldHandlerImpl constructor after the mapped column name is known. It is only called by fields that are mapped to primary key columns.

Parameters

fmd	the field handler instance calling us
columnName	the name of the column

Definition at line 209 of file NdbOpenJPADomainTypeHandlerImpl.java.

The documentation for this class was generated from the following file:

storage/ndb/clusterj/clusterj-openjpa/src/main/java/com/mysql/clusterj/openjpa/NdbOpenJPADomainTypeHandlerImpl.java
