#include <TransporterRegistry.hpp>

Inheritance diagram for TransporterRegistry:

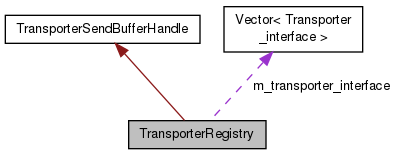

Collaboration diagram for TransporterRegistry:

Classes
struct	ErrorState
struct	SendBuffer
struct	SendBufferPage
class	Transporter_interface

Public Types
enum	PerformState { CONNECTED = 0, CONNECTING = 1, DISCONNECTED = 2, DISCONNECTING = 3 }

Public Member Functions
	TransporterRegistry (TransporterCallback *callback, bool use_default_send_buffer=true, unsigned maxTransporters=MAX_NTRANSPORTERS, unsigned sizeOfLongSignalMemory=100)
void	set_mgm_handle (NdbMgmHandle h)
NdbMgmHandle	get_mgm_handle (void)
bool	init (NodeId localNodeId)
bool	connect_server (NDB_SOCKET_TYPE sockfd, BaseString &errormsg) const
bool	connect_client (NdbMgmHandle *h)
NDB_SOCKET_TYPE	connect_ndb_mgmd (SocketClient *sc)
NDB_SOCKET_TYPE	connect_ndb_mgmd (NdbMgmHandle *h)
void	removeAll ()
void	disconnectAll ()
virtual	~TransporterRegistry ()
bool	start_service (SocketServer &server)
struct NdbThread *	start_clients ()
bool	stop_clients ()
void	start_clients_thread ()

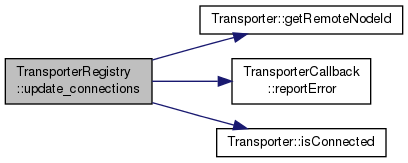

void	update_connections ()
void	startReceiving ()
void	stopReceiving ()
void	startSending ()
void	stopSending ()
const char *	getPerformStateString (NodeId nodeId) const
PerformState	getPerformState (NodeId nodeId) const
void	do_connect (NodeId node_id)
void	do_disconnect (NodeId node_id, int errnum=0)
bool	is_connected (NodeId node_id)
void	report_connect (NodeId node_id)
void	report_disconnect (NodeId node_id, int errnum)
void	report_error (NodeId nodeId, TransporterError errorCode, const char *errorInfo=0)
IOState	ioState (NodeId nodeId)
void	setIOState (NodeId nodeId, IOState state)
bool	configureTransporter (TransporterConfiguration *config)
void	allocate_send_buffers (Uint64 total_send_buffer)
Uint64	get_total_max_send_buffer ()
bool	get_using_default_send_buffer () const
void	set_status_overloaded (Uint32 nodeId, bool val)
const NodeBitmask &	get_status_overloaded () const
SendStatus	prepareSend (TransporterSendBufferHandle sendHandle, const SignalHeader const signalHeader, Uint8 prio, const Uint32 *const signalData, NodeId nodeId, const LinearSectionPtr ptr[3])
SendStatus	prepareSend (TransporterSendBufferHandle sendHandle, const SignalHeader const signalHeader, Uint8 prio, const Uint32 *const signalData, NodeId nodeId, class SectionSegmentPool &pool, const SegmentedSectionPtr ptr[3])
SendStatus	prepareSend (TransporterSendBufferHandle sendHandle, const SignalHeader const signalHeader, Uint8 prio, const Uint32 *const signalData, NodeId nodeId, const GenericSectionPtr ptr[3])
SendStatus	prepareSend (const SignalHeader const signalHeader, Uint8 prio, const Uint32 const signalData, NodeId nodeId, const LinearSectionPtr ptr[3])
SendStatus	prepareSend (const SignalHeader const signalHeader, Uint8 prio, const Uint32 const signalData, NodeId nodeId, class SectionSegmentPool &pool, const SegmentedSectionPtr ptr[3])
SendStatus	prepareSend (const SignalHeader const signalHeader, Uint8 prio, const Uint32 const signalData, NodeId nodeId, const GenericSectionPtr ptr[3])
void	external_IO (Uint32 timeOutMillis)
Uint32	pollReceive (Uint32 timeOutMillis)
Uint32	pollReceive (Uint32 timeOutMillis, NodeBitmask &mask)
void	performReceive ()
int	performSend (NodeId nodeId)
void	performSend ()
int	forceSendCheck (int sendLimit)
void	add_transporter_interface (NodeId remoteNodeId, const char *interf, int s_port)
Transporter *	get_transporter (NodeId nodeId)
struct in_addr	get_connect_address (NodeId node_id) const
bool	setup_wakeup_socket ()
void	wakeup ()
Uint32	get_bytes_to_send_iovec (NodeId node, struct iovec *dst, Uint32 max)
Uint32	bytes_sent (NodeId node, Uint32 bytes)
bool	has_data_to_send (NodeId node)
void	reset_send_buffer (NodeId node, bool should_be_empty)
void	print_transporters (const char *where, NdbOut &out=ndbout)

Public Attributes
Vector< Transporter_interface >	m_transporter_interface

Friends
class	SHM_Transporter
class	SHM_Writer
class	Transporter
class	TransporterService

Additional Inherited Members
Private Member Functions inherited from TransporterSendBufferHandle
virtual Uint32 *	getWritePtr (NodeId node, Uint32 lenBytes, Uint32 prio, Uint32 max_use)=0
virtual Uint32	updateWritePtr (NodeId node, Uint32 lenBytes, Uint32 prio)=0
virtual bool	forceSend (NodeId node)=0

Detailed Description

...

Definition at line 91 of file TransporterRegistry.hpp.

Constructor & Destructor Documentation

TransporterRegistry::TransporterRegistry	(	TransporterCallback *	callback,
		bool	use_default_send_buffer = `true`,
		unsigned	maxTransporters = `MAX_NTRANSPORTERS`,
		unsigned	sizeOfLongSignalMemory = `100`
	)

Constructor

Definition at line 77 of file TransporterRegistry.cpp.

TransporterRegistry::~TransporterRegistry ( )

virtual

Stops the server, disconnects all the transporter and deletes them and remove it from the transporter arrays

Definition at line 237 of file TransporterRegistry.cpp.

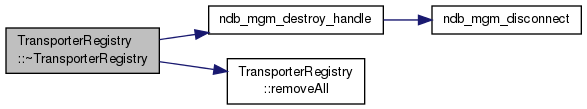

Here is the call graph for this function:

Member Function Documentation

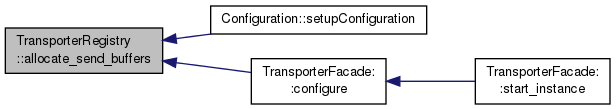

void TransporterRegistry::allocate_send_buffers ( Uint64 total_send_buffer )

Allocate send buffer for default send buffer handling.

Upper layer that implements their own TransporterSendBufferHandle do not use this, instead they manage their own send buffers.

Argument is the value of config parameter TotalSendBufferMemory. If 0, a default will be used of sum(max send buffer) over all transporters.

Definition at line 160 of file TransporterRegistry.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

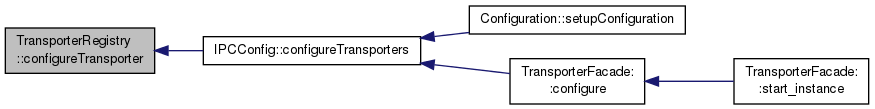

bool TransporterRegistry::configureTransporter ( TransporterConfiguration * config )

configureTransporter

Configure a transporter, ie. create new if it does not exist otherwise try to reconfigure it

Definition at line 416 of file TransporterRegistry.cpp.

Here is the caller graph for this function:

NDB_SOCKET_TYPE TransporterRegistry::connect_ndb_mgmd ( SocketClient * sc )

Given a SocketClient, creates a NdbMgmHandle, turns it into a transporter and returns the socket.

Set connectstring

Definition at line 2104 of file TransporterRegistry.cpp.

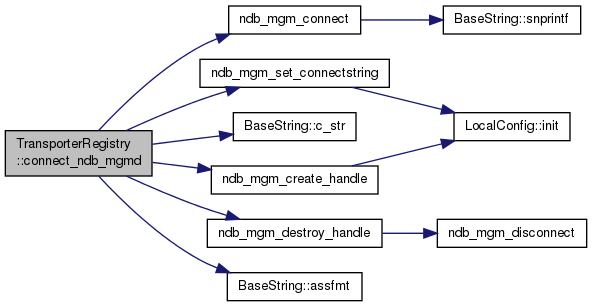

Here is the call graph for this function:

Here is the caller graph for this function:

NDB_SOCKET_TYPE TransporterRegistry::connect_ndb_mgmd ( NdbMgmHandle * h )

Given a connected NdbMgmHandle, turns it into a transporter and returns the socket.

convert_to_transporter also disposes of the handle (i.e. we don't leak memory here.

Definition at line 2046 of file TransporterRegistry.cpp.

Here is the call graph for this function:

bool TransporterRegistry::connect_server	(	NDB_SOCKET_TYPE	sockfd,
		BaseString &	errormsg
	)		const

Handle the handshaking with a new client connection on the server port. NOTE! Connection should be closed if function returns false

Definition at line 309 of file TransporterRegistry.cpp.

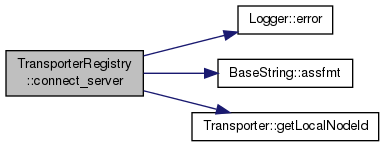

Here is the call graph for this function:

Here is the caller graph for this function:

void TransporterRegistry::disconnectAll ( )

Disconnect all transporters

Definition at line 284 of file TransporterRegistry.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void TransporterRegistry::do_connect ( NodeId node_id )

Get and set methods for PerformState

This method is used to initiate connection, called from the CMVMI blockx.

This works asynchronously, no actions are taken directly in the calling thread.

Definition at line 1527 of file TransporterRegistry.cpp.

Here is the call graph for this function:

void TransporterRegistry::do_disconnect	(	NodeId	node_id,
		int	errnum = `0`
	)

This method is used to initiate disconnect from CMVMI. It is also called from the TCP transporter in case of an I/O error on the socket.

This works asynchronously, similar to do_connect().

Definition at line 1560 of file TransporterRegistry.cpp.

void TransporterRegistry::external_IO ( Uint32 timeOutMillis )

external_IO

Equal to: poll(...); perform_IO()

Definition at line 881 of file TransporterRegistry.cpp.

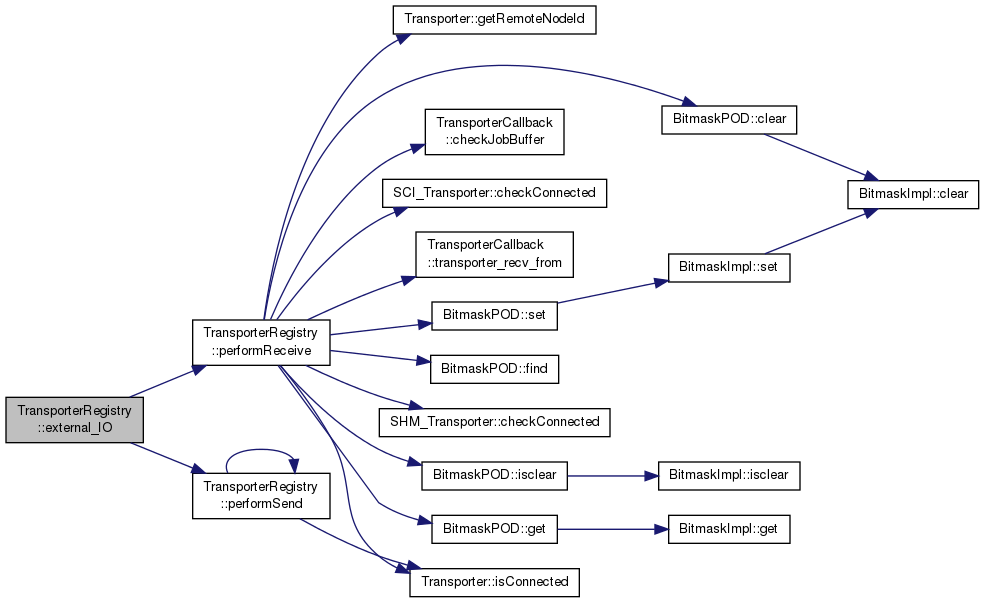

Here is the call graph for this function:

int TransporterRegistry::forceSendCheck ( int sendLimit )

Force sending if more than or equal to sendLimit number have asked for send. Returns 0 if not sending and 1 if sending.

Definition at line 1418 of file TransporterRegistry.cpp.

Here is the call graph for this function:

Uint64 TransporterRegistry::get_total_max_send_buffer ( )

inline

Get sum of max send buffer over all transporters, to be used as a default for allocate_send_buffers eg.

Must be called after creating all transporters for returned value to be correct.

Definition at line 236 of file TransporterRegistry.hpp.

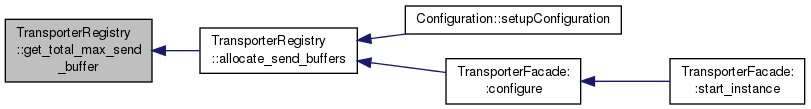

Here is the caller graph for this function:

IOState TransporterRegistry::ioState ( NodeId nodeId )

Get and set methods for IOState

Definition at line 1498 of file TransporterRegistry.cpp.

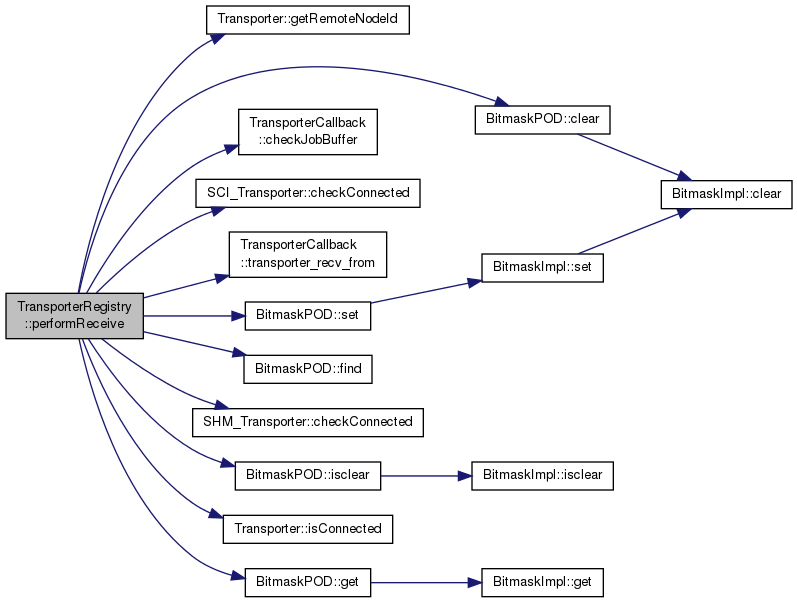

void TransporterRegistry::performReceive ( )

In multi-threaded cases, this must be protected by a global receive lock.

Definition at line 1231 of file TransporterRegistry.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

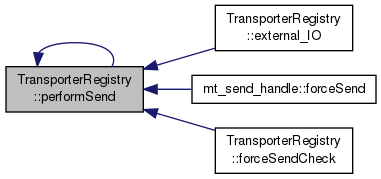

int TransporterRegistry::performSend ( NodeId nodeId )

In multi-threaded cases, this must be protected by send lock (can use different locks for each node).

Definition at line 1331 of file TransporterRegistry.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Uint32 TransporterRegistry::pollReceive	(	Uint32	timeOutMillis,
		NodeBitmask &	mask
	)

If any transporters have left-over data that was not fully executed in last loop, don't wait and return 'data available' even if nothing new

Definition at line 955 of file TransporterRegistry.cpp.

Here is the call graph for this function:

SendStatus TransporterRegistry::prepareSend	(	TransporterSendBufferHandle *	sendHandle,
		const SignalHeader *const	signalHeader,
		Uint8	prio,
		const Uint32 *const	signalData,
		NodeId	nodeId,
		const LinearSectionPtr	ptr[3]
	)

prepareSend

When IOState is HaltOutput or HaltIO do not send or insert any signals in the SendBuffer, unless it is intended for the remote CMVMI block (blockno 252) Perform prepareSend on the transporter.

NOTE signalHeader->xxxBlockRef should contain block numbers and not references

Note: : on linux/i386 the granularity is 10ms so sleepTime = 2 generates a 10 ms sleep.

Send buffer full, but resend works

Definition at line 643 of file TransporterRegistry.cpp.

Here is the call graph for this function:

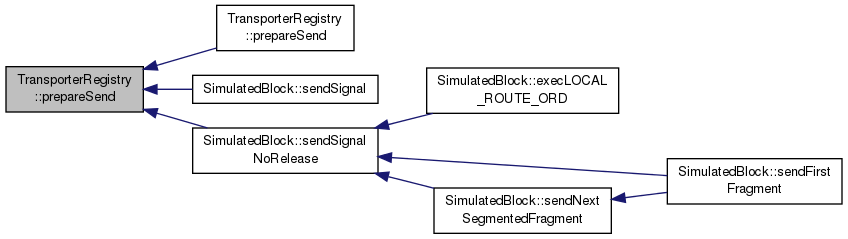

Here is the caller graph for this function:

SendStatus TransporterRegistry::prepareSend	(	TransporterSendBufferHandle *	sendHandle,
		const SignalHeader *const	signalHeader,
		Uint8	prio,
		const Uint32 *const	signalData,
		NodeId	nodeId,
		class SectionSegmentPool &	pool,
		const SegmentedSectionPtr	ptr[3]
	)

Note: : on linux/i386 the granularity is 10ms so sleepTime = 2 generates a 10 ms sleep.

Send buffer full, but resend works

Definition at line 725 of file TransporterRegistry.cpp.

Here is the call graph for this function:

SendStatus TransporterRegistry::prepareSend	(	TransporterSendBufferHandle *	sendHandle,
		const SignalHeader *const	signalHeader,
		Uint8	prio,
		const Uint32 *const	signalData,
		NodeId	nodeId,
		const GenericSectionPtr	ptr[3]
	)

Note: : on linux/i386 the granularity is 10ms so sleepTime = 2 generates a 10 ms sleep.

Send buffer full, but resend works

Definition at line 809 of file TransporterRegistry.cpp.

Here is the call graph for this function:

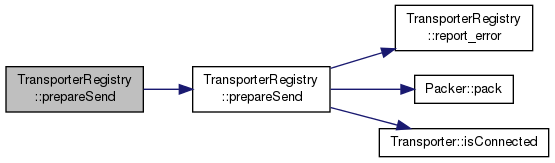

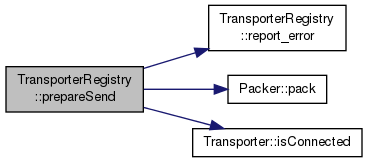

SendStatus TransporterRegistry::prepareSend	(	const SignalHeader *const	signalHeader,
		Uint8	prio,
		const Uint32 *const	signalData,
		NodeId	nodeId,
		const LinearSectionPtr	ptr[3]
	)

inline

Backwards compatiple methods with default send buffer handling.

Definition at line 278 of file TransporterRegistry.hpp.

Here is the call graph for this function:

void TransporterRegistry::removeAll ( )

Remove all transporters

Definition at line 276 of file TransporterRegistry.cpp.

Here is the caller graph for this function:

void TransporterRegistry::report_error	(	NodeId	nodeId,
		TransporterError	errorCode,
		const char *	errorInfo = `0`
	)

We only call TransporterCallback::reportError() from TransporterRegistry::update_connections().

In other places we call this method to enqueue the error that will later be picked up by update_connections().

Definition at line 1643 of file TransporterRegistry.cpp.

Here is the caller graph for this function:

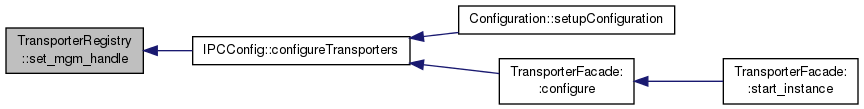

void TransporterRegistry::set_mgm_handle ( NdbMgmHandle h )

this handle will be used in the client connect thread to fetch information on dynamic ports. The old handle (if set) is destroyed, and this is destroyed by the destructor

Definition at line 215 of file TransporterRegistry.cpp.

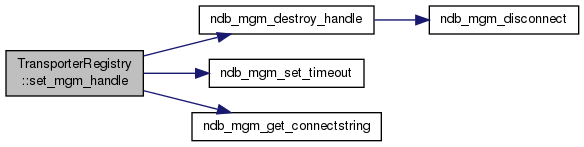

Here is the call graph for this function:

Here is the caller graph for this function:

void TransporterRegistry::set_status_overloaded	(	Uint32	nodeId,
		bool	val
	)

inline

Set or clear overloaded bit. Query if any overloaded bit is set.

Definition at line 534 of file TransporterRegistry.hpp.

Here is the call graph for this function:

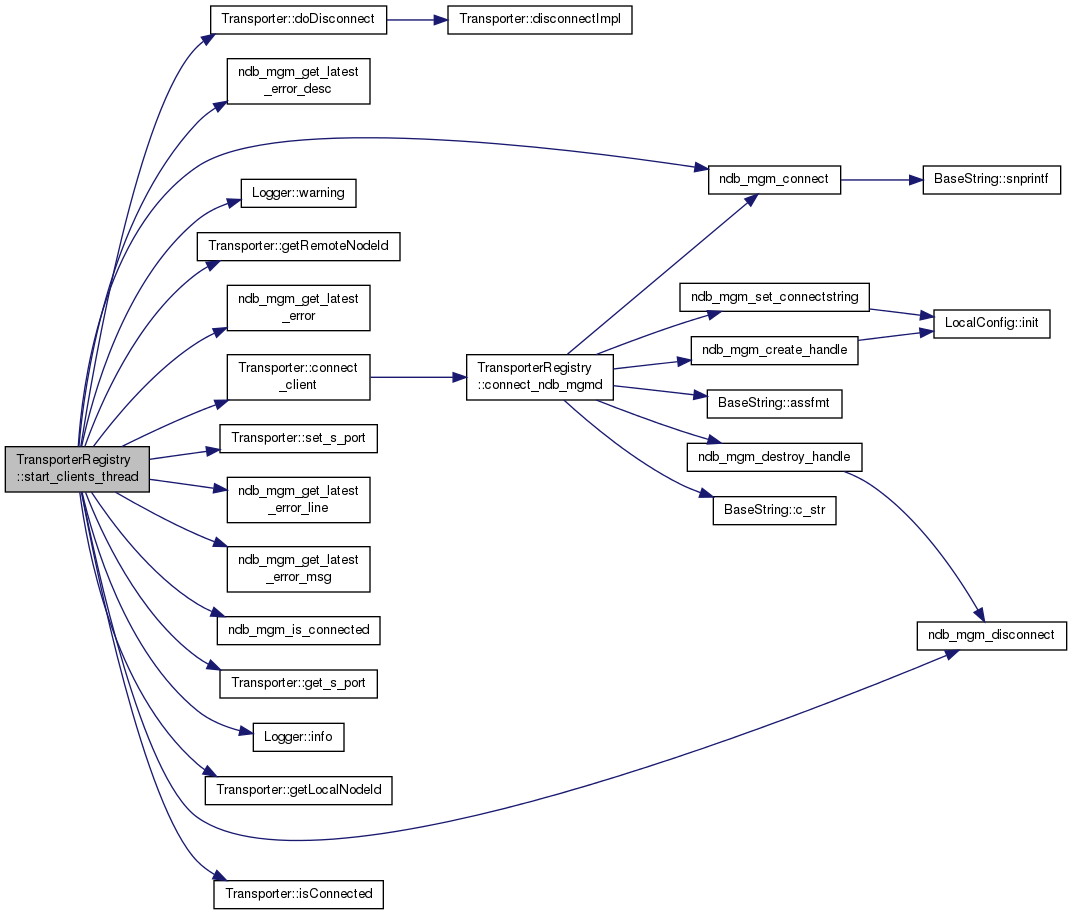

void TransporterRegistry::start_clients_thread ( )

First, we try to connect (if we have a port number).

If dynamic, get the port for connecting from the management server

Server_port == 0 just means that that a mgmt server has not received a new port yet. Keep the old.

else We will not be able to get a new port unless the m_mgm_handle is connected. Note that not being connected is an ok state, just continue until it is able to connect. Continue using the old port until we can connect again and get a new port.

Definition at line 1697 of file TransporterRegistry.cpp.

Here is the call graph for this function:

void TransporterRegistry::startReceiving ( )

Start/Stop receiving

Definition at line 1947 of file TransporterRegistry.cpp.

Here is the call graph for this function:

void TransporterRegistry::startSending ( )

Start/Stop sending

Definition at line 1988 of file TransporterRegistry.cpp.

void TransporterRegistry::stopReceiving ( )

Disconnect all transporters, this includes detach from remote node and since that must be done from the same process that called attach it's done here in the receive thread

Definition at line 1978 of file TransporterRegistry.cpp.

Here is the call graph for this function:

void TransporterRegistry::update_connections ( )

update_connections(), together with the thread running in start_clients_thread(), handle the state changes for transporters as they connect and disconnect.

Definition at line 1660 of file TransporterRegistry.cpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

storage/ndb/include/transporter/TransporterRegistry.hpp
storage/ndb/src/common/transporter/Packer.cpp
storage/ndb/src/common/transporter/TransporterRegistry.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
