Sys_var_bit Class Reference

#include <sys_vars.h>

Inheritance diagram for Sys_var_bit:

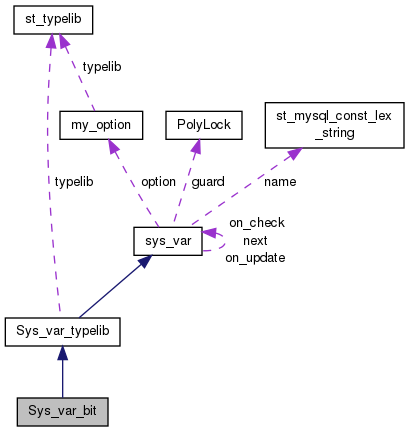

Collaboration diagram for Sys_var_bit:

Public Member Functions
	Sys_var_bit (const char *name_arg, const char *comment, int flag_args, ptrdiff_t off, size_t size, CMD_LINE getopt, ulonglong bitmask_arg, my_bool def_val, PolyLock *lock=0, enum binlog_status_enum binlog_status_arg=VARIABLE_NOT_IN_BINLOG, on_check_function on_check_func=0, on_update_function on_update_func=0, const char *substitute=0)
bool	session_update (THD *thd, set_var *var)
bool	global_update (THD *thd, set_var *var)
void	session_save_default (THD *thd, set_var *var)
void	global_save_default (THD *thd, set_var *var)
uchar *	session_value_ptr (THD *thd, LEX_STRING *base)
uchar *	global_value_ptr (THD *thd, LEX_STRING *base)
Public Member Functions inherited from Sys_var_typelib
	Sys_var_typelib (const char *name_arg, const char *comment, int flag_args, ptrdiff_t off, CMD_LINE getopt, SHOW_TYPE show_val_type_arg, const char *values[], ulonglong def_val, PolyLock *lock, enum binlog_status_enum binlog_status_arg, on_check_function on_check_func, on_update_function on_update_func, const char *substitute, int parse_flag=PARSE_NORMAL)
bool	do_check (THD *thd, set_var *var)
bool	check_update_type (Item_result type)
Public Member Functions inherited from sys_var
	sys_var (sys_var_chain *chain, const char *name_arg, const char *comment, int flag_args, ptrdiff_t off, int getopt_id, enum get_opt_arg_type getopt_arg_type, SHOW_TYPE show_val_type_arg, longlong def_val, PolyLock *lock, enum binlog_status_enum binlog_status_arg, on_check_function on_check_func, on_update_function on_update_func, const char *substitute, int parse_flag)
virtual void	cleanup ()
virtual sys_var_pluginvar *	cast_pluginvar ()
bool	check (THD *thd, set_var *var)
uchar *	value_ptr (THD *thd, enum_var_type type, LEX_STRING *base)
virtual void	update_default (longlong new_def_value)
bool	set_default (THD *thd, set_var *var)
bool	update (THD *thd, set_var *var)
SHOW_TYPE	show_type ()
int	scope () const
const CHARSET_INFO *	charset (THD *thd)
bool	is_readonly () const
bool	not_visible () const
bool	is_struct ()
bool	is_written_to_binlog (enum_var_type type)
bool	check_type (enum_var_type type)
bool	register_option (std::vector< my_option > *array, int parse_flags)
void	do_deprecated_warning (THD *thd)

Additional Inherited Members
Public Types inherited from sys_var
enum	flag_enum {   GLOBAL, SESSION, ONLY_SESSION, SCOPE_MASK = 1023,   READONLY = 1024, ALLOCATED = 2048, INVISIBLE = 4096 }
enum	binlog_status_enum { VARIABLE_NOT_IN_BINLOG, SESSION_VARIABLE_IN_BINLOG }
Public Attributes inherited from sys_var
sys_var *	next
LEX_CSTRING	name
enum sys_var::binlog_status_enum	binlog_status
Static Public Attributes inherited from sys_var
static const int	PARSE_EARLY = 1
static const int	PARSE_NORMAL = 2
Protected Types inherited from sys_var
typedef bool(*	on_check_function )(sys_var *self, THD *thd, set_var *var)
typedef bool(*	on_update_function )(sys_var *self, THD *thd, enum_var_type type)
Protected Member Functions inherited from sys_var
uchar *	session_var_ptr (THD *thd)
uchar *	global_var_ptr ()
Protected Attributes inherited from Sys_var_typelib
TYPELIB	typelib

Detailed Description

The class for bit variables - a variant of boolean that stores the value in a bit.

Class specific constructor arguments: ulonglong bitmask_arg - the mask for the bit to set in the ulonglong backing store

Backing store: ulonglong

Note

This class supports the "reverse" semantics, when the value of the bit being 0 corresponds to the value of variable being set. To activate it use REVERSE(bitmask) instead of simply bitmask in the constructor.

variables of this class cannot be set from the command line as my_getopt does not support bits.

Definition at line 1345 of file sys_vars.h.

Member Function Documentation

void Sys_var_bit::global_save_default ( THD *  thd, set_var *  var  )

inlinevirtual

save the global default value of the variable in var

Implements sys_var.

Definition at line 1390 of file sys_vars.h.

void Sys_var_bit::session_save_default ( THD *  thd, set_var *  var  )

inlinevirtual

save the session default value of the variable in var

Implements sys_var.

Definition at line 1388 of file sys_vars.h.

uchar* Sys_var_bit::session_value_ptr ( THD *  thd, LEX_STRING *  base  )

inlinevirtual

A pointer to a value of the variable for SHOW. It must be of show_val_type type (bool for SHOW_BOOL, int for SHOW_INT, longlong for SHOW_LONGLONG, etc).

Reimplemented from sys_var.

Definition at line 1392 of file sys_vars.h.

---

The documentation for this class was generated from the following file:

• sql/sys_vars.h
